◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#47111) — 32 parça

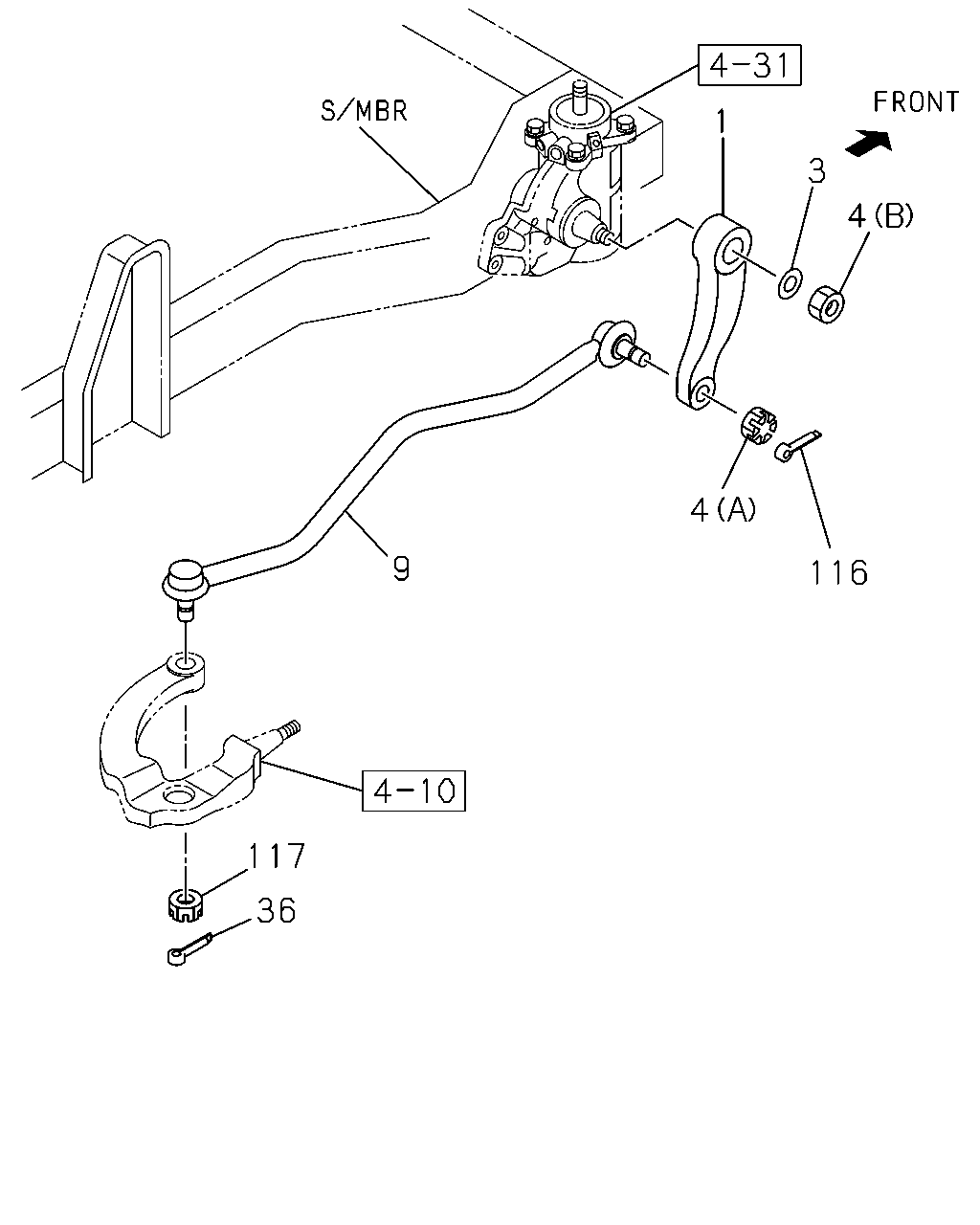

çizim 55516
1 3 4 4 9 116 117 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.859 ARM; PITMAN,STRG 8-97037-746-1 01 1 0302-0506 ● ● ● ● ● ● ●
1 06.859 ARM; PITMAN,STRG 8-97037-746-1 01 1 0507- ● ● ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
08.931 ID=27.5 		9-09150-527-0 01 1 0302-0506 ● ● ● ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
08.931 ID=27.5 		9-09150-527-0 01 1 0507-0603 ● ● ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
ID=27.5 		0-91510-527-0 01 1 0604- ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
(B) M27 		5-12378-002-0 01 1 0302-0506 ● ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
(B) M27 		5-12378-002-0 01 1 0507-0610 ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
(B) M27 		8-97359-616-0 01 1 0611- ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0302-0506 ● ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
(A) M18 SLOTTED 		8-97017-761-0 01 1 0507-0805 ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
06.174 (A) M18 SLOTTED 		8-97245-632-0 01 1 0806- ● ● ● ● ● ●
9 06.870 LINK; DRAG 8-97145-450-0 01 1 0302-0506 ● ● ● ● ● ●
9 06.870 LINK; DRAG
FRAME STRAIGHT TYPE<7KJ> 		8-97145-450-0 01 1 0302-0506 ●
9 06.870 LINK; DRAG
FRAME STRAIGHT TYPE<7KJ> 		8-97145-450-0 01 1 0507-0606 ●
9 06.870 LINK; DRAG 8-97145-450-0 01 1 0507-0606 ● ● ● ●
9 06.870 LINK; DRAG
FRAME STRAIGHT TYPE<7KJ> 		8-97145-450-1 01 1 0607- ● ●
9 06.870 LINK; DRAG 8-97145-450-1 01 1 0607- ● ●
9 06.870 LINK; DRAG
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97145-407-0 01 1 0302-0506 ●
9 06.870 LINK; DRAG 8-97145-407-0 01 1 0507-0606 ●
9 06.870 LINK; DRAG
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97145-407-0 01 1 0507-0606 ●
9 06.870 LINK; DRAG 8-97145-407-1 01 1 0607- ● ●
9 06.870 LINK; DRAG
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97145-407-1 01 1 0607- ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0302-0506 ● ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0507-0611 ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97387-864-0 01 1 0612-0612 ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0701-0804 ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-98098-024-0 01 1 0805- ● ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 0302-0506 ● ● ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 0507- ● ● ● ● ● ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0302-0506 ● ● ● ● ● ● ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0507-0610 ● ● ● ● ● ●
117 06.233 NUT; DRAG LINK
06.174 M18 SLOTTED 		8-97245-632-0 01 1 0611- ● ● ● ● ● ●
