0-52B — OIL AND VACUUM PIPING; ENGINE (#4711) — 169 parça

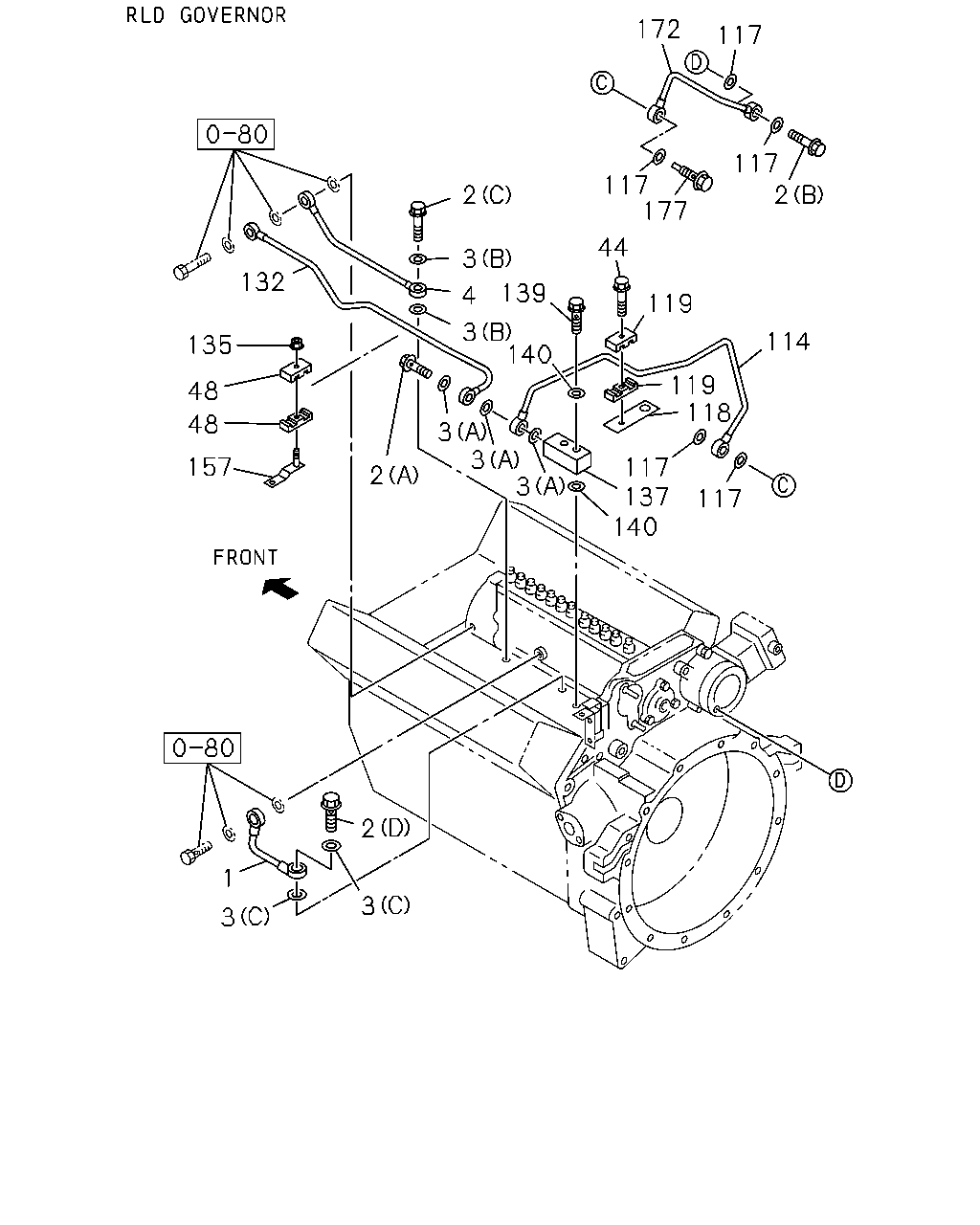

çizim 40420
172 117 117 2 117 177 2 44 3 132 139 4 119 3 140 114 135 119 118 48 3 3 48 3 157 117 137 140 2 117 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; OIL,INJ PUMP TO C/BL
RLD GOVERNOR(SD7) 		1-13313-495-0 01 1 9604-9904 ●
1 PIPE; OIL,INJ PUMP TO C/BL
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-13313-495-0 01 1 9905-0003 ●
1 PIPE; OIL,INJ PUMP TO C/BL
RLD GOVERNOR(SD7) 		1-13313-495-0 01 1 0004- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 01 1 9603-9702 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9603-9809 ●
2 BOLT; EYE,OIL PIPE
(A) M10X32 		1-09675-119-0 01 1 9603-9705 ●
2 BOLT; EYE,OIL PIPE
(A) M10X32 		1-09675-119-0 01 1 9706-9809 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 01 1 9703-9904 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9810-9904 ●
2 BOLT; EYE,OIL PIPE
(A) M10X32 		1-09675-119-0 01 1 9810-9904 ●
2 BOLT; EYE,OIL PIPE
RLD GOVERNOR(SD7) (D) M12X27 FLANGE 		1-09675-085-0 01 1 9604-9904 ●
2 BOLT; EYE,OIL PIPE
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (D) M12X27 FLANGE 		1-09675-085-0 01 1 9905-0003 ●
2 BOLT; EYE,OIL PIPE
RLD GOVERNOR(SD7) (D) M12X27 FLANGE 		1-09675-085-0 01 1 0004- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 01 1 9905- ● ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9905- ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X32 		1-09675-119-0 01 1 9905- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (C) ID=12.2 		1-09630-084-0 02 1 9604-9706 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (C) ID=12.2 		1-09630-084-0 02 1 9707-9804 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (C) ID=12.2 		1-09630-084-0 02 1 9805-9904 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (C) ID=12.2 		1-09630-084-0 02 1 9905- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 03 1 9603-9705 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 01 1 9603-9603 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RFD GOVERNOR(SD5) (C) ID=12.2 		1-09630-084-0 01 1 9604-9707 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9904 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 03 1 9706-9904 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RFD GOVERNOR(SD5) (C) ID=12.2 		1-09630-084-0 01 1 9708-9904 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 03 1 9905- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RFD GOVERNOR(SD5) (C) ID=12.2 		1-09630-084-0 01 1 9905- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ● ●
4 PIPE ASM; OIL,GOV TO C/BL 1-13313-618-0 01 1 9603-9603 ●
4 PIPE ASM; OIL,GOV TO C/BL
RFD GOVERNOR(SD5) 		1-13313-618-0 01 1 9604-9904 ●
4 PIPE ASM; OIL,GOV TO C/BL
RFD GOVERNOR(SD5) 		1-13313-618-0 01 1 9905- ● ●
4 PIPE ASM; OIL,GOV TO C/BL
RLD GOVERNOR(SD7) 		1-13313-492-0 01 1 9604-9904 ●
4 PIPE ASM; OIL,GOV TO C/BL
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-13313-492-0 01 1 9905-0003 ●
4 PIPE ASM; OIL,GOV TO C/BL
RLD GOVERNOR(SD7) 		1-13313-492-0 01 1 0004- ●
44 BOLT; CLIP,OIL PIPE
M6X25 FLANGE 		0-28080-625-0 01 1 9603-9904 ●
44 BOLT; CLIP,OIL PIPE
M6X25 FLANGE 		0-28080-625-0 01 1 9905- ● ● ●
48 CLIP; OIL PIPE
RLD GOVERNOR(SD7) 		1-09701-132-0 02 1 9604-9904 ●
48 CLIP; OIL PIPE
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-09701-132-0 02 1 9905-0003 ●
48 CLIP; OIL PIPE
RLD GOVERNOR(SD7) 		1-09701-132-1 02 1 0004- ●
114 PIPE ASM; OIL,BODY 1-13313-619-0 01 1 9603-9904 ●
114 PIPE ASM; OIL,BODY 1-13313-619-0 01 1 9905- ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9603-9904 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9905- ● ● ●
118 BRACKET; CLIP,OIL PIPE 1-13319-041-0 01 1 9603-9904 ●
118 BRACKET; CLIP,OIL PIPE 1-13319-041-0 01 1 9905- ● ● ●
119 CLIP; OIL PIPE,BODY TO CMPR
ID=7 L=25 B=18 		1-09700-851-0 02 1 9603-9904 ●
119 CLIP; OIL PIPE,BODY TO CMPR
ID=7 L=25 B=18 		1-09700-851-0 02 1 9905- ● ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-386-1 01 1 9603-9603 ●
132 PIPE ASM; OIL,INJ PUMP FEED
RFD GOVERNOR(SD5) 		1-13313-386-1 01 1 9604-9904 ●
132 PIPE ASM; OIL,INJ PUMP FEED
RLD GOVERNOR(SD7) 		1-13313-607-0 01 1 9604-9904 ●
132 PIPE ASM; OIL,INJ PUMP FEED
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-13313-607-0 01 1 9905-0003 ●
132 PIPE ASM; OIL,INJ PUMP FEED
RLD GOVERNOR(SD7) 		1-13313-607-0 01 1 0004- ●
132 PIPE ASM; OIL,INJ PUMP FEED
RFD GOVERNOR(SD5) 		1-13313-386-1 01 1 9905- ● ●
135 NUT; CLIP
RLD GOVERNOR(SD7) M6 FLANGE 		0-91150-106-0 01 1 9604-9904 ●
135 NUT; CLIP
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) M6 FLANGE 		0-91150-106-0 01 1 9905-0003 ●
135 NUT; CLIP
RLD GOVERNOR(SD7) M6 FLANGE 		0-91150-106-0 01 1 0004- ●
137 UNION; OIL PIPE 1-09664-170-0 01 1 9603-9904 ●
137 UNION; OIL PIPE 1-09664-170-0 01 1 9905-0008 ● ● ●
137 UNION; OIL PIPE 1-09664-256-0 01 1 0009- ● ● ●
139 BOLT; EYE,UNION
M14X39 FLANGE 		1-09675-089-0 01 1 9603-9904 ●
139 BOLT; EYE,UNION
M14X39 FLANGE 		1-09675-089-0 01 1 9905- ● ● ●
140 GASKET; EYE BOLT,UNION
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9904 ●
140 GASKET; EYE BOLT,UNION
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ● ●
157 BRACKET; OIL PIPE
RLD GOVERNOR(SD7) 		1-15419-363-1 01 1 9604-9904 ●
157 BRACKET; OIL PIPE
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15419-363-1 01 1 9905-9910 ●
157 BRACKET; OIL PIPE
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15419-622-0 01 1 9911-0003 ●
157 BRACKET; OIL PIPE
RLD GOVERNOR(SD7) 		1-15419-622-0 01 1 0004- ●
172 PIPE; OIL,TIMER 1-13313-620-0 01 1 9603-9904 ●
172 PIPE; OIL,TIMER 1-13313-819-0 01 1 9905- ● ● ●
177 JET ASM; OIL,OIL PIPE 1-09679-010-0 01 1 9603-9904 ●
177 JET ASM; OIL,OIL PIPE 1-09679-010-0 01 1 9905- ● ● ●

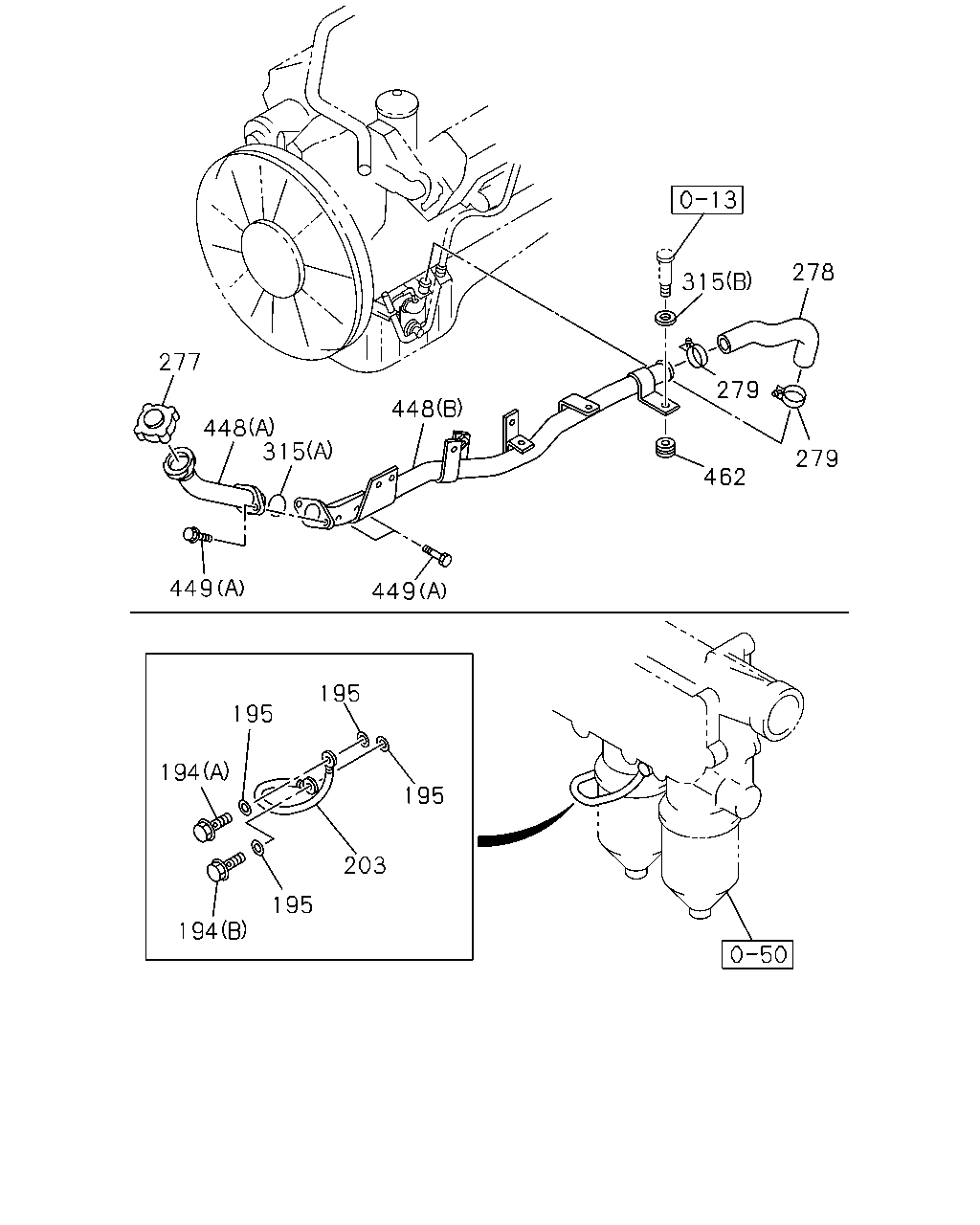

çizim 42268
278 315 277 279 448 448 315 279 462 449 449 195 195 194 195 203 195 194
BalonParca AdiParca NoAdetTipApplied Date A B C
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(B) M14X45 		1-09675-023-1 01 1 9603-9904 ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(B) M14X45 		1-09675-023-1 01 1 9905- ● ● ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(A) M14X33 FLANGE 		1-09675-088-0 01 1 9603-9904 ●
194 BOLT; EYE,FLEX HOSE,PARTIAL FILTER
(A) M14X33 FLANGE 		1-09675-088-0 01 1 9905- ● ● ●
195 GASKET; EYE BOLT,PARTIAL FILTER
ID=14.2 OD=19.2 		1-09630-085-0 04 1 9603-9904 ●
195 GASKET; EYE BOLT,PARTIAL FILTER
ID=14.2 OD=19.2 		1-09630-085-0 04 1 9905- ● ● ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=440 		1-09364-916-0 01 1 9603-9904 ●
203 HOSE; FLEX,PARTIAL FILTER,RETURN
L=440 		1-09364-916-0 01 1 9905- ● ● ●
277 CAP; OIL FILLER 1-11750-020-0 01 1 9603-9706 ●
277 CAP; OIL FILLER 1-11750-020-0 01 1 9905- ● ● ●
277 CAP; OIL FILLER 1-11750-020-0 01 1 9707-9904 ●
278 HOSE; RUBBER,OIL FILLER 1-11749-149-0 01 1 9603-9904 ●
278 HOSE; RUBBER,OIL FILLER 1-11749-149-0 01 1 9905- ● ● ●
279 CLIP; RUBBER HOSE
ID=48 		9-09915-512-1 02 1 9603-9706 ●
279 CLIP; RUBBER HOSE
ID=48 		9-09915-512-1 02 1 9905- ● ● ●
279 CLIP; RUBBER HOSE
ID=48 		9-09915-512-1 02 1 9707-9904 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7 		1-09623-299-0 01 1 9603-9706 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7 		1-09623-299-0 01 1 9707-9804 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7 		1-09623-299-0 01 1 9805-9903 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7 		1-09623-299-0 01 1 9904-9904 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.5 OD=26 		9-09160-612-0 01 1 9603-9904 ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.5 OD=26 		9-09160-612-0 01 1 9905- ● ● ●
315 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7 		1-09623-299-0 01 1 9905- ● ● ●
448 FILLER; OIL
(A) 		1-11741-175-3 01 1 9603-9904 ●
448 FILLER; OIL
(A) 		1-11741-175-4 01 1 9905- ● ● ●
448 FILLER; OIL
(B) 		1-11741-192-1 01 1 9603-9904 ●
448 FILLER; OIL
(B) 		1-11741-192-1 01 1 9905- ● ● ●
449 BOLT; OIL FILLER
(A) M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606 ●
449 BOLT; OIL FILLER
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9609 ●
449 BOLT; OIL FILLER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9610-9904 ●
449 BOLT; OIL FILLER
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905- ● ● ●
449 BOLT; OIL FILLER
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9610-9904 ●
449 BOLT; OIL FILLER
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9905- ● ● ●
462 GROMMET 1-09332-117-0 01 1 9603-9904 ●
462 GROMMET 1-09332-117-0 01 1 9905- ● ● ●

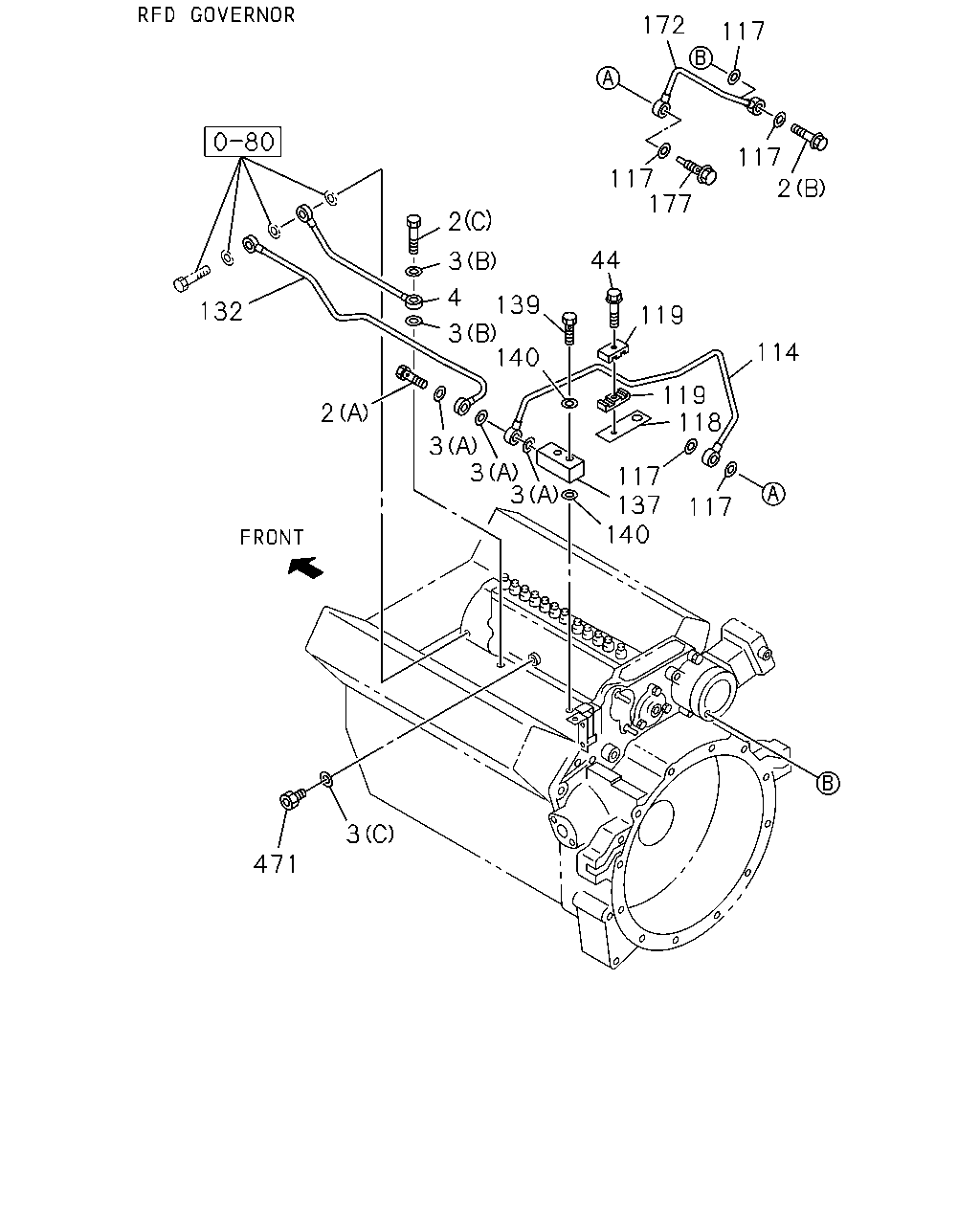

çizim 42508
172 117 117 2 117 177 2 44 3 4 139 3 140 132 119 114 119 118 2 3 3 3 117 137 140 117 3 471
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 01 1 9603-9702 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9603-9809 ●
2 BOLT; EYE,OIL PIPE
(A) M10X32 		1-09675-119-0 01 1 9603-9705 ●
2 BOLT; EYE,OIL PIPE
(A) M10X32 		1-09675-119-0 01 1 9706-9809 ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 01 1 9703-9904 ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9810-9904 ●
2 BOLT; EYE,OIL PIPE
(A) M10X32 		1-09675-119-0 01 1 9810-9904 ●
2 BOLT; EYE,OIL PIPE
RLD GOVERNOR(SD7) (D) M12X27 FLANGE 		1-09675-085-0 01 1 9604-9904 ●
2 BOLT; EYE,OIL PIPE
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (D) M12X27 FLANGE 		1-09675-085-0 01 1 9905-0003 ●
2 BOLT; EYE,OIL PIPE
RLD GOVERNOR(SD7) (D) M12X27 FLANGE 		1-09675-085-0 01 1 0004- ●
2 BOLT; EYE,OIL PIPE
(B) M10X21 FLANGE 		1-09675-077-0 01 1 9905- ● ● ●
2 BOLT; EYE,OIL PIPE
(C) M14X27 FLANGE 		1-09675-086-0 01 1 9905- ● ● ●
2 BOLT; EYE,OIL PIPE
(A) M10X32 		1-09675-119-0 01 1 9905- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (C) ID=12.2 		1-09630-084-0 02 1 9604-9706 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (C) ID=12.2 		1-09630-084-0 02 1 9707-9804 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (C) ID=12.2 		1-09630-084-0 02 1 9805-9904 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RLD GOVERNOR(SD7) (C) ID=12.2 		1-09630-084-0 02 1 9905- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 03 1 9603-9705 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2 		1-09630-084-0 01 1 9603-9603 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RFD GOVERNOR(SD5) (C) ID=12.2 		1-09630-084-0 01 1 9604-9707 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9904 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 03 1 9706-9904 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RFD GOVERNOR(SD5) (C) ID=12.2 		1-09630-084-0 01 1 9708-9904 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 03 1 9905- ● ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). RFD GOVERNOR(SD5) (C) ID=12.2 		1-09630-084-0 01 1 9905- ● ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ● ●
4 PIPE ASM; OIL,GOV TO C/BL 1-13313-618-0 01 1 9603-9603 ●
4 PIPE ASM; OIL,GOV TO C/BL
RFD GOVERNOR(SD5) 		1-13313-618-0 01 1 9604-9904 ●
4 PIPE ASM; OIL,GOV TO C/BL
RFD GOVERNOR(SD5) 		1-13313-618-0 01 1 9905- ● ●
4 PIPE ASM; OIL,GOV TO C/BL
RLD GOVERNOR(SD7) 		1-13313-492-0 01 1 9604-9904 ●
4 PIPE ASM; OIL,GOV TO C/BL
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-13313-492-0 01 1 9905-0003 ●
4 PIPE ASM; OIL,GOV TO C/BL
RLD GOVERNOR(SD7) 		1-13313-492-0 01 1 0004- ●
44 BOLT; CLIP,OIL PIPE
M6X25 FLANGE 		0-28080-625-0 01 1 9603-9904 ●
44 BOLT; CLIP,OIL PIPE
M6X25 FLANGE 		0-28080-625-0 01 1 9905- ● ● ●
114 PIPE ASM; OIL,BODY 1-13313-619-0 01 1 9603-9904 ●
114 PIPE ASM; OIL,BODY 1-13313-619-0 01 1 9905- ● ● ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9603-9904 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9905- ● ● ●
118 BRACKET; CLIP,OIL PIPE 1-13319-041-0 01 1 9603-9904 ●
118 BRACKET; CLIP,OIL PIPE 1-13319-041-0 01 1 9905- ● ● ●
119 CLIP; OIL PIPE,BODY TO CMPR
ID=7 L=25 B=18 		1-09700-851-0 02 1 9603-9904 ●
119 CLIP; OIL PIPE,BODY TO CMPR
ID=7 L=25 B=18 		1-09700-851-0 02 1 9905- ● ● ●
132 PIPE ASM; OIL,INJ PUMP FEED 1-13313-386-1 01 1 9603-9603 ●
132 PIPE ASM; OIL,INJ PUMP FEED
RFD GOVERNOR(SD5) 		1-13313-386-1 01 1 9604-9904 ●
132 PIPE ASM; OIL,INJ PUMP FEED
RLD GOVERNOR(SD7) 		1-13313-607-0 01 1 9604-9904 ●
132 PIPE ASM; OIL,INJ PUMP FEED
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-13313-607-0 01 1 9905-0003 ●
132 PIPE ASM; OIL,INJ PUMP FEED
RLD GOVERNOR(SD7) 		1-13313-607-0 01 1 0004- ●
132 PIPE ASM; OIL,INJ PUMP FEED
RFD GOVERNOR(SD5) 		1-13313-386-1 01 1 9905- ● ●
137 UNION; OIL PIPE 1-09664-170-0 01 1 9603-9904 ●
137 UNION; OIL PIPE 1-09664-170-0 01 1 9905-0008 ● ● ●
137 UNION; OIL PIPE 1-09664-256-0 01 1 0009- ● ● ●
139 BOLT; EYE,UNION
M14X39 FLANGE 		1-09675-089-0 01 1 9603-9904 ●
139 BOLT; EYE,UNION
M14X39 FLANGE 		1-09675-089-0 01 1 9905- ● ● ●
140 GASKET; EYE BOLT,UNION
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9904 ●
140 GASKET; EYE BOLT,UNION
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ● ●
172 PIPE; OIL,TIMER 1-13313-620-0 01 1 9603-9904 ●
172 PIPE; OIL,TIMER 1-13313-819-0 01 1 9905- ● ● ●
177 JET ASM; OIL,OIL PIPE 1-09679-010-0 01 1 9603-9904 ●
177 JET ASM; OIL,OIL PIPE 1-09679-010-0 01 1 9905- ● ● ●
471 PLUG; OIL
M12X10 		5-13265-001-0 01 1 9603-9603 ●
471 PLUG; OIL
RFD GOVERNOR(SD5) M12X10 		5-13265-001-0 01 1 9604-9904 ●
471 PLUG; OIL
RFD GOVERNOR(SD5) M12X10 		5-13265-001-0 01 1 9905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
