◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#47106) — 186 parça

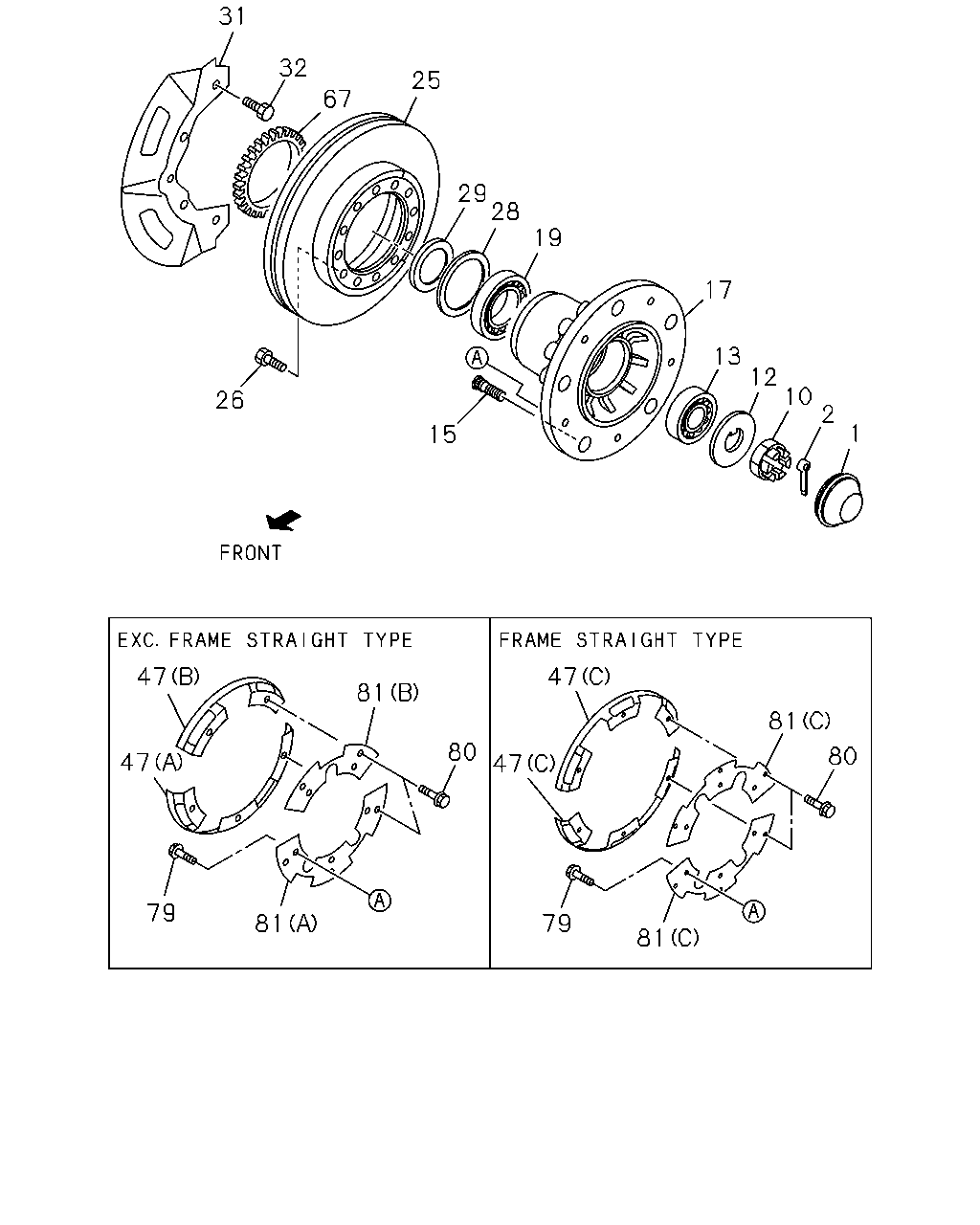

çizim 52975
31 32 25 67 29 28 19 17 13 12 10 2 26 1 15 47 47 81 81 80 80 47 47 79 79 81 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0302-0506 ● ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0507-0611 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612- ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0302-0506 ● ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0507-0606 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0302-0506 ● ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0507- ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0302-0506 ● ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0507- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0302-0506 ● ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0507- ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-0 06 1 0302-0506 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 0302-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 LH THREAD 		8-97168-457-0 06 1 0507-0606 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> M20X53 LH THREAD 		8-97168-457-2 06 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 LH THREAD 		8-97168-457-2 06 1 0607- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-0 06 1 0302-0506 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 0302-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 RH THREAD 		8-97168-456-0 06 1 0507-0606 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> M20X53 RH THREAD 		8-97168-456-2 06 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 RH THREAD 		8-97168-456-2 06 1 0607- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 LH THREAD 		8-97017-042-0 05 1 0302-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-97017-042-0 05 1 0507-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18X46 LH THREAD 		8-97017-042-0 05 1 0507-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-0 05 1 0606-0606 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18X46 LH THREAD 		8-98028-533-0 05 1 0606-0606 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO BRAKE BOOSTER<7QQ> M18X46 LH THREAD 		8-98028-533-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> M18X46 LH THREAD 		8-98028-533-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 RH THREAD 		8-97017-041-0 05 1 0302-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-97017-041-0 05 1 0507-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18X46 RH THREAD 		8-97017-041-0 05 1 0507-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-0 05 1 0606-0606 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18X46 RH THREAD 		8-98028-532-0 05 1 0606-0606 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO BRAKE BOOSTER<7QQ> M18X46 RH THREAD 		8-98028-532-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> M18X46 RH THREAD 		8-98028-532-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0607- ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 0302-0506 ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
FRAME STRAIGHT TYPE<7KJ> 		8-97168-460-0 02 1 0302-0506 ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97168-460-0 02 1 0507-0606 ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 0507-0606 ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97168-460-0 02 1 0607- ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 0607- ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94365-459-0 02 1 0607- ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-501-0 02 1 0507-0606 ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-501-0 02 1 0607- ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97035-160-0 02 1 0302-0506 ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97035-160-0 02 1 0507-0606 ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97035-160-0 02 1 0507-0606 ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97035-160-0 02 1 0607- ●
17 06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97035-160-0 02 1 0607- ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97017-193-0 02 1 0302-0506 ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97017-193-0 02 1 0507- ●
17 06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97017-193-0 02 1 0507- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0302-0506 ● ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0507-1009 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0302-0506 ● ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0507-1009 ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97168-631-1 02 1 0302-0311 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97371-876-0 02 1 0312-0606 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97371-876-0 02 1 0607-0612 ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97371-876-0 02 1 0607-0612 ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97387-229-0 02 1 0701- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97387-229-0 02 1 0701- ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) REFER TO PERIODICAL PCN86 		8-98105-058-0 02 1 0302-0506 ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) REFER TO PERIODICAL PCN86 		8-98105-058-0 02 1 0507- ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0302-0506 ● ● ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0507-0606 ● ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0607- ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB
DISC BRAKE FRT<J52> 		8-94474-923-0 24 1 0607- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0302-0506 ● ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0507- ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0302-0506 ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0507- ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97332-209-1 02 1 0302-0506 ● ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97332-209-1 02 1 0507-0606 ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97332-209-1 02 1 0607-0703 ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> 		8-97332-209-1 02 1 0607-0703 ●
31 04.665 COVER; DUST,FRT BRAKE 8-98037-377-0 02 1 0704- ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> 		8-98037-377-0 02 1 0704- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0302-0506 ● ● ● ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0507-0512 ● ● ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0601-0606 ● ● ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0607- ● ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0607- ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97213-660-0 04 1 0302-0501 ● ● ● ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
(C) 		8-97213-660-0 04 1 0502-0506 ● ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97213-660-0 04 1 0502-0506 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
G.V.W. 6.0-6.5TON(RPV) (C) 		8-97213-660-0 04 1 0502-0506 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97228-399-0 02 1 0302-0506 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-400-0 02 1 0302-0506 ●
67 05.811 ROTOR; SENSOR 8-97206-773-0 02 1 0302-0506 ● ● ● ● ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-773-0 02 1 0302-0506 ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-773-0 02 1 0507-0606 ● ●
67 05.811 ROTOR; SENSOR 8-97206-773-0 02 1 0507-0606 ● ● ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-773-0 02 1 0607- ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97206-773-0 02 1 0607- ●
67 05.811 ROTOR; SENSOR 8-97206-773-0 02 1 0607- ● ● ● ●
79 04.665 BOLT; BRKT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 12 1 0302-0501 ● ● ● ●
79 04.665 BOLT; BRKT
08.900 M8X12 FLANGE 		0-28080-812-0 12 1 0502-0506 ● ●
79 04.665 BOLT; BRKT
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 12 1 0502-0506 ●
79 04.665 BOLT; BRKT
G.V.W. 6.0-6.5TON(RPV) 08.900 M8X12 FLANGE 		0-28080-812-0 12 1 0502-0506 ●
79 04.665 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 08.900 M8X12 FLANGE 		0-28080-812-0 10 1 0302-0506 ●
80 05.812 BOLT; VALVE HOLDER
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 12 1 0302-0501 ● ● ● ●
80 05.812 BOLT; VALVE HOLDER
02.559 M10X16 FLANGE 		0-28081-016-0 12 1 0502-0506 ● ●
80 05.812 BOLT; VALVE HOLDER
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 12 1 0502-0506 ●
80 05.812 BOLT; VALVE HOLDER
G.V.W. 6.0-6.5TON(RPV) 02.559 M10X16 FLANGE 		0-28081-016-0 12 1 0502-0506 ●
80 05.812 BOLT; VALVE HOLDER
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M10X16 FLANGE 		0-28081-016-0 10 1 0302-0506 ●
81 05.812 BRACKET; VALVE HOLDER
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> (C) 		8-97214-247-0 04 1 0302-0501 ● ● ● ●
81 05.812 BRACKET; VALVE HOLDER
(C) 		8-97214-247-0 04 1 0502-0506 ● ●
81 05.812 BRACKET; VALVE HOLDER
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97214-247-0 04 1 0502-0506 ●
81 05.812 BRACKET; VALVE HOLDER
G.V.W. 6.0-6.5TON(RPV) (C) 		8-97214-247-0 04 1 0502-0506 ●
81 05.812 BRACKET; VALVE HOLDER
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97214-248-0 02 1 0302-0506 ●
81 05.812 BRACKET; VALVE HOLDER
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97214-249-0 02 1 0302-0506 ●

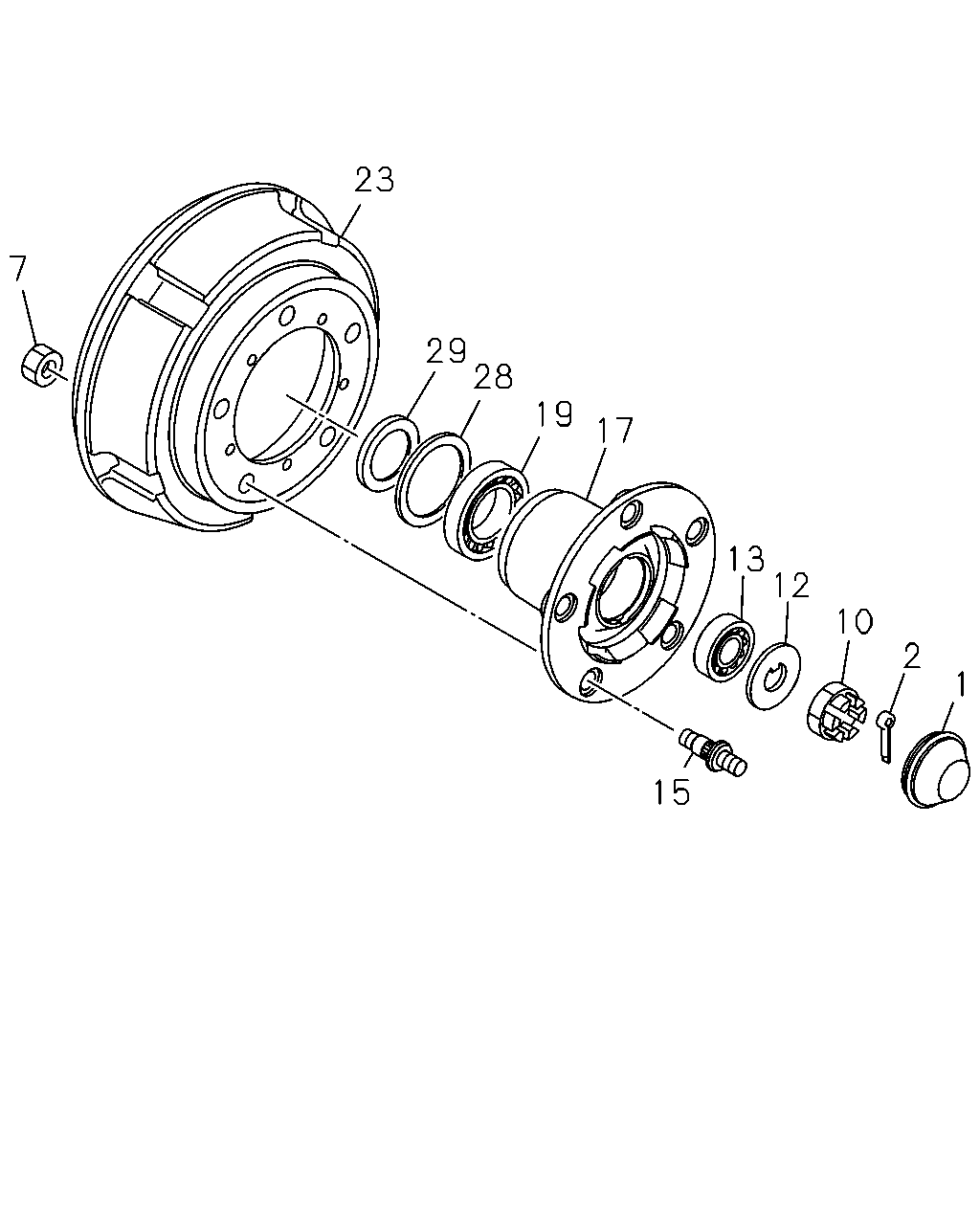

çizim 54422
23 7 29 28 19 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0302-0506 ● ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0507-0611 ● ● ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612- ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0302-0506 ● ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0507-0606 ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ● ● ● ●
7 05.812 NUT; FRT HUB
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M20 		0-91110-520-0 10 1 0607- ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0302-0506 ● ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0507- ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0302-0506 ● ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0507- ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0302-0506 ● ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0507- ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 LH THREAD 		8-97168-457-0 06 1 0302-0506 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRAME STRAIGHT TYPE<7KJ> M20X53 LH THREAD 		8-97168-457-0 06 1 0302-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 LH THREAD 		8-97168-457-0 06 1 0507-0606 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> M20X53 LH THREAD 		8-97168-457-2 06 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 LH THREAD 		8-97168-457-2 06 1 0607- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M20X53 RH THREAD 		8-97168-456-0 06 1 0302-0506 ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRAME STRAIGHT TYPE<7KJ> M20X53 RH THREAD 		8-97168-456-0 06 1 0302-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 RH THREAD 		8-97168-456-0 06 1 0507-0606 ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> M20X53 RH THREAD 		8-97168-456-2 06 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) M20X53 RH THREAD 		8-97168-456-2 06 1 0607- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 LH THREAD 		8-97017-042-0 05 1 0302-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-97017-042-0 05 1 0507-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18X46 LH THREAD 		8-97017-042-0 05 1 0507-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-0 05 1 0606-0606 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18X46 LH THREAD 		8-98028-533-0 05 1 0606-0606 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO BRAKE BOOSTER<7QQ> M18X46 LH THREAD 		8-98028-533-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> M18X46 LH THREAD 		8-98028-533-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRAME STRAIGHT TYPE<7KJ> M18X46 RH THREAD 		8-97017-041-0 05 1 0302-0506 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-97017-041-0 05 1 0507-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18X46 RH THREAD 		8-97017-041-0 05 1 0507-0605 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-0 05 1 0606-0606 ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) M18X46 RH THREAD 		8-98028-532-0 05 1 0606-0606 ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. HYDRO BRAKE BOOSTER<7QQ> M18X46 RH THREAD 		8-98028-532-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HYDRO BRAKE BOOSTER<7QQ> M18X46 RH THREAD 		8-98028-532-1 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0607- ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 0302-0506 ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
FRAME STRAIGHT TYPE<7KJ> 		8-97168-460-0 02 1 0302-0506 ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97168-460-0 02 1 0507-0606 ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 0507-0606 ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97168-460-0 02 1 0607- ●
17 06.307 HUB; FRT AXLE 8-97168-460-0 02 1 0607- ● ● ● ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94365-459-0 02 1 0607- ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-501-0 02 1 0507-0606 ●
17 06.307 HUB; FRT AXLE
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-501-0 02 1 0607- ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97035-160-0 02 1 0302-0506 ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97035-160-0 02 1 0507-0606 ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97035-160-0 02 1 0507-0606 ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97035-160-0 02 1 0607- ●
17 06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97035-160-0 02 1 0607- ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97017-193-0 02 1 0302-0506 ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97017-193-0 02 1 0507- ●
17 06.307 HUB; FRT AXLE
G.V.W. 3.5-4.0TON(RPQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97017-193-0 02 1 0507- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0302-0506 ● ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0507-1009 ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0302-0506 ● ● ● ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0507-1009 ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94385-650-3 02 1 0607- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0302-0506 ● ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0507- ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0302-0506 ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0507- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
