◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#47101) — 566 parça

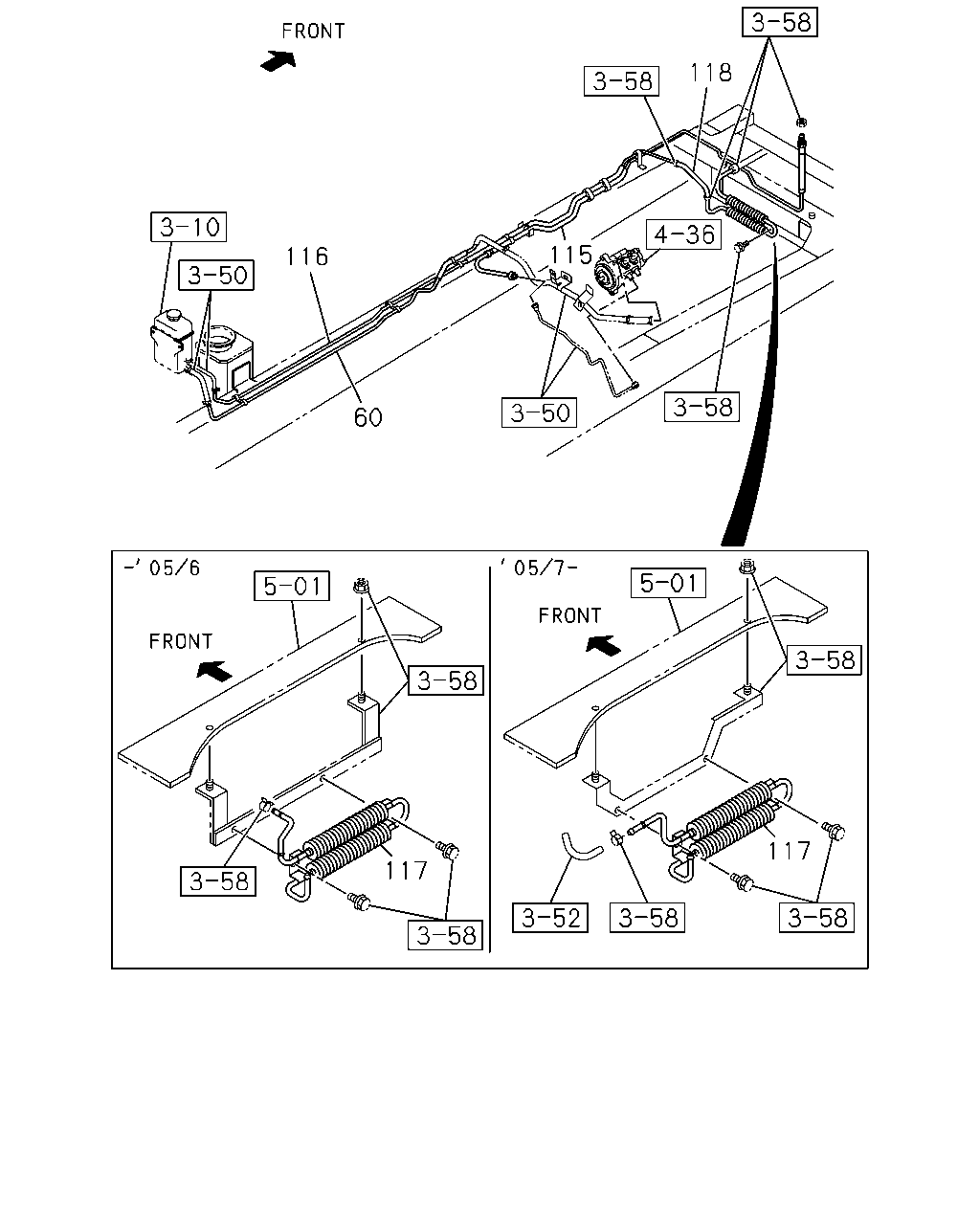

çizim 12735
118 115 116 60 117 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
60 04.685 PIPE ASM; BRK
4HE1 ENG(RLY) 		8-97255-809-0 01 1 0302-0506 ●
60 04.685 PIPE ASM; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97255-809-0 01 1 0507-0606 ●
60 04.685 PIPE ASM; BRK 8-97255-809-0 01 1 0607- ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 		8-97201-967-2 01 1 0302-0506 ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) 		8-97201-967-2 01 1 0302-0506 ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97385-597-0 01 1 0507-0606 ● ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-98035-908-2 01 1 0607- ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 8-98035-908-2 01 1 0607- ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97385-598-0 01 1 0507-0606 ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97334-117-1 01 1 0302-0306 ●
116 04.685 PIPE; BRK,PIPE TO TANK
HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97370-421-0 01 1 0307-0606 ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-970-0 01 1 0302-0506 ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97330-452-3 01 1 0507-0606 ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97330-452-3 01 1 0607- ● ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-97330-452-3 01 1 0607- ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) 		8-97255-808-0 01 1 0302-0506 ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97330-453-2 01 1 0507-0606 ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-98052-164-0 01 1 0607- ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-2 01 1 0302-0506 ● ●
117 04.685 PIPE; BRK,RETURN 8-97180-991-2 01 1 0302-0506 ● ● ●
117 04.685 PIPE; BRK,RETURN
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97386-605-0 01 1 0507-0606 ● ● ● ●
117 04.685 PIPE; BRK,RETURN
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97386-605-0 01 1 0607- ● ●
117 04.685 PIPE; BRK,RETURN 8-97386-605-0 01 1 0607- ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0302-0506 ● ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0302-0506 ● ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0507-0606 ● ● ● ●
118 04.680 HOSE; PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0607- ● ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0607- ● ●

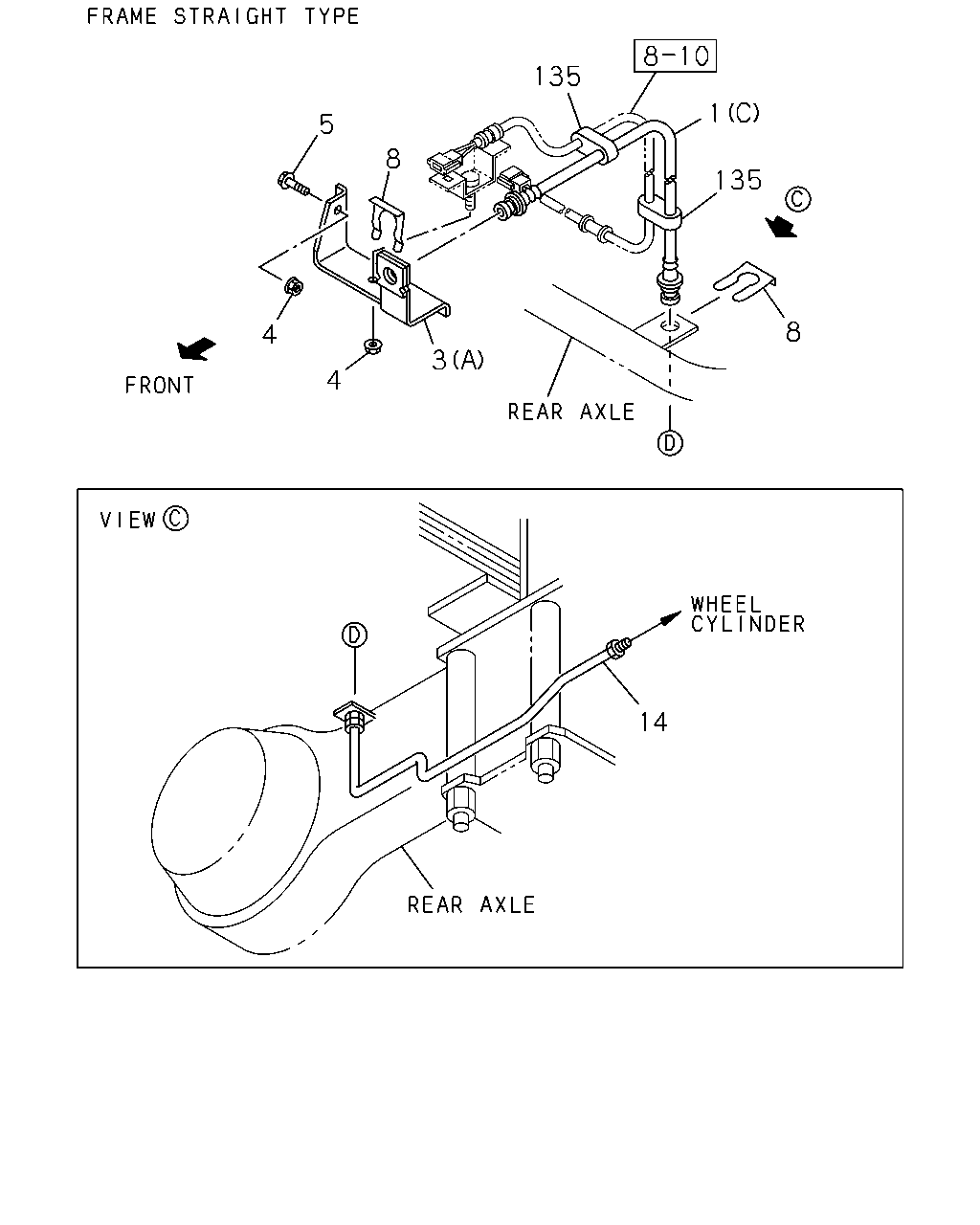

çizim 13197
135 1 5 8 135 8 4 3 4 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0302-0506 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0302-0506 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0507-0606 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0302-0506 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0302-0506 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0507-0606 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 0302- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0302-0506 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0302-0311 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0302-0311 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0312-0506 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430 		8-97077-458-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430 		8-97077-458-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0302-0506 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0302-0506 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0302-0506 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0302-0506 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0507-0606 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0507-0606 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0507-0606 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0507-0606 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0607- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0607- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0607- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97286-902-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97286-902-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-97286-902-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0302-0506 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0507-0606 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97046-936-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0302-0506 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 04 1 0302-0506 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0302-0506 ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0507-0610 ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 04 1 0507-0610 ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0611- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0611- ● ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0302-0506 ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0507-0610 ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0611- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-086-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 0507-0606 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ>, HYDROBRAKE BOOSTER<7QQ> 		8-97206-086-1 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ>, HYDROBRAKE BOOSTER<7QQ> 		8-97359-746-0 01 1 0702- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-531-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-531-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-531-1 01 1 0507-0606 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-531-1 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-531-1 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97088-703-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-212-0 01 1 0302-0606 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-212-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-212-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97202-212-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-213-0 01 1 0302-0606 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-213-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-213-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97202-213-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97082-925-1 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97082-925-1 01 1 0507-0606 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97082-925-1 01 1 0607-0610 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-98027-464-0 01 1 0611- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97042-078-2 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97042-078-2 01 1 0507-0610 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-98026-038-0 01 1 0611- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1-TC ENG(RDM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0507-0606 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-795-2 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0302-0506 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-795-2 01 1 0507-0606 ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97212-795-2 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97359-748-0 01 1 0702- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0702- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-796-2 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-796-2 01 1 0302-0506 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-796-2 01 1 0507-0606 ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-796-2 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-796-2 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-796-2 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 0702- ● ●
135 04.686 CLIP; FLEX HOSE 8-97207-699-0 04 1 0302-0506 ● ● ● ● ● ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 0302-0506 ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 0507-0606 ●
135 04.686 CLIP; FLEX HOSE 8-97207-699-0 04 1 0507-0606 ● ● ● ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 0607- ●
135 04.686 CLIP; FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> 		8-97207-699-0 04 1 0607- ●
135 04.686 CLIP; FLEX HOSE 8-97207-699-0 04 1 0607- ● ●

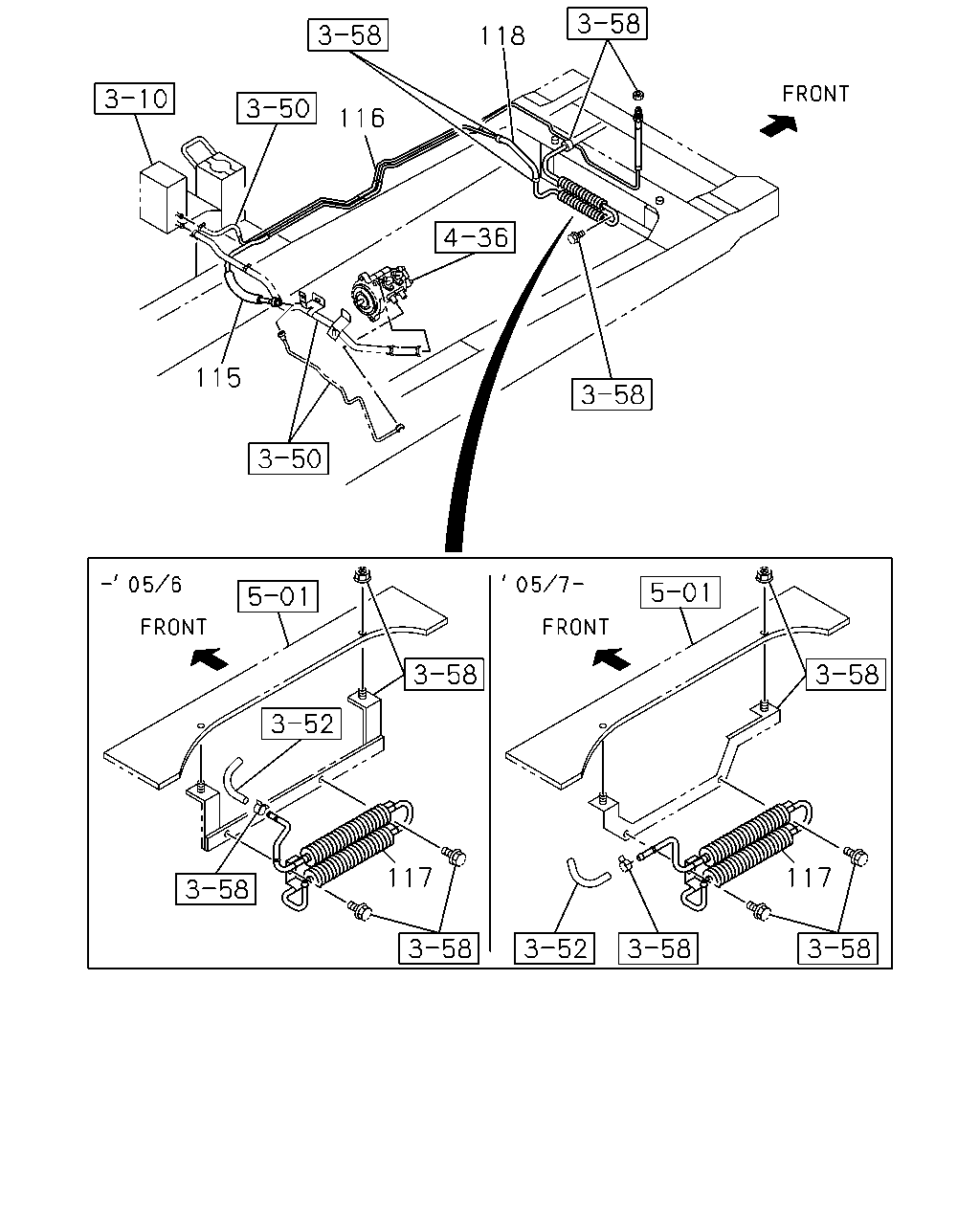

çizim 13518
118 116 115 117 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 		8-97201-967-2 01 1 0302-0506 ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HE1 ENG(RLY) 		8-97201-967-2 01 1 0302-0506 ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97385-597-0 01 1 0507-0606 ● ● ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-98035-908-2 01 1 0607- ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE 8-98035-908-2 01 1 0607- ● ●
115 04.685 PIPE; PRESS,HYDRAULIC BRK BOOSTE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97385-598-0 01 1 0507-0606 ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97334-117-1 01 1 0302-0306 ●
116 04.685 PIPE; BRK,PIPE TO TANK
HYDRO BRAKE BOOSTER<7QQ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97370-421-0 01 1 0307-0606 ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97201-970-0 01 1 0302-0506 ● ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97330-452-3 01 1 0507-0606 ● ● ●
116 04.685 PIPE; BRK,PIPE TO TANK
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97330-452-3 01 1 0607- ● ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-97330-452-3 01 1 0607- ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HE1 ENG(RLY) 		8-97255-808-0 01 1 0302-0506 ●
116 04.685 PIPE; BRK,PIPE TO TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97330-453-2 01 1 0507-0606 ●
116 04.685 PIPE; BRK,PIPE TO TANK 8-98052-164-0 01 1 0607- ●
117 04.685 PIPE; BRK,RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97180-991-2 01 1 0302-0506 ● ●
117 04.685 PIPE; BRK,RETURN 8-97180-991-2 01 1 0302-0506 ● ● ●
117 04.685 PIPE; BRK,RETURN
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97386-605-0 01 1 0507-0606 ● ● ● ●
117 04.685 PIPE; BRK,RETURN
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97386-605-0 01 1 0607- ● ●
117 04.685 PIPE; BRK,RETURN 8-97386-605-0 01 1 0607- ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0302-0506 ● ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0302-0506 ● ● ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0507-0606 ● ● ● ●
118 04.680 HOSE; PIPE TO PIPE
FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97181-217-2 01 1 0607- ● ●
118 04.680 HOSE; PIPE TO PIPE 8-97181-217-2 01 1 0607- ● ●

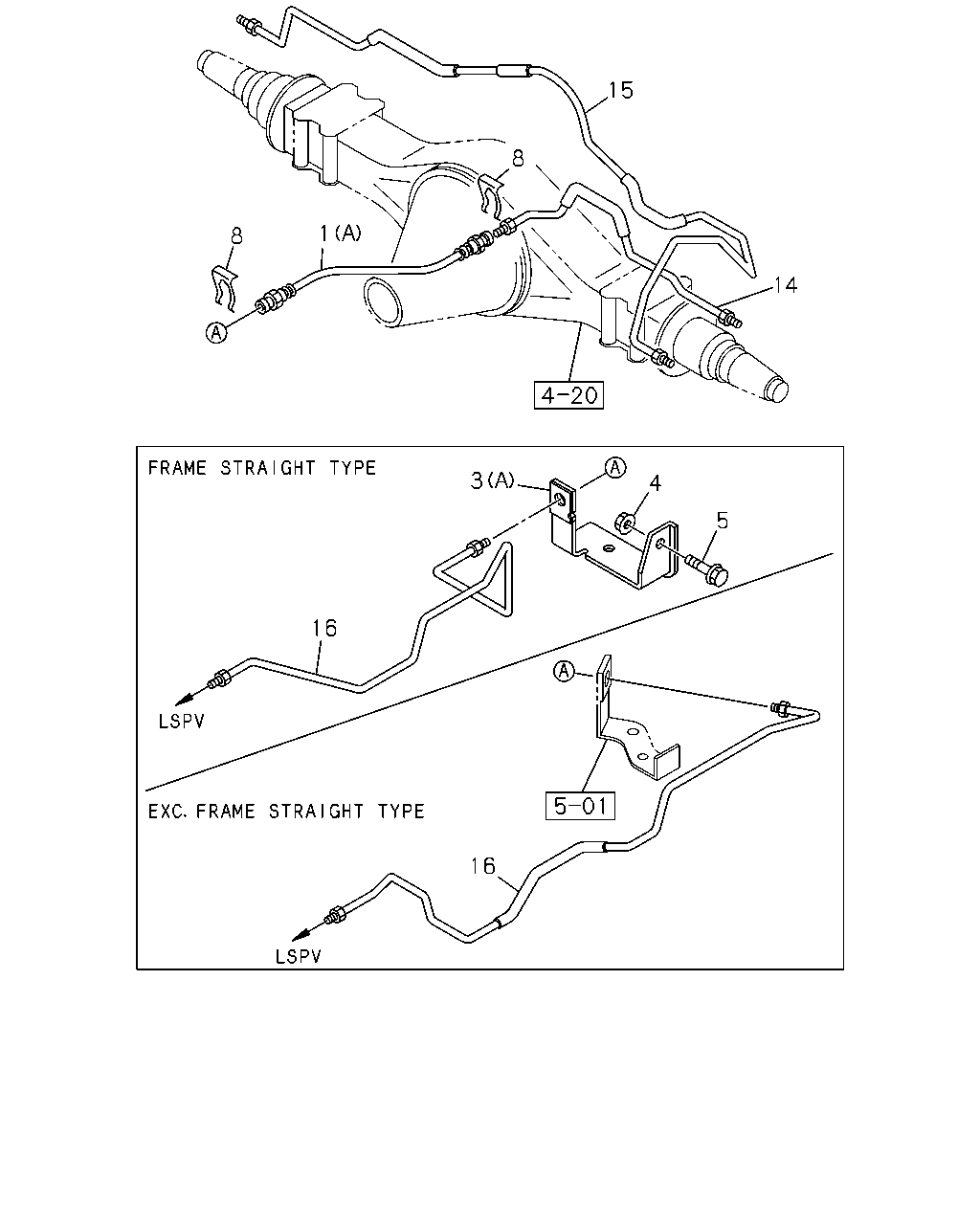

çizim 52901
15 8 1 8 14 3 4 5 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0302-0506 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0302-0506 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0507-0606 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0302-0506 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0302-0506 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0507-0606 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 0302- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0302-0506 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0302-0311 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0302-0311 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0312-0506 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430 		8-97077-458-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430 		8-97077-458-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0302-0506 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0302-0506 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0302-0506 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0302-0506 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0507-0606 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0507-0606 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0507-0606 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0507-0606 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0607- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0607- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0607- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97286-902-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97286-902-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-97286-902-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0302-0506 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0507-0606 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97046-936-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0302-0506 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 04 1 0302-0506 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0302-0506 ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0507-0610 ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 04 1 0507-0610 ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0611- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0611- ● ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0302-0506 ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0507-0610 ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0611- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-086-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 0507-0606 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ>, HYDROBRAKE BOOSTER<7QQ> 		8-97206-086-1 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ>, HYDROBRAKE BOOSTER<7QQ> 		8-97359-746-0 01 1 0702- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-531-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-531-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-531-1 01 1 0507-0606 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-531-1 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-531-1 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97088-703-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-212-0 01 1 0302-0606 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-212-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-212-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97202-212-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-213-0 01 1 0302-0606 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-213-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-213-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97202-213-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97082-925-1 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97082-925-1 01 1 0507-0606 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97082-925-1 01 1 0607-0610 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-98027-464-0 01 1 0611- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97042-078-2 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97042-078-2 01 1 0507-0610 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-98026-038-0 01 1 0611- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1-TC ENG(RDM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0507-0606 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-795-2 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0302-0506 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-795-2 01 1 0507-0606 ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97212-795-2 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97359-748-0 01 1 0702- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0702- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-796-2 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-796-2 01 1 0302-0506 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-796-2 01 1 0507-0606 ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-796-2 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-796-2 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-796-2 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 0702- ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97079-904-0 01 1 0302-0506 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97116-543-2 01 1 0507-0606 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-904-0 01 1 0607- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97129-745-1 01 1 0302-0606 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97079-905-1 01 1 0302-0606 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97122-715-1 01 1 0302- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-735-1 01 1 0302-0506 ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
4JH1-TC ENG(RDM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-735-1 01 1 0507-0606 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-735-1 01 1 0607- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-735-1 01 1 0607- ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97183-535-1 01 1 0302- ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97073-490-4 01 1 0302-0506 ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97073-490-4 01 1 0507- ●
16 08.964 PIPE; OIL,VLV TO RR FLEX HOSE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97073-490-4 01 1 0507- ●

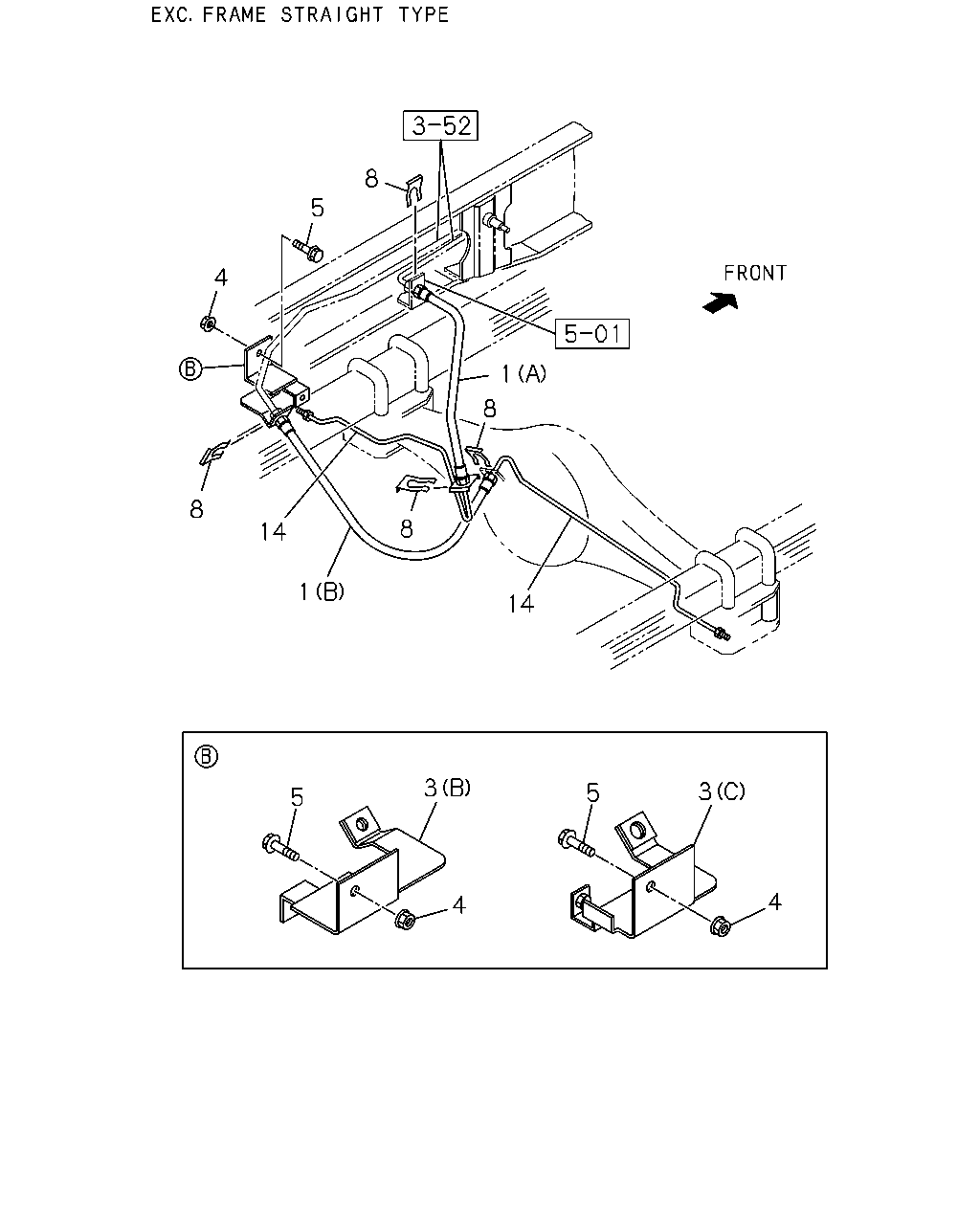

çizim 52945
8 5 4 1 8 8 8 14 1 14 3 3 5 5 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0302-0506 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0302-0506 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0507-0606 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-569-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-569-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0302-0506 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0302-0506 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0507-0606 ● ● ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (C) 		8-97253-570-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
(C) 		8-97253-570-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405 		8-97089-061-0 01 1 0302- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0302-0506 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=370 		8-97035-574-0 01 1 0607- ● ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0302-0311 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0302-0311 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0312-0506 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430 		8-97077-458-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0507-0606 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430 		8-97077-458-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=430 		8-97077-458-0 01 1 0607- ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0302-0506 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0302-0506 ● ● ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0302-0506 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0302-0506 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0507-0606 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0507-0606 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0507-0606 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0507-0606 ● ● ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0607- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0607- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 0607- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97286-902-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97286-902-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-97286-902-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0302-0506 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0507-0606 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97046-936-0 01 1 0607- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97046-936-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0302-0506 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 03 1 0507-0602 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 03 1 0603-0606 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 03 1 0607- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ● ● ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0302-0506 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0507-0512 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0601-0606 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0607-0611 ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0612- ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 04 1 0302-0506 ● ● ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0302-0506 ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 04 1 0507-0610 ● ●
8 04.686 CLIP; RR BRK
04.681 		8-94137-662-0 04 1 0507-0610 ● ● ● ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 0611- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 0611- ● ● ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0302-0506 ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 		8-94137-662-0 02 1 0507-0610 ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 0611- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-086-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-086-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-086-1 01 1 0507-0606 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ>, HYDROBRAKE BOOSTER<7QQ> 		8-97206-086-1 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ>, HYDROBRAKE BOOSTER<7QQ> 		8-97359-746-0 01 1 0702- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97206-531-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97206-531-1 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-531-1 01 1 0507-0606 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-531-1 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97206-531-1 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97359-747-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97088-703-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-97088-703-0 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-212-0 01 1 0302-0606 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-212-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-212-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97202-212-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-213-0 01 1 0302-0606 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-213-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97202-213-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97202-213-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97082-925-1 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97082-925-1 01 1 0507-0606 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97082-925-1 01 1 0607-0610 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-98027-464-0 01 1 0611- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97042-078-2 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97042-078-2 01 1 0507-0610 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-98026-038-0 01 1 0611- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0302-0506 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4JH1-TC ENG(RDM) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0507-0606 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97064-729-0 01 1 0607- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-795-2 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0302-0506 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-795-2 01 1 0507-0606 ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97212-795-2 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-795-2 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> 		8-97359-748-0 01 1 0702- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 0702- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> VEHICLE CATEGORY NQR<7NQ> 		8-97212-796-2 01 1 0302-0506 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-796-2 01 1 0302-0506 ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-796-2 01 1 0507-0606 ● ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-796-2 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97212-796-2 01 1 0607-0701 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97212-796-2 01 1 0607-0701 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 		8-97359-749-0 01 1 0702- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-749-0 01 1 0702- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
