◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50950 - NPR/NQR(EUROPE)-RHD ▶ 3 - Brakes, Brake System ▶ 3-45 - LOAD SENSING PROPORTIONING VALVE ▶
3-45 — LOAD SENSING PROPORTIONING VALVE (#47098) — 45 parça

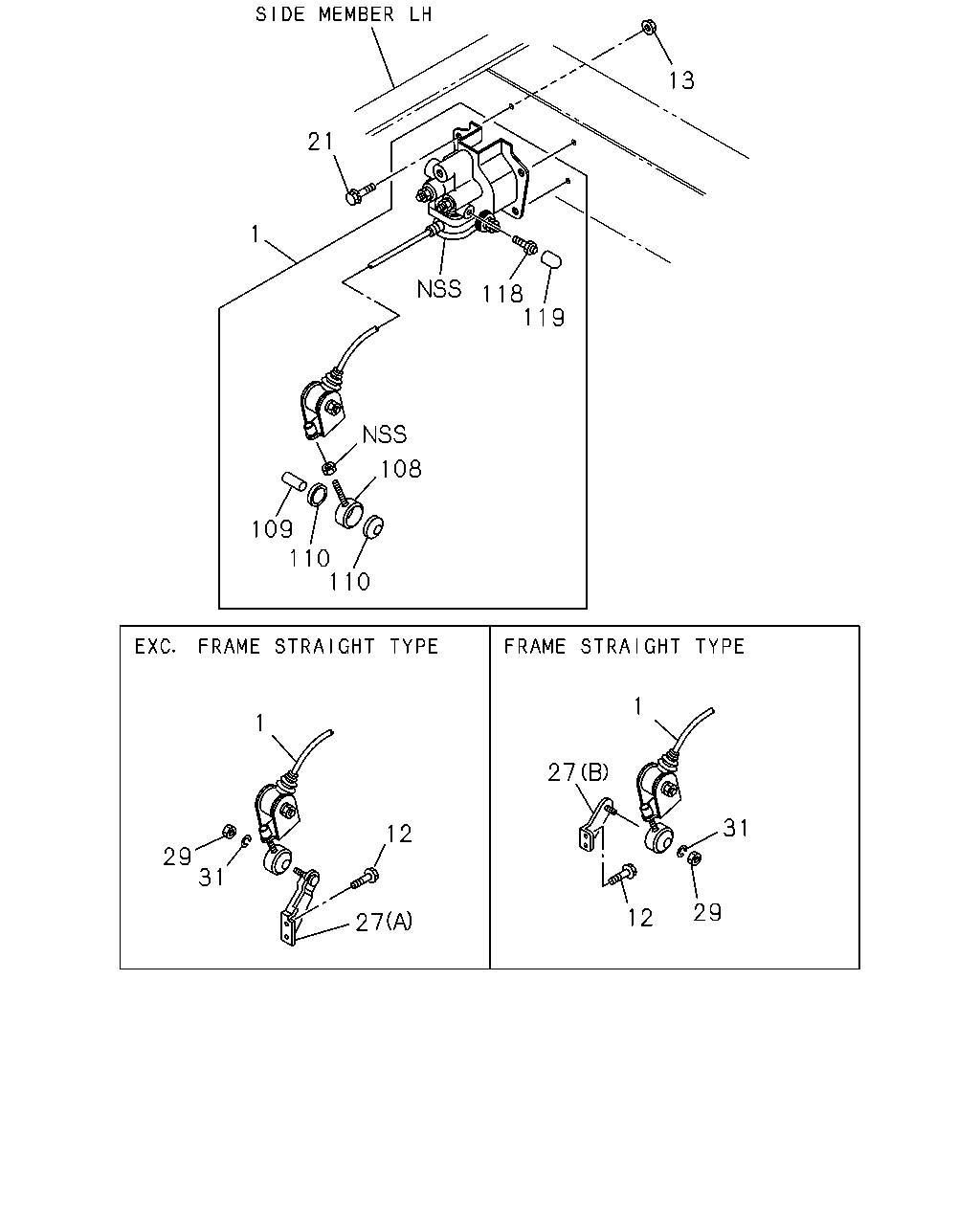

çizim 52830
13 21 1 118 119 108 109 110 110 1 1 27 31 12 29 31 29 12 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.730 VALVE ASM; LOAD SENSING PROPORTI 8-94427-224-2 01 1 0302-0506 ● ● ● ● ● ●
1 04.730 VALVE ASM; LOAD SENSING PROPORTI
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-94427-224-2 01 1 0302-0506 ●
1 04.730 VALVE ASM; LOAD SENSING PROPORTI
G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-94427-224-2 01 1 0507- ●
1 04.730 VALVE ASM; LOAD SENSING PROPORTI 8-94427-224-2 01 1 0507- ● ● ● ●
1 04.730 VALVE ASM; LOAD SENSING PROPORTI
G.V.W. 3.5-4.0TON(RPQ) 		8-94368-455-2 01 1 0302-0506 ●
1 04.730 VALVE ASM; LOAD SENSING PROPORTI 8-94368-455-2 01 1 0507- ●
1 04.730 VALVE ASM; LOAD SENSING PROPORTI
G.V.W. 3.5-4.0TON(RPQ) 		8-94368-455-2 01 1 0507- ●
12 04.730 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0302-0506 ● ● ● ● ● ● ●
12 04.730 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ● ● ● ● ● ●
12 04.730 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ● ● ● ●
13 04.730 NUT; LSPV TO BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0302-0506 ● ● ● ● ● ● ●
13 04.730 NUT; LSPV TO BRKT
07.633 M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ● ● ● ● ●
13 04.730 NUT; LSPV TO BRKT
01.062 M8 FLANGE 		0-91180-108-0 04 1 0603- ● ● ● ● ● ●
21 04.730 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0302-0506 ● ● ● ● ● ● ●
21 04.730 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0507-0512 ● ● ● ● ● ●
21 04.730 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ● ● ● ● ●
27 04.730 BRACKET; SHACKLE TO AXLE
(B) 		8-97181-907-0 01 1 0302-0506 ● ● ● ● ● ●
27 04.730 BRACKET; SHACKLE TO AXLE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97181-907-0 01 1 0302-0506 ●
27 04.730 BRACKET; SHACKLE TO AXLE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97181-907-0 01 1 0507-0606 ●
27 04.730 BRACKET; SHACKLE TO AXLE
(B) 		8-97181-907-0 01 1 0507-0606 ● ● ● ●
27 04.730 BRACKET; SHACKLE TO AXLE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97181-907-0 01 1 0607- ● ●
27 04.730 BRACKET; SHACKLE TO AXLE
(B) 		8-97181-907-0 01 1 0607- ● ●
27 04.730 BRACKET; SHACKLE TO AXLE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97165-499-0 01 1 0302-0506 ●
27 04.730 BRACKET; SHACKLE TO AXLE
(A) 		8-97165-499-0 01 1 0507-0606 ●
27 04.730 BRACKET; SHACKLE TO AXLE
REAR AXLE HEAVY DUTY 292MM(G73) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97165-499-0 01 1 0507-0606 ●
27 04.730 BRACKET; SHACKLE TO AXLE
(A) 		8-97165-499-0 01 1 0607-0610 ● ●
27 04.730 BRACKET; SHACKLE TO AXLE
REAR AXLE HEAVY DUTY 292MM(G73) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97165-499-0 01 1 0607-0610 ● ●
27 04.730 BRACKET; SHACKLE TO AXLE
(A) 		8-98029-822-0 01 1 0611- ● ●
27 04.730 BRACKET; SHACKLE TO AXLE
REAR AXLE HEAVY DUTY 292MM(G73) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98029-822-0 01 1 0611- ● ●
29 04.710 NUT; SHACKLE
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ● ● ● ● ●
29 04.710 NUT; SHACKLE
07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ● ● ● ●
29 04.710 NUT; SHACKLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ● ● ●
31 04.710 WASHER; LK,SHACKLE
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0302-0506 ● ● ● ● ● ● ●
31 04.710 WASHER; LK,SHACKLE
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0507-0605 ● ● ● ● ● ●
31 04.710 WASHER; LK,SHACKLE
04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0606- ● ● ● ● ● ●
108 04.710 SHACKLE; LSPV 8-97173-366-0 01 1 0302-0506 ● ● ● ● ● ● ●
108 04.710 SHACKLE; LSPV 8-97173-366-0 01 1 0507- ● ● ● ● ● ●
109 04.710 COLLAR; LSPV 8-97139-186-0 01 1 0302-0506 ● ● ● ● ● ● ●
109 04.710 COLLAR; LSPV 8-97139-186-0 01 1 0507- ● ● ● ● ● ●
110 04.710 BUSHING; LSPV 8-97145-631-0 02 1 0302-0506 ● ● ● ● ● ● ●
110 04.710 BUSHING; LSPV 8-97145-631-0 02 1 0507- ● ● ● ● ● ●
118 04.710 SCREW; BLEEDER,LSPV
04.685 		8-97093-663-0 01 1 0302-0506 ● ● ● ● ● ● ●
118 04.710 SCREW; BLEEDER,LSPV
04.685 		8-97093-663-0 01 1 0507- ● ● ● ● ● ●
119 04.710 CAP; BLEEDER SCREW,LSPV
04.685 		8-97093-662-0 01 1 0302-0506 ● ● ● ● ● ● ●
119 04.710 CAP; BLEEDER SCREW,LSPV
04.685 		8-97093-662-0 01 1 0507- ● ● ● ● ● ●
