Sayfa 3-30 - Isuzu EPC

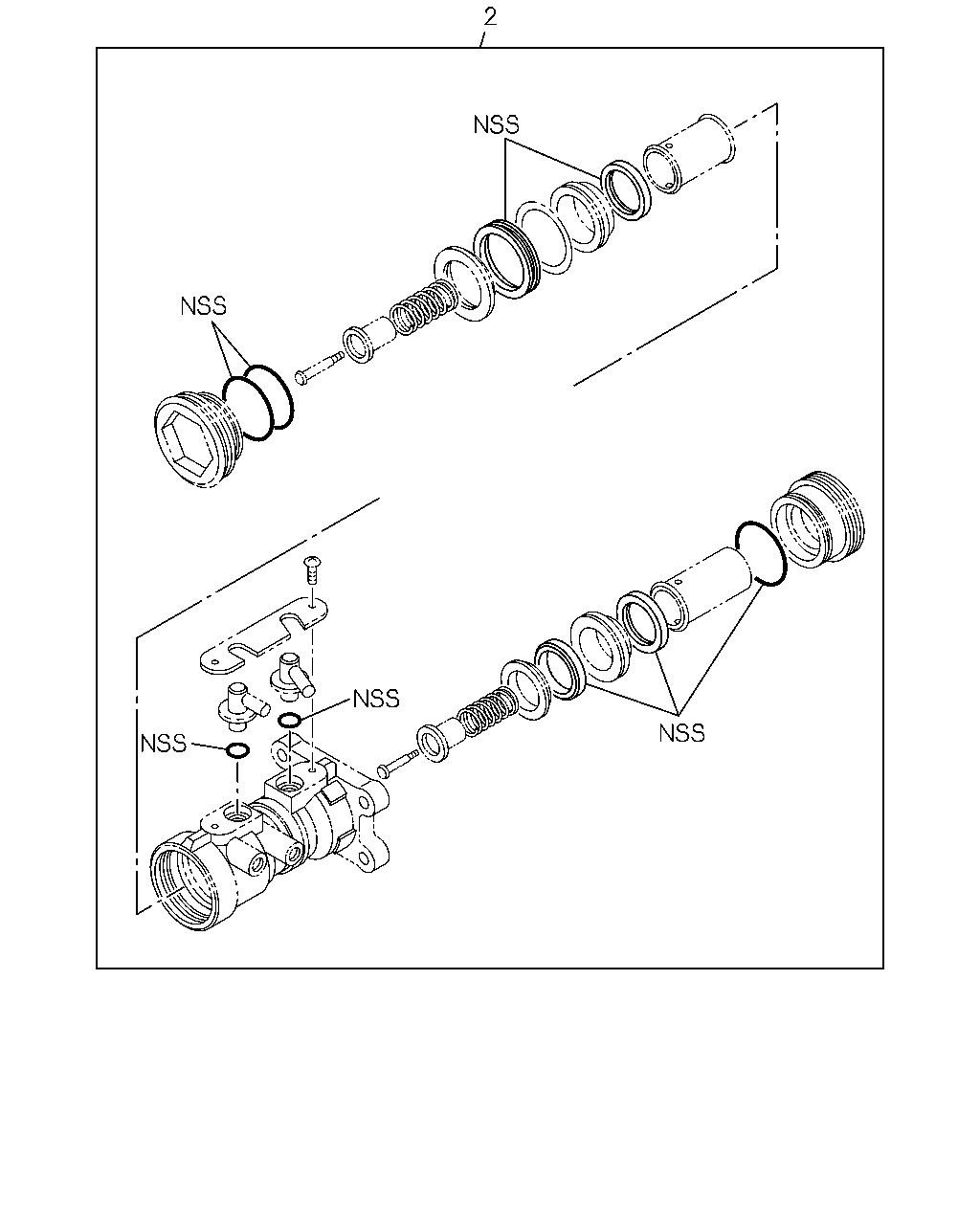

3-30 — BRAKE MASTER CYLINDER (#47096) — 169 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	04.649 REPAIR KIT; BRK,M/CYL	8-97130-471-0	01	1	0302-0506	●	●
2	04.649 REPAIR KIT; BRK,M/CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-471-0	01	1	0302-0506			●	●
2	04.649 REPAIR KIT; BRK,M/CYL	8-97130-471-0	01	1	0507-0606	●	●
2	04.649 REPAIR KIT; BRK,M/CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-471-0	01	1	0507-0606			●	●	●	●
2	04.649 REPAIR KIT; BRK,M/CYL	8-97130-471-0	01	1	0607-	●	●
2	04.649 REPAIR KIT; BRK,M/CYL DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-471-0	01	1	0607-			●
2	04.649 REPAIR KIT; BRK,M/CYL G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97130-471-0	01	1	0607-			●
2	04.649 REPAIR KIT; BRK,M/CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-471-0	01	1	0607-				●
2	04.649 REPAIR KIT; BRK,M/CYL G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97130-470-0	01	1	0607-			●
2	04.649 REPAIR KIT; BRK,M/CYL HYDRO BRAKE BOOSTER<7QQ>	8-97254-775-0	01	1	0302-0506			●	●
2	04.649 REPAIR KIT; BRK,M/CYL	8-97254-775-0	01	1	0302-0506					●	●	●
2	04.649 REPAIR KIT; BRK,M/CYL HYDRO BRAKE BOOSTER<7QQ>	8-97254-775-0	01	1	0507-0606			●	●	●	●
2	04.649 REPAIR KIT; BRK,M/CYL HYDRO BRAKE BOOSTER<7QQ>	8-97254-775-0	01	1	0607-			●	●
2	04.649 REPAIR KIT; BRK,M/CYL	8-97254-775-0	01	1	0607-					●	●

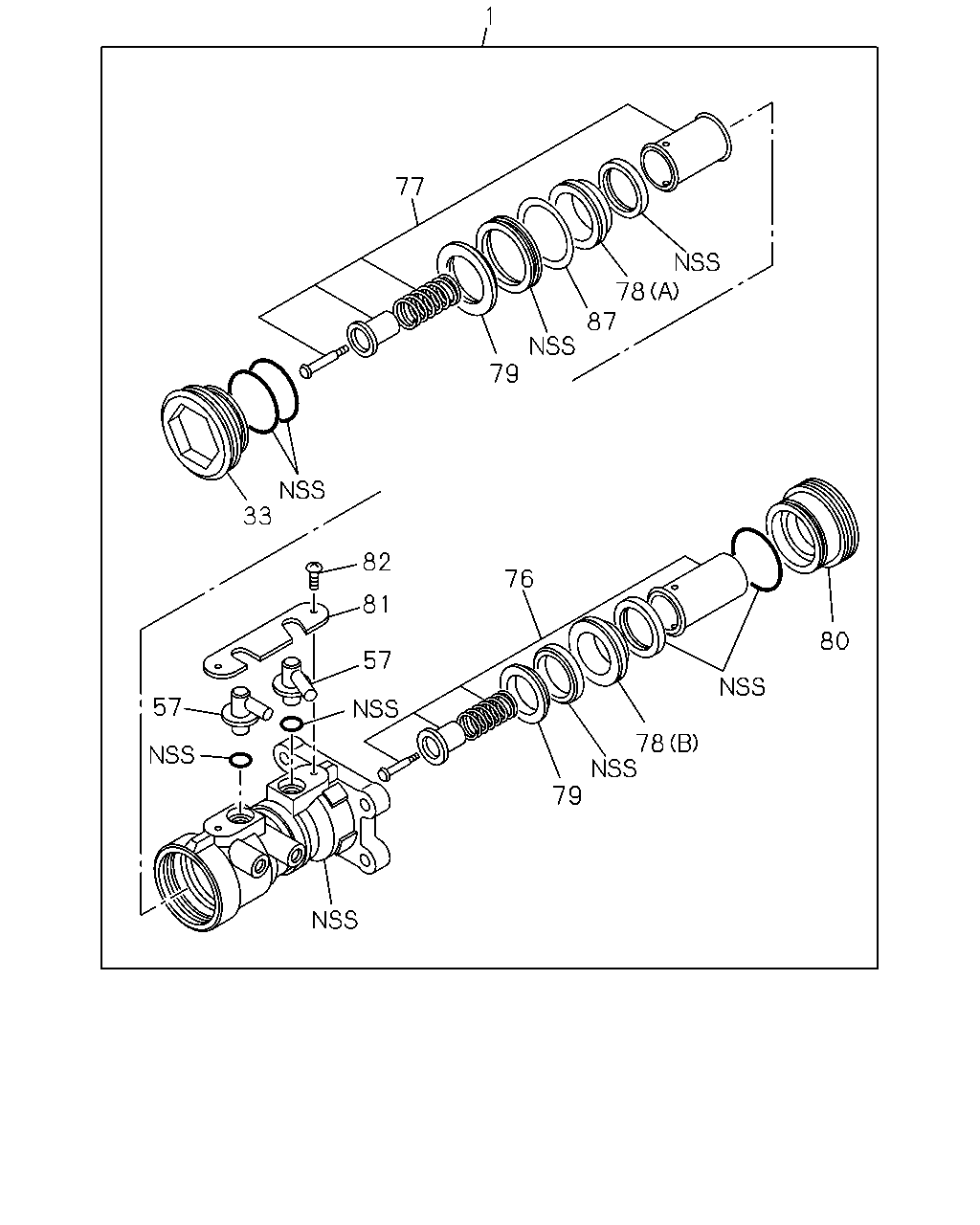

1 77 78 87 79 33 82 76 81 80 57 57 78 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.650 CYLINDER ASM; BRK MASTER	8-97224-370-0	01	1	0302-0506	●	●
1	04.650 CYLINDER ASM; BRK MASTER EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-370-0	01	1	0302-0506			●	●
1	04.650 CYLINDER ASM; BRK MASTER	8-97224-370-0	01	1	0507-0606	●	●
1	04.650 CYLINDER ASM; BRK MASTER EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-370-0	01	1	0507-0606			●	●	●	●
1	04.650 CYLINDER ASM; BRK MASTER	8-97224-370-0	01	1	0607-	●	●
1	04.650 CYLINDER ASM; BRK MASTER DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-370-0	01	1	0607-			●
1	04.650 CYLINDER ASM; BRK MASTER G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97224-370-0	01	1	0607-			●
1	04.650 CYLINDER ASM; BRK MASTER EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-370-0	01	1	0607-				●
1	04.650 CYLINDER ASM; BRK MASTER G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97224-373-0	01	1	0607-			●
1	04.650 CYLINDER ASM; BRK MASTER HYDRO BRAKE BOOSTER<7QQ>	8-97254-770-0	01	1	0302-0506			●	●
1	04.650 CYLINDER ASM; BRK MASTER	8-97254-770-0	01	1	0302-0506					●	●	●
1	04.650 CYLINDER ASM; BRK MASTER HYDRO BRAKE BOOSTER<7QQ>	8-97254-770-0	01	1	0507-0606			●	●	●	●
1	04.650 CYLINDER ASM; BRK MASTER HYDRO BRAKE BOOSTER<7QQ>	8-97254-770-0	01	1	0607-			●	●
1	04.650 CYLINDER ASM; BRK MASTER	8-97254-770-0	01	1	0607-					●	●
33	04.661 PLUG; END,M/CYL	8-97186-697-0	01	1	0302-0506	●	●
33	04.661 PLUG; END,M/CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97186-697-0	01	1	0302-0506			●	●
33	04.661 PLUG; END,M/CYL	8-97186-697-0	01	1	0507-0606	●	●
33	04.661 PLUG; END,M/CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97186-697-0	01	1	0507-0606			●	●	●	●
33	04.661 PLUG; END,M/CYL	8-97186-697-0	01	1	0607-	●	●
33	04.661 PLUG; END,M/CYL DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97186-697-0	01	1	0607-			●
33	04.661 PLUG; END,M/CYL G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97186-697-0	01	1	0607-			●
33	04.661 PLUG; END,M/CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97186-697-0	01	1	0607-				●
33	04.661 PLUG; END,M/CYL G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97186-696-0	01	1	0607-			●
33	04.661 PLUG; END,M/CYL HYDRO BRAKE BOOSTER<7QQ>	8-97186-699-0	01	1	0302-0506			●	●
33	04.661 PLUG; END,M/CYL	8-97186-699-0	01	1	0302-0506					●	●	●
33	04.661 PLUG; END,M/CYL HYDRO BRAKE BOOSTER<7QQ>	8-97186-699-0	01	1	0507-0606			●	●	●	●
33	04.661 PLUG; END,M/CYL HYDRO BRAKE BOOSTER<7QQ>	8-97186-699-0	01	1	0607-			●	●
33	04.661 PLUG; END,M/CYL	8-97186-699-0	01	1	0607-					●	●
57	04.651 NIPPLE; BRK M/CYL	8-97130-442-0	02	1	0302-0506	●	●
57	04.651 NIPPLE; BRK M/CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-442-0	02	1	0302-0506			●	●
57	04.651 NIPPLE; BRK M/CYL	8-97130-442-0	02	1	0507-0606	●	●
57	04.651 NIPPLE; BRK M/CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-442-0	02	1	0507-0606			●	●	●	●
57	04.651 NIPPLE; BRK M/CYL	8-97130-442-0	02	1	0607-	●	●
57	04.651 NIPPLE; BRK M/CYL DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-442-0	02	1	0607-			●
57	04.651 NIPPLE; BRK M/CYL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97130-442-0	02	1	0607-			●
57	04.651 NIPPLE; BRK M/CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-442-0	02	1	0607-				●
57	04.651 NIPPLE; BRK M/CYL HYDRO BRAKE BOOSTER<7QQ>	8-97130-441-0	02	1	0302-0506			●	●
57	04.651 NIPPLE; BRK M/CYL	8-97130-441-0	02	1	0302-0506					●	●	●
57	04.651 NIPPLE; BRK M/CYL HYDRO BRAKE BOOSTER<7QQ>	8-97130-441-0	02	1	0507-0606			●	●	●	●
57	04.651 NIPPLE; BRK M/CYL HYDRO BRAKE BOOSTER<7QQ>	8-97130-441-0	02	1	0607-			●	●
57	04.651 NIPPLE; BRK M/CYL	8-97130-441-0	02	1	0607-					●	●
76	04.653 PISTON ASM; PRIMARY	8-97224-643-0	01	1	0302-0506	●	●
76	04.653 PISTON ASM; PRIMARY EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-643-0	01	1	0302-0506			●	●
76	04.653 PISTON ASM; PRIMARY	8-97224-643-0	01	1	0507-0606	●	●
76	04.653 PISTON ASM; PRIMARY EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-643-0	01	1	0507-0606			●	●	●	●
76	04.653 PISTON ASM; PRIMARY	8-97224-643-0	01	1	0607-	●	●
76	04.653 PISTON ASM; PRIMARY DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-643-0	01	1	0607-			●
76	04.653 PISTON ASM; PRIMARY G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97224-643-0	01	1	0607-			●
76	04.653 PISTON ASM; PRIMARY EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-643-0	01	1	0607-				●
76	04.653 PISTON ASM; PRIMARY G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97224-636-0	01	1	0607-			●
76	04.653 PISTON ASM; PRIMARY HYDRO BRAKE BOOSTER<7QQ>	8-97224-641-0	01	1	0302-0506			●	●
76	04.653 PISTON ASM; PRIMARY	8-97224-641-0	01	1	0302-0506					●	●	●
76	04.653 PISTON ASM; PRIMARY HYDRO BRAKE BOOSTER<7QQ>	8-97224-641-0	01	1	0507-0606			●	●	●	●
76	04.653 PISTON ASM; PRIMARY HYDRO BRAKE BOOSTER<7QQ>	8-97224-641-0	01	1	0607-			●	●
76	04.653 PISTON ASM; PRIMARY	8-97224-641-0	01	1	0607-					●	●
77	04.653 PISTON ASM; SECONDARY	8-97224-642-0	01	1	0302-0506	●	●
77	04.653 PISTON ASM; SECONDARY EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-642-0	01	1	0302-0506			●	●
77	04.653 PISTON ASM; SECONDARY	8-97224-642-0	01	1	0507-0606	●	●
77	04.653 PISTON ASM; SECONDARY EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-642-0	01	1	0507-0606			●	●	●	●
77	04.653 PISTON ASM; SECONDARY	8-97224-642-0	01	1	0607-	●	●
77	04.653 PISTON ASM; SECONDARY DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-642-0	01	1	0607-			●
77	04.653 PISTON ASM; SECONDARY G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97224-642-0	01	1	0607-			●
77	04.653 PISTON ASM; SECONDARY EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97224-642-0	01	1	0607-				●
77	04.653 PISTON ASM; SECONDARY G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97224-635-0	01	1	0607-			●
77	04.653 PISTON ASM; SECONDARY HYDRO BRAKE BOOSTER<7QQ>	8-97224-640-0	01	1	0302-0506			●	●
77	04.653 PISTON ASM; SECONDARY	8-97224-640-0	01	1	0302-0506					●	●	●
77	04.653 PISTON ASM; SECONDARY HYDRO BRAKE BOOSTER<7QQ>	8-97224-640-0	01	1	0507-0606			●	●	●	●
77	04.653 PISTON ASM; SECONDARY HYDRO BRAKE BOOSTER<7QQ>	8-97224-640-0	01	1	0607-			●	●
77	04.653 PISTON ASM; SECONDARY	8-97224-640-0	01	1	0607-					●	●
78	04.651 BUSHING; MASTER CYL (A)	8-97130-455-0	01	1	0302-0506	●	●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97130-455-0	01	1	0302-0506			●	●
78	04.651 BUSHING; MASTER CYL (A)	8-97130-455-0	01	1	0507-0606	●	●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97130-455-0	01	1	0507-0606			●	●	●	●
78	04.651 BUSHING; MASTER CYL (A)	8-97130-455-0	01	1	0607-	●	●
78	04.651 BUSHING; MASTER CYL DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97130-455-0	01	1	0607-			●
78	04.651 BUSHING; MASTER CYL G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (A)	8-97130-455-0	01	1	0607-			●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97130-455-0	01	1	0607-				●
78	04.651 BUSHING; MASTER CYL (B)	8-97217-312-0	01	1	0302-0506	●	●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97217-312-0	01	1	0302-0506			●	●
78	04.651 BUSHING; MASTER CYL (B)	8-97217-312-0	01	1	0507-0606	●	●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97217-312-0	01	1	0507-0606			●	●	●	●
78	04.651 BUSHING; MASTER CYL (B)	8-97217-312-0	01	1	0607-	●	●
78	04.651 BUSHING; MASTER CYL DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97217-312-0	01	1	0607-			●
78	04.651 BUSHING; MASTER CYL G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (B)	8-97217-312-0	01	1	0607-			●
78	04.651 BUSHING; MASTER CYL EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97217-312-0	01	1	0607-				●
78	04.651 BUSHING; MASTER CYL G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (A)	8-97130-454-0	01	1	0607-			●
78	04.651 BUSHING; MASTER CYL G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ> (B)	8-97217-310-0	01	1	0607-			●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER<7QQ> (A)	8-97170-695-0	01	1	0302-0506			●	●
78	04.651 BUSHING; MASTER CYL (A)	8-97170-695-0	01	1	0302-0506					●	●	●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER<7QQ> (A)	8-97170-695-0	01	1	0507-0606			●	●	●	●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER<7QQ> (A)	8-97170-695-0	01	1	0607-			●	●
78	04.651 BUSHING; MASTER CYL (A)	8-97170-695-0	01	1	0607-					●	●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97207-685-0	01	1	0302-0506			●	●
78	04.651 BUSHING; MASTER CYL (B)	8-97207-685-0	01	1	0302-0506					●	●	●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97207-685-0	01	1	0507-0606			●	●	●	●
78	04.651 BUSHING; MASTER CYL HYDRO BRAKE BOOSTER<7QQ> (B)	8-97207-685-0	01	1	0607-			●	●
78	04.651 BUSHING; MASTER CYL (B)	8-97207-685-0	01	1	0607-					●	●
79	04.651 SUPPORTER; CUP	8-97130-463-0	02	1	0302-0506	●	●
79	04.651 SUPPORTER; CUP EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-463-0	02	1	0302-0506			●	●
79	04.651 SUPPORTER; CUP	8-97130-463-0	02	1	0507-0606	●	●
79	04.651 SUPPORTER; CUP EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-463-0	02	1	0507-0606			●	●	●	●
79	04.651 SUPPORTER; CUP	8-97130-463-0	02	1	0607-	●	●
79	04.651 SUPPORTER; CUP DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-463-0	02	1	0607-			●
79	04.651 SUPPORTER; CUP G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97130-463-0	02	1	0607-			●
79	04.651 SUPPORTER; CUP EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-463-0	02	1	0607-				●
79	04.651 SUPPORTER; CUP G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97130-462-0	02	1	0607-			●
79	04.651 SUPPORTER; CUP HYDRO BRAKE BOOSTER<7QQ>	8-97170-698-0	02	1	0302-0506			●	●
79	04.651 SUPPORTER; CUP	8-97170-698-0	02	1	0302-0506					●	●	●
79	04.651 SUPPORTER; CUP HYDRO BRAKE BOOSTER<7QQ>	8-97170-698-0	02	1	0507-0606			●	●	●	●
79	04.651 SUPPORTER; CUP HYDRO BRAKE BOOSTER<7QQ>	8-97170-698-0	02	1	0607-			●	●
79	04.651 SUPPORTER; CUP	8-97170-698-0	02	1	0607-					●	●
80	04.651 COVER; MASTER CYL	8-97130-449-0	01	1	0302-0506	●	●
80	04.651 COVER; MASTER CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-449-0	01	1	0302-0506			●	●
80	04.651 COVER; MASTER CYL	8-97130-449-0	01	1	0507-0606	●	●
80	04.651 COVER; MASTER CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-449-0	01	1	0507-0606			●	●	●	●
80	04.651 COVER; MASTER CYL	8-97130-449-0	01	1	0607-	●	●
80	04.651 COVER; MASTER CYL DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-449-0	01	1	0607-			●
80	04.651 COVER; MASTER CYL G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97130-449-0	01	1	0607-			●
80	04.651 COVER; MASTER CYL EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-449-0	01	1	0607-				●
80	04.651 COVER; MASTER CYL G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97130-448-0	01	1	0607-			●
80	04.651 COVER; MASTER CYL HYDRO BRAKE BOOSTER<7QQ>	8-97170-692-0	01	1	0302-0506			●	●
80	04.651 COVER; MASTER CYL	8-97170-692-0	01	1	0302-0506					●	●	●
80	04.651 COVER; MASTER CYL HYDRO BRAKE BOOSTER<7QQ>	8-97170-692-0	01	1	0507-0606			●	●	●	●
80	04.651 COVER; MASTER CYL HYDRO BRAKE BOOSTER<7QQ>	8-97170-692-0	01	1	0607-			●	●
80	04.651 COVER; MASTER CYL	8-97170-692-0	01	1	0607-					●	●
81	04.651 HOLDER; NIPPLE	8-97130-445-0	01	1	0302-0506	●	●
81	04.651 HOLDER; NIPPLE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-445-0	01	1	0302-0506			●	●
81	04.651 HOLDER; NIPPLE	8-97130-445-0	01	1	0507-0606	●	●
81	04.651 HOLDER; NIPPLE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-445-0	01	1	0507-0606			●	●	●	●
81	04.651 HOLDER; NIPPLE	8-97130-445-0	01	1	0607-	●	●
81	04.651 HOLDER; NIPPLE DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-445-0	01	1	0607-			●
81	04.651 HOLDER; NIPPLE G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97130-445-0	01	1	0607-			●
81	04.651 HOLDER; NIPPLE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-445-0	01	1	0607-				●
81	04.651 HOLDER; NIPPLE HYDRO BRAKE BOOSTER<7QQ>	8-97130-444-0	01	1	0302-0506			●	●
81	04.651 HOLDER; NIPPLE	8-97130-444-0	01	1	0302-0506					●	●	●
81	04.651 HOLDER; NIPPLE HYDRO BRAKE BOOSTER<7QQ>	8-97130-444-0	01	1	0507-0606			●	●	●	●
81	04.651 HOLDER; NIPPLE HYDRO BRAKE BOOSTER<7QQ>	8-97130-444-0	01	1	0607-			●	●
81	04.651 HOLDER; NIPPLE	8-97130-444-0	01	1	0607-					●	●
82	04.651 SCREW; HOLDER	8-97130-446-0	02	1	0302-0506	●	●	●	●	●	●	●
82	04.651 SCREW; HOLDER	8-97130-446-0	02	1	0507-0606	●	●	●	●	●	●
82	04.651 SCREW; HOLDER	8-97130-446-0	02	1	0607-	●	●	●	●	●	●
87	04.662 SPACER; CUP	8-97130-459-0	01	1	0302-0506	●	●
87	04.662 SPACER; CUP EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-459-0	01	1	0302-0506			●	●
87	04.662 SPACER; CUP	8-97130-459-0	01	1	0507-0606	●	●
87	04.662 SPACER; CUP EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-459-0	01	1	0507-0606			●	●	●	●
87	04.662 SPACER; CUP	8-97130-459-0	01	1	0607-	●	●
87	04.662 SPACER; CUP DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-459-0	01	1	0607-			●
87	04.662 SPACER; CUP G.V.W. 7.5-8.0TON(RPY) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97130-459-0	01	1	0607-			●
87	04.662 SPACER; CUP EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97130-459-0	01	1	0607-				●
87	04.662 SPACER; CUP G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO BRAKEBOOSTER<7QQ>	8-97130-458-0	01	1	0607-			●
87	04.662 SPACER; CUP HYDRO BRAKE BOOSTER<7QQ>	8-97170-696-0	01	1	0302-0506			●	●
87	04.662 SPACER; CUP	8-97170-696-0	01	1	0302-0506					●	●	●
87	04.662 SPACER; CUP HYDRO BRAKE BOOSTER<7QQ>	8-97170-696-0	01	1	0507-0606			●	●	●	●
87	04.662 SPACER; CUP HYDRO BRAKE BOOSTER<7QQ>	8-97170-696-0	01	1	0607-			●	●
87	04.662 SPACER; CUP	8-97170-696-0	01	1	0607-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
