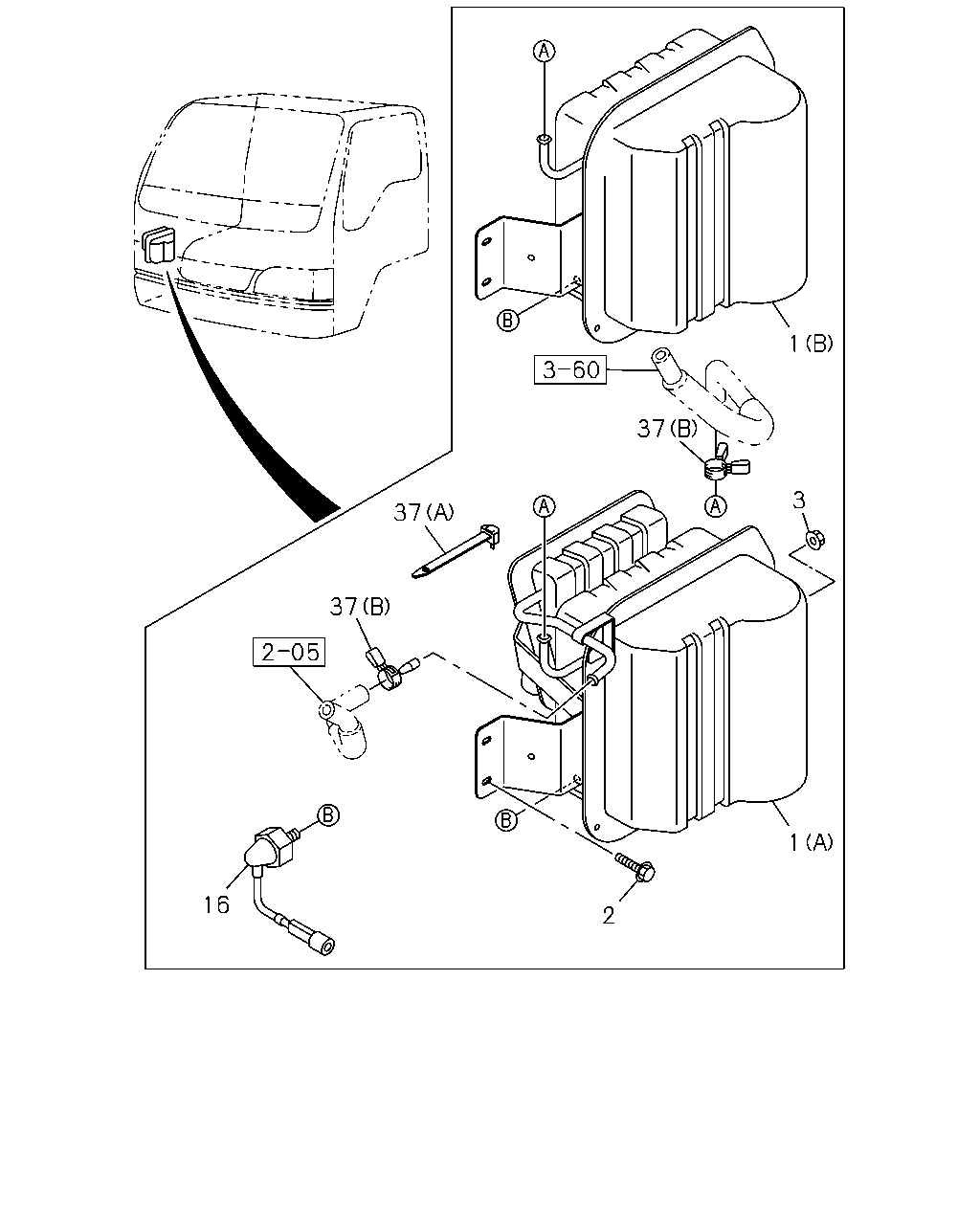

3-21 — VACUUM TANK (#47095) — 96 parça

1 3 37 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	0302-0506	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	0507-0606		●	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97062-399-5	01	1	0607-	●			●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	0607-		●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-4	01	1	0302-0506	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-4	01	1	0507-0606	●	●	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97073-471-4	01	1	0607-	●			●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-4	01	1	0607-		●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-122-1	01	1	0302-0506		●	●		●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97172-122-1	01	1	0507-0606		●	●		●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97172-122-1	01	1	0607-		●	●		●	●
2	04.902 BOLT; VAC TANK 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●	●	●	●	●	●	●
2	04.902 BOLT; VAC TANK 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●			●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●	●		●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●	●		●	●
2	04.902 BOLT; VAC TANK 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●			●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●	●		●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●	●		●	●
2	04.902 BOLT; VAC TANK 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-	●			●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-		●	●		●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-		●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●	●	●	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●			●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●			●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●			●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0302-0506	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0507-0606		●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	0607-	●			●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0607-		●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0302-0506	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0507-0606		●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0607-	●			●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0607-		●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0302-0506	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0302-0506		●	●		●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0507-0606	●	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (B) ID=16	8-94238-568-0	01	1	0507-0606		●	●		●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0607-	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (B) ID=16	8-94238-568-0	01	1	0607-		●	●		●	●

1 37 3 37 37 1 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	0302-0506	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	0507-0606		●	●	●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97062-399-5	01	1	0607-	●			●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	0607-		●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-4	01	1	0302-0506	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-4	01	1	0507-0606	●	●	●	●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97073-471-4	01	1	0607-	●			●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97073-471-4	01	1	0607-		●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-122-1	01	1	0302-0506		●	●		●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97172-122-1	01	1	0507-0606		●	●		●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97172-122-1	01	1	0607-		●	●		●	●
2	04.902 BOLT; VAC TANK 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●	●	●	●	●	●	●
2	04.902 BOLT; VAC TANK 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●			●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●	●		●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●	●		●	●
2	04.902 BOLT; VAC TANK 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●			●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●	●		●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●	●		●	●
2	04.902 BOLT; VAC TANK 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-	●			●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-		●	●		●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-		●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●	●	●	●	●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●			●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●			●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●			●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●		●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
16	04.906 SWITCH; VAC	8-97073-374-1	01	1	0302-0506	●			●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97073-374-1	01	1	0302-0506		●	●
16	04.906 SWITCH; VAC	8-97073-374-1	01	1	0507-0606	●			●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97073-374-1	01	1	0507-0606		●	●		●	●
16	04.906 SWITCH; VAC	8-97073-374-1	01	1	0607-	●			●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97073-374-1	01	1	0607-		●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0302-0506	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0507-0606		●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	0607-	●			●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0607-		●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0302-0506	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0507-0606		●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0607-	●			●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0607-		●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0302-0506	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0302-0506		●	●		●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0507-0606	●	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (B) ID=16	8-94238-568-0	01	1	0507-0606		●	●		●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0607-	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (B) ID=16	8-94238-568-0	01	1	0607-		●	●		●	●
