Sayfa 3-08 - Isuzu EPC

3-08 — PARKING BRAKE (#47091) — 208 parça

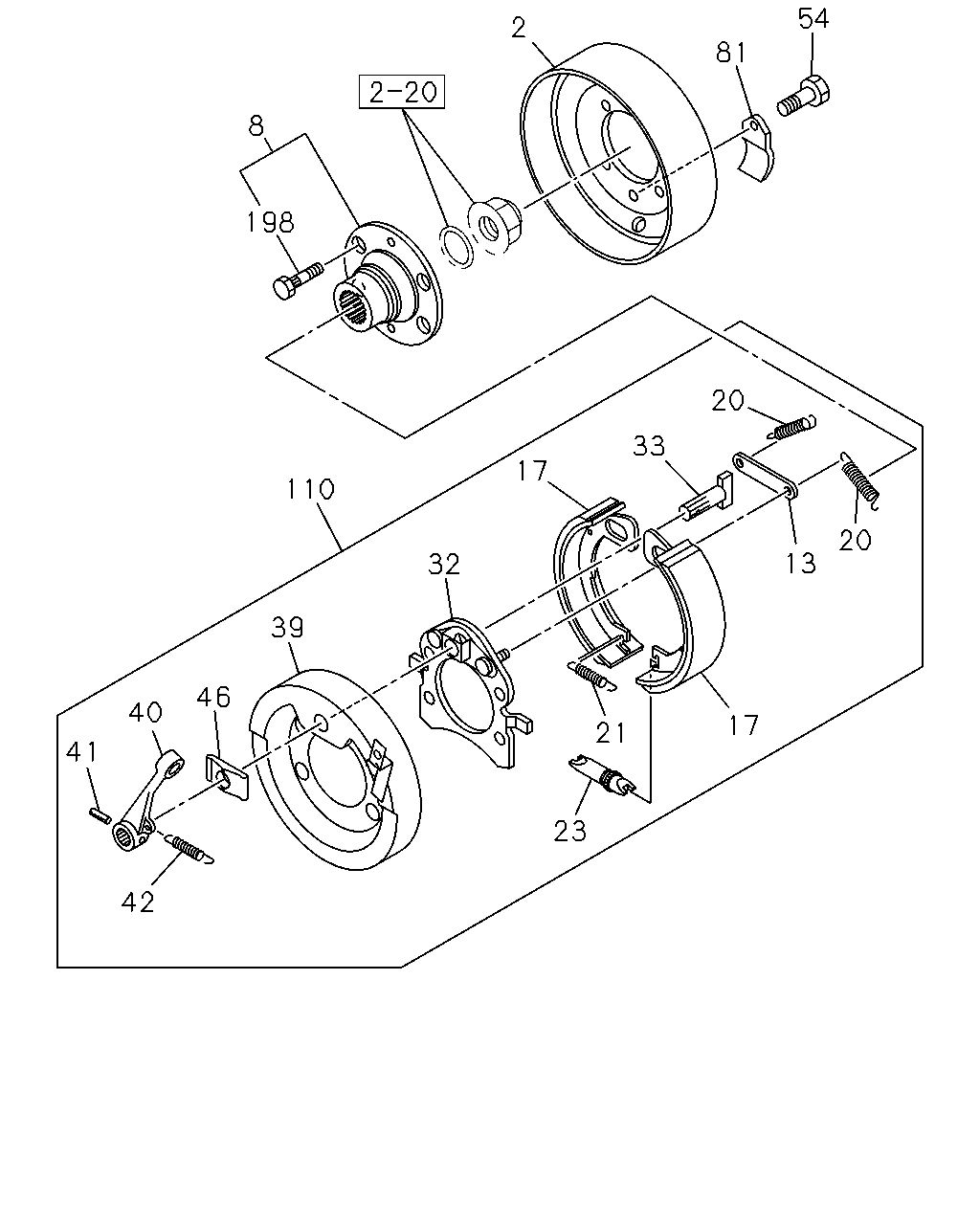

54 2 81 8 198 20 33 17 110 20 13 32 39 46 40 17 21 41 23 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	05.605 DRUM; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46211-057-0	01	1	0302-0506	●	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-46211-057-0	01	1	0507-0606		●	●		●		●
2	05.605 DRUM; PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-46211-057-0	01	1	0607-		●	●		●		●
2	05.605 DRUM; PARKING BRK M/T MYY5T(RSM)	8-97033-989-1	01	1	0302-0506		●
2	05.605 DRUM; PARKING BRK 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97033-989-1	01	1	0507-0606	●	●
2	05.605 DRUM; PARKING BRK 4JJ1 ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST)	8-97033-989-1	01	1	0607-	●	●	●			●
2	05.605 DRUM; PARKING BRK 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-97334-107-0	01	1	0507-0606		●	●		●	●	●
8	05.605 FLANGE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97252-811-1	01	1	0302-0506	●	●	●	●	●	●	●
8	05.605 FLANGE; PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	8-97252-811-1	01	1	0507-0604		●	●		●		●
8	05.605 FLANGE; PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	8-98044-142-0	01	1	0605-0606		●	●		●		●
8	05.605 FLANGE; PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-98044-142-0	01	1	0607-		●	●		●		●
13	05.615 BRACE; PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-46239-003-0	01	1	0607-		●	●		●		●
13	05.615 BRACE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46239-003-0	01	1	0302-0506	●	●	●	●	●	●	●
13	05.615 BRACE; PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-46239-003-0	01	1	0507-0606		●	●		●		●
17	05.606 SHOE; PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-97042-934-1	02	1	0607-		●	●		●		●
17	05.606 SHOE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97042-934-1	02	1	0302-0506	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	8-97042-934-1	02	1	0507-0606		●	●		●		●
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM)	8-97020-250-2	02	1	0302-0506		●
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM)	8-97020-250-2	02	1	0507-0606	●	●	●		●	●	●
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97020-250-2	02	1	0607-	●	●	●			●
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-09586-002-0	02	1	0607-		●	●		●		●
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-09586-002-0	02	1	0302-0506	●	●	●	●	●	●	●
20	05.606 SPRING; RETURN,SECONDARY,PARKING 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-09586-002-0	02	1	0507-0606		●	●		●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-09583-280-0	01	1	0607-		●	●		●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-09583-280-0	01	1	0302-0506	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-09583-280-0	01	1	0507-0606		●	●		●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM) 05.605	8-94132-157-0	02	1	0302-0506		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM) 05.605	8-94132-157-0	02	1	0507-0606	●	●	●		●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST) 05.605	8-94132-157-0	02	1	0607-	●	●	●			●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-46240-004-0	01	1	0607-0706		●	●		●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-98043-963-0	01	1	0707-		●	●		●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46240-004-0	01	1	0302-0506	●	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-46240-004-0	01	1	0507-0606		●	●		●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM)	5-47165-025-0	01	1	0302-0506		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM)	5-47165-025-0	01	1	0507-0606	●	●	●		●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	5-47165-025-0	01	1	0607-0611	●	●	●			●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-954-0	01	1	0612-	●	●	●			●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-46213-069-0	01	1	0607-		●	●		●		●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46213-069-0	01	1	0302-0506	●	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-46213-069-0	01	1	0507-0606		●	●		●		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM)	8-97308-176-0	01	1	0302-0506		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM)	8-97308-176-0	01	1	0507-0606	●	●	●		●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97308-176-0	01	1	0607-	●	●	●			●
33	05.605 SHAFT; CAM,PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-46251-009-0	01	1	0607-0706		●	●		●		●
33	05.605 SHAFT; CAM,PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-98043-961-0	01	1	0707-		●	●		●		●
33	05.605 SHAFT; CAM,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46251-009-0	01	1	0302-0506	●	●	●	●	●	●	●
33	05.605 SHAFT; CAM,PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-46251-009-0	01	1	0507-0606		●	●		●		●
39	05.610 COVER; DUST,PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-46213-075-0	01	1	0607-		●	●		●		●
39	05.610 COVER; DUST,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46213-075-0	02	1	0412-0506	●	●	●	●	●	●	●
39	05.610 COVER; DUST,PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-46213-075-0	02	1	0507-0606		●	●		●		●
40	05.605 LEVER; CM/SHF,PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-46252-041-0	01	1	0607-0706		●	●		●		●
40	05.605 LEVER; CM/SHF,PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-98047-550-0	01	1	0707-		●	●		●		●
40	05.605 LEVER; CM/SHF,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46252-041-0	01	1	0302-0506	●	●	●	●	●	●	●
40	05.605 LEVER; CM/SHF,PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-46252-041-0	01	1	0507-0606		●	●		●		●
41	05.605 PIN; KNOCK,LEVER 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	9-09878-594-0	01	1	0607-		●	●		●		●
41	05.605 PIN; KNOCK,LEVER 4HE1 ENG(RLY) M/T MZZ6F(RSR)	9-09878-594-0	01	1	0302-0506	●	●	●	●	●	●	●
41	05.605 PIN; KNOCK,LEVER 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	9-09878-594-0	01	1	0507-0606		●	●		●		●
42	05.605 SPRING; RETURN,LEVER 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-09583-041-0	01	1	0607-		●	●		●		●
42	05.605 SPRING; RETURN,LEVER 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-09583-041-0	01	1	0302-0506	●	●	●	●	●	●	●
42	05.605 SPRING; RETURN,LEVER 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-09583-041-0	01	1	0507-0606		●	●		●		●
46	05.605 WASHER; LEVER 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-09509-057-0	01	1	0607-		●	●		●		●
46	05.605 WASHER; LEVER 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-09509-057-0	01	1	0302-0506	●	●	●	●	●	●	●
46	05.605 WASHER; LEVER 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-09509-057-0	01	1	0507-0606		●	●		●		●
54	05.606 BOLT; COVER 4HE1 ENG(RLY) M/T MZZ6F(RSR) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	0302-0506	●	●	●	●	●	●	●
54	05.606 BOLT; COVER 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	0507-0604		●	●		●		●
54	05.606 BOLT; COVER 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) 03.403 M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0605-0606		●	●		●		●
54	05.606 BOLT; COVER 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) 03.403 M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0607-		●	●		●		●
81	05.606 COVER; CHECK HOLE,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46219-061-1	02	1	0302-0306	●	●	●	●	●	●	●
81	05.606 COVER; CHECK HOLE,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46219-019-0	02	1	0307-0506	●	●	●	●	●	●	●
81	05.606 COVER; CHECK HOLE,PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-46219-019-0	02	1	0507-0604		●	●		●		●
81	05.606 COVER; CHECK HOLE,PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	8-98031-861-0	02	1	0605-0606		●	●		●		●
81	05.606 COVER; CHECK HOLE,PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-98031-861-0	02	1	0607-		●	●		●		●
110	05.610 BRAKE ASM; PARKING 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97041-474-3	01	1	0302-0410	●	●	●	●	●	●	●
110	05.610 BRAKE ASM; PARKING 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97205-628-0	01	1	0411-0506	●	●	●	●	●	●	●
110	05.610 BRAKE ASM; PARKING 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	8-97205-628-0	01	1	0507-0606		●	●		●		●
110	05.610 BRAKE ASM; PARKING 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-97205-628-0	01	1	0607-0706		●	●		●		●
110	05.610 BRAKE ASM; PARKING 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-98034-305-0	01	1	0707-		●	●		●		●
198	05.605 BOLT; KNURL 4HE1 ENG(RLY) M/T MZZ6F(RSR) M12X39	1-09046-001-2	04	1	0302-0506	●	●	●	●	●	●	●
198	05.605 BOLT; KNURL 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) M12X39	1-09046-001-2	04	1	0507-0604		●	●		●		●
198	05.605 BOLT; KNURL 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) M12X39	8-97365-446-0	04	1	0605-0606		●	●		●		●
198	05.605 BOLT; KNURL 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) M12X39	8-97365-446-0	04	1	0607-		●	●		●		●

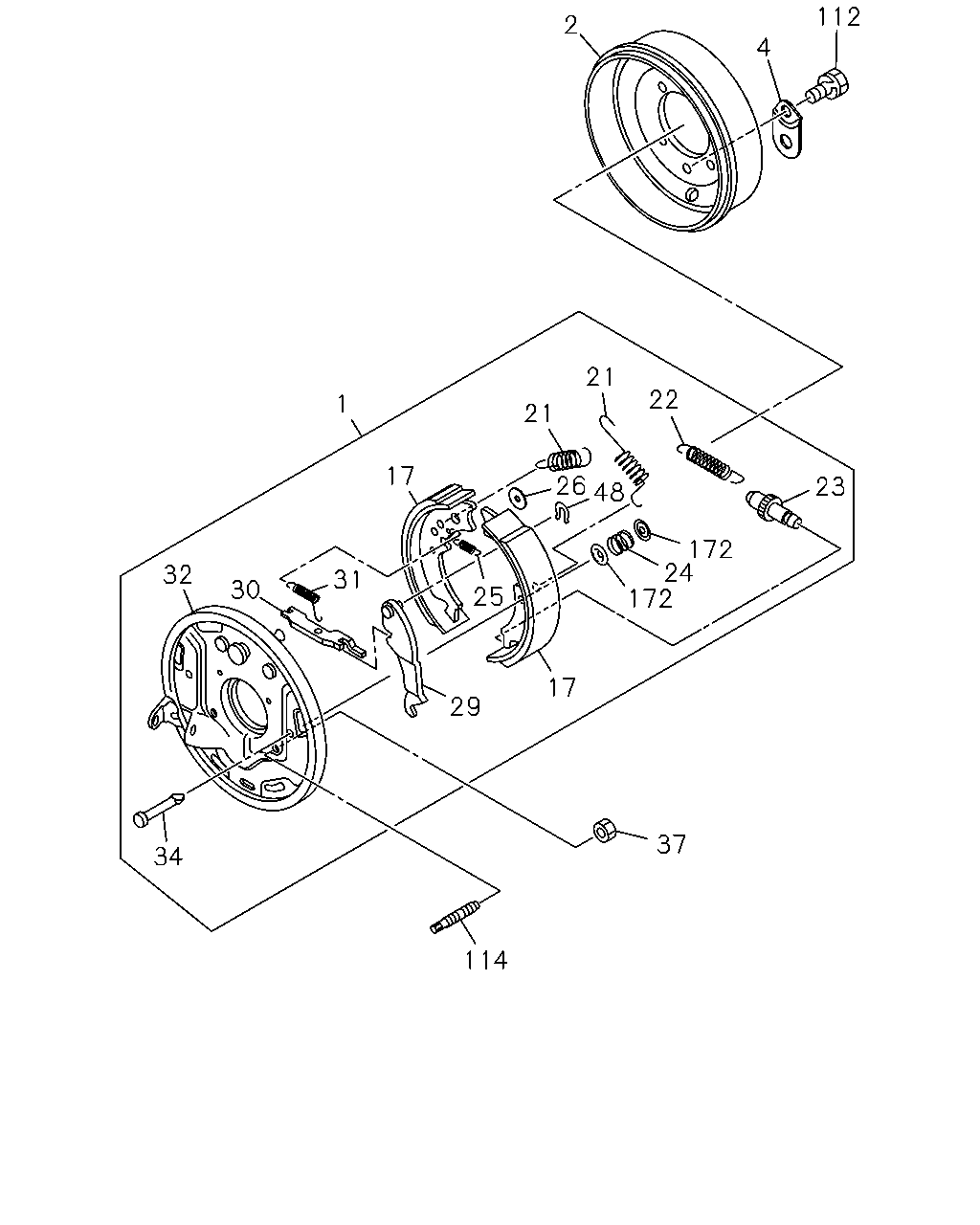

112 2 4 21 22 1 21 17 26 48 23 172 24 172 31 32 30 25 17 29 37 34 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	05.610 BRAKE ASM; CENTER,PARKING M/T MYY5T(RSM)	8-97308-175-0	01	1	0302-0506		●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MYY5T(RSM)	8-97308-175-0	01	1	0507-0606	●	●	●		●	●	●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MYY5T(RSM),M/T MYY6S(RST)	8-97308-175-0	01	1	0607-0611	●	●	●			●
1	05.610 BRAKE ASM; CENTER,PARKING M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-922-0	01	1	0612-	●	●	●			●
2	05.605 DRUM; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46211-057-0	01	1	0302-0506	●	●	●	●	●	●	●
2	05.605 DRUM; PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-46211-057-0	01	1	0507-0606		●	●		●		●
2	05.605 DRUM; PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-46211-057-0	01	1	0607-		●	●		●		●
2	05.605 DRUM; PARKING BRK M/T MYY5T(RSM)	8-97033-989-1	01	1	0302-0506		●
2	05.605 DRUM; PARKING BRK 4JH1-TC ENG(RDM) M/T MYY5T(RSM)	8-97033-989-1	01	1	0507-0606	●	●
2	05.605 DRUM; PARKING BRK 4JJ1 ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST)	8-97033-989-1	01	1	0607-	●	●	●			●
2	05.605 DRUM; PARKING BRK 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-97334-107-0	01	1	0507-0606		●	●		●	●	●
4	05.606 COVER; ADJ HOLE M/T MYY5T(RSM)	5-46219-001-0	01	1	0302-0506		●
4	05.606 COVER; ADJ HOLE M/T MYY5T(RSM)	5-46219-001-0	01	1	0507-0604	●	●	●		●	●	●
4	05.606 COVER; ADJ HOLE M/T MYY5T(RSM)	8-98029-820-0	01	1	0605-0606	●	●	●		●	●	●
4	05.606 COVER; ADJ HOLE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-820-0	01	1	0607-	●	●	●			●
17	05.606 SHOE; PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-97042-934-1	02	1	0607-		●	●		●		●
17	05.606 SHOE; PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97042-934-1	02	1	0302-0506	●	●	●	●	●	●	●
17	05.606 SHOE; PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	8-97042-934-1	02	1	0507-0606		●	●		●		●
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM)	8-97020-250-2	02	1	0302-0506		●
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM)	8-97020-250-2	02	1	0507-0606	●	●	●		●	●	●
17	05.606 SHOE; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97020-250-2	02	1	0607-	●	●	●			●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-09583-280-0	01	1	0607-		●	●		●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-09583-280-0	01	1	0302-0506	●	●	●	●	●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-09583-280-0	01	1	0507-0606		●	●		●		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM) 05.605	8-94132-157-0	02	1	0302-0506		●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM) 05.605	8-94132-157-0	02	1	0507-0606	●	●	●		●	●	●
21	05.606 SPRING; RETURN,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST) 05.605	8-94132-157-0	02	1	0607-	●	●	●			●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MYY5T(RSM) 05.605	8-94107-618-0	01	1	0302-0506		●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MYY5T(RSM) 05.605	8-94107-618-0	01	1	0507-0606	●	●	●		●	●	●
22	05.606 SPRING; ADJ SCREW,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST) 05.605	8-94107-618-0	01	1	0607-	●	●	●			●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-46240-004-0	01	1	0607-0706		●	●		●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-98043-963-0	01	1	0707-		●	●		●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46240-004-0	01	1	0302-0506	●	●	●	●	●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-46240-004-0	01	1	0507-0606		●	●		●		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM)	5-47165-025-0	01	1	0302-0506		●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM)	5-47165-025-0	01	1	0507-0606	●	●	●		●	●	●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	5-47165-025-0	01	1	0607-0611	●	●	●			●
23	05.615 SCREW; ADJ,PARKING BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-954-0	01	1	0612-	●	●	●			●
24	05.605 SPRING; BRK SHOE M/T MYY5T(RSM)	8-94132-155-0	02	1	0302-0506		●
24	05.605 SPRING; BRK SHOE M/T MYY5T(RSM)	8-94132-155-0	02	1	0507-0606	●	●	●		●	●	●
24	05.605 SPRING; BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-155-1	02	1	0607-	●	●	●			●
25	05.605 SPRING; SHOE ALIGNMENT M/T MYY5T(RSM)	8-94132-156-0	01	1	0302-0506		●
25	05.605 SPRING; SHOE ALIGNMENT M/T MYY5T(RSM)	8-94132-156-0	01	1	0507-0606	●	●	●		●	●	●
25	05.605 SPRING; SHOE ALIGNMENT M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-156-0	01	1	0607-	●	●	●			●
26	05.605 PLATE; SHOE GUIDE M/T MYY5T(RSM)	9-09851-986-0	01	1	0302-0506		●
26	05.605 PLATE; SHOE GUIDE M/T MYY5T(RSM)	9-09851-986-0	01	1	0507-0606	●	●	●		●	●	●
26	05.605 PLATE; SHOE GUIDE M/T MYY5T(RSM),M/T MYY6S(RST)	9-09851-986-0	01	1	0607-0611	●	●	●			●
26	05.605 PLATE; SHOE GUIDE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-959-0	01	1	0612-	●	●	●			●
29	04.591 LEVER; PARKING BRK M/T MYY5T(RSM) 05.605	8-97027-125-0	01	1	0302-0506		●
29	04.591 LEVER; PARKING BRK M/T MYY5T(RSM) 05.605	8-97027-125-0	01	1	0507-0606	●	●	●		●	●	●
29	04.591 LEVER; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST) 05.605	8-97027-125-0	01	1	0607-0611	●	●	●			●
29	04.591 LEVER; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-949-0	01	1	0612-	●	●	●			●
30	05.605 STRUT; PARKING BRK M/T MYY5T(RSM)	8-94311-779-0	01	1	0302-0506		●
30	05.605 STRUT; PARKING BRK M/T MYY5T(RSM)	8-94311-779-0	01	1	0507-0606	●	●	●		●	●	●
30	05.605 STRUT; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-94311-779-0	01	1	0607-0611	●	●	●			●
30	05.605 STRUT; PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-953-0	01	1	0612-	●	●	●			●
31	05.605 SPRING; SHOE TO STRUT M/T MYY5T(RSM)	8-94132-158-0	01	1	0302-0506		●
31	05.605 SPRING; SHOE TO STRUT M/T MYY5T(RSM)	8-94132-158-0	01	1	0507-0606	●	●	●		●	●	●
31	05.605 SPRING; SHOE TO STRUT M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-158-0	01	1	0607-	●	●	●			●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	1-46213-069-0	01	1	0607-		●	●		●		●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HE1 ENG(RLY) M/T MZZ6F(RSR)	1-46213-069-0	01	1	0302-0506	●	●	●	●	●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	1-46213-069-0	01	1	0507-0606		●	●		●		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM)	8-97308-176-0	01	1	0302-0506		●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM)	8-97308-176-0	01	1	0507-0606	●	●	●		●	●	●
32	05.610 PLATE; SUPPORT,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-97308-176-0	01	1	0607-	●	●	●			●
34	05.605 PIN; BRK SHOE M/T MYY5T(RSM)	8-94132-159-0	02	1	0302-0506		●
34	05.605 PIN; BRK SHOE M/T MYY5T(RSM)	8-94132-159-0	02	1	0507-0606	●	●	●		●	●	●
34	05.605 PIN; BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-94132-159-0	02	1	0607-0611	●	●	●			●
34	05.605 PIN; BRK SHOE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-955-0	02	1	0612-	●	●	●			●
37	05.610 NUT; SUPPORT PLATE 4HE1 ENG(RLY) M/T MZZ6F(RSR) M14 FLANGE	1-09440-048-0	04	1	0302-0506	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) M14 FLANGE	1-09440-048-0	04	1	0507-0604		●	●		●		●
37	05.610 NUT; SUPPORT PLATE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) M14 FLANGE	8-97365-444-0	04	1	0605-0606		●	●		●		●
37	05.610 NUT; SUPPORT PLATE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) M14 FLANGE	8-97365-444-0	04	1	0607-		●	●		●		●
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-97248-173-0	04	1	0302-0506		●
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-97248-173-0	04	1	0507-0604	●	●	●		●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-98029-927-0	04	1	0605-0606	●	●	●		●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM),M/T MYY6S(RST) M12 LOCK NUT	8-98029-927-0	04	1	0607-	●	●	●			●
48	05.605 RETAINER; PIN,PARKING BRK M/T MYY5T(RSM) 05.158	9-46349-005-1	01	1	0302-0506		●
48	05.605 RETAINER; PIN,PARKING BRK M/T MYY5T(RSM) 05.158	9-46349-005-1	01	1	0507-0606	●	●	●		●	●	●
48	05.605 RETAINER; PIN,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST) 05.158	9-46349-005-1	01	1	0607-0611	●	●	●			●
48	05.605 RETAINER; PIN,PARKING BRK M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-958-0	01	1	0612-	●	●	●			●
112	05.606 BOLT; COVER TO BRK DRUM M/T MYY5T(RSM) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0302-0506		●
112	05.606 BOLT; COVER TO BRK DRUM M/T MYY5T(RSM) 04.686 M6X16 W/LK WASHER	0-50040-616-0	01	1	0507-0512	●	●	●		●	●	●
112	05.606 BOLT; COVER TO BRK DRUM M/T MYY5T(RSM) 00.662 M6X16 W/LK WASHER	0-50540-616-0	01	1	0601-0606	●	●	●		●	●	●
112	05.606 BOLT; COVER TO BRK DRUM M/T MYY5T(RSM),M/T MYY6S(RST) 00.662 M6X16 W/LK WASHER	0-50540-616-0	01	1	0607-	●	●	●			●
114	05.605 STUD; SUPPORT PLATE 4HE1 ENG(RLY) M/T MZZ6F(RSR) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0302-0506	●	●	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0507-0604		●	●		●		●
114	05.605 STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) M14X22.5 L=42.5	8-97365-445-0	04	1	0605-0606		●	●		●		●
114	05.605 STUD; SUPPORT PLATE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) M14X22.5 L=42.5	8-97365-445-0	04	1	0607-		●	●		●		●
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM)	8-97289-280-0	04	1	0302-0506		●
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM)	8-97289-280-0	04	1	0507-0604	●	●	●		●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM)	8-98029-929-0	04	1	0605-0606	●	●	●		●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-929-0	04	1	0607-	●	●	●			●
172	05.605 CUP; SHOE HOLD M/T MYY5T(RSM) 05.043	9-47162-033-0	04	1	0302-0506		●
172	05.605 CUP; SHOE HOLD M/T MYY5T(RSM) 05.043	9-47162-033-0	04	1	0507-0606	●	●	●		●	●	●
172	05.605 CUP; SHOE HOLD M/T MYY5T(RSM),M/T MYY6S(RST) 05.043	9-47162-033-0	04	1	0607-0611	●	●	●			●
172	05.605 CUP; SHOE HOLD M/T MYY5T(RSM),M/T MYY6S(RST)	8-98043-956-0	04	1	0612-	●	●	●			●

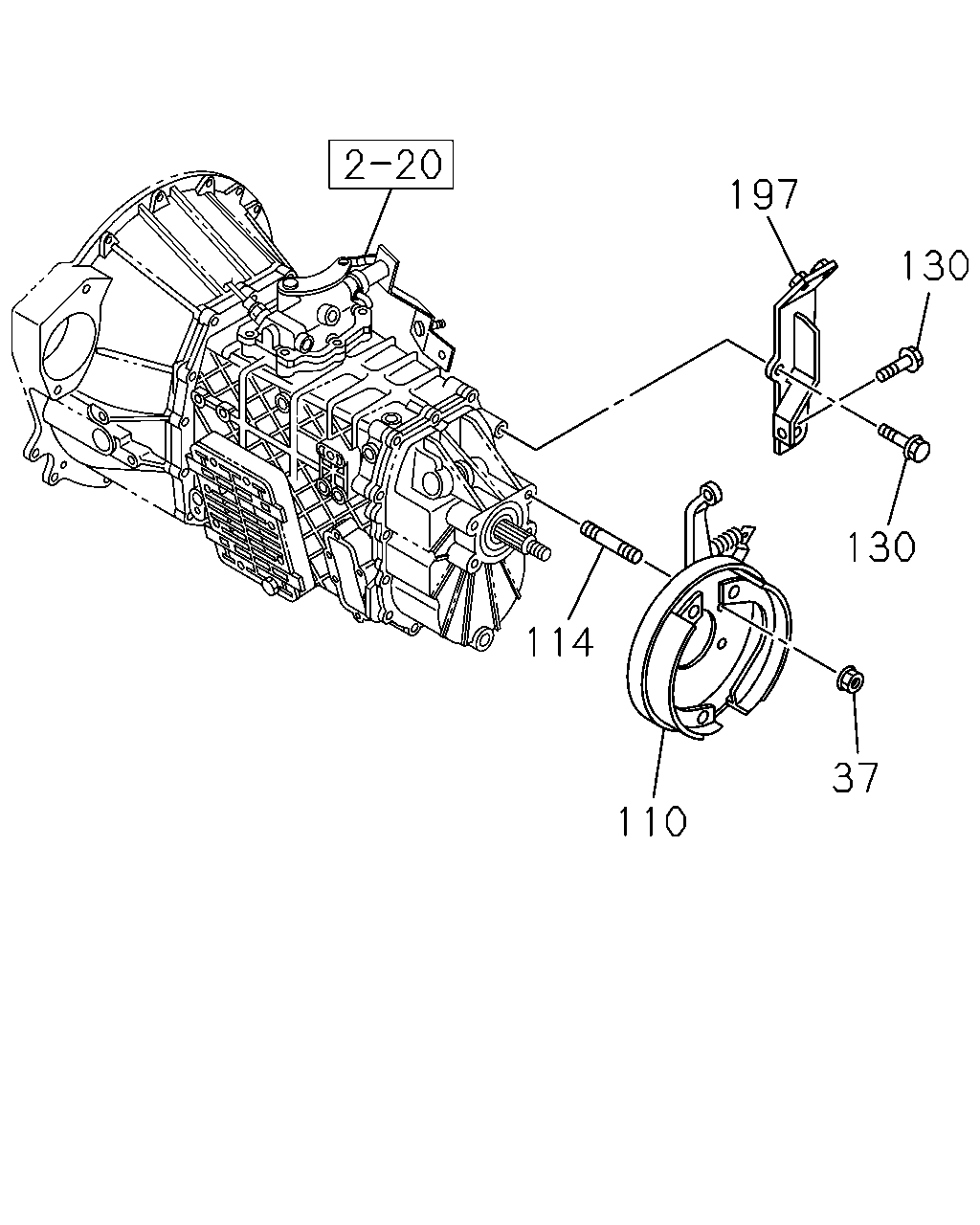

197 130 130 114 37 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
37	05.610 NUT; SUPPORT PLATE 4HE1 ENG(RLY) M/T MZZ6F(RSR) M14 FLANGE	1-09440-048-0	04	1	0302-0506	●	●	●	●	●	●	●
37	05.610 NUT; SUPPORT PLATE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) M14 FLANGE	1-09440-048-0	04	1	0507-0604		●	●		●		●
37	05.610 NUT; SUPPORT PLATE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) M14 FLANGE	8-97365-444-0	04	1	0605-0606		●	●		●		●
37	05.610 NUT; SUPPORT PLATE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) M14 FLANGE	8-97365-444-0	04	1	0607-		●	●		●		●
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-97248-173-0	04	1	0302-0506		●
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-97248-173-0	04	1	0507-0604	●	●	●		●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM) M12 LOCK NUT	8-98029-927-0	04	1	0605-0606	●	●	●		●	●	●
37	05.610 NUT; SUPPORT PLATE M/T MYY5T(RSM),M/T MYY6S(RST) M12 LOCK NUT	8-98029-927-0	04	1	0607-	●	●	●			●
110	05.610 BRAKE ASM; PARKING 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97041-474-3	01	1	0302-0410	●	●	●	●	●	●	●
110	05.610 BRAKE ASM; PARKING 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97205-628-0	01	1	0411-0506	●	●	●	●	●	●	●
110	05.610 BRAKE ASM; PARKING 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR)	8-97205-628-0	01	1	0507-0606		●	●		●		●
110	05.610 BRAKE ASM; PARKING 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-97205-628-0	01	1	0607-0706		●	●		●		●
110	05.610 BRAKE ASM; PARKING 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR)	8-98034-305-0	01	1	0707-		●	●		●		●
114	05.605 STUD; SUPPORT PLATE 4HE1 ENG(RLY) M/T MZZ6F(RSR) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0302-0506	●	●	●	●	●	●	●
114	05.605 STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) 04.519 M14X22.5 L=42.5	1-09302-138-1	04	1	0507-0604		●	●		●		●
114	05.605 STUD; SUPPORT PLATE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) M14X22.5 L=42.5	8-97365-445-0	04	1	0605-0606		●	●		●		●
114	05.605 STUD; SUPPORT PLATE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) M14X22.5 L=42.5	8-97365-445-0	04	1	0607-		●	●		●		●
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM)	8-97289-280-0	04	1	0302-0506		●
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM)	8-97289-280-0	04	1	0507-0604	●	●	●		●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM)	8-98029-929-0	04	1	0605-0606	●	●	●		●	●	●
114	05.605 STUD; SUPPORT PLATE M/T MYY5T(RSM),M/T MYY6S(RST)	8-98029-929-0	04	1	0607-	●	●	●			●
130	05.605 BOLT; BRKT 4HE1 ENG(RLY) M/T MZZ6F(RSR) 04.525 M10X25 FLANGE	0-28181-025-0	03	1	0302-0506	●	●	●	●	●	●	●
130	05.605 BOLT; BRKT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) 04.525 M10X25 FLANGE	0-28181-025-0	03	1	0507-0512		●	●		●		●
130	05.605 BOLT; BRKT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) 02.042 M10X25 FLANGE	0-28151-025-0	03	1	0601-0606		●	●		●		●
130	05.605 BOLT; BRKT 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) 02.042 M10X25 FLANGE	0-28151-025-0	03	1	0607-		●	●		●		●
197	05.605 BRACKET; CENTER BRAKE CABLE 4HE1 ENG(RLY) M/T MZZ6F(RSR)	8-97244-812-0	01	1	0302-0506	●	●	●	●	●	●	●
197	05.605 BRACKET; CENTER BRAKE CABLE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97244-812-0	01	1	0507-0606		●	●		●		●
197	05.605 BRACKET; CENTER BRAKE CABLE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97244-812-0	01	1	0607-		●	●		●		●
197	05.605 BRACKET; CENTER BRAKE CABLE 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97304-238-0	01	1	0507-0606		●	●		●		●
197	05.605 BRACKET; CENTER BRAKE CABLE 4HK1-TCC ENG(RDV) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97304-238-0	01	1	0607-		●	●		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
