3-02 — FRONT DISC BRAKE CALIPER (#47089) — 189 parça

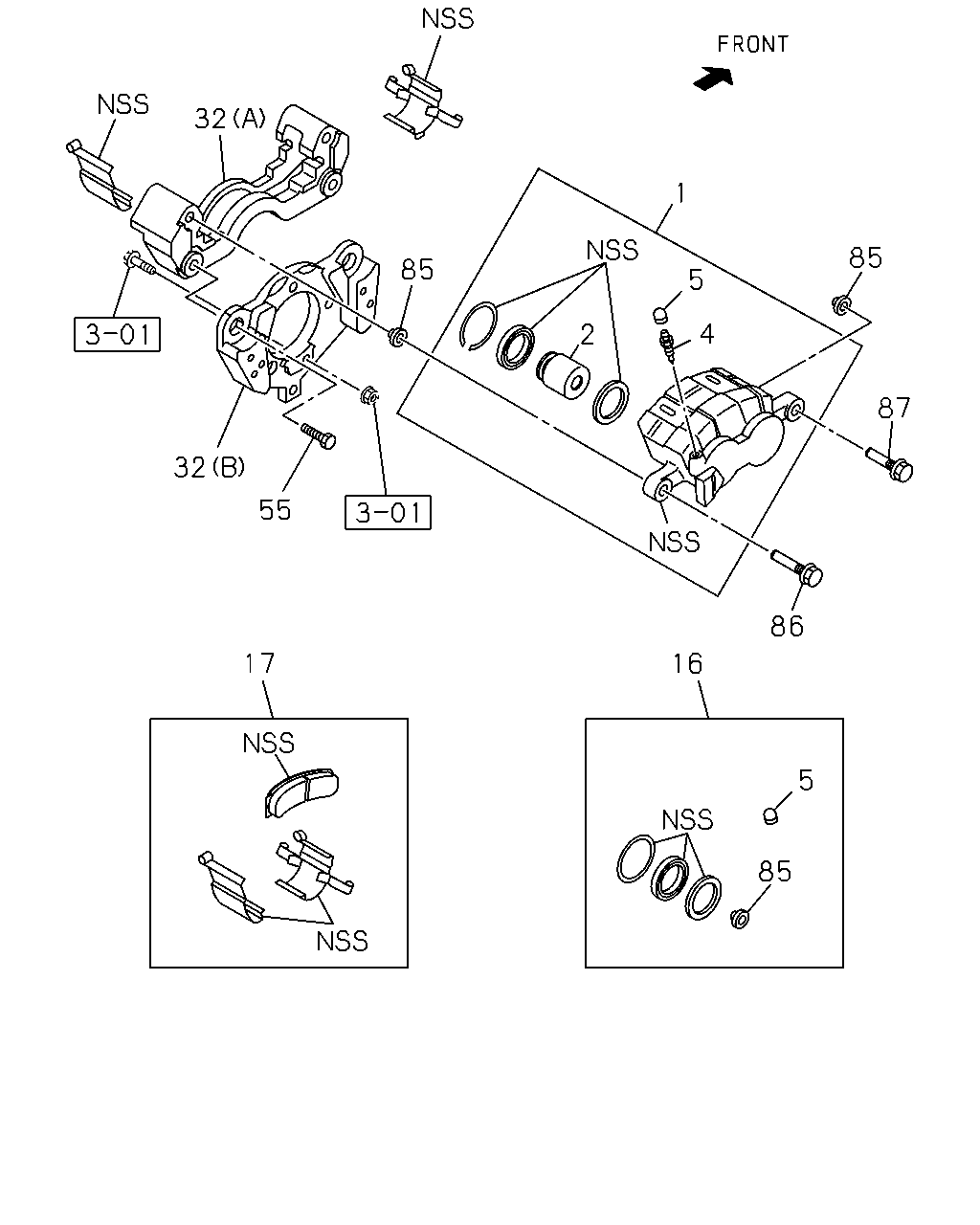

çizim 51605
32 1 85 85 5 2 4 87 32 55 86 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97228-625-1 01 1 0302-0506 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-908-0 01 1 0507-0606 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-908-0 01 1 0607- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97365-908-0 01 1 0607- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97228-624-1 01 1 0302-0506 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-907-0 01 1 0507-0606 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-907-0 01 1 0607- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97365-907-0 01 1 0607- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97168-588-1 01 1 0302-0506 ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97368-920-0 01 1 0507- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97168-587-1 01 1 0302-0506 ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97368-919-0 01 1 0507- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-94468-350-0 04 1 0302-0506 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-269-0 04 1 0507-0606 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-269-0 04 1 0607- ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97365-269-0 04 1 0607- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-593-0 04 1 0302-0506 ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97365-279-0 04 1 0507- ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0302-0506 ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0507-0606 ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0607- ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 0607- ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0302-0506 ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0507-0606 ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0607- ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0607- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98120-357-0 01 1 0607- ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-98120-357-0 01 1 0607- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-98120-358-0 01 1 0607- ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97168-635-0 01 1 0302-0506 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-913-0 01 1 0507-0606 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-636-0 01 1 0302-0506 ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97365-914-0 01 1 0507-0606 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97329-266-0 01 1 0302-0606 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97329-266-0 01 1 0607-1212 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97329-266-0 01 1 0607-1212 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98216-922-0 01 1 1301- ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-98216-922-0 01 1 1301- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-634-0 01 1 0302-0506 ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97378-446-0 01 1 0507-1212 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-98244-794-0 01 1 1301- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97228-630-1 02 1 0302-0506 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97365-271-0 02 1 0507-0606 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97365-271-0 02 1 0607- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> (A) 		8-97365-271-0 02 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0302-0506 ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-584-2 01 1 0302-0506 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-584-2 01 1 0507-0606 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0507-0606 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-584-2 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97168-584-2 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0607- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0302-0506 ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-583-2 01 1 0302-0506 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-583-2 01 1 0507-0606 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0507-0606 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-583-2 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97168-583-2 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0607- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0302-0506 ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0507-0606 ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0302-0506 ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0507-0606 ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97168-599-1 02 1 0302-0506 ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97365-281-0 02 1 0507- ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0302-0506 ● ● ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0507-0606 ● ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0607-0611 ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> 		8-97168-639-0 04 1 0607-0611 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0612- ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> M16X31 FLANGE 		8-97359-816-0 04 1 0612- ●
85 04.665 BOOT; PIN 8-97168-612-0 04 1 0302-0506 ● ● ● ● ● ● ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0507-0606 ● ● ● ● ● ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0607-0901 ● ● ● ● ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-97365-265-0 04 1 0607-0901 ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 0902- ● ● ● ● ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-98120-354-0 04 1 0902- ●
86 04.665 PIN; GUIDE 8-97168-609-1 02 1 0302-0506 ● ● ● ● ● ● ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0507-0606 ● ● ● ● ● ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0607-0610 ● ● ● ● ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-97365-275-0 02 1 0607-0610 ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 0611- ● ● ● ● ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-98047-529-0 02 1 0611- ●
87 04.665 PIN; LOCK 8-97168-611-1 02 1 0302-0506 ● ● ● ● ● ● ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0507-0606 ● ● ● ● ● ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0607-0610 ● ● ● ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-97365-276-0 02 1 0607-0610 ●
87 04.665 PIN; LOCK 8-98047-531-0 02 1 0611- ● ● ● ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-98047-531-0 02 1 0611- ●

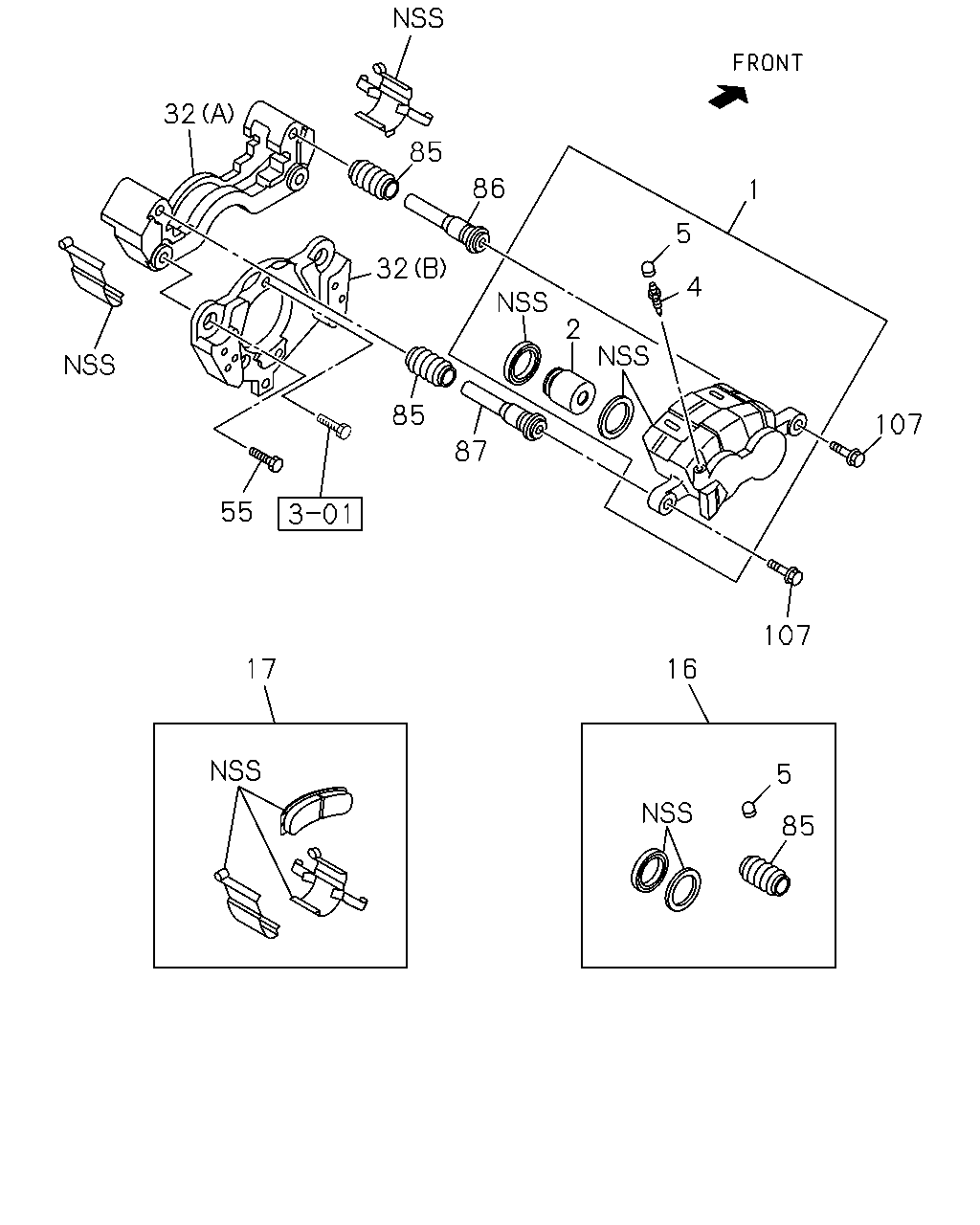

çizim 54049
32 85 86 1 5 32 4 2 85 107 87 55 107 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97228-625-1 01 1 0302-0506 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-908-0 01 1 0507-0606 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-908-0 01 1 0607- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97365-908-0 01 1 0607- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97228-624-1 01 1 0302-0506 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-907-0 01 1 0507-0606 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-907-0 01 1 0607- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97365-907-0 01 1 0607- ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97168-588-1 01 1 0302-0506 ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97368-920-0 01 1 0507- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97168-587-1 01 1 0302-0506 ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) 		8-97368-919-0 01 1 0507- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-94468-350-0 04 1 0302-0506 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-269-0 04 1 0507-0606 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-269-0 04 1 0607- ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97365-269-0 04 1 0607- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-593-0 04 1 0302-0506 ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97365-279-0 04 1 0507- ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0302-0506 ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0507-0606 ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 0607- ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 0607- ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0302-0506 ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0507-0606 ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0607- ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0607- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98120-357-0 01 1 0607- ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-98120-357-0 01 1 0607- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-98120-358-0 01 1 0607- ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97168-635-0 01 1 0302-0506 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97365-913-0 01 1 0507-0606 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-636-0 01 1 0302-0506 ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97365-914-0 01 1 0507-0606 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97329-266-0 01 1 0302-0606 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-97329-266-0 01 1 0607-1212 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-97329-266-0 01 1 0607-1212 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) 		8-98216-922-0 01 1 1301- ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 		8-98216-922-0 01 1 1301- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97168-634-0 01 1 0302-0506 ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-97378-446-0 01 1 0507-1212 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) 		8-98244-794-0 01 1 1301- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97228-630-1 02 1 0302-0506 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97365-271-0 02 1 0507-0606 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97365-271-0 02 1 0607- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> (A) 		8-97365-271-0 02 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0302-0506 ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-584-2 01 1 0302-0506 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-584-2 01 1 0507-0606 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0507-0606 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-584-2 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97168-584-2 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-584-2 01 1 0607- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0302-0506 ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-583-2 01 1 0302-0506 ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-583-2 01 1 0507-0606 ● ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0507-0606 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-583-2 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> (B) 		8-97168-583-2 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97168-583-2 01 1 0607- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0302-0506 ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0507-0606 ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0302-0506 ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0507-0606 ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0607- ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97168-599-1 02 1 0302-0506 ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) (A) 		8-97365-281-0 02 1 0507- ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0302-0506 ● ● ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0507-0606 ● ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 0607-0611 ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> 		8-97168-639-0 04 1 0607-0611 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 0612- ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> M16X31 FLANGE 		8-97359-816-0 04 1 0612- ●
85 04.665 BOOT; PIN 8-97168-612-0 04 1 0302-0506 ● ● ● ● ● ● ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0507-0606 ● ● ● ● ● ●
85 04.665 BOOT; PIN 8-97365-265-0 04 1 0607-0901 ● ● ● ● ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-97365-265-0 04 1 0607-0901 ●
85 04.665 BOOT; PIN 8-98120-354-0 04 1 0902- ● ● ● ● ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-98120-354-0 04 1 0902- ●
86 04.665 PIN; GUIDE 8-97168-609-1 02 1 0302-0506 ● ● ● ● ● ● ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0507-0606 ● ● ● ● ● ●
86 04.665 PIN; GUIDE 8-97365-275-0 02 1 0607-0610 ● ● ● ● ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-97365-275-0 02 1 0607-0610 ●
86 04.665 PIN; GUIDE 8-98047-529-0 02 1 0611- ● ● ● ● ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-98047-529-0 02 1 0611- ●
87 04.665 PIN; LOCK 8-97168-611-1 02 1 0302-0506 ● ● ● ● ● ● ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0507-0606 ● ● ● ● ● ●
87 04.665 PIN; LOCK 8-97365-276-0 02 1 0607-0610 ● ● ● ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-97365-276-0 02 1 0607-0610 ●
87 04.665 PIN; LOCK 8-98047-531-0 02 1 0611- ● ● ● ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-98047-531-0 02 1 0611- ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0507-0606 ● ● ● ● ● ●
107 04.665 BOLT; PIN 8-97365-264-0 04 1 0607- ● ● ● ● ●
107 04.665 BOLT; PIN
DISC BRAKE FRT<J52> 		8-97365-264-0 04 1 0607- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
