3-01 — FRONT WHEEL BRAKE (#47088) — 70 parça
çizim 13982
66 66 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97168-637-0 02 1 0302-0506 ● ● ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97168-637-0 02 1 0507-0606 ● ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97168-637-0 02 1 0607-0611 ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) M14X23.5 		8-97168-637-0 02 1 0607-0611 ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0612- ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 0612- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0302-0506 ● ● ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0507-0606 ● ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0607- ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 0607- ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (C) M12X33 		9-09600-043-3 08 1 0607-0611 ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (C) M12X33 		8-98009-493-2 08 1 0612- ●
72 05.815 NUT; OIL SHIELD COVER
07.347 (A) M14 FLANGE 		8-97167-635-0 06 1 0302-0506 ● ● ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
07.347 (A) M14 FLANGE 		8-97167-635-0 06 1 0507-0606 ● ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
07.347 (A) M14 FLANGE 		8-97167-635-0 06 1 0607-0611 ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> 07.347 (A) M14 FLANGE 		8-97167-635-0 06 1 0607-0611 ●
72 05.815 NUT; OIL SHIELD COVER
(A) 		8-97359-815-0 06 1 0612- ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) 		8-97359-815-0 06 1 0612- ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 (B) M12 		0-91110-512-0 08 1 0607- ●

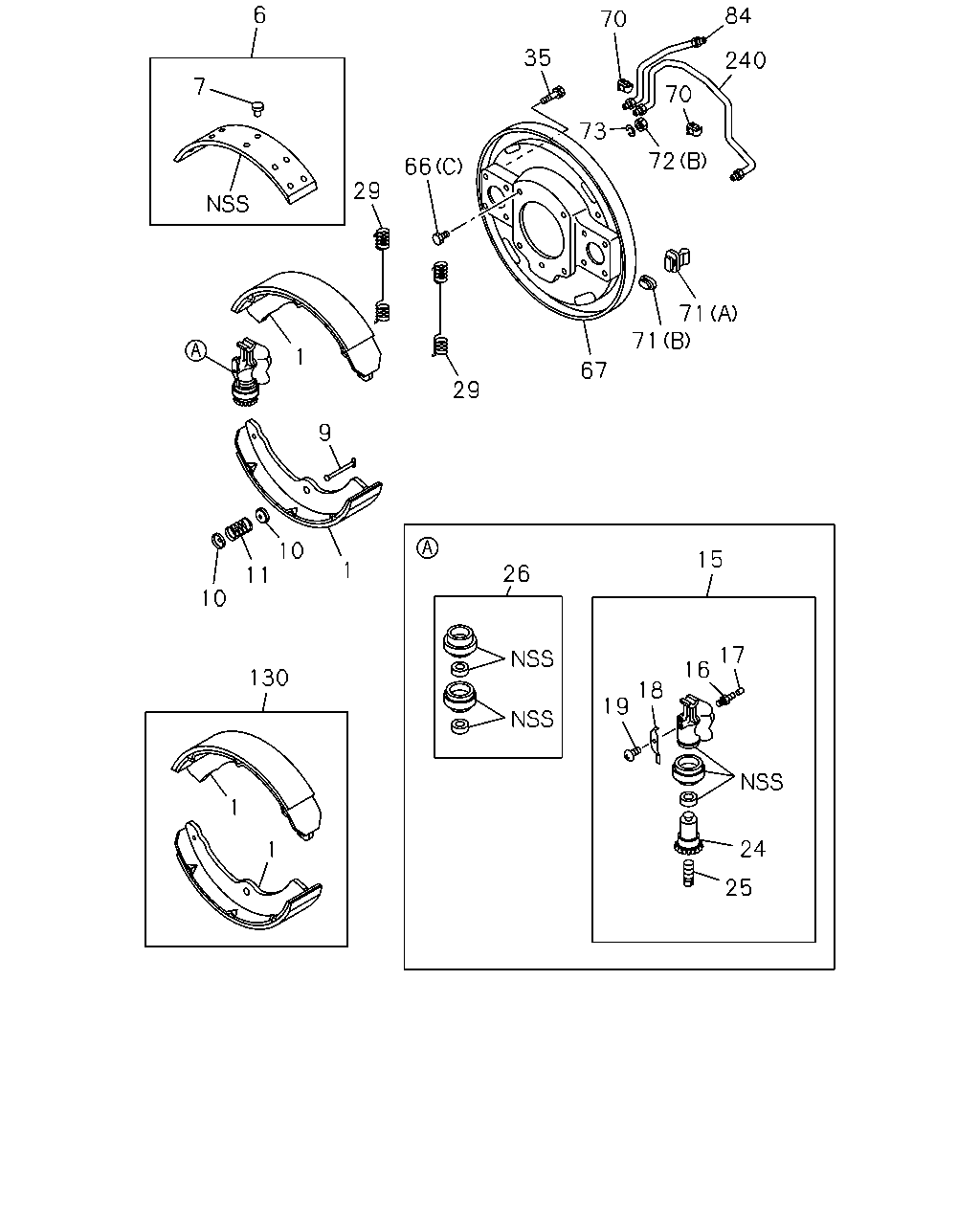

çizim 54391
6 84 70 35 240 7 70 73 72 66 29 71 71 1 67 29 9 10 15 1 26 11 10 17 16 130 18 19 1 24 1 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 05.017 SHOE; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97287-778-0 04 1 0607- ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-87831-801-0 01 1 0607- ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		1-09732-029-0 40 1 0607- ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.043 		5-47162-001-0 04 1 0607- ●
10 05.043 CUP; SHOE HOLDING
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		9-47165-096-0 08 1 0607- ●
11 05.027 SPRING; SHOE HOLDING
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.043 		5-09580-101-1 04 1 0607- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> FRONT 		8-97170-950-0 01 1 0607- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> REAR 		8-97170-952-0 01 1 0607- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> FRONT 		8-97170-951-0 01 1 0607- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> REAR 		8-97170-953-0 01 1 0607- ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		9-47615-027-0 02 1 0607-0711 ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 0712- ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0607-0711 ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 0712- ●
18 05.107 STOPPER; ADJ SCREW
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-486-0 04 1 0607- ●
19 05.107 SCREW; STOPPER SETTING
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-727-0 04 1 0607- ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97078-621-0 04 1 0607- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97078-623-0 04 1 0607- ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-87831-602-0 01 1 0607- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-09583-118-0 04 1 0607- ●
35 04.665 BOLT; FRT WHEEL CYL
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-09030-016-1 16 1 0607- ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97168-637-0 02 1 0302-0506 ● ● ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97168-637-0 02 1 0507-0606 ● ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97168-637-0 02 1 0607-0611 ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) M14X23.5 		8-97168-637-0 02 1 0607-0611 ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 0612- ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 0612- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0302-0506 ● ● ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0507-0606 ● ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 0607- ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 0607- ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (C) M12X33 		9-09600-043-3 08 1 0607-0611 ●
66 05.815 BOLT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (C) M12X33 		8-98009-493-2 08 1 0612- ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97302-589-0 01 1 0607- ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-97302-588-0 01 1 0607- ●
70 04.685 CLIP; PIPE HOLD
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94128-306-0 02 1 0607- ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (B) 		8-94171-287-0 02 1 0607- ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> (A) 		9-09756-034-0 02 1 0607- ●
72 05.815 NUT; OIL SHIELD COVER
07.347 (A) M14 FLANGE 		8-97167-635-0 06 1 0302-0506 ● ● ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
07.347 (A) M14 FLANGE 		8-97167-635-0 06 1 0507-0606 ● ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
07.347 (A) M14 FLANGE 		8-97167-635-0 06 1 0607-0611 ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> 07.347 (A) M14 FLANGE 		8-97167-635-0 06 1 0607-0611 ●
72 05.815 NUT; OIL SHIELD COVER
(A) 		8-97359-815-0 06 1 0612- ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) 		8-97359-815-0 06 1 0612- ●
72 05.815 NUT; OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 05.002 (B) M12 		0-91110-512-0 08 1 0607- ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 00.002 ID=12.2 		0-91510-612-0 08 1 0607-0611 ●
73 05.815 WASHER; LK,OIL SHIELD COVER
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 07.347 ID=12.2 		0-91510-812-0 08 1 0612- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94154-918-0 01 1 0607- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94154-917-0 01 1 0607- ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		5-87832-047-0 01 1 0607- ●
240 04.685 PIPE; OIL,FRT BRK
G.V.W. 6.0-6.5TON(RPV) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, DISC BRAKE FRT<J52> 		8-94154-916-0 02 1 0607- ●
