Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#47084) — 253 parça

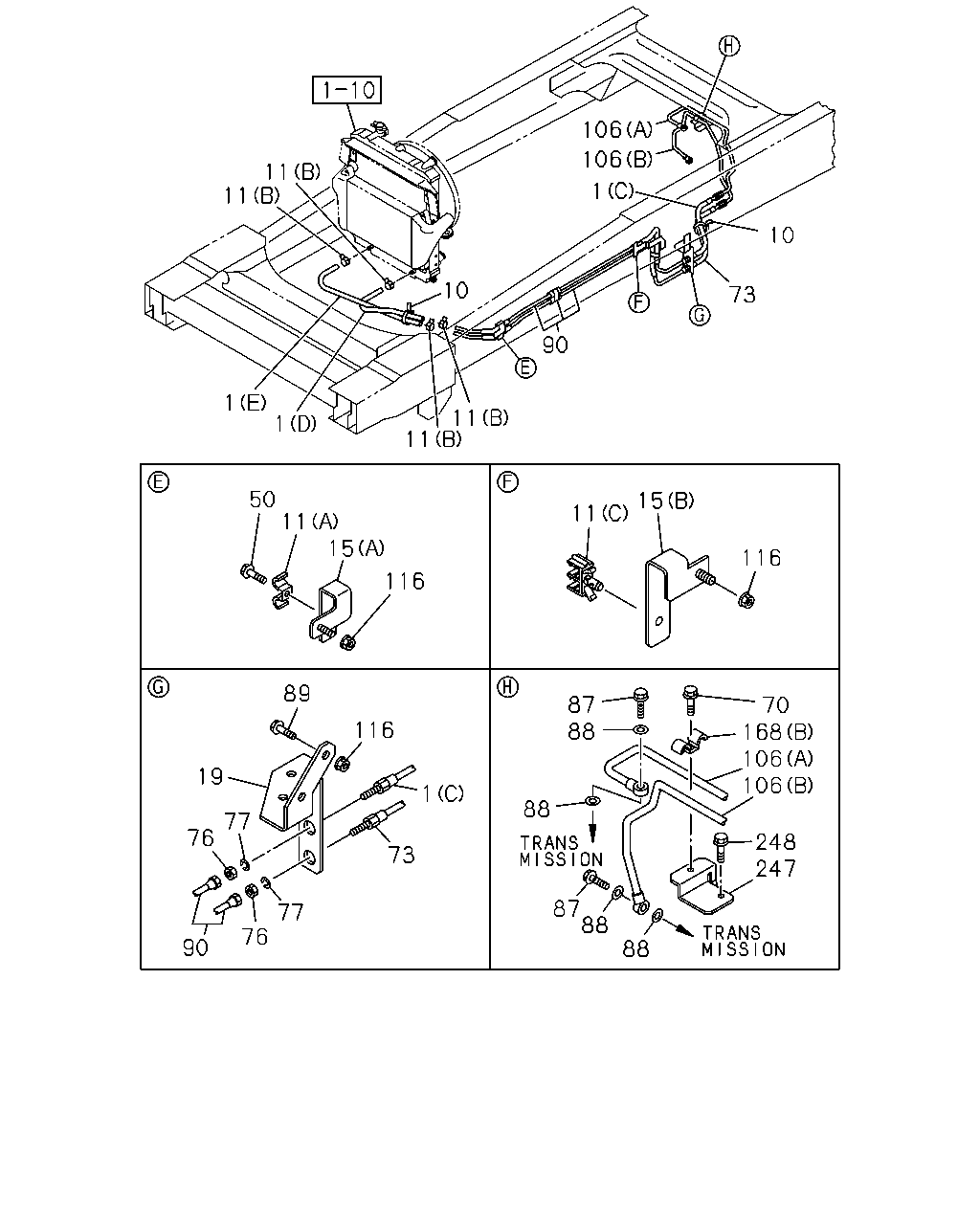

106 106 1 10 1 73 10 90 1 50 15 11 15 168 116 116 89 87 88 70 168 106 106 1 19 77 88 76 73 248 247 77 76 87 88 90 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=420	8-97012-838-1	01	1	0507-0606	●	●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=640	8-98019-873-2	01	1	0607-0705		●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98087-327-0	01	1	0706-		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=630	8-97180-927-0	01	1	0507-0606	●	●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=420	8-98020-111-4	01	1	0607-0705		●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98087-326-0	01	1	0706-		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=308	8-97376-623-1	01	1	0507-0606	●	●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=308	8-97376-623-1	01	1	0607-		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98000-604-2	02	1	0607-0705	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98086-380-0	02	1	0706-	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=200	8-98019-872-4	01	1	0607-0705	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98087-328-0	01	1	0706-	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (H)	8-98036-444-0	01	1	0607-	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=230	8-98043-384-0	01	1	0607-0705	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98087-329-0	01	1	0706-	●		●
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	02	1	0507-0606	●	●
10	04.128 CLIP; A/T COOLER HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	02	1	0607-		●
10	04.128 CLIP; A/T COOLER HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0607-	●		●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 (B) ID=16	8-94392-924-0	04	1	0607-0706		●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	04	1	0707-		●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0607-		●
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0507-0606	●	●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0607-		●
11	04.128 CLIP; PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=16	8-94392-924-0	08	1	0607-0706	●		●
11	04.128 CLIP; PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	08	1	0707-	●		●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98010-982-0	01	1	0507-0606	●	●
15	04.128 BRACKET; ATF PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98010-982-0	01	1	0607-		●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98010-983-0	01	1	0507-0606	●	●
15	04.128 BRACKET; ATF PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98010-983-0	01	1	0607-		●
15	04.128 BRACKET; ATF PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98035-763-0	01	1	0607-	●		●
15	04.128 BRACKET; ATF PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98035-764-0	02	1	0607-	●		●
19	04.128 BRACKET; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-981-1	01	1	0507-0606	●	●
19	04.128 BRACKET; FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-981-1	01	1	0607-		●
19	04.128 BRACKET; FLEX HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98000-508-1	01	1	0607-	●		●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0507-0512	●	●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-0606	●	●
50	04.128 BOLT; CLIP 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0607-		●
50	04.128 BOLT; CLIP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-	●		●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●	●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-	●	●	●
73	04.128 HOSE; FLEX,TRANS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=308	8-97376-623-1	01	1	0507-0606	●	●
73	04.128 HOSE; FLEX,TRANS 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=308	8-97376-623-1	01	1	0607-		●
73	04.128 HOSE; FLEX,TRANS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98036-445-0	01	1	0607-	●		●
76	04.128 NUT; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.897 M16	8-94370-339-0	02	1	0507-0606	●	●
76	04.128 NUT; FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.897 M16	8-94370-339-0	02	1	0607-		●
76	04.128 NUT; FLEX HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.897 M16	8-94370-339-0	02	1	0607-	●		●
77	04.128 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	0507-0603	●	●
77	04.128 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0604-0606	●	●
77	04.128 WASHER; LK 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0607-		●
77	04.128 WASHER; LK 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0607-	●		●
87	04.128 BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 M14X30 EYE-BOLT	1-09675-146-0	02	1	0507-0606	●	●
87	04.128 BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 M14X30 EYE-BOLT	1-09675-146-0	02	1	0607-0805	●	●	●
87	04.128 BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) M14X30 EYE-BOLT	8-98037-827-0	02	1	0806-	●	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0507-0606	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0607-	●	●	●
89	04.128 BOLT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0507-0512	●	●
89	04.128 BOLT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0601-0606	●	●
89	04.128 BOLT; BRKT,FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0607-		●
89	04.128 BOLT; BRKT,FLEX HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-974-1	01	1	0507-0606	●	●
90	04.128 PIPE ASM; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98013-747-3	01	1	0607-		●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97366-998-1	01	1	0507-0606	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98018-779-0	01	1	0607-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97367-001-1	01	1	0507-0606	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98038-464-0	01	1	0607-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-440-4	01	1	0607-	●		●
106	04.128 PIPE ASM; OIL,COOLER TO UNION 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-441-5	01	1	0607-	●		●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	03	1	0507-0602	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-0606	●	●
116	04.128 NUT; BRKT,FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-		●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0606	●	●
116	04.128 NUT; BRKT,FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-		●
116	04.128 NUT; BRKT,FLEX HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0507-0606	●	●
168	04.128 CLIP; A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0507-0606	●	●
168	04.128 CLIP; A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0607-	●	●	●
247	04.128 RETAINER; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-876-0	01	1	0507-0606	●	●
247	04.128 RETAINER; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-876-0	01	1	0607-	●	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-	●	●	●

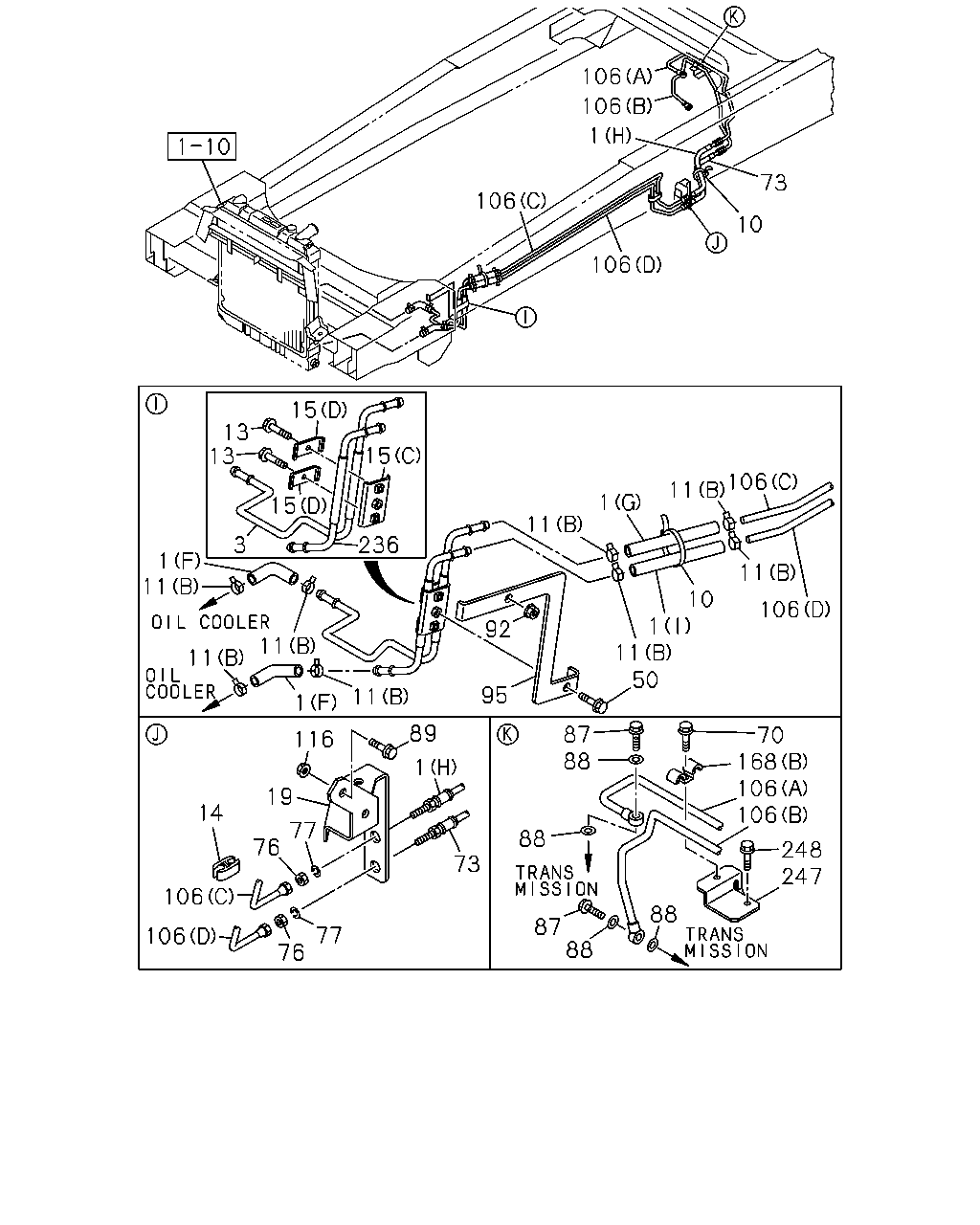

106 106 11 11 1 10 10 73 90 1 1 11 11 50 11 15 11 15 116 116 89 87 88 70 168 106 106 116 19 1 88 77 76 248 247 73 87 88 77 76 90 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=420	8-97012-838-1	01	1	0507-0606	●	●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=640	8-98019-873-2	01	1	0607-0705		●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98087-327-0	01	1	0706-		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=630	8-97180-927-0	01	1	0507-0606	●	●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=420	8-98020-111-4	01	1	0607-0705		●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98087-326-0	01	1	0706-		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=308	8-97376-623-1	01	1	0507-0606	●	●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=308	8-97376-623-1	01	1	0607-		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98000-604-2	02	1	0607-0705	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98086-380-0	02	1	0706-	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=200	8-98019-872-4	01	1	0607-0705	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98087-328-0	01	1	0706-	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (H)	8-98036-444-0	01	1	0607-	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=230	8-98043-384-0	01	1	0607-0705	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98087-329-0	01	1	0706-	●		●
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	02	1	0507-0606	●	●
10	04.128 CLIP; A/T COOLER HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	02	1	0607-		●
10	04.128 CLIP; A/T COOLER HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0607-	●		●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 (B) ID=16	8-94392-924-0	04	1	0607-0706		●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	04	1	0707-		●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0607-		●
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0507-0606	●	●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0607-		●
11	04.128 CLIP; PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=16	8-94392-924-0	08	1	0607-0706	●		●
11	04.128 CLIP; PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	08	1	0707-	●		●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98010-982-0	01	1	0507-0606	●	●
15	04.128 BRACKET; ATF PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98010-982-0	01	1	0607-		●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98010-983-0	01	1	0507-0606	●	●
15	04.128 BRACKET; ATF PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98010-983-0	01	1	0607-		●
15	04.128 BRACKET; ATF PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98035-763-0	01	1	0607-	●		●
15	04.128 BRACKET; ATF PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98035-764-0	02	1	0607-	●		●
19	04.128 BRACKET; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-981-1	01	1	0507-0606	●	●
19	04.128 BRACKET; FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-981-1	01	1	0607-		●
19	04.128 BRACKET; FLEX HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98000-508-1	01	1	0607-	●		●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0507-0512	●	●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-0606	●	●
50	04.128 BOLT; CLIP 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0607-		●
50	04.128 BOLT; CLIP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-	●		●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●	●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-	●	●	●
73	04.128 HOSE; FLEX,TRANS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=308	8-97376-623-1	01	1	0507-0606	●	●
73	04.128 HOSE; FLEX,TRANS 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=308	8-97376-623-1	01	1	0607-		●
73	04.128 HOSE; FLEX,TRANS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98036-445-0	01	1	0607-	●		●
76	04.128 NUT; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.897 M16	8-94370-339-0	02	1	0507-0606	●	●
76	04.128 NUT; FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.897 M16	8-94370-339-0	02	1	0607-		●
76	04.128 NUT; FLEX HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.897 M16	8-94370-339-0	02	1	0607-	●		●
77	04.128 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	0507-0603	●	●
77	04.128 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0604-0606	●	●
77	04.128 WASHER; LK 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0607-		●
77	04.128 WASHER; LK 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0607-	●		●
87	04.128 BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 M14X30 EYE-BOLT	1-09675-146-0	02	1	0507-0606	●	●
87	04.128 BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 M14X30 EYE-BOLT	1-09675-146-0	02	1	0607-0805	●	●	●
87	04.128 BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) M14X30 EYE-BOLT	8-98037-827-0	02	1	0806-	●	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0507-0606	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0607-	●	●	●
89	04.128 BOLT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0507-0512	●	●
89	04.128 BOLT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0601-0606	●	●
89	04.128 BOLT; BRKT,FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0607-		●
89	04.128 BOLT; BRKT,FLEX HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●		●
90	04.128 PIPE ASM; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-974-1	01	1	0507-0606	●	●
90	04.128 PIPE ASM; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98013-747-3	01	1	0607-		●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97366-998-1	01	1	0507-0606	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98018-779-0	01	1	0607-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97367-001-1	01	1	0507-0606	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98038-464-0	01	1	0607-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-440-4	01	1	0607-	●		●
106	04.128 PIPE ASM; OIL,COOLER TO UNION 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-441-5	01	1	0607-	●		●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	03	1	0507-0602	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-0606	●	●
116	04.128 NUT; BRKT,FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-		●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0606	●	●
116	04.128 NUT; BRKT,FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-		●
116	04.128 NUT; BRKT,FLEX HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0507-0606	●	●
168	04.128 CLIP; A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0507-0606	●	●
168	04.128 CLIP; A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0607-	●	●	●
247	04.128 RETAINER; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-876-0	01	1	0507-0606	●	●
247	04.128 RETAINER; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-876-0	01	1	0607-	●	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-	●	●	●

106 106 1 73 106 10 106 15 13 13 15 15 106 11 1 11 3 236 1 11 11 10 1 11 50 106 11 92 11 95 11 1 89 87 88 70 168 106 106 116 1 19 14 77 88 76 248 247 73 106 88 87 88 77 106 76

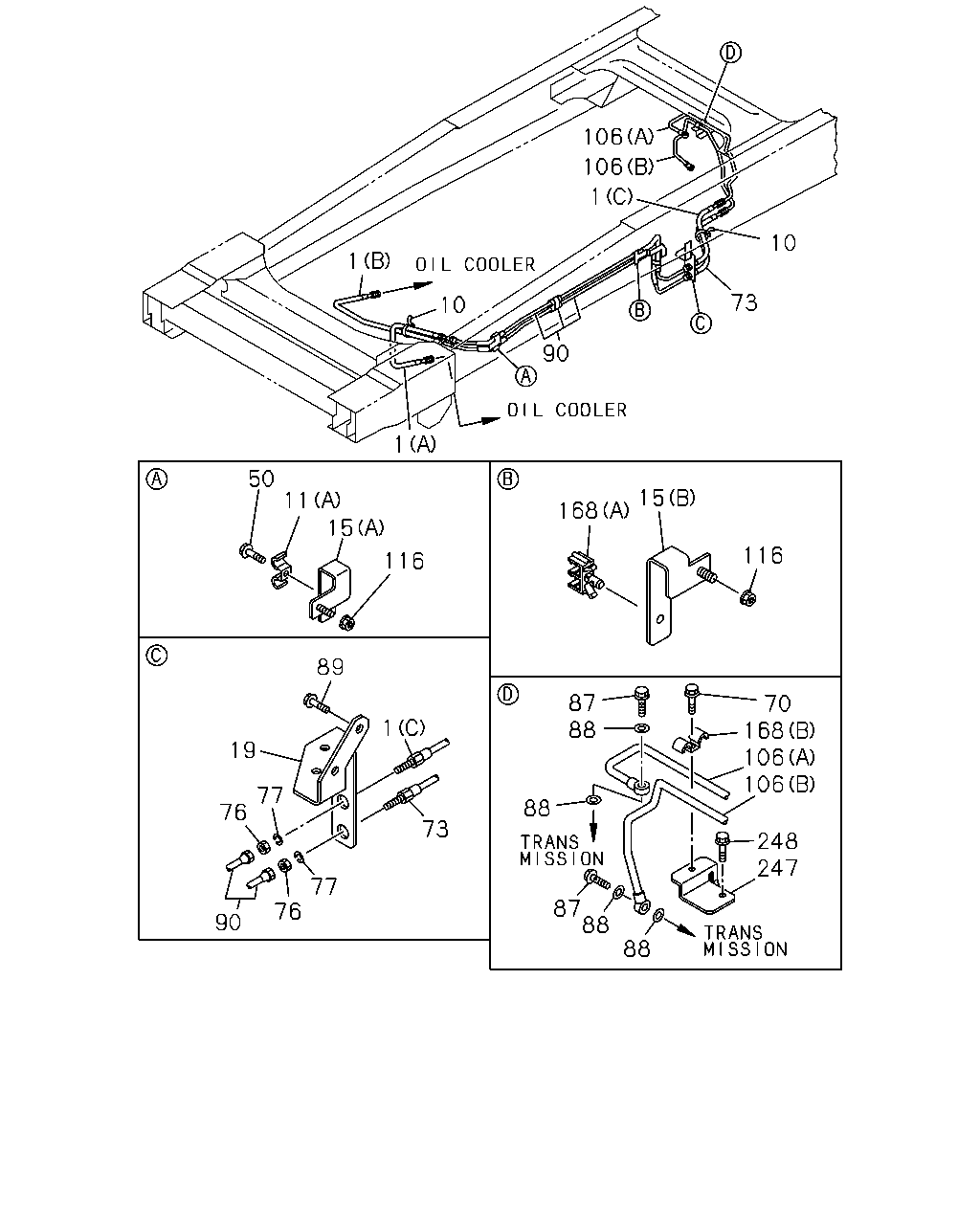

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=420	8-97012-838-1	01	1	0507-0606	●	●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=640	8-98019-873-2	01	1	0607-0705		●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98087-327-0	01	1	0706-		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=630	8-97180-927-0	01	1	0507-0606	●	●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=420	8-98020-111-4	01	1	0607-0705		●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98087-326-0	01	1	0706-		●
1	04.128 HOSE; ATF FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=308	8-97376-623-1	01	1	0507-0606	●	●
1	04.128 HOSE; ATF 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=308	8-97376-623-1	01	1	0607-		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98000-604-2	02	1	0607-0705	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (F)	8-98086-380-0	02	1	0706-	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G) L=200	8-98019-872-4	01	1	0607-0705	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (G)	8-98087-328-0	01	1	0706-	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (H)	8-98036-444-0	01	1	0607-	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (I) L=230	8-98043-384-0	01	1	0607-0705	●		●
1	04.128 HOSE; ATF 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98087-329-0	01	1	0706-	●		●
3	04.128 PIPE; OIL,A/T TO OIL COOLER 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-093-1	01	1	0607-	●		●
10	04.128 CLIP; A/T COOLER HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	02	1	0507-0606	●	●
10	04.128 CLIP; A/T COOLER HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=250	5-09707-030-1	02	1	0607-		●
10	04.128 CLIP; A/T COOLER HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0607-	●		●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 (B) ID=16	8-94392-924-0	04	1	0607-0706		●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.097 (B) ID=16	8-97329-628-0	04	1	0707-		●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0607-		●
11	04.128 CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0507-0606	●	●
11	04.128 CLIP; PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0607-		●
11	04.128 CLIP; PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=16	8-94392-924-0	08	1	0607-0706	●		●
11	04.128 CLIP; PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.097 (B) ID=16	8-97329-628-0	08	1	0707-	●		●
13	04.128 BOLT; BRKT 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> M6X25 W/LK WASHER	0-50540-625-0	02	1	0607-	●		●
14	04.128 CLIP; PIPE TO ENG SIDE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.672 ID=10X2 H=22	8-94252-455-2	01	1	0607-	●		●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98010-982-0	01	1	0507-0606	●	●
15	04.128 BRACKET; ATF PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98010-982-0	01	1	0607-		●
15	04.128 BRACKET; ATF PIPE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98010-983-0	01	1	0507-0606	●	●
15	04.128 BRACKET; ATF PIPE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98010-983-0	01	1	0607-		●
15	04.128 BRACKET; ATF PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98035-763-0	01	1	0607-	●		●
15	04.128 BRACKET; ATF PIPE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98035-764-0	02	1	0607-	●		●
19	04.128 BRACKET; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-981-1	01	1	0507-0606	●	●
19	04.128 BRACKET; FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98010-981-1	01	1	0607-		●
19	04.128 BRACKET; FLEX HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98000-508-1	01	1	0607-	●		●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0507-0512	●	●
50	04.128 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-0606	●	●
50	04.128 BOLT; CLIP 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0607-		●
50	04.128 BOLT; CLIP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-	●		●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512	●	●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606	●	●
70	04.128 BOLT; CLIP,A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-	●	●	●
73	04.128 HOSE; FLEX,TRANS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=308	8-97376-623-1	01	1	0507-0606	●	●
73	04.128 HOSE; FLEX,TRANS 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) L=308	8-97376-623-1	01	1	0607-		●
73	04.128 HOSE; FLEX,TRANS 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98036-445-0	01	1	0607-	●		●
76	04.128 NUT; FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.897 M16	8-94370-339-0	02	1	0507-0606	●	●
76	04.128 NUT; FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.897 M16	8-94370-339-0	02	1	0607-		●
76	04.128 NUT; FLEX HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.897 M16	8-94370-339-0	02	1	0607-	●		●
77	04.128 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	0507-0603	●	●
77	04.128 WASHER; LK FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0604-0606	●	●
77	04.128 WASHER; LK 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0607-		●
77	04.128 WASHER; LK 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0607-	●		●
87	04.128 BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 M14X30 EYE-BOLT	1-09675-146-0	02	1	0507-0606	●	●
87	04.128 BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) 01.855 M14X30 EYE-BOLT	1-09675-146-0	02	1	0607-0805	●	●	●
87	04.128 BOLT; EYE TRANSMISSION CONTROL-SMOOTHER(8GF) M14X30 EYE-BOLT	8-98037-827-0	02	1	0806-	●	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0507-0606	●	●
88	04.128 GASKET; EYE BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	0607-	●	●	●
89	04.128 BOLT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0507-0512	●	●
89	04.128 BOLT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0601-0606	●	●
89	04.128 BOLT; BRKT,FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0607-		●
89	04.128 BOLT; BRKT,FLEX HOSE 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●		●
92	04.128 NUT; CLIP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●		●
95	04.128 BRACKET; CLIP 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98043-357-0	01	1	0607-	●		●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97366-998-1	01	1	0507-0606	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98018-779-0	01	1	0607-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97367-001-1	01	1	0507-0606	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98038-464-0	01	1	0607-	●	●	●
106	04.128 PIPE ASM; OIL,COOLER TO UNION 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-440-4	01	1	0607-	●		●
106	04.128 PIPE ASM; OIL,COOLER TO UNION 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98006-441-5	01	1	0607-	●		●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 M8 FLANGE	0-91150-108-0	03	1	0507-0602	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-0606	●	●
116	04.128 NUT; BRKT,FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-		●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●
116	04.128 NUT; BRKT,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0606	●	●
116	04.128 NUT; BRKT,FLEX HOSE 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-		●
116	04.128 NUT; BRKT,FLEX HOSE 4JJ1 ENG(LFB) G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
168	04.128 CLIP; A/T SIDE FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0507-0606	●	●
168	04.128 CLIP; A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0507-0606	●	●
168	04.128 CLIP; A/T SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0607-	●	●	●
236	04.128 PIPE; OIL,OIL COOLER TO A/T 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98006-094-1	01	1	0607-	●		●
247	04.128 RETAINER; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-876-0	01	1	0507-0606	●	●
247	04.128 RETAINER; PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97349-876-0	01	1	0607-	●	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●
248	04.128 BOLT; RETAINER TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
