Isuzu WW
▶
TRUCKS
▶
NPR
▶
50950 - NPR/NQR(EUROPE)-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-42 - AUTO TRANS OIL PAN AND OIL CONTROL
▶

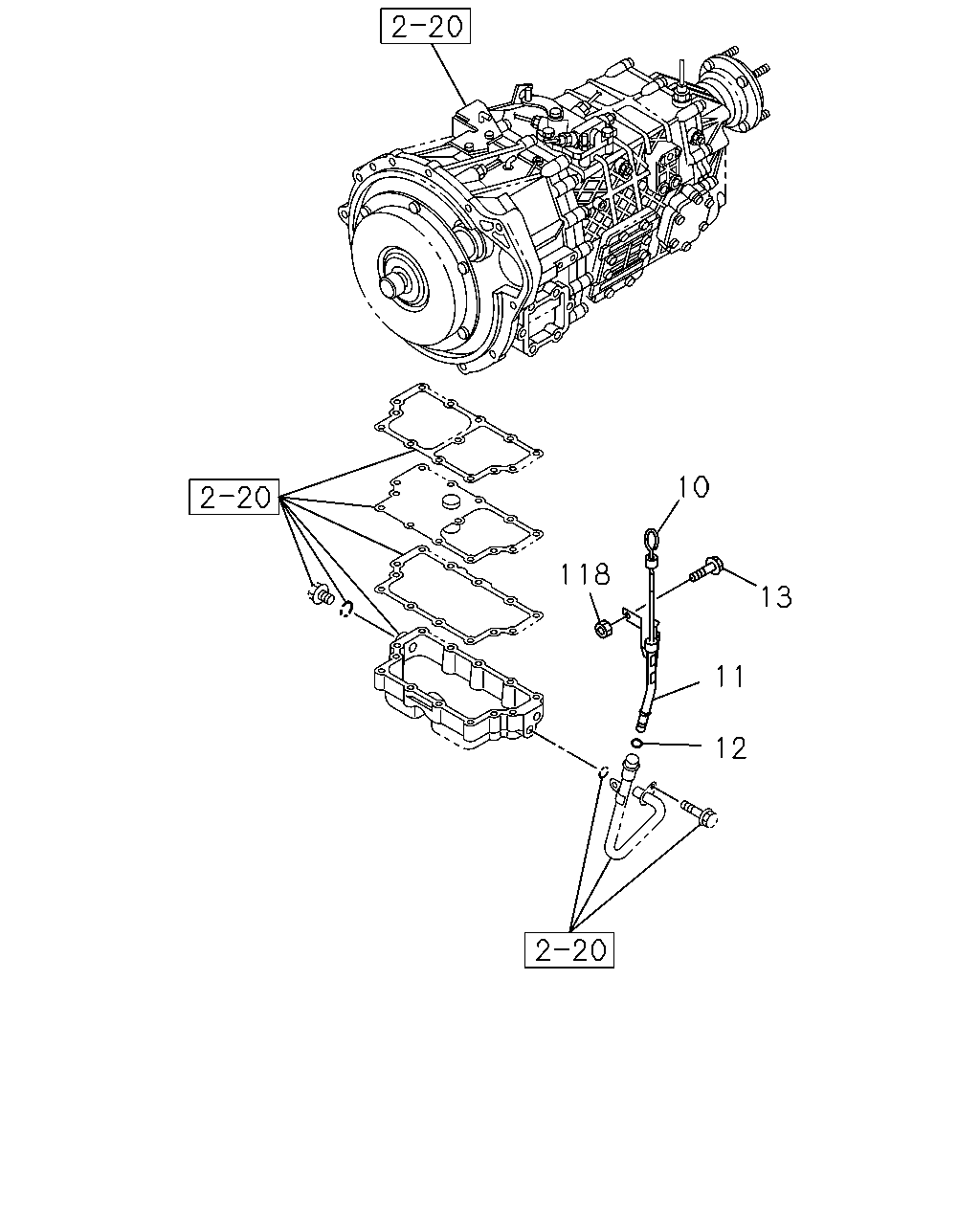

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL
(#47083) — 12 parça
Tümü
A - M/T MYY5T
B - M/T MZZ6F
C - M/T MYY6S
10
118
13
11
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
10
04.197 GAUGE; OIL LEVEL
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97349-446-0
01
1
0507-0606
●
●
10
04.197 GAUGE; OIL LEVEL
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97349-446-0
01
1
0607-
●
10
04.197 GAUGE; OIL LEVEL
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98028-128-0
01
1
0607-
●
●
11
04.197 TUBE; OIL FILLER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
8-97367-638-1
01
1
0507-0606
●
●
11
04.197 TUBE; OIL FILLER
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97367-638-1
01
1
0607-
●
11
04.197 TUBE; OIL FILLER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98028-182-0
01
1
0607-
●
●
12
04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3
8-97313-558-0
01
1
0507-0606
●
●
12
04.197 GASKET; OIL FILLER TUBE TO A/T
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.3
8-97313-558-0
01
1
0607-
●
●
●
13
04.197 BOLT; OIL FILLER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M10X12 FLANGE
0-28151-012-0
01
1
0607-
●
●
118
04.197 NUT; OIL FILLER TUBE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 M10 FLANGE
0-91150-110-0
01
1
0507-0602
●
●
118
04.197 NUT; OIL FILLER TUBE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE
0-91180-110-0
01
1
0603-0606
●
●
118
04.197 NUT; OIL FILLER TUBE
4HK1-TCC ENG(RDV) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE
0-91180-110-0
01
1
0607-
●
