Sayfa 2-36 - Isuzu EPC

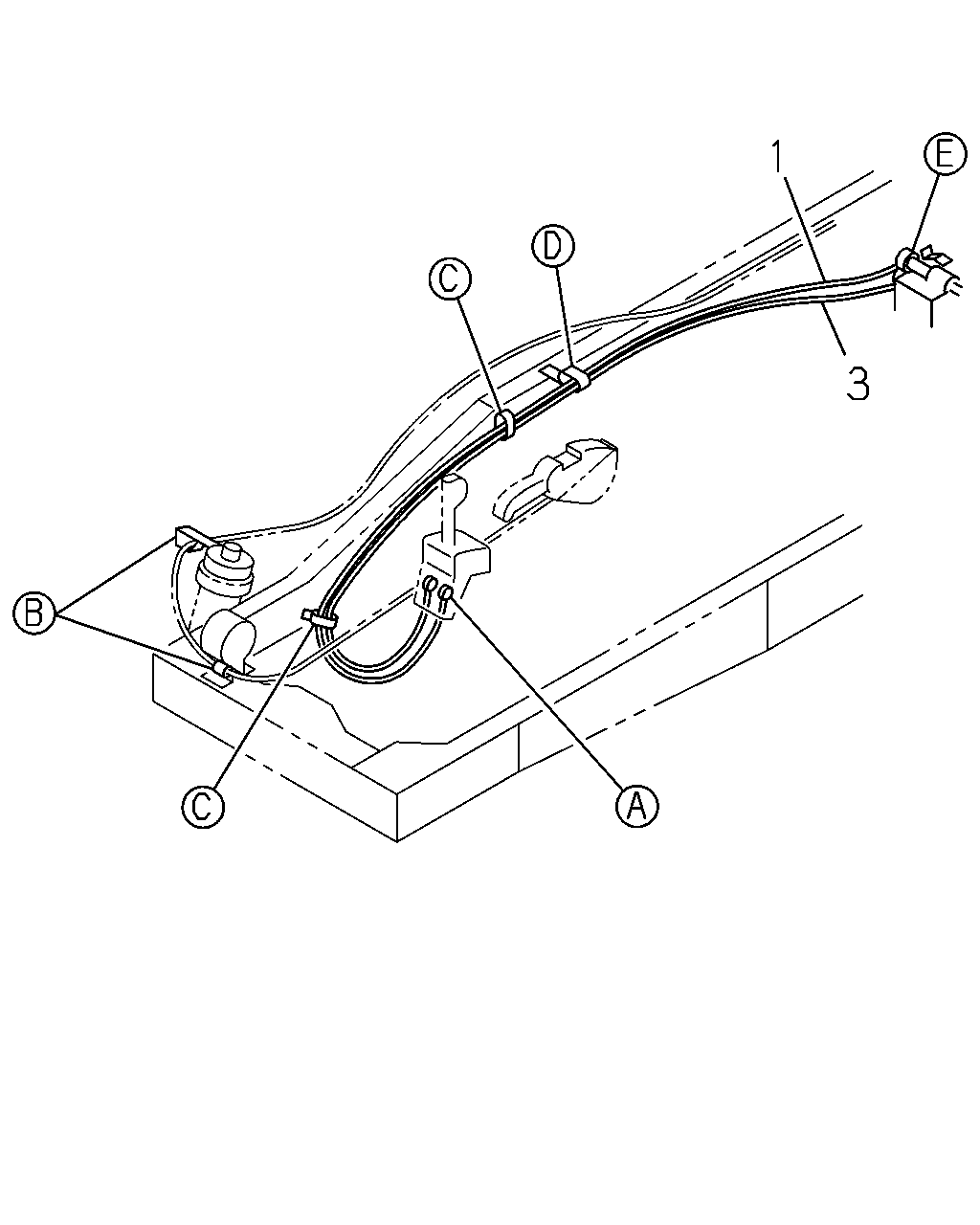

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#47081) — 233 parça

1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.854 CABLE; SHIFT,TRANS CONT L=3070	8-97329-417-0	01	1	0302-0506	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3070	8-97329-417-0	01	1	0507-0606	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3060	8-97388-722-0	01	1	0607-0911	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3060	8-98147-949-1	01	1	0912-	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) L=3055	8-97350-425-1	01	1	0302-0506		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3055	8-98009-295-0	01	1	0507-0606		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3035	8-98007-941-0	01	1	0607-1003		●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3035	8-98147-952-0	01	1	1004-		●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) L=2771	8-97350-419-1	01	1	0302-0506		●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> L=2771	8-97350-419-1	01	1	0507-0606		●
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=2975	8-97388-718-1	01	1	0607-0911		●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=2975	8-98147-947-1	01	1	0912-		●	●
3	00.852 CABLE; SELECT,TRANS CONT L=3151	8-97329-418-0	01	1	0302-0506	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3151	8-98009-288-0	01	1	0507-0606	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3194	8-97388-731-1	01	1	0607-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) L=3113	8-97350-426-0	01	1	0302-0506		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3113	8-98009-287-0	01	1	0507-0606		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3162	8-98007-951-0	01	1	0607-		●	●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) L=2842	8-97350-420-0	01	1	0302-0506		●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> L=2842	8-97350-420-0	01	1	0507-0606		●
3	00.852 CABLE; SELECT,TRANS CONT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3045	8-97388-727-1	01	1	0607-		●	●

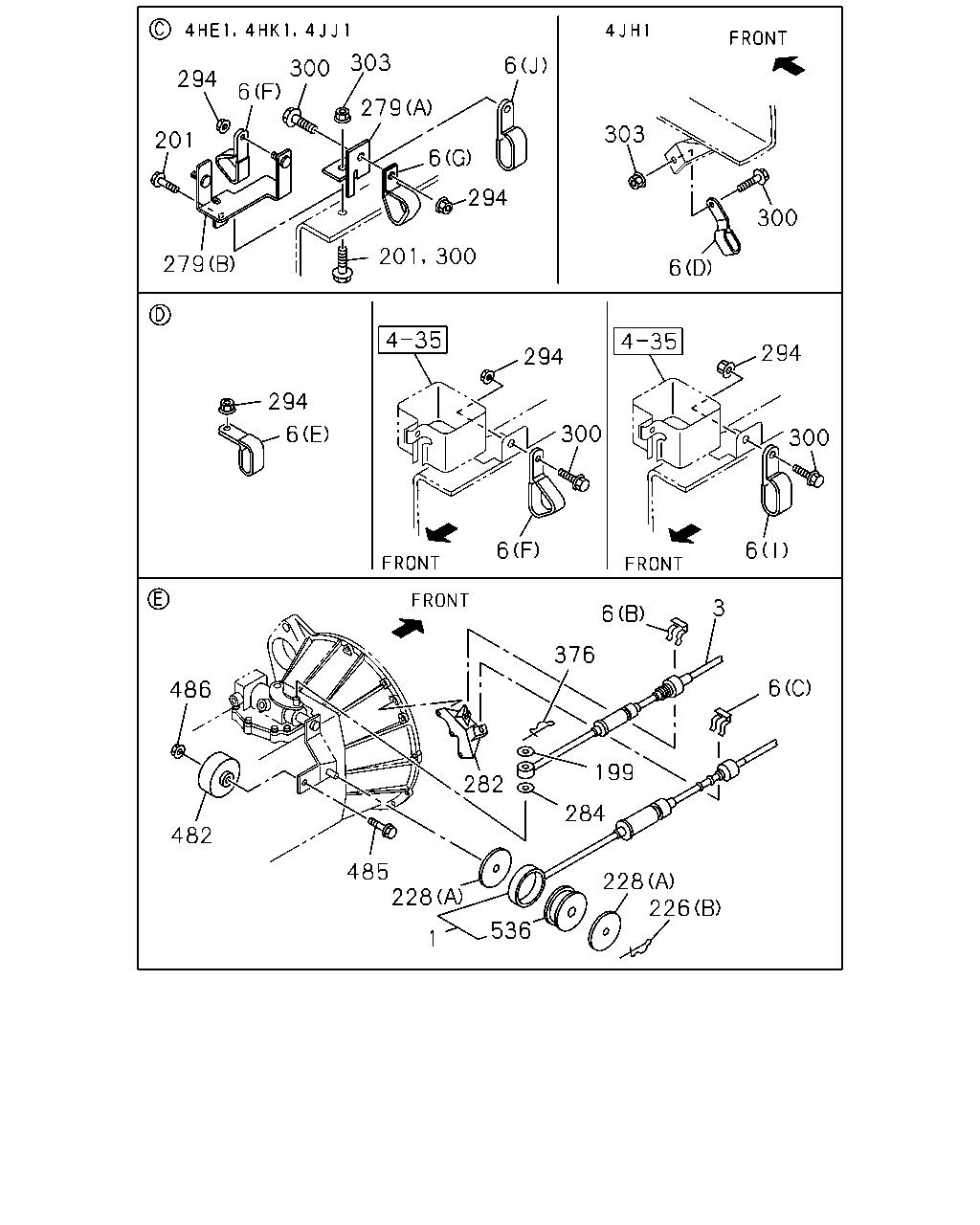

303 6 300 6 294 279 303 201 6 294 300 279 6 294 294 294 300 6 300 6 6 3 6 376 6 486 199 282 284 482 485 228 228 226 536 1 201 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.854 CABLE; SHIFT,TRANS CONT L=3070	8-97329-417-0	01	1	0302-0506	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3070	8-97329-417-0	01	1	0507-0606	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3060	8-97388-722-0	01	1	0607-0911	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3060	8-98147-949-1	01	1	0912-	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) L=3055	8-97350-425-1	01	1	0302-0506		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3055	8-98009-295-0	01	1	0507-0606		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3035	8-98007-941-0	01	1	0607-1003		●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3035	8-98147-952-0	01	1	1004-		●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) L=2771	8-97350-419-1	01	1	0302-0506		●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> L=2771	8-97350-419-1	01	1	0507-0606		●
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=2975	8-97388-718-1	01	1	0607-0911		●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=2975	8-98147-947-1	01	1	0912-		●	●
3	00.852 CABLE; SELECT,TRANS CONT L=3151	8-97329-418-0	01	1	0302-0506	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3151	8-98009-288-0	01	1	0507-0606	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3194	8-97388-731-1	01	1	0607-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) L=3113	8-97350-426-0	01	1	0302-0506		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3113	8-98009-287-0	01	1	0507-0606		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3162	8-98007-951-0	01	1	0607-		●	●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) L=2842	8-97350-420-0	01	1	0302-0506		●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> L=2842	8-97350-420-0	01	1	0507-0606		●
3	00.852 CABLE; SELECT,TRANS CONT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3045	8-97388-727-1	01	1	0607-		●	●
6	04.047 CLIP; CABLE NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50	5-09700-341-0	01	1	0302-0506	●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=22.2	1-09701-209-1	01	1	0507-0606	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=22.2	1-09701-209-1	01	1	0607-	●	●	●
6	04.047 CLIP; CABLE (A)	8-97011-448-0	02	1	0302-0506	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97011-448-0	02	1	0507-0606	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97011-448-0	02	1	0607-	●	●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2	8-97211-011-0	01	1	0507-	●	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97036-332-1	01	1	0507-0606	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (J)	8-98023-697-0	01	1	0607-	●	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-97036-333-1	01	1	0507-0606	●	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-97036-333-1	01	1	0507-0606	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-97147-985-0	01	1	0507-0606	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-97147-985-0	01	1	0607-	●	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) (I)	8-97137-589-0	01	1	0302-0506		●
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) (I)	8-97137-589-0	01	1	0507-0606		●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) 03.162 (D)	9-09917-171-0	01	1	0302-0506		●
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) 03.162 (D)	9-09917-171-0	01	1	0507-0606		●
6	04.047 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97036-332-1	01	1	0607-	●	●	●
199	04.012 WASHER; PL,SELECT 16.674 ID=8.4	9-09160-508-0	01	1	0302-0506	●	●
199	04.012 WASHER; PL,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 16.674 ID=8.4	9-09160-508-0	01	1	0507-0605	●	●
199	04.012 WASHER; PL,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-0606	●	●
199	04.012 WASHER; PL,SELECT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0607-	●	●	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●
201	04.032 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●
201	04.032 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
201	04.032 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0607-	●	●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0302-0506	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7	8-94111-137-0	01	1	0507-0606	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7	8-94111-137-0	01	1	0607-	●	●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0302-0506	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23	8-94170-378-0	01	1	0507-0606	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23	8-94170-378-0	01	1	0607-	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0302-0506	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.2 OD=40	8-97182-975-0	02	1	0507-0606	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.2 OD=40	8-97182-975-0	02	1	0607-	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0302-0506	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.206 (B) ID=8.4	9-09164-508-0	01	1	0507-0605	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-0606	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0607-	●	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-065-0	01	1	0302-0506	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97171-065-0	01	1	0507-0606	●	●
279	04.047 BRACKET; CABLE TO FRAME 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> (A)	8-98035-880-0	01	1	0607-	●
279	04.047 BRACKET; CABLE TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98037-157-0	01	1	0607-	●	●	●
282	04.010 BRACKET; TRANS SIDE	8-97311-442-1	01	1	0302-0506	●
282	04.010 BRACKET; TRANS SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97311-442-1	01	1	0507-0606	●
282	04.010 BRACKET; TRANS SIDE 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-396-2	01	1	0607-	●
282	04.010 BRACKET; TRANS SIDE 4HE1 ENG(RLY)	8-97311-441-1	01	1	0302-0506		●
282	04.010 BRACKET; TRANS SIDE 4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97311-441-1	01	1	0507-0606		●
282	04.010 BRACKET; TRANS SIDE 4HK1-TCC ENG(RDV) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98032-395-1	01	1	0607-		●	●
282	04.010 BRACKET; TRANS SIDE 4JH1 ENG(RJX)	8-97350-449-0	01	1	0302-0506		●
282	04.010 BRACKET; TRANS SIDE 4JH1-TC ENG(RDM)	8-97350-449-0	01	1	0507-0606		●
282	04.010 BRACKET; TRANS SIDE 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97350-449-0	01	1	0607-		●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB ID=8.4 OD=14	5-09550-002-0	01	1	0302-0506	●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 OD=14	5-09550-002-0	01	1	0507-0606	●	●
284	00.854 WASHER; WAVE,SELECT CABLE,CAB EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 OD=14	5-09550-002-0	01	1	0607-	●	●	●
294	00.854 NUT; CLIP 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●
294	00.854 NUT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●
294	00.854 NUT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●
294	00.854 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●
294	00.854 NUT; CLIP 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0506		●
294	00.854 NUT; CLIP 4JH1-TC ENG(RDM) 04.594 M6 FLANGE	0-91150-106-0	01	1	0507-0602		●
294	00.854 NUT; CLIP 4JH1-TC ENG(RDM) 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506	●	●
300	00.854 BOLT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0512	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
300	00.854 BOLT; CLIP 4JH1 ENG(RJX) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0302-0506		●
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0507-0512		●
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-0606		●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602	●	●
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●
303	00.855 NUT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
303	00.855 NUT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●
376	04.047 PIN; SNAP,SELECT CABLE L=23	8-94170-378-0	01	1	0302-0506	●	●
376	04.047 PIN; SNAP,SELECT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=23	8-94170-378-0	01	1	0507-0606	●	●
376	04.047 PIN; SNAP,SELECT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=23	8-94170-378-0	01	1	0607-	●	●	●
482	04.047 WEIGHT; SHIFT CABLE	8-97066-730-2	01	1	0302-0305	●	●	●
485	04.047 BOLT; WEIGHT M12X60 FLANGE	0-28091-260-0	01	1	0302-0305	●	●	●
486	04.047 NUT; WEIGHT 06.509 M12 FLANGE	8-94436-194-0	01	1	0302-0305	●	●	●
536	00.854 DAMPER; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98097-681-0	01	1	0607-	●	●	●

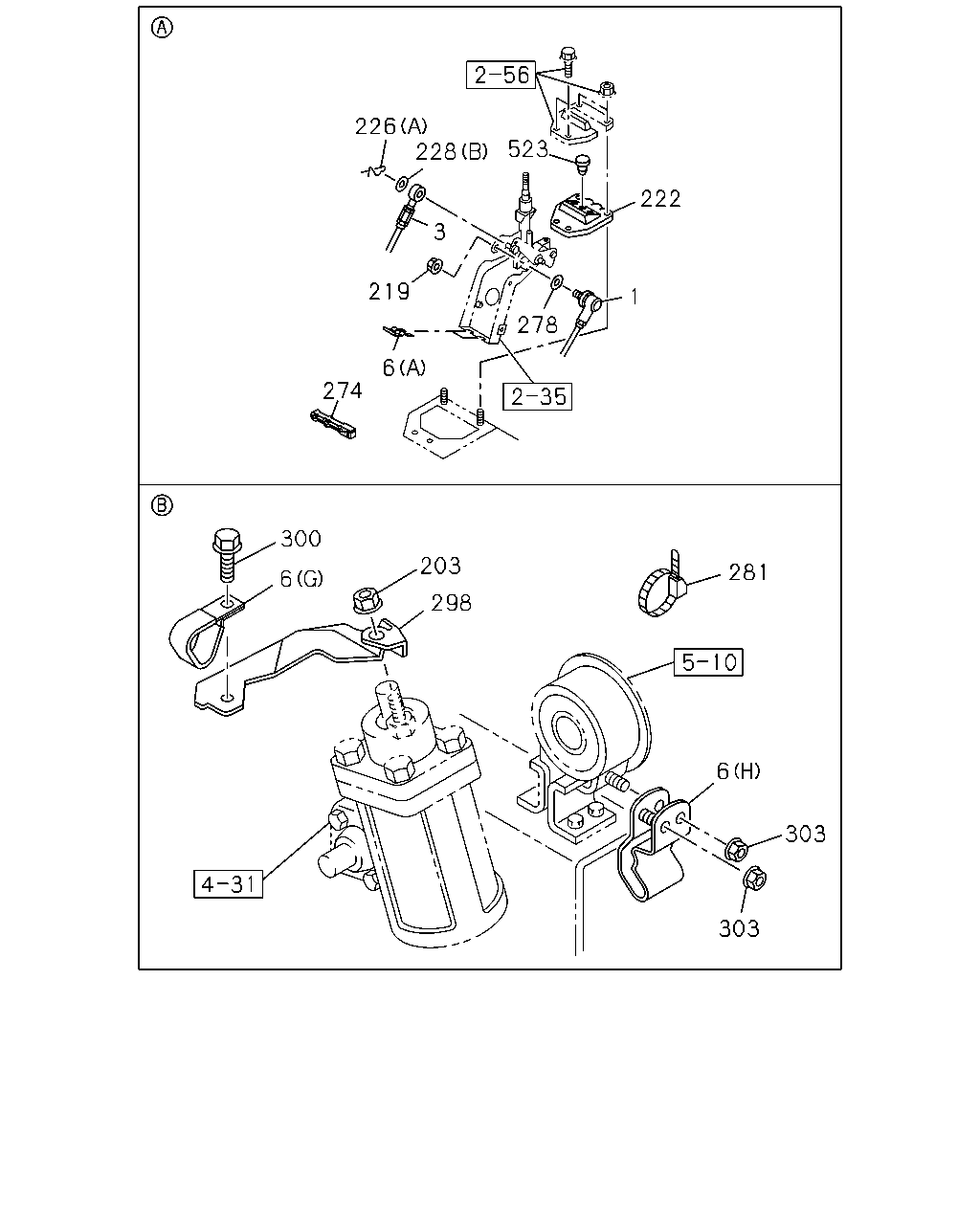

523 226 228 222 3 219 1 278 6 274 300 203 281 6 298 6 303 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.854 CABLE; SHIFT,TRANS CONT L=3070	8-97329-417-0	01	1	0302-0506	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3070	8-97329-417-0	01	1	0507-0606	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3060	8-97388-722-0	01	1	0607-0911	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3060	8-98147-949-1	01	1	0912-	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HE1 ENG(RLY) L=3055	8-97350-425-1	01	1	0302-0506		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3055	8-98009-295-0	01	1	0507-0606		●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3035	8-98007-941-0	01	1	0607-1003		●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3035	8-98147-952-0	01	1	1004-		●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1 ENG(RJX) L=2771	8-97350-419-1	01	1	0302-0506		●
1	00.854 CABLE; SHIFT,TRANS CONT 4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> L=2771	8-97350-419-1	01	1	0507-0606		●
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=2975	8-97388-718-1	01	1	0607-0911		●	●
1	00.854 CABLE; SHIFT,TRANS CONT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=2975	8-98147-947-1	01	1	0912-		●	●
3	00.852 CABLE; SELECT,TRANS CONT L=3151	8-97329-418-0	01	1	0302-0506	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3151	8-98009-288-0	01	1	0507-0606	●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3194	8-97388-731-1	01	1	0607-	●
3	00.852 CABLE; SELECT,TRANS CONT 4HE1 ENG(RLY) L=3113	8-97350-426-0	01	1	0302-0506		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3113	8-98009-287-0	01	1	0507-0606		●
3	00.852 CABLE; SELECT,TRANS CONT 4HK1-TCC ENG(RDV) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=3162	8-98007-951-0	01	1	0607-		●	●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1 ENG(RJX) L=2842	8-97350-420-0	01	1	0302-0506		●
3	00.852 CABLE; SELECT,TRANS CONT 4JH1-TC ENG(RDM) EXC. FRAME STRAIGHT TYPE<7KJ> L=2842	8-97350-420-0	01	1	0507-0606		●
3	00.852 CABLE; SELECT,TRANS CONT 4JJ1 ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) L=3045	8-97388-727-1	01	1	0607-		●	●
6	04.047 CLIP; CABLE NPR/NQR SGL CAB&MIDDLE(NP**SF) 4HE1 ENG(RLY) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=33X16.5 L=50	5-09700-341-0	01	1	0302-0506	●
6	04.047 CLIP; CABLE 00.854 (C) ID=22.2	1-09701-209-1	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=22.2	1-09701-209-1	01	1	0507-0606	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=22.2	1-09701-209-1	01	1	0607-	●	●	●
6	04.047 CLIP; CABLE (A)	8-97011-448-0	02	1	0302-0506	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97011-448-0	02	1	0507-0606	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97011-448-0	02	1	0607-	●	●	●
6	04.047 CLIP; CABLE (B) ID=19.2	8-97211-011-0	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=19.2	8-97211-011-0	01	1	0507-	●	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (F)	8-97036-332-1	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97036-332-1	01	1	0507-0606	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (J)	8-98023-697-0	01	1	0607-	●	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (G)	8-97036-333-1	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-97036-333-1	01	1	0507-0606	●	●
6	04.047 CLIP; CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G)	8-97036-333-1	01	1	0507-0606	●	●
6	04.047 CLIP; CABLE 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (H)	8-97147-985-0	01	1	0302-0506	●	●
6	04.047 CLIP; CABLE FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-97147-985-0	01	1	0507-0606	●	●
6	04.047 CLIP; CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H)	8-97147-985-0	01	1	0607-	●	●	●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) (I)	8-97137-589-0	01	1	0302-0506		●
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) (I)	8-97137-589-0	01	1	0507-0606		●
6	04.047 CLIP; CABLE 4JH1 ENG(RJX) 03.162 (D)	9-09917-171-0	01	1	0302-0506		●
6	04.047 CLIP; CABLE 4JH1-TC ENG(RDM) 03.162 (D)	9-09917-171-0	01	1	0507-0606		●
6	04.047 CLIP; CABLE EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97036-332-1	01	1	0607-	●	●	●
203	04.032 NUT; BRKT FIX 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●
203	04.032 NUT; BRKT FIX POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●
203	04.032 NUT; BRKT FIX POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●
203	04.032 NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-	●	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	0302-0506	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0	8-94363-045-0	01	1	0507-0606	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0	8-94363-045-0	01	1	0607-	●	●	●
222	04.010 GROMMET; CABLE	8-97065-212-1	01	1	0302-0606	●	●
222	04.010 GROMMET; CABLE	8-97065-212-1	01	1	0607-	●	●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	0302-0506	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7	8-94111-137-0	01	1	0507-0606	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7	8-94111-137-0	01	1	0607-	●	●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	01	1	0302-0506	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23	8-94170-378-0	01	1	0507-0606	●	●
226	04.047 PIN; SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23	8-94170-378-0	01	1	0607-	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE (A) ID=8.2 OD=40	8-97182-975-0	02	1	0302-0506	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.2 OD=40	8-97182-975-0	02	1	0507-0606	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.2 OD=40	8-97182-975-0	02	1	0607-	●	●	●
228	04.047 WASHER; PL,SHIFT CABLE 00.206 (B) ID=8.4	9-09164-508-0	01	1	0302-0506	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.206 (B) ID=8.4	9-09164-508-0	01	1	0507-0605	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0606-0606	●	●
228	04.047 WASHER; PL,SHIFT CABLE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (B) ID=8.4 OD=16	0-91614-508-0	01	1	0607-	●	●	●
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>	8-97093-491-1	01	1	0302-0506	●	●
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97093-491-1	01	1	0507-0606	●	●
274	04.008 CLIP; CONT CABLE EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97093-491-1	01	1	0607-	●	●	●
278	00.854 WASHER; LK,SHIFT WIRE 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0302-0506	●	●
278	00.854 WASHER; LK,SHIFT WIRE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.276 ID=8.4 TOOTH LK INT	9-09151-208-0	01	1	0507-0604	●	●
278	00.854 WASHER; LK,SHIFT WIRE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0605-0606	●	●
278	00.854 WASHER; LK,SHIFT WIRE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	0607-	●	●	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0302-0606	●	●
281	04.042 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0607-	●	●	●
298	00.854 BRACKET 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97288-446-0	01	1	0302-0506	●	●
298	00.854 BRACKET POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97288-446-0	01	1	0507-0606	●	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506	●	●
300	00.854 BOLT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●
300	00.854 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●
300	00.854 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0512	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●
300	00.854 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
300	00.854 BOLT; CLIP 4JH1 ENG(RJX) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0302-0506		●
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0507-0512		●
300	00.854 BOLT; CLIP 4JH1-TC ENG(RDM) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-0606		●
303	00.855 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602	●	●
303	00.855 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●
303	00.855 NUT; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
303	00.855 NUT; CLIP 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●
303	00.855 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●
523	04.010 CAP; GROMMET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-108-0	02	1	0507-0606		●
523	04.010 CAP; GROMMET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-108-0	02	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
