◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#47079) — 64 parça

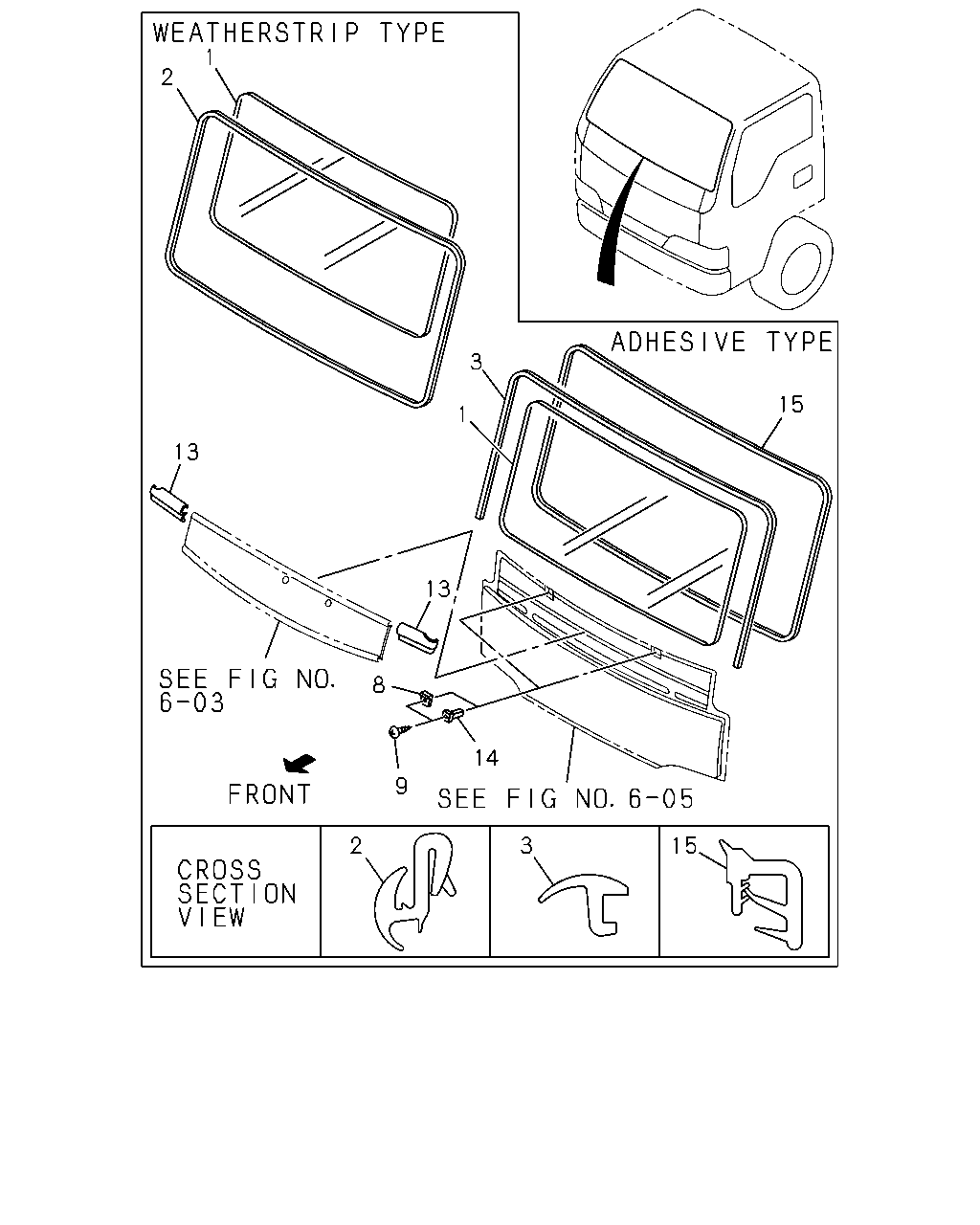

çizim 68997
1 2 3 15 1 13 13 8 14 9 2 3 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97046-082-2 01 1 9312-9501 ● ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4) 		8-97123-461-0 01 1 9502-9504 ● ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
CHINA EQUIPMENT(YT2) 		8-97123-461-0 01 1 9505-9511 ● ●
1 16.005 GLASS; WINDSHIELD 8-97123-461-0 01 1 9505-9511 ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2) 		8-97114-295-0 01 1 9505-9506 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 		8-97114-295-0 01 1 9507-9510 ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CHINA EQUIPMENT(YT2),CAB-LOW ROOF<6XQ>,ISRAEL EQUIPMENT(7LX) 		8-97114-295-0 01 1 9511-9511 ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CAB-LOW ROOF<6XQ>,ISRAEL EQUIPMENT(7LX) 		8-97114-295-0 01 1 9512-9711 ● ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), CAB-LOW ROOF<6XQ> 		8-97114-295-0 01 1 9712-9802 ● ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. EUROPEAN BASIC EQUIPMENT(EK4), SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S), CAB-LOW ROOF<6XQ> 		8-97869-123-0 01 1 9803- ● ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97092-368-1 01 1 9312-9501 ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97123-462-0 01 1 9502-9504 ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97114-294-0 01 1 9505-9506 ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 		8-97114-294-0 01 1 9507-9711 ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97114-294-0 01 1 9712-9802 ● ●
1 16.005 GLASS; WINDSHIELD
EUROPEAN BASIC EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),BRAZIL EQUIPMENT(RWF),TURKISH EQUIPMENT(S6S) 		8-97869-124-0 01 1 9803- ● ● ● ●
1 16.005 GLASS; WINDSHIELD
CAB-LOW ROOF<6XQ> 		8-97123-458-0 01 1 9511-9604 ●
1 16.005 GLASS; WINDSHIELD
CAB-LOW ROOF<6XQ> 		8-97123-458-0 01 1 9605-9708 ● ●
1 16.005 GLASS; WINDSHIELD
CAB-LOW ROOF<6XQ> 		8-97867-649-0 01 1 9709-9711 ● ●
1 16.005 GLASS; WINDSHIELD
CAB-LOW ROOF<6XQ> 		8-97867-649-0 01 1 9712-9802 ●
1 16.005 GLASS; WINDSHIELD
CAB-LOW ROOF<6XQ> 		8-97869-121-0 01 1 9803- ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-351-3 01 1 9312-9711 ● ● ● ● ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. CAB-LOW ROOF<6XQ> 		8-97856-351-3 01 1 9712- ● ● ● ● ● ● ●
2 16.040 WEATHERSTRIP; WINDSHIELD GLASS
CAB-LOW ROOF<6XQ> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97856-349-3 01 1 9712- ●
3 16.470 MOLDING; WINDSHIELD 8-97853-387-3 01 1 9312-9312 ● ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-97857-907-0 01 1 9401-9401 ● ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-907-0 01 1 9402-9510 ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-907-1 01 1 9511-9802 ● ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97890-214-1 01 1 9803- ● ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD
CAB-LOW ROOF<6XQ> 		8-97857-906-0 01 1 9511-9604 ●
3 16.470 MOLDING; WINDSHIELD
CAB-LOW ROOF<6XQ> 		8-97857-906-1 01 1 9605-9711 ● ●
3 16.470 MOLDING; WINDSHIELD
CAB-LOW ROOF<6XQ> 		8-97857-906-1 01 1 9712-9802 ●
3 16.470 MOLDING; WINDSHIELD
CAB-LOW ROOF<6XQ> 		8-97890-213-1 01 1 9803- ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. DEALER INSTALLED OPTION<6JJ>, WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9312-9401 ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9402-9404 ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9405-9406 ● ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-733-0 02 1 9407- ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 9407-9510 ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-215-0 02 1 9511- ● ● ● ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. DEALER INSTALLED OPTION<6JJ>, WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-143-0 02 1 9312-9401 ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-143-0 02 1 9402-9404 ● ●
9 16.041 SCREW; STOPPER
16.067 M5X14 		8-94279-325-0 02 1 9312-9401 ● ● ● ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9402-9510 ● ● ● ● ● ●
9 16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14 		8-94279-325-0 02 1 9511- ● ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR 8-97853-787-4 01 1 9312-9401 ● ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9402-9510 ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-787-4 01 1 9511- ● ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR 8-97853-786-3 01 1 9312-9401 ● ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9402-9510 ● ● ● ● ● ●
13 16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97853-786-3 01 1 9511- ● ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9312-9401 ● ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9402-9406 ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9407- ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 9402-9406 ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 9312-9408 ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 9409-9510 ● ● ● ● ● ●
14 16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK 		8-94279-714-0 04 1 9511- ● ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD 8-97853-804-4 01 1 9312-9401 ● ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE 		8-97853-804-4 01 1 9402-9510 ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE 		8-97853-804-4 01 1 9511-9711 ● ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. CAB-LOW ROOF<6XQ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY 		8-97859-856-4 01 1 9712- ● ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97853-803-4 01 1 9511-9604 ●
15 16.041 FINISHER; WINDSHIELD
CAB-LOW ROOF<6XQ> DARK BEIGE 		8-97853-803-4 01 1 9605-9711 ● ●
15 16.041 FINISHER; WINDSHIELD
CAB-LOW ROOF<6XQ> DARK GRAY 		8-97859-855-4 01 1 9712- ●
