6-05 — FRONT PANEL (#47078) — 75 parça

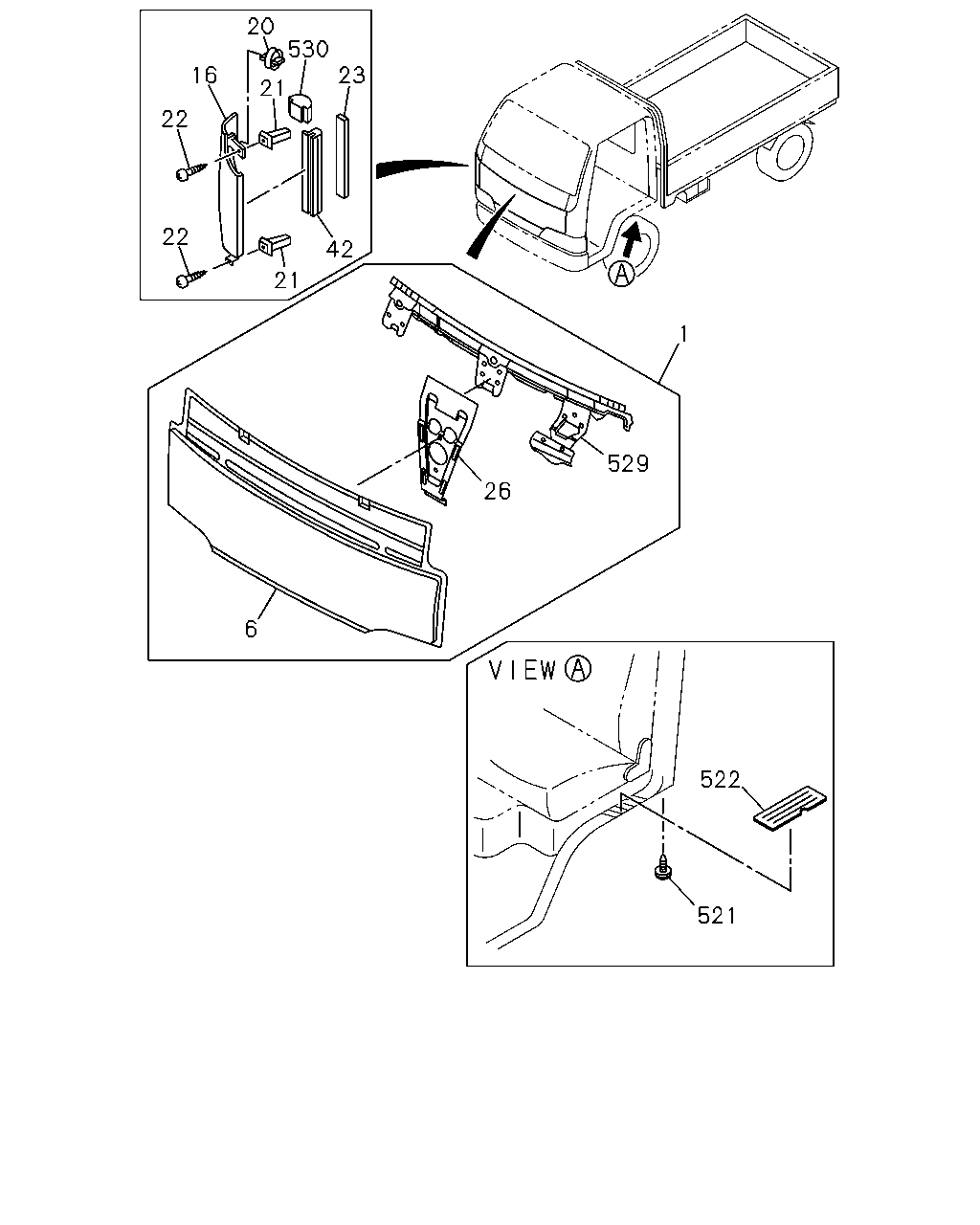

çizim 67401
20 530 23 16 21 22 22 42 21 1 529 26 6 522 521
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.550 PANEL ASM; FRT 8-97851-371-1 01 1 9312-9404 ● ● ● ● ● ●
1 16.550 PANEL ASM; FRT 8-97859-251-0 01 1 9405-9510 ● ● ● ● ● ●
1 16.550 PANEL ASM; FRT 8-97859-251-0 01 1 9511-9711 ● ● ● ● ● ● ●
1 16.550 PANEL ASM; FRT 8-97869-030-0 01 1 9712- ● ● ● ● ● ● ●
6 16.570 PANEL; FRONT
06.570 		8-97851-372-1 01 1 9312-9404 ● ● ● ● ● ●
6 16.570 PANEL; FRONT 8-97859-253-0 01 1 9405-9510 ● ● ● ● ● ●
6 16.570 PANEL; FRONT 8-97859-253-1 01 1 9511-9711 ● ● ● ● ● ● ●
6 16.570 PANEL; FRONT 8-97869-031-2 01 1 9712- ● ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-088-0 01 1 9312-9510 ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-088-0 01 1 9511- ● ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-087-0 01 1 9312-9510 ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-087-0 01 1 9511- ● ● ● ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-94279-814-0 04 1 9312-9510 ● ● ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-94279-814-0 04 1 9511- ● ● ● ● ● ● ●
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 9312-9510 ● ● ● ● ● ●
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 9511- ● ● ● ● ● ● ●
22 16.588 SCREW; FRT PANEL SIDE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 9312-9510 ● ● ● ● ● ●
22 16.588 SCREW; FRT PANEL SIDE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 9511- ● ● ● ● ● ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97857-444-0 02 1 9312-9510 ● ● ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97857-444-0 02 1 9511- ● ● ● ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
L=55 		8-94272-463-0 02 1 9312- ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 9312-9510 ● ● ● ● ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 9511- ● ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 9312-9510 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 9511- ● ● ● ● ● ● ●
521 08.153 PLUG; HOLE,FENDER
04.931 OD=15 L=14.5 		1-76378-157-0 03 1 9312-9410 ● ● ● ●
521 08.153 PLUG; HOLE,FENDER
04.931 OD=15 L=14.5 		1-76378-157-0 03 1 9411-9411 ● ● ● ●
521 08.153 PLUG; HOLE,FENDER
MANUAL TILT CAB<RWZ> 04.931 OD=15 L=14.5 		1-76378-157-0 03 1 9411-9411 ● ● ● ●
521 08.153 PLUG; HOLE,FENDER
MANUAL TILT CAB<RWZ> 04.931 OD=15 L=14.5 		1-76378-157-0 03 1 9411-9510 ● ● ● ●
521 08.153 PLUG; HOLE,FENDER
MANUAL TILT CAB<RWZ> 04.931 OD=15 L=14.5 		1-76378-157-0 03 1 9511- ● ● ● ● ●
521 08.153 PLUG; HOLE,FENDER
EXC. MANUAL TILT CAB<RWZ> 04.931 OD=15 L=14.5 		1-76378-157-0 06 1 9411-9510 ● ● ● ●
521 08.153 PLUG; HOLE,FENDER
EXC. MANUAL TILT CAB<RWZ> 04.931 OD=15 L=14.5 		1-76378-157-0 06 1 9511- ● ● ● ● ●
522 08.228 PROTECTOR; SILL SIDE 8-97856-689-2 01 1 9312-9510 ● ● ● ● ● ●
522 08.228 PROTECTOR; SILL SIDE
DARK BEIGE 		8-97856-689-2 01 1 9511-9711 ● ● ● ● ● ● ●
522 08.228 PROTECTOR; SILL SIDE
DARK GRAY 		8-97857-840-3 01 1 9712- ● ● ● ● ● ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-373-1 01 1 9312-9510 ● ● ● ● ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-373-1 01 1 9511- ● ● ● ● ● ● ●
530 01.303 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 9312-9510 ● ● ● ● ● ●
530 01.303 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 9511- ● ● ● ● ● ● ●

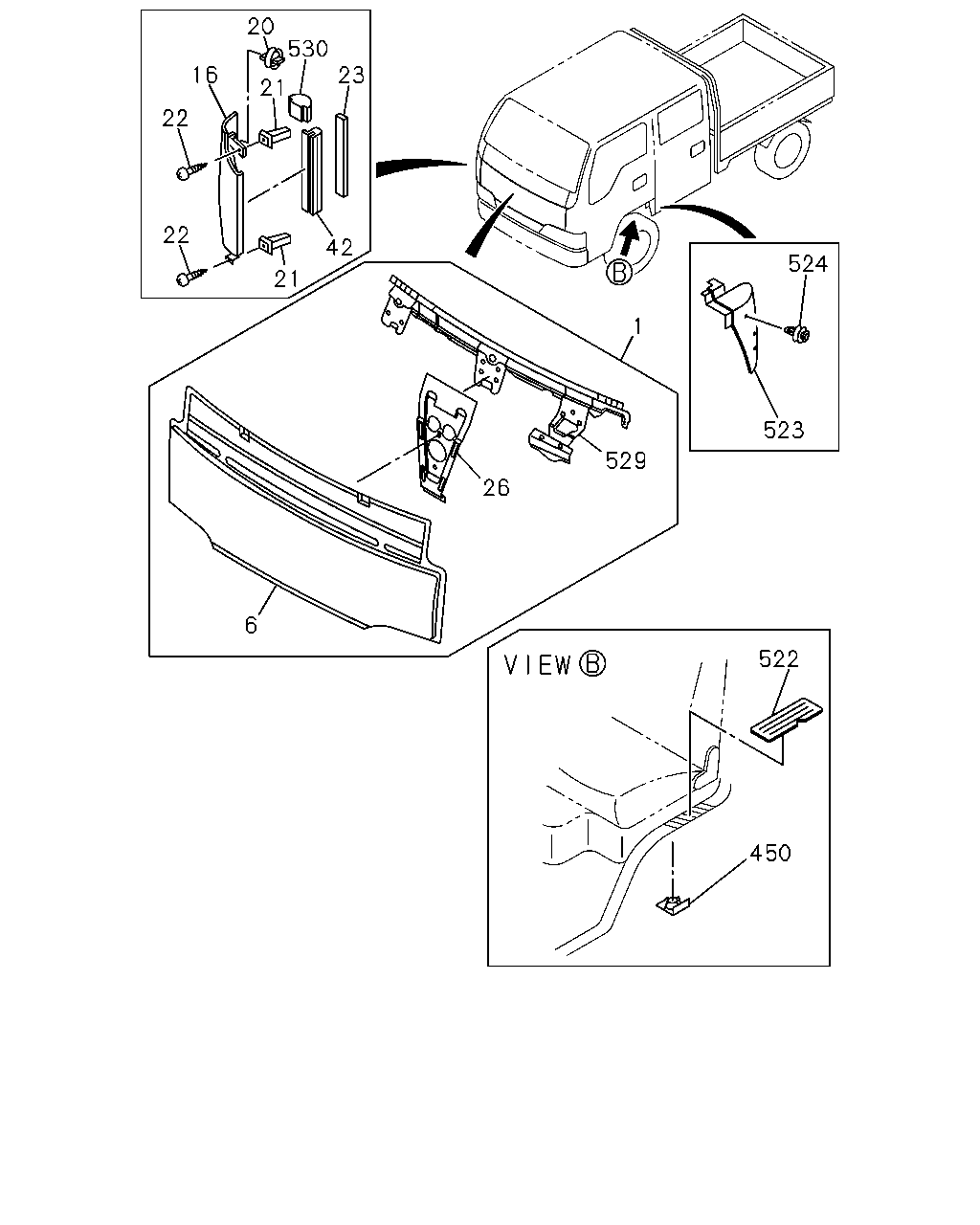

çizim 68178
20 530 23 16 21 22 22 42 524 21 1 523 529 26 6 522 450
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.550 PANEL ASM; FRT 8-97851-371-1 01 1 9312-9404 ● ● ● ● ● ●
1 16.550 PANEL ASM; FRT 8-97859-251-0 01 1 9405-9510 ● ● ● ● ● ●
1 16.550 PANEL ASM; FRT 8-97859-251-0 01 1 9511-9711 ● ● ● ● ● ● ●
1 16.550 PANEL ASM; FRT 8-97869-030-0 01 1 9712- ● ● ● ● ● ● ●
6 16.570 PANEL; FRONT
06.570 		8-97851-372-1 01 1 9312-9404 ● ● ● ● ● ●
6 16.570 PANEL; FRONT 8-97859-253-0 01 1 9405-9510 ● ● ● ● ● ●
6 16.570 PANEL; FRONT 8-97859-253-1 01 1 9511-9711 ● ● ● ● ● ● ●
6 16.570 PANEL; FRONT 8-97869-031-2 01 1 9712- ● ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-088-0 01 1 9312-9510 ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-088-0 01 1 9511- ● ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-087-0 01 1 9312-9510 ● ● ● ● ● ●
16 16.588 PANEL; FRONT,SIDE
PLEASE PAINT TO MATCH BODY COLOR 		8-97851-087-0 01 1 9511- ● ● ● ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-94279-814-0 04 1 9312-9510 ● ● ● ● ● ●
20 16.588 CLIP; FRT PANEL SIDE 8-94279-814-0 04 1 9511- ● ● ● ● ● ● ●
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 9312-9510 ● ● ● ● ● ●
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 9511- ● ● ● ● ● ● ●
22 16.588 SCREW; FRT PANEL SIDE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 9312-9510 ● ● ● ● ● ●
22 16.588 SCREW; FRT PANEL SIDE
16.345 M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 9511- ● ● ● ● ● ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97857-444-0 02 1 9312-9510 ● ● ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97857-444-0 02 1 9511- ● ● ● ● ●
23 16.588 PIECE; DIST,FRT PANEL SIDE
L=55 		8-94272-463-0 02 1 9312- ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 9312-9510 ● ● ● ● ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 9511- ● ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 9312-9510 ● ● ● ● ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 9511- ● ● ● ● ● ● ●
450 16.125 SPACER 8-97857-369-0 02 1 9312- ● ●
522 08.228 PROTECTOR; SILL SIDE 8-97856-689-2 01 1 9312-9510 ● ● ● ● ● ●
522 08.228 PROTECTOR; SILL SIDE
DARK BEIGE 		8-97856-689-2 01 1 9511-9711 ● ● ● ● ● ● ●
522 08.228 PROTECTOR; SILL SIDE
DARK GRAY 		8-97857-840-3 01 1 9712- ● ● ● ● ● ● ●
523 08.212 COVER; FENDER RR 8-97853-439-4 01 1 9312- ● ●
523 08.212 COVER; FENDER RR 8-97853-438-4 01 1 9312- ● ●
524 08.212 CLIP; FENDER COVER
16.166 OD=8.5 GRAY 		8-94126-768-0 06 1 9312- ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-373-1 01 1 9312-9510 ● ● ● ● ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-373-1 01 1 9511- ● ● ● ● ● ● ●
530 01.303 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 9312-9510 ● ● ● ● ● ●
530 01.303 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 9511- ● ● ● ● ● ● ●
