◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#47076) — 72 parça

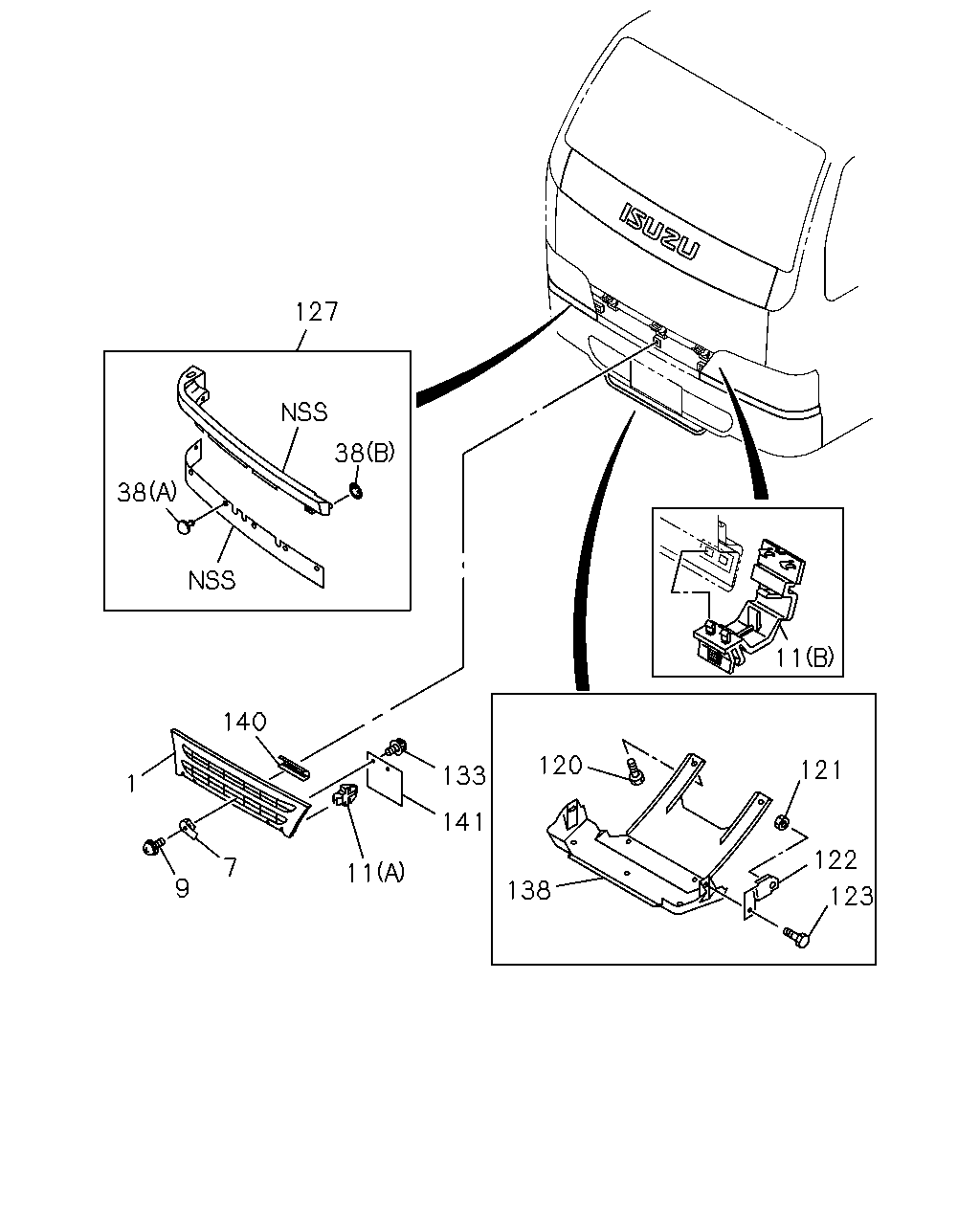

çizim 67744
127 38 38 11 140 120 121 133 1 141 122 7 11 9 138 123
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.266 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97076-580-2 01 1 9312-9711 ● ● ● ● ● ● ●
1 01.266 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 9712- ● ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 9312-9510 ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 9511- ● ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 9312-9510 ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 9511- ● ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97075-929-2 02 1 9312-9711 ● ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) YELLOW 		8-97119-164-0 02 1 9712- ● ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 9312-9510 ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 9511- ● ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
(A) D=6.5 		8-97855-279-0 09 1 9511- ● ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
(B) 		1-09987-180-0 01 1 9511- ● ● ● ● ● ● ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9312-9711 ●
120 01.266 BOLT; AIR GUIDE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 03 1 9712- ●
121 01.266 NUT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M6 FLANGE 		0-91150-206-0 01 1 9312-9408 ●
121 01.266 NUT; AIR GUIDE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 01.062 M6 FLANGE 		0-91150-206-0 01 1 9409-9711 ●
121 01.266 NUT; AIR GUIDE
4JB1 ENG(RLF) EGYPT EQUIPMENT(YJ4) FRT INDEPENDENT SUSPENSION(6PP) 01.062 M6 FLANGE 		0-91150-206-0 01 1 9409-9711 ●
121 01.266 NUT; AIR GUIDE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 01.062 M6 FLANGE 		0-91150-206-0 01 1 9712- ●
122 01.266 BRACKET; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-842-0 01 1 9312-9711 ●
122 01.266 BRACKET; AIR GUIDE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97102-842-0 01 1 9712- ●
123 01.266 BOLT; BRKT AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9312-9711 ●
123 01.266 BOLT; BRKT AIR GUIDE
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9712- ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97150-952-3 01 1 9312-9510 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97150-952-5 01 1 9511- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97150-942-3 01 1 9312-9510 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97867-325-3 01 1 9511- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97150-960-5 01 1 9312- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97150-950-3 01 1 9312-9510 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97867-331-3 01 1 9511- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97150-959-3 01 1 9312-9510 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97150-959-5 01 1 9511- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97150-949-3 01 1 9312-9510 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97867-383-3 01 1 9511- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97150-961-3 01 1 9312-9510 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97150-961-5 01 1 9511- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97150-951-3 01 1 9312-9510 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97867-332-3 01 1 9511- ● ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR HIGHWAY YELLOW(916) DARK YELLOW 		8-97151-576-5 01 1 9403- ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR HIGHWAY YELLOW(916) 		8-97151-577-3 01 1 9403-9510 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR HIGHWAY YELLOW(916) DARK YELLOW 		8-97867-384-3 01 1 9511- ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FIRE RED(915) RED 		8-97867-556-5 01 1 9603- ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FIRE RED(915) RED 		8-97867-555-3 01 1 9603- ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 02 1 9312-9711 ● ● ● ● ● ● ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 9712- ● ● ● ● ● ● ●
138 01.266 GUIDE; AIR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97101-740-0 01 1 9312-9711 ●
138 01.266 GUIDE; AIR
4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 		8-97101-740-0 01 1 9712- ●
140 01.266 SEAL; RAD GRILLE 8-97061-039-3 01 1 9312-9608 ● ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE 8-97061-039-3 02 1 9609-9711 ● ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR FIRE RED(915) 		8-97061-039-3 02 1 9603-9608 ●
140 01.266 SEAL; RAD GRILLE 8-97061-039-3 01 1 9712- ● ● ● ● ● ● ●
141 01.266 COVER; RAD GRILLE 8-97070-821-1 01 1 9312-9711 ● ● ● ● ● ● ●
141 01.266 COVER; RAD GRILLE 8-97119-166-0 01 1 9712- ● ● ● ● ● ● ●

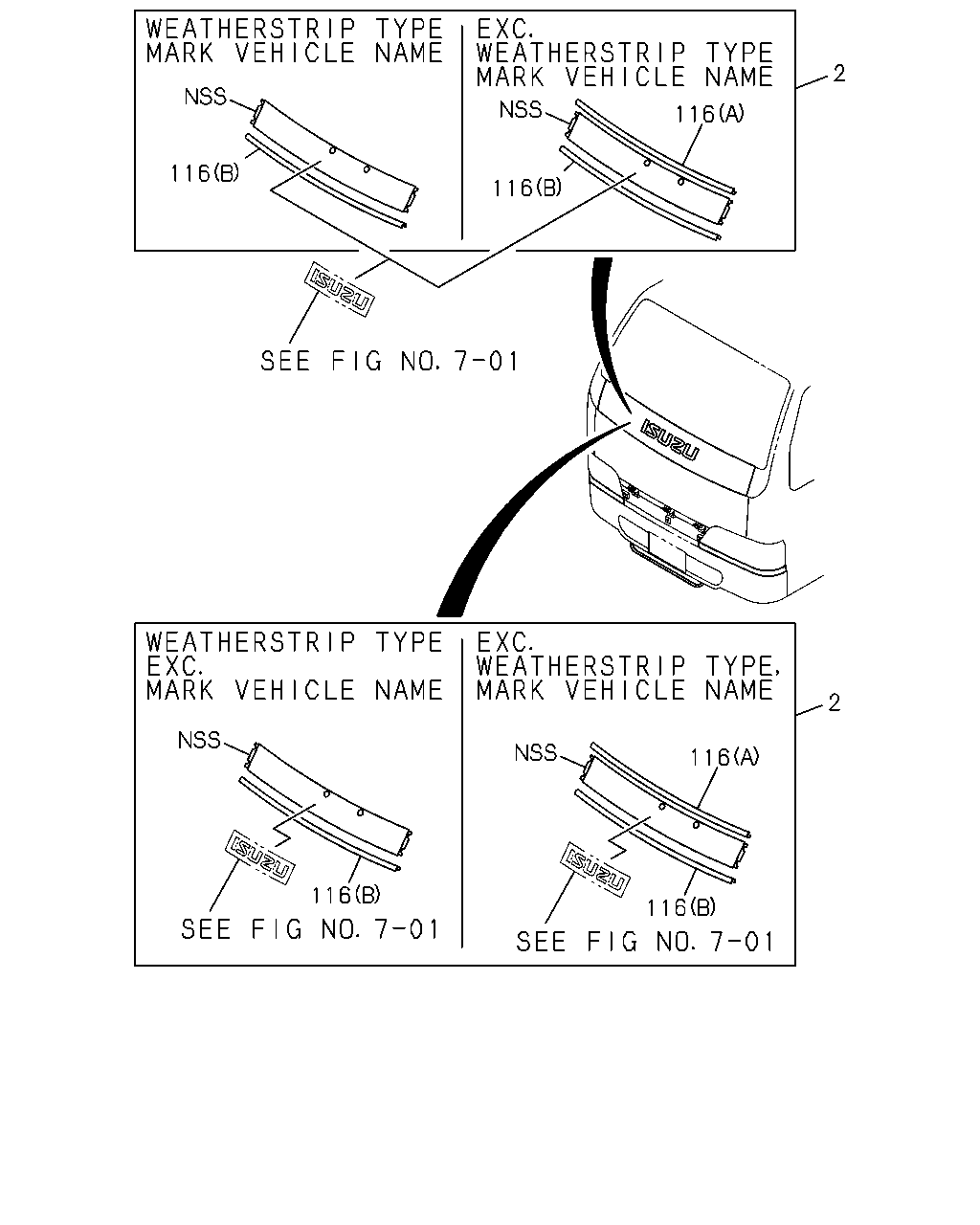

çizim 69053
2 116 116 116 2 116 116 116
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 01.266 GRILLE; ORNAMENT
MARK VEHICLE NAME<EK7> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-384-1 01 1 9407-9510 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
MARK VEHICLE NAME<EK7> WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97859-384-1 01 1 9511-9711 ● ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-581-1 01 1 9712- ● ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
MARK VEHICLE NAME<EK7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-990-2 01 1 9401-9510 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
MARK VEHICLE NAME<EK7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 		8-97857-990-2 01 1 9511-9711 ● ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-580-1 01 1 9712- ● ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> W/DECAL 		8-97856-819-4 01 1 9312-9312 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. MARK VEHICLE NAME<EK7> W/DECAL 		8-97856-819-6 01 1 9401-9510 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. MARK VEHICLE NAME<EK7> W/DECAL 		8-97856-819-6 01 1 9511-9711 ● ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> W/DECAL 		8-97856-253-4 01 1 9312-9312 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. MARK VEHICLE NAME<EK7>, WINDSHIELD WEATHERSTRIP TYPE<7EL> W/DECAL 		8-97856-253-6 01 1 9401-9510 ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. MARK VEHICLE NAME<EK7>, WINDSHIELD WEATHERSTRIP TYPE<7EL> W/DECAL 		8-97856-253-6 01 1 9511-9711 ● ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 9312-9312 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
MARK VEHICLE NAME<EK7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-97853-097-4 01 1 9401-9406 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. MARK VEHICLE NAME<EK7> (B) 		8-97853-097-4 01 1 9401-9406 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 9407-9407 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 9407-9510 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 9511- ● ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 9312-9510 ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 9511- ● ● ● ● ● ● ●
