2 |

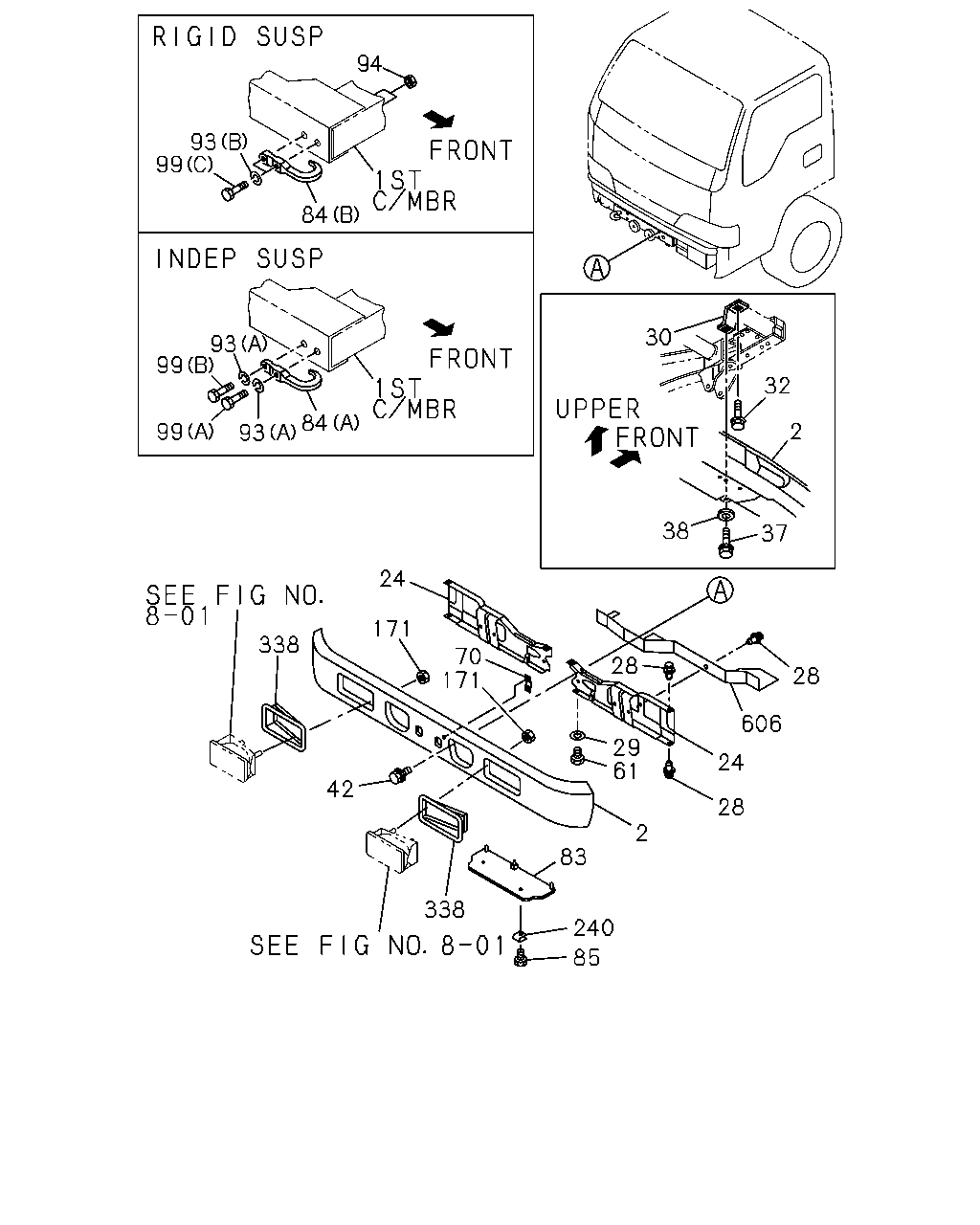

07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97097-850-2 |
01 |
1 |
9312-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>
DARK GRAY
|
8-97097-840-3 |
01 |
1 |
9312-9402 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9>
EXC. FOG LAMP<T96>
DARK GRAY
|
8-97097-840-3 |
01 |
1 |
9312-9402 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>
DARK GRAY
|
8-97097-840-3 |
01 |
1 |
9403-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9>
EXC. FOG LAMP<T96>
DARK GRAY
|
8-97097-840-3 |
01 |
1 |
9403-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9>
EXC. FOG LAMP<T96>
DARK GRAY
|
8-97097-840-4 |
01 |
1 |
9410-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>,FRONT BUMPER PAINTED<VB5>
DARK GRAY
|
8-97097-840-4 |
01 |
1 |
9410-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9>
EXC. FOG LAMP<T96>
DARK GRAY
|
8-97866-824-4 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>,FRONT BUMPER PAINTED<VB5>,F
IRE TRUCK CHASSIS(V4F)
DARK GRAY
|
8-97866-824-4 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY
COLORADRIATIC BLUE(730),BODY COLOR CARDI
NAL RED(736),BODY COLOR MARINE
BLUE(890),BODY COLOR HIGHWAY YELLOW(916)
EXC. FOG LAMP<T96>,FRONT BUMPER
PAINTED<VB5>
DARK GRAY
|
8-97196-169-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>
PLEASE PAINT TO MATCH BODY COLOR
|
8-97076-575-0 |
01 |
1 |
9312-9409 |
● |
● |
● |
|
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>,FRONT BUMPER PAINTED<VB5>
PLEASE PAINT TO MATCH BODY COLOR
|
8-97076-575-0 |
01 |
1 |
9410-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>,FRONT BUMPER PAINTED<VB5>,F
IRE TRUCK CHASSIS(V4F)
PLEASE PAINT TO MATCH BODY COLOR
|
8-97076-575-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97097-853-1 |
01 |
1 |
9312-9406 |
● |
● |
● |
|
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97097-853-1 |
01 |
1 |
9407-9409 |
● |
● |
● |
|
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
DELETION ECUADOR<72D>
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97097-853-2 |
01 |
1 |
9410-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5>
FIRE TRUCK CHASSIS(V4F)
EXC. FOG LAMP<T96>
WHITE
PRIMER
|
8-97191-911-0 |
01 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>
WHITE
|
8-97097-841-3 |
01 |
1 |
9312-9409 |
● |
● |
● |
|
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>,FRONT BUMPER PAINTED<VB5>
WHITE
|
8-97097-841-4 |
01 |
1 |
9410-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
DELETION ECUADOR<72D>
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>,FRONT BUMPER PAINTED<VB5>,F
IRE TRUCK CHASSIS(V4F)
WHITE
|
8-97097-841-4 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
|
8-97097-852-1 |
01 |
1 |
9312-9402 |
● |
● |
● |
|
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
|
8-97097-852-1 |
01 |
1 |
9312-9402 |
● |
● |
● |
|
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
|
8-97097-852-1 |
01 |
1 |
9403-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
|
8-97097-852-1 |
01 |
1 |
9403-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>,
FRONTBUMPER PAINTED<VB5>,FIRE TRUCK CHAS
SIS(V4F)
|
8-97097-852-2 |
01 |
1 |
9410-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
|
8-97097-852-2 |
01 |
1 |
9410-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>,
FRONTBUMPER PAINTED<VB5>
DARK GRAY
|
8-97866-823-2 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
DARK GRAY
|
8-97866-823-2 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FOG LAMP<T96>
DARK GRAY
|
8-97196-159-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97097-851-1 |
01 |
1 |
9312-9406 |
● |
● |
● |
|
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97097-851-1 |
01 |
1 |
9407-9409 |
● |
● |
● |
|
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97097-851-2 |
01 |
1 |
9410-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>
PLEASE PAINT TO MATCH BODY COLOR
|
8-97076-575-0 |
01 |
1 |
9312-9409 |
● |
● |
● |
|
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890),BODY
COLOR HIGHWAY YELLOW(916)
EXC. FRT BUMPER DARK GRAY<EQ9>,FOG
LAMP<T96>,FRONT BUMPER PAINTED<VB5>
PLEASE PAINT TO MATCH BODY COLOR
|
8-97076-575-0 |
01 |
1 |
9410-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
2 |
07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5>
FIRE TRUCK CHASSIS(V4F)
EXC. FOG LAMP<T96>
PLEASE PAINT TO MATCH BODY COLOR
|
8-97076-575-0 |
01 |
1 |
9410-9510 |
|
|
● |
|
|
|
|
| |
2 |
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY
COLORADRIATIC BLUE(730),BODY COLOR CARDI
NAL RED(736),BODY COLOR MARINE
BLUE(890),BODY COLOR HIGHWAY YELLOW(916)
FRONT BUMPER PAINTED<VB5>
FIRE TRUCK CHASSIS(V4F)
EXC. FOG LAMP<T96>
PLEASE PAINT TO MATCH BODY COLOR
|
8-97076-575-0 |
01 |
1 |
9511-9711 |
|
|
● |
|
|
|
|
| |
24 |
07.869 BAR; FRT BUMPER
FOG LAMP<T96>
|
8-97070-818-3 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
FOG LAMP<T96>
|
8-97070-817-2 |
01 |
1 |
9312-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
FOG LAMP<T96>
EXC. EUROPEAN BASIC EQUIPMENT(EK4)
|
8-97070-817-2 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96>
|
8-97035-752-5 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
EXC. FOG LAMP<T96>
|
8-97035-751-4 |
01 |
1 |
9312-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
FOG LAMP<T96>
|
8-97035-751-4 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
07.869 BAR; FRT BUMPER
BODY COLOR ARC WHITE(729),BODY
COLORADRIATIC BLUE(730),BODY COLOR CARDI
NAL RED(736),BODY COLOR MARINE
BLUE(890),BODY COLOR HIGHWAY YELLOW(916)
EUROPEAN BASIC EQUIPMENT(EK4)
EXC. FOG LAMP<T96>
|
8-97192-519-0 |
01 |
1 |
9712- |
● |
|
|
|
● |
|
|
| |
24 |
07.869 BAR; FRT BUMPER
BODY COLOR ARC WHITE(729),BODY
COLORADRIATIC BLUE(730),BODY COLOR CARDI
NAL RED(736),BODY COLOR MARINE
BLUE(890),BODY COLOR HIGHWAY YELLOW(916)
EUROPEAN BASIC EQUIPMENT(EK4)
FOG LAMP<T96>
|
8-97194-715-0 |
01 |
1 |
9712- |
● |
|
|
|
● |
|
|
| |
28 |
07.833 FASTENER; BACK BAR
FOG LAMP<T96>
12.934
D=5.8 SCREW & GROMMET NYLON
|
8-94242-150-0 |
12 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
● |
| |
28 |
07.833 FASTENER; BACK BAR
EXC. FOG LAMP<T96>
12.934
D=5.8 SCREW & GROMMET NYLON
|
8-94242-150-0 |
08 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
● |
| |
29 |
07.833 WASHER; FRT BUMPER
ID=8.5
|
8-94167-476-0 |
06 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
MANUAL TILT CAB<RWZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
01.263
|
8-97093-639-1 |
02 |
1 |
9312-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
30 |
07.869 BRACKET; FRT BUMPER
EXC. FIRE TRUCK CHASSIS(V4F),FRT
INDEPENDENT SUSPENSION(6PP)
01.263
|
8-97093-639-3 |
02 |
1 |
9410- |
● |
● |
● |
● |
● |
● |
● |
| |
32 |
07.874 BOLT; BRKT,BUMPER
MANUAL TILT CAB<RWZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
02.510
M8X25 W/LK&PL WASHER
|
0-50140-825-0 |
02 |
1 |
9312-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
32 |
07.874 BOLT; BRKT,BUMPER
EXC. FIRE TRUCK CHASSIS(V4F),FRT
INDEPENDENT SUSPENSION(6PP)
02.559
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9410- |
● |
● |
● |
● |
● |
● |
● |
| |
37 |
01.263 BOLT; BRKT TO BUMPER LWR
MANUAL TILT CAB<RWZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
08.900
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9312-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
37 |
01.263 BOLT; BRKT TO BUMPER LWR
EXC. FIRE TRUCK CHASSIS(V4F),FRT
INDEPENDENT SUSPENSION(6PP)
08.900
M8X20 W/LK WASHER
|
0-50040-820-0 |
02 |
1 |
9410-9411 |
● |
● |
● |
● |
● |
● |
● |
| |
37 |
01.263 BOLT; BRKT TO BUMPER LWR
EXC. FIRE TRUCK CHASSIS(V4F),FRT
INDEPENDENT SUSPENSION(6PP)
16.320
M8X22 W/LK&PL WASHER
|
8-94279-148-1 |
02 |
1 |
9412- |
● |
● |
● |
● |
● |
● |
● |
| |
38 |
01.263 WASHER; PL,BUMPER LWR
MANUAL TILT CAB<RWZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
02 |
1 |
9312-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
38 |
01.263 WASHER; PL,BUMPER LWR
EXC. FIRE TRUCK CHASSIS(V4F),FRT
INDEPENDENT SUSPENSION(6PP)
02.334
ID=8.4 OD=26
|
9-09164-808-0 |
02 |
1 |
9410-9411 |
● |
● |
● |
● |
● |
● |
● |
| |
42 |
07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER
|
8-97101-865-0 |
04 |
1 |
9312-9510 |
● |
● |
● |
|
● |
● |
● |
| |
42 |
07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER
|
8-97101-865-0 |
04 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
61 |
07.832 BOLT; BACK BAR
04.785
M8X18 W/LK WASHER
|
0-50040-818-0 |
06 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
● |
| |
70 |
07.800 BRACKET; LICENSE PLATE,FRT
EXC. FOG LAMP<T96>
|
8-94151-164-1 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
70 |
07.800 BRACKET; LICENSE PLATE,FRT
|
8-94151-164-1 |
02 |
1 |
9511- |
● |
● |
● |
● |
● |
● |
● |
| |
83 |
07.833 GUIDE; AIR,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97076-832-0 |
01 |
1 |
9312-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
83 |
07.833 GUIDE; AIR,FRT BUMPER
EXC. FIRE TRUCK CHASSIS(V4F),FRT
INDEPENDENT SUSPENSION(6PP)
|
8-97076-832-2 |
01 |
1 |
9410- |
● |
● |
● |
● |
● |
● |
● |
| |
84 |
07.068 HOOK
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-94336-438-1 |
01 |
1 |
9312-9711 |
● |
|
|
|
|
|
|
| |
84 |
07.068 HOOK
EUROPEAN BASIC EQUIPMENT(EK4)
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97189-110-0 |
01 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
84 |
07.068 HOOK
MANUAL TILT CAB<RWZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-94249-270-2 |
01 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
84 |
07.068 HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-94249-270-2 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
84 |
07.068 HOOK
EXC. EUROPEAN BASIC EQUIPMENT(EK4),
BRAZIL EQUIPMENT(RWF),FRT
INDEPENDENTSUSPENSION(6PP)
(B)
|
8-94249-270-2 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
84 |
07.068 HOOK
EUROPEAN BASIC EQUIPMENT(EK4)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97189-109-0 |
01 |
1 |
9712- |
● |
|
|
|
● |
|
|
| |
85 |
07.874 BOLT; AIR GUIDE,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M6X22 W/PL WASHER
|
8-97012-072-0 |
03 |
1 |
9312-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
85 |
07.874 BOLT; AIR GUIDE,FRT BUMPER
EXC. FIRE TRUCK CHASSIS(V4F),FRT
INDEPENDENT SUSPENSION(6PP)
M6X22 W/PL WASHER
|
8-97012-072-0 |
03 |
1 |
9410- |
● |
● |
● |
● |
● |
● |
● |
| |
93 |
07.068 WASHER; LK,HOOK
FRT INDEPENDENT SUSPENSION(6PP)
00.002
(A)
ID=12.2
|
9-09150-812-0 |
02 |
1 |
9312- |
● |
|
|
|
|
|
|
| |
93 |
07.068 WASHER; LK,HOOK
MANUAL TILT CAB<RWZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
05.422
(B)
ID=14.2
|
9-09150-814-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
93 |
07.068 WASHER; LK,HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
05.422
(B)
ID=14.2
|
9-09150-814-0 |
02 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
93 |
07.068 WASHER; LK,HOOK
EXC. BRAZIL EQUIPMENT(RWF),FRT
INDEPENDENT SUSPENSION(6PP)
05.422
(B)
ID=14.2
|
9-09150-814-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
94 |
07.068 NUT; HOOK
MANUAL TILT CAB<RWZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
07.529
M14
|
9-99110-514-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
94 |
07.068 NUT; HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
07.529
M14
|
9-99110-514-0 |
02 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
94 |
07.068 NUT; HOOK
EXC. BRAZIL EQUIPMENT(RWF),FRT
INDEPENDENT SUSPENSION(6PP)
07.529
M14
|
9-99110-514-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
99 |
07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP)
04.103
(A)
M12X45
|
0-10806-245-0 |
01 |
1 |
9312- |
● |
|
|
|
|
|
|
| |
99 |
07.039 BOLT; HOOK
FRT INDEPENDENT SUSPENSION(6PP)
02.042
(B)
M12X35
|
0-20801-235-0 |
01 |
1 |
9312- |
● |
|
|
|
|
|
|
| |
99 |
07.039 BOLT; HOOK
MANUAL TILT CAB<RWZ>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(C)
M14X50
|
0-10806-450-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
99 |
07.039 BOLT; HOOK
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(C)
M14X50
|
0-10806-450-0 |
02 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
99 |
07.039 BOLT; HOOK
EXC. BRAZIL EQUIPMENT(RWF),FRT
INDEPENDENT SUSPENSION(6PP)
(C)
M14X50
|
0-10806-450-0 |
02 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
171 |
07.869 NUT; BACK BAR
FOG LAMP<T96>
04.012
M8 FLANGE
|
1-09464-018-1 |
04 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
● |
| |
240 |
07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. FRT INDEPENDENT SUSPENSION(6PP)
M6
|
8-94412-740-1 |
03 |
1 |
9312-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
240 |
07.833 NUT; AIR GUIDE,FRT BUMPER
EXC. FIRE TRUCK CHASSIS(V4F),FRT
INDEPENDENT SUSPENSION(6PP)
M6
|
8-94412-740-1 |
03 |
1 |
9410- |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR ADRIATIC BLUE(730)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97097-862-0 |
01 |
1 |
9312-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR ADRIATIC BLUE(730)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97097-858-0 |
01 |
1 |
9312-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97097-865-0 |
01 |
1 |
9312-9409 |
● |
● |
● |
|
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
DELETION ECUADOR<72D>
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97097-865-0 |
01 |
1 |
9410-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97097-861-0 |
01 |
1 |
9312-9409 |
● |
● |
● |
|
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
DELETION ECUADOR<72D>
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
WHITE
|
8-97097-861-0 |
01 |
1 |
9410-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
|
8-97097-864-0 |
01 |
1 |
9312-9402 |
● |
● |
● |
|
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
|
8-97097-864-0 |
01 |
1 |
9312-9402 |
● |
● |
● |
|
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
|
8-97097-864-0 |
01 |
1 |
9403-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
|
8-97097-864-0 |
01 |
1 |
9403-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>,
FRONTBUMPER PAINTED<VB5>,FIRE TRUCK CHAS
SIS(V4F)
|
8-97097-864-0 |
01 |
1 |
9410-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
|
8-97097-864-0 |
01 |
1 |
9410-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>,
FRONTBUMPER PAINTED<VB5>
DARK GRAY
|
8-97866-836-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
DARK GRAY
|
8-97866-836-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FOG LAMP<T96>
DARK GRAY
|
8-97866-836-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
|
8-97097-860-0 |
01 |
1 |
9312-9402 |
● |
● |
● |
|
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
|
8-97097-860-0 |
01 |
1 |
9312-9402 |
● |
● |
● |
|
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
|
8-97097-860-0 |
01 |
1 |
9403-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
|
8-97097-860-0 |
01 |
1 |
9403-9409 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>,
FRONTBUMPER PAINTED<VB5>,FIRE TRUCK CHAS
SIS(V4F)
|
8-97097-860-0 |
01 |
1 |
9410-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
|
8-97097-860-0 |
01 |
1 |
9410-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR CARDINAL RED(736),BODY
COLOR HIGHWAY YELLOW(916)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>,
FRONTBUMPER PAINTED<VB5>
DARK GRAY
|
8-97866-835-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FRT BUMPER DARK GRAY<EQ9>
FOG LAMP<T96>
DARK GRAY
|
8-97866-835-0 |
01 |
1 |
9511-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
FOG LAMP<T96>
DARK GRAY
|
8-97866-835-0 |
01 |
1 |
9712- |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97097-863-0 |
01 |
1 |
9312-9409 |
● |
● |
● |
|
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97097-863-0 |
01 |
1 |
9410-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97097-859-0 |
01 |
1 |
9312-9409 |
● |
● |
● |
|
● |
● |
● |
| |
338 |
07.832 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890)
FOG LAMP<T96>
EXC. FRT BUMPER DARK GRAY<EQ9>
BLUE
|
8-97097-859-0 |
01 |
1 |
9410-9711 |
● |
● |
● |
● |
● |
● |
● |
| |
606 |
07.832 SEAL; BACK BAR
FOG LAMP<T96>
|
8-97076-577-1 |
02 |
1 |
9312-9609 |
● |
● |
● |
● |
● |
● |
● |
| |
606 |
07.832 SEAL; BACK BAR
FOG LAMP<T96>
|
8-97867-844-0 |
02 |
1 |
9610- |
● |
● |
● |
● |
● |
● |
● |
| |
606 |
07.832 SEAL; BACK BAR
EXC. FOG LAMP<T96>
|
8-97076-577-1 |
01 |
1 |
9312-9609 |
● |
● |
● |
● |
● |
● |
● |
| |
606 |
07.832 SEAL; BACK BAR
EXC. FOG LAMP<T96>
|
8-97867-844-0 |
01 |
1 |
9610- |
● |
● |
● |
● |
● |
● |
● |
