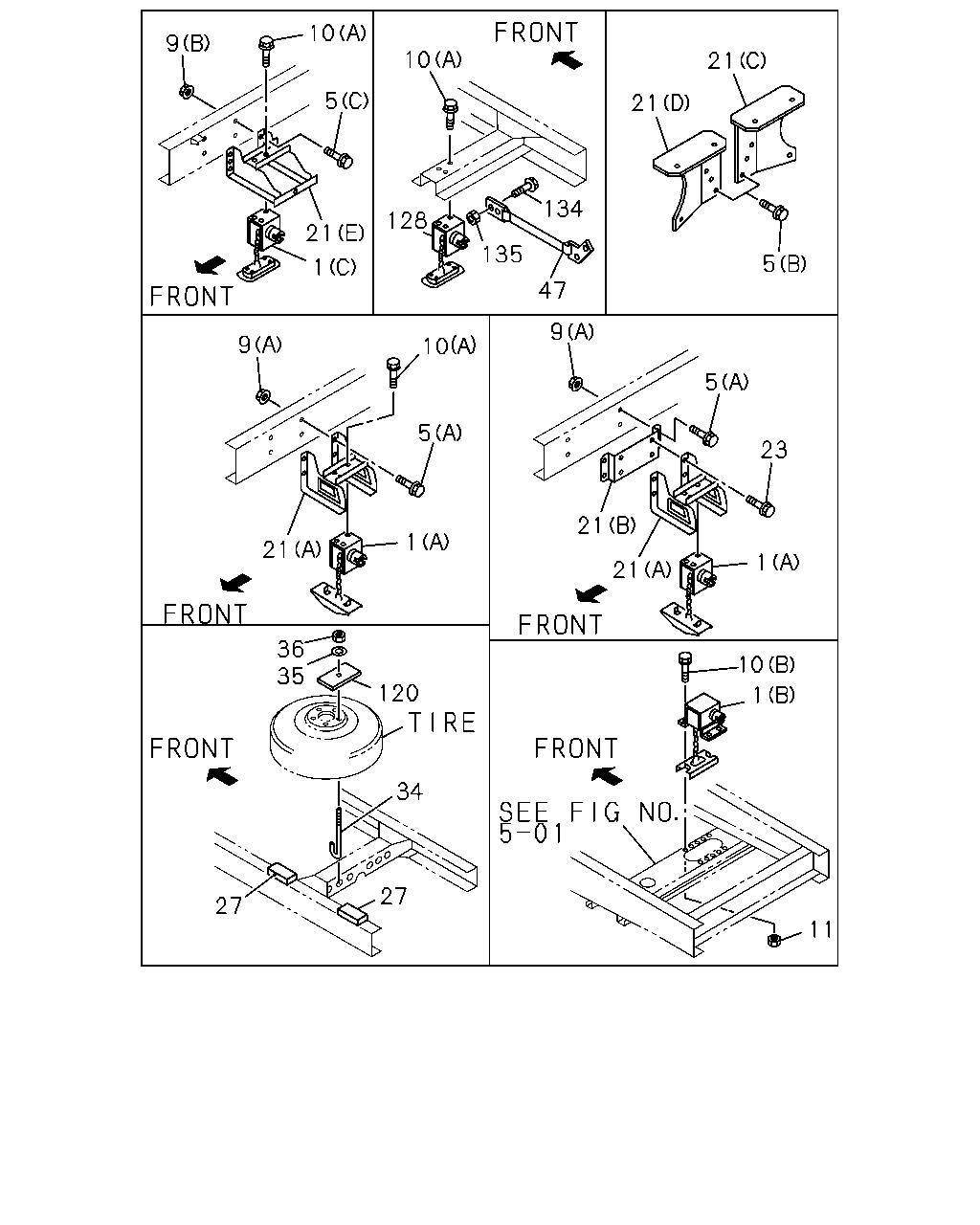

5-30 — SPARE TIRE CARRIER AND COVER (#47074) — 55 parça

10 9 10 21 5 21 134 128 21 135 5 1 47 9 9 10 5 5 23 21 1 21 1 21 36 35 10 120 1 34 27 27 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	07.629 HANGER ASM; TIRE FT REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> (A)	8-94382-875-0	01	1	9312-	●
1	07.629 HANGER ASM; TIRE FT (B)	8-94382-876-1	01	1	9312-9510		●	●
1	07.629 HANGER ASM; TIRE FT (B)	8-94382-876-2	01	1	9511-9809		●	●	●
1	07.629 HANGER ASM; TIRE FT (B)	8-97182-113-0	01	1	9810-		●	●	●
1	07.629 HANGER ASM; TIRE FT (C)	8-94380-175-0	01	1	9312-					●
5	07.632 BOLT; BRKT TO FRAME DUMP CHASSIS(V4D) 03.417 (B) M10X25 FLANGE	0-28081-025-0	06	1	9312-9711	●
5	07.632 BOLT; BRKT TO FRAME DUMP CHASSIS(V4D) 03.405 (B) M10X30 FLANGE	0-28681-030-0	06	1	9712-	●
5	07.632 BOLT; BRKT TO FRAME REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> 03.417 (A) M10X25 FLANGE	0-28081-025-0	04	1	9312-9711	●
5	07.632 BOLT; BRKT TO FRAME REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> 03.405 (A) M10X30 FLANGE	0-28681-030-0	04	1	9712-	●
5	07.632 BOLT; BRKT TO FRAME 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	9312-9711					●
5	07.632 BOLT; BRKT TO FRAME 04.686 (C) M8X30 FLANGE	0-28680-830-0	04	1	9712-					●
9	07.633 NUT; BRKT TO FRAME REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> 04.785 (A) M10 FLANGE	0-91150-110-0	04	1	9312-	●
9	07.633 NUT; BRKT TO FRAME (B) M8 FLANGE	0-91150-108-0	04	1	9312-					●
10	07.632 BOLT; TIRE HANGER 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	03	1	9312-9410						●	●
10	07.632 BOLT; TIRE HANGER 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	03	1	9411-9506						●	●
10	07.632 BOLT; TIRE HANGER REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	03	1	9411-9506	●
10	07.632 BOLT; TIRE HANGER 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	9507-						●	●
10	07.632 BOLT; TIRE HANGER REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	9507-	●
10	07.632 BOLT; TIRE HANGER REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	04	1	9312-9410	●
10	07.632 BOLT; TIRE HANGER 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	04	1	9312-9410		●	●
10	07.632 BOLT; TIRE HANGER 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	04	1	9411-9506		●	●
10	07.632 BOLT; TIRE HANGER 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	9507-9510		●	●
10	07.632 BOLT; TIRE HANGER 02.664 (B) M8X20 FLANGE	0-28680-820-0	04	1	9511-9711		●	●	●
10	07.632 BOLT; TIRE HANGER 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	9312-9506					●
10	07.632 BOLT; TIRE HANGER 02.664 (A) M8X20 FLANGE	0-28680-820-0	06	1	9507-					●
11	07.629 NUT; TIRE HANGER 02.559 M8	9-09110-408-0	04	1	9312-9508		●	●
11	07.629 NUT; TIRE HANGER 07.633 M8 FLANGE	0-91150-108-0	04	1	9509-9510		●	●
11	07.629 NUT; TIRE HANGER 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-9711		●	●	●
11	07.629 NUT; TIRE HANGER 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-		●	●	●
21	07.629 BRACKET; SPARE TIRE HANGER DUMP CHASSIS(V4D) (D)	8-97106-655-1	01	1	9312-	●
21	07.629 BRACKET; SPARE TIRE HANGER DUMP CHASSIS(V4D) (C)	8-97106-654-1	01	1	9312-	●
21	07.629 BRACKET; SPARE TIRE HANGER REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> (A)	8-97010-956-1	01	1	9312-	●
21	07.629 BRACKET; SPARE TIRE HANGER 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> (B)	8-94176-764-1	01	1	9312-	●
21	07.629 BRACKET; SPARE TIRE HANGER BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> (E)	8-97015-884-1	01	1	9312-9510					●
21	07.629 BRACKET; SPARE TIRE HANGER 4JG2 ENG(RJC),4JB1 ENG(RLF) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC> (E)	8-97015-884-1	01	1	9511-					●
21	07.629 BRACKET; SPARE TIRE HANGER EXC. BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC>,BATTERY 115E41R<6XD> (E)	8-94382-881-0	01	1	9312-9510					●
21	07.629 BRACKET; SPARE TIRE HANGER 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC> (E)	8-94382-881-0	01	1	9511-					●
23	07.632 BOLT; BRKT,SPARE TIRE 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9312-9711	●
23	07.632 BOLT; BRKT,SPARE TIRE 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9712-9712	●
23	07.632 BOLT; BRKT,SPARE TIRE 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNT ED<P15> 03.405 M10X25 FLANGE	0-28681-025-0	04	1	9801-	●
27	07.629 CUSHION; FRAME TO SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. DUMP CHASSIS(V4D) 125X50X10	8-94341-284-0	02	1	9312-9807	●
27	07.629 CUSHION; FRAME TO SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. DUMP CHASSIS(V4D) 125X50X10	8-94341-284-0	04	1	9808-	●
34	07.629 BOLT; SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305	8-94441-189-0	01	1	9312-	●
35	07.629 WASHER; PL,SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> 09.011 OD=40	9-09651-093-0	01	1	9312-9807	●
35	07.629 WASHER; PL,SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54	8-94466-483-0	01	1	9808-	●
36	07.629 NUT; SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.816 M12	9-99110-412-0	01	1	9312-	●
47	07.629 BELT; SPARE TIRE LEYLAND EQUIPMENT<S9Z>	8-97167-880-0	01	1	9609-9611						●
47	07.629 BELT; SPARE TIRE LEYLAND EQUIPMENT<S9Z>	8-97172-222-0	01	1	9612-9711						●
47	07.629 BELT; SPARE TIRE EUROPEAN BASIC EQUIPMENT(EK4)	8-97172-222-1	01	1	9712-						●
120	07.629 PLATE; SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> DUMP CHASSIS(V4D) 07.518	1-51377-166-0	01	1	9312-	●
128	07.629 HANGER ASM; TIRE END	8-94380-175-0	01	1	9312-					●	●	●
134	07.632 BOLT; BELT LEYLAND EQUIPMENT<S9Z> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9612-9711						●
134	07.632 BOLT; BELT EUROPEAN BASIC EQUIPMENT(EK4) 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9712-						●
135	07.629 NUT; BELT LEYLAND EQUIPMENT<S9Z> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9711						●
135	07.629 NUT; BELT EUROPEAN BASIC EQUIPMENT(EK4) 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
