Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#47072) — 192 parça

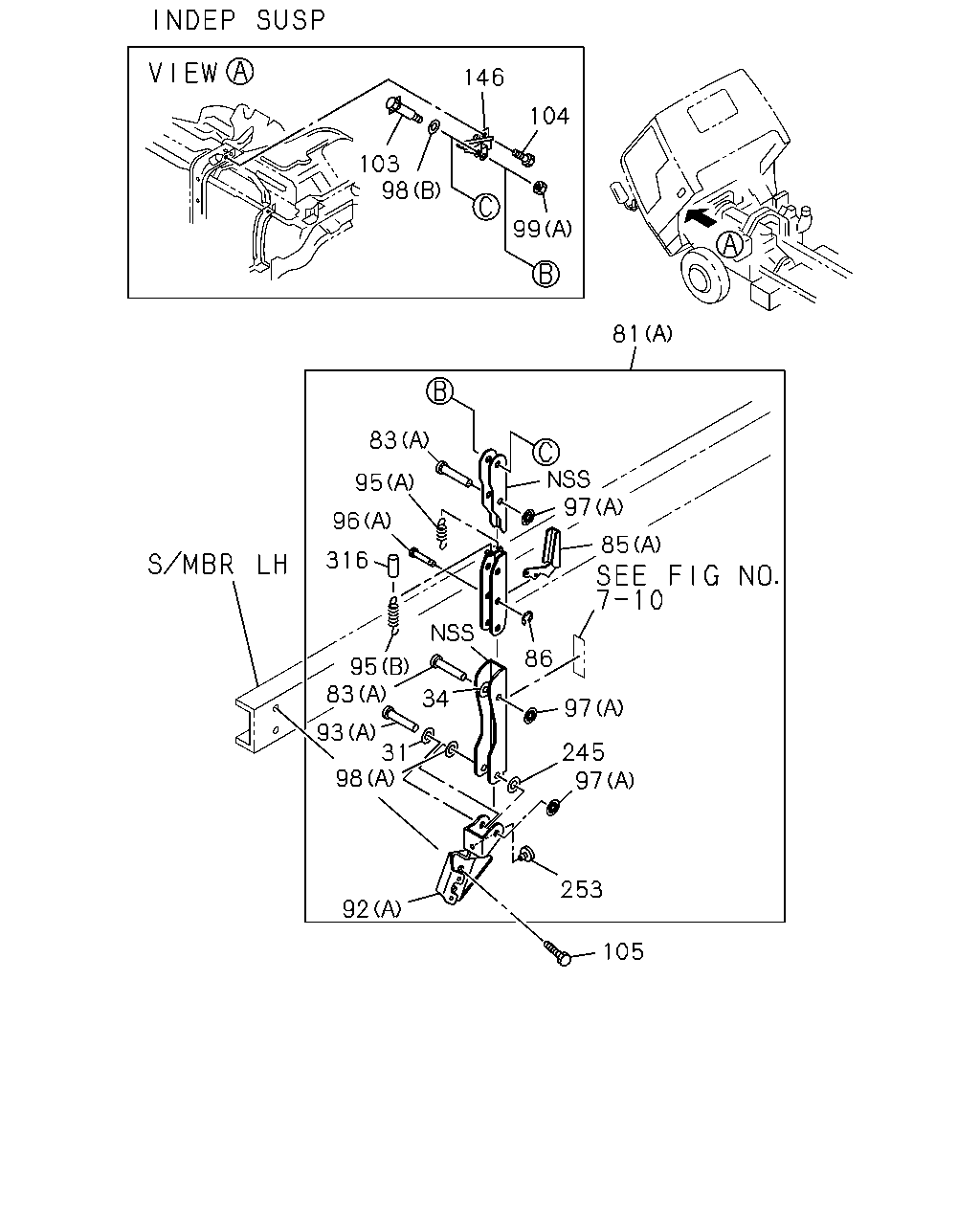

146 104 103 98 99 81 83 97 95 96 85 316 86 95 83 34 97 93 31 98 245 97 253 92 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
31	09.003 WASHER; WAVE MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97100-623-0	01	1	9312-9709	●
31	09.003 WASHER; WAVE MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97100-623-0	01	1	9803-	●
34	09.003 WASHER; LK MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	9312-9709	●
34	09.003 WASHER; LK MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	9803-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-074-5	01	1	9312-9709	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97188-195-0	01	1	9710-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97081-075-5	01	1	9312-9410	●	●	●	●	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97120-940-0	01	1	9411-	●	●	●	●	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C)	8-97081-076-5	01	1	9312-9410		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C)	8-97120-941-0	01	1	9411-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) OD=10 L=36	8-97096-661-0	02	1	9312-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) OD=8 L=32	8-97039-548-0	01	1	9312-9510	●	●	●	●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) OD=8 L=32	8-97039-548-0	01	1	9511-	●	●	●	●	●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-94380-444-0	01	1	9312-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94331-481-0	01	1	9312-9510	●	●	●	●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94331-481-0	01	1	9511-	●	●	●	●	●	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 04.040 ID=4	9-09185-404-0	01	1	9312-9709	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 04.040 ID=4	9-09185-404-0	01	1	9803-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97096-657-1	01	1	9312-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97096-654-0	01	1	9312-	●	●	●	●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C)	8-97096-655-0	01	1	9312-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) OD=10 L=50	8-97096-659-0	01	1	9312-	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97039-549-0	01	1	9312-9510	●	●	●	●	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97039-549-0	01	1	9511-	●	●	●	●	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94380-428-1	01	1	9312-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97090-910-0	01	1	9312-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-94160-167-2	01	1	9312-9510	●	●	●	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-94160-167-2	01	1	9511-	●	●	●	●	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	9-08203-622-0	01	1	9312-	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) OD=10 L=36	8-97096-661-0	01	1	9312-9510	●	●	●	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) OD=10 L=36	8-97096-661-0	01	1	9511-	●	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) ID=9.9 PUSH NUT	8-97022-566-0	03	1	9312-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	9312-9510	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	9511-	●	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=9.9 PUSH NUT	8-97022-566-0	01	1	9312-9510	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=9.9 PUSH NUT	8-97022-566-0	01	1	9511-	●	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11.9 PUSH NUT	8-97022-567-0	01	1	9312-9510	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11.9 PUSH NUT	8-97022-567-0	01	1	9511-	●	●	●	●	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 16.069 (A) T=2.6	8-94279-073-0	01	1	9312-	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> (B) ID=6.5 OD=28.0	8-97076-467-0	01	1	9312-9510	●	●		●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> (B) ID=6.5 OD=28.0	8-97076-467-0	01	1	9511-9707	●	●	●	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> (B) ID=10.5 OD=28.0	8-97184-701-0	01	1	9708-	●	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 07.389 (A) M10	8-94317-772-0	01	1	9709-9711	●	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> (A) M10	8-97185-205-1	01	1	9712-	●	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-	●	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9312-9510	●	●		●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9511-9708	●	●	●	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M6X29.5	8-97076-843-1	01	1	9312-9510	●	●		●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M6X29.5	8-97076-843-1	01	1	9511-9707	●	●	●	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97184-683-0	01	1	9708-	●	●	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28290-820-0	03	1	9312-9510	●	●		●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28290-820-0	03	1	9511-9611	●	●	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28690-820-0	03	1	9612-	●	●	●	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER	8-94411-010-0	02	1	9312-	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) M10X40 W/WASHER	8-94411-010-0	02	1	9312-		●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-587-1	01	1	9312-9510	●	●		●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-587-1	01	1	9511-	●	●	●	●	●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 03.454 T=6 OD=17.5	9-33659-249-0	01	1	9312-	●
253	09.003 RUBBER; STOPPER MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97077-459-0	01	1	9312-	●
316	09.003 COVER; HARNESS MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97096-559-0	01	1	9312-	●

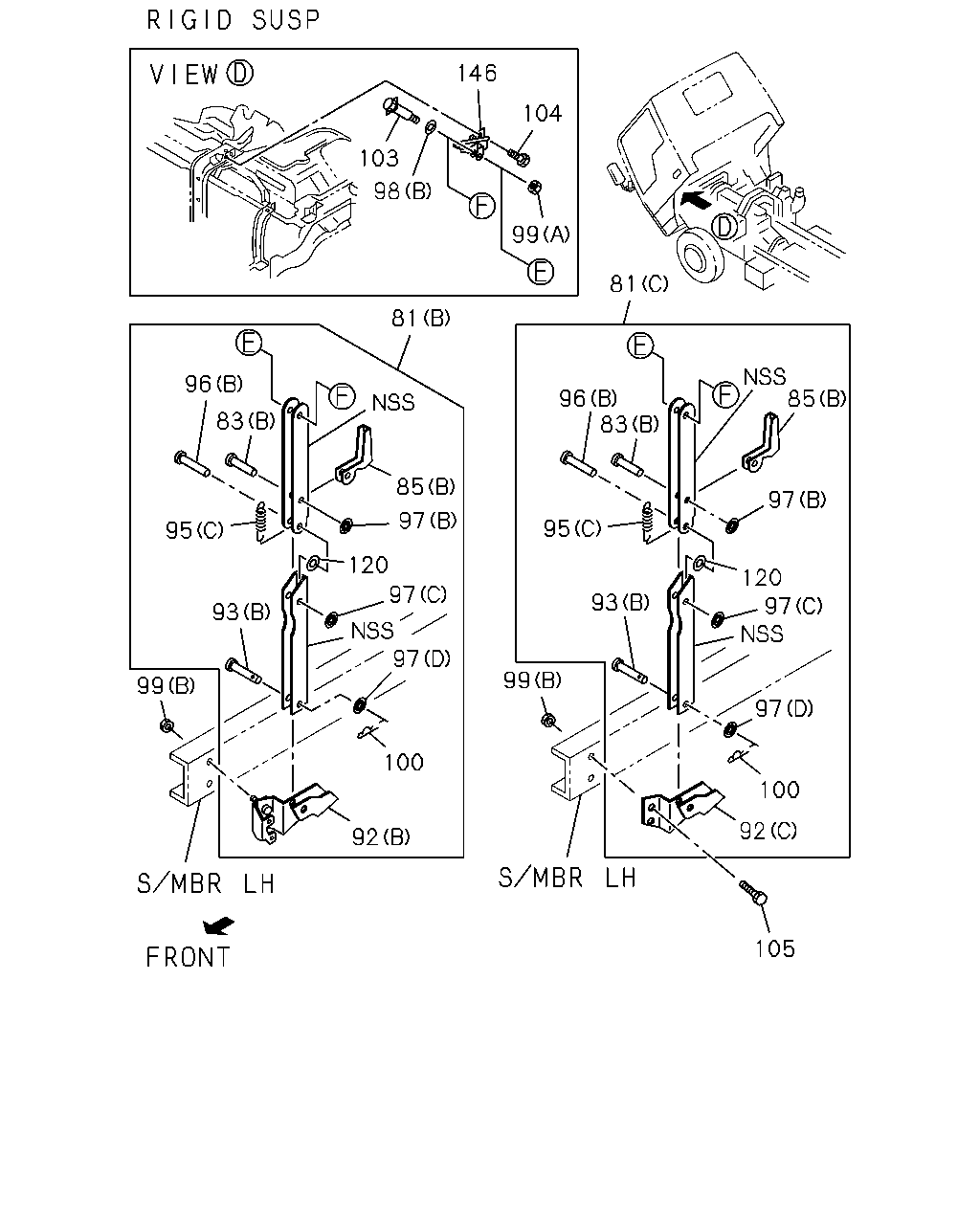

146 104 103 98 99 81 81 85 96 96 83 83 85 97 97 95 95 120 120 97 97 93 93 97 99 99 97 100 100 92 92 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-074-5	01	1	9312-9709	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97188-195-0	01	1	9710-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97081-075-5	01	1	9312-9410	●	●	●	●	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97120-940-0	01	1	9411-	●	●	●	●	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C)	8-97081-076-5	01	1	9312-9410		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C)	8-97120-941-0	01	1	9411-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) OD=10 L=36	8-97096-661-0	02	1	9312-	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) OD=8 L=32	8-97039-548-0	01	1	9312-9510	●	●	●	●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) OD=8 L=32	8-97039-548-0	01	1	9511-	●	●	●	●	●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-94380-444-0	01	1	9312-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94331-481-0	01	1	9312-9510	●	●	●	●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94331-481-0	01	1	9511-	●	●	●	●	●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97096-657-1	01	1	9312-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97096-654-0	01	1	9312-	●	●	●	●	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C)	8-97096-655-0	01	1	9312-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) OD=10 L=50	8-97096-659-0	01	1	9312-	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97039-549-0	01	1	9312-9510	●	●	●	●	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97039-549-0	01	1	9511-	●	●	●	●	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94380-428-1	01	1	9312-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97090-910-0	01	1	9312-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-94160-167-2	01	1	9312-9510	●	●	●	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-94160-167-2	01	1	9511-	●	●	●	●	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	9-08203-622-0	01	1	9312-	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) OD=10 L=36	8-97096-661-0	01	1	9312-9510	●	●	●	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) OD=10 L=36	8-97096-661-0	01	1	9511-	●	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A) ID=9.9 PUSH NUT	8-97022-566-0	03	1	9312-	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	9312-9510	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) ID=7.9 PUSH NUT	8-97022-565-0	01	1	9511-	●	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=9.9 PUSH NUT	8-97022-566-0	01	1	9312-9510	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) ID=9.9 PUSH NUT	8-97022-566-0	01	1	9511-	●	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11.9 PUSH NUT	8-97022-567-0	01	1	9312-9510	●	●	●	●	●
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=11.9 PUSH NUT	8-97022-567-0	01	1	9511-	●	●	●	●	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) 16.069 (A) T=2.6	8-94279-073-0	01	1	9312-	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> (B) ID=6.5 OD=28.0	8-97076-467-0	01	1	9312-9510	●	●		●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> (B) ID=6.5 OD=28.0	8-97076-467-0	01	1	9511-9707	●	●	●	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> (B) ID=10.5 OD=28.0	8-97184-701-0	01	1	9708-	●	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 07.389 (A) M10	8-94317-772-0	01	1	9709-9711	●	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> (A) M10	8-97185-205-1	01	1	9712-	●	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9312-	●	●	●	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9312-9510	●	●		●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	9511-9708	●	●	●	●	●
100	09.003 PIN; SNAP,CAB STAY TO CAB MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	1-09987-158-1	01	1	9312-9406	●	●	●	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M6X29.5	8-97076-843-1	01	1	9312-9510	●	●		●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M6X29.5	8-97076-843-1	01	1	9511-9707	●	●	●	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> M10X40	8-97184-683-0	01	1	9708-	●	●	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28290-820-0	03	1	9312-9510	●	●		●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28290-820-0	03	1	9511-9611	●	●	●	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE	0-28690-820-0	03	1	9612-	●	●	●	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M10X40 W/WASHER	8-94411-010-0	02	1	9312-	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) M10X40 W/WASHER	8-94411-010-0	02	1	9312-		●
120	09.003 WASHER; NYLON MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=10 OD=20	8-97103-223-0	01	1	9312-9510	●	●	●	●	●
120	09.003 WASHER; NYLON MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=10 OD=20	8-97103-223-0	01	1	9511-	●	●	●	●	●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-587-1	01	1	9312-9510	●	●		●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97076-587-1	01	1	9511-	●	●	●	●	●

17 275 17 16 17 16 275 275 18 18 275 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	F
16	09.007 DAMPER; DYNAMIC 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97031-817-2	01	1	9312-9601	●	●	●	●	●
16	09.007 DAMPER; DYNAMIC 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-94148-384-0	01	1	9312-9601		●	●	●
16	09.007 DAMPER; DYNAMIC 4JG2 ENG(RJC) (B)	8-94148-384-0	01	1	9602-				●
17	09.007 BOLT; DAMPER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	02	1	9312-9508	●	●	●	●	●
17	09.007 BOLT; DAMPER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.183 (A) M8X35 FLANGE	0-28680-835-0	02	1	9509-9510	●	●	●	●	●
17	09.007 BOLT; DAMPER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.183 (A) M8X35 FLANGE	0-28680-835-0	02	1	9511-9601	●	●	●	●	●
17	09.007 BOLT; DAMPER 4JG2 ENG(RJC) 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	9602-				●
17	09.007 BOLT; DAMPER 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.780 (B) M8X30 W/LK WASHER	0-50040-830-0	01	1	9312-9508		●	●	●
17	09.007 BOLT; DAMPER 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	9509-9601		●	●	●
18	09.007 NUT; DAMPER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (A) M8	9-09110-408-0	02	1	9312-9510	●	●	●	●	●
18	09.007 NUT; DAMPER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (A) M8	9-09110-408-0	02	1	9511-9601	●	●	●	●	●
18	09.007 NUT; DAMPER 4JG2 ENG(RJC) 02.559 (A) M8	9-09110-408-0	01	1	9602-				●
18	09.007 NUT; DAMPER 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) M8	9-09110-408-0	01	1	9312-9601		●	●	●
275	09.007 BRACKET; DYNAMIC DAMPER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97031-818-0	02	1	9312-9601	●	●	●	●	●
275	09.007 BRACKET; DYNAMIC DAMPER 4BE1 ENG(RLH),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97032-026-0	02	1	9312-9601	●	●	●	●	●

145 14 14 308 14 144 14 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
14	09.009 COVER; MTG,CAB (A) BLACK L=125	8-94273-738-3	02	1	9312-						●	●
14	09.009 COVER; MTG,CAB (B) BLACK L=124	8-94273-857-3	02	1	9312-						●	●
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	9312-9510	●	●		●	●
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	9511-	●	●	●	●	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	9312-						●	●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	9312-	●	●	●	●	●	●	●
308	09.003 RIVET; COVER 03.602 D6X12.5	8-94146-425-0	06	1	9312-						●	●

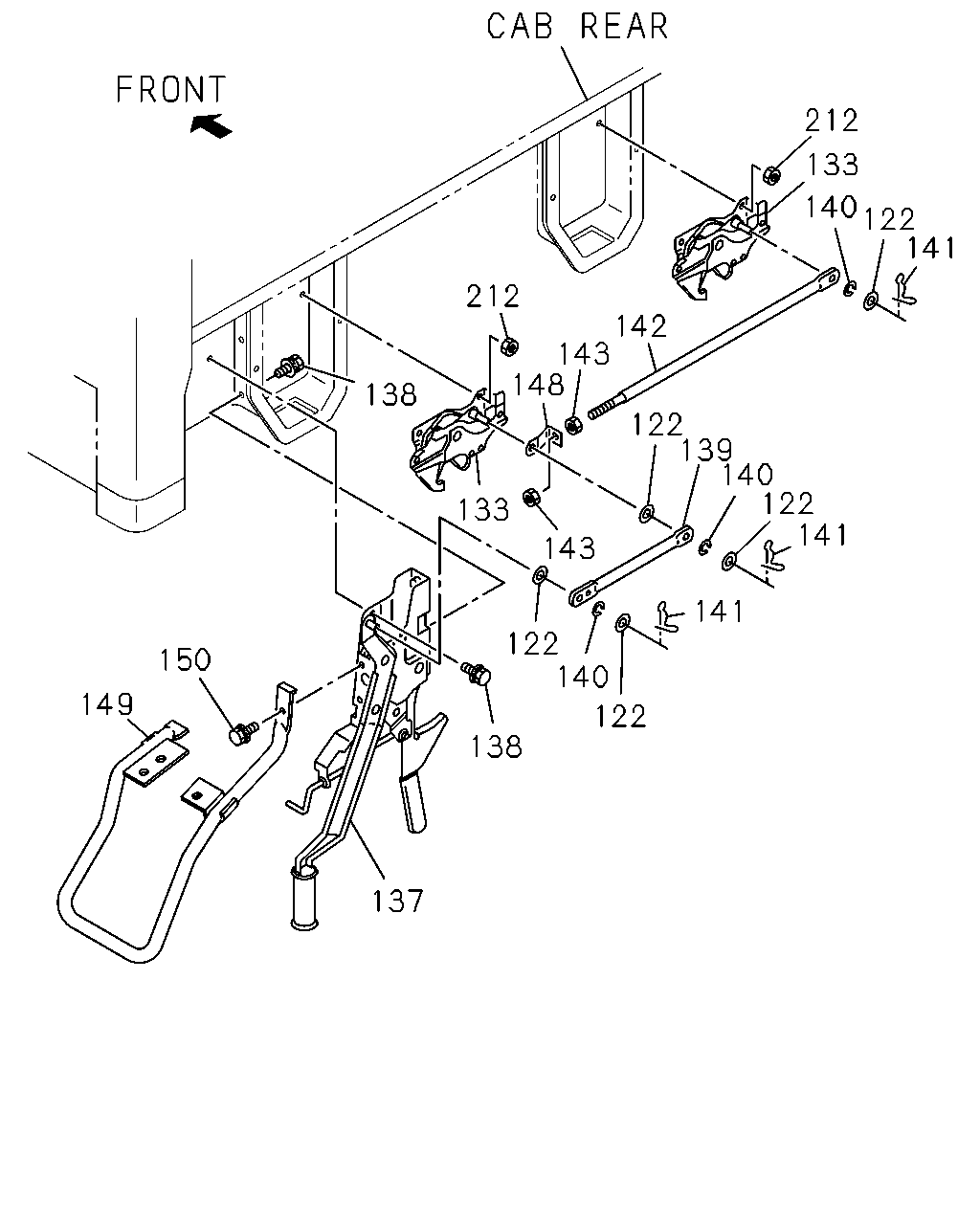

212 133 140 122 141 212 142 143 148 138 122 139 140 122 141 133 143 141 122 140 150 149 122 138 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
122	09.005 WASHER; PL,CAB LOCK ROD MANUAL TILT CAB<RWZ> 09.003 ID=12.5 OD=22	8-94279-627-0	05	1	9312-9510	●	●		●	●
122	09.005 WASHER; PL,CAB LOCK ROD MANUAL TILT CAB<RWZ> 09.003 ID=12.5 OD=22	8-94279-627-0	05	1	9511-	●	●	●	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-056-4	01	1	9312-9510	●	●		●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-056-5	01	1	9511-	●	●	●	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-055-5	01	1	9312-9510	●	●		●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ>	8-97853-055-6	01	1	9511-	●	●	●	●	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97853-051-4	01	1	9312-9510	●	●		●	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97853-051-6	01	1	9511-	●	●	●	●	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9312-9510	●	●		●	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9511-	●	●	●	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ>	8-97853-053-0	01	1	9312-9510	●	●		●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ>	8-97853-053-0	01	1	9511-	●	●	●	●	●
140	09.005 WASHER; LK,CAB LOCK ROD MANUAL TILT CAB<RWZ> ID=13 OD=22	8-94279-629-0	03	1	9312-9510	●	●		●	●
140	09.005 WASHER; LK,CAB LOCK ROD MANUAL TILT CAB<RWZ> ID=13 OD=22	8-94279-629-0	03	1	9511-	●	●	●	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> 09.003	1-09987-158-1	03	1	9312-9510	●	●		●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> 09.003	1-09987-158-1	03	1	9511-	●	●	●	●	●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97856-099-1	01	1	9312-9510	●	●		●	●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97856-099-1	01	1	9511-	●	●	●	●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 09.008 M10	1-09984-142-0	02	1	9312-9510	●	●		●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 09.008 M10	1-09984-142-0	02	1	9511-	●	●	●	●	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97856-106-0	01	1	9312-9510	●	●		●	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97856-106-0	01	1	9511-	●	●	●	●	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-97853-054-4	01	1	9312-9510	●	●		●	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-97853-054-4	01	1	9511-	●	●	●	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9312-9510	●	●		●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9511-9603	●	●	●	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9604-	●	●	●	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 03.417 M8 FLANGE	8-94279-517-0	08	1	9312-9510	●	●		●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 03.417 M8 FLANGE	8-94279-517-0	08	1	9511-9611	●	●	●	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE	1-09985-340-0	08	1	9612-	●	●	●	●	●

145 144 20 320 21 320 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
20	09.003 BOLT EUROPEAN BASIC EQUIPMENT(EK4) 00.669 M12X30 FLANGE	0-28081-230-0	04	1	9312-9506	●			●
20	09.003 BOLT EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 00.669 M12X30 FLANGE	0-28081-230-0	04	1	9507-9711	●			●
21	09.005 NUT EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF) 07.243 M12 FLANGE	0-91150-212-0	04	1	9712-	●			●
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	9312-9510	●	●		●	●
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	9511-	●	●	●	●	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	9312-						●	●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	9312-	●	●	●	●	●	●	●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC OD=19	8-94279-055-0	02	1	9312-9510	●	●		●	●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC OD=19	8-94279-055-0	02	1	9511-	●	●	●	●	●
320	09.001 ANCHOR; CAB RR EUROPEAN BASIC EQUIPMENT(EK4)	8-97108-551-0	02	1	9312-9506	●			●
320	09.001 ANCHOR; CAB RR EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97108-551-2	02	1	9507-9711	●			●
320	09.001 ANCHOR; CAB RR EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF)	8-97181-722-0	01	1	9712-	●			●
320	09.001 ANCHOR; CAB RR EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF)	8-97184-188-0	01	1	9712-	●			●

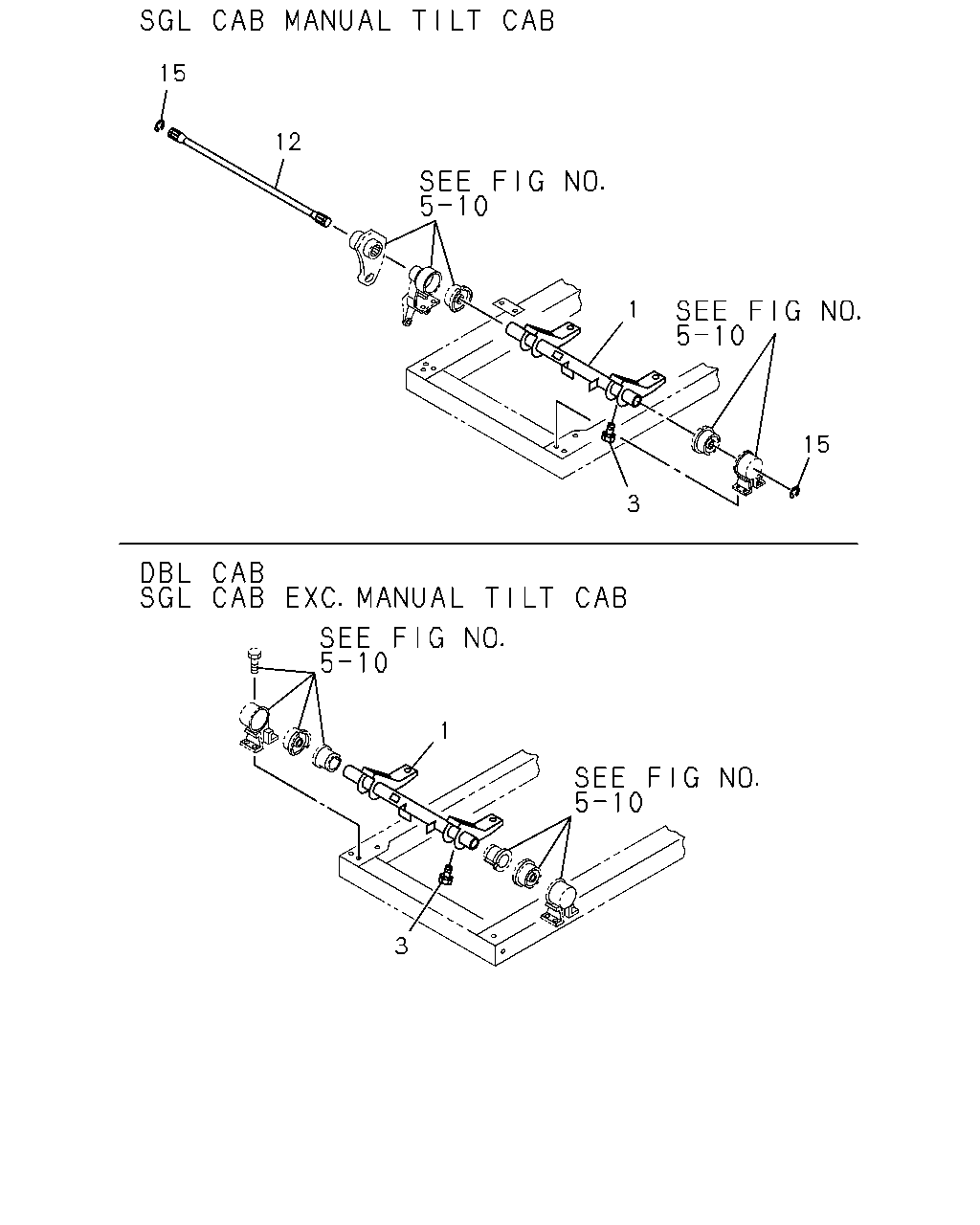

15 12 1 15 3 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-483-9	01	1	9312-9405	●	●	●	●	●	●	●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97114-082-0	01	1	9406-	●	●	●	●	●	●	●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-97035-285-6	01	1	9312-9405	●	●		●	●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-97114-078-0	01	1	9406-9510	●	●		●	●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-97114-078-2	01	1	9511-	●	●	●	●	●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X50	8-94401-729-1	04	1	9312-	●	●	●	●	●	●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X50	8-94401-729-1	06	1	9312-9510	●	●		●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X50	8-94401-729-1	06	1	9511-	●	●	●	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-97048-289-0	01	1	9312-9510	●	●		●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-97048-289-0	01	1	9511-9711	●	●	●	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-97171-326-0	01	1	9712-	●	●	●	●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-94258-173-0	02	1	9312-9510	●	●		●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-94258-173-0	02	1	9511-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
