Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#47071) — 361 parça

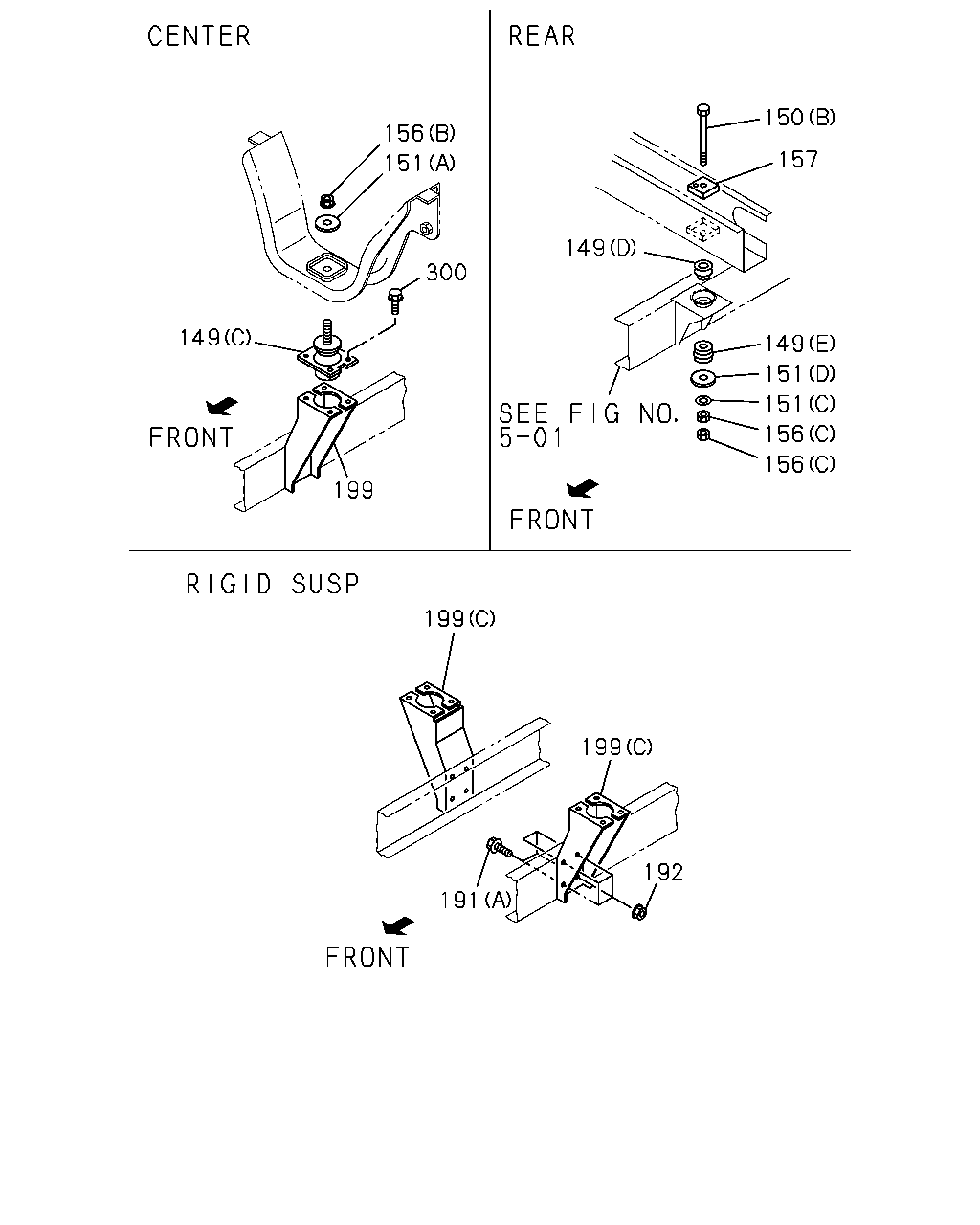

150 156 157 151 149 300 149 149 151 151 156 156 199 199 199 192 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-441-2	02	1	9312-	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-149-0	02	1	9312-9510	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-149-1	02	1	9511-	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-442-2	02	1	9312-9510	●	●		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-442-3	02	1	9511-	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	5-53459-041-0	02	1	9312-						●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (E) H=30.6	8-94128-501-0	02	1	9312-						●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C)	8-97086-440-1	02	1	9312-						●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 05.387 (A)	0-10806-690-0	04	1	9312-9410	●	●		●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 05.387 (A)	0-10806-690-0	02	1	9411-9510	●	●		●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 05.387 (A)	0-10806-690-0	02	1	9511-9705	●	●	●	●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (A)	0-28881-690-0	02	1	9706-	●	●	●	●	●
150	09.011 BOLT; CAB MTG RR (B) M10X105	8-94128-717-1	02	1	9312-						●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	9312-	●	●	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	9312-9510	●	●		●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	9511-	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9312-						●	●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	9312-						●	●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	9312-9510	●	●		●	●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	9511-	●	●	●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	9312-						●	●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	9312-						●	●
157	09.023 RUBBER; MTG,CAB,TOP RR	9-53459-603-0	02	1	9312-						●	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 00.669 (B) M12X30 FLANGE	0-28081-230-0	10	1	9312-9704	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 07.632 (B) M12X35 FLANGE	0-28681-235-0	10	1	9705-	●
191	09.003 BOLT; BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9312-9510	●	●	●	●	●	●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9511-9704	●	●	●	●	●	●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.632 (A) M12X35 FLANGE	0-28681-235-0	08	1	9705-	●	●	●	●	●	●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	08	1	9312-	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97091-428-4	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97091-428-4	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97187-527-0	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97091-429-3	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97091-429-3	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97187-528-0	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (F)	8-97086-448-1	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (F)	8-97086-448-1	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (F)	8-97086-448-1	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (E)	8-97086-444-2	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (E)	8-97086-444-2	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (E)	8-97086-444-2	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-447-1	01	1	9312-9506	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP), ISRAEL EQUIPMENT(7LX) (C)	8-97086-447-1	01	1	9507-9510	●	●		●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP), ISRAEL EQUIPMENT(7LX) (C)	8-97086-447-1	01	1	9511-9711	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-447-1	01	1	9712-9804	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRT INDEPENDENTSUSPENSION(6PP) (C)	8-97086-447-1	01	1	9805-	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-445-2	01	1	9312-9506	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),ISRAEL EQUIPMENT(7LX) (C)	8-97086-445-2	01	1	9507-9510	●	●		●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),ISRAEL EQUIPMENT(7LX) (C)	8-97086-445-2	01	1	9511-9711	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-445-2	01	1	9712-9804	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-445-2	01	1	9805-	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97086-443-2	01	1	9312-9506	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP),ISRAE L EQUIPMENT(7LX) (D)	8-97086-443-3	01	1	9507-9510	●	●		●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP),ISRAE L EQUIPMENT(7LX) (D)	8-97086-443-3	01	1	9511-9804	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97086-443-3	01	1	9805-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (G)	8-97035-310-3	02	1	9312-9510	●	●		●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (G)	8-97035-310-4	02	1	9511-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-450-4	01	1	9312-9506	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-450-4	01	1	9507-9711	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97187-525-0	01	1	9712-	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-451-3	01	1	9312-9506	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-451-3	01	1	9507-9711	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97187-526-0	01	1	9712-	●			●
300	09.003 BOLT; MTG RUBBER 09.008 M10X20 FLANGE	0-28081-020-0	08	1	9312-9510	●	●		●	●	●	●
300	09.003 BOLT; MTG RUBBER 09.008 M10X20 FLANGE	0-28081-020-0	08	1	9511-9704	●	●	●	●	●	●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9705-	●	●	●	●	●	●	●

141 140 419 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
140	09.003 NUT; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 03.417 M8 FLANGE	8-94279-517-0	04	1	9312-9406	●	●
140	09.003 NUT; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 03.417 M8 FLANGE	8-94279-517-0	08	1	9407-9408	●	●
140	09.003 NUT; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 03.417 M8 FLANGE	8-94279-517-0	06	1	9409-9412	●	●
140	09.003 NUT; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 03.417 M8 FLANGE	8-94279-517-0	04	1	9501-9506	●	●
140	09.003 NUT; BRKT EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 03.417 M8 FLANGE	8-94279-517-0	04	1	9507-9711	●	●
140	09.003 NUT; BRKT EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF) 03.417 M8 FLANGE	8-94279-517-0	04	1	9712-	●	●
141	09.003 BOLT; BRKT EUROPEAN BASIC EQUIPMENT(EK4) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	9312-9407	●	●
141	09.003 BOLT; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9409-9412	●	●
141	09.003 BOLT; BRKT EUROPEAN BASIC EQUIPMENT(EK4) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9501-9506	●	●
141	09.003 BOLT; BRKT EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9507-9711	●	●
141	09.003 BOLT; BRKT EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF) 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9712-	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR EUROPEAN BASIC EQUIPMENT(EK4)	8-97857-423-4	01	1	9312-9506	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97857-423-4	01	1	9507-9711	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF)	8-97857-423-4	01	1	9712-	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR EUROPEAN BASIC EQUIPMENT(EK4)	8-97857-422-4	01	1	9312-9506	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX)	8-97857-422-4	01	1	9507-9711	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF)	8-97857-422-4	01	1	9712-	●	●
446	09.003 PATCH EUROPEAN BASIC EQUIPMENT(EK4)	8-97859-440-0	02	1	9408-9408	●	●
446	09.003 PATCH EUROPEAN BASIC EQUIPMENT(EK4)	8-97859-440-1	01	1	9409-9412	●	●

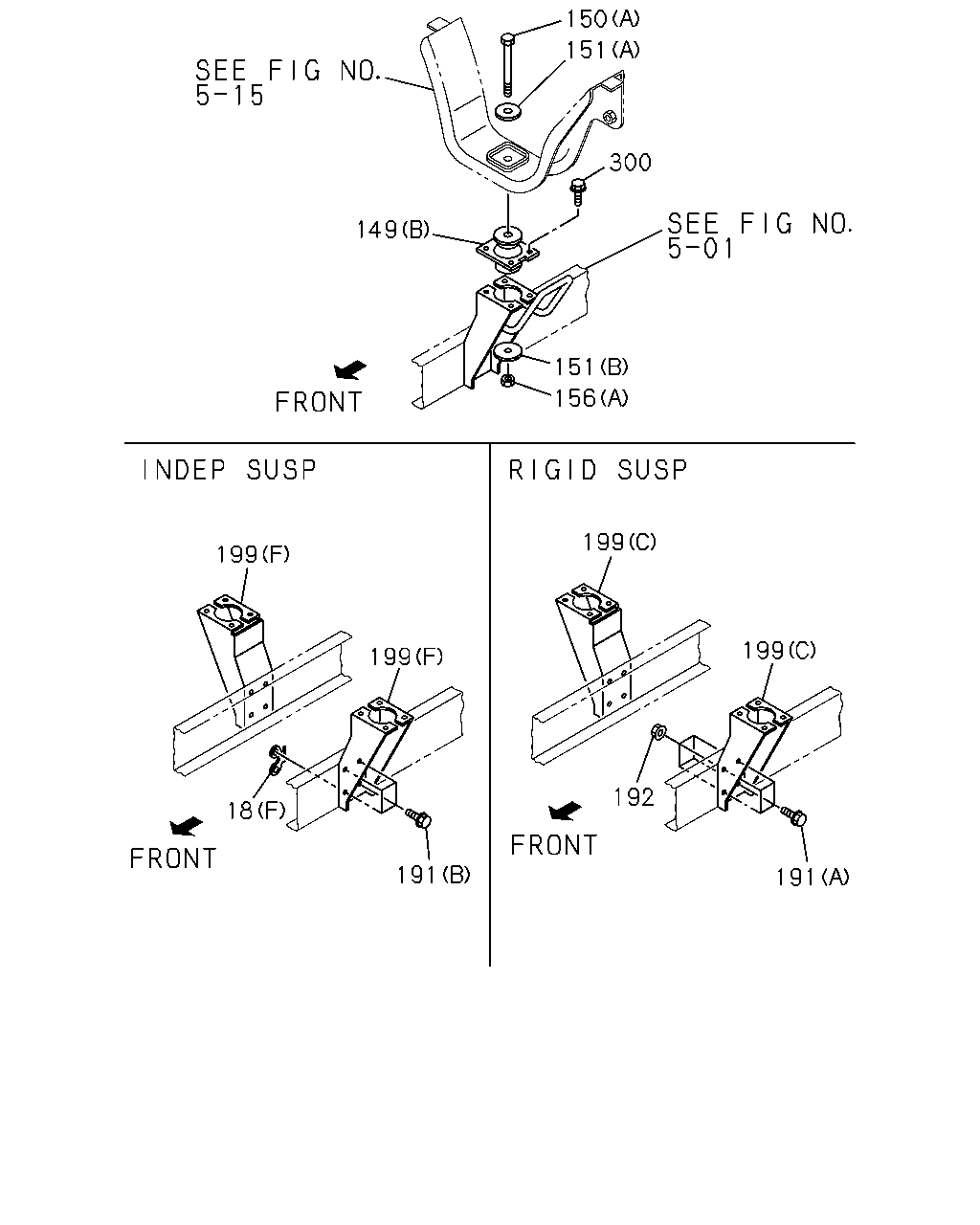

150 151 300 149 151 156 199 199 199 199 192 18 191 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97093-741-1	02	1	9312-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	9312-9510	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9312-9510	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	9312-9510		●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	9511-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9511-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	9511-		●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9312-9505	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9510	●	●		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9510	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	9511-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9511-	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	9511-		●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97076-469-2	01	1	9312-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9312-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97034-139-2	01	1	9312-9505	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (E)	8-97034-139-2	01	1	9506-9510	●	●		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (E)	8-97034-139-2	01	1	9511-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX DUMP CHASSIS(V4D) (G)	8-97038-962-2	02	1	9312-		●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-441-2	02	1	9312-	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-149-0	02	1	9312-9510	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-149-1	02	1	9511-	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-442-2	02	1	9312-9510	●	●		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-442-3	02	1	9511-	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	5-53459-041-0	02	1	9312-						●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (E) H=30.6	8-94128-501-0	02	1	9312-						●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C)	8-97086-440-1	02	1	9312-						●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 05.387 (A)	0-10806-690-0	04	1	9312-9410	●	●		●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 05.387 (A)	0-10806-690-0	02	1	9411-9510	●	●		●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> 05.387 (A)	0-10806-690-0	02	1	9511-9705	●	●	●	●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (A)	0-28881-690-0	02	1	9706-	●	●	●	●	●
150	09.011 BOLT; CAB MTG RR (B) M10X105	8-94128-717-1	02	1	9312-						●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	9312-	●	●	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	9312-9510	●	●		●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	9511-	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9312-						●	●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	9312-						●	●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	9312-9510	●	●		●	●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	9511-	●	●	●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	9312-						●	●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	9312-						●	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 00.669 (B) M12X30 FLANGE	0-28081-230-0	10	1	9312-9704	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 07.632 (B) M12X35 FLANGE	0-28681-235-0	10	1	9705-	●
191	09.003 BOLT; BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9312-9510	●	●	●	●	●	●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9511-9704	●	●	●	●	●	●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.632 (A) M12X35 FLANGE	0-28681-235-0	08	1	9705-	●	●	●	●	●	●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	08	1	9312-	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97091-428-4	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97091-428-4	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97187-527-0	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97091-429-3	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97091-429-3	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97187-528-0	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (F)	8-97086-448-1	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (F)	8-97086-448-1	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (F)	8-97086-448-1	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (E)	8-97086-444-2	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (E)	8-97086-444-2	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (E)	8-97086-444-2	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-447-1	01	1	9312-9506	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP), ISRAEL EQUIPMENT(7LX) (C)	8-97086-447-1	01	1	9507-9510	●	●		●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP), ISRAEL EQUIPMENT(7LX) (C)	8-97086-447-1	01	1	9511-9711	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-447-1	01	1	9712-9804	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRT INDEPENDENTSUSPENSION(6PP) (C)	8-97086-447-1	01	1	9805-	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-445-2	01	1	9312-9506	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),ISRAEL EQUIPMENT(7LX) (C)	8-97086-445-2	01	1	9507-9510	●	●		●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),ISRAEL EQUIPMENT(7LX) (C)	8-97086-445-2	01	1	9511-9711	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-445-2	01	1	9712-9804	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-445-2	01	1	9805-	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97086-443-2	01	1	9312-9506	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP),ISRAE L EQUIPMENT(7LX) (D)	8-97086-443-3	01	1	9507-9510	●	●		●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP),ISRAE L EQUIPMENT(7LX) (D)	8-97086-443-3	01	1	9511-9804	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97086-443-3	01	1	9805-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (G)	8-97035-310-3	02	1	9312-9510	●	●		●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (G)	8-97035-310-4	02	1	9511-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-450-4	01	1	9312-9506	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-450-4	01	1	9507-9711	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97187-525-0	01	1	9712-	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-451-3	01	1	9312-9506	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-451-3	01	1	9507-9711	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97187-526-0	01	1	9712-	●			●
300	09.003 BOLT; MTG RUBBER 09.008 M10X20 FLANGE	0-28081-020-0	08	1	9312-9510	●	●		●	●	●	●
300	09.003 BOLT; MTG RUBBER 09.008 M10X20 FLANGE	0-28081-020-0	08	1	9511-9704	●	●	●	●	●	●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9705-	●	●	●	●	●	●	●

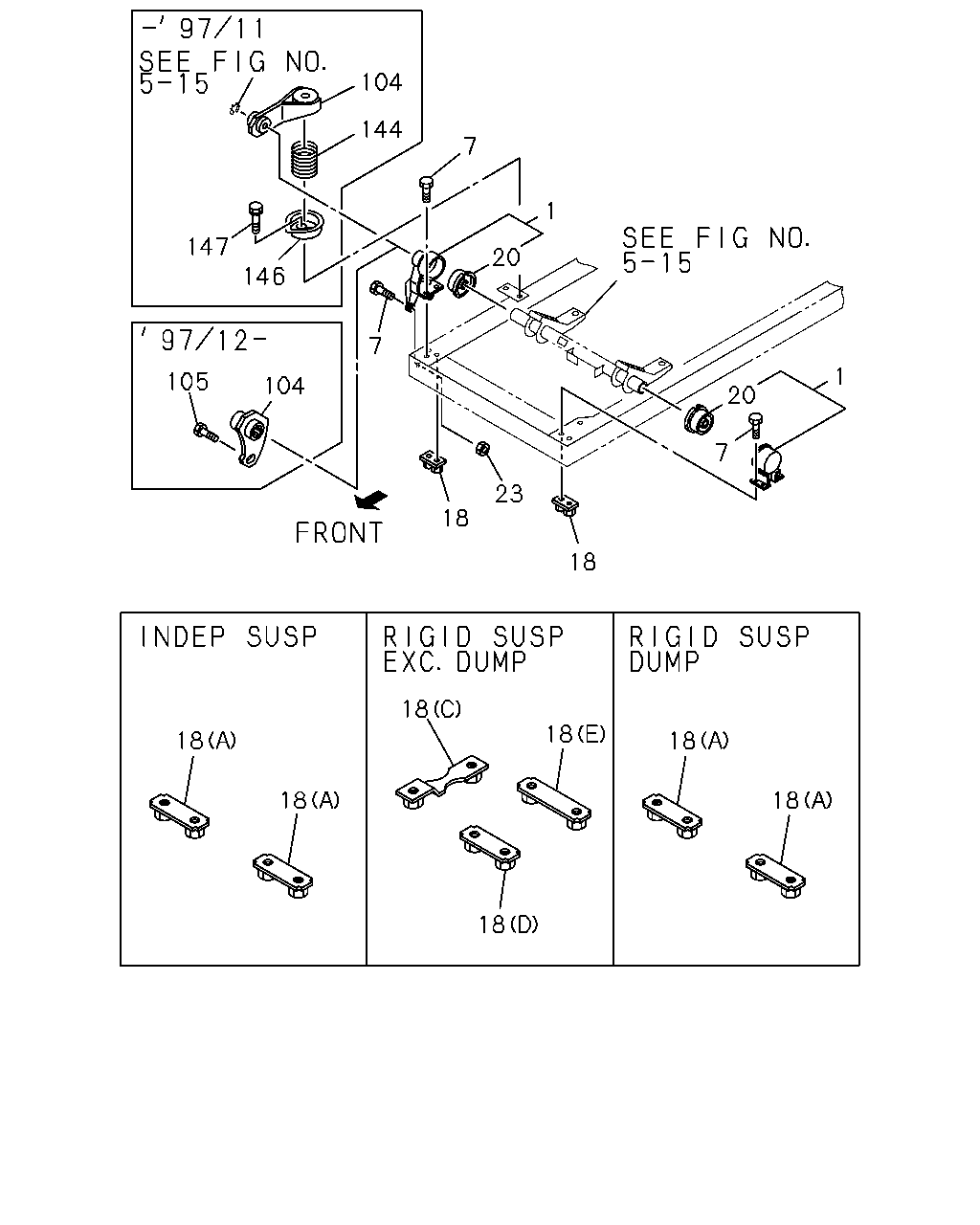

104 144 7 1 147 20 146 7 1 105 104 20 7 23 18 18 18 18 18 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-356-2	01	1	9312-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	9312-	●	●	●	●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-350-3	01	1	9312-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	9312-9510	●	●	●	●	●	●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	9511-	●	●	●	●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-897-1	01	1	9312-9510	●	●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-897-1	01	1	9511-	●	●	●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-896-0	01	1	9312-9510	●	●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-896-0	01	1	9511-	●	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	09	1	9312-9505	●
7	09.003 BOLT; BRKT,CAB TILT DUMP CHASSIS(V4D) M12X40 FLANGE	8-97036-581-1	09	1	9312-9505		●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	10	1	9506-9704	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> M12X40 FLANGE	8-97036-581-1	10	1	9506-9704		●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	10	1	9705-	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	10	1	9705-		●
7	09.003 BOLT; BRKT,CAB TILT EXC. MANUAL TILT CAB<RWZ>,DUMP CHASSIS(V4D) M12X40 FLANGE	8-97036-581-1	08	1	9312-9505	●	●	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	08	1	9312-9505	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	8-97036-581-1	08	1	9506-9510	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	08	1	9506-9510	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRAME-KICK UP<7EW> M12X40 FLANGE	8-97036-581-1	08	1	9506-9510		●		●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> M12X40 FLANGE	8-97036-581-1	08	1	9511-9704	●	●	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	8-97036-581-1	08	1	9511-9704	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	08	1	9705-	●	●	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	9705-	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97093-741-1	02	1	9312-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	9312-9510	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9312-9510	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	9312-9510		●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	9511-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9511-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	9511-		●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9312-9505	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9510	●	●		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9510	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	9511-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9511-	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	9511-		●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97076-469-2	01	1	9312-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9312-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97034-139-2	01	1	9312-9505	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (E)	8-97034-139-2	01	1	9506-9510	●	●		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (E)	8-97034-139-2	01	1	9511-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX DUMP CHASSIS(V4D) (G)	8-97038-962-2	02	1	9312-		●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	02	1	9312-	●	●	●	●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	02	1	9312-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-893-0	02	1	9312-9510	●	●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-893-0	02	1	9511-	●	●	●	●	●	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	02	1	9312-	●	●	●	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ> (A)	8-97048-291-3	01	1	9312-9510	●	●		●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ> (A)	8-97048-291-3	01	1	9511-9711	●	●	●	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ> (B)	8-97033-625-4	01	1	9712-	●	●	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X40 FLANGE	0-28881-640-0	01	1	9712-9801	●	●	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	9802-	●	●	●	●	●
144	09.023 SPRING; COIL,CAB FRT SUSPENSION MANUAL TILT CAB<RWZ>	8-97048-321-0	01	1	9312-9404	●	●		●	●
144	09.023 SPRING; COIL,CAB FRT SUSPENSION MANUAL TILT CAB<RWZ>	8-97106-347-0	01	1	9405-9510	●	●		●	●
144	09.023 SPRING; COIL,CAB FRT SUSPENSION MANUAL TILT CAB<RWZ>	8-97106-347-0	01	1	9511-9711	●	●	●	●	●
146	09.023 SEAT; SPRING,CAB FRT SUSPENSION MANUAL TILT CAB<RWZ>	8-97033-189-0	01	1	9312-9510	●	●		●	●
146	09.023 SEAT; SPRING,CAB FRT SUSPENSION MANUAL TILT CAB<RWZ>	8-97033-189-0	01	1	9511-9711	●	●	●	●	●
147	09.008 BOLT; SEAT MANUAL TILT CAB<RWZ> 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9312-9510	●	●		●	●
147	09.008 BOLT; SEAT MANUAL TILT CAB<RWZ> 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9511-9711	●	●	●	●	●

159 199 199 300 168 149 199 199 18 191 151 156 199 199 199 199 191 191 18 18 199 199 199 199 192 192 191 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97093-741-1	02	1	9312-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	9312-9510	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9312-9510	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	9312-9510		●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	9511-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9511-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	9511-		●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9312-9505	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9510	●	●		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9510	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	9511-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9511-	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	9511-		●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97076-469-2	01	1	9312-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9312-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97034-139-2	01	1	9312-9505	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (E)	8-97034-139-2	01	1	9506-9510	●	●		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (E)	8-97034-139-2	01	1	9511-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX DUMP CHASSIS(V4D) (G)	8-97038-962-2	02	1	9312-		●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97086-441-2	02	1	9312-	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-149-0	02	1	9312-9510	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-149-1	02	1	9511-	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-442-2	02	1	9312-9510	●	●		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-442-3	02	1	9511-	●	●	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (D) H=26.5	5-53459-041-0	02	1	9312-						●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (E) H=30.6	8-94128-501-0	02	1	9312-						●	●
149	09.023 RUBBER; MTG,CAB,UPR RR (C)	8-97086-440-1	02	1	9312-						●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	9312-	●	●	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	9312-9510	●	●		●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	9511-	●	●	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR 03.704 (C) OD=33 ID=10.2 T=3.2	9-09851-423-0	02	1	9312-						●	●
151	09.011 WASHER; CAB MTG,RR UPR 09.023 (D) ID=14 OD=60	9-53459-048-0	02	1	9312-						●	●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	9312-9510	●	●		●	●
156	07.529 NUT; CAB MTG RR 04.681 (A) M16	9-99111-416-0	02	1	9511-	●	●	●	●	●
156	07.529 NUT; CAB MTG RR 03.613 (B) M14 FLANGE	0-91150-114-0	02	1	9312-						●	●
156	07.529 NUT; CAB MTG RR 09.011 (C) M10	9-09110-410-0	04	1	9312-						●	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97048-320-1	04	1	9312-9404	●	●		●	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	9405-9510	●	●		●	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	9511-	●	●	●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	04	1	9312-9510	●	●		●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	04	1	9511-	●	●	●	●	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 00.669 (B) M12X30 FLANGE	0-28081-230-0	10	1	9312-9704	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 07.632 (B) M12X35 FLANGE	0-28681-235-0	10	1	9705-	●
191	09.003 BOLT; BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9312-9510	●	●	●	●	●	●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.669 (A) M12X30 FLANGE	0-28081-230-0	08	1	9511-9704	●	●	●	●	●	●	●
191	09.003 BOLT; BRKT FIX EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.632 (A) M12X35 FLANGE	0-28681-235-0	08	1	9705-	●	●	●	●	●	●	●
192	09.003 NUT; BRKT FIX EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) 05.586 M12 FLANGE	0-91150-112-0	08	1	9312-	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97091-428-4	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97091-428-4	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97187-527-0	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97091-429-3	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97091-429-3	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97187-528-0	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (F)	8-97086-448-1	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (F)	8-97086-448-1	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (F)	8-97086-448-1	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (E)	8-97086-444-2	01	1	9312-9506	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (E)	8-97086-444-2	01	1	9507-9711	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (E)	8-97086-444-2	01	1	9712-	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-447-1	01	1	9312-9506	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP), ISRAEL EQUIPMENT(7LX) (C)	8-97086-447-1	01	1	9507-9510	●	●		●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP), ISRAEL EQUIPMENT(7LX) (C)	8-97086-447-1	01	1	9511-9711	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-447-1	01	1	9712-9804	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRT INDEPENDENTSUSPENSION(6PP) (C)	8-97086-447-1	01	1	9805-	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-445-2	01	1	9312-9506	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),ISRAEL EQUIPMENT(7LX) (C)	8-97086-445-2	01	1	9507-9510	●	●		●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),ISRAEL EQUIPMENT(7LX) (C)	8-97086-445-2	01	1	9511-9711	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-445-2	01	1	9712-9804	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97086-445-2	01	1	9805-	●	●	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97086-443-2	01	1	9312-9506	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP),ISRAE L EQUIPMENT(7LX) (D)	8-97086-443-3	01	1	9507-9510	●	●		●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), FRT INDEPENDENT SUSPENSION(6PP),ISRAE L EQUIPMENT(7LX) (D)	8-97086-443-3	01	1	9511-9804	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97086-443-3	01	1	9805-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (G)	8-97035-310-3	02	1	9312-9510	●	●		●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (G)	8-97035-310-4	02	1	9511-	●	●	●	●	●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-450-4	01	1	9312-9506	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-450-4	01	1	9507-9711	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97187-525-0	01	1	9712-	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-451-3	01	1	9312-9506	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97091-451-3	01	1	9507-9711	●			●
199	09.003 BRACKET; CAB RR MTG EUROPEAN BASIC EQUIPMENT(EK4), BRAZILEQUIPMENT(RWF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97187-526-0	01	1	9712-	●			●
300	09.003 BOLT; MTG RUBBER 09.008 M10X20 FLANGE	0-28081-020-0	08	1	9312-9510	●	●		●	●	●	●
300	09.003 BOLT; MTG RUBBER 09.008 M10X20 FLANGE	0-28081-020-0	08	1	9511-9704	●	●	●	●	●	●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	9705-	●	●	●	●	●	●	●

1 7 20 2 1 2 20 7 18 18 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-356-2	01	1	9312-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	9312-	●	●	●	●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-350-3	01	1	9312-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	9312-9510	●	●	●	●	●	●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	9511-	●	●	●	●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-897-1	01	1	9312-9510	●	●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-897-1	01	1	9511-	●	●	●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-896-0	01	1	9312-9510	●	●	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-896-0	01	1	9511-	●	●	●	●	●	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	9312-	●	●	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	09	1	9312-9505	●
7	09.003 BOLT; BRKT,CAB TILT DUMP CHASSIS(V4D) M12X40 FLANGE	8-97036-581-1	09	1	9312-9505		●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	10	1	9506-9704	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> M12X40 FLANGE	8-97036-581-1	10	1	9506-9704		●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	10	1	9705-	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	10	1	9705-		●
7	09.003 BOLT; BRKT,CAB TILT EXC. MANUAL TILT CAB<RWZ>,DUMP CHASSIS(V4D) M12X40 FLANGE	8-97036-581-1	08	1	9312-9505	●	●	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	08	1	9312-9505	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	8-97036-581-1	08	1	9506-9510	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	8-97036-581-1	08	1	9506-9510	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRAME-KICK UP<7EW> M12X40 FLANGE	8-97036-581-1	08	1	9506-9510		●		●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> M12X40 FLANGE	8-97036-581-1	08	1	9511-9704	●	●	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	8-97036-581-1	08	1	9511-9704	●
7	09.003 BOLT; BRKT,CAB TILT EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> M12X40 FLANGE	0-28681-240-0	08	1	9705-	●	●	●	●	●	●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	9705-	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97093-741-1	02	1	9312-	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	9312-9510	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9312-9510	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	9312-9510		●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	9511-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	9511-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97034-140-2	02	1	9511-		●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9312-9505	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9510	●	●		●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9506-9510	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	9511-	●	●	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	9511-	●
18	09.003 PLATE; MTG BRKT FIX FRAME-KICK UP<7EW> (B)	8-97034-139-2	02	1	9511-		●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97076-469-2	01	1	9312-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-140-2	01	1	9312-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97034-139-2	01	1	9312-9505	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (E)	8-97034-139-2	01	1	9506-9510	●	●		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP) ,FRAME-KICK UP<7EW> (E)	8-97034-139-2	01	1	9511-	●	●	●	●	●
18	09.003 PLATE; MTG BRKT FIX DUMP CHASSIS(V4D) (G)	8-97038-962-2	02	1	9312-		●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-2	02	1	9312-	●	●	●	●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-2	02	1	9312-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-893-0	02	1	9312-9510	●	●	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97096-893-0	02	1	9511-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
