◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#47069) — 446 parça

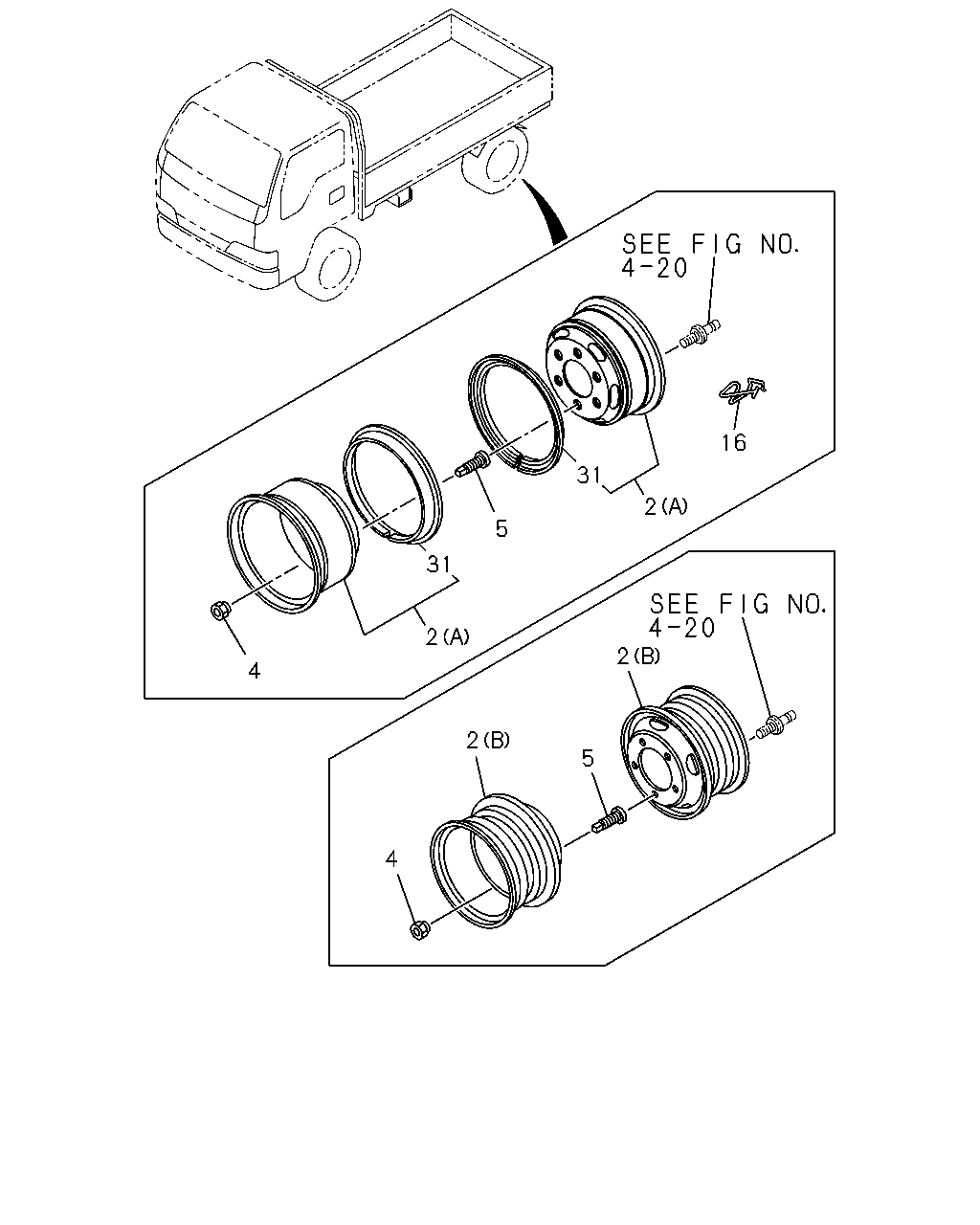

çizim 16711
16 31 2 5 31 2 2 4 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(ATB) (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 01 1 9608- ●
2 05.803 WHEEL; DISC
(ATB) (B) FRONT AND REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 04 1 9608- ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) FRONT,REAR AND SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 9508- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT,REAR AND SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT AND REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 9508- ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-0 02 1 9312-9711 ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) REAR AND SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-0 03 1 9312-9507 ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-0 01 1 9508-9711 ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) REAR 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-0 02 1 9508-9711 ●
2 05.803 WHEEL; DISC
(9YW) (A) FRONT,REAR AND SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9508-9511 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9512-9608 ●
2 05.803 WHEEL; DISC
(ARX),(ASY),(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9609-9612 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9701-9711 ●
2 05.803 WHEEL; DISC
(ARX) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 9712- ●
2 05.803 WHEEL; DISC
(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9508-9511 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9512-9608 ●
2 05.803 WHEEL; DISC
(ARX),(ASY),(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9609-9612 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9701-9711 ●
2 05.803 WHEEL; DISC
(ARX) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 9712- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-8 5(AYX) (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 9808- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-8 5(AYX) (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 9808- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) FRONT AND SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 03 1 9312-9503 ● ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT AND SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 03 1 9504-9507 ● ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(31H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(31H), (46C),(92H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9312-9503 ● ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9312-9503 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H), (31H),(46C),(92H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9504-9507 ● ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9504-9507 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(23H),(45C) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) REAR AND SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 03 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) REAR AND SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9508- ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) FRONT,REAR AND SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9312-9507 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9508-9510 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9511-9711 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9511-9711 ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9511-9711 ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9712-9809 ● ● ● ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9810- ● ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9508-9510 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9511-9711 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9511-9711 ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9511-9711 ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9712-9809 ● ● ● ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9810- ● ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT,REAR AND SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 07 1 9312-9507 ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9508-9809 ● ● ●
2 05.803 WHEEL; DISC
(BPK),(43C),(44C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9810- ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT AND REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9508-9809 ● ● ●
2 05.803 WHEEL; DISC
(BPK),(43C),(44C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) (A) FRONT AND REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9810- ● ● ●
2 05.803 WHEEL; DISC
(9HY) (B) FRONT,REAR AND SPARE 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-0 07 1 9312-9507 ●
2 05.803 WHEEL; DISC
(9HY) (B) SPARE 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-0 01 1 9508-9807 ●
2 05.803 WHEEL; DISC
(9HY) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-0 01 1 9808- ●
2 05.803 WHEEL; DISC
(9HY) (B) FRONT AND REAR 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-0 06 1 9508-9807 ●
2 05.803 WHEEL; DISC
(9HY) (B) FRONT AND REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-0 06 1 9808- ●
2 05.803 WHEEL; DISC
(ANS) (B) REAR AND SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-0 05 1 9405-9507 ●
2 05.803 WHEEL; DISC
(ANS) (B) SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 01 1 9508- ●
2 05.803 WHEEL; DISC
(ANS) (B) REAR 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 04 1 9508- ●
2 05.803 WHEEL; DISC
(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9312-9404 ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9405-9507 ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ● ●
2 05.803 WHEEL; DISC
(37H) (B) REAR AND SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-1 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 9508- ●
2 05.803 WHEEL; DISC
(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 9508- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		5-42334-002-0 06 1 9312- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		5-42333-008-0 06 1 9312- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 9312-9510 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 9511- ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 9312-9510 ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 9511- ● ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
M25 LH THREAD 		9-42334-009-0 06 1 9312- ●
4 05.813 NUT; WHEEL,RR AXLE
M25 RH THREAD 		9-42333-015-0 06 1 9312- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 9312-9510 ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 9511- ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 9312-9510 ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 9511- ● ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 LH THREAD 		5-42336-001-1 06 1 9312- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M25,INNER M16 RH THREAD 		5-42335-001-1 06 1 9312- ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 02 1 9312-9507 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 01 1 9508-9711 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 03 1 9312-9507 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 02 1 9508-9711 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 05 1 9312-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 9508- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9312-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9508-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASY),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9508-9510 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASY),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(AVT),(06H),(07H),(08V),(50C), (89C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9712-9809 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(AVT),(BPK),(BPL),(BPM),(06H), (07H),(08V),(43C),(45C),(46H),(50C), (64H),(89C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9810- ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 03 1 9312-9503 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 03 1 9504-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(AQD),(09V),(22H),(23H),(37H), (43C),(44C),(45C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9809 ● ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(AQD),(BPK),(09V),(22H),(23H), (37H),(43C),(44C),(45C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9810- ● ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(31H), (46C),(9EC),(9ED),(9EE),(9EF),(92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9312-9503 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9312-9503 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H), (31H),(46C),(9EC),(9ED),(9EE),(9EF), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9504-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9504-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(9EC),(9ED),(9EE), (9EF) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(9EC), (9ED),(9EE),(9EF),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 03 1 9312-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(9EC), (9ED),(9EE),(9EF),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9508-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9712- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9508-9510 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9511-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9511-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9511-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9712-9809 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9810- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 07 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9508-9809 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(43C),(44C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9810- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9312-9404 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9405-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(9EC), (9ED),(9EE),(9EF),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9508-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9712- ● ●

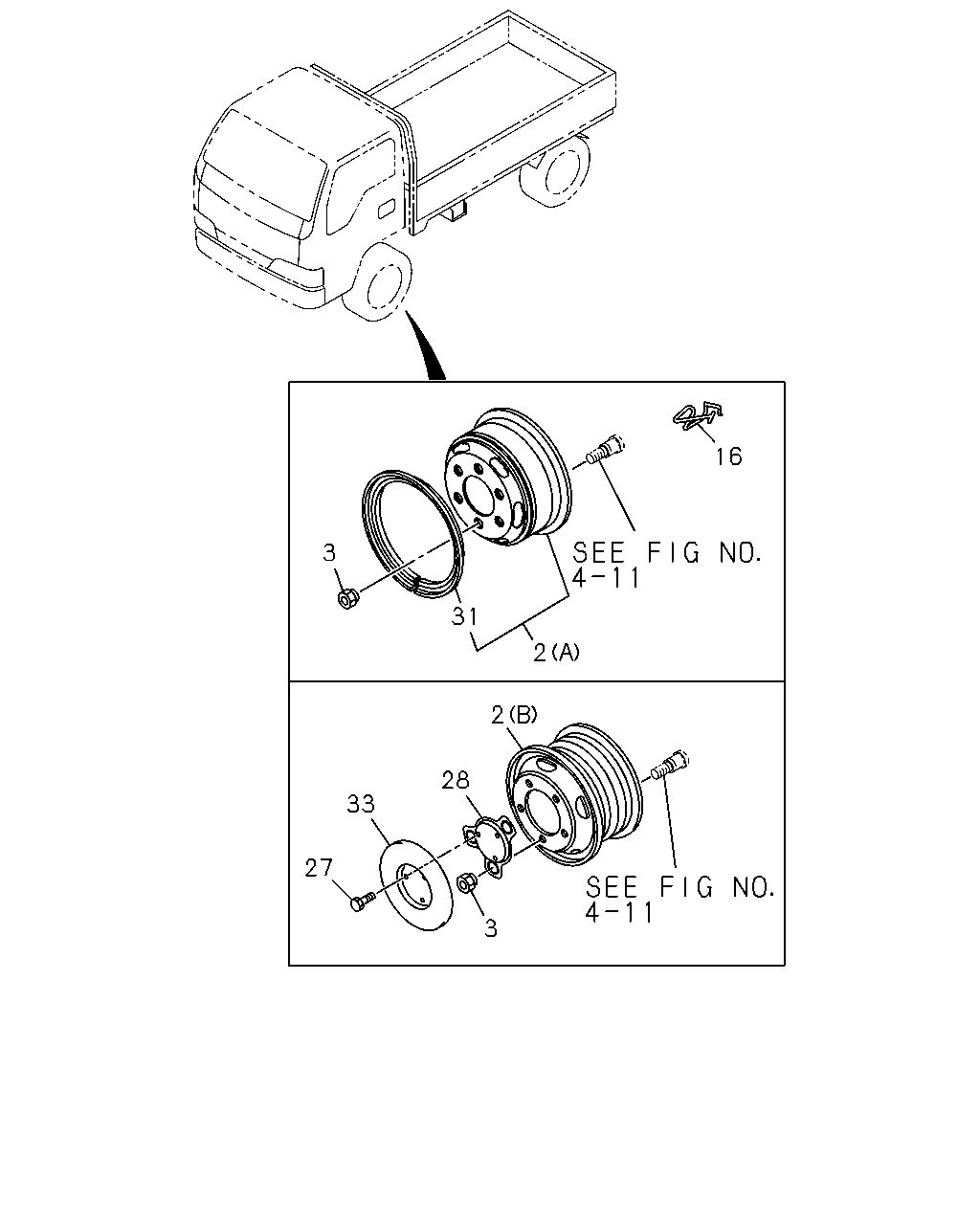

çizim 70485
16 31 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(ATB) (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 01 1 9608- ●
2 05.803 WHEEL; DISC
(ATB) (B) FRONT AND REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 04 1 9608- ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) FRONT,REAR AND SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 9508- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT,REAR AND SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT AND REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 9508- ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-0 02 1 9312-9711 ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) REAR AND SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-0 03 1 9312-9507 ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-0 01 1 9508-9711 ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) REAR 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-0 02 1 9508-9711 ●
2 05.803 WHEEL; DISC
(9YW) (A) FRONT,REAR AND SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9508-9511 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9512-9608 ●
2 05.803 WHEEL; DISC
(ARX),(ASY),(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9609-9612 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9701-9711 ●
2 05.803 WHEEL; DISC
(ARX) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 9712- ●
2 05.803 WHEEL; DISC
(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9508-9511 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9512-9608 ●
2 05.803 WHEEL; DISC
(ARX),(ASY),(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9609-9612 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9701-9711 ●
2 05.803 WHEEL; DISC
(ARX) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 9712- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-8 5(AYX) (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 9808- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-8 5(AYX) (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 9808- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) FRONT AND SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 03 1 9312-9503 ● ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT AND SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 03 1 9504-9507 ● ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(31H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(31H), (46C),(92H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9312-9503 ● ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9312-9503 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H), (31H),(46C),(92H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9504-9507 ● ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9504-9507 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(23H),(45C) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) REAR AND SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 03 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) REAR AND SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9508- ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) FRONT,REAR AND SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9312-9507 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9508-9510 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9511-9711 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9511-9711 ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9511-9711 ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9712-9809 ● ● ● ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9810- ● ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9508-9510 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9511-9711 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9511-9711 ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9511-9711 ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9712-9809 ● ● ● ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9810- ● ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT,REAR AND SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 07 1 9312-9507 ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9508-9809 ● ● ●
2 05.803 WHEEL; DISC
(BPK),(43C),(44C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9810- ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT AND REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9508-9809 ● ● ●
2 05.803 WHEEL; DISC
(BPK),(43C),(44C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) (A) FRONT AND REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9810- ● ● ●
2 05.803 WHEEL; DISC
(9HY) (B) FRONT,REAR AND SPARE 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-0 07 1 9312-9507 ●
2 05.803 WHEEL; DISC
(9HY) (B) SPARE 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-0 01 1 9508-9807 ●
2 05.803 WHEEL; DISC
(9HY) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-0 01 1 9808- ●
2 05.803 WHEEL; DISC
(9HY) (B) FRONT AND REAR 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-0 06 1 9508-9807 ●
2 05.803 WHEEL; DISC
(9HY) (B) FRONT AND REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-0 06 1 9808- ●
2 05.803 WHEEL; DISC
(ANS) (B) REAR AND SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-0 05 1 9405-9507 ●
2 05.803 WHEEL; DISC
(ANS) (B) SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 01 1 9508- ●
2 05.803 WHEEL; DISC
(ANS) (B) REAR 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 04 1 9508- ●
2 05.803 WHEEL; DISC
(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9312-9404 ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9405-9507 ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ● ●
2 05.803 WHEEL; DISC
(37H) (B) REAR AND SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-1 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 9508- ●
2 05.803 WHEEL; DISC
(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 9508- ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 02 1 9312-9507 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 01 1 9508-9711 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 03 1 9312-9507 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 02 1 9508-9711 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 05 1 9312-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 9508- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9312-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9508-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASY),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9508-9510 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASY),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(AVT),(06H),(07H),(08V),(50C), (89C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9712-9809 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(AVT),(BPK),(BPL),(BPM),(06H), (07H),(08V),(43C),(45C),(46H),(50C), (64H),(89C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9810- ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 03 1 9312-9503 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 03 1 9504-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(AQD),(09V),(22H),(23H),(37H), (43C),(44C),(45C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9809 ● ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(AQD),(BPK),(09V),(22H),(23H), (37H),(43C),(44C),(45C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9810- ● ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(31H), (46C),(9EC),(9ED),(9EE),(9EF),(92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9312-9503 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9312-9503 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H), (31H),(46C),(9EC),(9ED),(9EE),(9EF), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9504-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9504-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(9EC),(9ED),(9EE), (9EF) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(9EC), (9ED),(9EE),(9EF),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 03 1 9312-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(9EC), (9ED),(9EE),(9EF),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9508-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9712- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9508-9510 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9511-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9511-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9511-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9712-9809 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9810- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 07 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9508-9809 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(43C),(44C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9810- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9312-9404 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9405-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(9EC), (9ED),(9EE),(9EF),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9508-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9712- ● ●
çizim 70597
16 3 31 2 2 28 33 27 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 05.803 WHEEL; DISC
(ATB) (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 01 1 9608- ●
2 05.803 WHEEL; DISC
(ATB) (B) FRONT AND REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 04 1 9608- ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) FRONT,REAR AND SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(23H),(45C) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 9508- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT,REAR AND SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(89C) (A) FRONT AND REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 9508- ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) FRONT 5.5FX15 OFFSET=85 BLACK 6-HOLE 		8-94336-432-0 02 1 9312-9711 ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) REAR AND SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-0 03 1 9312-9507 ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) SPARE 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-0 01 1 9508-9711 ●
2 05.803 WHEEL; DISC
(9EC),(9ED),(9EE),(9EF) (A) REAR 6.00GSX15 OFFSET=85 BLACK 6-HOLE 		8-97013-515-0 02 1 9508-9711 ●
2 05.803 WHEEL; DISC
(9YW) (A) FRONT,REAR AND SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9508-9511 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9512-9608 ●
2 05.803 WHEEL; DISC
(ARX),(ASY),(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9609-9612 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 01 1 9701-9711 ●
2 05.803 WHEEL; DISC
(ARX) (A) SPARE 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 01 1 9712- ●
2 05.803 WHEEL; DISC
(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9508-9511 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9512-9608 ●
2 05.803 WHEEL; DISC
(ARX),(ASY),(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9609-9612 ●
2 05.803 WHEEL; DISC
(ARX),(9YW) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-1 04 1 9701-9711 ●
2 05.803 WHEEL; DISC
(ARX) (A) FRONT AND REAR 5.5FX16 OFFSET=85 BLACK 6-HOLE 		8-94372-212-2 04 1 9712- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-8 5(AYX) (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 9808- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-8 5(AYX) (B) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 9808- ●
2 05.803 WHEEL; DISC
(09V),(22H) (A) FRONT AND SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 03 1 9312-9503 ● ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT AND SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 03 1 9504-9507 ● ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(31H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) FRONT AND REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9508- ●
2 05.803 WHEEL; DISC
(09V),(22H),(25H),(26H),(29H),(31H), (46C),(92H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9312-9503 ● ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9312-9503 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(25H),(26H),(29H), (31H),(46C),(92H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9504-9507 ● ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 9504-9507 ●
2 05.803 WHEEL; DISC
(AQD),(09V),(22H),(23H),(45C) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(AQD),(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9508- ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) REAR AND SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 03 1 9312-9507 ● ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) REAR AND SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 9508- ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) FRONT,REAR AND SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 07 1 9312-9507 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9508-9510 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9511-9711 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9511-9711 ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9511-9711 ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9712-9809 ● ● ● ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 01 1 9810- ● ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9508-9510 ● ● ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9511-9711 ● ●
2 05.803 WHEEL; DISC
(50C),(94H),(95H),(96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9511-9711 ●
2 05.803 WHEEL; DISC
(06H),(07H),(08V),(50C),(94H),(95H), (98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9511-9711 ●
2 05.803 WHEEL; DISC
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9712-9809 ● ● ● ●
2 05.803 WHEEL; DISC
(AVT),(BPL),(BPM),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) (A) FRONT AND REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-0 06 1 9810- ● ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT,REAR AND SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 07 1 9312-9507 ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9508-9809 ● ● ●
2 05.803 WHEEL; DISC
(BPK),(43C),(44C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 9810- ● ● ●
2 05.803 WHEEL; DISC
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) (A) FRONT AND REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9508-9809 ● ● ●
2 05.803 WHEEL; DISC
(BPK),(43C),(44C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) (A) FRONT AND REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 9810- ● ● ●
2 05.803 WHEEL; DISC
(9HY) (B) FRONT,REAR AND SPARE 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-0 07 1 9312-9507 ●
2 05.803 WHEEL; DISC
(9HY) (B) SPARE 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-0 01 1 9508-9807 ●
2 05.803 WHEEL; DISC
(9HY) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-0 01 1 9808- ●
2 05.803 WHEEL; DISC
(9HY) (B) FRONT AND REAR 5.5X16 OFFSET=116.5 BLACK 5-HOLE 		8-97070-539-0 06 1 9508-9807 ●
2 05.803 WHEEL; DISC
(9HY) (B) FRONT AND REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-0 06 1 9808- ●
2 05.803 WHEEL; DISC
(ANS) (B) REAR AND SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-0 05 1 9405-9507 ●
2 05.803 WHEEL; DISC
(ANS) (B) SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 01 1 9508- ●
2 05.803 WHEEL; DISC
(ANS) (B) REAR 4.5JX14 OFFSET=100 BLACK 6-HOLE 		8-94385-056-1 04 1 9508- ●
2 05.803 WHEEL; DISC
(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9312-9404 ●
2 05.803 WHEEL; DISC
(ANS),(37H) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 9405-9507 ●
2 05.803 WHEEL; DISC
(25H),(26H),(29H),(31H),(46C),(92H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 9508- ● ●
2 05.803 WHEEL; DISC
(37H) (B) REAR AND SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-1 05 1 9312-9507 ●
2 05.803 WHEEL; DISC
(37H) (B) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 9508- ●
2 05.803 WHEEL; DISC
(37H) (B) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 9508- ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		5-42334-002-0 06 1 9312- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		5-42333-008-0 06 1 9312- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 9312-9510 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 9511- ● ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 9312-9510 ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 9511- ● ● ● ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 02 1 9312-9507 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 01 1 9508-9711 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 03 1 9312-9507 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 02 1 9508-9711 ●
16 05.875 HOLDER; TIRE VALVE,DISC WHEEL
(9EC),(9ED),(9EE),(9EF) 		8-97017-494-1 02 1 9508-9711 ●
27 05.871 BOLT; COVER
EUROPEAN BASIC EQUIPMENT(EK4) 03.611 M10X20 FLANGE 		0-28681-020-0 06 1 9712- ●
28 05.864 BRACKET; COVER
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97169-249-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 05 1 9312-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(23H),(45C) 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 9508- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 05 1 9312-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9508-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASY),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C) 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9508-9510 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9508-9510 ●
31 05.839 RING; SIDE,DISC WHEEL
(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9511-9511 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9512-9608 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(ASY),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9609-9612 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(89C),(9YW) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9701-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(AVT),(06H),(07H),(08V),(50C), (89C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9712-9809 ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ARX),(AVT),(BPK),(BPL),(BPM),(06H), (07H),(08V),(43C),(45C),(46H),(50C), (64H),(89C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 9810- ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 03 1 9312-9503 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 03 1 9504-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(AQD),(09V),(22H),(23H),(37H), (43C),(44C),(45C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9508-9809 ● ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(AQD),(BPK),(09V),(22H),(23H), (37H),(43C),(44C),(45C),(46H),(47H), (49H),(50H),(57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9810- ● ● ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(09V),(22H),(25H),(26H),(29H),(31H), (46C),(9EC),(9ED),(9EE),(9EF),(92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9312-9503 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9312-9503 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H), (31H),(46C),(9EC),(9ED),(9EE),(9EF), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9504-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9504-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(9EC),(9ED),(9EE), (9EF) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9508-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(22H),(25H),(26H),(29H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(31H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(AQD),(09V),(25H),(26H),(29H),(46C), (92H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 9712- ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(9EC), (9ED),(9EE),(9EF),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 03 1 9312-9507 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(9EC), (9ED),(9EE),(9EF),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9508-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 9712- ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 07 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9508-9510 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9511-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9511-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(06H),(07H),(08V),(50C),(94H),(95H), (98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9511-9711 ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(06H),(07H),(08V),(50C),(94H), (95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9712-9809 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(AVT),(BPL),(BPM),(06H),(07H),(08V), (50C),(94H),(95H),(96H),(98H) 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 9810- ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 07 1 9312-9507 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(43C),(44C),(46H),(47H),(49H),(50H), (57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9508-9809 ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(BPK),(43C),(44C),(46H),(47H),(49H), (50H),(57H),(58H),(59H),(64H) 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 9810- ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9312-9404 ●
31 05.839 RING; SIDE,DISC WHEEL
(ANS),(37H) 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 9405-9507 ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(9EC), (9ED),(9EE),(9EF),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9508-9711 ● ●
31 05.839 RING; SIDE,DISC WHEEL
(25H),(26H),(29H),(31H),(46C),(92H) 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 9712- ● ●
33 05.858 COVER; WHEEL
EUROPEAN BASIC EQUIPMENT(EK4) 		8-97167-658-0 02 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
