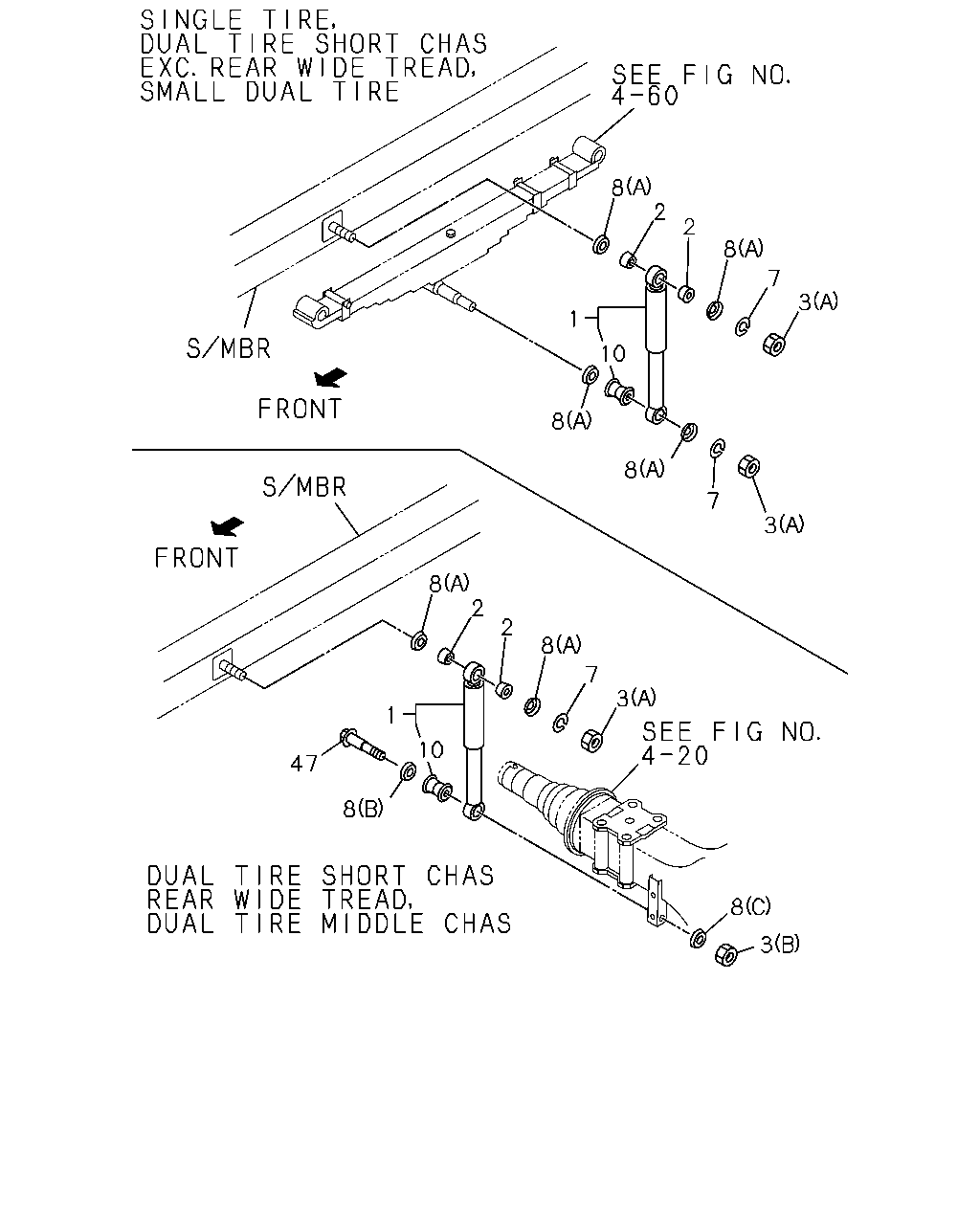

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#47061) — 53 parça

8 2 2 8 7 3 1 10 8 8 7 3 8 2 2 8 7 3 1 10 47 8 8 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	07.395 ABSORBER ASM; SHOCK,RR	8-97107-986-0	02	1	9312-	●	●
1	07.395 ABSORBER ASM; SHOCK,RR DUMP CHASSIS(V4D)	8-97035-994-4	02	1	9312-			●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. DUMP CHASSIS(V4D)	8-97035-993-5	02	1	9312-9510			●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. DUMP CHASSIS(V4D)	8-97035-993-5	02	1	9511-9604			●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97035-993-5	02	1	9511-9604				●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. DUMP CHASSIS(V4D)	8-97160-094-0	02	1	9605-			●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97160-094-0	02	1	9605-				●	●	●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97035-995-3	02	1	9312-							●
2	07.347 BUSHING; RUBBER,S/ABS,LWR KYB	8-94132-727-1	04	1	9312-	●	●					●
2	07.347 BUSHING; RUBBER,S/ABS,LWR 07.388 TOKICO	9-51631-014-0	04	1	9312-9510			●	●	●
2	07.347 BUSHING; RUBBER,S/ABS,LWR 07.388 TOKICO	9-51631-014-0	04	1	9511-			●	●	●	●
3	07.347 NUT; S/ABS 05.816 (A) M12	9-99110-412-0	04	1	9312-	●	●					●
3	07.347 NUT; S/ABS REAR WIDE TREAD(V4T) 06.172 (A) M14	9-99111-414-0	02	1	9312-9510			●
3	07.347 NUT; S/ABS 06.172 (A) M14	9-99111-414-0	02	1	9312-9510				●	●
3	07.347 NUT; S/ABS REAR WIDE TREAD(V4T) 06.172 (A) M14	9-99111-414-0	02	1	9511-			●
3	07.347 NUT; S/ABS 06.172 (A) M14	9-99111-414-0	02	1	9511-				●	●	●
3	07.347 NUT; S/ABS REAR WIDE TREAD(V4T) 04.681 (B) M16	9-99111-516-0	02	1	9312-9404			●
3	07.347 NUT; S/ABS 04.681 (B) M16	9-99111-516-0	02	1	9312-9404				●	●
3	07.347 NUT; S/ABS REAR WIDE TREAD(V4T) 08.915 (B) M16	9-99110-516-0	02	1	9405-			●
3	07.347 NUT; S/ABS 08.915 (B) M16	9-99110-516-0	02	1	9405-				●	●	●
3	07.347 NUT; S/ABS EXC. REAR WIDE TREAD(V4T) 06.172 (A) M14	9-99111-414-0	04	1	9312-			●
7	07.347 WASHER; LK,S/ABS 04.634 ID=12.2	9-09150-512-0	04	1	9312-9505	●	●					●
7	07.347 WASHER; LK,S/ABS REAR WIDE TREAD(V4T) 00.796 ID=14.2	9-09150-514-0	02	1	9312-9505			●
7	07.347 WASHER; LK,S/ABS 00.796 ID=14.2	9-09150-514-0	02	1	9312-9505				●	●
7	07.347 WASHER; LK,S/ABS EXC. REAR WIDE TREAD(V4T) 00.796 ID=14.2	9-09150-514-0	04	1	9312-9505			●
8	07.347 WASHER; S/ABS (A) ID=16.5	9-51679-021-0	04	1	9312-	●	●					●
8	07.347 WASHER; S/ABS (A) ID=12.5	9-51679-022-0	04	1	9312-	●	●					●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) 07.516 (B) ID=16.4	8-94137-482-1	02	1	9312-9510			●
8	07.347 WASHER; S/ABS 07.516 (B) ID=16.4	8-94137-482-1	02	1	9312-9510				●	●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) 07.516 (B) ID=16.4	8-94137-482-1	02	1	9511-			●
8	07.347 WASHER; S/ABS 07.516 (B) ID=16.4	8-94137-482-1	02	1	9511-				●	●	●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) 07.172 (C) ID=16.5	8-97070-925-1	02	1	9312-9510			●
8	07.347 WASHER; S/ABS 07.172 (C) ID=16.5	8-97070-925-1	02	1	9312-9510				●	●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) 07.172 (C) ID=16.5	8-97070-925-1	02	1	9511-			●
8	07.347 WASHER; S/ABS 07.172 (C) ID=16.5	8-97070-925-1	02	1	9511-				●	●	●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) (A) ID=20.0	9-51679-013-0	02	1	9312-9510			●
8	07.347 WASHER; S/ABS (A) ID=20.0	9-51679-013-0	02	1	9312-9510				●	●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) (A) ID=20.0	9-51679-013-0	02	1	9511-			●
8	07.347 WASHER; S/ABS (A) ID=20.0	9-51679-013-0	02	1	9511-				●	●	●
8	07.347 WASHER; S/ABS EXC. REAR WIDE TREAD(V4T) (A) ID=20.0	9-51679-013-0	04	1	9312-			●
8	07.347 WASHER; S/ABS EXC. REAR WIDE TREAD(V4T) (A) ID=15.0	9-51679-012-0	04	1	9405-			●
8	07.347 WASHER; S/ABS (A) ID=15.0	9-51679-012-0	04	1	9312-9404			●	●	●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) (A) ID=15.0	9-51679-012-0	02	1	9405-9510			●
8	07.347 WASHER; S/ABS (A) ID=15.0	9-51679-012-0	02	1	9405-9510				●	●
8	07.347 WASHER; S/ABS REAR WIDE TREAD(V4T) (A) ID=15.0	9-51679-012-0	02	1	9511-			●
8	07.347 WASHER; S/ABS (A) ID=15.0	9-51679-012-0	02	1	9511-				●	●	●
10	07.388 BUSHING; RUBBER,S/ABS 07.347 TOKICO	8-94224-694-0	02	1	9312-	●	●					●
10	07.388 BUSHING; RUBBER,S/ABS TOKICO	8-94382-149-0	02	1	9312-9510			●	●	●
10	07.388 BUSHING; RUBBER,S/ABS TOKICO	8-94382-149-0	02	1	9511-			●	●	●	●
47	07.347 PIN; S/ABS SETTING REAR WIDE TREAD(V4T)	8-97076-931-2	02	1	9312-9510			●
47	07.347 PIN; S/ABS SETTING	8-97076-931-2	02	1	9312-9510				●	●
47	07.347 PIN; S/ABS SETTING REAR WIDE TREAD(V4T)	8-97076-931-2	02	1	9511-			●
47	07.347 PIN; S/ABS SETTING	8-97076-931-2	02	1	9511-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
