Sayfa 4-60 - Isuzu EPC

4-60 — REAR SUSPENSION (#47060) — 150 parça

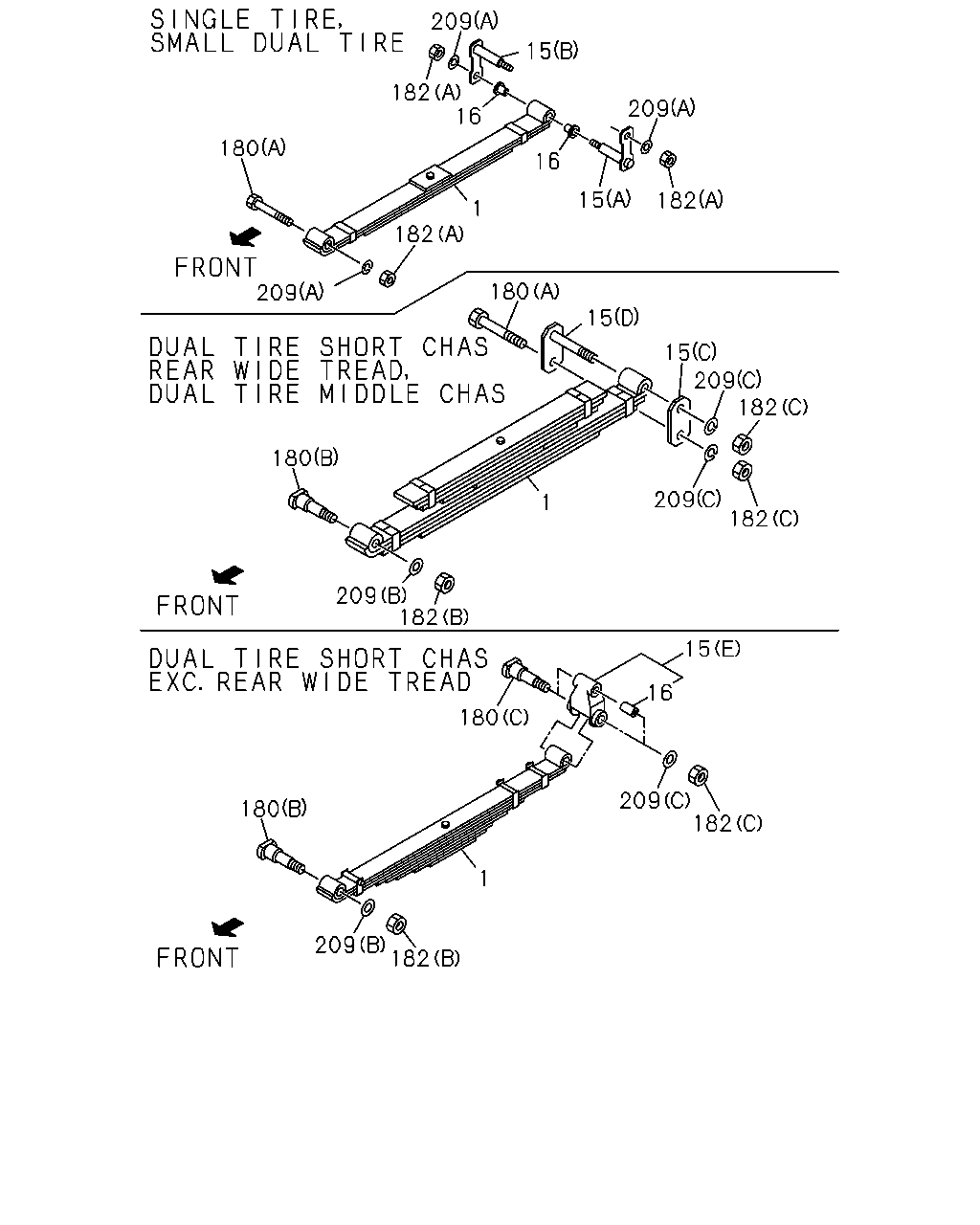

209 15 182 16 209 180 16 15 182 1 182 180 209 15 15 209 182 180 209 1 182 209 182 15 16 180 209 182 180 1 209 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 5-LEAF	8-97033-500-1	02	1	9312-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 5-LEAF	8-97033-505-1	02	1	9312-9510	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF	8-97033-505-1	02	1	9312-9510		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) 5-LEAF	8-97033-505-1	02	1	9511-9703	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF	8-97033-505-1	02	1	9511-9703		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 5-LEAF	8-97033-505-1	02	1	9704-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF	8-97033-505-1	02	1	9704-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) 4-LEAF	8-97033-490-4	02	1	9312-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FIRE TRUCK CHASSIS(V4F) 11-LEAF	8-97033-518-1	02	1	9410-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 10-LEAF	8-97070-508-0	02	1	9312-9409			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 10-LEAF	8-97070-508-1	02	1	9410-9506			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F),ISRAEL EQUIPMENT(7LX) 10-LEAF	8-97070-508-1	02	1	9507-9711			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 10-LEAF	8-97070-508-1	02	1	9712-			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF	8-97033-513-2	02	1	9511-						●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) 4-LEAF	8-97033-492-2	02	1	9312-9506				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ) 4-LEAF	8-97033-492-2	02	1	9507-9711				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) 4-LEAF	8-97033-492-2	02	1	9712-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) 6-LEAF	8-97033-502-3	02	1	9312-9506				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) G.V.W. 5.0-5.5TON(RPT) 6-LEAF	8-97033-502-4	02	1	9507-9711				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) 6-LEAF	8-97033-502-4	02	1	9712-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) CHINA EQUIPMENT(YT2) 8-LEAF	8-97173-336-0	02	1	9712-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 10-LEAF	8-97070-509-1	02	1	9312-9804				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF	8-97033-488-1	02	1	9312-							●
15	07.523 SHACKLE; RR SPR (A) OUTSIDE	8-94113-322-3	02	1	9312-	●	●					●
15	07.523 SHACKLE; RR SPR (B) INSIDE	8-97033-966-1	02	1	9312-	●	●					●
15	07.523 SHACKLE; RR SPR REAR WIDE TREAD(V4T) (C) W/PIN	8-94118-511-3	02	1	9312-9510			●
15	07.523 SHACKLE; RR SPR (C) W/PIN	8-94118-511-3	02	1	9312-9510				●	●
15	07.523 SHACKLE; RR SPR REAR WIDE TREAD(V4T) (C) W/PIN	8-94118-511-3	02	1	9511-			●
15	07.523 SHACKLE; RR SPR (C) W/PIN	8-94118-511-3	02	1	9511-				●	●	●
15	07.523 SHACKLE; RR SPR REAR WIDE TREAD(V4T) (D) W/PIN	8-94118-512-4	02	1	9312-9510			●
15	07.523 SHACKLE; RR SPR (D) W/PIN	8-94118-512-4	02	1	9312-9510				●	●
15	07.523 SHACKLE; RR SPR REAR WIDE TREAD(V4T) (D) W/PIN	8-94118-512-4	02	1	9511-			●
15	07.523 SHACKLE; RR SPR (D) W/PIN	8-94118-512-4	02	1	9511-				●	●	●
15	07.523 SHACKLE; RR SPR EXC. REAR WIDE TREAD(V4T) (E)	8-97034-298-1	02	1	9312-			●
16	07.524 BUSHING; SHACKLE,RR SPR	8-94113-323-2	04	1	9312-	●	●					●
16	07.524 BUSHING; SHACKLE,RR SPR EXC. REAR WIDE TREAD(V4T) 07.105 OD=42 L=81	8-94130-354-0	02	1	9312-			●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	9-51361-602-2	02	1	9312-9510	●	●		●	●		●
180	07.529 PIN; RR SPR REAR WIDE TREAD(V4T) KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	9-51361-602-2	02	1	9312-9510			●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	9-51361-602-2	02	1	9511-	●	●		●	●	●	●
180	07.529 PIN; RR SPR REAR WIDE TREAD(V4T) KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	9-51361-602-2	02	1	9511-			●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-1	02	1	9312-9510	●	●		●	●		●
180	07.529 PIN; RR SPR REAR WIDE TREAD(V4T) EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-1	02	1	9312-9510			●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	9511-	●	●		●	●	●	●
180	07.529 PIN; RR SPR REAR WIDE TREAD(V4T) EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	9511-			●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> EXC. REAR WIDE TREAD(V4T) (C) L=138	8-97035-877-0	04	1	9312-			●
180	07.529 PIN; RR SPR EXC. REAR WIDE TREAD(V4T),KD PREPARATORY PACK<6HF> (C) M16X128 FLANGE	8-97076-849-2	04	1	9312-			●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-97033-967-0	02	1	9312-9510			●	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-97033-967-0	02	1	9511-			●	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	9312-9510			●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	9511-			●	●	●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 08.915 (A) M16	9-99110-516-0	06	1	9312-9705	●	●					●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 08.915 (A) M16	9-99110-516-0	06	1	9706-	●	●					●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.516 (A) M16	8-94107-767-0	06	1	9312-9705	●	●					●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE	8-97147-389-0	06	1	9706-	●	●					●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 08.915 (C) M16	9-99110-516-0	04	1	9706-			●	●	●	●
182	07.529 NUT; PIN,RR SPR 06.216 (B) M18	9-99110-518-0	02	1	9312-9510			●	●	●
182	07.529 NUT; PIN,RR SPR 06.216 (B) M18	9-99110-518-0	02	1	9511-			●	●	●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 08.915 (C) M16	9-99110-516-0	04	1	9312-9510			●	●	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.516 (C) M16	8-94107-767-0	04	1	9312-9510			●	●	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.516 (C) M16	8-94107-767-0	04	1	9511-9705			●	●	●	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (C) M16 FLANGE	8-97147-389-0	04	1	9706-			●	●	●	●
209	07.529 WASHER; PL 07.172 (A) ID=16.5	8-97070-925-1	06	1	9312-9705	●	●					●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5	8-97070-925-1	06	1	9706-	●	●					●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.172 (C) ID=16.5	8-97070-925-1	04	1	9706-			●	●	●	●
209	07.529 WASHER; PL 07.172 (C) ID=16.5	8-97070-925-1	04	1	9312-9510			●	●	●
209	07.529 WASHER; PL 07.172 (C) ID=16.5	8-97070-925-1	04	1	9511-9705			●	●	●	●
209	07.529 WASHER; PL (B) ID=19	8-97073-435-1	02	1	9312-9510			●	●	●
209	07.529 WASHER; PL (B) ID=19	8-97073-435-1	02	1	9511-			●	●	●	●

227 225 264 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-94142-044-3	02	1	9312-	●	●
225	07.535 RUBBER; CUSHION,RR SPR DUMP CHASSIS(V4D) (B)	8-97035-815-0	02	1	9312-			●
225	07.535 RUBBER; CUSHION,RR SPR EXC. DUMP CHASSIS(V4D) (A)	8-94118-510-4	02	1	9312-9510			●	●	●
225	07.535 RUBBER; CUSHION,RR SPR EXC. DUMP CHASSIS(V4D) (A)	8-94118-510-4	02	1	9511-			●
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-94118-510-4	02	1	9511-				●	●	●
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-94258-734-1	02	1	9312-							●
227	07.535 NUT; CUSHION RUBBER EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE	0-91150-112-0	02	1	9312-9510	●	●	●	●	●	●	●
227	07.535 NUT; CUSHION RUBBER 05.586 M12 FLANGE	0-91150-112-0	02	1	9511-	●	●		●	●	●	●
227	07.535 NUT; CUSHION RUBBER EXC. DUMP CHASSIS(V4D) 05.586 M12 FLANGE	0-91150-112-0	02	1	9511-			●
264	07.529 BOLT; CUSHION RUBBER TO BRKT DUMP CHASSIS(V4D) 01.652 M10X25 W/LK WASHER	0-50041-025-0	04	1	9312-9703			●
264	07.529 BOLT; CUSHION RUBBER TO BRKT DUMP CHASSIS(V4D) 03.405 M10X25 FLANGE	0-28681-025-0	04	1	9704-			●

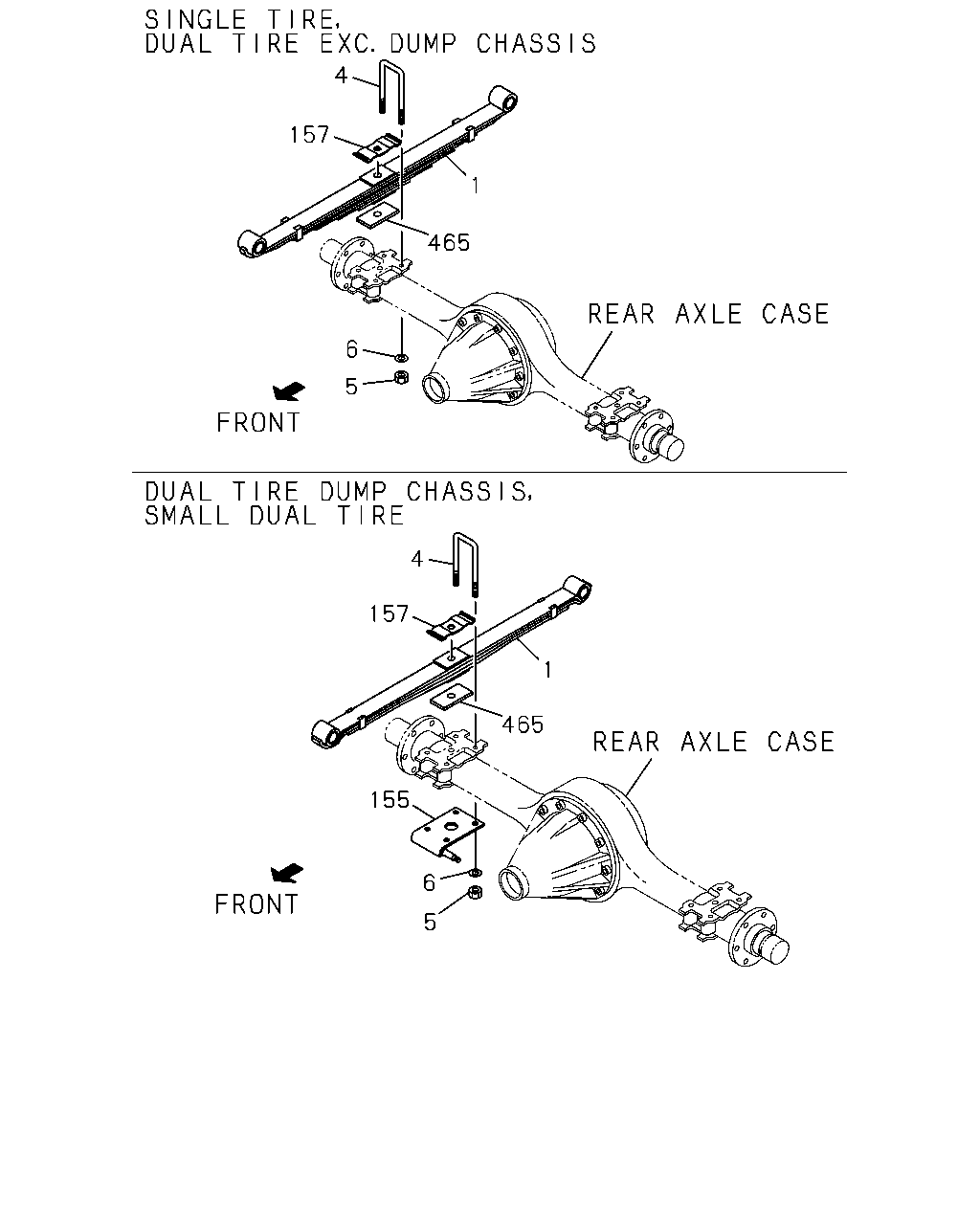

4 157 1 465 6 5 4 157 1 465 155 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 5-LEAF	8-97033-500-1	02	1	9312-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 5-LEAF	8-97033-505-1	02	1	9312-9510	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF	8-97033-505-1	02	1	9312-9510		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS) 5-LEAF	8-97033-505-1	02	1	9511-9703	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF	8-97033-505-1	02	1	9511-9703		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) 5-LEAF	8-97033-505-1	02	1	9704-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 5-LEAF	8-97033-505-1	02	1	9704-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. DUMP CHASSIS(V4D) 4-LEAF	8-97033-490-4	02	1	9312-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FIRE TRUCK CHASSIS(V4F) 11-LEAF	8-97033-518-1	02	1	9410-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 10-LEAF	8-97070-508-0	02	1	9312-9409			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 10-LEAF	8-97070-508-1	02	1	9410-9506			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F),ISRAEL EQUIPMENT(7LX) 10-LEAF	8-97070-508-1	02	1	9507-9711			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 10-LEAF	8-97070-508-1	02	1	9712-			●	●	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 6-LEAF	8-97033-513-2	02	1	9511-						●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) 4-LEAF	8-97033-492-2	02	1	9312-9506				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ) 4-LEAF	8-97033-492-2	02	1	9507-9711				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) 4-LEAF	8-97033-492-2	02	1	9712-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) 6-LEAF	8-97033-502-3	02	1	9312-9506				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) G.V.W. 5.0-5.5TON(RPT) 6-LEAF	8-97033-502-4	02	1	9507-9711				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 5.0-5.5TON(RPT) 6-LEAF	8-97033-502-4	02	1	9712-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) CHINA EQUIPMENT(YT2) 8-LEAF	8-97173-336-0	02	1	9712-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 10-LEAF	8-97070-509-1	02	1	9312-9804				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF	8-97033-488-1	02	1	9312-							●
4	07.516 U-BOLT; RR SPR L=235	8-94127-920-1	04	1	9312-	●	●
4	07.516 U-BOLT; RR SPR EXC. REAR WIDE TREAD(V4T) L=235	8-94127-920-1	04	1	9312-			●
4	07.516 U-BOLT; RR SPR FIRE TRUCK CHASSIS(V4F) L=275	8-94127-924-1	04	1	9410-			●
4	07.516 U-BOLT; RR SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) L=265	8-94127-923-1	04	1	9312-9409			●	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) L=265	8-94127-923-1	04	1	9410-9506			●	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F),ISRAEL EQUIPMENT(7LX) L=265	8-94127-923-1	04	1	9507-9510			●	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F),ISRAEL EQUIPMENT(7LX) L=265	8-94127-923-1	04	1	9511-9711			●	●	●	●
4	07.516 U-BOLT; RR SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) L=265	8-94127-923-1	04	1	9712-			●	●	●	●
4	07.516 U-BOLT; RR SPR EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=245	8-94127-921-1	04	1	9312-9506				●
4	07.516 U-BOLT; RR SPR EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=245	8-94127-921-1	04	1	9507-9711				●
4	07.516 U-BOLT; RR SPR EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) L=245	8-94127-921-1	04	1	9712-				●
4	07.516 U-BOLT; RR SPR G.V.W. 4.0-4.5TON(RPR) CHINA EQUIPMENT(YT2) L=245	8-94127-921-1	04	1	9712-				●
4	07.516 U-BOLT; RR SPR G.V.W. 6.5-7.0TON(RPW) L=285	8-94132-172-1	04	1	9312-9711				●
4	07.516 U-BOLT; RR SPR G.V.W. 6.5-7.0TON(RPW) L=285	8-97141-874-0	04	1	9712-9804				●
4	07.516 U-BOLT; RR SPR L=215	8-94127-918-1	04	1	9312-							●
5	07.529 NUT; U-BOLT,RR SPR 07.516 M16	8-94107-767-0	08	1	9312-	●	●	●	●	●	●	●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	9312-	●	●	●	●	●	●	●
155	07.380 BRACKET; S/ABS DUMP CHASSIS(V4D)	8-94128-363-3	01	1	9312-			●
155	07.380 BRACKET; S/ABS DUMP CHASSIS(V4D)	8-94128-362-3	01	1	9312-			●
155	07.380 BRACKET; S/ABS	8-94128-361-4	01	1	9312-							●
155	07.380 BRACKET; S/ABS	8-94128-360-4	01	1	9312-							●
157	07.518 CLAMP; UPR,RR SPR EXC. DUMP CHASSIS(V4D) L=130 T=4.5	8-94119-069-2	02	1	9312-9404	●	●	●	●	●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) EXC. DUMP CHASSIS(V4D) L=130 T=4.5	8-94119-069-2	02	1	9405-9510	●	●	●	●	●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) EXC. DUMP CHASSIS(V4D) L=130 T=4.5	8-94119-069-2	02	1	9511-9703	●	●	●	●	●	●	●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) EXC. DUMP CHASSIS(V4D) L=130 T=4.5	8-94119-069-2	02	1	9704-	●	●	●	●	●	●
157	07.518 CLAMP; UPR,RR SPR DUMP CHASSIS(V4D) L=168 T=8	8-94118-111-3	02	1	9312-			●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 6.5-7.0TON(RPW) L=140 T=4.5	8-94118-509-1	02	1	9405-9804				●
157	07.518 CLAMP; UPR,RR SPR L=130 T=8	8-94128-484-3	02	1	9312-							●
465	07.518 SHIM; ADJ RR BODY FLAT BED<RS6>	8-97072-589-0	AR	1	9712-9801	●		●	●
465	07.518 SHIM; ADJ RR BODY NON FLAT BED(RS5)	8-97072-589-0	AR	1	9712-9801		●
465	07.518 SHIM; ADJ RR BODY FLAT BED<RS6>	8-97072-589-0	AR	1	9802-	●		●	●	●
465	07.518 SHIM; ADJ RR BODY NON FLAT BED(RS5)	8-97072-589-0	AR	1	9802-		●

317 323 62 25 318 435 314 294 308 285 274 320 387 285 308 330 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	F
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1>	8-97043-370-1	01	1	9511-	●
62	07.243 BUSHING; LINK ROD STABILIZER REAR<GN1>	8-94331-581-0	02	1	9511-	●
274	07.243 BUSHING; RR STAB BAR TO LINK STABILIZER REAR<GN1>	8-94433-867-0	02	1	9511-	●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> L=18	8-97089-556-0	02	1	9511-	●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> L=29	8-97089-557-0	02	1	9511-	●
294	07.242 BOLT; STAB BAR TO RR AXLE STABILIZER REAR<GN1> 04.686	8-94342-082-0	02	1	9511-	●
308	07.243 PLATE; END,RUBBER BUSHING STABILIZER REAR<GN1> 07.242	8-94342-084-0	04	1	9511-	●
314	07.242 WASHER; LK,STAB TO BRKT STABILIZER REAR<GN1> 00.796 ID=14.2	9-09150-514-0	02	1	9511-	●
317	07.240 ROD LINK ASM; STABILIZER,RR STABILIZER REAR<GN1>	8-94441-472-3	02	1	9511-	●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> M14X70 FLANGE	0-28881-470-0	02	1	9511-	●
320	07.242 CAP; LINK ROD STABILIZER REAR<GN1>	8-94178-430-2	02	1	9511-	●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 03.613 M14 FLANGE	0-91150-114-0	02	1	9511-	●
330	07.242 NUT; STAB STABILIZER REAR<GN1> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	9511-	●
387	07.242 BOLT; CAP FIX,STAB BAR STABILIZER REAR<GN1> 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9511-9703	●
387	07.242 BOLT; CAP FIX,STAB BAR STABILIZER REAR<GN1> 03.405 M10X25 FLANGE	0-28681-025-0	04	1	9704-	●
435	07.242 NUT; CAP STABILIZER REAR<GN1> 08.917 M10 FLANGE	0-91150-210-0	04	1	9511-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
