Sayfa 4-50 - Isuzu EPC

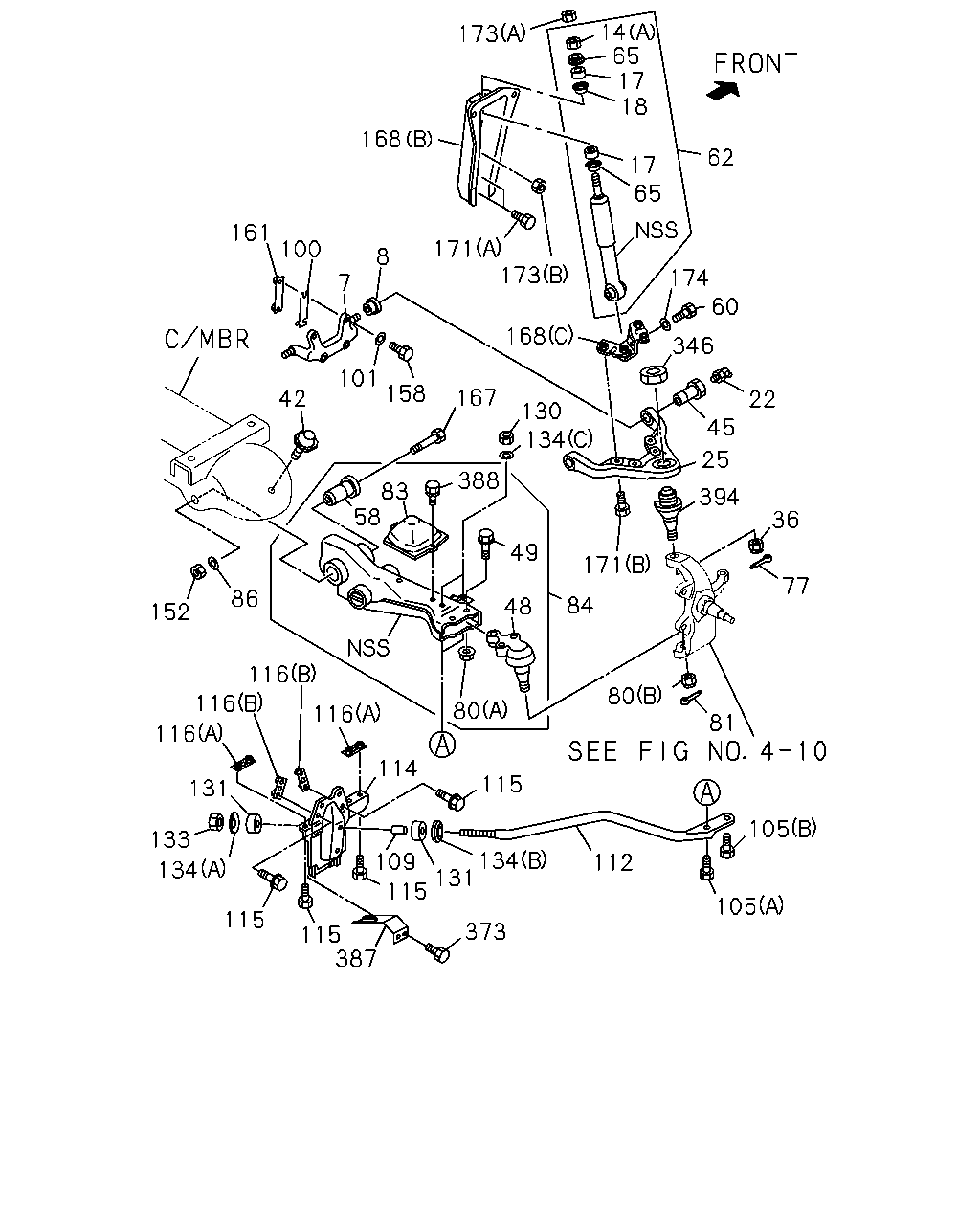

4-50 — FRONT SUSPENSION (#47054) — 284 parça

14 65 17 18 173 168 62 17 65 161 171 100 8 173 174 7 60 168 346 101 158 167 42 22 130 134 45 25 388 83 58 394 36 49 171 77 86 84 48 152 116 80 116 80 116 81 116 114 115 131 105 133 134 131 109 112 134 115 105 115 373 115 387

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
7	06.174 PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(6PP)	8-94340-084-1	02	1	9312-	●
8	06.174 COVER; DUST,FULCRUM PIN,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.166	8-94233-208-1	04	1	9312-	●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(6PP) (A) M10	8-94317-772-0	02	1	9312-9510	●
14	07.389 NUT; S/ABS,UPR (A) M10	8-94317-772-0	02	1	9312-9510		●	●	●	●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(6PP) (A) M10	8-94317-772-0	02	1	9511-	●
14	07.389 NUT; S/ABS,UPR (A) M10	8-94317-772-0	02	1	9511-		●	●	●	●	●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 (A) M10	9-09110-410-0	02	1	9312-	●
14	07.389 NUT; S/ABS,UPR 09.011 (A) M10	9-09110-410-0	02	1	9312-							●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.822 (B) M10	9-09111-410-0	02	1	9312-	●
14	07.389 NUT; S/ABS,UPR 06.822 (B) M10	9-09111-410-0	02	1	9312-							●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	9312-	●	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	8-94412-791-0	02	1	9312-9510	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	9312-9510		●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	8-94412-791-0	02	1	9511-	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	9511-		●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=13 OD=38	9-51631-063-0	02	1	9312-	●
18	07.347 WASHER; CENTERING,S/ABS ID=13 OD=38	9-51631-063-0	02	1	9312-							●
22	06.166 NIPPLE; GREASE,LINK END FRT INDEPENDENT SUSPENSION(6PP) 05.556 PT1/8 ELBOW	9-09031-210-0	04	1	9312-	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-005-3	01	1	9312-	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-004-3	01	1	9312-	●
36	06.174 NUT; UPR LINK END TO UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	9312-	●
42	06.176 RUBBER; REBOUND,FRT SUSPENSION FRT INDEPENDENT SUSPENSION(6PP)	8-97031-392-1	02	1	9312-	●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97089-934-2	04	1	9312-	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM FRT INDEPENDENT SUSPENSION(6PP)	8-97031-370-3	02	1	9312-	●
49	06.174 BOLT; LWR LINK END FRT INDEPENDENT SUSPENSION(6PP) M14X84	8-97076-847-0	04	1	9312-	●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(6PP)	8-94336-509-1	02	1	9312-	●
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) 04.083 M12X70	0-10806-270-0	02	1	9312-	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97106-609-0	02	1	9312-	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-985-0	02	1	9312-	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97107-985-0	02	1	9312-							●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97094-837-1	02	1	9312-9510		●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97094-837-1	02	1	9511-9604		●	●	●		●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97160-082-0	02	1	9605-		●	●	●		●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97048-436-4	02	1	9312-					●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(6PP) OD=40	9-51631-614-0	04	1	9312-	●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9312-	●	●	●	●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	9312-	●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 07.417 (A) M14 FLANGE	8-94137-483-0	04	1	9312-	●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M22	9-09111-522-0	02	1	9312-	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	9312-	●
83	06.174 RUBBER; BUMPER,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-391-1	02	1	9312-	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-111-6	01	1	9312-	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-110-6	01	1	9312-	●
86	06.174 WASHER; PL,LWR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=23	9-09164-522-0	02	1	9312-	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=1.6	8-94341-343-3	AR	1	9312-	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=3.2	8-94341-344-2	AR	1	9312-	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=0.8	8-97020-095-2	AR	1	9312-	●
101	06.174 WASHER; LK,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 05.422 ID=14.2	9-09150-814-0	08	1	9312-	●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (A) M16X102	8-97076-845-1	02	1	9312-	●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (B) M16X60	8-97076-846-1	02	1	9312-	●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) (A) M16X80	9-91061-680-0	02	1	9312-	●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.900 (B) M16X35	9-92061-635-0	02	1	9312-9606	●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.900 (B) M16X40	9-92061-640-0	02	1	9607-	●
109	06.168 TUBE; DIST,STRUT BAR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-94336-504-0	02	1	9312-	●
112	06.168 BAR; STRUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-378-2	01	1	9312-	●
112	06.168 BAR; STRUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-377-2	01	1	9312-	●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-382-1	01	1	9312-	●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-381-1	01	1	9312-9502	●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-97117-096-1	01	1	9503-	●
115	06.168 BOLT; SUPPORT BRKT TO BODY FRT INDEPENDENT SUSPENSION(6PP) M12X35	8-97016-102-1	14	1	9312-	●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-155-0	02	1	9312-	●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97095-156-0	04	1	9312-	●
130	07.172 NUT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> 07.516 M16	8-94107-767-0	04	1	9312-9705	●
130	07.172 NUT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	04	1	9706-	●
130	07.172 NUT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.915 M16	9-99110-516-0	04	1	9312-9705	●
130	07.172 NUT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.915 M16	9-99110-516-0	04	1	9706-	●
131	07.170 RUBBER; CUSHION,STRUT BAR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP)	8-94336-507-0	04	1	9312-	●
133	07.172 NUT; STRUT BAR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	04	1	9312-	●
134	07.172 WASHER; STRUT BAR FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16.5	8-97070-925-1	04	1	9312-9705	●
134	07.172 WASHER; STRUT BAR KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16.5	8-97070-925-1	04	1	9706-	●
134	07.172 WASHER; STRUT BAR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (A) OD=66 ID=22	8-97031-208-0	02	1	9312-	●
134	07.172 WASHER; STRUT BAR 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-568-0	02	1	9312-	●
152	06.172 NUT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	02	1	9312-	●
158	06.178 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) M14X70	8-97072-665-0	08	1	9312-	●
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP)	8-94464-558-0	04	1	9312-	●
167	06.178 BOLT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) M22X135	8-94374-671-1	02	1	9312-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97031-383-2	02	1	9312-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-000-1	02	1	9312-	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-613-0	01	1	9312-9711	●	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97141-876-0	01	1	9712-	●	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-616-0	01	1	9312-9711	●	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97141-877-0	01	1	9712-	●	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (A)	8-97041-075-2	01	1	9312-9510		●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (A)	8-97113-932-0	01	1	9511-		●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (A)	8-97041-074-2	01	1	9312-9510		●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (A)	8-97113-930-0	01	1	9511-		●
168	07.380 BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52> (B)	8-97018-127-2	01	1	9312-			●
168	07.380 BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52> (B)	8-97018-126-2	01	1	9312-			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X25 FLANGE	0-28081-225-0	04	1	9312-9510	●
171	07.395 BOLT; S/ABS BRKT EXC. REAR WIDE TREAD(V4T) (A) M12X25 FLANGE	0-28081-225-0	04	1	9312-9510		●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X25 FLANGE	0-28081-225-0	04	1	9511-9703	●
171	07.395 BOLT; S/ABS BRKT FRAME-KICK UP<7EW> (A) M12X25 FLANGE	0-28081-225-0	04	1	9511-9703		●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28681-230-0	04	1	9704-	●
171	07.395 BOLT; S/ABS BRKT FRAME-KICK UP<7EW> (A) M12X30 FLANGE	0-28681-230-0	04	1	9704-		●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.840 (B) M10X35 W/LK&PL WASHER	0-50141-035-0	08	1	9312-	●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.704 (A) M10X30	0-20801-030-0	08	1	9312-9510	●
171	07.395 BOLT; S/ABS BRKT 03.704 (A) M10X30	0-20801-030-0	08	1	9312-9510			●	●	●		●
171	07.395 BOLT; S/ABS BRKT REAR WIDE TREAD(V4T) 03.704 (A) M10X30	0-20801-030-0	08	1	9312-9510		●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.704 (A) M10X30	0-20801-030-0	08	1	9511-9703	●
171	07.395 BOLT; S/ABS BRKT 03.704 (A) M10X30	0-20801-030-0	08	1	9511-9703			●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRAME-KICK UP<7EW> 03.704 (A) M10X30	0-20801-030-0	08	1	9511-9703		●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	9704-	●
171	07.395 BOLT; S/ABS BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	9704-			●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRAME-KICK UP<7EW> 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	9704-		●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	9312-9510	●
173	07.395 NUT; S/ABS EXC. REAR WIDE TREAD(V4T) 06.606 (B) M12	8-94139-015-0	02	1	9312-9510		●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	9511-	●
173	07.395 NUT; S/ABS FRAME-KICK UP<7EW> 06.606 (B) M12	8-94139-015-0	02	1	9511-		●
173	07.395 NUT; S/ABS 06.822 (A) M10	9-09111-410-0	02	1	9605-	●	●	●	●	●	●	●
173	07.395 NUT; S/ABS DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	06	1	9312-	●		●
173	07.395 NUT; S/ABS EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9312-9510	●		●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9312-9510				●	●		●
173	07.395 NUT; S/ABS REAR WIDE TREAD(V4T) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9312-9510		●
173	07.395 NUT; S/ABS EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9511-	●		●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9511-				●	●	●	●
173	07.395 NUT; S/ABS EXC. FRAME-KICK UP<7EW> 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9511-		●
174	07.347 WASHER; LK,S/ABS FRT INDEPENDENT SUSPENSION(6PP) 00.002 ID=12.2	9-09150-812-0	02	1	9312-	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(6PP) M52	8-97076-036-0	02	1	9312-	●
373	07.346 BOLT; HEAT PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9312-9703	●
373	07.346 BOLT; HEAT PROTECTOR FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9704-	●
387	06.168 PROTECTOR; HEAT,STRUT BAR FRT INDEPENDENT SUSPENSION(6PP)	8-97077-389-1	01	1	9312-	●
388	06.174 BOLT; BUMP RUBBER FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	9312-	●
394	06.714 END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) 06.174	8-97107-328-0	02	1	9312-	●

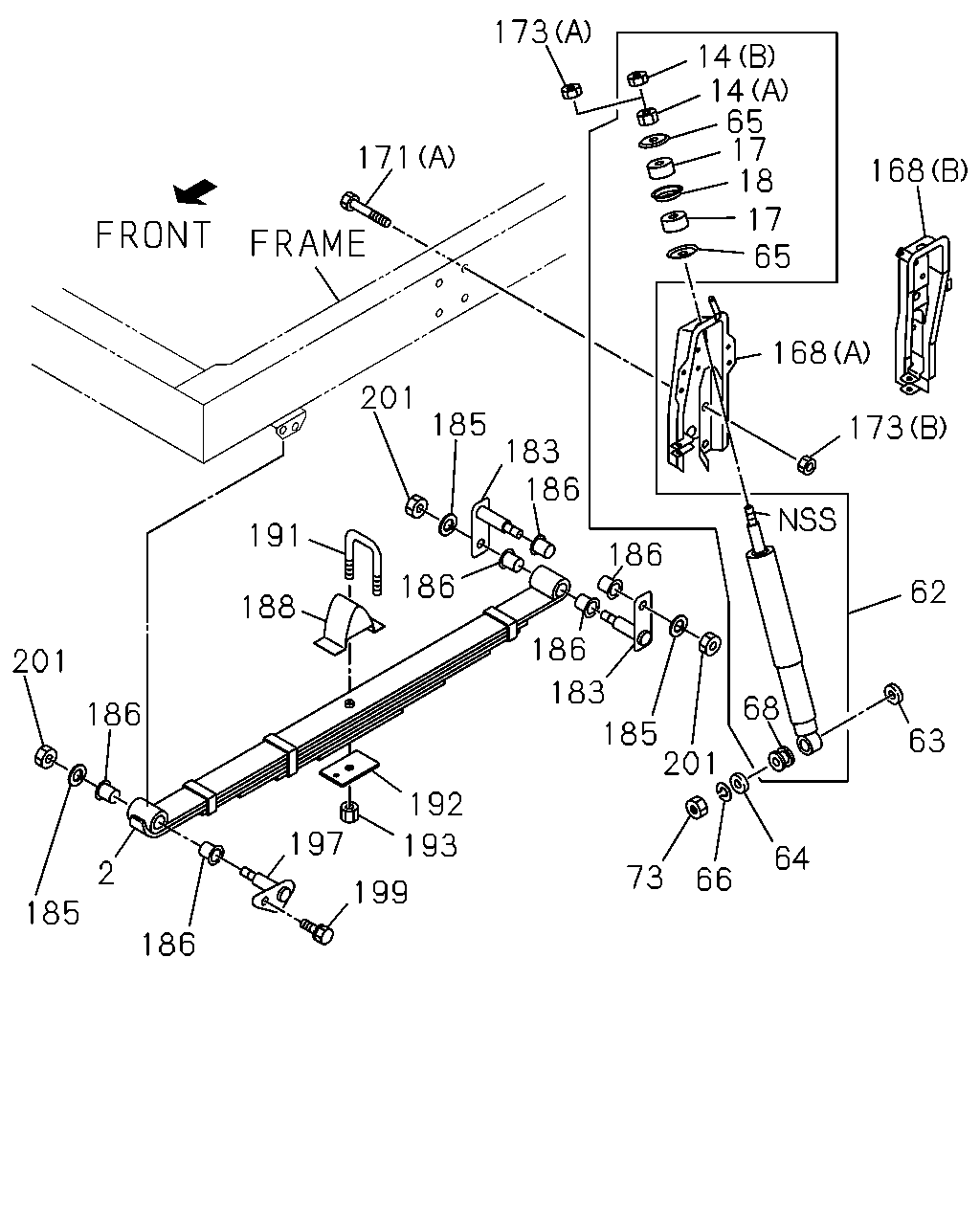

173 14 14 65 17 18 17 65 171 168 168 201 185 173 183 186 191 186 186 62 188 186 201 183 68 186 185 201 63 192 197 193 64 2 73 66 199 185 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 6-LEAF	8-97071-626-2	01	1	9312-	●				●		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT INDEPENDENT SUSPENSION(6PP) 6-LEAF	8-97071-625-2	01	1	9312-	●				●		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. DUMP CHASSIS(V4D) 5-LEAF	8-97033-406-3	01	1	9312-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. DUMP CHASSIS(V4D) 5-LEAF	8-97033-405-3	01	1	9312-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FIRE TRUCK CHASSIS(V4F) 6-LEAF	8-97033-418-1	01	1	9410-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FIRE TRUCK CHASSIS(V4F) 6-LEAF	8-97033-417-1	01	1	9410-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 7-LEAF	8-94343-095-1	01	1	9312-9409		●	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 7-LEAF	8-94343-095-2	01	1	9410-9506		●	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 7-LEAF	8-94343-095-3	01	1	9507-9711		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 7-LEAF	8-94343-095-3	01	1	9507-9711			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU) 7-LEAF	8-94343-095-3	01	1	9507-9711				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 7-LEAF	8-94343-095-3	01	1	9712-9801		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 7-LEAF	8-94343-095-3	01	1	9712-9801			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU) 7-LEAF	8-94343-095-3	01	1	9712-9801				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 7-LEAF	8-94343-095-3	01	1	9802-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 7-LEAF	8-94343-095-3	01	1	9802-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 7-LEAF	8-94343-095-3	01	1	9802-				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D) 7-LEAF	8-94343-094-1	01	1	9312-9409		●	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 7-LEAF	8-94343-094-2	01	1	9410-9506		●	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 7-LEAF	8-94343-094-3	01	1	9507-9711		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 7-LEAF	8-94343-094-3	01	1	9507-9711			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU) 7-LEAF	8-94343-094-3	01	1	9507-9711				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 7-LEAF	8-94343-094-3	01	1	9712-9801		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 7-LEAF	8-94343-094-3	01	1	9712-9801			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU) 7-LEAF	8-94343-094-3	01	1	9712-9801				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) 7-LEAF	8-94343-094-3	01	1	9802-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. EUROPEAN BASIC EQUIPMENT(EK4) 7-LEAF	8-94343-094-3	01	1	9802-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 7-LEAF	8-94343-094-3	01	1	9802-				●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-97130-298-0	01	1	9511-						●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-97130-297-0	01	1	9511-						●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 3-LEAF	8-97033-404-2	01	1	9312-9506			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 3-LEAF	8-97033-404-2	01	1	9507-9711			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 3-LEAF	8-97033-404-2	01	1	9712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 3-LEAF	8-97033-403-2	01	1	9312-9506			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 3-LEAF	8-97033-403-2	01	1	9507-9711			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 3-LEAF	8-97033-403-2	01	1	9712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) CHINA EQUIPMENT(YT2) 6-LEAF	8-97071-627-0	01	1	9712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) CHINA EQUIPMENT(YT2) 6-LEAF	8-97071-626-2	01	1	9712-			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 8-LEAF	8-97070-511-1	01	1	9312-9804			●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 8-LEAF	8-97070-510-1	01	1	9312-9804			●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(6PP) (A) M10	8-94317-772-0	02	1	9312-9510	●
14	07.389 NUT; S/ABS,UPR (A) M10	8-94317-772-0	02	1	9312-9510		●	●	●	●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(6PP) (A) M10	8-94317-772-0	02	1	9511-	●
14	07.389 NUT; S/ABS,UPR (A) M10	8-94317-772-0	02	1	9511-		●	●	●	●	●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 (A) M10	9-09110-410-0	02	1	9312-	●
14	07.389 NUT; S/ABS,UPR 09.011 (A) M10	9-09110-410-0	02	1	9312-							●
14	07.389 NUT; S/ABS,UPR EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.822 (B) M10	9-09111-410-0	02	1	9312-	●
14	07.389 NUT; S/ABS,UPR 06.822 (B) M10	9-09111-410-0	02	1	9312-							●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	9312-	●	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	8-94412-791-0	02	1	9312-9510	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	9312-9510		●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	8-94412-791-0	02	1	9511-	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	9511-		●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=13 OD=38	9-51631-063-0	02	1	9312-	●
18	07.347 WASHER; CENTERING,S/ABS ID=13 OD=38	9-51631-063-0	02	1	9312-							●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97106-609-0	02	1	9312-	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-985-0	02	1	9312-	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97107-985-0	02	1	9312-							●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97094-837-1	02	1	9312-9510		●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97094-837-1	02	1	9511-9604		●	●	●		●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97160-082-0	02	1	9605-		●	●	●		●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97048-436-4	02	1	9312-					●
63	07.347 WASHER; PL,S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.529 ID=17 OD=32	9-09164-616-0	02	1	9312-	●	●	●	●	●	●	●
64	07.347 WASHER; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=12.5	9-51679-022-0	02	1	9312-	●	●	●	●	●	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(6PP) OD=40	9-51631-614-0	04	1	9312-	●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9312-	●	●	●	●	●	●	●
66	07.389 WASHER; LK,S/ABS SETTING EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.634 ID=12.2	9-09150-512-0	02	1	9312-9505	●	●	●	●	●	●	●
68	07.388 BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.347 TOKICO	8-94224-694-0	02	1	9312-	●	●	●	●	●	●	●
73	07.347 NUT; BRKT,SHOCK EXC. FRT INDEPENDENT SUSPENSION(6PP) M12	9-99111-512-0	02	1	9312-	●	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97031-383-2	02	1	9312-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-000-1	02	1	9312-	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-613-0	01	1	9312-9711	●	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97141-876-0	01	1	9712-	●	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-616-0	01	1	9312-9711	●	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,DUMP CHASSIS(V4D),FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97141-877-0	01	1	9712-	●	●	●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (A)	8-97041-075-2	01	1	9312-9510		●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (A)	8-97113-932-0	01	1	9511-		●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (A)	8-97041-074-2	01	1	9312-9510		●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (A)	8-97113-930-0	01	1	9511-		●
168	07.380 BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52> (B)	8-97018-127-2	01	1	9312-			●
168	07.380 BRACKET; S/ABS,FRT SUSP DISC BRAKE FRT<J52> (B)	8-97018-126-2	01	1	9312-			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X25 FLANGE	0-28081-225-0	04	1	9312-9510	●
171	07.395 BOLT; S/ABS BRKT EXC. REAR WIDE TREAD(V4T) (A) M12X25 FLANGE	0-28081-225-0	04	1	9312-9510		●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X25 FLANGE	0-28081-225-0	04	1	9511-9703	●
171	07.395 BOLT; S/ABS BRKT FRAME-KICK UP<7EW> (A) M12X25 FLANGE	0-28081-225-0	04	1	9511-9703		●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28681-230-0	04	1	9704-	●
171	07.395 BOLT; S/ABS BRKT FRAME-KICK UP<7EW> (A) M12X30 FLANGE	0-28681-230-0	04	1	9704-		●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.840 (B) M10X35 W/LK&PL WASHER	0-50141-035-0	08	1	9312-	●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.704 (A) M10X30	0-20801-030-0	08	1	9312-9510	●
171	07.395 BOLT; S/ABS BRKT 03.704 (A) M10X30	0-20801-030-0	08	1	9312-9510			●	●	●		●
171	07.395 BOLT; S/ABS BRKT REAR WIDE TREAD(V4T) 03.704 (A) M10X30	0-20801-030-0	08	1	9312-9510		●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.704 (A) M10X30	0-20801-030-0	08	1	9511-9703	●
171	07.395 BOLT; S/ABS BRKT 03.704 (A) M10X30	0-20801-030-0	08	1	9511-9703			●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRAME-KICK UP<7EW> 03.704 (A) M10X30	0-20801-030-0	08	1	9511-9703		●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	9704-	●
171	07.395 BOLT; S/ABS BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	9704-			●	●	●	●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRAME-KICK UP<7EW> 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	9704-		●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	9312-9510	●
173	07.395 NUT; S/ABS EXC. REAR WIDE TREAD(V4T) 06.606 (B) M12	8-94139-015-0	02	1	9312-9510		●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	9511-	●
173	07.395 NUT; S/ABS FRAME-KICK UP<7EW> 06.606 (B) M12	8-94139-015-0	02	1	9511-		●
173	07.395 NUT; S/ABS 06.822 (A) M10	9-09111-410-0	02	1	9605-	●	●	●	●	●	●	●
173	07.395 NUT; S/ABS DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	06	1	9312-	●		●
173	07.395 NUT; S/ABS EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9312-9510	●		●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9312-9510				●	●		●
173	07.395 NUT; S/ABS REAR WIDE TREAD(V4T) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9312-9510		●
173	07.395 NUT; S/ABS EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9511-	●		●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9511-				●	●	●	●
173	07.395 NUT; S/ABS EXC. FRAME-KICK UP<7EW> 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9511-		●
183	07.436 SHACKLE; FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94468-235-2	04	1	9312-	●	●	●	●	●	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.172 ID=16.5	8-97070-925-1	06	1	9706-	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> 07.172 ID=16.5	8-97070-925-1	06	1	9706-		●	●	●	●	●	●
185	07.427 WASHER; LK,PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.172 ID=16.5	8-97070-925-1	06	1	9312-9705	●	●	●	●	●	●	●
186	07.105 BUSHING; SHACKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-531-0	12	1	9312-	●	●	●	●	●	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94150-265-2	02	1	9312-	●	●	●	●	●	●	●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=95	8-94127-916-3	02	1	9312-	●						●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=105	8-94252-452-4	02	1	9312-	●						●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59>, FRTINDEPENDENT SUSPENSION(6PP) L=95	8-94127-916-2	04	1	9312-9411	●				●		●
191	07.417 U-BOLT; FRT SPR DUMP CHASSIS(V4D) L=95	8-94127-916-2	04	1	9312-9411		●
191	07.417 U-BOLT; FRT SPR EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) L=95	8-94127-916-2	04	1	9312-9411			●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59>, FRTINDEPENDENT SUSPENSION(6PP) L=95	8-94127-916-2	04	1	9412-9510	●				●		●
191	07.417 U-BOLT; FRT SPR DUMP CHASSIS(V4D) L=95	8-94127-916-2	04	1	9412-9510		●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59>, FRTINDEPENDENT SUSPENSION(6PP) L=95	8-94127-916-3	04	1	9511-9711	●						●
191	07.417 U-BOLT; FRT SPR DUMP CHASSIS(V4D) L=95	8-94127-916-3	04	1	9511-9711		●
191	07.417 U-BOLT; FRT SPR EUROPEAN BASIC EQUIPMENT(EK4), ISRAELEQUIPMENT(7LX) L=95	8-94127-916-3	04	1	9511-9711			●
191	07.417 U-BOLT; FRT SPR L=95	8-94127-916-3	04	1	9511-9711					●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59>, FRTINDEPENDENT SUSPENSION(6PP) L=95	8-94127-916-3	04	1	9712-	●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59> L=95	8-94127-916-3	04	1	9712-							●
191	07.417 U-BOLT; FRT SPR DUMP CHASSIS(V4D) L=95	8-94127-916-3	04	1	9712-		●
191	07.417 U-BOLT; FRT SPR EUROPEAN BASIC EQUIPMENT(EK4) G.V.W. 3.5-4.0TON(RPQ) L=95	8-94127-916-3	04	1	9712-			●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.0-4.5TON(RPR) CHINA EQUIPMENT(YT2) L=95	8-94127-916-3	04	1	9712-			●
191	07.417 U-BOLT; FRT SPR L=95	8-94127-916-3	04	1	9712-					●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=105	8-94252-452-3	04	1	9312-9409		●	●	●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) L=105	8-94252-452-3	04	1	9410-9411		●	●	●
191	07.417 U-BOLT; FRT SPR G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),REFRIGERATOR CHASSIS(V4R) L=105	8-94252-452-3	04	1	9412-9510		●	●	●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) L=105	8-94252-452-4	04	1	9511-9711		●	●	●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) L=105	8-94252-452-4	04	1	9712-9801		●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.0-4.5TON(RPR) EXC. CHINA EQUIPMENT(YT2) L=105	8-94252-452-4	04	1	9712-9801			●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=105	8-94252-452-4	04	1	9712-9801			●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU) L=105	8-94252-452-4	04	1	9712-9801				●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D),FIRE TRUCK CHASSIS(V4F) L=105	8-94252-452-4	04	1	9802-		●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=105	8-94252-452-4	04	1	9802-			●	●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.0-4.5TON(RPR) EXC. CHINA EQUIPMENT(YT2) L=105	8-94252-452-4	04	1	9802-			●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.5-7.0TON(RPW) L=115	8-94138-988-1	04	1	9312-9409			●
191	07.417 U-BOLT; FRT SPR FIRE TRUCK CHASSIS(V4F) L=115	8-94138-988-1	04	1	9410-9510		●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.5-7.0TON(RPW) L=115	8-94138-988-1	04	1	9410-9510			●
191	07.417 U-BOLT; FRT SPR TAIWAN EQUIPMENT(RWV) FIRE TRUCK CHASSIS(V4F) L=115	8-94138-988-2	04	1	9511-9804		●
191	07.417 U-BOLT; FRT SPR L=115	8-94138-988-2	04	1	9511-9804						●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.5-7.0TON(RPW) L=115	8-94138-988-2	04	1	9511-9804			●
191	07.417 U-BOLT; FRT SPR TAIWAN EQUIPMENT(RWV) FIRE TRUCK CHASSIS(V4F) L=115	8-94138-988-2	04	1	9805-		●
191	07.417 U-BOLT; FRT SPR L=115	8-94138-988-2	04	1	9805-						●
192	07.436 PIECE; DIST EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.425	8-94249-413-1	02	1	9312-	●				●
193	07.417 NUT; U BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) M14 FLANGE	8-94137-483-0	08	1	9312-	●	●	●	●	●	●	●
197	07.427 PIN; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94117-900-1	02	1	9312-	●	●	●	●	●	●	●
199	07.427 BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.277 M10X22 W/LK WASHER	0-50041-022-0	02	1	9312-9703	●	●	●	●	●	●	●
199	07.427 BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9704-	●	●	●	●	●	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.870 M16	9-99110-416-0	06	1	9706-	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.870 M16	9-99110-416-0	06	1	9706-		●	●	●	●	●	●
201	07.427 NUT; PIN LK EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.870 M16	9-99110-416-0	06	1	9312-9705	●	●	●	●	●	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF>,FRT INDEPENDENT SUSPENSION(6PP) 07.529 M16 FLANGE	8-97147-389-0	06	1	9706-	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	06	1	9706-		●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
