◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#47052) — 218 parça

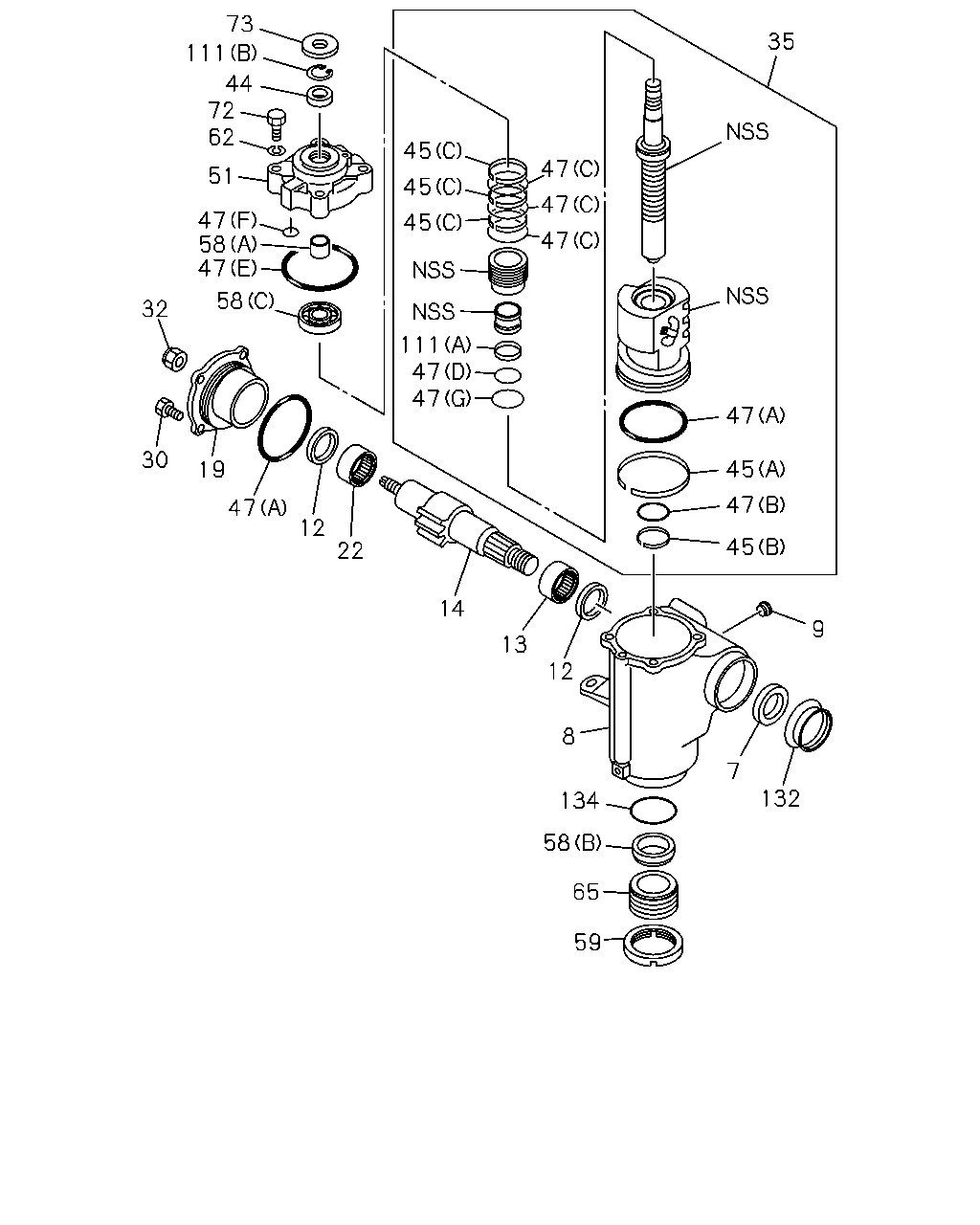

çizim 16603
73 35 111 44 72 62 45 47 51 45 47 47 58 47 45 47 58 32 111 47 47 47 30 45 19 47 47 12 45 22 14 9 13 12 8 7 132 134 58 65 59
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-576-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-577-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		5-09605-020-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-588-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-599-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-97093-601-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-733-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: C = 8-97069-706-0, 97069706 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-592-0 03 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: C = 8-97069-706-0, 97069706 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706 		9-09111-410-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-579-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-580-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: C = 8-97069-706-0, 97069706 		5-09625-070-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-94118-091-0 01 1 -
45 06.252 RING; RET
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-003-0 01 1 -
45 06.252 RING; RET
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-004-0 01 1 -
45 06.252 RING; RET
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-005-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
51 06.550 HOUSING; VALVE STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-584-0 01 1 -
51 06.550 HOUSING; VALVE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-585-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-036-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.826, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-041-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09820-019-2 01 1 -
59 06.521 NUT; COVER STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44259-003-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: C = 8-97069-706-0, 97069706 		8-94128-207-0 01 1 -
62 06.809 WASHER; HSG BOLT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09509-010-0 04 1 -
65 06.518 COVER; FRT,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44251-063-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-005-0 04 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-006-0 01 1 -
111 06.806 RING; BACKUP
06.552, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-006-0 01 1 -
111 06.806 RING; BACKUP
(B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-001-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
134 06.521 GASKET; COVER,STRG UNIT
06.825 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44159-027-0 01 1 -

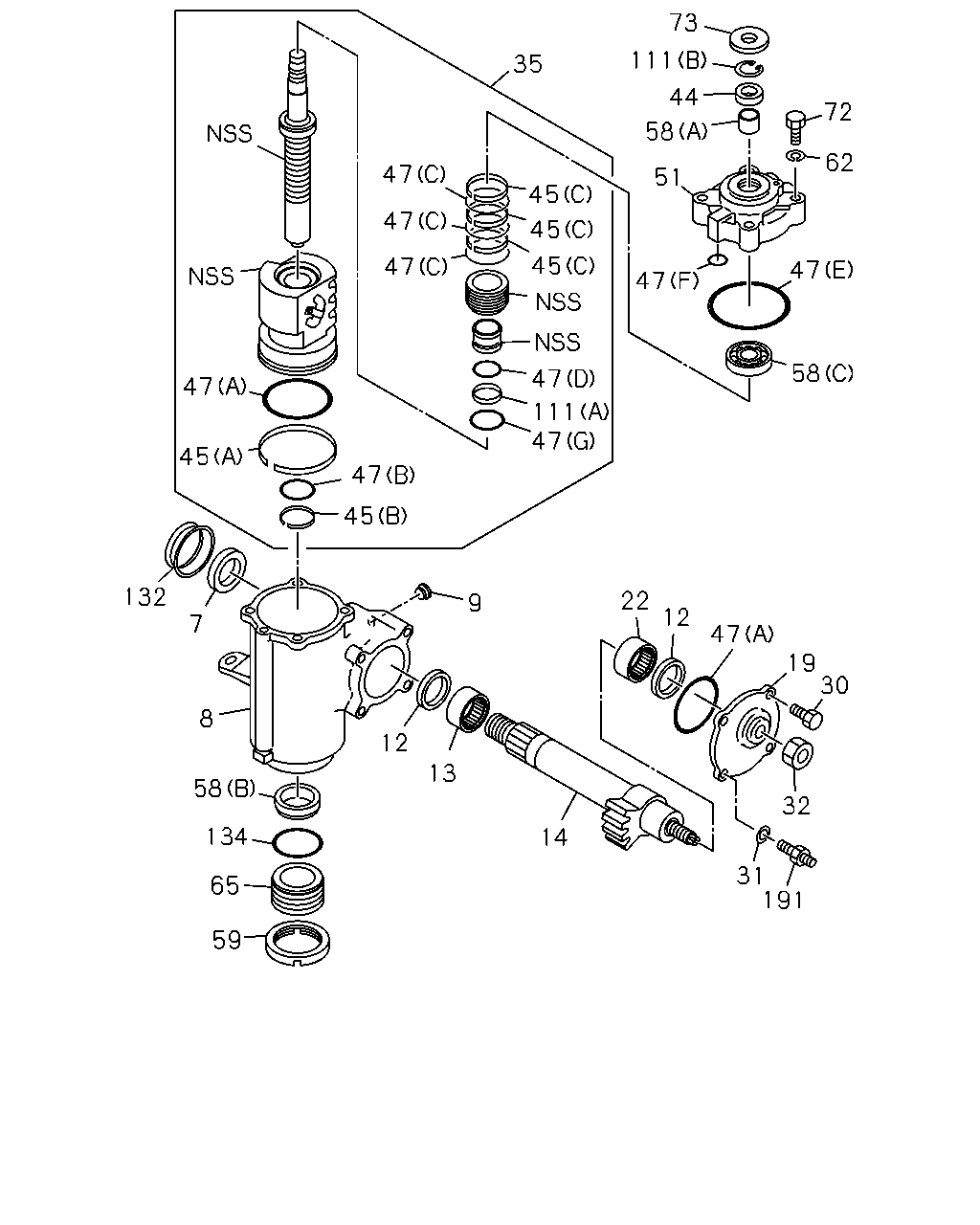

çizim 16855
73 111 35 44 72 58 62 47 51 45 47 45 45 47 47 47 58 47 47 111 47 45 47 45 132 22 9 12 7 47 19 30 8 12 13 58 32 134 14 31 191 65 59
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-576-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-577-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		5-09605-020-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-588-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-599-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-97093-601-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-733-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: C = 8-97069-706-0, 97069706 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-592-0 03 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: C = 8-97069-706-0, 97069706 		9-01911-022-0 04 1 -
31 06.809 WASHER; COVER STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		5-09509-010-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706 		9-09111-410-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-579-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-580-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: C = 8-97069-706-0, 97069706 		5-09625-070-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-94118-091-0 01 1 -
45 06.252 RING; RET
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-003-0 01 1 -
45 06.252 RING; RET
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-004-0 01 1 -
45 06.252 RING; RET
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-005-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
51 06.550 HOUSING; VALVE STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-584-0 01 1 -
51 06.550 HOUSING; VALVE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-585-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-036-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.826, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-041-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09820-019-2 01 1 -
59 06.521 NUT; COVER STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44259-003-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: C = 8-97069-706-0, 97069706 		8-94128-207-0 01 1 -
62 06.809 WASHER; HSG BOLT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09509-010-0 04 1 -
65 06.518 COVER; FRT,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44251-063-0 01 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-005-0 04 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-006-0 01 1 -
111 06.806 RING; BACKUP
06.552, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-006-0 01 1 -
111 06.806 RING; BACKUP
(B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-001-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
134 06.521 GASKET; COVER,STRG UNIT
06.825 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44159-027-0 01 1 -
191 06.809 STUD; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-594-0 01 1 -

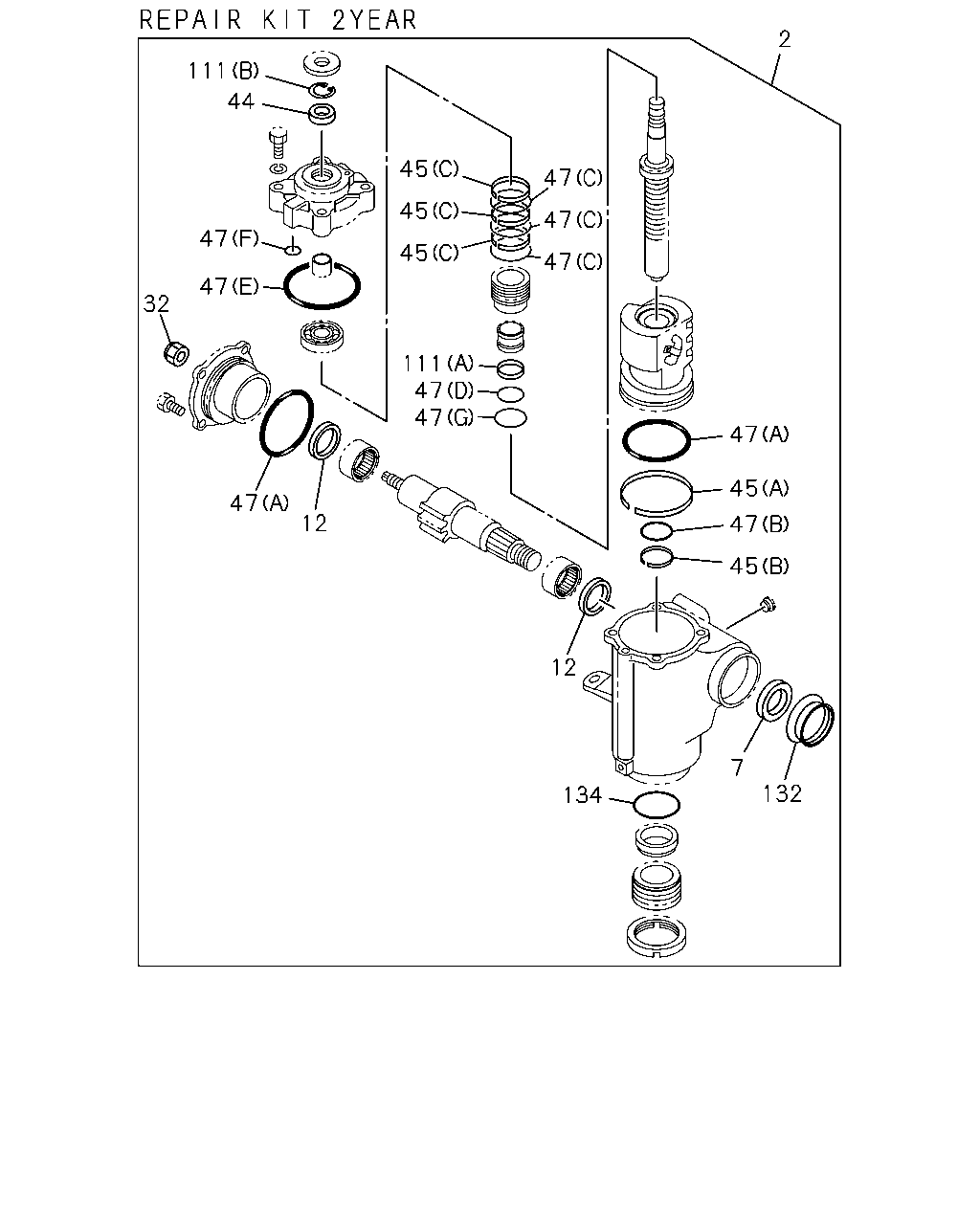

çizim 69136
2 111 44 45 47 45 47 47 45 47 47 32 111 47 47 47 45 47 12 47 45 12 7 132 134
BalonParca AdiParca NoAdetTipApplied Date
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-205-0 01 1 -
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 8-97069-704-1, 97069704 		8-97108-206-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		9-09924-502-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706 		9-09111-410-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: C = 8-97069-706-0, 97069706 		5-09625-070-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-94118-091-0 01 1 -
45 06.252 RING; RET
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-003-0 01 1 -
45 06.252 RING; RET
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-004-0 01 1 -
45 06.252 RING; RET
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-005-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
111 06.806 RING; BACKUP
06.552, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-006-0 01 1 -
111 06.806 RING; BACKUP
(B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-001-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
134 06.521 GASKET; COVER,STRG UNIT
06.825 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44159-027-0 01 1 -

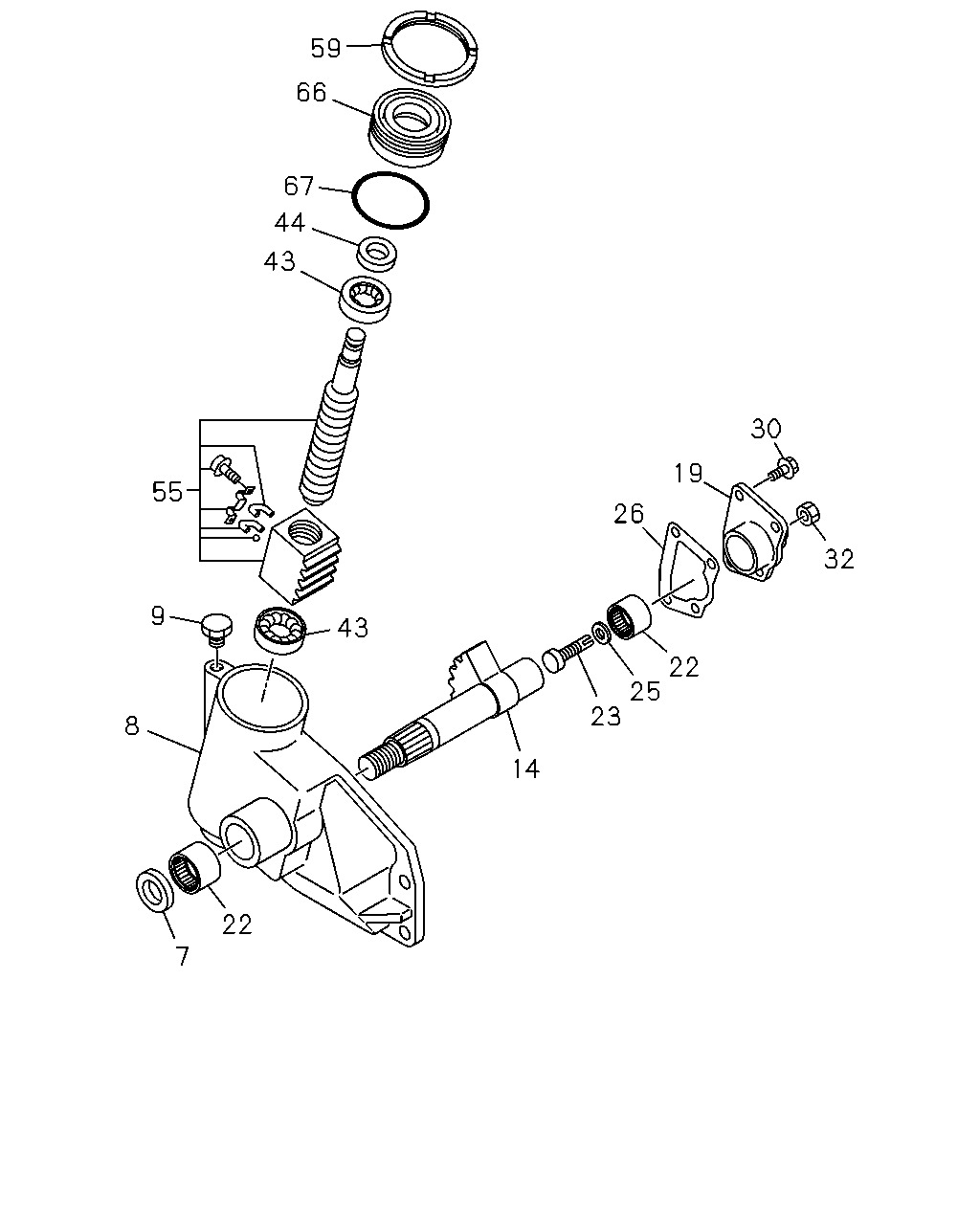

çizim 69137
59 66 67 44 43 30 19 55 26 32 9 43 22 25 23 8 14 22 7
BalonParca AdiParca NoAdetTipApplied Date
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		9-09924-502-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-576-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-577-0 01 1 -
8 06.803 BOX ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-213-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44249-037-0 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		5-09605-020-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-588-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-599-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-731-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-97093-601-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-733-0 01 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: C = 8-97069-706-0, 97069706 		5-09811-039-0 02 1 -
22 06.786 BEARING; SHAFT,COVER SIDE,STRG U
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-042-0 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: C = 8-97069-706-0, 97069706 		9-44277-014-0 01 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.515-1.535 ASM PART: C = 8-97069-706-0, 97069706 		9-44279-008-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.545-1.565 ASM PART: C = 8-97069-706-0, 97069706 		9-44279-009-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.575-1.595 ASM PART: C = 8-97069-706-0, 97069706 		9-44279-010-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.605-1.625 ASM PART: C = 8-97069-706-0, 97069706 		9-44279-011-0 AR 1 -
25 06.822 SHIM; ADJ SCREW,STRG UNIT
06.828, T=1.635-1.655 ASM PART: C = 8-97069-706-0, 97069706 		9-44279-012-0 AR 1 -
26 06.521 GASKET; COVER,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-737-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704 		8-97093-592-0 03 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97093-592-0 04 1 -
30 06.809 BOLT; COVER STRG UNIT
09.181, M10X22 ASM PART: C = 8-97069-706-0, 97069706 		9-01911-022-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706 		9-09111-410-0 01 1 -
43 06.525 BEARING; WORM SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-94128-202-0 02 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: C = 8-97069-706-0, 97069706 		5-09625-070-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-94118-091-0 01 1 -
55 06.524 WORM & BALL NUT ASM; STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97108-218-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
06.824 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44259-003-0 01 1 -
59 06.521 NUT; COVER STRG UNIT
M7.2 ASM PART: C = 8-97069-706-0, 97069706 		8-94128-207-0 01 1 -
66 06.518 COVER; REAR STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-735-0 01 1 -
67 06.825 SEAL; OIL,PLUG,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		8-97107-738-0 01 1 -

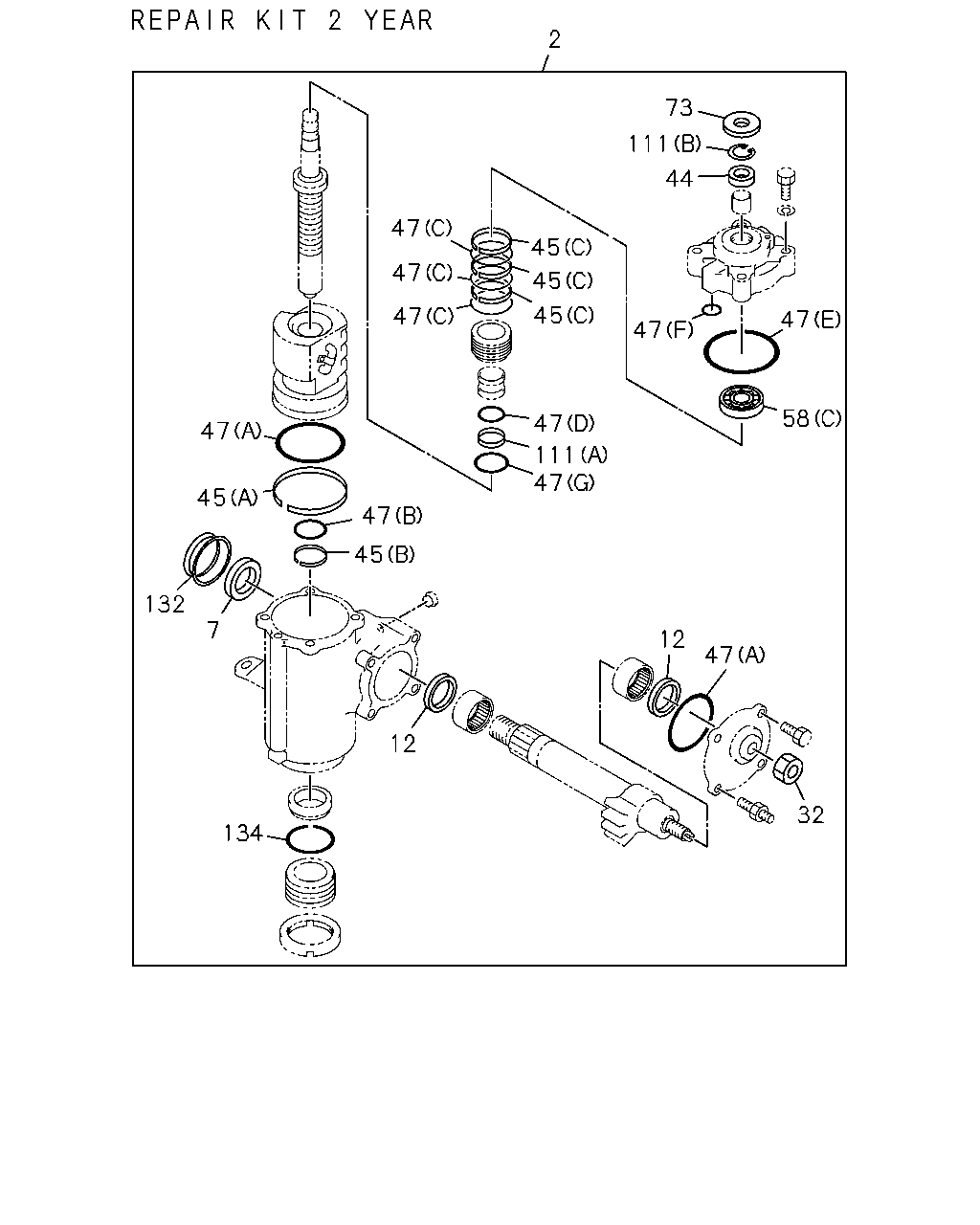

çizim 69179
2 73 111 44 47 45 47 45 45 47 47 47 58 47 47 111 47 45 47 45 132 7 12 47 12 32 134
BalonParca AdiParca NoAdetTipApplied Date
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-205-0 01 1 -
2 06.507 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 8-97069-704-1, 97069704 		8-97108-206-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		9-09924-502-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44277-002-0 01 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: C = 8-97069-706-0, 97069706 		9-09111-410-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.525 ASM PART: C = 8-97069-706-0, 97069706 		5-09625-070-0 01 1 -
44 06.840 SEAL; OIL,SHAFT STRG UNIT
06.806 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		8-94118-091-0 01 1 -
45 06.252 RING; RET
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-003-0 01 1 -
45 06.252 RING; RET
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-004-0 01 1 -
45 06.252 RING; RET
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-005-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-036-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.826, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09811-041-0 01 1 -
58 06.835 BEARING; HSG STRG UNIT
06.786, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09820-019-2 01 1 -
73 06.840 COVER; DUST,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-006-0 01 1 -
111 06.806 RING; BACKUP
06.552, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09629-006-0 01 1 -
111 06.806 RING; BACKUP
(B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-44579-001-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
134 06.521 GASKET; COVER,STRG UNIT
06.825 ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		1-44159-027-0 01 1 -
çizim 70441
1 132 12 47 7 12
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97069-704-1, 97069704 		8-97095-527-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-207-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		9-09924-502-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
çizim 70442
1 47 12 12 7 132
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97069-704-1, 97069704 		8-97095-527-0 01 1 -
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-207-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09625-068-0 01 1 -
7 06.855 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: C = 8-97069-706-0, 97069706 		9-09924-502-0 01 1 -
12 06.855 GASKET; SHAFT,STRG UNIT
ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09639-008-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (A) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-052-0 02 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.579, (B) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-053-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (C) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-054-0 03 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (D) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-055-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (E) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-056-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.809, (F) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-057-0 01 1 -
47 06.825 GASKET; HSG,STRG UNIT
06.552, (G) ASM PART: A = 8-97069-704-1, 97069704, B = 8-97069-705-1, 97069705 		5-09623-061-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
06.855 ASM PART: A = 8-97069-704-1, 97069704 		5-44329-004-0 01 1 -
132 06.822 COVER; DUST,STRG UNIT
ASM PART: B = 8-97069-705-1, 97069705 		8-97108-208-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
