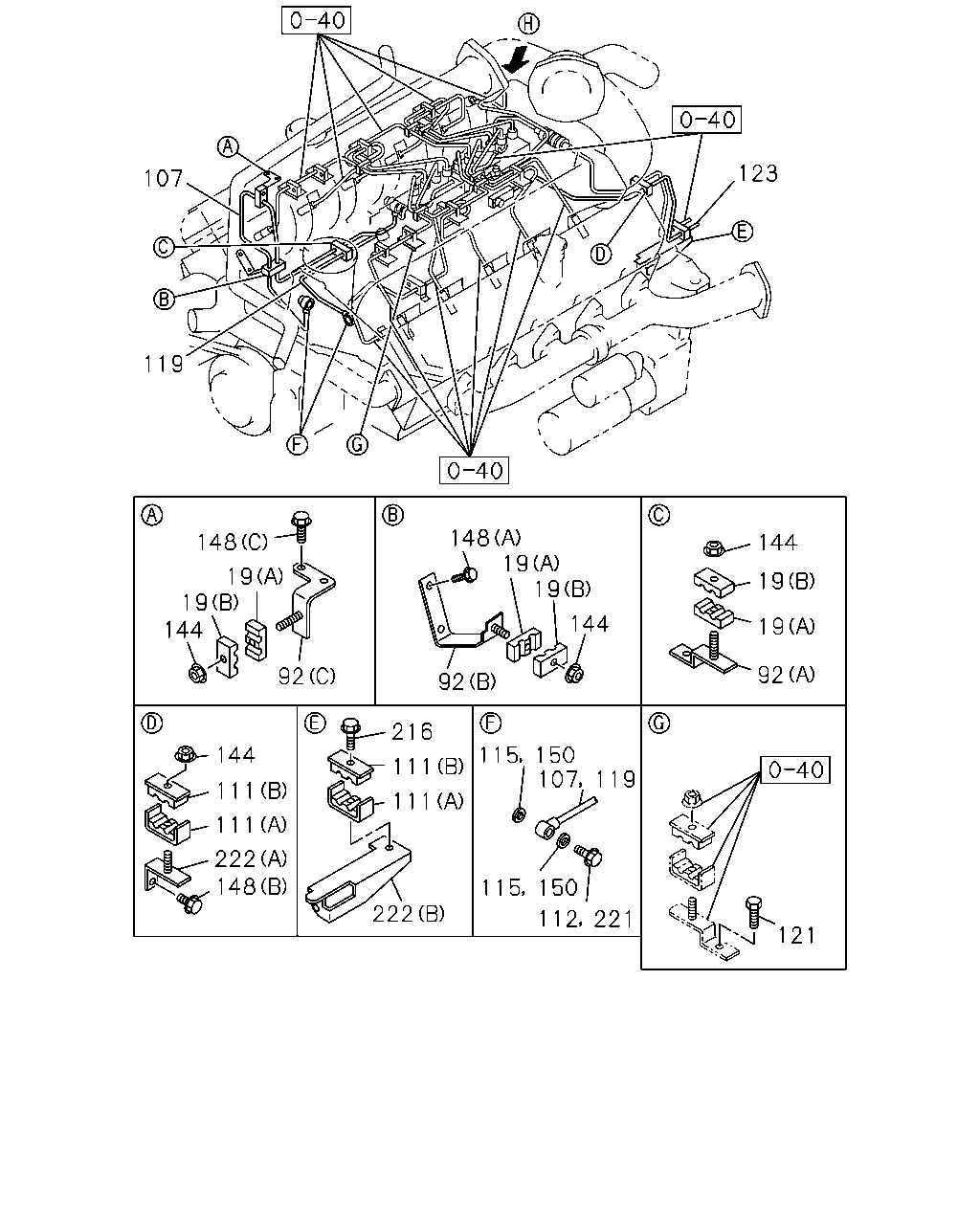

0-42B — FUEL PUMP AND PIPE (#4705) — 115 parça

123 107 119 148 19 19 148 144 19 19 144 19 144 19 92 92 92 216 115 150 107 144 111 119 111 111 111 222 148 115 150 222 112 221 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9603-9904	●
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9905-	●	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9603-9904	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	9905-	●	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9603-9702	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9603-9707	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9603-9603	●
92	BRACKET; FUEL PIPE RFD GOVERNOR(SD5) (B)	1-15419-462-0	01	1	9604-9707	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9703-9804	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9703-9801	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9703-9707	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9802	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9708-9709	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9708-9903	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9904-9904	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9710-9904	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9802-9903	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9803-9904	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9805-9904	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9904-9904	●
92	BRACKET; FUEL PIPE RFD GOVERNOR(SD5) (B)	1-15419-462-0	01	1	9708-9904	●
92	BRACKET; FUEL PIPE RLD GOVERNOR(SD7) (B)	1-15419-384-1	01	1	9604-9904	●
92	BRACKET; FUEL PIPE RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-15419-384-1	01	1	9905-0003	●
92	BRACKET; FUEL PIPE RLD GOVERNOR(SD7) (B)	1-15419-384-1	01	1	0004-		●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910	●	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-	●	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●	●
92	BRACKET; FUEL PIPE RFD GOVERNOR(SD5) (B)	1-15419-462-0	01	1	9905-	●		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-	●	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-	●	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-1	01	1	9603-9904	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	9905-	●	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9603-9904	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9905-	●	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-0	02	1	9603-9904	●
111	CLIP; FUEL PIPE (B)	1-09701-194-1	02	1	9905-	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9603-9804	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9706	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9707-9804	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9805-9904	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-0	01	1	9603-9809	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-0	01	1	9810-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-1	01	1	9905-	●	●	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9603-9706	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9707-9804	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9805-9904	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9905-	●	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-659-1	01	1	9603-9904	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-659-1	01	1	9905-	●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9603-9904	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9905-	●	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9603-9603	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9603	●
148	BOLT; BRKT (C) M10X20 FLANGE	0-28181-020-0	02	1	9603-9603	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9604-9606	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9604-9606	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9607-9904	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9607-9702	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9703-9904	●
148	BOLT; BRKT RFD GOVERNOR(SD5) (C) M10X20 FLANGE	0-28181-020-0	02	1	9604-9904	●
148	BOLT; BRKT RFD GOVERNOR(SD5) (C) M10X20 FLANGE	0-28181-020-0	02	1	9905-	●		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-	●	●	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-	●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9603-9904	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9905-	●	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-9904	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9603-9904	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9905-	●	●	●
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	9603-9904	●
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	9905-	●	●	●

92 92 148 148 92 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9603-9702	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9603-9707	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9603-9603	●
92	BRACKET; FUEL PIPE RFD GOVERNOR(SD5) (B)	1-15419-462-0	01	1	9604-9707	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9703-9804	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9703-9801	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9703-9707	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9802	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9708-9709	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9708-9903	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9904-9904	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9710-9904	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9802-9903	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9803-9904	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9805-9904	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9904-9904	●
92	BRACKET; FUEL PIPE RFD GOVERNOR(SD5) (B)	1-15419-462-0	01	1	9708-9904	●
92	BRACKET; FUEL PIPE RLD GOVERNOR(SD7) (B)	1-15419-384-1	01	1	9604-9904	●
92	BRACKET; FUEL PIPE RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) (B)	1-15419-384-1	01	1	9905-0003	●
92	BRACKET; FUEL PIPE RLD GOVERNOR(SD7) (B)	1-15419-384-1	01	1	0004-		●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910	●	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-	●	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●	●
92	BRACKET; FUEL PIPE RFD GOVERNOR(SD5) (B)	1-15419-462-0	01	1	9905-	●		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-	●	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-	●	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9603-9603	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9603	●
148	BOLT; BRKT (C) M10X20 FLANGE	0-28181-020-0	02	1	9603-9603	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9604-9606	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9604-9606	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9607-9904	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9607-9702	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9703-9904	●
148	BOLT; BRKT RFD GOVERNOR(SD5) (C) M10X20 FLANGE	0-28181-020-0	02	1	9604-9904	●
148	BOLT; BRKT RFD GOVERNOR(SD5) (C) M10X20 FLANGE	0-28181-020-0	02	1	9905-	●		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-	●	●	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-	●	●	●
