◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#47049) — 82 parça
çizim 15953
4 3 1 36 34 9 117 36 116
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.859 ARM; PITMAN,STRG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-552-2 01 1 9312- ●
1 06.859 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-929-0 01 1 9312-9503 ● ● ● ● ● ● ●
1 06.859 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-289-1 01 1 9504- ● ● ● ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5 		9-09150-527-0 01 1 9312- ●
3 06.861 WASHER; LK,PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5 		9-09150-522-0 01 1 9312- ● ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) M27 		5-12378-002-0 01 1 9312- ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 M22 		9-09111-522-0 01 1 9312- ● ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) M18 SLOTTED 		8-97017-761-0 01 1 9712- ● ● ● ● ● ● ●
9 06.870 LINK; DRAG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-496-2 01 1 9312- ●
9 06.870 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97034-285-2 01 1 9312-9711 ● ● ● ● ● ● ●
9 06.870 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97175-323-0 01 1 9712- ● ● ● ● ● ● ●
34 06.233 NUT; DRAG LINK TO PITMAN ARM
06.861 M18 SLOTTED 		8-97017-761-0 01 1 9312-9711 ● ● ● ● ● ● ●
34 06.233 NUT; DRAG LINK TO PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED 		8-97017-761-0 01 1 9712- ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 03 1 9312- ●
36 06.881 PIN; SPLIT,DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9312-9510 ● ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9511-9711 ● ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9511-9711 ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9511-9711 ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9712- ● ● ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 02 1 9312-9510 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9511-9711 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9712- ● ● ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9712- ●
117 06.233 NUT; DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED 		8-97017-761-0 02 1 9312- ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 9312- ● ● ● ● ● ● ●

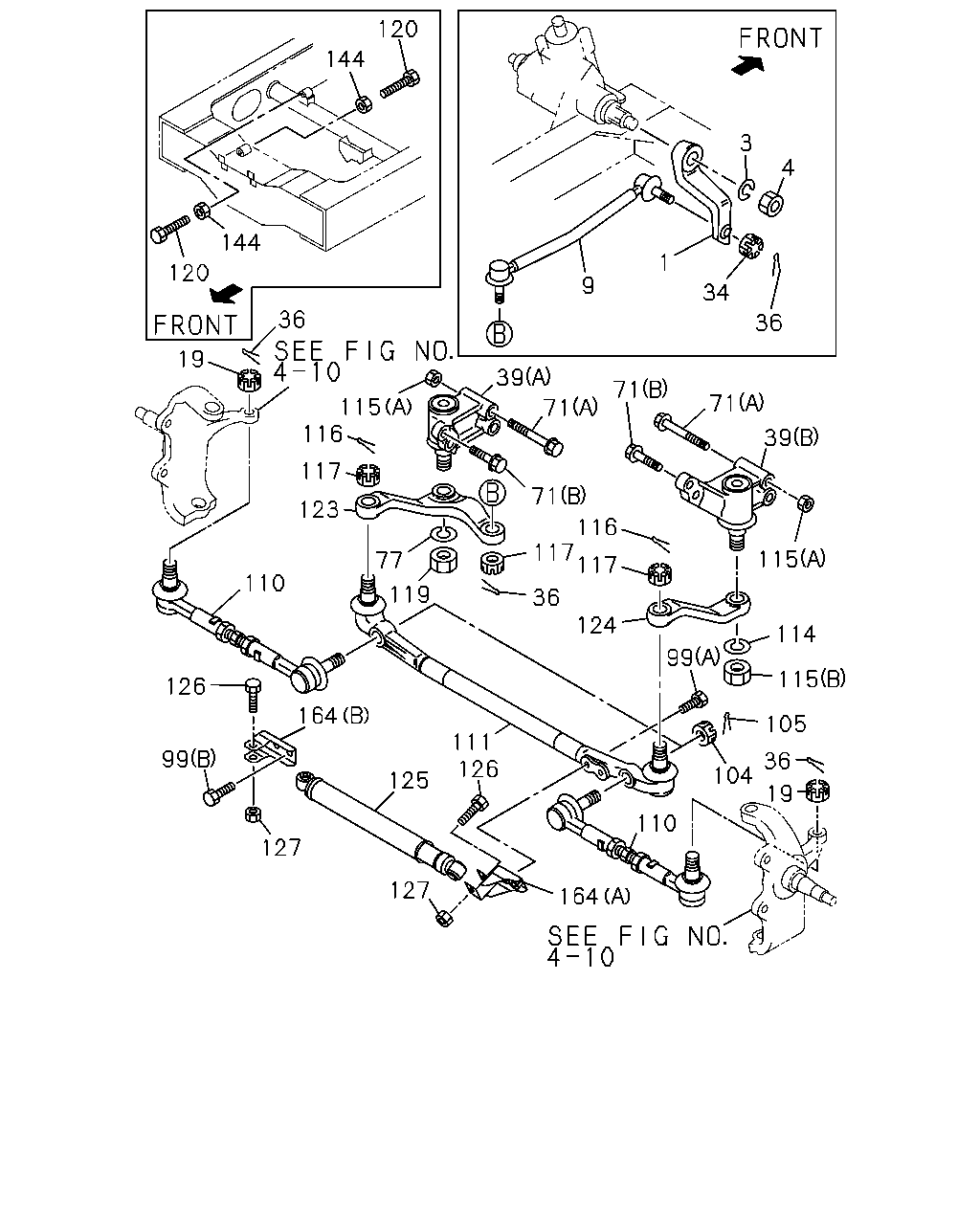

çizim 16602
120 144 3 4 144 1 120 9 34 36 36 19 39 71 71 115 116 71 39 117 71 123 116 117 117 115 77 110 119 36 124 114 99 115 126 164 105 111 126 99 36 104 125 19 110 127 127 164
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.859 ARM; PITMAN,STRG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-552-2 01 1 9312- ●
1 06.859 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97032-929-0 01 1 9312-9503 ● ● ● ● ● ● ●
1 06.859 ARM; PITMAN,STRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-289-1 01 1 9504- ● ● ● ● ● ● ●
3 06.861 WASHER; LK,PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5 		9-09150-527-0 01 1 9312- ●
3 06.861 WASHER; LK,PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=22.5 		9-09150-522-0 01 1 9312- ● ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) M27 		5-12378-002-0 01 1 9312- ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.915 M22 		9-09111-522-0 01 1 9312- ● ● ● ● ● ● ●
4 06.861 NUT; PITMAN ARM
EXC. FRT INDEPENDENT SUSPENSION(6PP) M18 SLOTTED 		8-97017-761-0 01 1 9712- ● ● ● ● ● ● ●
9 06.870 LINK; DRAG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97070-496-2 01 1 9312- ●
9 06.870 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97034-285-2 01 1 9312-9711 ● ● ● ● ● ● ●
9 06.870 LINK; DRAG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97175-323-0 01 1 9712- ● ● ● ● ● ● ●
19 06.865 NUT; PITMAN ARM,STOPPER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97017-762-0 02 1 9312- ●
34 06.233 NUT; DRAG LINK TO PITMAN ARM
06.861 M18 SLOTTED 		8-97017-761-0 01 1 9312-9711 ● ● ● ● ● ● ●
34 06.233 NUT; DRAG LINK TO PITMAN ARM
FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED 		8-97017-761-0 01 1 9712- ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 03 1 9312- ●
36 06.881 PIN; SPLIT,DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9312-9510 ● ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9511-9711 ● ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9511-9711 ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9511-9711 ● ● ● ● ● ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9712- ● ● ● ● ● ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97107-325-0 01 1 9312-9712 ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97189-457-0 01 1 9801- ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97107-324-0 01 1 9312-9712 ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97189-455-0 01 1 9801- ●
71 06.896 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (A) M12X93.5 		8-97085-383-0 04 1 9312- ●
71 06.896 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (B) M12X43.5 		8-97085-384-0 04 1 9312- ●
71 06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 07.172 (A) M12X90 		0-10811-290-0 04 1 9312-9711 ●
71 06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 00.780 (A) M12X90 		0-28081-290-0 04 1 9712- ●
71 06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 03.890 (B) M12X40 		9-92061-240-0 04 1 9312- ●
77 06.897 WASHER; LK,RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2 		9-09150-520-0 01 1 9312- ●
99 06.896 BOLT; BRKT
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 09.008 (B) M10X20 FLANGE 		0-28081-020-0 02 1 9312-9704 ●
99 06.896 BOLT; BRKT
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 02 1 9705- ●
99 06.896 BOLT; BRKT
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 00.685 (A) M10X50 FLANGE 		0-28081-050-0 02 1 9312- ●
104 06.233 NUT; ROD END
FRT INDEPENDENT SUSPENSION(6PP) 06.234 M16 SLOTTED 		1-09442-021-1 02 1 9312- ●
105 06.865 PIN; SPLIT,ROD END
FRT INDEPENDENT SUSPENSION(6PP) 06.022 OD=3.7 L=25 		9-08114-025-0 02 1 9312- ●
110 06.870 ROD; TRACK,OUTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97076-008-0 02 1 9312-9401 ●
110 06.870 ROD; TRACK,OUTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97107-318-0 02 1 9402- ●
111 06.870 ROD; TRACK,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-180-2 01 1 9312- ●
114 06.515 WASHER; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2 		9-09150-520-0 01 1 9312- ●
115 06.896 NUT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) 06.606 (A) M12 		8-94139-015-0 08 1 9312- ●
115 06.896 NUT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M20 		9-99111-520-0 01 1 9312- ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 02 1 9312-9510 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9511-9711 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9712- ● ● ● ● ● ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9712- ●
117 06.233 NUT; DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED 		8-97017-761-0 02 1 9312- ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 9312- ● ● ● ● ● ● ●
119 06.897 NUT; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 08.915 M20 		9-99111-520-0 01 1 9312- ●
120 06.897 BOLT; RELAY LEVER STOPPER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97014-919-0 02 1 9312- ●
123 06.895 LEVER; RELAY,RH
FRT INDEPENDENT SUSPENSION(6PP) 		8-97061-692-0 01 1 9312- ●
124 06.859 LEVER; RELAY,STRG LINKAGE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97036-547-1 01 1 9312- ●
125 06.865 DAMPER; STEERING
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-618-2 01 1 9312- ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 00.685 M10X45 FLANGE 		0-28081-045-0 02 1 9312- ●
127 06.865 NUT; STRG DAMPER
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE 		0-91150-210-0 02 1 9312- ●
144 06.896 NUT; STOPPER BRKT
FRT INDEPENDENT SUSPENSION(6PP) 05.816 M12 		9-99110-412-0 02 1 9312- ●
164 06.896 BRACKET; STEERING DAMPER
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97012-595-2 01 1 9312- ●
164 06.896 BRACKET; STEERING DAMPER
SHIMMY DAMPER<S3V> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97025-765-1 01 1 9312- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
