◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#47043) — 86 parça
çizim 69407
241 181 225 91 224 89 181 324
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
89 04.785 BRACKET; CLIP 8-97113-984-1 01 1 9712- ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
ID=13 L=50 		9-09525-286-0 01 1 9712- ● ● ● ● ● ●
181 04.785 BOLT; BRKT
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9503 ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9504-9711 ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ●
224 04.785 BOLT; CABLE CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ● ● ● ●
241 04.785 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ●
241 04.785 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ●
324 04.785 BRACKET
(B) 		8-97063-090-1 01 1 9312-9711 ● ● ● ● ● ●
324 04.785 BRACKET
(A) 		8-97105-721-0 01 1 9312-9711 ● ● ● ● ● ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97101-814-2 01 1 9312-9510 ● ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97101-814-2 01 1 9511-9711 ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97101-815-2 01 1 9312-9510 ● ●
324 04.785 BRACKET
(D) 		8-97101-815-2 01 1 9312-9510 ●
324 04.785 BRACKET
(D) 		8-97101-815-2 01 1 9511-9711 ● ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97101-815-2 01 1 9511-9711 ●
324 04.785 BRACKET
(D) 		8-97101-815-2 01 1 9712- ● ● ●

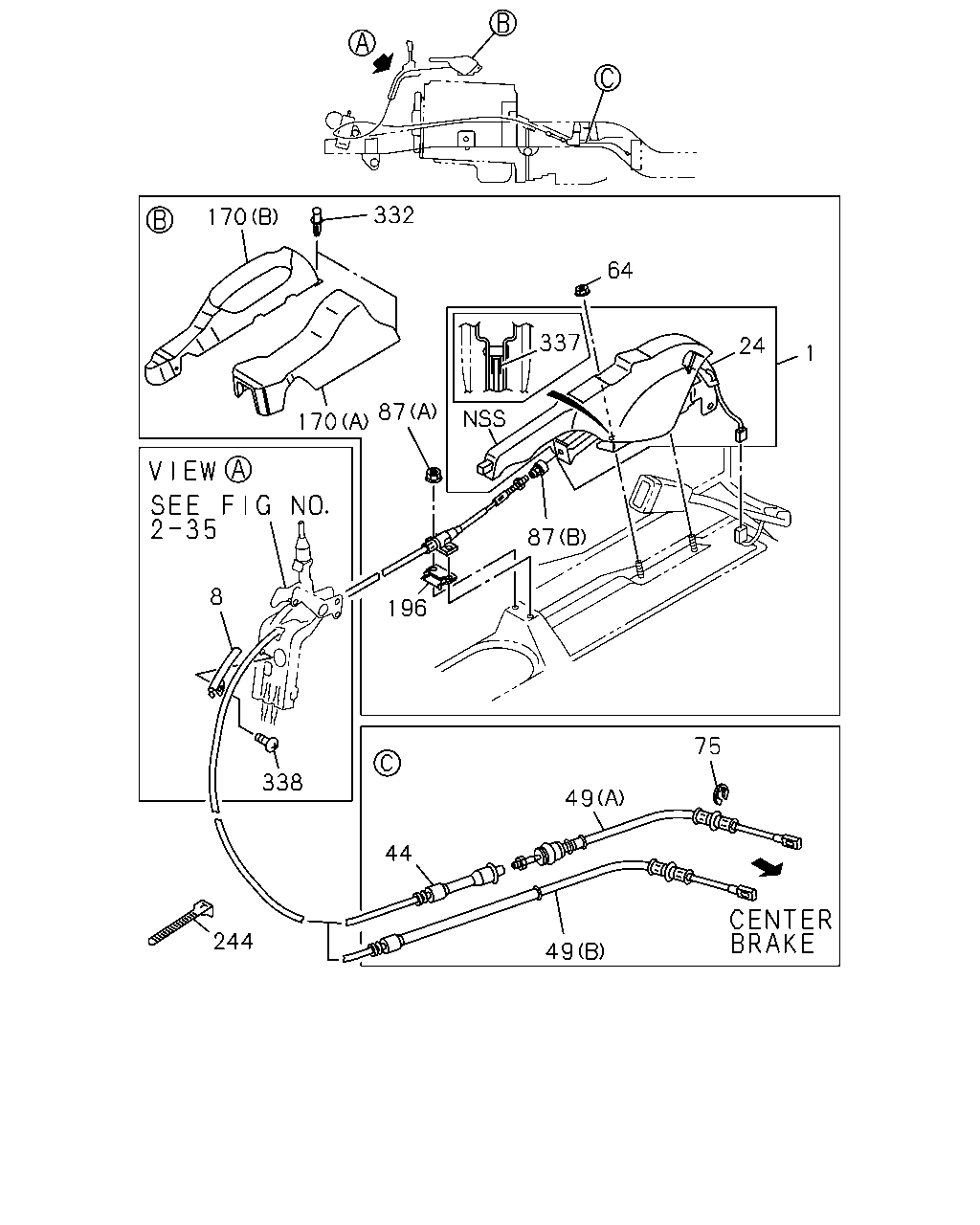

çizim 69443
332 64 337 24 87 8 196 75 338 49 244 49 1 170 170 87 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
DARK BEIGE 		8-97856-804-5 01 1 9312-9710 ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK BEIGE 		8-97890-436-0 01 1 9711-9711 ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-438-1 01 1 9712- ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK BEIGE 		8-97856-338-5 01 1 9312-9710 ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK BEIGE 		8-97890-437-0 01 1 9711-9711 ● ● ●
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-439-1 01 1 9712- ● ● ●
8 04.592 GUIDE; PARKING BRK 8-97071-939-0 01 1 9312- ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97857-198-1 01 1 9312-9710 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9711- ● ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT 8-97063-121-8 01 1 9312-9504 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT 8-97118-186-0 01 1 9505-9607 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT 8-97176-235-0 01 1 9608-9711 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT 8-97070-622-5 01 1 9312-9504 ● ● ●
44 04.779 CABLE; PARKING BRK,FRT 8-97118-409-0 01 1 9505-9711 ● ● ●
49 04.779 CABLE; PARKING BRK
(A) 		8-97063-103-5 01 1 9312-9706 ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
(A) 		8-97184-193-0 01 1 9707-9709 ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
(A) 		8-97184-268-0 01 1 9710-9711 ● ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
(B) 		8-97184-270-0 01 1 9712- ● ● ●
49 04.779 CABLE; PARKING BRK
(B) 		8-97184-272-0 01 1 9712- ● ● ●
64 04.595 NUT; PARKING BRK
08.857 M8 FLANGE 		8-94279-060-0 02 1 9312-9507 ● ● ● ● ● ●
64 04.595 NUT; PARKING BRK
03.417 M8 FLANGE 		8-94279-517-0 02 1 9508-9605 ● ● ● ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 9606- ● ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12 		9-09185-412-0 01 1 9312- ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9312- ● ● ● ● ● ●
87 04.785 NUT
(B) 		8-97088-730-1 01 1 9312- ● ● ● ● ● ●
170 04.595 COVER; PARKING BRK LEVER
(A) DARK BEIGE 		8-97097-008-0 01 1 9312-9711 ● ● ●
170 04.595 COVER; PARKING BRK LEVER
(A) DARK GRAY 		8-97155-172-0 01 1 9712- ● ● ●
170 04.595 COVER; PARKING BRK LEVER
(B) 		8-97097-012-0 01 1 9312-9711 ● ● ●
170 04.595 COVER; PARKING BRK LEVER
(B) DARK GRAY 		8-97158-915-0 01 1 9712- ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97066-277-2 01 1 9312- ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97095-464-2 01 1 9312- ● ● ●
244 04.785 CLIP; BAND
03.162 L=140 		5-09707-031-0 01 1 9312-9405 ● ● ● ● ● ●
244 04.785 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 9406- ● ● ●
332 04.785 CLIP; COVER
03.602 D6X12.5 		8-94146-425-0 01 1 9312- ● ● ● ● ● ●
337 04.592 SILENCER; PARKING BRK 8-97857-230-0 01 1 9312-9510 ● ● ● ● ● ●
338 04.785 SCREW; GUIDE
16.270 M6X10 		9-03497-610-0 01 1 9312- ● ● ●

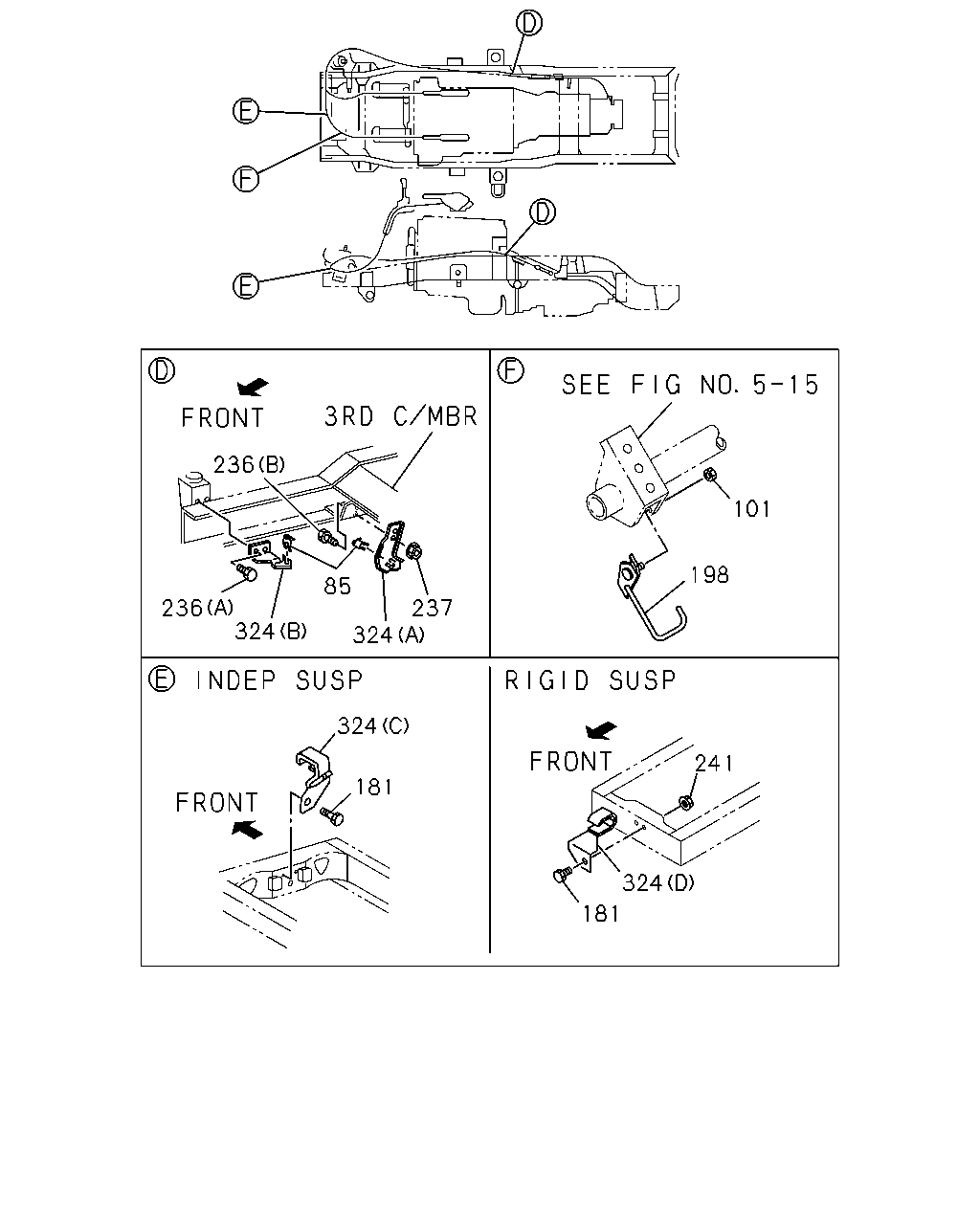

çizim 69444
236 101 198 85 236 324 237 324 324 241 181 181 324
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
85 04.785 CLIP; BRKT 8-97084-216-0 02 1 9312-9711 ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER
FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE 		0-91150-208-0 01 1 9401-9503 ● ●
101 04.785 NUT; CABLE TO LEVER
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9504-9510 ● ●
101 04.785 NUT; CABLE TO LEVER
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ●
181 04.785 BOLT; BRKT
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9503 ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9504-9711 ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ● ● ● ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9712- ● ● ●
198 04.785 BRACKET; CABLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-818-0 01 1 9401-9510 ● ●
198 04.785 BRACKET; CABLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97109-818-0 01 1 9511-9711 ●
236 04.785 BOLT; BRKT TO FRAME
07.010 (A) M8X20 FLANGE 		0-28080-820-0 02 1 9312-9503 ● ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9504-9711 ● ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
09.008 (B) M10X20 FLANGE 		0-28081-020-0 02 1 9312-9711 ● ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 02 1 9312-9711 ● ● ● ● ● ●
241 04.785 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ● ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9510 ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ● ●
241 04.785 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711 ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ● ●
324 04.785 BRACKET
(B) 		8-97063-090-1 01 1 9312-9711 ● ● ● ● ● ●
324 04.785 BRACKET
(A) 		8-97105-721-0 01 1 9312-9711 ● ● ● ● ● ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97101-814-2 01 1 9312-9510 ● ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97101-814-2 01 1 9511-9711 ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97101-815-2 01 1 9312-9510 ● ●
324 04.785 BRACKET
(D) 		8-97101-815-2 01 1 9312-9510 ●
324 04.785 BRACKET
(D) 		8-97101-815-2 01 1 9511-9711 ● ●
324 04.785 BRACKET
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97101-815-2 01 1 9511-9711 ●
324 04.785 BRACKET
(D) 		8-97101-815-2 01 1 9712- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
