3-10 — BRAKE PEDAL AND CONTROL (#47042) — 90 parça

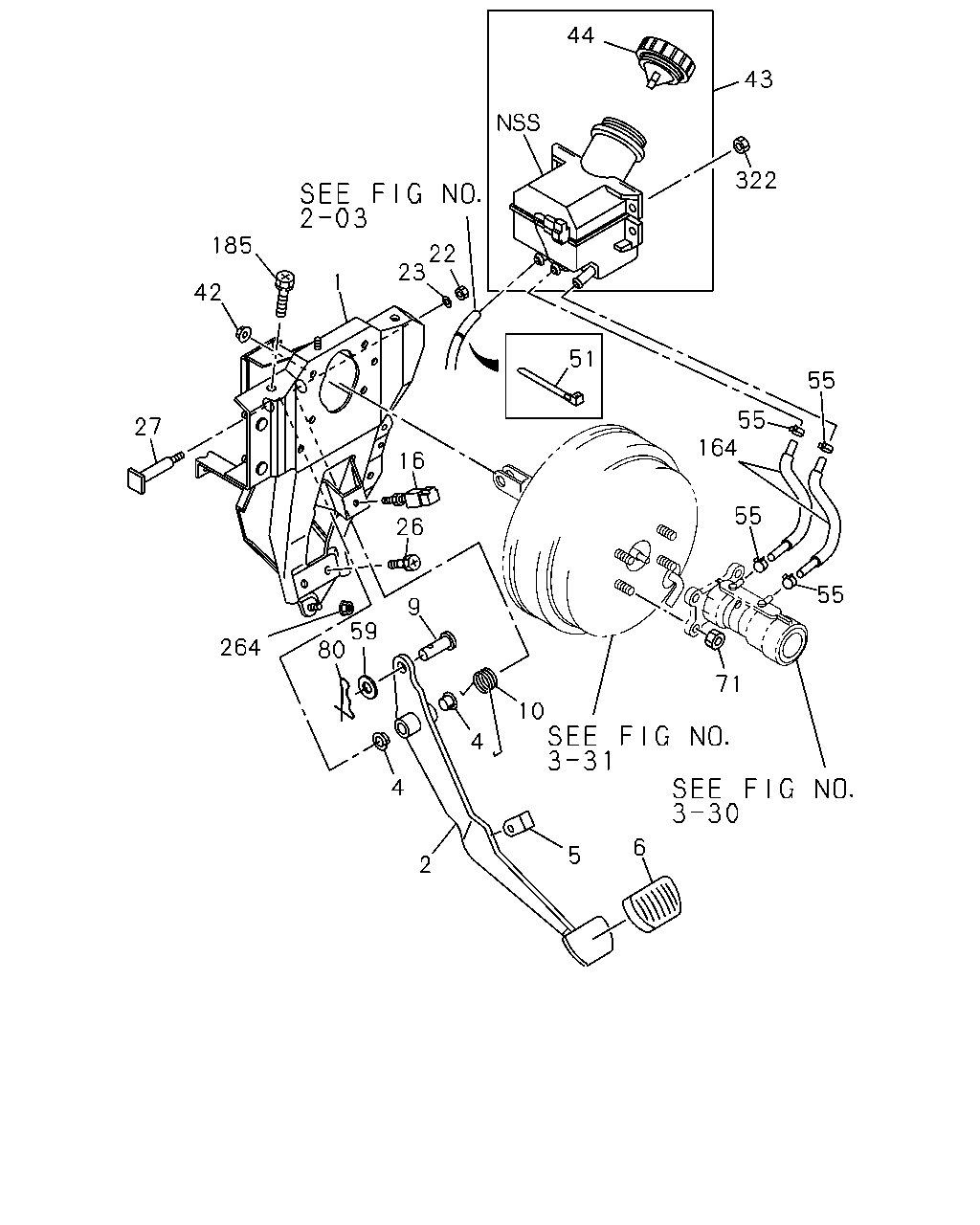

43 322 185 22 23 42 51 55 55 164 27 16 55 26 55 9 59 80 264 6 5 2 1 44 4 4 10 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.634 BRACKET ASM; PEDAL	8-97853-209-8	01	1	9312-	●	●	●
1	04.634 BRACKET ASM; PEDAL	8-97857-042-6	01	1	9312-				●	●	●
2	04.625 PEDAL; BRK	8-97853-210-2	01	1	9312-	●	●	●
2	04.625 PEDAL; BRK	8-97856-336-1	01	1	9312-				●	●	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	9312-	●	●	●	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-0	01	1	9312-	●	●	●	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-1	01	1	9312-	●	●	●	●	●	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	9312-	●	●	●	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	9312-	●	●	●	●	●	●
16	02.447 SWITCH; STOP LAMP	8-94118-754-1	01	1	9312-9403	●	●	●	●	●	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	9404-	●	●	●	●	●	●
22	04.634 NUT; SHAFT 09.011 M10	9-09110-410-0	01	1	9312-9407	●	●	●	●	●	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	9408-	●	●	●	●	●	●
23	04.634 WASHER; LK,SHAFT 00.002 ID=10.2	9-09150-610-0	01	1	9312-9407	●	●	●	●	●	●
26	04.634 BOLT; PEDAL 09.003 M10X25	1-09980-494-0	02	1	9312-9511	●	●	●	●	●	●
26	04.634 BOLT; PEDAL M10X22 W/WASHER	8-94279-099-0	02	1	9512-	●	●	●	●	●	●
27	04.634 SHAFT; BRK PEDAL 00.833	8-97853-213-0	01	1	9312-9511	●	●	●	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	9512-	●	●	●	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9312-	●	●	●	●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52>	8-97049-566-4	01	1	9312-9510	●	●	●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52>	8-97049-566-4	01	1	9511-9711					●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>	8-97049-568-4	01	1	9312-9510	●	●	●	●	●
43	04.651 TANK ASM; OIL	8-97049-568-4	01	1	9312-9510						●
43	04.651 TANK ASM; OIL	8-97049-568-4	01	1	9511-9711	●	●	●	●		●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>	8-97049-568-4	01	1	9511-9711					●
43	04.651 TANK ASM; OIL	8-97049-568-4	01	1	9712-	●	●	●	●	●	●
44	04.651 CAP; OIL TANK	8-97095-698-0	01	1	9312-	●	●	●	●	●	●
51	04.681 CLIP; HOSE,OIL TANK 03.162 L=140	5-09707-031-1	01	1	9312-	●	●	●
55	04.681 CLIP; RUBBER HOSE	8-97094-435-0	04	1	9312-9507	●	●	●	●	●	●
55	04.681 CLIP; RUBBER HOSE	8-97130-480-0	04	1	9508-	●	●	●	●	●	●
59	04.634 WASHER; PL,JAW JOINT 02.575 ID=15	9-09160-514-0	01	1	9312-	●	●	●	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9312-	●	●	●	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	9312-	●	●	●	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK L=136	8-97075-304-1	01	1	9312-9507	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK L=136 L=136	8-97135-013-0	01	1	9508-	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK L=165	8-97075-305-1	01	1	9312-9507	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK L=165 L=165	8-97135-014-0	01	1	9508-	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK	8-97076-051-0	02	1	9312-9507				●	●	●
164	04.681 HOSE; RUBBER,OIL TANK L=310	8-97135-019-0	02	1	9508-				●	●	●
185	04.634 BOLT; BRKT 00.829 M10X25	8-94279-212-0	02	1	9312-9603	●	●	●	●	●	●
185	04.634 BOLT; BRKT 09.003 M10X25 FLANGE	0-28691-025-0	02	1	9604-	●	●	●	●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 03.417 M8 FLANGE	8-94279-517-0	01	1	9312-9609	●	●	●	●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	9610-	●	●	●	●	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	04	1	9312-9412	●	●	●	●	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	9501-	●	●	●	●	●	●

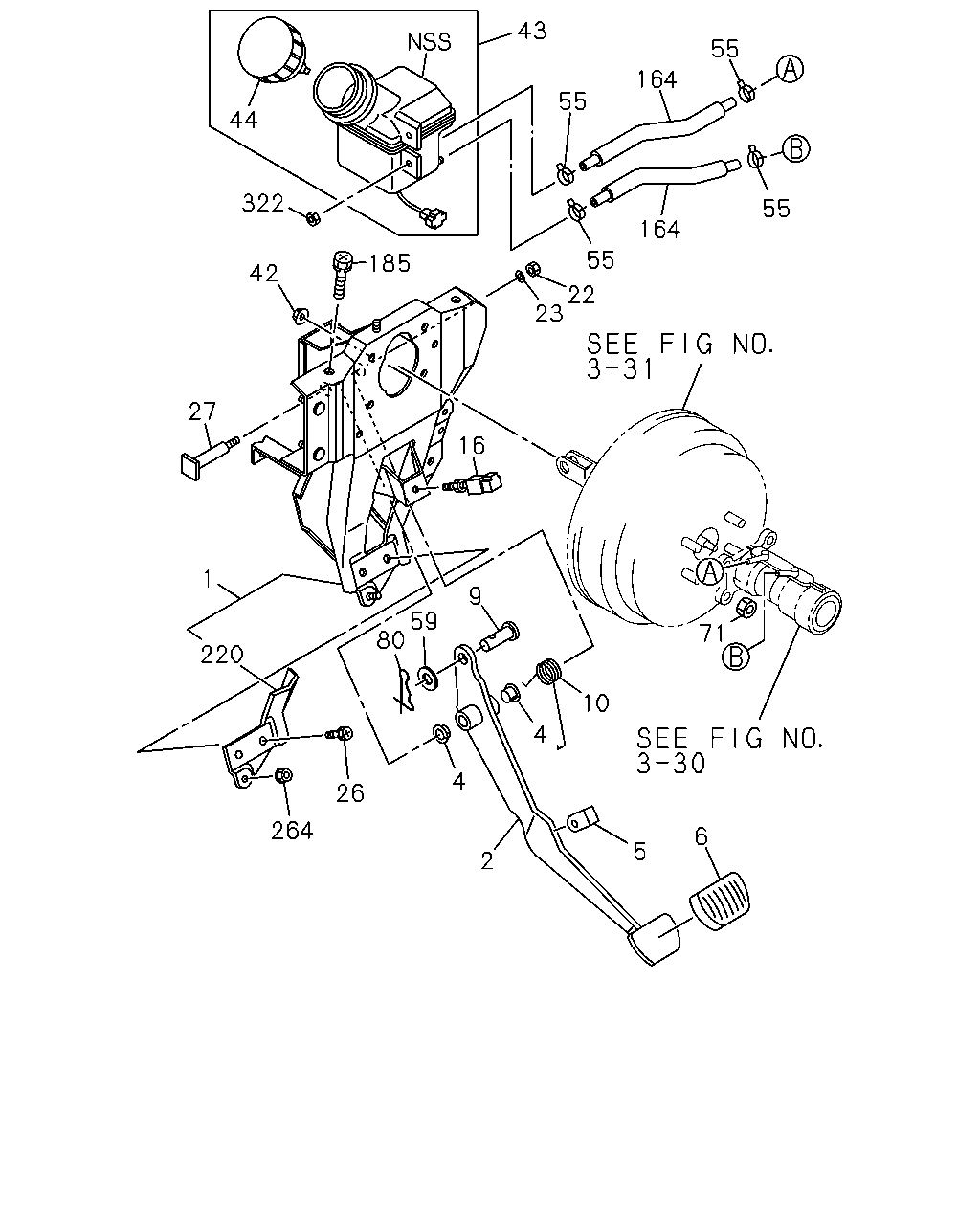

43 55 164 55 44 322 55 164 55 22 23 185 42 16 27 1 59 80 71 220 10 4 4 26 264 6 5 2 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.634 BRACKET ASM; PEDAL	8-97853-209-8	01	1	9312-	●	●	●
1	04.634 BRACKET ASM; PEDAL	8-97857-042-6	01	1	9312-				●	●	●
2	04.625 PEDAL; BRK	8-97853-210-2	01	1	9312-	●	●	●
2	04.625 PEDAL; BRK	8-97856-336-1	01	1	9312-				●	●	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	9312-	●	●	●	●	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-0	01	1	9312-	●	●	●	●	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-1	01	1	9312-	●	●	●	●	●	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	9312-	●	●	●	●	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	9312-	●	●	●	●	●	●
16	02.447 SWITCH; STOP LAMP	8-94118-754-1	01	1	9312-9403	●	●	●	●	●	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	9404-	●	●	●	●	●	●
22	04.634 NUT; SHAFT 09.011 M10	9-09110-410-0	01	1	9312-9407	●	●	●	●	●	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	9408-	●	●	●	●	●	●
23	04.634 WASHER; LK,SHAFT 00.002 ID=10.2	9-09150-610-0	01	1	9312-9407	●	●	●	●	●	●
26	04.634 BOLT; PEDAL 09.003 M10X25	1-09980-494-0	02	1	9312-9511	●	●	●	●	●	●
26	04.634 BOLT; PEDAL M10X22 W/WASHER	8-94279-099-0	02	1	9512-	●	●	●	●	●	●
27	04.634 SHAFT; BRK PEDAL 00.833	8-97853-213-0	01	1	9312-9511	●	●	●	●	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	9512-	●	●	●	●	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9312-	●	●	●	●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52>	8-97049-566-4	01	1	9312-9510	●	●	●	●	●
43	04.651 TANK ASM; OIL DISC BRAKE FRT<J52>	8-97049-566-4	01	1	9511-9711					●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>	8-97049-568-4	01	1	9312-9510	●	●	●	●	●
43	04.651 TANK ASM; OIL	8-97049-568-4	01	1	9312-9510						●
43	04.651 TANK ASM; OIL	8-97049-568-4	01	1	9511-9711	●	●	●	●		●
43	04.651 TANK ASM; OIL EXC. DISC BRAKE FRT<J52>	8-97049-568-4	01	1	9511-9711					●
43	04.651 TANK ASM; OIL	8-97049-568-4	01	1	9712-	●	●	●	●	●	●
44	04.651 CAP; OIL TANK	8-97095-698-0	01	1	9312-	●	●	●	●	●	●
55	04.681 CLIP; RUBBER HOSE	8-97094-435-0	04	1	9312-9507	●	●	●	●	●	●
55	04.681 CLIP; RUBBER HOSE	8-97130-480-0	04	1	9508-	●	●	●	●	●	●
59	04.634 WASHER; PL,JAW JOINT 02.575 ID=15	9-09160-514-0	01	1	9312-	●	●	●	●	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	9312-	●	●	●	●	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	9312-	●	●	●	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK L=136	8-97075-304-1	01	1	9312-9507	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK L=136 L=136	8-97135-013-0	01	1	9508-	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK L=165	8-97075-305-1	01	1	9312-9507	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK L=165 L=165	8-97135-014-0	01	1	9508-	●	●	●
164	04.681 HOSE; RUBBER,OIL TANK	8-97076-051-0	02	1	9312-9507				●	●	●
164	04.681 HOSE; RUBBER,OIL TANK L=310	8-97135-019-0	02	1	9508-				●	●	●
185	04.634 BOLT; BRKT 00.829 M10X25	8-94279-212-0	02	1	9312-9603	●	●	●	●	●	●
185	04.634 BOLT; BRKT 09.003 M10X25 FLANGE	0-28691-025-0	02	1	9604-	●	●	●	●	●	●
220	04.634 BRACKET; STRG SHAFT	8-97857-044-1	01	1	9312-				●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 03.417 M8 FLANGE	8-94279-517-0	01	1	9312-9609	●	●	●	●	●	●
264	04.634 NUT; BRKT,COLUMN SUPT TO B.PDL 04.010 M8 FLANGE	8-97046-127-0	01	1	9610-	●	●	●	●	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	04	1	9312-9412	●	●	●	●	●	●
322	04.651 NUT; OIL TANK 04.594 M6 FLANGE	0-91150-106-0	02	1	9501-	●	●	●	●	●	●
