◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#47039) — 29 parça

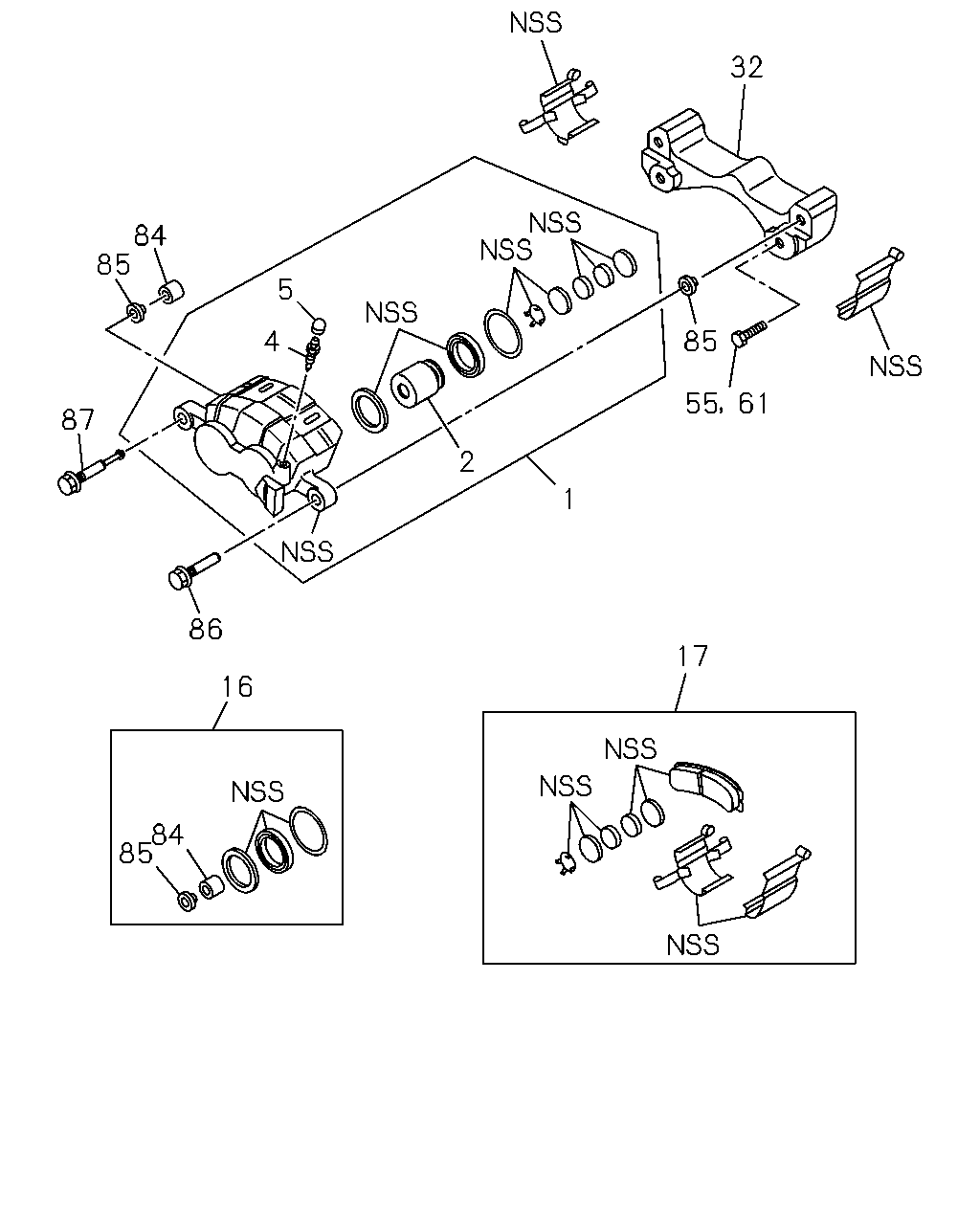

çizim 68082
32 84 85 5 85 4 61 55 87 2 1 86 17 16 84 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-965-1 01 1 9312-9510 ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-965-1 01 1 9511-9711 ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-964-1 01 1 9312-9510 ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-964-1 01 1 9511-9711 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-968-0 04 1 9312-9510 ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-968-0 04 1 9511-9711 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		9-47615-027-0 02 1 9312-9510 ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		9-47615-027-0 02 1 9511-9711 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		9-47619-038-0 02 1 9312-9510 ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		9-47619-038-0 02 1 9511-9711 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-981-1 01 1 9312-9510 ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-981-1 01 1 9511-9711 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97082-920-1 01 1 9312-9406 ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97082-920-2 01 1 9407-9510 ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97082-920-2 01 1 9511-9711 ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-972-0 02 1 9312-9510 ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-972-0 02 1 9511-9711 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97042-716-1 02 1 9312-9510 ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97042-716-1 02 1 9511-9711 ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-97042-716-1 02 1 9312-9510 ● ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-97042-716-1 02 1 9511-9711 ●
84 04.665 BUSHING; LOCK PIN
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-978-0 02 1 9312-9510 ● ● ● ● ●
84 04.665 BUSHING; LOCK PIN
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-978-0 02 1 9511-9711 ●
85 04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-977-0 04 1 9312-9510 ● ● ● ● ●
85 04.665 BOOT; PIN
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-977-0 04 1 9511-9711 ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-999-0 02 1 9312-9510 ● ● ● ● ●
86 04.665 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-999-0 02 1 9511-9711 ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-998-0 02 1 9312-9510 ● ● ● ● ●
87 04.665 PIN; LOCK
FRT INDEPENDENT SUSPENSION(6PP) 		8-97029-998-0 02 1 9511-9711 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
