3-01 — FRONT WHEEL BRAKE (#47038) — 32 parça

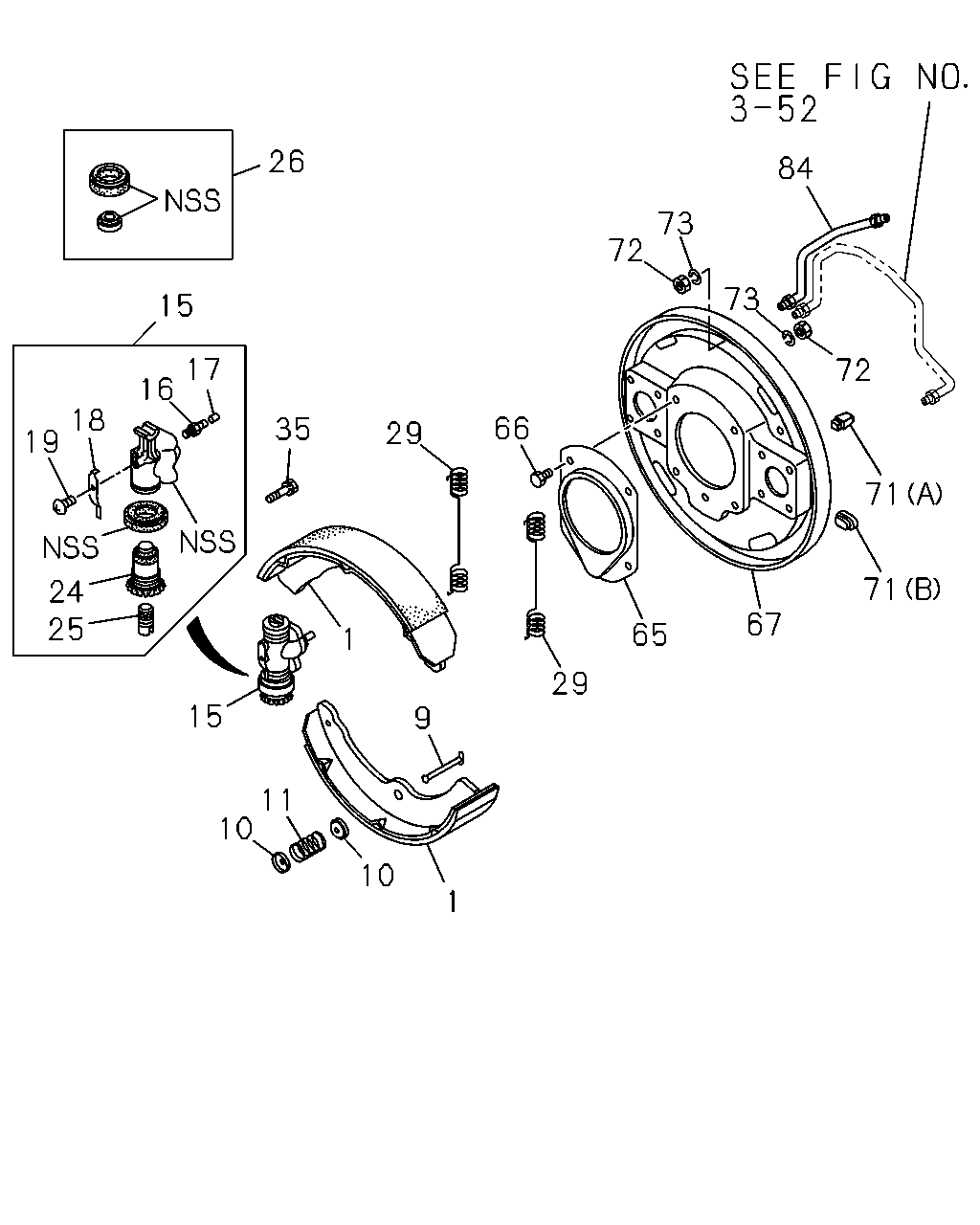

çizim 69160
26 84 73 72 73 15 17 16 72 18 19 66 35 29 71 24 25 71 67 65 1 29 15 9 11 10 10 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 05.017 SHOE; BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97035-084-0 04 1 9312- ● ● ● ● ● ●
9 05.026 PIN; SHOE HOLDER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.043 L=52 		9-47162-045-0 04 1 9312- ● ● ● ● ● ●
10 05.043 CUP; SHOE HOLDING
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		9-47162-033-0 08 1 9312- ● ● ● ● ● ●
11 05.027 SPRING; SHOE HOLDING
EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.043 		9-09940-989-1 04 1 9312- ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) FRONT ID=28.57(1 1/8") 		8-97081-145-0 01 1 9312-9703 ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) FRONT 		8-97179-360-0 01 1 9704- ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) REAR ID=28.57(1 1/8") 		8-97081-147-0 01 1 9312-9703 ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) REAR 		8-97179-358-0 01 1 9704- ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) FRONT ID=28.57(1 1/8") 		8-97081-146-0 01 1 9312-9703 ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) FRONT 		8-97179-359-0 01 1 9704- ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) REAR ID=28.57(1 1/8") 		8-97081-148-0 01 1 9312-9703 ● ● ● ● ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) REAR 		8-97179-357-0 01 1 9704- ● ● ● ● ● ●
16 04.666 SCREW; BLEEDER,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		9-47615-027-0 02 1 9312- ● ● ● ● ● ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 02 1 9312- ● ● ● ● ● ●
18 05.107 STOPPER; ADJ SCREW
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94128-486-0 04 1 9312- ● ● ● ● ● ●
19 05.107 SCREW; STOPPER SETTING
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94128-727-0 04 1 9312- ● ● ● ● ● ●
24 04.668 PISTON; FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-621-0 04 1 9312- ● ● ● ● ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-623-0 04 1 9312- ● ● ● ● ● ●
26 04.667 CUP SET; FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=28.57(1 1/8") 		5-87830-538-0 01 1 9312-9703 ● ● ● ● ● ●
26 04.667 CUP SET; FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		5-87831-602-0 01 1 9704- ● ● ● ● ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-150-0 04 1 9312- ● ● ● ● ● ●
35 04.665 BOLT; FRT WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.686 M8X16 		9-09602-119-1 16 1 9312- ● ● ● ● ● ●
65 05.815 COVER; OIL SHIELD,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94253-935-0 02 1 9312- ● ● ● ● ● ●
66 05.815 BOLT; OIL SHIELD COVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X33 		9-09600-043-3 08 1 9312- ● ● ● ● ● ●
67 05.001 PLATE; BACK,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-141-1 01 1 9312- ● ● ● ● ● ●
67 05.001 PLATE; BACK,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-140-1 01 1 9312- ● ● ● ● ● ●
71 05.002 GROMMET; CHECK HOLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-94344-919-0 01 1 9312- ● ● ● ● ● ●
71 05.002 GROMMET; CHECK HOLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		9-09956-640-0 04 1 9312- ● ● ● ● ● ●
72 05.815 NUT; OIL SHIELD COVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.816 M12 		9-99110-412-0 08 1 9312- ● ● ● ● ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.515 ID=12.2 		9-09150-612-0 08 1 9312- ● ● ● ● ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97034-568-0 01 1 9312- ● ● ● ● ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97034-567-0 01 1 9312- ● ● ● ● ● ●
