◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#47036) — 158 parça

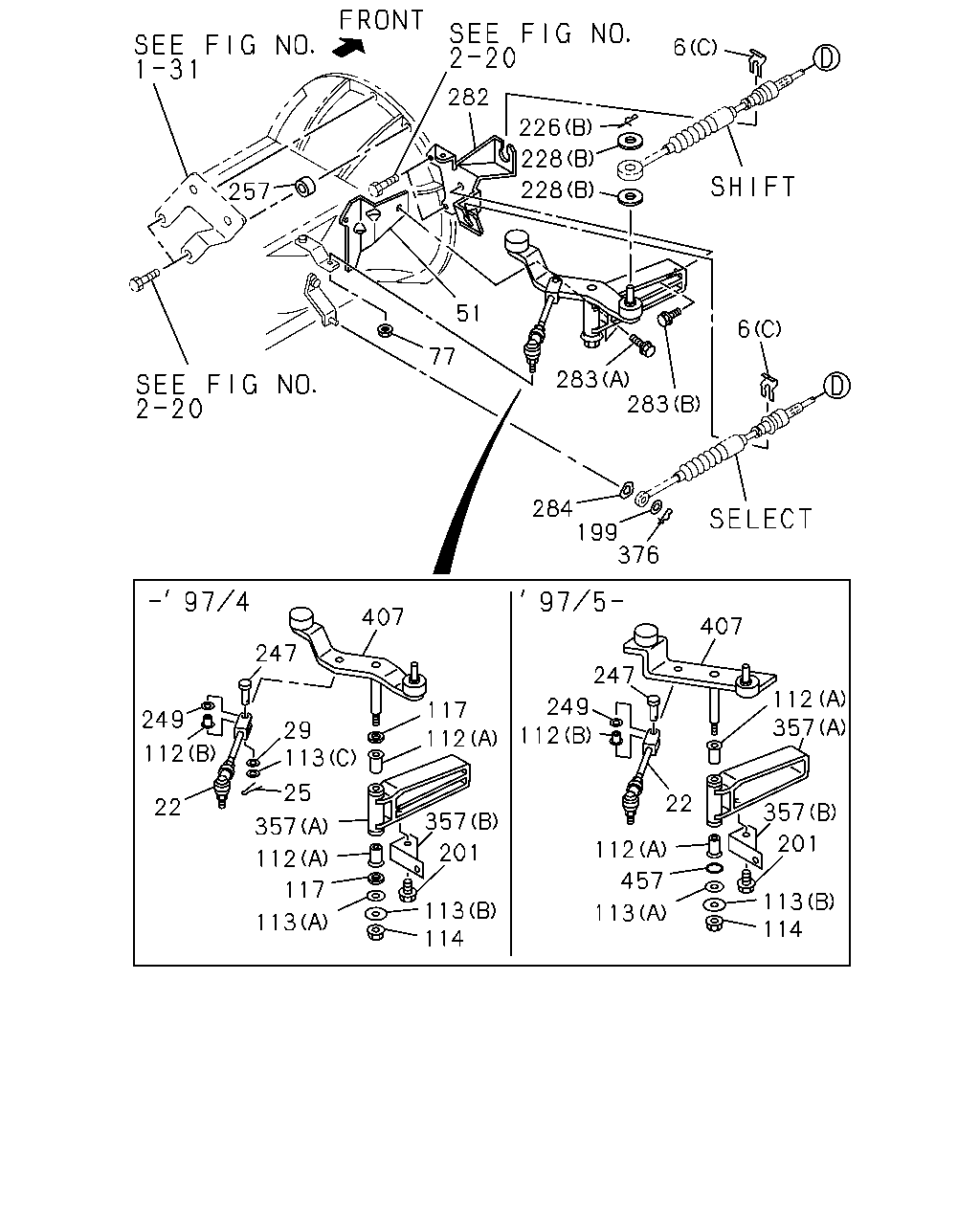

çizim 17563
6 282 226 228 228 257 51 6 283 283 284 199 376 407 407 247 247 249 112 112 357 117 112 249 29 25 357 112 22 22 357 201 357 201 112 457 113 113 113 77 114 114 113 117 113 112
BalonParca AdiParca NoAdetTipApplied Date
6 04.047 CLIP; CABLE
(C) ID=19.2 		8-94365-914-2 02 1 9312-9808
6 04.047 CLIP; CABLE
(C) ID=19.2 		8-97211-011-0 02 1 9809-
6 04.047 CLIP; CABLE
(D) 		8-97011-448-0 02 1 9312-
6 04.047 CLIP; CABLE
(E) 		8-97036-332-1 01 1 9312-
6 04.047 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97036-330-1 01 1 9312-9711
6 04.047 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97036-329-2 01 1 9312-9711
6 04.047 CLIP; CABLE
(A) 		8-97036-329-2 01 1 9712-
6 04.047 CLIP; CABLE
RHD(NH*5**) (G) 		8-97036-328-2 01 1 9312-9608
6 04.047 CLIP; CABLE
RHD(NH*5**) (G) 		8-97147-985-0 01 1 9609-
6 04.047 CLIP; CABLE
RHD(NH*5**) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) (I) 		8-97039-296-1 01 1 9312-9510
6 04.047 CLIP; CABLE
RHD(NH*5**) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (I) 		8-97036-334-2 01 1 9312-9510
6 04.047 CLIP; CABLE
RHD(NH*5**) POWER STEERING<N40> (I) 		8-97036-334-2 01 1 9511-
6 04.047 CLIP; CABLE
RHD(NH*5**) EXC. POWER STEERING<N40> (H) 		8-97036-333-1 01 1 9312-
6 04.047 CLIP; CABLE
RHD(NH*5**) (H) 		8-97036-333-1 01 1 9312-
6 04.047 CLIP; CABLE
LHD(NH*6**) (B) 		9-09916-402-0 01 1 9312-9509
6 04.047 CLIP; CABLE
LHD(NH*6**) (B) 		8-97137-589-0 01 1 9510-
22 04.035 ROD; CONT,SHIFT 8-97085-158-0 01 1 9312-9704
22 04.035 ROD; CONT,SHIFT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97174-058-0 01 1 9705-9711
22 04.035 ROD; CONT,SHIFT 8-97174-058-0 01 1 9712-
22 04.035 ROD; CONT,SHIFT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97134-286-0 01 1 9705-9711
25 04.032 PIN; SNAP,CONT ROD,RELAY LEVER
04.004 L=27.7 		8-94210-407-0 01 1 9312-9704
29 04.032 WASHER; LK,RELAY LEVER
04.037 ID=8.5 T=0.3 		5-09509-001-0 01 1 9312-9704
51 04.010 BRACKET; GEAR CONT 8-97029-286-0 01 1 9312-
77 04.037 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 9312-9711
77 04.037 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 9712-9801
77 04.037 NUT; LK,BALL JOINT,CONT ROD
07.633 M8 FLANGE 		0-91150-108-0 01 1 9802-9802
77 04.037 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 9803-
112 04.046 BUSHING; RELAY LEVER
04.008 (A) ID=14 OD=16 		8-94252-671-0 02 1 9312-9704
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 9705-
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 9312-9704
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 9705-
113 04.046 WASHER; RELAY LEVER
(A) 		8-97061-437-0 02 1 9312-9704
113 04.046 WASHER; RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.682 (A) ID=10.5 OD=22 		9-09160-610-0 02 1 9705-9711
113 04.046 WASHER; RELAY LEVER
16.682 (A) ID=10.5 OD=22 		9-09160-610-0 02 1 9712-
113 04.046 WASHER; RELAY LEVER
(B) 		8-97089-693-0 01 1 9312-9704
113 04.046 WASHER; RELAY LEVER
08.929 (B) ID=15 OD=36 		9-09164-714-0 01 1 9705-
113 04.046 WASHER; RELAY LEVER
06.760 (C) ID=8.4 OD=22 		9-09160-708-0 01 1 9312-9704
113 04.046 WASHER; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) 16.682 (A) ID=10.5 OD=22 		9-09160-610-0 01 1 9705-9711
114 04.037 NUT; RELAY LEVER
04.785 M10 FLANGE 		0-91150-110-0 01 1 9312-
117 04.010 SEAL; DUST,RELAY LEVER 8-97061-438-0 02 1 9312-9704
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 9312-
201 04.032 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9312-9704
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9705-9711
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9312-9711
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-
201 04.032 BOLT; BRKT
RHD(NH*5**) EXC. POWER STEERING<N40> 08.155 M8X25 FLANGE 		0-28480-825-0 02 1 9312-9606
201 04.032 BOLT; BRKT
RHD(NH*5**) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9607-
201 04.032 BOLT; BRKT
SGL TIRE&LHD&SGL CAB(NHB6S*) AIR INTAKE REAR VERTICAL<KJ3> 00.002 M10X28 		0-28481-028-0 02 1 9312-9711
201 04.032 BOLT; BRKT
SGL TIRE&LHD&SGL CAB(NHB6S*) AIR INTAKE REAR VERTICAL<KJ3> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9712-
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9312-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9312-
228 04.047 WASHER; PL,SHIFT CABLE
(B) ID=8 T=2.3 		8-94368-403-1 02 1 9312-9707
228 04.047 WASHER; PL,SHIFT CABLE
(B) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (A) ID=8.4 		9-09164-508-0 01 1 9312-
247 04.010 PIN; CONT ROD TO LEVER
04.037 		9-09876-059-1 01 1 9312-
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 9312-
257 00.851 PIECE; DIST,RELAY LEVER
AIR INTAKE REAR VERTICAL<KJ3> 		8-94369-173-0 01 1 9403-
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 9312-
283 04.037 BOLT; RELAY LEVER
01.252 (A) M10X25 W/LK&PL WASHER 		0-50141-025-0 01 1 9312-9703
283 04.037 BOLT; RELAY LEVER
03.405 (A) M10X25 FLANGE 		0-28681-025-0 01 1 9704-
283 04.037 BOLT; RELAY LEVER
01.840 (B) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9312-9703
283 04.037 BOLT; RELAY LEVER
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 9704-
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9312-
357 04.010 BRACKET; RELAY LEVER
(A) 		8-97089-691-0 01 1 9312-9704
357 04.010 BRACKET; RELAY LEVER
(A) 		8-97174-056-0 01 1 9705-9706
357 04.010 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97174-056-0 01 1 9707-9711
357 04.010 BRACKET; RELAY LEVER
(B) 		8-97089-692-0 01 1 9312-9704
357 04.010 BRACKET; RELAY LEVER
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97089-692-0 01 1 9705-9711
357 04.010 BRACKET; RELAY LEVER
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97182-166-0 01 1 9707-9711
357 04.010 BRACKET; RELAY LEVER
(A) 		8-97182-166-0 01 1 9712-
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9312-
407 04.030 LEVER; RELAY,SHIFT 8-97089-690-1 01 1 9312-9704
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-1 01 1 9705-
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 9705-

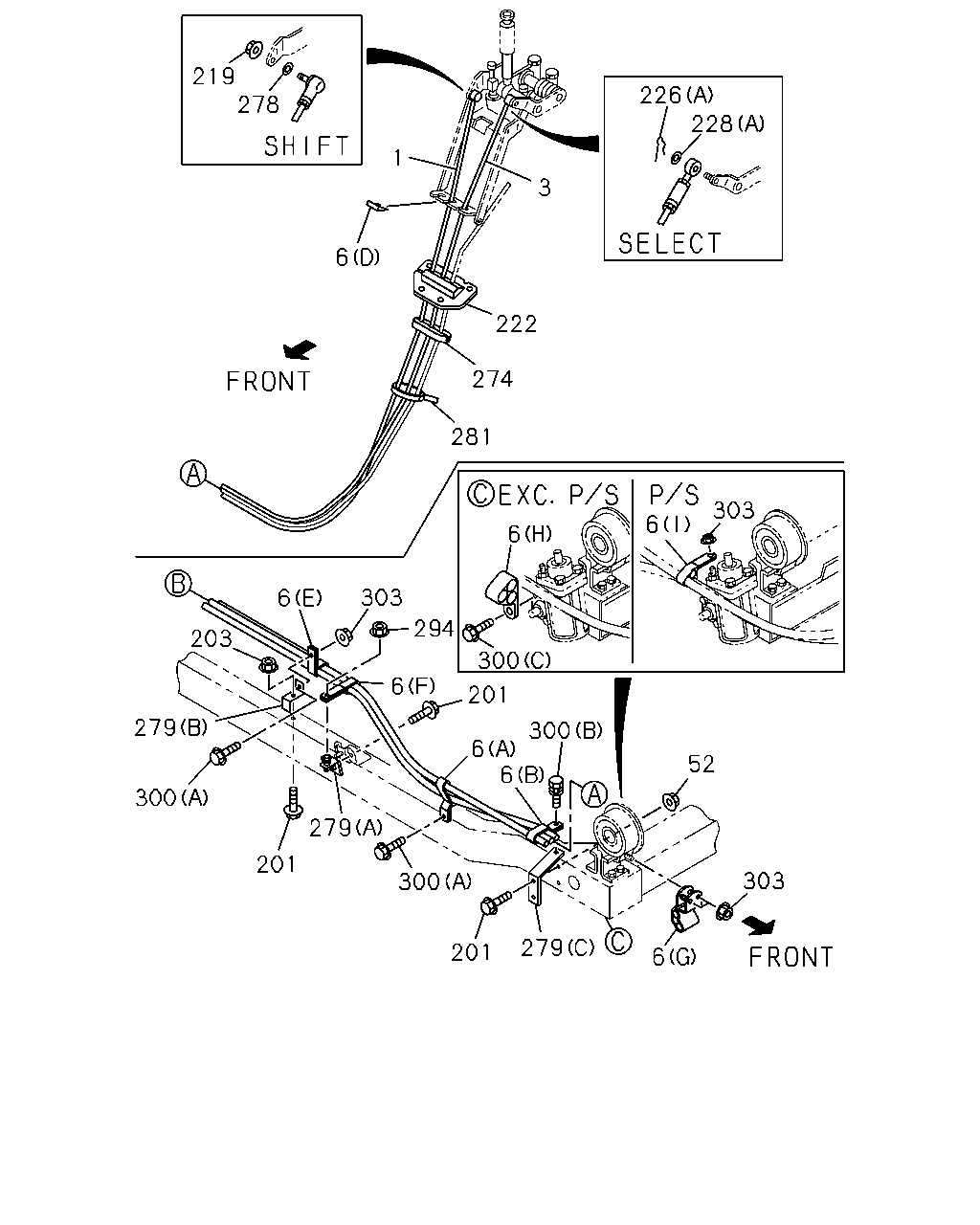

çizim 67974
278 226 228 3 6 222 274 281 303 6 6 303 294 6 203 300 201 6 279 300 6 6 52 300 279 300 201 279 201 6 219 1 303
BalonParca AdiParca NoAdetTipApplied Date
1 00.854 CABLE; SHIFT,TRANS CONT
RHD(NH*5**) L=2623 		8-97034-143-6 01 1 9312-9607
1 00.854 CABLE; SHIFT,TRANS CONT
RHD(NH*5**) L=2643 		8-97176-466-0 01 1 9608-
1 00.854 CABLE; SHIFT,TRANS CONT
LHD(NH*6**) L=2540 		8-97089-986-3 01 1 9312-
3 00.852 CABLE; SELECT,TRANS CONT
RHD(NH*5**) L=2790 		8-97034-144-4 01 1 9312-9607
3 00.852 CABLE; SELECT,TRANS CONT
RHD(NH*5**) L=2810 		8-97176-474-0 01 1 9608-
3 00.852 CABLE; SELECT,TRANS CONT
LHD(NH*6**) L=2684 		8-97089-987-2 01 1 9312-
6 04.047 CLIP; CABLE
(C) ID=19.2 		8-94365-914-2 02 1 9312-9808
6 04.047 CLIP; CABLE
(C) ID=19.2 		8-97211-011-0 02 1 9809-
6 04.047 CLIP; CABLE
(D) 		8-97011-448-0 02 1 9312-
6 04.047 CLIP; CABLE
(E) 		8-97036-332-1 01 1 9312-
6 04.047 CLIP; CABLE
FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97036-330-1 01 1 9312-9711
6 04.047 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97036-329-2 01 1 9312-9711
6 04.047 CLIP; CABLE
(A) 		8-97036-329-2 01 1 9712-
6 04.047 CLIP; CABLE
RHD(NH*5**) (G) 		8-97036-328-2 01 1 9312-9608
6 04.047 CLIP; CABLE
RHD(NH*5**) (G) 		8-97147-985-0 01 1 9609-
6 04.047 CLIP; CABLE
RHD(NH*5**) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) (I) 		8-97039-296-1 01 1 9312-9510
6 04.047 CLIP; CABLE
RHD(NH*5**) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (I) 		8-97036-334-2 01 1 9312-9510
6 04.047 CLIP; CABLE
RHD(NH*5**) POWER STEERING<N40> (I) 		8-97036-334-2 01 1 9511-
6 04.047 CLIP; CABLE
RHD(NH*5**) EXC. POWER STEERING<N40> (H) 		8-97036-333-1 01 1 9312-
6 04.047 CLIP; CABLE
RHD(NH*5**) (H) 		8-97036-333-1 01 1 9312-
6 04.047 CLIP; CABLE
LHD(NH*6**) (B) 		9-09916-402-0 01 1 9312-9509
6 04.047 CLIP; CABLE
LHD(NH*6**) (B) 		8-97137-589-0 01 1 9510-
52 04.047 NUT; BRKT
RHD(NH*5**) EXC. POWER STEERING<N40>,FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9510
52 04.047 NUT; BRKT
RHD(NH*5**) EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9511-
52 04.047 NUT; BRKT
SGL TIRE&LHD&SGL CAB(NHB6S*) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9312-9510
52 04.047 NUT; BRKT
SGL TIRE&LHD&SGL CAB(NHB6S*) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9511-
201 04.032 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9312-9704
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9705-9711
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9312-9711
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 07.010 M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412-
201 04.032 BOLT; BRKT
RHD(NH*5**) EXC. POWER STEERING<N40> 08.155 M8X25 FLANGE 		0-28480-825-0 02 1 9312-9606
201 04.032 BOLT; BRKT
RHD(NH*5**) EXC. POWER STEERING<N40> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9607-
201 04.032 BOLT; BRKT
SGL TIRE&LHD&SGL CAB(NHB6S*) AIR INTAKE REAR VERTICAL<KJ3> 00.002 M10X28 		0-28481-028-0 02 1 9312-9711
201 04.032 BOLT; BRKT
SGL TIRE&LHD&SGL CAB(NHB6S*) AIR INTAKE REAR VERTICAL<KJ3> 03.405 M10X25 FLANGE 		0-28681-025-0 02 1 9712-
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40>,FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9711
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9312-9711
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9712-9801
219 04.047 NUT; FLANGE,SHAFT CABLE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9802-9802
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 9803-
222 04.010 GROMMET; CABLE
RHD(NH*5**) 		8-97061-403-2 01 1 9312-
222 04.010 GROMMET; CABLE
LHD(NH*6**) 		8-97089-851-0 01 1 9312-
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 9312-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9312-
228 04.047 WASHER; PL,SHIFT CABLE
(B) ID=8 T=2.3 		8-94368-403-1 02 1 9312-9707
228 04.047 WASHER; PL,SHIFT CABLE
(B) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (A) ID=8.4 		9-09164-508-0 01 1 9312-
274 04.008 CLIP; CONT CABLE 8-97093-491-1 01 1 9312-
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9312-
279 04.047 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97066-629-5 01 1 9312-9711
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (B) 		8-97103-234-0 01 1 9312-
279 04.047 BRACKET; CABLE TO FRAME
RHD(NH*5**) EXC. POWER STEERING<N40> 06.606 (C) 		8-97089-879-0 01 1 9312-
279 04.047 BRACKET; CABLE TO FRAME
LHD(NH*6**) (C) 		8-97101-709-1 01 1 9312-
281 04.042 CLIP; BAND
SGL TIRE&LHD(NHB6**) 03.162 L=140 		5-09707-031-0 01 1 9312-9610
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-0 01 1 9611-9711
281 04.042 CLIP; BAND
SGL TIRE&LHD(NHB6**) 03.162 L=140 		5-09707-031-1 01 1 9712-
294 00.854 NUT; CLIP
FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9711
300 00.854 BOLT; CLIP
07.010 (A) M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411
300 00.854 BOLT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.010 (A) M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411
300 00.854 BOLT; CLIP
RHD(NH*5**) 07.010 (A) M8X20 FLANGE 		0-28080-820-0 01 1 9312-9411
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9711
300 00.854 BOLT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9711
300 00.854 BOLT; CLIP
RHD(NH*5**) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9412-9711
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9712-
300 00.854 BOLT; CLIP
02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9712-
300 00.854 BOLT; CLIP
RHD(NH*5**) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 01 1 9712-
300 00.854 BOLT; CLIP
RHD(NH*5**) EXC. POWER STEERING<N40> 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 9312-
300 00.854 BOLT; CLIP
LHD(NH*6**) 01.540 (B) M6X20 		0-28280-620-0 01 1 9312-9711
300 00.854 BOLT; CLIP
LHD(NH*6**) 04.930 (B) M6X20 FLANGE 		0-28680-620-0 01 1 9712-
303 00.855 NUT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9406
303 00.855 NUT; CLIP
RHD(NH*5**) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9406
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9407-9510
303 00.855 NUT; CLIP
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9407-9510
303 00.855 NUT; CLIP
RHD(NH*5**) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9407-9510
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711
303 00.855 NUT; CLIP
RHD(NH*5**) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711
303 00.855 NUT; CLIP
LHD&DBL CAB(NH*6W*) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711
303 00.855 NUT; CLIP
SGL TIRE&RHD&SGL CAB(NHB5SF) SGL TIRE&RHD&DBL CAB(NHB5WF) SGL TIRE&LHD&SGL CAB(NHB6SF) SMALL DUAL RR TIRE&RHD(NHN5SF) SMALL DUAL RR TIRE&LHD(NHN6SF) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9511-9711
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-
303 00.855 NUT; CLIP
RHD(NH*5**) POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712-
303 00.855 NUT; CLIP
RHD(NH*5**) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
