◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#47032) — 73 parça

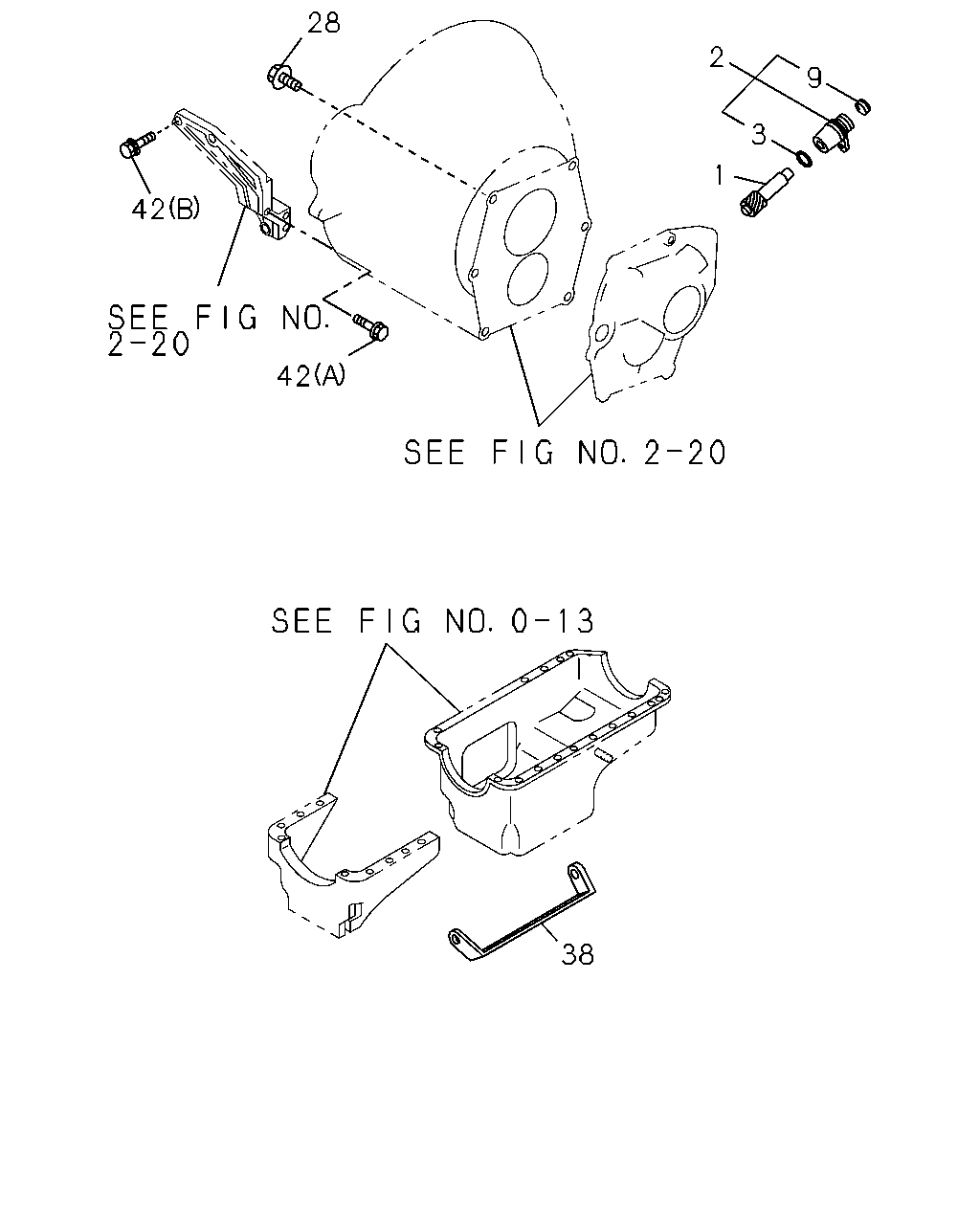

çizim 67988
28 2 3 42 42 38 1 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) Z=13 		8-94119-854-0 01 1 9312-9510 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/11(GNA) Z=13 		8-94119-854-0 01 1 9312-9510 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (9CR),(9ZX) Z=13 		8-94119-854-0 01 1 9312-9510 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (9ZX) Z=13 		8-94119-854-0 01 1 9312-9510 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) Z=13 		8-94119-854-0 01 1 9511-9608 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/11(GNA) Z=13 		8-94119-854-0 01 1 9511-9608 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (9ZX) Z=13 		8-94119-854-0 01 1 9511-9608 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 39/8(RV9) Z=13 		8-94119-854-0 01 1 9609-9609 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) Z=13 		8-94119-854-0 01 1 9609-9609 ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/11(GNA) Z=13 		8-94119-854-0 01 1 9609-9609 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (9ZX) Z=13 		8-94119-854-0 01 1 9609-9609 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) Z=13 		8-94119-854-0 01 1 9610-9809 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) (35V),(38V) Z=13 		8-94119-854-0 01 1 9610-9809 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/11(GNA) Z=13 		8-94119-854-0 01 1 9610-9809 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (9ZX) Z=13 		8-94119-854-0 01 1 9610-9809 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 39/8(RV9) Z=13 		8-94119-854-0 01 1 9810- ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) (35V),(38V) Z=13 		8-94119-854-0 01 1 9810- ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/11(GNA) Z=13 		8-94119-854-0 01 1 9810- ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (9ZX) Z=13 		8-94119-854-0 01 1 9810- ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) Z=14 		8-94249-062-0 01 1 9312-9510 ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (22V),(9CE) Z=14 		8-94249-062-0 01 1 9312-9510 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (22V) Z=14 		8-94249-062-0 01 1 9312-9510 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) Z=14 		8-94249-062-0 01 1 9511- ● ● ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/10(GT5) (22V) Z=14 		8-94249-062-0 01 1 9511- ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) (43V) Z=12 		8-94249-943-0 01 1 9609-9609 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) (36V),(37V) Z=12 		8-94249-943-0 01 1 9610-9711 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) (43V) Z=12 		8-94249-943-0 01 1 9610-9711 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) (36V),(37V) Z=12 		8-94249-943-0 01 1 9712- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/9(HC6) (43V),(44V) Z=12 		8-94249-943-0 01 1 9712- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9312-9510 ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/11(GNA) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9312-9510 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) (9CR),(9ZX) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9312-9510 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) (9ZX) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9312-9510 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9511-9608 ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/11(GNA) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9511-9608 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) (9ZX) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9511-9608 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6),FINAL GEARRATIO 39/8(RV9) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9609-9609 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9609-9609 ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/11(GNA) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9609-9609 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) (9ZX) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9609-9609 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9610-9809 ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) (35V),(38V) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9610-9809 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/11(GNA) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9610-9809 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) (9ZX) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9610-9809 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 39/8(RV9) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9810- ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) (35V),(38V) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9810- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 43/11(GNA) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9810- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) (9ZX) 04.338 Z=13 MARK "3" 		8-97080-359-1 01 1 9810- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 9312-9510 ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) (22V),(9CE) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 9312-9510 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) (22V) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 9312-9510 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 9511- ● ● ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/10(GT5) (22V) 04.338 Z=14 MARK "4" 		8-97080-360-1 01 1 9511- ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) (43V) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9609-9609 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) (36V),(37V) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9610-9711 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) (43V) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9610-9711 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) (36V),(37V) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9712- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/9(HC6) (43V),(44V) 04.338 Z=12 MARK "2" 		8-97080-358-1 01 1 9712- ●
3 04.338 GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T). 		9-09920-852-0 01 1 9312- ● ● ● ● ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR 8-97080-507-0 01 1 9312- ● ● ● ● ● ●
28 00.685 BOLT; TRANS CASE TO HSG
00.683 M12X35 FLANGE 		8-94249-246-0 06 1 9312- ● ● ● ● ● ●
38 00.679 BRACKET; SPACE RUBBER
WEST MALAYSIA EQUIPMENT(RWP) 		8-97095-937-1 01 1 9312-9409 ● ● ● ● ● ●
38 00.679 BRACKET; SPACE RUBBER
NOISE PACK FOR CHINESE REGULATION<6QX> 		8-97095-937-1 01 1 9312-9409 ● ● ● ● ● ●
38 00.679 BRACKET; SPACE RUBBER
HONG KONG EQUIPMENT(PQ1) EURO1 SPECIFICATION<6YW> 		8-97095-937-1 01 1 9410-9510 ● ● ●
38 00.679 BRACKET; SPACE RUBBER
WEST MALAYSIA EQUIPMENT(RWP) 		8-97095-937-1 01 1 9410-9510 ●
38 00.679 BRACKET; SPACE RUBBER
NOISE PACK FOR CHINESE REGULATION<6QX> 		8-97095-937-1 01 1 9410-9510 ● ●
38 00.679 BRACKET; SPACE RUBBER
HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(RWP) 		8-97095-937-1 01 1 9511-9711 ●
38 00.679 BRACKET; SPACE RUBBER
HONG KONG EQUIPMENT(PQ1) 		8-97095-937-1 01 1 9511-9711 ● ●
38 00.679 BRACKET; SPACE RUBBER
NOISE PACK FOR CHINESE REGULATION<6QX> 		8-97095-937-1 01 1 9511-9711 ●
38 00.679 BRACKET; SPACE RUBBER
HONG KONG EQUIPMENT(PQ1) 		8-97095-937-1 01 1 9712- ● ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
07.068 (A) M12X35 FLANGE 		0-28081-235-0 04 1 9312- ● ● ● ● ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
01.840 (B) M10X40 W/LK&PL WASHER 		0-50141-040-0 04 1 9312-9706 ● ● ● ● ● ●
42 00.685 BOLT; TRANS CASE TO STIFFENER
03.613 (B) M10X40 FLANGE 		0-28681-040-0 04 1 9707- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
