◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#47029) — 26 parça

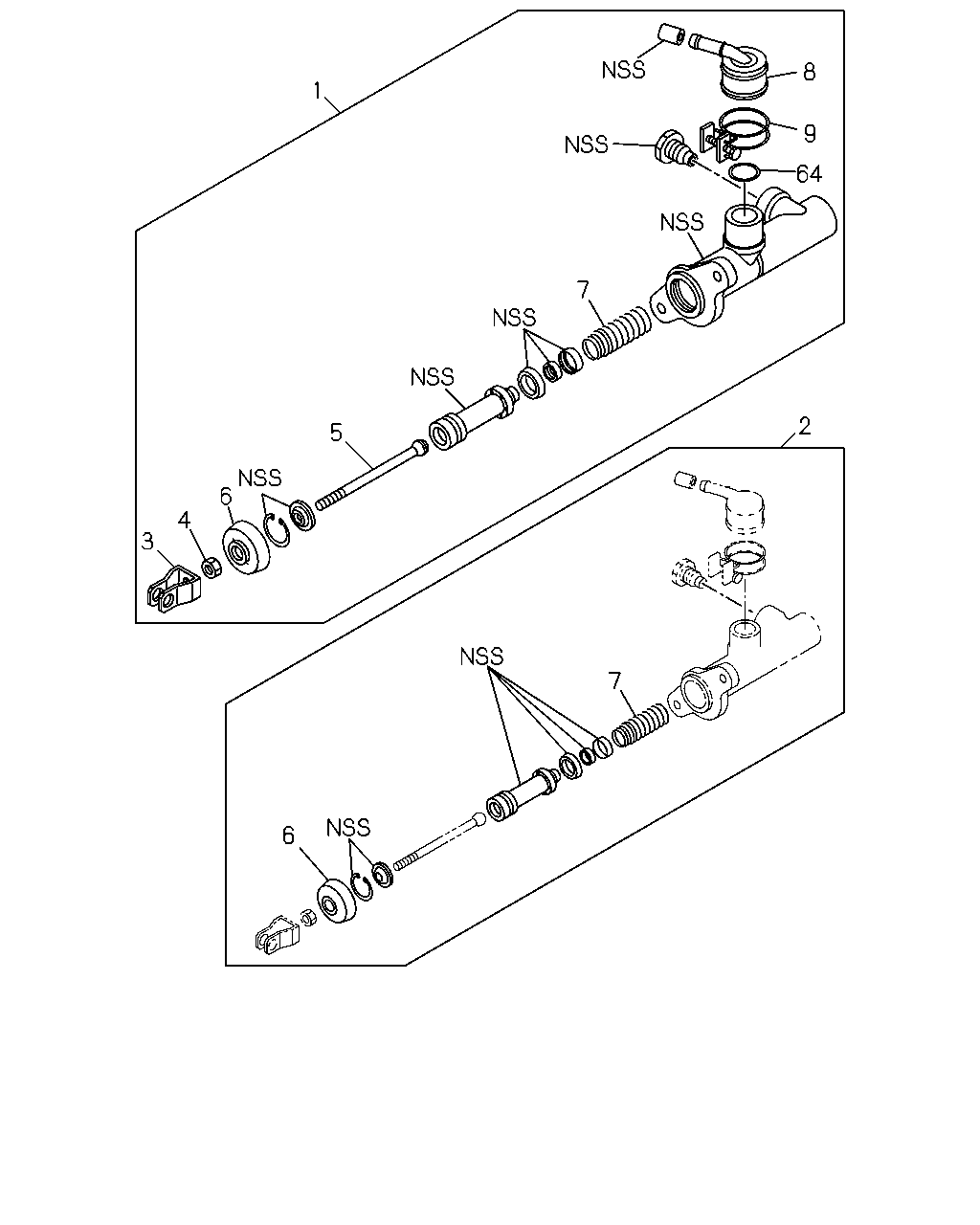

çizim 19706
8 1 64 7 2 5 6 4 3 7 6 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER
RHD(NH*5**) 		8-97035-919-2 01 1 9312-9410 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
RHD(NH*5**) 		8-97124-110-0 01 1 9411-9611 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
RHD(NH*5**) 		8-97162-963-0 01 1 9612- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
LHD(NH*6**) 		8-97102-438-0 01 1 9312-9410 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
LHD(NH*6**) 		8-97124-108-0 01 1 9411-9611 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
LHD(NH*6**) 		8-97167-406-0 01 1 9612- ● ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-403-1 01 1 9312-9406 ● ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-403-1 01 1 9407-9510 ● ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-403-1 01 1 9511-9611 ● ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87831-597-0 01 1 9612- ● ●
3 00.777 JOINT; JAW,CLU M/CYL 8-97083-160-0 01 1 9312-9611 ● ●
3 00.777 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 9612- ● ●
4 00.777 NUT; JAW JOINT
00.787 M8 		9-09111-408-0 01 1 9312- ● ●
5 00.775 ROD; PUSH,CLU M/CYL 8-97083-159-0 01 1 9312-9611 ● ●
5 00.775 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 9612- ● ●
6 00.775 BOOT; CLU M/CYL 8-97076-981-0 01 1 9312-9611 ● ●
6 00.775 BOOT; CLU M/CYL 8-94412-200-0 01 1 9612- ● ●
7 00.775 SPRING ASM; CLU M/CYL 8-97081-422-0 01 1 9312-9611 ● ●
7 00.775 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 9612- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
RHD(NH*5**) 		8-97083-129-0 01 1 9312-9611 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
RHD(NH*5**) 		8-97163-191-0 01 1 9612- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
LHD(NH*6**) 		8-97108-197-0 01 1 9312-9611 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
LHD(NH*6**) 		8-97167-766-0 01 1 9612- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-94147-279-0 01 1 9312-9611 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 9612- ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 9612- ● ●
