◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#47028) — 11 parça

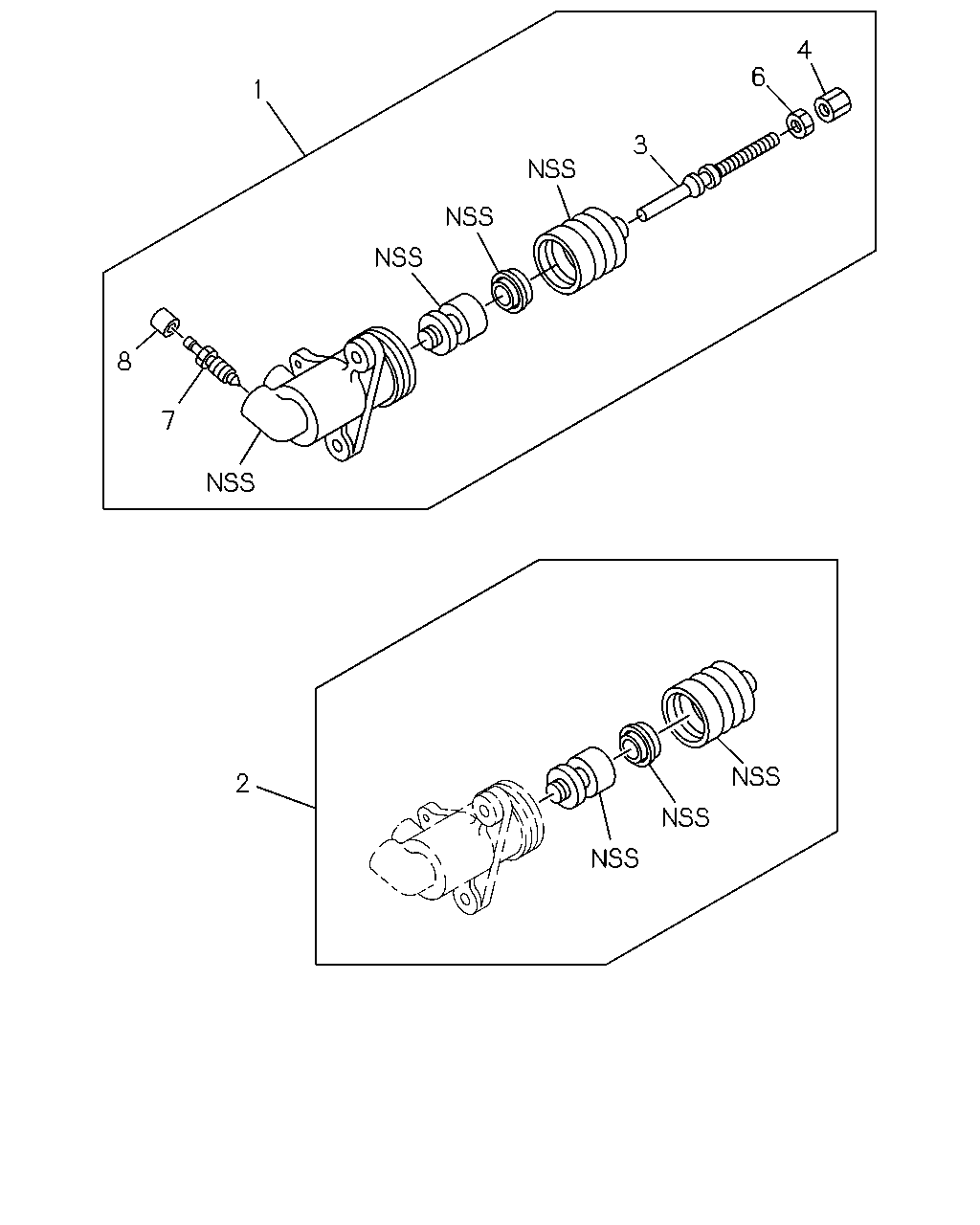

çizim 65545
4 6 1 3 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.780 CYLINDER; SLAVE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-972-0 01 1 9312-9711 ●
1 00.780 CYLINDER; SLAVE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97047-971-0 01 1 9312- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97160-881-0 01 1 9609- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87831-402-0 01 1 9312- ● ●
3 00.780 ROD; PUSH,SLAVE CYL 8-94459-698-0 01 1 9312- ● ●
4 00.780 NUT; ADJ,SLAVE CYL PUSH ROD
00.787 		9-09644-005-0 01 1 9312- ● ●
6 00.787 NUT; LK,ROD END
M8 		9-09111-408-0 01 1 9312- ● ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP) M8X10 		8-94115-113-0 01 1 9312-9711 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-94115-113-0 01 1 9712- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=9.5 		9-47619-005-0 01 1 9312-9711 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9712- ● ●
