◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#47027) — 139 parça

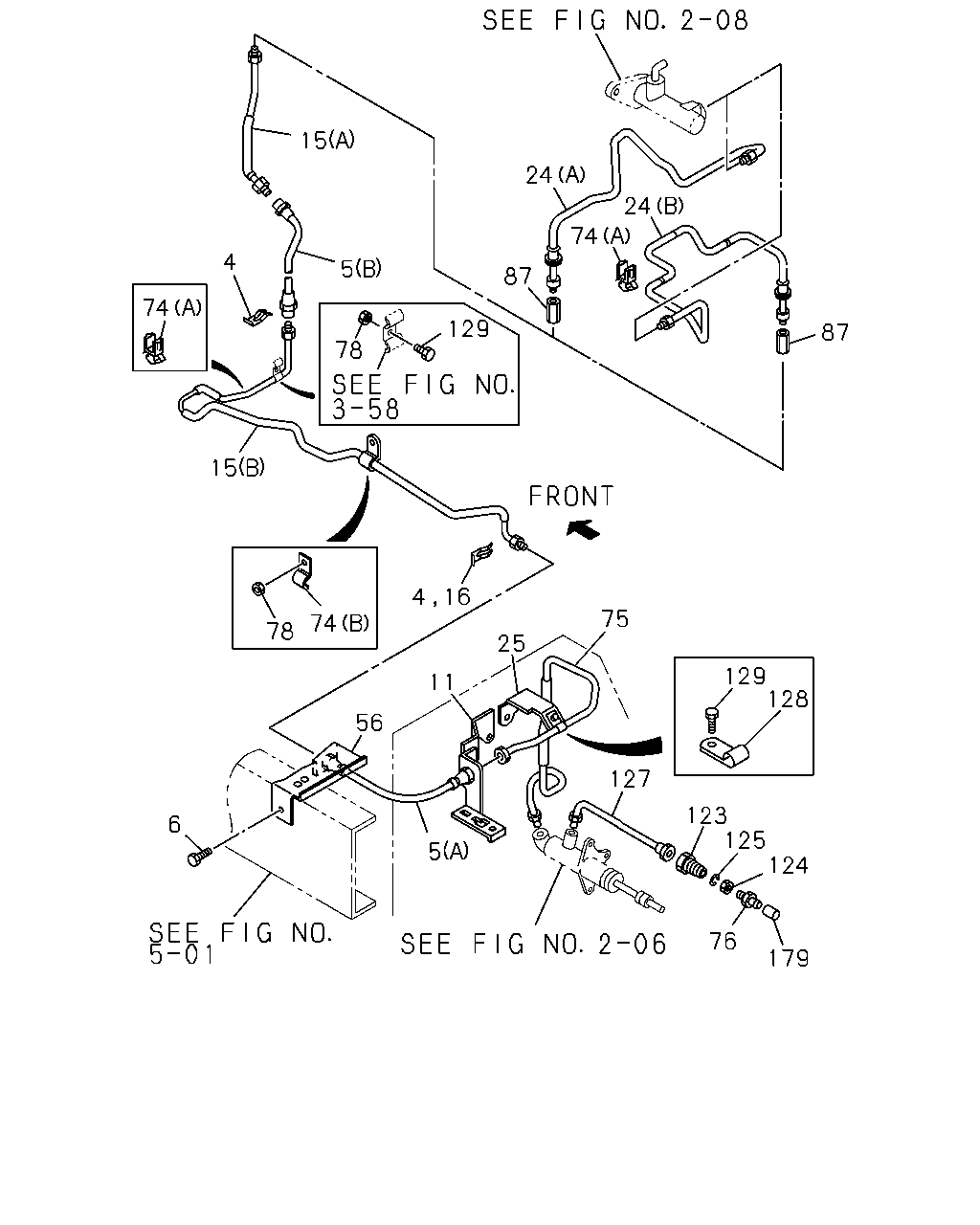

çizim 67591
15 24 24 74 5 87 74 129 87 78 15 16 75 74 78 25 128 56 127 123 125 124 6 5 76 179 4 4 11 129
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9312-9608 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9312-9608 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9609-9704 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9609-9704 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9705- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 01 1 9312-9704 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9312-9608 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9609- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9312-9608 ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9609-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9609-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9712- ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97064-108-1 01 1 9312- ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9312-9503 ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9504-9608 ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9609-9711 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9609-9711 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9411 ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412- ●
11 00.785 BRACKET; FLEX HOSE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 		8-97091-929-0 01 1 9312-9608 ●
11 00.785 BRACKET; FLEX HOSE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 		8-97091-929-0 01 1 9609-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9609-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9712- ●
11 00.785 BRACKET; FLEX HOSE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94411-135-0 01 1 9312- ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97070-380-4 01 1 9312-9510 ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD&SGL CAB(NH*6S*) (B) 		8-97070-380-4 01 1 9511-9608 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD&DBL CAB(NH*6W*) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97070-380-4 01 1 9511-9608 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97070-380-4 01 1 9609- ●
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) (A) 		8-97035-987-0 01 1 9312- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97061-379-1 01 1 9312-9510 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9312-9510 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) (B) 		8-97100-830-3 01 1 9511-9608 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) (B) 		8-97100-830-3 01 1 9609- ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) (A) 		8-97070-300-2 01 1 9312- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&LHD(NHB6**) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97075-916-2 01 1 9312-9510 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97075-916-2 01 1 9511-9707 ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-250-0 01 1 9708-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97122-637-0 01 1 9609- ●
16 00.785 CLIP; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9705-9711 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9705-9711 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9712- ●
16 00.785 CLIP; FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 01 1 9705- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
RHD(NH*5**) (A) 		8-97035-986-0 01 1 9312- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
LHD(NH*6**) (B) 		8-97094-343-2 01 1 9312- ● ●
25 00.785 BRACKET; OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-211-1 01 1 9312-9608 ●
25 00.785 BRACKET; OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-211-1 01 1 9609-9711 ●
25 00.785 BRACKET; OIL PIPE 8-97013-211-1 01 1 9609-9711 ●
25 00.785 BRACKET; OIL PIPE 8-97013-211-1 01 1 9712- ●
56 00.785 BRACKET; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97090-299-0 01 1 9312-9608 ●
56 00.785 BRACKET; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97090-299-0 01 1 9609-9711 ●
56 00.785 BRACKET; FLEX HOSE 8-97090-299-0 01 1 9609-9711 ●
56 00.785 BRACKET; FLEX HOSE 8-97090-299-0 01 1 9712- ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) 		9-09716-287-0 02 1 9312-9711 ●
74 00.785 CLIP; CLU OIL PIPE
RHD(NH*5**) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 01 1 9312-9404 ●
74 00.785 CLIP; CLU OIL PIPE
LHD(NH*6**) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 01 1 9312-9404 ●
74 00.785 CLIP; CLU OIL PIPE
LHD(NH*6**) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 01 1 9312-9404 ●
74 00.785 CLIP; CLU OIL PIPE
RHD(NH*5**) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 01 1 9405-9510 ● ●
74 00.785 CLIP; CLU OIL PIPE
03.162 (A) H=28.5 		8-94486-808-0 02 1 9609- ●
75 00.785 PIPE ASM; CLU,HSG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97063-756-2 01 1 9312-9608 ●
75 00.785 PIPE ASM; CLU,HSG
FRT INDEPENDENT SUSPENSION(6PP) 		8-97063-756-2 01 1 9609-9711 ●
75 00.785 PIPE ASM; CLU,HSG 8-97063-756-2 01 1 9609-9711 ●
75 00.785 PIPE ASM; CLU,HSG 8-97063-756-2 01 1 9712- ●
76 00.785 SCREW; BREATHER
FRT INDEPENDENT SUSPENSION(6PP) 00.780 M8X10 		8-94115-113-0 01 1 9312-9711 ●
78 00.785 NUT; CLIP,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9312-9604 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9312-9608 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9609- ● ●
123 00.785 UNION; AIR PIPE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97013-854-0 01 1 9312-9711 ●
124 00.785 NUT; PIPE UNION
FRT INDEPENDENT SUSPENSION(6PP) 04.681 M16 		9-99111-416-0 01 1 9312-9711 ●
125 00.785 WASHER; LK,PIPE UNION
FRT INDEPENDENT SUSPENSION(6PP) 06.897 ID=16.2 		9-09150-516-0 01 1 9312-9711 ●
127 00.785 PIPE; AIR,UNION TO MAG VLV
FRT INDEPENDENT SUSPENSION(6PP) 		8-97062-512-1 01 1 9312-9711 ●
128 00.785 CLIP; AIR PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.145 ID=7 L=16 		9-09524-622-0 02 1 9312-9608 ●
128 00.785 CLIP; AIR PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.145 ID=7 L=16 		9-09524-622-0 02 1 9609-9711 ●
128 00.785 CLIP; AIR PIPE
03.145 ID=7 L=16 		9-09524-622-0 02 1 9609-9711 ●
128 00.785 CLIP; AIR PIPE
03.145 ID=7 L=16 		9-09524-622-0 02 1 9712- ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 00.669 M6X12 		0-20800-612-0 02 1 9312-9606 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9607-9608 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9609-9711 ●
129 00.785 BOLT; PIPE CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9609-9711 ●
129 00.785 BOLT; PIPE CLIP
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE 		0-28480-620-0 01 1 9312-9711 ●
129 00.785 BOLT; PIPE CLIP
FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE 		0-28080-620-0 01 1 9312-9604 ●
179 00.785 CAP; BREATHER
FRT INDEPENDENT SUSPENSION(6PP) 00.780 OD=9.5 		9-47619-005-0 01 1 9312-9711 ●

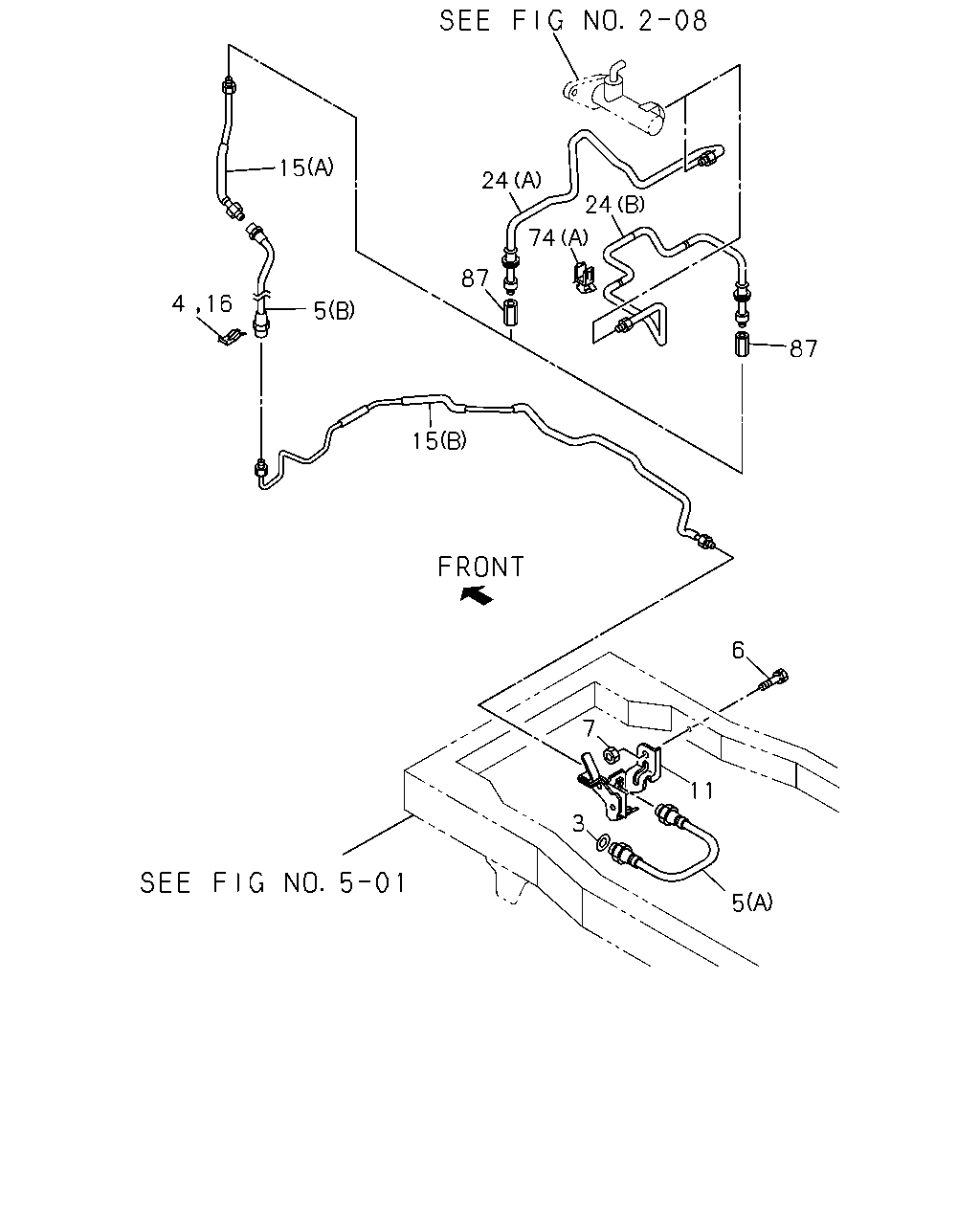

çizim 68364
15 24 24 74 87 16 5 87 15 6 5 4 11 3 7
BalonParca AdiParca NoAdetTipApplied Date A B
3 00.785 GASKET; FLEX HOSE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		9-09920-873-1 01 1 9312- ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9312-9608 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9312-9608 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9609-9704 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9609-9704 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 9705- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 01 1 9312-9704 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9312-9608 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 9609- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9312-9608 ●
5 00.785 HOSE; FLEX,CLU PIPE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94374-552-1 01 1 9609-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9609-9711 ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94374-552-1 01 1 9712- ●
5 00.785 HOSE; FLEX,CLU PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97064-108-1 01 1 9312- ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER 		0-50040-820-0 01 1 9312-9503 ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9504-9608 ●
6 00.785 BOLT; BRKT,FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9609-9711 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9609-9711 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.073 M8X25 W/LK WASHER 		0-50040-825-0 01 1 9312-9411 ●
6 00.785 BOLT; BRKT,FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9412- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8 		9-09110-408-0 01 1 9312-9502 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9503- ●
11 00.785 BRACKET; FLEX HOSE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 		8-97091-929-0 01 1 9312-9608 ●
11 00.785 BRACKET; FLEX HOSE,CLU
FRT INDEPENDENT SUSPENSION(6PP) 		8-97091-929-0 01 1 9609-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9609-9711 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97091-929-0 01 1 9712- ●
11 00.785 BRACKET; FLEX HOSE,CLU
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94411-135-0 01 1 9312- ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97070-380-4 01 1 9312-9510 ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD&SGL CAB(NH*6S*) (B) 		8-97070-380-4 01 1 9511-9608 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD&DBL CAB(NH*6W*) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97070-380-4 01 1 9511-9608 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97070-380-4 01 1 9609- ●
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) (A) 		8-97035-987-0 01 1 9312- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97061-379-1 01 1 9312-9510 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97100-830-3 01 1 9312-9510 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) (B) 		8-97100-830-3 01 1 9511-9608 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
RHD(NH*5**) (B) 		8-97100-830-3 01 1 9609- ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) (A) 		8-97070-300-2 01 1 9312- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
SGL TIRE&LHD(NHB6**) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97075-916-2 01 1 9312-9510 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97075-916-2 01 1 9511-9707 ●
15 00.785 PIPE; CLU,FLEX HOSE
LHD(NH*6**) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97185-250-0 01 1 9708-9711 ●
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-97122-637-0 01 1 9609- ●
16 00.785 CLIP; FLEX HOSE
FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 02 1 9705-9711 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9705-9711 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 02 1 9712- ●
16 00.785 CLIP; FLEX HOSE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94167-006-0 01 1 9705- ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
RHD(NH*5**) (A) 		8-97035-986-0 01 1 9312- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
LHD(NH*6**) (B) 		8-97094-343-2 01 1 9312- ● ●
74 00.785 CLIP; CLU OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) 		9-09716-287-0 02 1 9312-9711 ●
74 00.785 CLIP; CLU OIL PIPE
RHD(NH*5**) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 01 1 9312-9404 ●
74 00.785 CLIP; CLU OIL PIPE
LHD(NH*6**) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 01 1 9312-9404 ●
74 00.785 CLIP; CLU OIL PIPE
LHD(NH*6**) EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 01 1 9312-9404 ●
74 00.785 CLIP; CLU OIL PIPE
RHD(NH*5**) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (A) H=28.5 		8-94486-808-0 01 1 9405-9510 ● ●
74 00.785 CLIP; CLU OIL PIPE
03.162 (A) H=28.5 		8-94486-808-0 02 1 9609- ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9312-9608 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 9609- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
