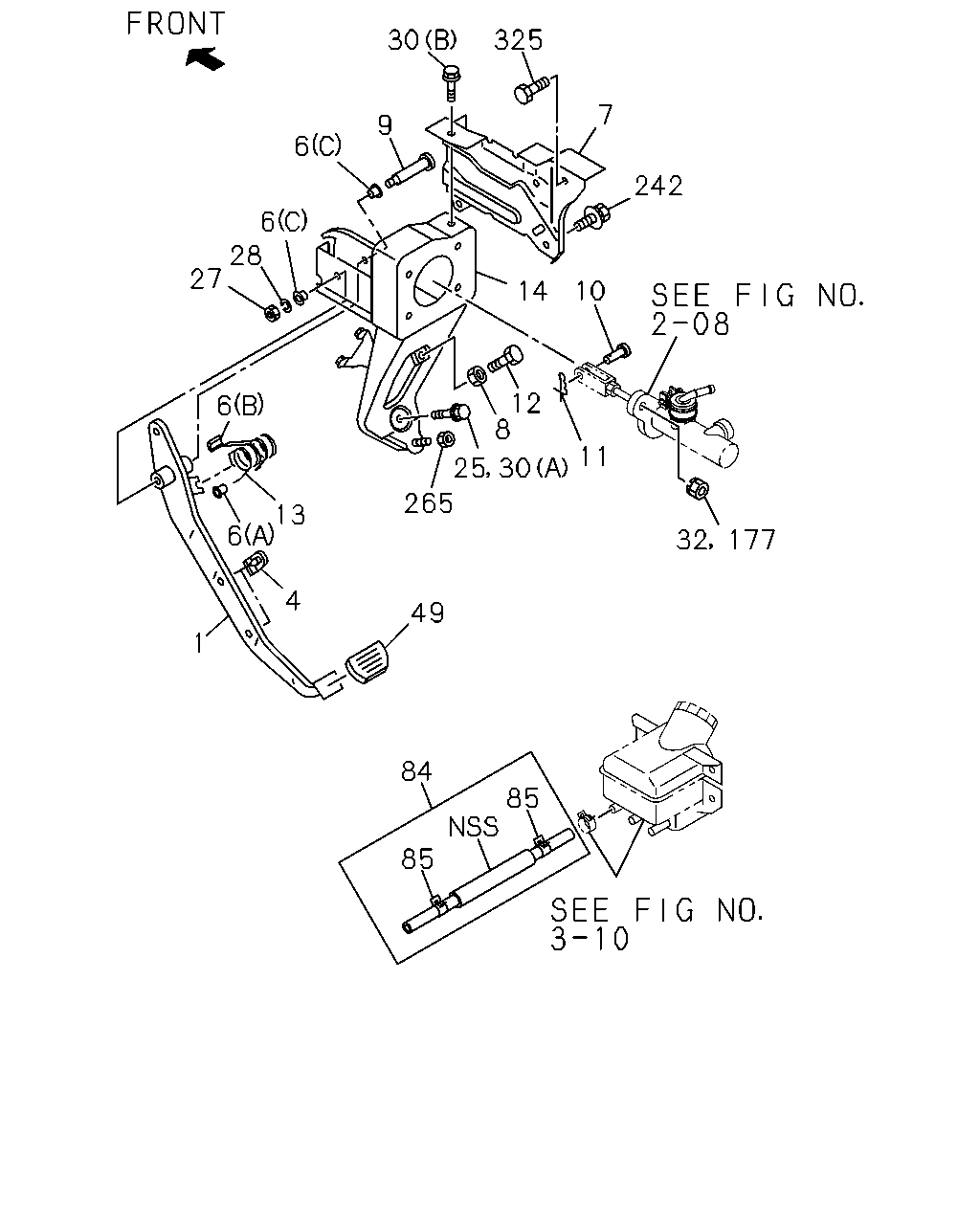

2-03 — CLUTCH PEDAL AND CONTROL (#47026) — 43 parça
çizim 68059
30 325 7 9 6 242 6 28 27 10 14 12 8 11 265 6 13 6 32 177 4 49 1 84 85 85 25 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 00.830 PEDAL; CLU 8-97853-219-1 01 1 9312- ● ● ● ● ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-0 02 1 9312- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 9312- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
(A) 		8-97853-619-0 02 1 9312- ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
(B) 		8-97853-620-0 01 1 9312- ● ● ● ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97853-522-4 01 1 9312- ● ● ●
7 00.829 BRACKET; CLU PEDAL 8-97856-307-2 01 1 9312- ● ● ●
8 00.833 NUT; PIN TO PEDAL
09.011 M10 		9-09110-410-0 01 1 9312- ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL 8-97853-213-0 01 1 9312-9511 ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 9512- ● ● ● ● ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 9312- ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 9312- ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
00.805 M10X35 		0-20801-035-0 01 1 9312- ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL 8-97853-221-1 01 1 9312- ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-97856-402-3 01 1 9312-9609 ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-97867-998-1 01 1 9610- ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-97856-979-2 01 1 9312-9609 ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-97868-003-0 01 1 9610- ● ● ●
25 00.833 BOLT; PEDAL
04.634 M10X22 W/WASHER 		8-94279-099-0 01 1 9512- ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
09.011 M10 		9-09110-410-0 01 1 9312-9406 ● ● ● ● ● ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 9407- ● ● ● ● ● ●
28 00.833 WASHER; LK,FULCRUM PIN
00.002 ID=10.2 		9-09150-610-0 01 1 9312-9406 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 (A) M10X25 		1-09980-494-0 01 1 9312-9511 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
(B) M10X25 		8-94279-212-0 01 1 9312-9603 ● ● ● ● ● ●
30 00.829 BOLT; CLU MTG BRKT
09.003 (B) M10X25 FLANGE 		0-28691-025-0 01 1 9604- ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 9312- ● ● ● ● ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-1 01 1 9312- ● ● ● ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97075-302-1 01 1 9312-9403 ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97113-845-0 01 1 9404-9507 ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-024-0 01 1 9508- ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97076-053-2 01 1 9312-9507 ● ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-021-0 01 1 9508- ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97094-435-0 02 1 9312-9403 ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97094-435-0 02 1 9404-9507 ● ● ● ● ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 9508- ● ● ● ● ● ●
177 00.785 NUT; BRKT
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9402- ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9511 ● ● ● ● ● ●
242 00.785 BOLT; BRKT,CLUTCH
08.155 M8X16 FLANGE 		0-28480-816-0 02 1 9512- ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
03.417 M8 FLANGE 		8-94279-517-0 01 1 9312-9609 ● ● ● ● ● ●
265 00.777 NUT; BRKT,COLUMN SUPT TO C.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9610- ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9312-9603 ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9604-9711 ● ● ● ● ● ●
325 00.782 BOLT; BRKT,STRG SUPPORT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9712- ● ● ● ● ● ●
