◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#47025) — 26 parça

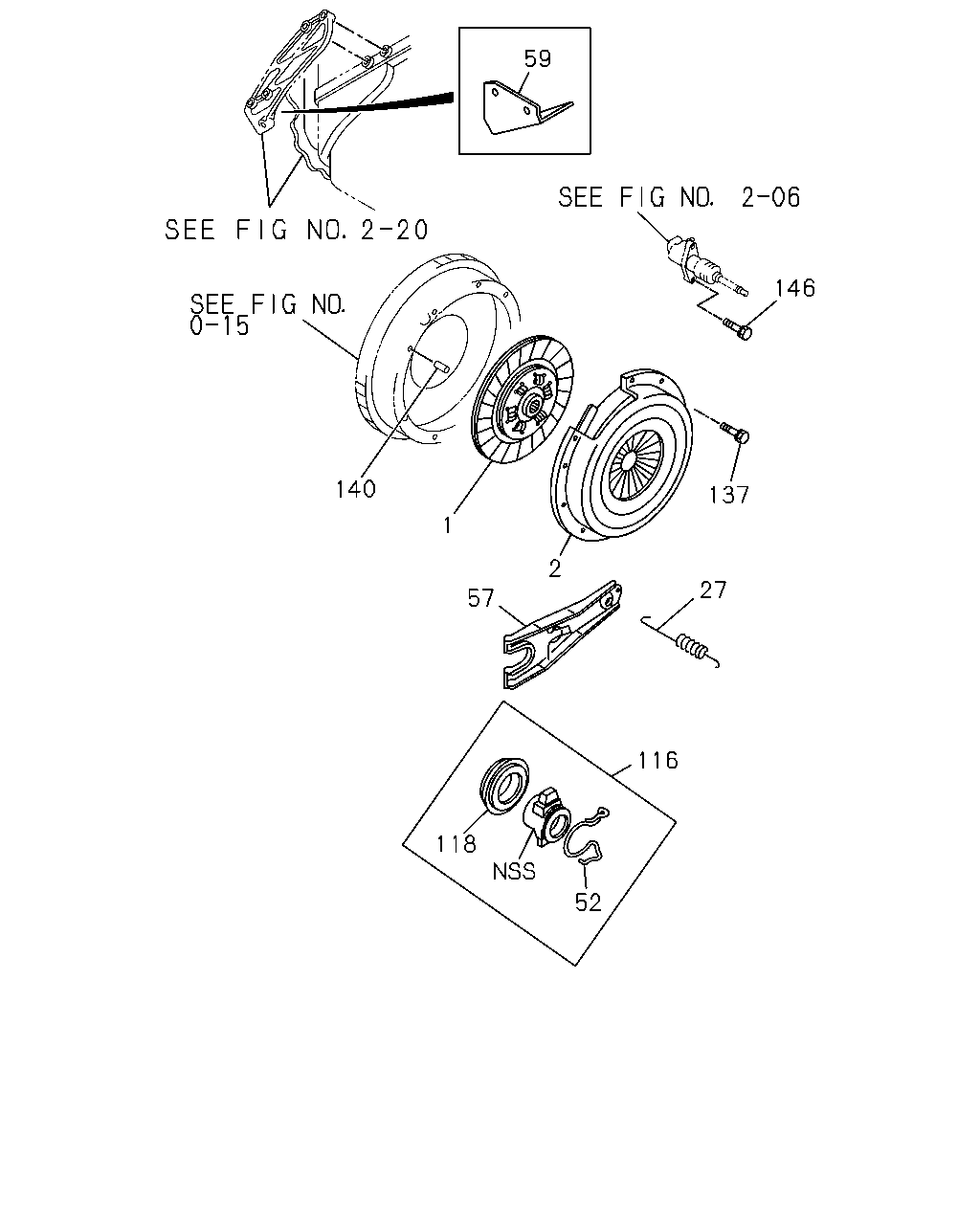

çizim 68024
59 146 140 137 1 2 27 57 116 118 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.886 DISC; CLUTCH 8-97013-548-0 01 1 9312- ●
1 00.886 DISC; CLUTCH 8-97135-492-0 01 1 9609-9806 ●
1 00.886 DISC; CLUTCH 8-97207-245-0 01 1 9807-9809 ●
1 00.886 DISC; CLUTCH 8-97217-985-0 01 1 9810- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-94259-132-1 01 1 9312- ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97109-246-0 01 1 9609- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94321-406-1 01 1 9312-9608 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-94321-406-1 01 1 9609-9712 ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-97184-358-0 01 1 9801- ● ●
52 00.797 SPRING; SHIFT BLOCK TO FORK 8-94460-893-0 01 1 9312- ●
52 00.797 SPRING; SHIFT BLOCK TO FORK 8-97017-094-0 01 1 9609- ●
57 00.795 FORK; SHIFT,CLU 8-97024-528-0 01 1 9312- ●
57 00.795 FORK; SHIFT,CLU 8-97033-701-0 01 1 9609- ●
59 00.782 GUIDE; AIR,SLAVE CYL
FRT INDEPENDENT SUSPENSION(6PP) 		8-97089-844-1 01 1 9312-9408 ●
116 00.799 BLOCK; SHIFT,CLU 8-94313-167-0 01 1 9312- ●
116 00.799 BLOCK; SHIFT,CLU 8-97033-699-0 01 1 9609- ●
118 00.799 BEARING; CLU RELEASE 5-31314-001-1 01 1 9312- ●
118 00.799 BEARING; CLU RELEASE
KOYO 		8-94379-499-0 01 1 9609- ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9312-9608 ●
137 00.862 BOLT; CLU COVER
M8X18 W/LK WASHER 		8-94321-840-1 06 1 9609-9611 ● ●
137 00.862 BOLT; CLU COVER
01.062 M8X16 FLANGE 		0-28080-816-0 06 1 9612- ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9312-9608 ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 9609- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9312-9606 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9607-9608 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9609- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
