Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#47022) — 239 parça

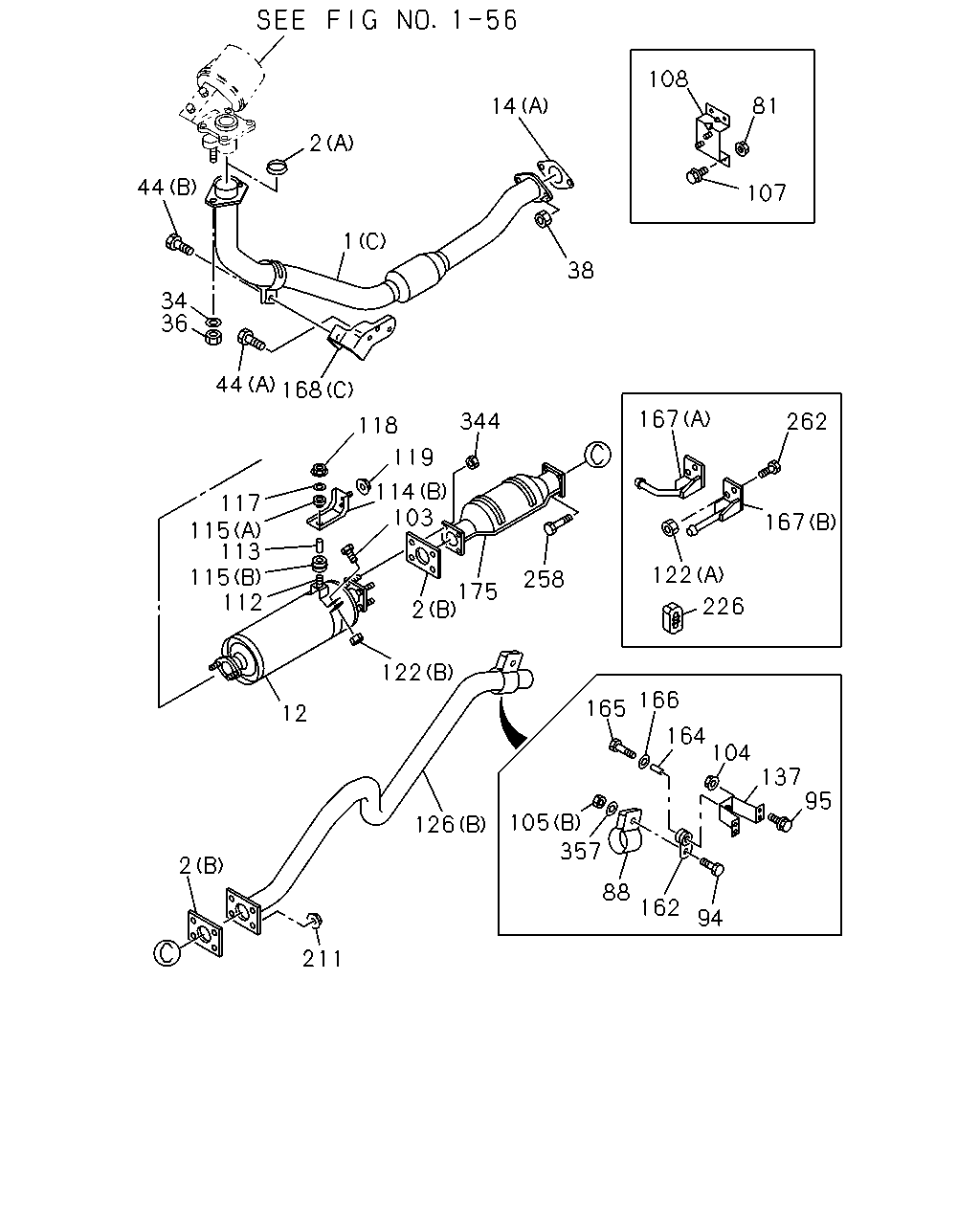

108 81 14 2 44 38 34 36 44 168 167 344 262 118 114 115 113 115 112 167 122 226 258 175 2 122 166 165 12 164 137 95 105 357 126 2 88 162 94 211 119 103 117 1 107 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-454-2	01	1	9312-9510	●	●	●	●	●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-454-2	01	1	9511-9711				●
1	03.609 PIPE; EXH FRT INDEPENDENT SUSPENSION(6PP) EXC. EXHAUST BRAKE<NF8> (A)	8-97034-085-2	01	1	9312-9510	●	●	●	●	●
1	03.609 PIPE; EXH FRT INDEPENDENT SUSPENSION(6PP) EXC. EXHAUST BRAKE<NF8> (A)	8-97034-085-2	01	1	9511-9711				●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97102-669-0	01	1	9312-9608	●	●	●	●	●	●
1	03.609 PIPE; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97102-669-0	01	1	9609-9711	●	●	●	●	●	●
1	03.609 PIPE; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97102-669-0	01	1	9712-	●	●	●	●	●	●
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97102-668-0	01	1	9312-9608	●	●	●	●	●	●
1	03.609 PIPE; EXH 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97102-668-0	01	1	9609-9711	●	●	●	●	●	●
1	03.609 PIPE; EXH 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (B)	8-97102-668-0	01	1	9712-	●	●	●	●	●	●
1	03.609 PIPE; EXH 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. EXHAUST BRAKE<NF8> (C)	8-97167-462-0	01	1	9609-	●	●			●
1	03.609 PIPE; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<7AF> (C)	8-97167-463-0	01	1	9609-	●	●			●
1	03.609 PIPE; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97034-086-1	01	1	9802-	●	●			●
1	03.609 PIPE; EXH 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8>,EURO2 SPECIFICATION<7AF> (B)	8-97034-084-0	01	1	9802-	●	●			●
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-94329-529-0	01	1	9312-9402	●	●	●	●	●	●
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-97069-287-0	01	1	9403-9709	●	●	●	●	●	●
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-97180-750-2	01	1	9710-	●	●	●	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B) ID=71	8-94324-194-0	02	1	9609-	●	●			●
12	03.701 SILENCER ASM; EXH WEST MALAYSIA EQUIPMENT(RWP)	8-97089-857-0	01	1	9312-9510	●
12	03.701 SILENCER ASM; EXH NOISE PACK FOR CHINESE REGULATION<6QX>	8-97089-857-0	01	1	9312-9510			●	●
12	03.701 SILENCER ASM; EXH WEST MALAYSIA EQUIPMENT(RWP)	8-97089-857-0	01	1	9511-9608	●
12	03.701 SILENCER ASM; EXH NOISE PACK FOR CHINESE REGULATION<6QX>	8-97089-857-0	01	1	9511-9608				●
12	03.701 SILENCER ASM; EXH 4JB1 ENG(RLF) WEST MALAYSIA EQUIPMENT(RWP)	8-97089-857-0	01	1	9609-9711	●
12	03.701 SILENCER ASM; EXH NOISE PACK FOR CHINESE REGULATION<6QX>	8-97089-857-0	01	1	9609-9711				●
12	03.701 SILENCER ASM; EXH EXC. WEST MALAYSIA EQUIPMENT(RWP), NOISE PACK FOR CHINESE REGULATION<6QX>	8-97049-721-0	01	1	9312-9608	●	●	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JB1 ENG(RLF) EXC. WEST MALAYSIA EQUIPMENT(RWP), NOISE PACK FOR CHINESE REGULATION<6QX>	8-97049-721-0	01	1	9609-9711	●	●	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JB1 ENG(RLF)	8-97049-721-0	01	1	9712-	●	●			●
12	03.701 SILENCER ASM; EXH	8-97049-721-0	01	1	9712-			●	●		●
12	03.701 SILENCER ASM; EXH 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF>	8-97145-037-0	01	1	9609-	●	●			●
12	03.701 SILENCER ASM; EXH 4JG2 ENG(RJC) EXC. EURO2 SPECIFICATION<7AF>	8-97165-310-0	01	1	9802-	●	●			●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9312-9608	●	●	●	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EURO2 SPECIFICATION<7AF> (B) ID=64.7	8-94328-352-0	01	1	9609-	●	●			●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9609-			●	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9312-	●	●	●	●	●	●
34	03.613 WASHER; EXH PIPE EXHAUST BRAKE<NF8> ID=10.5	5-09500-013-0	02	1	9312-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE EXHAUST BRAKE<NF8> M10 H=18	9-09640-014-0	02	1	9312-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE EXC. EXHAUST BRAKE<NF8> 00.004 M10 LOCK NUT	8-94375-110-0	02	1	9312-9501	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	9502-	●	●	●	●	●	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-	●	●	●	●	●	●
44	03.613 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9510	●	●	●	●	●
44	03.613 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9511-9608				●
44	03.613 BOLT; BRKT 4JG2 ENG(RJC) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9609-9706	●	●			●
44	03.613 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9609-9706				●
44	03.613 BOLT; BRKT 4JG2 ENG(RJC) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9707-9711	●	●			●
44	03.613 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9707-9711				●
44	03.613 BOLT; BRKT 4JG2 ENG(RJC) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9712-	●	●			●
44	03.613 BOLT; BRKT 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-	●	●	●	●	●	●
81	03.704 NUT; BRKT EURO2 SPECIFICATION<7AF> 04.785 M10 FLANGE	0-91150-110-0	02	1	9609-9706	●	●			●
81	03.704 NUT; BRKT EURO2 SPECIFICATION<7AF> 04.785 M10 FLANGE	0-91150-110-0	02	1	9707-	●				●
81	03.704 NUT; BRKT EURO2 SPECIFICATION<7AF> 04.785 M10 FLANGE	0-91150-110-0	01	1	9707-		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97016-034-0	01	1	9312-	●	●	●	●	●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	9312-	●	●	●	●	●	●
95	03.708 BOLT; BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9312-9411	●	●	●	●	●	●
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9412-	●	●	●	●	●	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9312-	●	●	●	●	●	●
103	03.704 BOLT; SILENCER BRKT FIX EURO2 SPECIFICATION<7AF> 03.613 M10X40 FLANGE	0-28681-040-0	04	1	9609-9702	●	●			●
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-	●	●	●	●	●	●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9312-9608	●	●	●	●	●	●
105	03.704 NUT; CLAMP EXC. EURO2 SPECIFICATION<7AF> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9609-	●	●			●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9609-			●	●		●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	9312-	●	●	●	●	●	●
107	03.704 BOLT; BRKT EURO2 SPECIFICATION<7AF> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9609-9706	●	●			●
107	03.704 BOLT; BRKT EURO2 SPECIFICATION<7AF> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9707-	●				●
107	03.704 BOLT; BRKT EURO2 SPECIFICATION<7AF> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	9707-		●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN EURO2 SPECIFICATION<7AF>	8-94378-511-0	01	1	9609-9706	●	●			●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN EURO2 SPECIFICATION<7AF>	8-94378-511-1	01	1	9707-	●				●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN EURO2 SPECIFICATION<7AF>	8-97087-222-2	01	1	9707-		●
112	03.706 BRACKET; HANGER	8-97081-457-0	01	1	9312-9608	●	●	●	●	●	●
112	03.706 BRACKET; HANGER EXC. EURO2 SPECIFICATION<7AF>	8-97081-457-0	01	1	9609-9801	●	●			●
112	03.706 BRACKET; HANGER	8-97081-457-0	01	1	9609-9801			●	●		●
112	03.706 BRACKET; HANGER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97081-457-0	01	1	9802-	●	●	●	●	●	●
112	03.706 BRACKET; HANGER EURO2 SPECIFICATION<7AF>	8-97076-018-0	01	1	9609-9801	●	●			●
112	03.706 BRACKET; HANGER 4JG2 ENG(RJC)	8-97076-018-0	01	1	9802-	●	●			●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	9312-	●	●	●	●	●	●
114	03.704 BRACKET; EXH SILENCER (A)	8-94329-856-0	01	1	9312-9608	●	●	●	●	●	●
114	03.704 BRACKET; EXH SILENCER EXC. EURO2 SPECIFICATION<7AF> (A)	8-94329-856-0	01	1	9609-	●	●			●
114	03.704 BRACKET; EXH SILENCER (A)	8-94329-856-0	01	1	9609-			●	●		●
114	03.704 BRACKET; EXH SILENCER EURO2 SPECIFICATION<7AF> (B)	8-97073-758-0	01	1	9609-	●	●			●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	9312-	●	●	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	9312-	●	●	●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	9312-	●	●	●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	9312-	●	●	●	●	●	●
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-	●	●	●	●	●	●
122	03.275 NUT; HANGER BRKT 02.559 (B) M8	9-09110-408-0	01	1	9312-	●	●	●	●	●	●
122	03.275 NUT; HANGER BRKT EURO2 SPECIFICATION<7AF> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9609-	●	●			●
126	03.705 PIPE; EXH,RR 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B)	8-97144-948-0	01	1	9609-9612	●	●
126	03.705 PIPE; EXH,RR 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B)	8-97174-126-0	01	1	9701-	●	●
126	03.705 PIPE; EXH,RR (A)	8-97081-460-0	01	1	9312-9608	●	●	●	●
126	03.705 PIPE; EXH,RR 4JB1 ENG(RLF) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97081-460-0	01	1	9609-9801	●	●
126	03.705 PIPE; EXH,RR (A)	8-97081-460-0	01	1	9609-9801			●	●
126	03.705 PIPE; EXH,RR EXC. EURO2 SPECIFICATION<7AF> (A)	8-97081-460-0	01	1	9802-	●	●
126	03.705 PIPE; EXH,RR (A)	8-97081-460-0	01	1	9802-			●	●
126	03.705 PIPE; EXH,RR 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B)	8-97167-547-0	01	1	9609-9612					●
126	03.705 PIPE; EXH,RR 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B)	8-97174-127-0	01	1	9701-					●
126	03.705 PIPE; EXH,RR (A)	8-97081-465-0	01	1	9312-9608					●	●
126	03.705 PIPE; EXH,RR 4JB1 ENG(RLF) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97081-465-0	01	1	9609-9801					●
126	03.705 PIPE; EXH,RR (A)	8-97081-465-0	01	1	9609-9801						●
126	03.705 PIPE; EXH,RR EXC. EURO2 SPECIFICATION<7AF> (A)	8-97081-465-0	01	1	9802-					●
126	03.705 PIPE; EXH,RR (A)	8-97081-465-0	01	1	9802-						●
137	03.706 BRACKET; TAIL PIPE	9-22121-146-1	01	1	9312-	●	●	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE	8-94156-255-0	01	1	9312-	●	●	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 03.616 L=23	9-22151-175-0	01	1	9312-	●	●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9508	●	●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER 01.540 M8X45 FLANGE	0-28080-845-0	01	1	9509-	●	●	●	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9312-	●	●	●	●	●	●
167	03.706 HANGER; EXH PIPE EURO2 SPECIFICATION<7AF> (A)	8-97144-952-0	01	1	9609-	●	●			●
167	03.706 HANGER; EXH PIPE EURO2 SPECIFICATION<7AF> (B)	8-97144-955-0	01	1	9609-	●	●			●
168	03.613 BRACKET; EXH PIPE,FRT FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-704-3	01	1	9312-9510	●	●	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-704-3	01	1	9511-9711				●
168	03.613 BRACKET; EXH PIPE,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94445-704-0	01	1	9312-9510	●	●	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-94445-704-0	01	1	9312-9510						●
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-94445-704-0	01	1	9511-9608	●	●	●		●	●
168	03.613 BRACKET; EXH PIPE,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94445-704-0	01	1	9511-9608				●
168	03.613 BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94445-704-0	01	1	9609-9711	●	●	●	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (B)	8-94445-704-0	01	1	9712-	●	●			●
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-94445-704-0	01	1	9712-			●	●		●
168	03.613 BRACKET; EXH PIPE,FRT 4JG2 ENG(RJC) (C)	8-97084-346-2	01	1	9609-	●	●			●
175	03.685 CONVERTER; CATALYST 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF>	8-97140-417-1	01	1	9609-	●	●			●
211	03.685 NUT; CONV EURO2 SPECIFICATION<7AF> 04.785 M10 FLANGE	0-91150-110-0	04	1	9609-	●	●			●
226	03.613 RUBBER; CUSHION EURO2 SPECIFICATION<7AF> 03.706 T=28 55X44(OVAL)	8-94332-331-0	01	1	9609-9612	●	●			●
226	03.613 RUBBER; CUSHION EURO2 SPECIFICATION<7AF>	8-97166-498-0	01	1	9701-	●	●			●
258	03.685 BOLT; CONV BRKT EURO2 SPECIFICATION<7AF> 03.613 M10X40 FLANGE	0-28681-040-0	04	1	9609-9702	●	●			●
262	03.704 BOLT; HANGER TO BODY EURO2 SPECIFICATION<7AF> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9609-	●	●			●
344	03.602 NUT; SILENCER EURO2 SPECIFICATION<7AF> 04.785 M10 FLANGE	0-91150-110-0	04	1	9609-	●	●			●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9312-	●	●	●	●	●	●

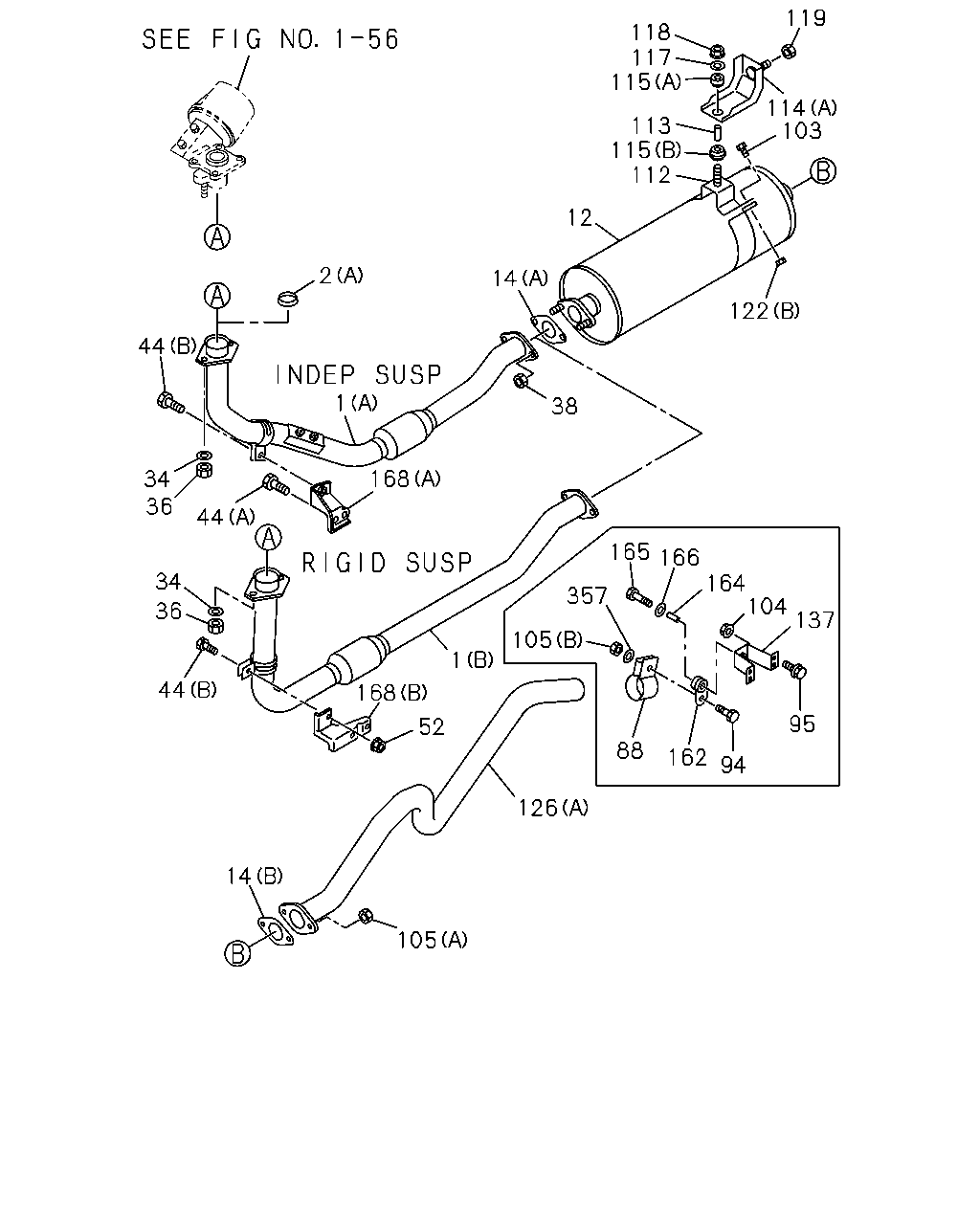

103 12 2 14 122 44 1 38 168 34 36 44 165 166 164 104 137 34 36 357 105 1 44 168 52 95 88 162 94 126 14 105 119 114 113 115 117 118 115 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-454-2	01	1	9312-9510	●	●	●	●	●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-454-2	01	1	9511-9711				●
1	03.609 PIPE; EXH FRT INDEPENDENT SUSPENSION(6PP) EXC. EXHAUST BRAKE<NF8> (A)	8-97034-085-2	01	1	9312-9510	●	●	●	●	●
1	03.609 PIPE; EXH FRT INDEPENDENT SUSPENSION(6PP) EXC. EXHAUST BRAKE<NF8> (A)	8-97034-085-2	01	1	9511-9711				●
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97102-669-0	01	1	9312-9608	●	●	●	●	●	●
1	03.609 PIPE; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97102-669-0	01	1	9609-9711	●	●	●	●	●	●
1	03.609 PIPE; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (B)	8-97102-669-0	01	1	9712-	●	●	●	●	●	●
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97102-668-0	01	1	9312-9608	●	●	●	●	●	●
1	03.609 PIPE; EXH 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97102-668-0	01	1	9609-9711	●	●	●	●	●	●
1	03.609 PIPE; EXH 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (B)	8-97102-668-0	01	1	9712-	●	●	●	●	●	●
1	03.609 PIPE; EXH 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> EXC. EXHAUST BRAKE<NF8> (C)	8-97167-462-0	01	1	9609-	●	●			●
1	03.609 PIPE; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<7AF> (C)	8-97167-463-0	01	1	9609-	●	●			●
1	03.609 PIPE; EXH 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97034-086-1	01	1	9802-	●	●			●
1	03.609 PIPE; EXH 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8>,EURO2 SPECIFICATION<7AF> (B)	8-97034-084-0	01	1	9802-	●	●			●
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-94329-529-0	01	1	9312-9402	●	●	●	●	●	●
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-97069-287-0	01	1	9403-9709	●	●	●	●	●	●
2	03.611 GASKET; PIPE TO MANIF EXC. EXHAUST BRAKE<NF8> (A)	8-97180-750-2	01	1	9710-	●	●	●	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B) ID=71	8-94324-194-0	02	1	9609-	●	●			●
12	03.701 SILENCER ASM; EXH WEST MALAYSIA EQUIPMENT(RWP)	8-97089-857-0	01	1	9312-9510	●
12	03.701 SILENCER ASM; EXH NOISE PACK FOR CHINESE REGULATION<6QX>	8-97089-857-0	01	1	9312-9510			●	●
12	03.701 SILENCER ASM; EXH WEST MALAYSIA EQUIPMENT(RWP)	8-97089-857-0	01	1	9511-9608	●
12	03.701 SILENCER ASM; EXH NOISE PACK FOR CHINESE REGULATION<6QX>	8-97089-857-0	01	1	9511-9608				●
12	03.701 SILENCER ASM; EXH 4JB1 ENG(RLF) WEST MALAYSIA EQUIPMENT(RWP)	8-97089-857-0	01	1	9609-9711	●
12	03.701 SILENCER ASM; EXH NOISE PACK FOR CHINESE REGULATION<6QX>	8-97089-857-0	01	1	9609-9711				●
12	03.701 SILENCER ASM; EXH EXC. WEST MALAYSIA EQUIPMENT(RWP), NOISE PACK FOR CHINESE REGULATION<6QX>	8-97049-721-0	01	1	9312-9608	●	●	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JB1 ENG(RLF) EXC. WEST MALAYSIA EQUIPMENT(RWP), NOISE PACK FOR CHINESE REGULATION<6QX>	8-97049-721-0	01	1	9609-9711	●	●	●	●	●	●
12	03.701 SILENCER ASM; EXH 4JB1 ENG(RLF)	8-97049-721-0	01	1	9712-	●	●			●
12	03.701 SILENCER ASM; EXH	8-97049-721-0	01	1	9712-			●	●		●
12	03.701 SILENCER ASM; EXH 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF>	8-97145-037-0	01	1	9609-	●	●			●
12	03.701 SILENCER ASM; EXH 4JG2 ENG(RJC) EXC. EURO2 SPECIFICATION<7AF>	8-97165-310-0	01	1	9802-	●	●			●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9312-9608	●	●	●	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. EURO2 SPECIFICATION<7AF> (B) ID=64.7	8-94328-352-0	01	1	9609-	●	●			●
14	03.704 GASKET; SILENCER TO EXH PIPE (B) ID=64.7	8-94328-352-0	01	1	9609-			●	●		●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	9312-	●	●	●	●	●	●
34	03.613 WASHER; EXH PIPE EXHAUST BRAKE<NF8> ID=10.5	5-09500-013-0	02	1	9312-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE EXHAUST BRAKE<NF8> M10 H=18	9-09640-014-0	02	1	9312-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE EXC. EXHAUST BRAKE<NF8> 00.004 M10 LOCK NUT	8-94375-110-0	02	1	9312-9501	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE EXC. EXHAUST BRAKE<NF8> M10 FLANGE	8-97096-192-1	02	1	9502-	●	●	●	●	●	●
38	00.002 NUT; SILENCER 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-	●	●	●	●	●	●
44	03.613 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9312-9510	●	●	●	●	●
44	03.613 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9511-9608				●
44	03.613 BOLT; BRKT 4JG2 ENG(RJC) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9609-9706	●	●			●
44	03.613 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9609-9706				●
44	03.613 BOLT; BRKT 4JG2 ENG(RJC) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9707-9711	●	●			●
44	03.613 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9707-9711				●
44	03.613 BOLT; BRKT 4JG2 ENG(RJC) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9712-	●	●			●
44	03.613 BOLT; BRKT 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-	●	●	●	●	●	●
52	03.613 NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8	9-09110-408-0	01	1	9312-9510	●	●	●	●	●
52	03.613 NUT; BRKT 02.559 M8	9-09110-408-0	01	1	9312-9510						●
52	03.613 NUT; BRKT 02.559 M8	9-09110-408-0	01	1	9511-9608	●	●	●		●	●
52	03.613 NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8	9-09110-408-0	01	1	9511-9608				●
52	03.613 NUT; BRKT 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8	9-09110-408-0	01	1	9609-9711	●	●	●	●	●	●
52	03.613 NUT; BRKT 4JB1 ENG(RLF) 02.559 M8	9-09110-408-0	01	1	9712-	●	●			●
52	03.613 NUT; BRKT 02.559 M8	9-09110-408-0	01	1	9712-			●	●		●
88	03.708 CLAMP; EXH PIPE ID=51.5	8-97016-034-0	01	1	9312-	●	●	●	●	●	●
94	03.704 BOLT; CLAMP 03.708 M8X45	0-20800-845-0	01	1	9312-	●	●	●	●	●	●
95	03.708 BOLT; BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	9312-9411	●	●	●	●	●	●
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9412-	●	●	●	●	●	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9312-	●	●	●	●	●	●
103	03.704 BOLT; SILENCER BRKT FIX EURO2 SPECIFICATION<7AF> 03.613 M10X40 FLANGE	0-28681-040-0	04	1	9609-9702	●	●			●
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-	●	●	●	●	●	●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9312-9608	●	●	●	●	●	●
105	03.704 NUT; CLAMP EXC. EURO2 SPECIFICATION<7AF> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9609-	●	●			●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9609-			●	●		●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	9312-	●	●	●	●	●	●
112	03.706 BRACKET; HANGER	8-97081-457-0	01	1	9312-9608	●	●	●	●	●	●
112	03.706 BRACKET; HANGER EXC. EURO2 SPECIFICATION<7AF>	8-97081-457-0	01	1	9609-9801	●	●			●
112	03.706 BRACKET; HANGER	8-97081-457-0	01	1	9609-9801			●	●		●
112	03.706 BRACKET; HANGER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97081-457-0	01	1	9802-	●	●	●	●	●	●
112	03.706 BRACKET; HANGER EURO2 SPECIFICATION<7AF>	8-97076-018-0	01	1	9609-9801	●	●			●
112	03.706 BRACKET; HANGER 4JG2 ENG(RJC)	8-97076-018-0	01	1	9802-	●	●			●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	9312-	●	●	●	●	●	●
114	03.704 BRACKET; EXH SILENCER (A)	8-94329-856-0	01	1	9312-9608	●	●	●	●	●	●
114	03.704 BRACKET; EXH SILENCER EXC. EURO2 SPECIFICATION<7AF> (A)	8-94329-856-0	01	1	9609-	●	●			●
114	03.704 BRACKET; EXH SILENCER (A)	8-94329-856-0	01	1	9609-			●	●		●
114	03.704 BRACKET; EXH SILENCER EURO2 SPECIFICATION<7AF> (B)	8-97073-758-0	01	1	9609-	●	●			●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	9312-	●	●	●	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	9312-	●	●	●	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	9312-	●	●	●	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	9312-	●	●	●	●	●	●
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-	●	●	●	●	●	●
122	03.275 NUT; HANGER BRKT 02.559 (B) M8	9-09110-408-0	01	1	9312-	●	●	●	●	●	●
122	03.275 NUT; HANGER BRKT EURO2 SPECIFICATION<7AF> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9609-	●	●			●
126	03.705 PIPE; EXH,RR 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B)	8-97144-948-0	01	1	9609-9612	●	●
126	03.705 PIPE; EXH,RR 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B)	8-97174-126-0	01	1	9701-	●	●
126	03.705 PIPE; EXH,RR (A)	8-97081-460-0	01	1	9312-9608	●	●	●	●
126	03.705 PIPE; EXH,RR 4JB1 ENG(RLF) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97081-460-0	01	1	9609-9801	●	●
126	03.705 PIPE; EXH,RR (A)	8-97081-460-0	01	1	9609-9801			●	●
126	03.705 PIPE; EXH,RR EXC. EURO2 SPECIFICATION<7AF> (A)	8-97081-460-0	01	1	9802-	●	●
126	03.705 PIPE; EXH,RR (A)	8-97081-460-0	01	1	9802-			●	●
126	03.705 PIPE; EXH,RR 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B)	8-97167-547-0	01	1	9609-9612					●
126	03.705 PIPE; EXH,RR 4JG2 ENG(RJC) EURO2 SPECIFICATION<7AF> (B)	8-97174-127-0	01	1	9701-					●
126	03.705 PIPE; EXH,RR (A)	8-97081-465-0	01	1	9312-9608					●	●
126	03.705 PIPE; EXH,RR 4JB1 ENG(RLF) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97081-465-0	01	1	9609-9801					●
126	03.705 PIPE; EXH,RR (A)	8-97081-465-0	01	1	9609-9801						●
126	03.705 PIPE; EXH,RR EXC. EURO2 SPECIFICATION<7AF> (A)	8-97081-465-0	01	1	9802-					●
126	03.705 PIPE; EXH,RR (A)	8-97081-465-0	01	1	9802-						●
137	03.706 BRACKET; TAIL PIPE	9-22121-146-1	01	1	9312-	●	●	●	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE	8-94156-255-0	01	1	9312-	●	●	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 03.616 L=23	9-22151-175-0	01	1	9312-	●	●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER M8X40 W/LK WASHER	0-50040-840-0	01	1	9312-9508	●	●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER 01.540 M8X45 FLANGE	0-28080-845-0	01	1	9509-	●	●	●	●	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	9312-	●	●	●	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-704-3	01	1	9312-9510	●	●	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-704-3	01	1	9511-9711				●
168	03.613 BRACKET; EXH PIPE,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94445-704-0	01	1	9312-9510	●	●	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-94445-704-0	01	1	9312-9510						●
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-94445-704-0	01	1	9511-9608	●	●	●		●	●
168	03.613 BRACKET; EXH PIPE,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94445-704-0	01	1	9511-9608				●
168	03.613 BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94445-704-0	01	1	9609-9711	●	●	●	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (B)	8-94445-704-0	01	1	9712-	●	●			●
168	03.613 BRACKET; EXH PIPE,FRT (B)	8-94445-704-0	01	1	9712-			●	●		●
168	03.613 BRACKET; EXH PIPE,FRT 4JG2 ENG(RJC) (C)	8-97084-346-2	01	1	9609-	●	●			●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9312-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
