1-45 — WATER SEDIMENTER; FUEL (#47021) — 49 parça

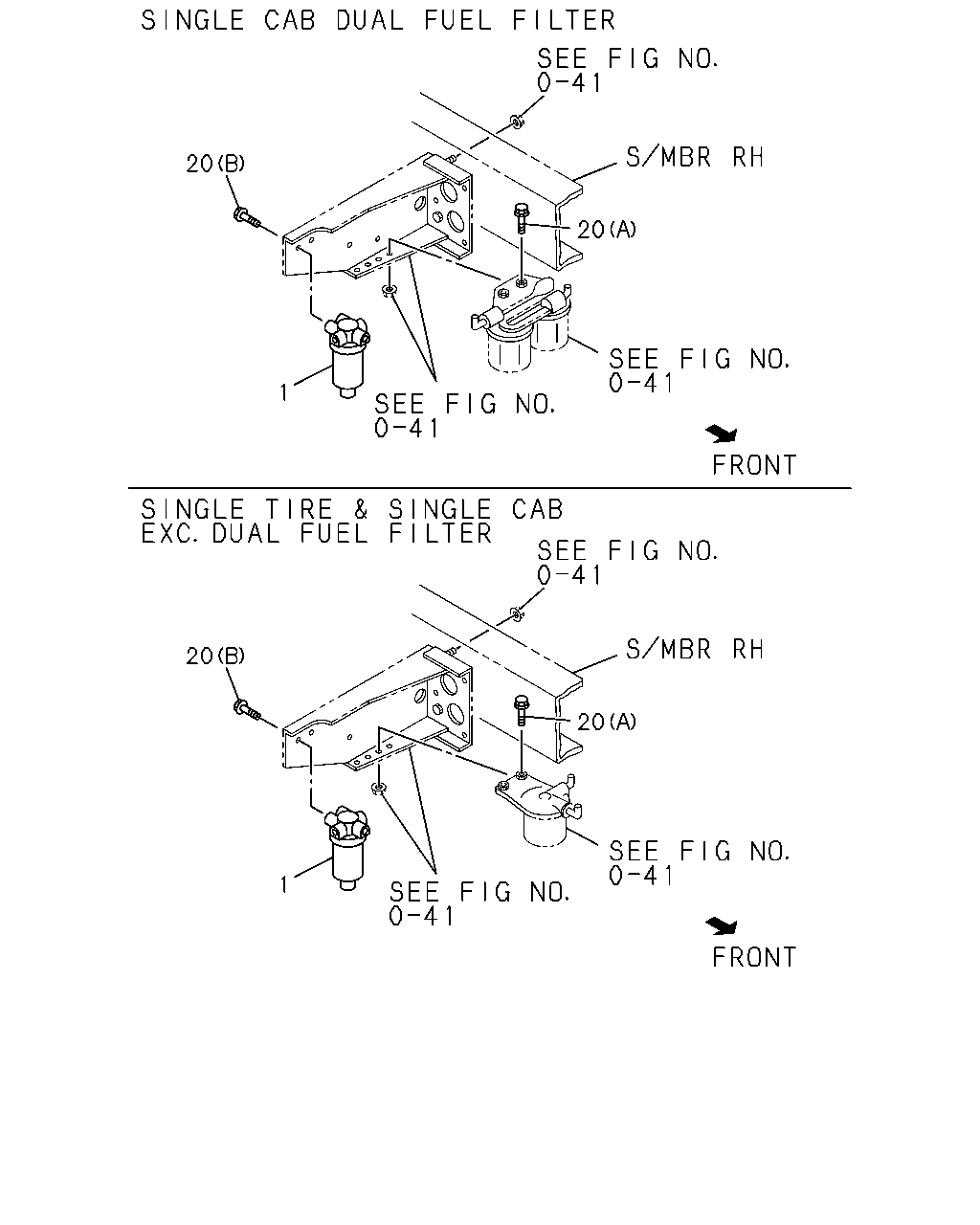

çizim 17457
20 20 1 20 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9312- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9312- ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.685 (A) M10X30 FLANGE 		0-28081-030-0 02 1 9312- ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
08.900 (B) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9704 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 9705- ● ● ● ● ● ●

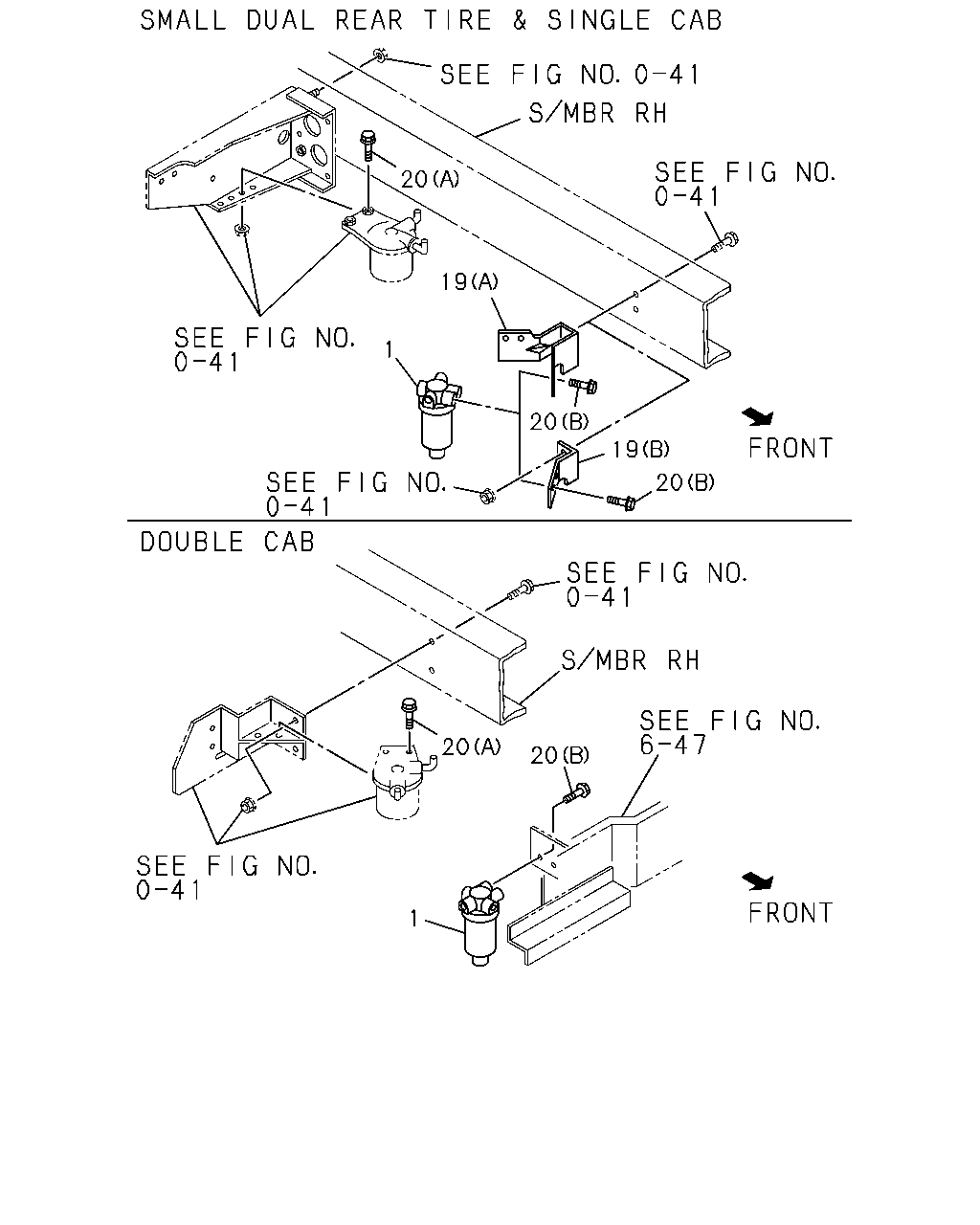

çizim 65744
20 19 1 20 19 20 20 20 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9312- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9312- ● ● ● ● ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
(A) 		8-94162-580-0 01 1 9312-9407 ● ●
19 03.890 BRACKET; FUEL SEDIMENTER
(B) 		8-94366-685-0 01 1 9408- ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
00.685 (A) M10X30 FLANGE 		0-28081-030-0 02 1 9312- ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
08.900 (B) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9312-9704 ● ● ● ● ● ●
20 03.890 BOLT; BRKT TO SEDIMENTER
02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 9705- ● ● ● ● ● ●

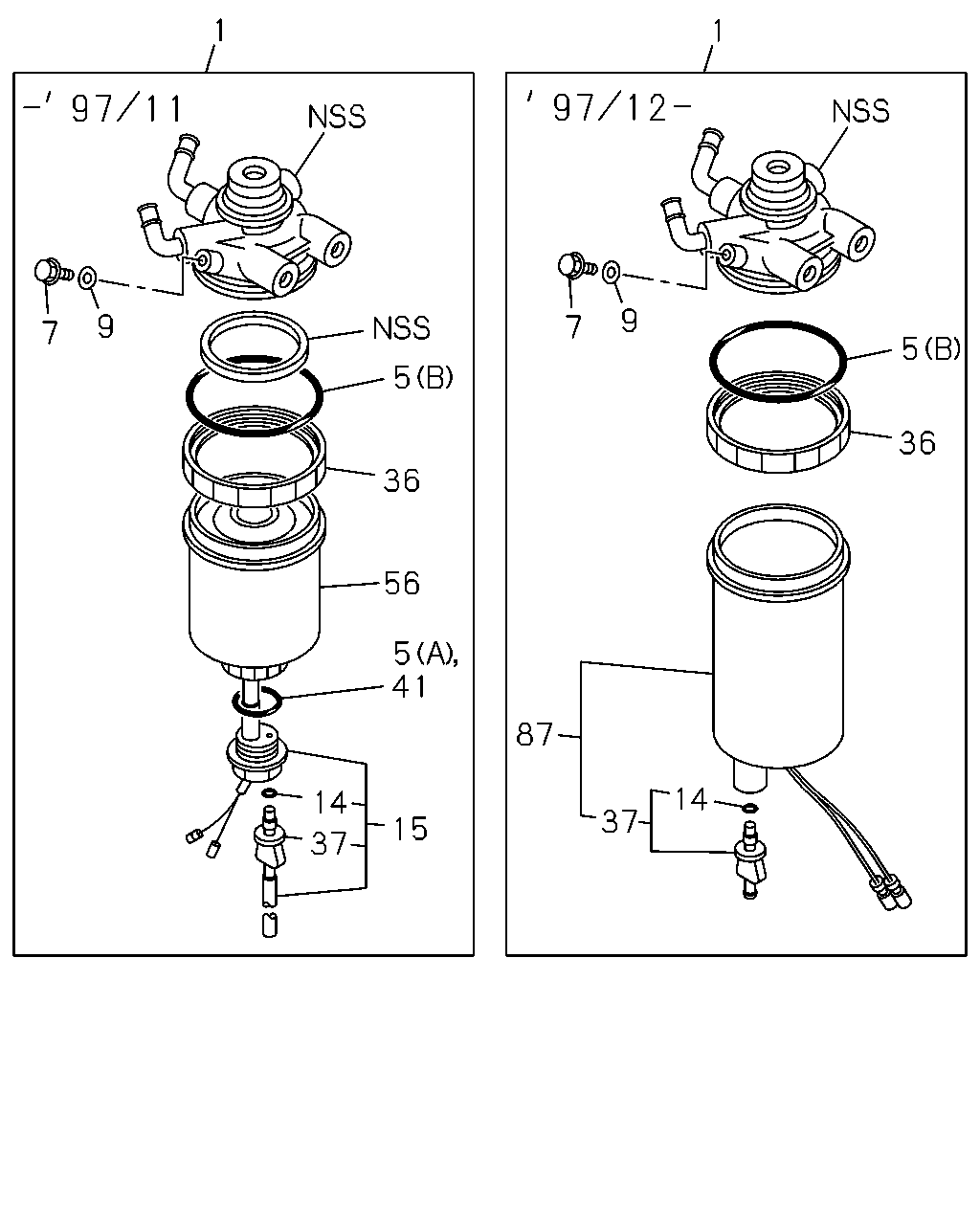

çizim 68057
1 1 9 9 7 7 5 5 36 36 56 5 41 87 14 14 37 37 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9312- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9312- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
(B) 		5-09623-075-0 01 1 9312- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> (A) 		9-19563-334-0 01 1 9312-9510 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 (A) 		9-09563-334-0 01 1 9312-9510 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
08.927 (A) 		9-09563-334-0 01 1 9511-9711 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 9312- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 9312- ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 9312- ● ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER 8-97103-765-0 01 1 9312-9711 ● ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97103-765-0 01 1 9712- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 9312- ● ● ● ● ● ●
37 03.890 PLUG; SENSOR 8-94450-148-0 01 1 9312-9711 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-148-0 01 1 9712- ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9712- ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9712- ● ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER 5-13211-030-0 01 1 9312-9711 ● ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		5-13211-030-0 01 1 9712- ● ● ● ● ● ●
87 03.890 CASE ASM; SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97219-363-0 01 1 9712- ● ● ● ● ● ●
çizim 70646
1 7 9 5 36 56 5 41 14 37 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 03.890 SEDIMENTER; FUEL
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-815-1 01 1 9312- ● ● ● ● ● ●
1 03.890 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-97081-814-1 01 1 9312- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
(B) 		5-09623-075-0 01 1 9312- ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> (A) 		9-19563-334-0 01 1 9312-9510 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.927 (A) 		9-09563-334-0 01 1 9312-9510 ● ● ● ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
08.927 (A) 		9-09563-334-0 01 1 9511-9711 ● ● ● ● ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER 8-94132-674-0 01 1 9312- ● ● ● ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR 8-94132-675-0 01 1 9312- ● ● ● ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT 8-94447-156-0 01 1 9312- ● ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER 8-97103-765-0 01 1 9312-9711 ● ● ● ● ● ●
15 03.890 SENSOR ASM; SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97103-765-0 01 1 9712- ● ● ● ● ● ●
36 03.890 RING; BODY TO CASE 5-13234-001-0 01 1 9312- ● ● ● ● ● ●
37 03.890 PLUG; SENSOR 8-94450-148-0 01 1 9312-9711 ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-94450-148-0 01 1 9712- ● ● ● ● ● ●
37 03.890 PLUG; SENSOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-94453-746-0 01 1 9712- ● ● ● ● ● ●
41 03.890 GASKET; SENSOR TO CASE
FUEL SEDIMENTER WITH HEATER<6HU> 08.927 		9-09563-334-0 01 1 9712- ● ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER 5-13211-030-0 01 1 9312-9711 ● ● ● ● ● ●
56 03.890 CASE; FUEL SEDIMENTER
FUEL SEDIMENTER WITH HEATER<6HU> 		5-13211-030-0 01 1 9712- ● ● ● ● ● ●
