Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#47020) — 243 parça

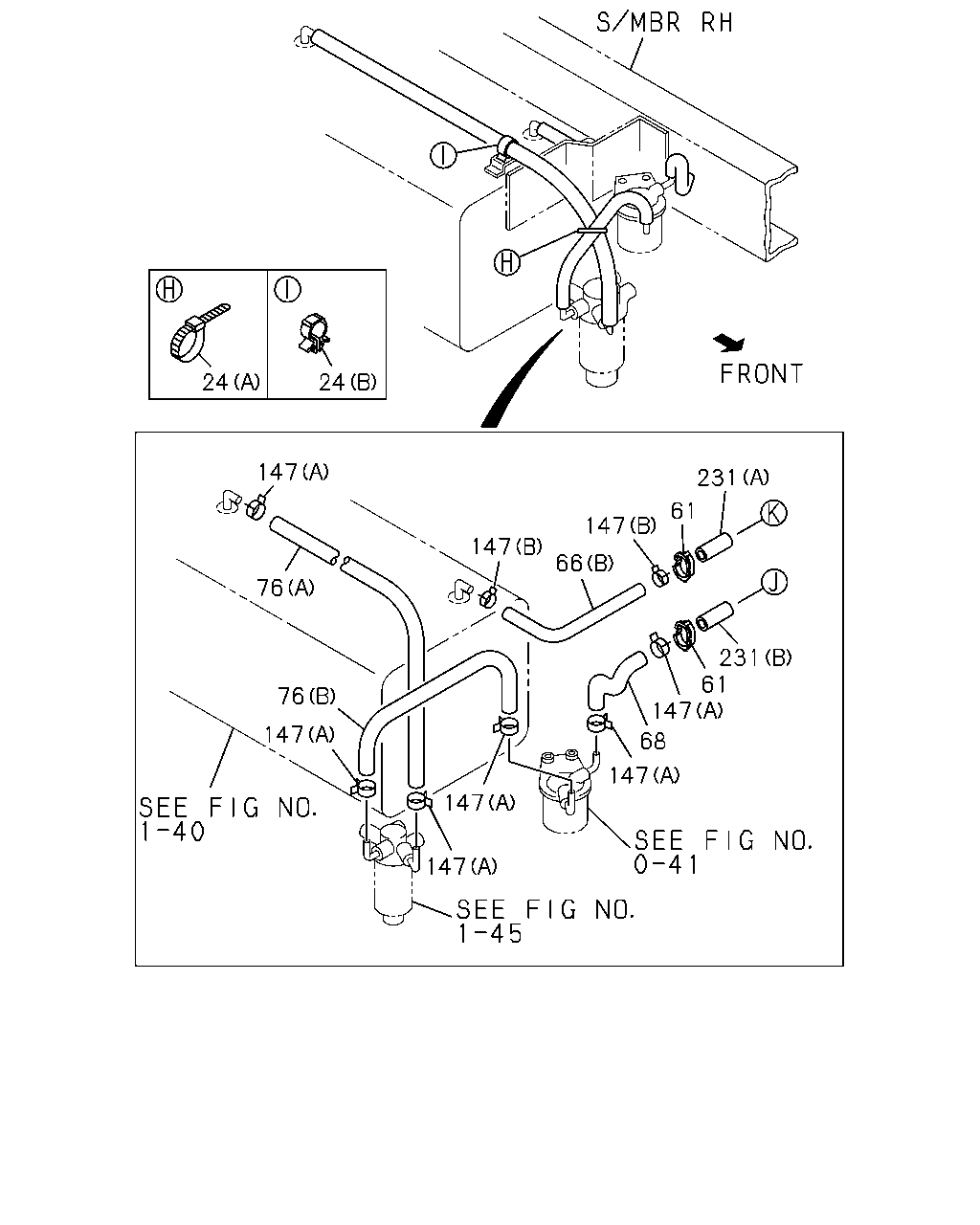

24 24 24 147 231 61 147 147 66 68 231 61 147 76 76 147 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9312-9312	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-0	01	1	9401-9402	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9401-9402		●		●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	9403-					●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9312-	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9401-	●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-0	02	1	9401-9402	●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9403-		●		●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	01	1	9312-9312					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	02	1	9401-9406					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	02	1	9401-9406					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	02	1	9407-9510					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	02	1	9407-9510					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9511-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9511-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9312-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9404					●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	9405-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER-DUAL<S6B>	8-97091-765-0	01	1	9312-	●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	9312-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312	●	●	●	●	●	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER-DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9312-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	9312-					●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9510						●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9711	●	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9712-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (E) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9312-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9312-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9312-	●	●	●	●	●	●

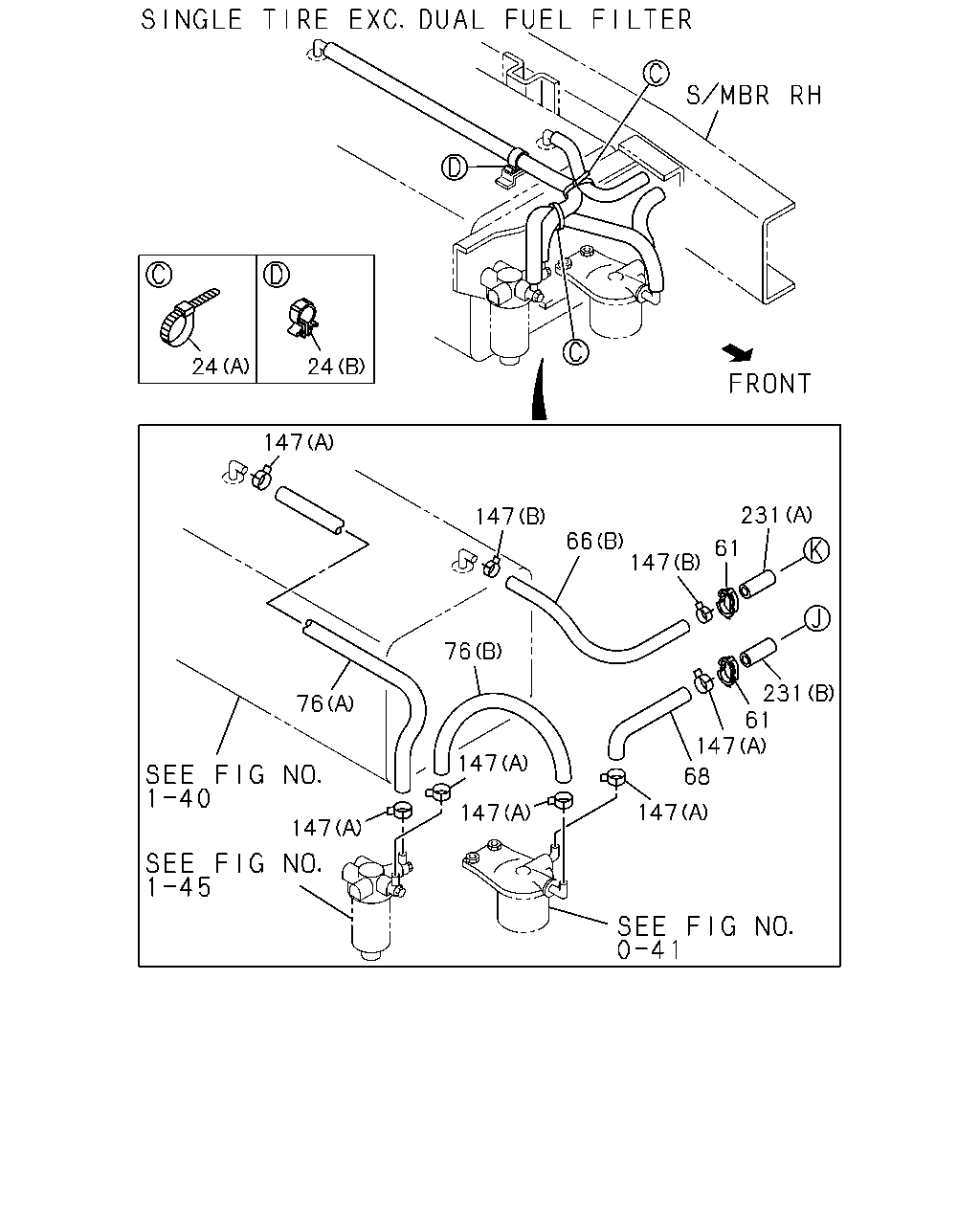

24 24 147 231 66 61 147 147 76 231 61 147 68 76 147 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9312-9312	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-0	01	1	9401-9402	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9401-9402		●		●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	9403-					●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9312-	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9401-	●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-0	02	1	9401-9402	●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9403-		●		●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	01	1	9312-9312					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	02	1	9401-9406					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	02	1	9401-9406					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	02	1	9407-9510					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	02	1	9407-9510					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9511-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9511-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9312-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9404					●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	9405-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER-DUAL<S6B>	8-97091-765-0	01	1	9312-	●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	9312-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312	●	●	●	●	●	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER-DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9312-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	9312-					●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9510						●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9711	●	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9712-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (E) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9312-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9312-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9312-	●	●	●	●	●	●

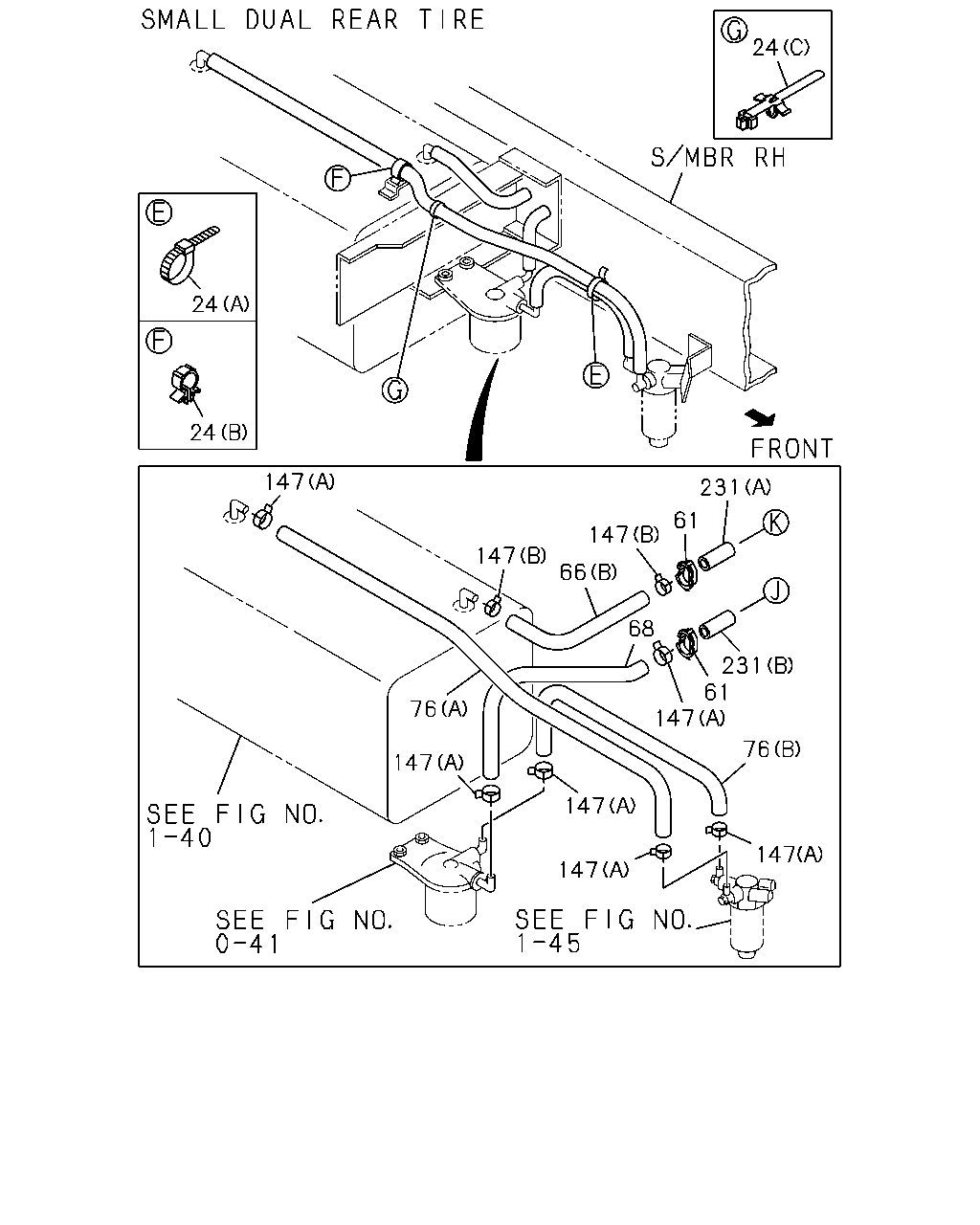

24 24 147 231 61 147 147 66 76 231 61 147 68 147 76 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9312-9312	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-0	01	1	9401-9402	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9401-9402		●		●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	9403-					●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9312-	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9401-	●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-0	02	1	9401-9402	●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9403-		●		●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	01	1	9312-9312					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	02	1	9401-9406					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	02	1	9401-9406					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	02	1	9407-9510					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	02	1	9407-9510					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9511-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9511-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9312-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9404					●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	9405-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER-DUAL<S6B>	8-97091-765-0	01	1	9312-	●		●
68	03.163 HOSE; FUEL,FILTER TO PIPE	8-97091-765-0	01	1	9312-					●	●
68	03.163 HOSE; FUEL,FILTER TO PIPE 03.003 L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312	●	●	●	●	●	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER-DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9312-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	9312-					●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9510						●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9711	●	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9712-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (E) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9312-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9312-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9312-	●	●	●	●	●	●

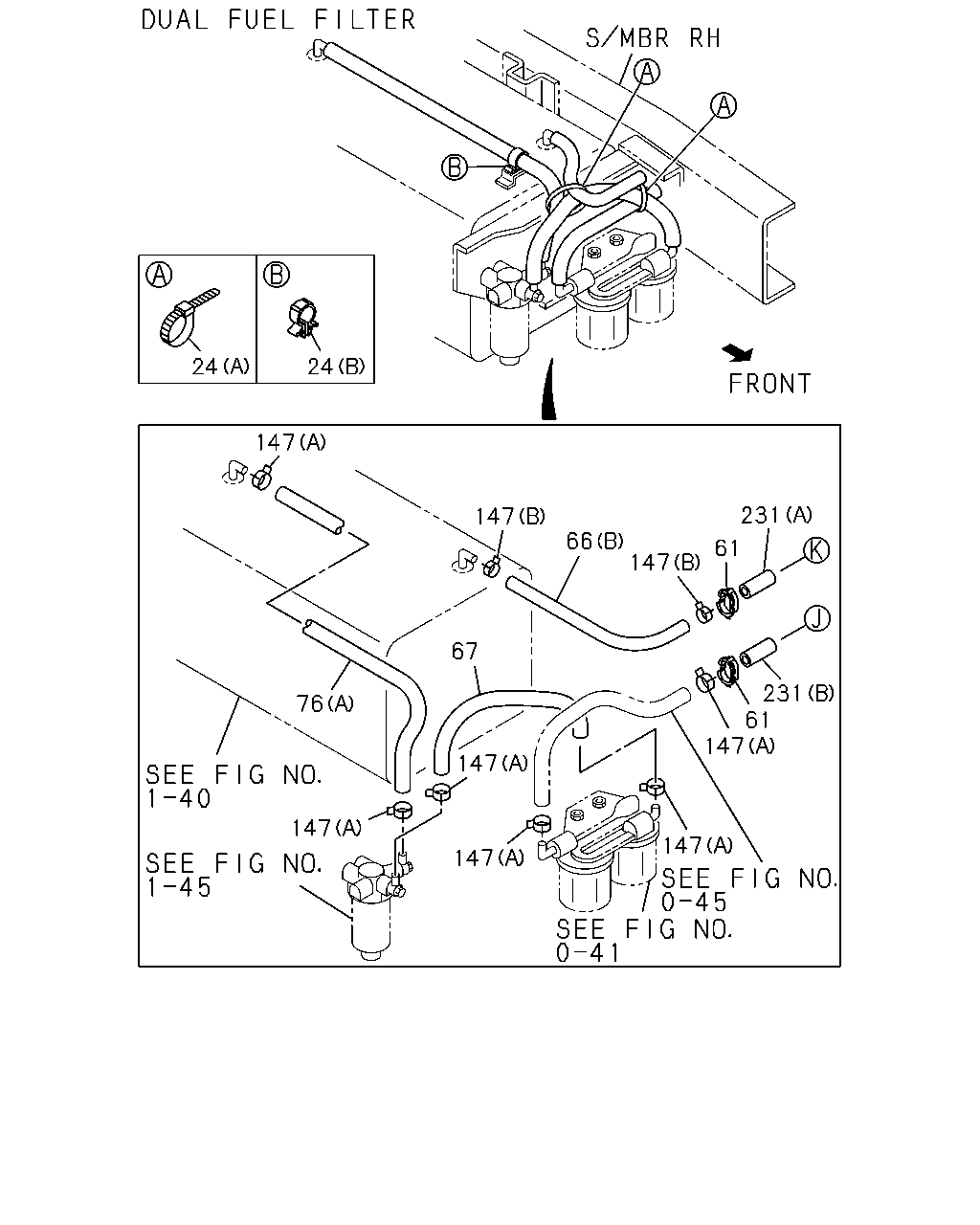

24 24 147 231 66 61 147 147 67 231 61 147 76 147 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9312-9312	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-0	01	1	9401-9402	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-0	01	1	9401-9402		●		●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	9403-					●	●
24	03.162 CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9312-	●	●	●	●	●	●
24	03.162 CLIP; FUEL HOSE FUEL FILTER-DUAL<S6B> 02.559 (A) L=250	5-09707-030-1	01	1	9401-	●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-0	02	1	9401-9402	●		●
24	03.162 CLIP; FUEL HOSE EXC. FUEL FILTER-DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9403-	●		●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	9403-		●		●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	01	1	9312-9312					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	02	1	9401-9406					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=168	8-97802-347-0	02	1	9401-9406					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	02	1	9407-9510					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	02	1	9407-9510					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9511-					●	●
24	03.162 CLIP; FUEL HOSE 02.559 (C) L=170.3	1-09987-182-0	01	1	9511-					●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9312-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9404					●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	9405-					●	●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER-DUAL<S6B> 03.003 L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312	●		●
67	03.163 HOSE; FUEL,DELIVERY FUEL FILTER-DUAL<S6B> 03.003 L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9312-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9312	●	●	●	●	●	●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	9312-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9312-	●		●
76	03.163 HOSE; FUEL,TANK EXC. FUEL FILTER-DUAL<S6B> 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-	●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9312-		●		●
76	03.163 HOSE; FUEL,TANK 03.003 (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	9312-					●	●
76	03.163 HOSE; FUEL,TANK (A)	8-97107-495-1	01	1	9312-					●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9510						●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9711	●	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9712-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (E) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9312-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9312-	●	●	●	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9312-	●	●	●	●	●	●

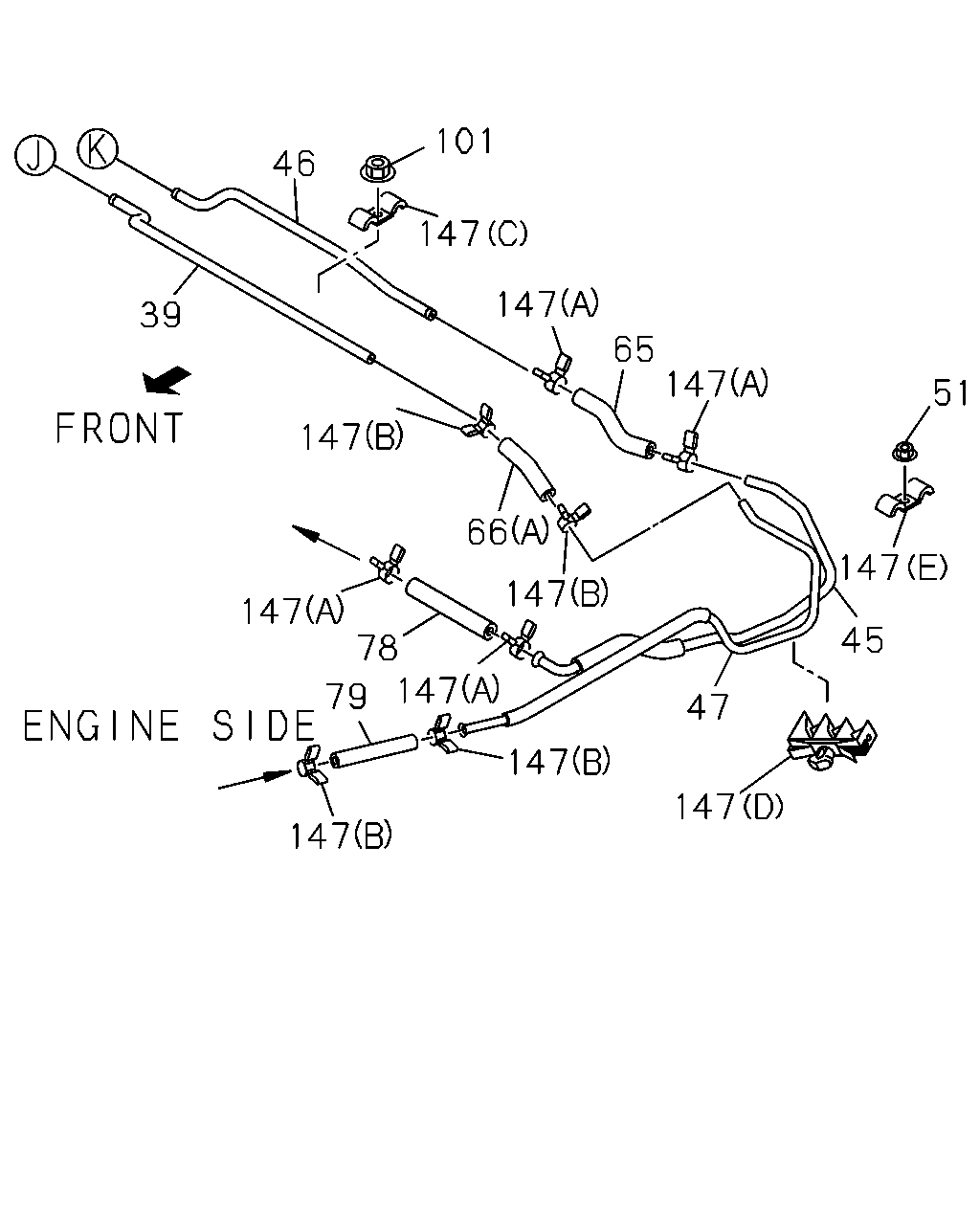

101 46 147 147 39 65 147 51 147 66 147 147 147 45 78 79 147 47 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
39	03.163 PIPE; FUEL	8-97090-339-3	01	1	9312-	●		●		●	●
39	03.163 PIPE; FUEL	8-97089-641-4	01	1	9312-		●		●
45	03.163 PIPE; FUEL,DELIVERY FRT INDEPENDENT SUSPENSION(6PP)	8-97077-490-2	01	1	9312-9510	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY FRT INDEPENDENT SUSPENSION(6PP)	8-97077-490-2	01	1	9511-9711				●
45	03.163 PIPE; FUEL,DELIVERY EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	9312-9510	●	●	●	●	●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	9312-9510						●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	9511-9611	●	●	●		●	●
45	03.163 PIPE; FUEL,DELIVERY EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	9511-9611				●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97090-340-3	01	1	9612-9711	●	●			●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	9612-9711			●			●
45	03.163 PIPE; FUEL,DELIVERY EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97090-340-3	01	1	9612-9711				●
45	03.163 PIPE; FUEL,DELIVERY 4JB1 ENG(RLF)	8-97090-340-3	01	1	9712-	●	●			●
45	03.163 PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	9712-			●	●		●
45	03.163 PIPE; FUEL,DELIVERY 4JG2 ENG(RJC)	8-97035-639-3	01	1	9612-	●	●			●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-972-3	01	1	9312-	●		●		●	●
46	03.163 PIPE; FUEL,TANK SIDE	8-97075-971-4	01	1	9312-		●		●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(6PP)	8-97080-713-2	01	1	9312-9510	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(6PP)	8-97080-713-2	01	1	9511-9711				●
47	03.163 PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-712-5	01	1	9312-9510	●	●	●	●	●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	9312-9510						●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	9511-9711	●	●	●		●	●
47	03.163 PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97080-712-5	01	1	9511-9711				●
47	03.163 PIPE; FUEL,RETURN	8-97080-712-5	01	1	9712-	●	●	●	●	●	●
51	03.162 NUT; CLIP,PIPE 04.594 M6 FLANGE	0-91150-106-0	03	1	9312-	●	●	●	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9312-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●	●	●	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-		●		●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=330 SERVICED BY L=3000	0-01256-300-0	01	1	9312-9404					●	●
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=300 SERVICED BY L=3000	0-01256-300-0	01	1	9405-					●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9312-9611	●	●	●	●	●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9612-	●	●			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9612-			●	●		●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JG2 ENG(RJC) 03.003 L=340 SERVICED BY L=3000	0-01259-300-0	01	1	9612-	●	●			●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9312-	●	●	●	●	●	●
101	03.162 BOLT; CLIP,FUEL PIPE FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE	0-28080-620-0	02	1	9312-9510	●	●	●	●	●
101	03.162 BOLT; CLIP,FUEL PIPE FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE	0-28080-620-0	02	1	9312-9510	●	●	●	●	●
101	03.162 BOLT; CLIP,FUEL PIPE FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9511-9711				●
101	03.162 BOLT; CLIP,FUEL PIPE FRT INDEPENDENT SUSPENSION(6PP) 03.670 M6X20 FLANGE	0-28080-620-0	01	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE FRT INDEPENDENT SUSPENSION(6PP) (C) ID=13 & 9 L=18 & 17	1-09700-075-0	01	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9510	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9312-9510						●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9711	●	●	●		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9511-9711				●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9712-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (A) ID=16	8-94238-568-0	10	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9312-	●	●	●	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 00.785 (E) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9312-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
