◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#47018) — 269 parça

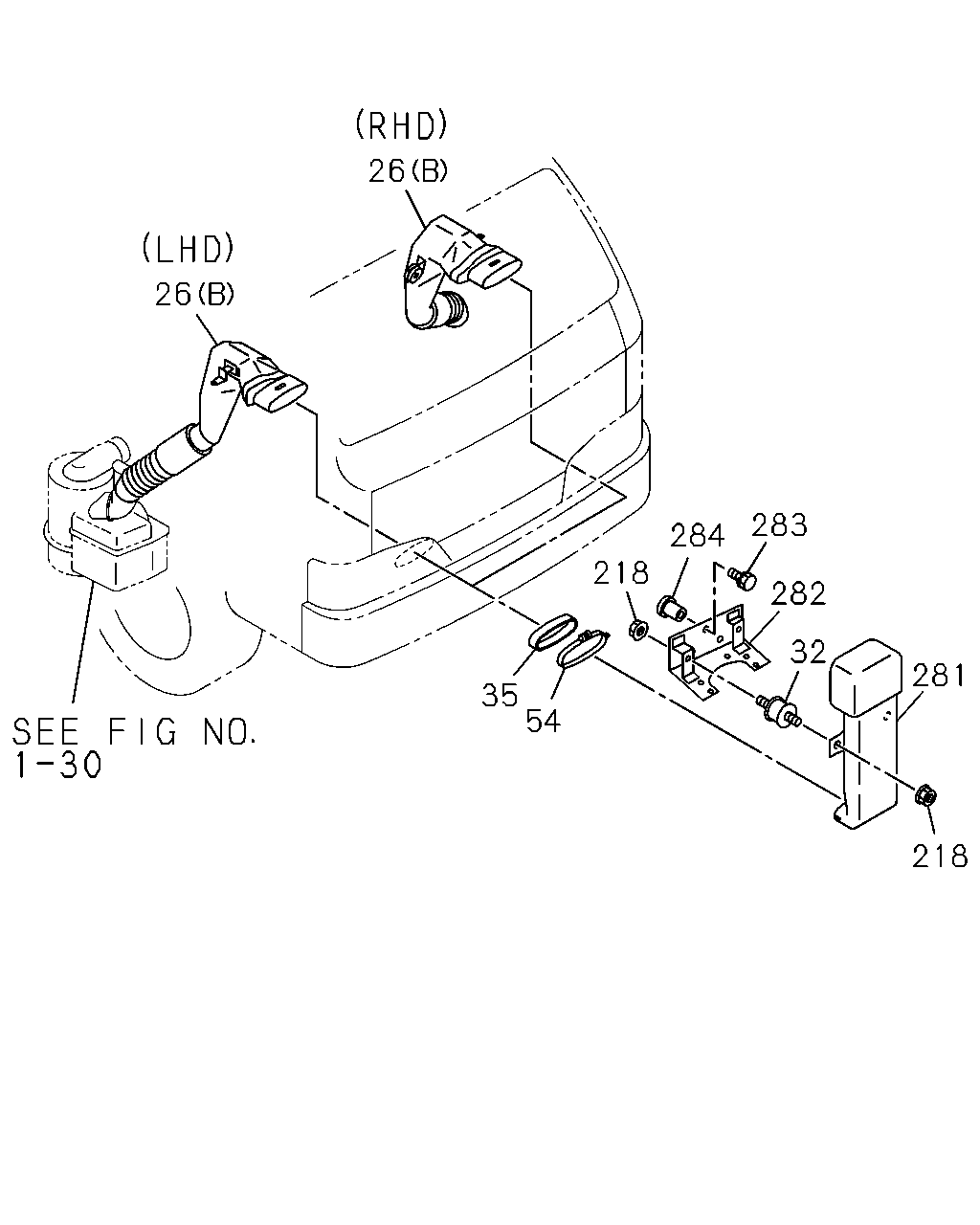

çizim 65541
26 26 283 284 218 282 32 281 35 54 218
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97091-273-1 01 1 9312- ●
26 03.417 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 9312- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE FRONT VERTICAL<6NN> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-956-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-951-2 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-951-2 01 1 9405- ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-954-0 01 1 9312-9401 ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-949-0 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-949-1 01 1 9405- ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97069-873-3 01 1 9312- ●
26 03.417 DUCT; AIR INT
(A) 		8-97069-873-3 01 1 9312- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-958-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-952-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-952-1 01 1 9405- ●
26 03.417 DUCT; AIR INT
(B) 		8-97089-952-1 01 1 9405- ● ●
32 03.417 RUBBER; AIR DUCT MTG
AIR INTAKE FRONT VERTICAL<6NN> 03.405 		8-94158-155-1 02 1 9312-9404 ● ● ● ● ● ●
35 03.406 SEAL; DUCT,INT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-166-0 01 1 9312-9404 ● ● ● ● ● ●
54 03.417 CLIP; GASKET,AIR DUCT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94365-762-0 01 1 9312-9404 ● ● ● ● ● ●
218 03.403 NUT; RUBBER MTG
AIR INTAKE FRONT VERTICAL<6NN> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9312-9404 ● ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-105-1 01 1 9312-9404 ● ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46) 		8-97089-948-2 01 1 9312- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97076-959-2 01 1 9312- ● ●
282 03.410 BAFFLE; INT DUCT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-713-0 01 1 9312-9404 ● ● ●
282 03.410 BAFFLE; INT DUCT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-106-0 01 1 9312-9404 ● ● ●
283 03.417 BOLT; BAFFLE,INT DUCT
AIR INTAKE FRONT VERTICAL<6NN> 03.634 M6X30 W/LK&PL WASHER 		0-50140-630-0 03 1 9312-9404 ● ● ● ● ● ●
284 03.403 NUT; BAFFLE,INT DUCT
AIR INTAKE FRONT VERTICAL<6NN> WELL NUT 		8-94311-999-0 03 1 9312-9404 ● ● ● ● ● ●

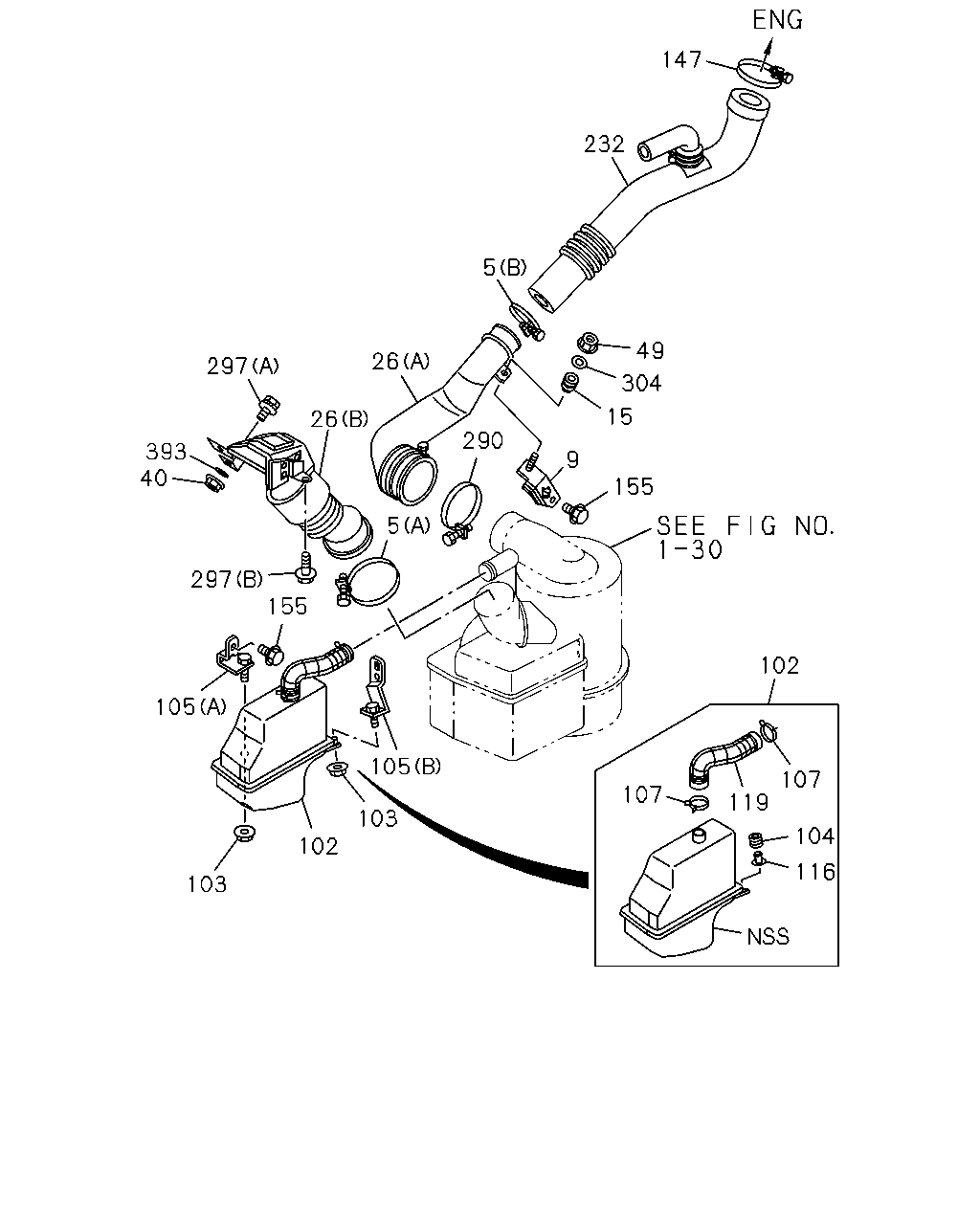

çizim 65742
147 232 5 49 304 15 26 297 26 290 393 40 9 155 5 297 155 102 105 105 107 119 107 103 104 102 116 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=67 		9-09915-069-1 01 1 9312- ● ● ● ●
9 03.417 BRACKET; INT PIPE
AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9312- ● ●
9 03.417 BRACKET; INT PIPE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9312- ● ●
9 03.417 BRACKET; INT PIPE 8-97089-655-0 01 1 9312- ● ● ● ●
15 03.417 INSULATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9312- ● ●
15 03.417 INSULATOR 8-94338-739-0 01 1 9312- ● ● ● ●
15 03.417 INSULATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9312- ●
15 03.417 INSULATOR 8-94338-739-0 01 1 9312- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97091-273-1 01 1 9312- ●
26 03.417 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 9312- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE FRONT VERTICAL<6NN> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-956-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-951-2 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-951-2 01 1 9405- ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-954-0 01 1 9312-9401 ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-949-0 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-949-1 01 1 9405- ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97069-873-3 01 1 9312- ●
26 03.417 DUCT; AIR INT
(A) 		8-97069-873-3 01 1 9312- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-958-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-952-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-952-1 01 1 9405- ●
26 03.417 DUCT; AIR INT
(B) 		8-97089-952-1 01 1 9405- ● ●
40 03.417 NUT; AIR INT DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> M8 FLANGE 		8-94279-517-0 01 1 9312-9802 ● ● ●
40 03.417 NUT; AIR INT DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> 09.005 M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9803- ● ● ●
49 03.417 NUT; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8 		9-09110-408-0 01 1 9312-9402 ● ●
49 03.417 NUT; AIR DUCT
02.559 M8 		9-09110-408-0 01 1 9312-9402 ● ● ● ●
49 03.417 NUT; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9403- ● ●
49 03.417 NUT; AIR DUCT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9403- ● ● ● ●
102 03.402 RESONATOR; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-541-1 01 1 9312- ●
102 03.402 RESONATOR; AIR INT 8-97103-541-1 01 1 9312- ● ●
102 03.402 RESONATOR; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> 		8-97091-928-1 01 1 9312- ●
102 03.402 RESONATOR; AIR INT 8-97091-928-1 01 1 9312- ● ●
103 03.402 NUT; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312- ● ●
103 03.402 NUT; RESONATOR
07.633 M8 FLANGE 		0-91150-108-0 02 1 9312- ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9312- ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR 8-97095-600-0 02 1 9312- ● ● ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97075-885-1 01 1 9312-9701 ●
105 03.403 BRACKET; RESONATOR
(B) 		8-97075-885-1 01 1 9312-9701 ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97174-754-0 01 1 9702- ●
105 03.403 BRACKET; RESONATOR
(B) 		8-97174-754-0 01 1 9702- ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-039-1 01 1 9312- ●
105 03.403 BRACKET; RESONATOR
(A) 		8-97092-039-1 01 1 9312- ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97091-931-1 01 1 9312- ●
105 03.403 BRACKET; RESONATOR
(B) 		8-97091-931-1 01 1 9312- ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-824-1 01 1 9312- ●
105 03.403 BRACKET; RESONATOR
(A) 		8-97092-824-1 01 1 9312- ● ●
107 03.417 CLIP; PROTECTOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9312- ● ●
107 03.417 CLIP; PROTECTOR 8-97095-785-0 02 1 9312- ● ● ● ●
116 01.745 RETAINER; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-842-0 02 1 9312- ● ●
116 01.745 RETAINER; RESONATOR 8-97105-842-0 02 1 9312- ● ● ● ●
119 03.403 HOSE; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97109-542-0 01 1 9312- ●
119 03.403 HOSE; RESONATOR 8-97109-542-0 01 1 9312- ● ●
119 03.403 HOSE; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-844-0 01 1 9312- ●
119 03.403 HOSE; RESONATOR 8-97105-844-0 01 1 9312- ● ●
147 03.417 CLIP; HOSE TO ENG
03.407 ID=79 		9-09915-734-1 01 1 9312- ● ● ● ● ● ●
155 03.417 BOLT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9608 ● ●
155 03.417 BOLT; BRKT
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9608 ● ● ● ●
155 03.417 BOLT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9609-9609 ● ●
155 03.417 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9609-9609 ● ● ● ●
155 03.417 BOLT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9610- ● ●
155 03.417 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9610- ● ● ● ●
155 03.417 BOLT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 06.672 M8X25 W/LK WASHER 		0-51040-825-0 01 1 9312-9609 ● ●
155 03.417 BOLT; BRKT
06.672 M8X25 W/LK WASHER 		0-51040-825-0 01 1 9312-9609 ● ● ● ●
232 03.417 HOSE; CONN
AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312- ● ●
232 03.417 HOSE; CONN 8-97096-429-1 01 1 9312- ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9312- ●
290 03.374 CLIP; ACL TO AIR DUCT
03.407 ID=92 		9-09915-072-1 01 1 9312- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9312-9709 ●
290 03.374 CLIP; ACL TO AIR DUCT
03.407 ID=79 		9-09915-734-1 01 1 9312-9709 ● ●
290 03.374 CLIP; ACL TO AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 01.166 ID=76 		1-09704-069-0 01 1 9710- ●
290 03.374 CLIP; ACL TO AIR DUCT
01.166 ID=76 		1-09704-069-0 01 1 9710- ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312- ● ● ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ● ● ● ● ● ●
297 03.417 BOLT; DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9502 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ●
297 03.417 BOLT; DUCT
03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 (A) M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606- ● ●
297 03.417 BOLT; DUCT
16.550 (A) M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606- ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9312- ● ●
297 03.417 BOLT; DUCT
AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312- ● ●
304 03.417 WASHER; PL,CONN PIPE BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312- ● ●
304 03.417 WASHER; PL,CONN PIPE BRKT
02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312- ● ● ● ●
304 03.417 WASHER; PL,CONN PIPE BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312- ●
304 03.417 WASHER; PL,CONN PIPE BRKT
02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312- ● ●
393 03.417 WASHER; LK,AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9312- ● ● ● ● ● ●

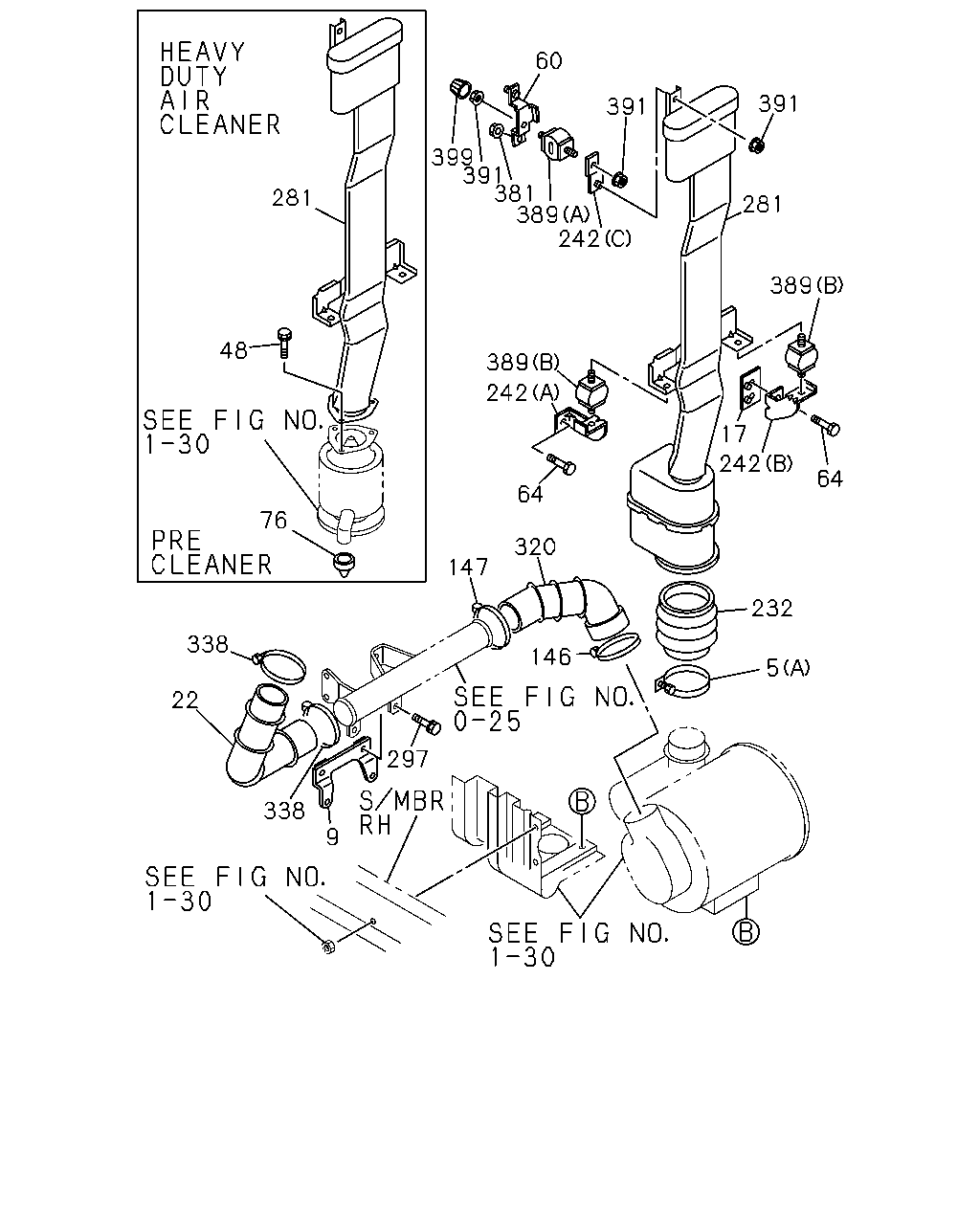

çizim 68058
60 391 391 399 391 381 389 242 281 281 389 48 389 242 17 242 64 64 76 320 147 232 338 146 5 22 297 338 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=67 		9-09915-069-1 01 1 9312- ● ● ● ●
9 03.417 BRACKET; INT PIPE
AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9312- ● ●
9 03.417 BRACKET; INT PIPE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9312- ● ●
9 03.417 BRACKET; INT PIPE 8-97089-655-0 01 1 9312- ● ● ● ●
17 03.403 GASKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-97853-699-2 01 1 9312- ● ●
22 03.417 HOSE; CONNECTOR,ENG TO PIPE
AIR INTAKE REAR VERTICAL<KJ3> 		8-97107-173-0 01 1 9312- ● ●
48 03.417 BOLT; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46) 04.785 M8X18 W/LK WASHER 		0-50040-818-0 03 1 9312- ● ●
60 03.417 BRACKET; AIR DUCT,UPR
AIR INTAKE REAR VERTICAL<KJ3> 		8-97856-956-0 01 1 9312- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312- ● ●
76 03.403 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER(K46) 03.415 		8-94447-157-0 01 1 9312- ● ●
146 03.417 CLIP; HOSE,ACL
AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.407 ID=79 		9-09915-734-1 01 1 9312- ● ●
146 03.417 CLIP; HOSE,ACL
AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.407 ID=92 		9-09915-072-1 01 1 9312- ● ●
147 03.417 CLIP; HOSE TO ENG
03.407 ID=79 		9-09915-734-1 01 1 9312- ● ● ● ● ● ●
232 03.417 HOSE; CONN
AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312- ● ●
232 03.417 HOSE; CONN 8-97096-429-1 01 1 9312- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> (B) 		8-97856-935-0 01 1 9312- ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> (C) 		8-97856-958-0 01 1 9312- ● ●
242 03.417 BRACKET; AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> (A) 		8-97856-967-1 01 1 9312- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE FRONT VERTICAL<6NN> 		8-94311-105-1 01 1 9312-9404 ● ● ● ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> HEAVY DUTY AIR CLEANER(K46) 		8-97089-948-2 01 1 9312- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
AIR INTAKE REAR VERTICAL<KJ3> EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97076-959-2 01 1 9312- ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312- ● ● ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ● ● ● ● ● ●
297 03.417 BOLT; DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9502 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ●
297 03.417 BOLT; DUCT
03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 (A) M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606- ● ●
297 03.417 BOLT; DUCT
16.550 (A) M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606- ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9312- ● ●
297 03.417 BOLT; DUCT
AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312- ● ●
320 03.417 HOSE; CONN,ACL
AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9312- ● ●
320 03.417 HOSE; CONN,ACL
AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 		8-94110-075-2 01 1 9312- ● ●
338 03.417 CLIP; PIPE
AIR INTAKE REAR VERTICAL<KJ3> 03.407 ID=79 		9-09915-734-1 02 1 9312- ● ●
381 03.417 NUT; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 16.800 M6 FLANGE 		1-09984-018-0 02 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (A) 		8-97080-149-0 01 1 9312- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
AIR INTAKE REAR VERTICAL<KJ3> 03.417 (B) 		8-97081-886-0 02 1 9312- ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 01 1 9312- ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
AIR INTAKE REAR VERTICAL<KJ3> M8 FLANGE 		8-94279-517-0 07 1 9312- ● ●
399 03.417 CAP; BRKT,AIR DUCT
AIR INTAKE REAR VERTICAL<KJ3> 		8-94273-605-0 02 1 9312- ● ●

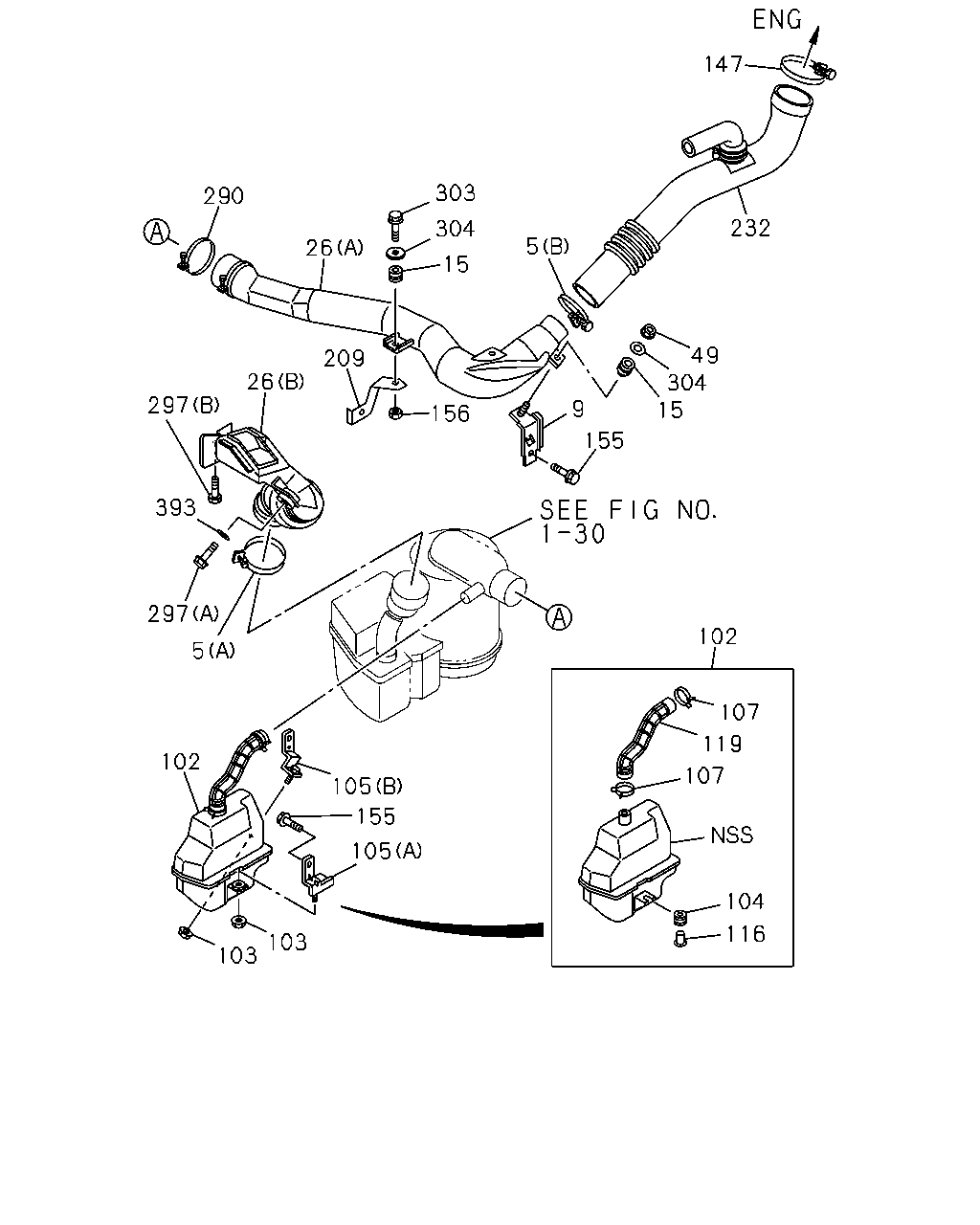

çizim 70909
147 303 290 232 304 5 26 15 49 304 15 209 26 297 155 156 393 297 5 119 102 155 105 116 9 102 105 103 103 107 104 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9312- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> (B) ID=67 		9-09915-069-1 01 1 9312- ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=67 		9-09915-069-1 01 1 9312- ● ● ● ●
9 03.417 BRACKET; INT PIPE
AIR INTAKE REAR VERTICAL<KJ3> 		8-94155-425-1 01 1 9312- ● ●
9 03.417 BRACKET; INT PIPE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97089-655-0 01 1 9312- ● ●
9 03.417 BRACKET; INT PIPE 8-97089-655-0 01 1 9312- ● ● ● ●
15 03.417 INSULATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9312- ● ●
15 03.417 INSULATOR 8-94338-739-0 01 1 9312- ● ● ● ●
15 03.417 INSULATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-94338-739-0 01 1 9312- ●
15 03.417 INSULATOR 8-94338-739-0 01 1 9312- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97091-273-1 01 1 9312- ●
26 03.417 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 9312- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE FRONT VERTICAL<6NN> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-956-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-951-2 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97089-951-2 01 1 9405- ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-954-0 01 1 9312-9401 ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-949-0 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-949-1 01 1 9405- ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97069-873-3 01 1 9312- ●
26 03.417 DUCT; AIR INT
(A) 		8-97069-873-3 01 1 9312- ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-958-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> EXC. AIR INTAKE FRONT VERTICAL<6NN> (B) 		8-97089-952-1 01 1 9312-9404 ● ● ●
26 03.417 DUCT; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97089-952-1 01 1 9405- ●
26 03.417 DUCT; AIR INT
(B) 		8-97089-952-1 01 1 9405- ● ●
49 03.417 NUT; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8 		9-09110-408-0 01 1 9312-9402 ● ●
49 03.417 NUT; AIR DUCT
02.559 M8 		9-09110-408-0 01 1 9312-9402 ● ● ● ●
49 03.417 NUT; AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9403- ● ●
49 03.417 NUT; AIR DUCT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9403- ● ● ● ●
102 03.402 RESONATOR; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> 		8-97103-541-1 01 1 9312- ●
102 03.402 RESONATOR; AIR INT 8-97103-541-1 01 1 9312- ● ●
102 03.402 RESONATOR; AIR INT
AIR INTAKE SYSTEM FRONT<6PC> 		8-97091-928-1 01 1 9312- ●
102 03.402 RESONATOR; AIR INT 8-97091-928-1 01 1 9312- ● ●
103 03.402 NUT; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9312- ● ●
103 03.402 NUT; RESONATOR
07.633 M8 FLANGE 		0-91150-108-0 02 1 9312- ● ● ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-600-0 02 1 9312- ● ●
104 03.417 RUBBER; MOUNTING,RESONATOR 8-97095-600-0 02 1 9312- ● ● ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97075-885-1 01 1 9312-9701 ●
105 03.403 BRACKET; RESONATOR
(B) 		8-97075-885-1 01 1 9312-9701 ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97174-754-0 01 1 9702- ●
105 03.403 BRACKET; RESONATOR
(B) 		8-97174-754-0 01 1 9702- ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-039-1 01 1 9312- ●
105 03.403 BRACKET; RESONATOR
(A) 		8-97092-039-1 01 1 9312- ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (B) 		8-97091-931-1 01 1 9312- ●
105 03.403 BRACKET; RESONATOR
(B) 		8-97091-931-1 01 1 9312- ● ●
105 03.403 BRACKET; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> (A) 		8-97092-824-1 01 1 9312- ●
105 03.403 BRACKET; RESONATOR
(A) 		8-97092-824-1 01 1 9312- ● ●
107 03.417 CLIP; PROTECTOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97095-785-0 02 1 9312- ● ●
107 03.417 CLIP; PROTECTOR 8-97095-785-0 02 1 9312- ● ● ● ●
116 01.745 RETAINER; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-842-0 02 1 9312- ● ●
116 01.745 RETAINER; RESONATOR 8-97105-842-0 02 1 9312- ● ● ● ●
119 03.403 HOSE; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97109-542-0 01 1 9312- ●
119 03.403 HOSE; RESONATOR 8-97109-542-0 01 1 9312- ● ●
119 03.403 HOSE; RESONATOR
AIR INTAKE SYSTEM FRONT<6PC> 		8-97105-844-0 01 1 9312- ●
119 03.403 HOSE; RESONATOR 8-97105-844-0 01 1 9312- ● ●
147 03.417 CLIP; HOSE TO ENG
03.407 ID=79 		9-09915-734-1 01 1 9312- ● ● ● ● ● ●
155 03.417 BOLT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9608 ● ●
155 03.417 BOLT; BRKT
01.531 M8X25 FLANGE 		0-28080-825-0 01 1 9312-9608 ● ● ● ●
155 03.417 BOLT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9609-9609 ● ●
155 03.417 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9609-9609 ● ● ● ●
155 03.417 BOLT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9610- ● ●
155 03.417 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9610- ● ● ● ●
155 03.417 BOLT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 06.672 M8X25 W/LK WASHER 		0-51040-825-0 01 1 9312-9609 ● ●
155 03.417 BOLT; BRKT
06.672 M8X25 W/LK WASHER 		0-51040-825-0 01 1 9312-9609 ● ● ● ●
156 03.417 NUT; BRKT
HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9711 ●
156 03.417 NUT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9711 ●
156 03.417 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9312-9711 ● ●
156 03.417 NUT; BRKT
HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ●
156 03.417 NUT; BRKT
AIR INTAKE SYSTEM FRONT<6PC> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ●
156 03.417 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9712- ● ●
209 03.405 BRACKET; ACL
AIR INTAKE SYSTEM FRONT<6PC> FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-97072-705-0 01 1 9312-9510 ● ●
209 03.405 BRACKET; ACL
HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) EXC. AIR INTAKE SYSTEM FRONT<6PC> 03.417 		8-97072-705-0 01 1 9312-9510 ●
209 03.405 BRACKET; ACL
FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-97072-705-0 01 1 9511-9706 ●
209 03.405 BRACKET; ACL
FRT INDEPENDENT SUSPENSION(6PP) 		8-97180-936-0 01 1 9707-9711 ●
209 03.405 BRACKET; ACL
AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-97072-530-0 01 1 9312-9510 ● ●
209 03.405 BRACKET; ACL
HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC>, FRTINDEPENDENT SUSPENSION(6PP) 03.417 		8-97072-530-0 01 1 9312-9510 ●
209 03.405 BRACKET; ACL
03.417 		8-97072-530-0 01 1 9312-9510 ●
209 03.405 BRACKET; ACL
AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 		8-97072-530-0 01 1 9511-9711 ● ●
209 03.405 BRACKET; ACL
HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 03.417 		8-97072-530-0 01 1 9511-9711 ●
209 03.405 BRACKET; ACL
03.417 		8-97072-530-0 01 1 9511-9711 ●
209 03.405 BRACKET; ACL
HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.417 		8-97072-530-0 01 1 9712- ●
209 03.405 BRACKET; ACL
AIR INTAKE SYSTEM FRONT<6PC> 03.417 		8-97072-530-0 01 1 9712- ●
209 03.405 BRACKET; ACL
03.417 		8-97072-530-0 01 1 9712- ● ●
232 03.417 HOSE; CONN
AIR INTAKE REAR VERTICAL<KJ3> 		5-14231-115-1 01 1 9312- ● ●
232 03.417 HOSE; CONN
AIR INTAKE SYSTEM FRONT<6PC> 		8-97096-429-1 01 1 9312- ● ●
232 03.417 HOSE; CONN 8-97096-429-1 01 1 9312- ● ● ● ●
290 03.374 CLIP; ACL TO AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=92 		9-09915-072-1 01 1 9312- ●
290 03.374 CLIP; ACL TO AIR DUCT
03.407 ID=92 		9-09915-072-1 01 1 9312- ● ●
290 03.374 CLIP; ACL TO AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.407 ID=79 		9-09915-734-1 01 1 9312-9709 ●
290 03.374 CLIP; ACL TO AIR DUCT
03.407 ID=79 		9-09915-734-1 01 1 9312-9709 ● ●
290 03.374 CLIP; ACL TO AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> 01.166 ID=76 		1-09704-069-0 01 1 9710- ●
290 03.374 CLIP; ACL TO AIR DUCT
01.166 ID=76 		1-09704-069-0 01 1 9710- ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9312- ● ● ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9312-9502 ● ● ● ● ● ●
297 03.417 BOLT; DUCT
HALOGEN HEAD LAMP RECTANGULAR<TR4> AIR INTAKE SYSTEM FRONT<6PC> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9312-9502 ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ●
297 03.417 BOLT; DUCT
03.483 (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 9503-9605 ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE SYSTEM FRONT<6PC> 16.550 (A) M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606- ● ●
297 03.417 BOLT; DUCT
16.550 (A) M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 9606- ● ● ● ●
297 03.417 BOLT; DUCT
AIR INTAKE REAR VERTICAL<KJ3> 00.206 M8X14 W/LK WASHER 		0-50040-814-0 01 1 9312- ● ●
297 03.417 BOLT; DUCT
AIR INTAKE REAR VERTICAL<KJ3> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 02 1 9312- ● ●
303 03.417 BOLT; CONN PIPE BRKT
HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9312-9411 ●
303 03.417 BOLT; CONN PIPE BRKT
AIR INTAKE SYSTEM FRONT<6PC> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9312-9411 ●
303 03.417 BOLT; CONN PIPE BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9312-9411 ● ●
303 03.417 BOLT; CONN PIPE BRKT
HEATER & DEFROSTER(C41) EXC. AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9412-9711 ●
303 03.417 BOLT; CONN PIPE BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9412-9711 ●
303 03.417 BOLT; CONN PIPE BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9412-9711 ● ●
303 03.417 BOLT; CONN PIPE BRKT
HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9712- ●
303 03.417 BOLT; CONN PIPE BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9712- ●
303 03.417 BOLT; CONN PIPE BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 01 1 9712- ● ●
304 03.417 WASHER; PL,CONN PIPE BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312- ● ●
304 03.417 WASHER; PL,CONN PIPE BRKT
02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312- ● ● ● ●
304 03.417 WASHER; PL,CONN PIPE BRKT
AIR INTAKE SYSTEM FRONT<6PC> 02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312- ●
304 03.417 WASHER; PL,CONN PIPE BRKT
02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9312- ● ●
393 03.417 WASHER; LK,AIR DUCT
AIR INTAKE SYSTEM FRONT<6PC> EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 01.270 ID=10.5 OD=36 		8-97031-437-0 01 1 9312- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
