Sayfa 1-30 - Isuzu EPC

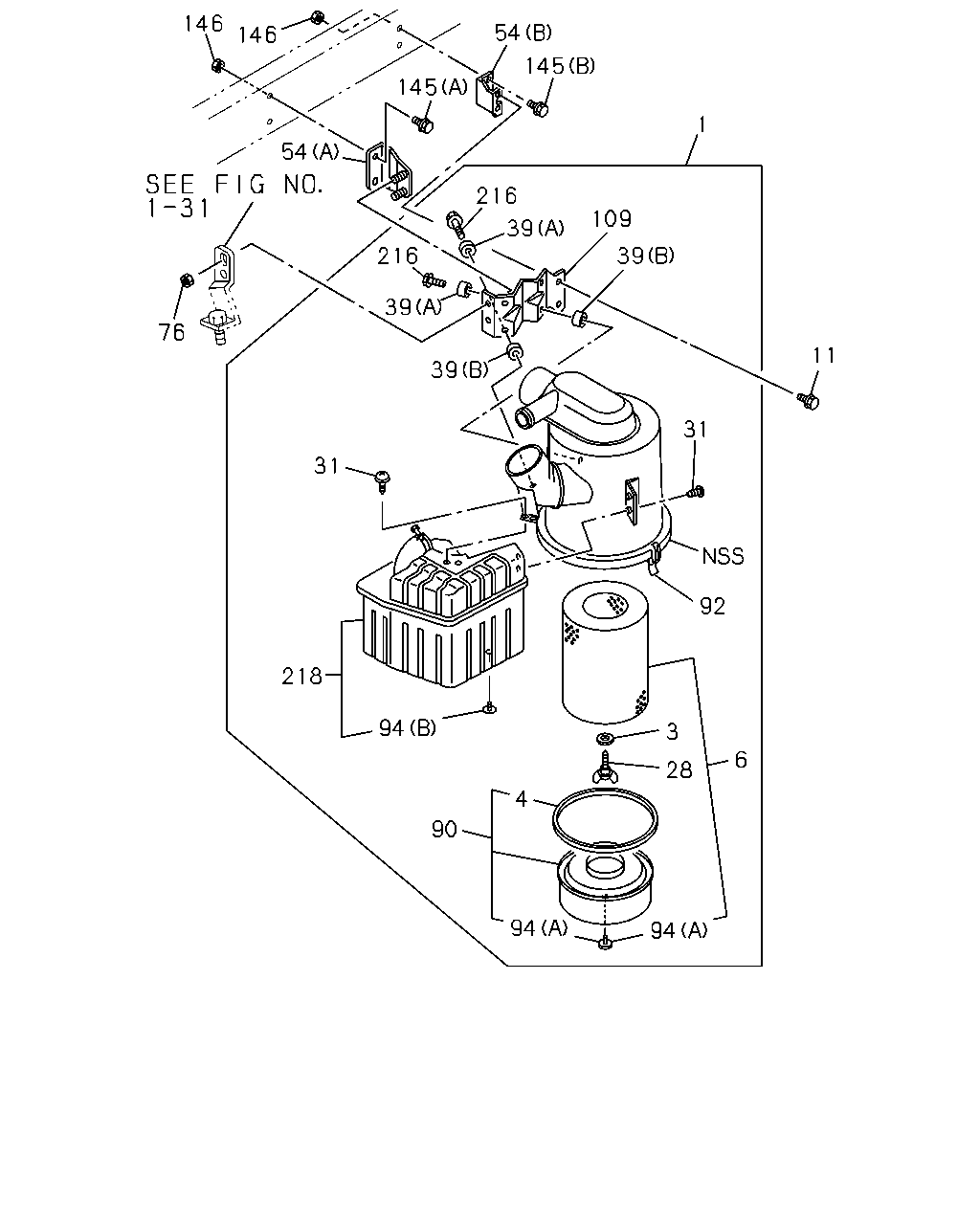

1-30 — AIR CLEANER (#47017) — 267 parça

1 2 3 2 3 6 4 8 94 44 54 145 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9312-	●
1	03.402 CLEANER ASM; AIR	8-97090-029-2	01	1	9312-		●	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9312-	●			●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94140-289-3	01	1	9312-	●			●
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9312-				●
1	03.402 CLEANER ASM; AIR	8-97090-028-1	01	1	9312-					●	●
2	03.403 NUT; WING,ELEMENT AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14217-063-0	01	1	9312-	●			●
2	03.403 NUT; WING,ELEMENT AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	1-14217-068-0	02	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	1-14219-225-0	02	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT	9-14219-279-0	01	1	9312-		●	●		●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9312-	●			●
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.410	8-94156-051-0	01	1	9312-	●			●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9511-9603				●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9511-9603					●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9604-	●			●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9604-		●	●		●	●
6	03.410 FILTER; ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94156-052-0	01	1	9312-	●			●
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-94104-273-0	01	1	9312-9510	●			●
6	03.410 FILTER; ACL	8-94104-273-0	01	1	9312-9510		●	●		●	●
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9511-	●			●
6	03.410 FILTER; ACL	8-97173-210-0	01	1	9511-		●	●		●	●
8	03.410 COVER ASM; ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94156-050-0	01	1	9312-	●			●
44	03.403 BOLT; ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 00.029 M10X28 W/LK WASHER	0-50041-028-0	04	1	9312-9711	●			●
44	03.403 BOLT; ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9712-	●			●
44	03.403 BOLT; ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9312-	●			●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97084-884-0	01	1	9312-	●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	9312-		●	●
54	03.405 BRACKET; ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94140-144-3	01	1	9312-	●			●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9312-	●			●
54	03.405 BRACKET; ACL (A)	8-97038-519-1	01	1	9312-		●	●		●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> (B)	8-97090-030-0	01	1	9312-				●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94160-187-0	01	1	9312-	●			●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9312-	●			●
94	03.415 VALVE; VACUATOR (A)	8-94439-205-0	01	1	9312-		●	●		●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97030-327-0	01	1	9312-9603	●			●
94	03.415 VALVE; VACUATOR (B)	8-97030-327-0	01	1	9312-9603		●			●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9604-	●			●
94	03.415 VALVE; VACUATOR (B)	8-97148-258-0	01	1	9604-		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 01.652 M10X25 W/LK WASHER	0-50041-025-0	04	1	9312-9404	●			●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> M10X25 FLANGE	0-28681-025-0	04	1	9405-	●			●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 09.003 (B) M10X35	0-28281-035-0	02	1	9312-9704	●			●
145	03.405 BOLT; BRKT TO FRAME 09.003 (B) M10X35	0-28281-035-0	02	1	9312-9704		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9705-	●	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9705-				●	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 00.002 (A) M10X28	0-28481-028-0	02	1	9312-9605	●			●
145	03.405 BOLT; BRKT TO FRAME 00.002 (A) M10X28	0-28481-028-0	02	1	9312-9605		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE	0-28681-025-0	02	1	9606-	●			●
145	03.405 BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	02	1	9606-		●	●		●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510	●			●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510						●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-9711	●			●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-9711	●			●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-9711		●	●			●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-	●			●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-	●			●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-		●	●		●	●

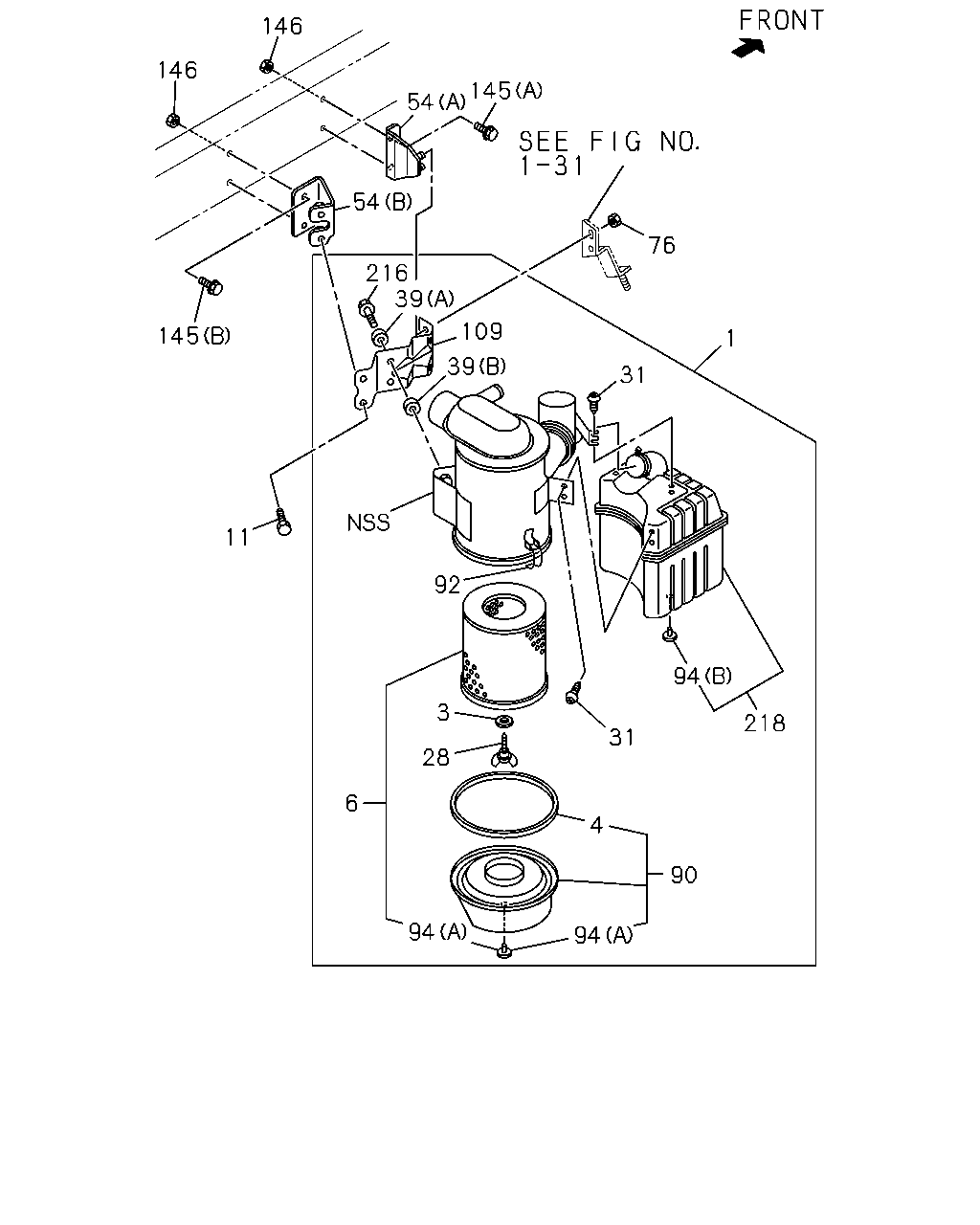

146 146 54 145 145 54 39 109 39 39 76 39 31 31 92 218 94 3 6 28 94 94 1 216 216 11 4 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9312-	●
1	03.402 CLEANER ASM; AIR	8-97090-029-2	01	1	9312-		●	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9312-	●			●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94140-289-3	01	1	9312-	●			●
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9312-				●
1	03.402 CLEANER ASM; AIR	8-97090-028-1	01	1	9312-					●	●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	1-14219-225-0	02	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT	9-14219-279-0	01	1	9312-		●	●		●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9312-	●			●
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.410	8-94156-051-0	01	1	9312-	●			●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9511-9603				●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9511-9603					●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9604-	●			●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9604-		●	●		●	●
6	03.410 FILTER; ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94156-052-0	01	1	9312-	●			●
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-94104-273-0	01	1	9312-9510	●			●
6	03.410 FILTER; ACL	8-94104-273-0	01	1	9312-9510		●	●		●	●
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9511-	●			●
6	03.410 FILTER; ACL	8-97173-210-0	01	1	9511-		●	●		●	●
11	03.403 BOLT; ACL AIR INTAKE SYSTEM FRONT<6PC> 09.008 M10X20 FLANGE	0-28081-020-0	02	1	9312-9704	●			●
11	03.403 BOLT; ACL 09.008 M10X20 FLANGE	0-28081-020-0	02	1	9312-9704		●	●		●	●
11	03.403 BOLT; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9705-	●			●
11	03.403 BOLT; ACL 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9705-		●	●		●	●
28	03.403 BOLT; WING,ACL AIR INTAKE SYSTEM FRONT<6PC>	9-14217-090-0	01	1	9312-	●			●
28	03.403 BOLT; WING,ACL	9-14217-090-0	01	1	9312-		●	●		●	●
31	03.406 SCREW; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97097-000-0	02	1	9312-9603	●			●
31	03.406 SCREW; ACL 03.402	8-97097-000-0	02	1	9312-9603		●			●	●
31	03.406 SCREW; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97100-001-0	04	1	9604-	●			●
31	03.406 SCREW; ACL 03.402	8-97100-001-0	04	1	9604-		●	●		●	●
39	03.403 RUBBER; MTG,BOLT AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97100-002-0	04	1	9312-	●			●
39	03.403 RUBBER; MTG,BOLT (A)	8-97100-002-0	04	1	9312-		●	●		●	●
39	03.403 RUBBER; MTG,BOLT AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97100-007-0	02	1	9312-	●			●
39	03.403 RUBBER; MTG,BOLT (B)	8-97100-007-0	02	1	9312-		●	●		●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97084-884-0	01	1	9312-	●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	9312-		●	●
54	03.405 BRACKET; ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94140-144-3	01	1	9312-	●			●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9312-	●			●
54	03.405 BRACKET; ACL (A)	8-97038-519-1	01	1	9312-		●	●		●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> (B)	8-97090-030-0	01	1	9312-				●	●	●
76	03.405 NUT; BRKT TO ACL AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-	●			●
76	03.405 NUT; BRKT TO ACL 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-		●	●		●	●
90	03.406 CUP; ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.410	8-94155-235-0	01	1	9312-	●			●
90	03.406 CUP; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	9712-	●			●
90	03.406 CUP; ACL	8-97215-621-0	01	1	9712-		●	●		●	●
92	03.405 CLIP; WIRE,ACL AIR INTAKE SYSTEM FRONT<6PC>	8-94118-230-0	03	1	9312-	●			●
92	03.405 CLIP; WIRE,ACL	8-94118-230-0	03	1	9312-		●	●		●	●
94	03.415 VALVE; VACUATOR AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94160-187-0	01	1	9312-	●			●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9312-	●			●
94	03.415 VALVE; VACUATOR (A)	8-94439-205-0	01	1	9312-		●	●		●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97030-327-0	01	1	9312-9603	●			●
94	03.415 VALVE; VACUATOR (B)	8-97030-327-0	01	1	9312-9603		●			●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9604-	●			●
94	03.415 VALVE; VACUATOR (B)	8-97148-258-0	01	1	9604-		●	●		●	●
109	03.405 STAY; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97096-175-1	01	1	9407-	●
109	03.405 STAY; ACL	8-97096-175-1	01	1	9407-		●	●
109	03.405 STAY; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97215-622-0	01	1	9511-				●
109	03.405 STAY; ACL	8-97215-622-0	01	1	9511-					●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 01.652 M10X25 W/LK WASHER	0-50041-025-0	04	1	9312-9404	●			●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> M10X25 FLANGE	0-28681-025-0	04	1	9405-	●			●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 09.003 (B) M10X35	0-28281-035-0	02	1	9312-9704	●			●
145	03.405 BOLT; BRKT TO FRAME 09.003 (B) M10X35	0-28281-035-0	02	1	9312-9704		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9705-	●	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9705-				●	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 00.002 (A) M10X28	0-28481-028-0	02	1	9312-9605	●			●
145	03.405 BOLT; BRKT TO FRAME 00.002 (A) M10X28	0-28481-028-0	02	1	9312-9605		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE	0-28681-025-0	02	1	9606-	●			●
145	03.405 BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	02	1	9606-		●	●		●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510	●			●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510						●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-9711	●			●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-9711	●			●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-9711		●	●			●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-	●			●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-	●			●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-		●	●		●	●
216	03.402 BOLT; ACL TO SILENCER AIR INTAKE SYSTEM FRONT<6PC>	8-97030-333-0	04	1	9312-9603	●			●
216	03.402 BOLT; ACL TO SILENCER	8-97030-333-0	04	1	9312-9603		●	●		●	●
216	03.402 BOLT; ACL TO SILENCER AIR INTAKE SYSTEM FRONT<6PC>	8-97126-074-0	04	1	9604-	●			●
216	03.402 BOLT; ACL TO SILENCER	8-97126-074-0	04	1	9604-		●	●		●	●
218	03.417 RESONATOR; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97093-071-1	01	1	9312-	●
218	03.417 RESONATOR; ACL	8-97093-071-1	01	1	9312-		●	●
218	03.417 RESONATOR; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97106-120-1	01	1	9312-				●
218	03.417 RESONATOR; ACL	8-97106-120-1	01	1	9312-					●	●

164

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	164	03.402 CLEANER ASM; AIR,SUB HEAVY DUTY AIR CLEANER(K46)	8-94144-273-2	01	1	9312-	●			●

49 44 101 26 38 5 1 5 5 27 4 2 90 3 113 114 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9312-	●
1	03.402 CLEANER ASM; AIR	8-97090-029-2	01	1	9312-		●	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9312-	●			●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94140-289-3	01	1	9312-	●			●
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9312-				●
1	03.402 CLEANER ASM; AIR	8-97090-028-1	01	1	9312-					●	●
2	03.403 NUT; WING,ELEMENT AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14217-063-0	01	1	9312-	●			●
2	03.403 NUT; WING,ELEMENT AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	1-14217-068-0	02	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	1-14219-225-0	02	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT	9-14219-279-0	01	1	9312-		●	●		●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9312-	●			●
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.410	8-94156-051-0	01	1	9312-	●			●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9511-9603				●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9511-9603					●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9604-	●			●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9604-		●	●		●	●
5	03.403 GASKET; ELEMENT AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A)	9-14213-013-0	01	1	9312-	●			●
5	03.403 GASKET; ELEMENT AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B)	9-14213-014-0	01	1	9312-	●			●
5	03.403 GASKET; ELEMENT AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C)	9-14213-015-0	01	1	9312-	●			●
26	03.410 FILTER; ACL,INNER AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14215-042-0	01	1	9312-	●			●
27	03.410 FILTER; ACL,OUTER AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14215-044-0	01	1	9312-	●			●
38	03.403 SPACER; ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14219-048-0	01	1	9312-	●			●
44	03.403 BOLT; ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 00.029 M10X28 W/LK WASHER	0-50041-028-0	04	1	9312-9711	●			●
44	03.403 BOLT; ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9712-	●			●
44	03.403 BOLT; ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9312-	●			●
49	03.403 NUT; ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-	●			●
90	03.406 CUP; ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.410	8-94155-235-0	01	1	9312-	●			●
90	03.406 CUP; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	9712-	●			●
90	03.406 CUP; ACL	8-97215-621-0	01	1	9712-		●	●		●	●
101	03.403 BOLT; HANGER,ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14219-049-0	03	1	9312-	●			●
102	03.403 GAUGE; OIL,ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-074-0	01	1	9312-	●			●
113	03.407 WASHER; HANGER BOLT,ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.403	9-14219-005-0	03	1	9312-	●			●
114	03.407 NUT; HANGER BOLT,ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.417	9-14217-079-0	03	1	9312-	●			●

146 146 145 54 54 76 216 39 109 39 145 1 31 11 92 94 3 218 31 28 6 4 90 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-029-2	01	1	9312-	●
1	03.402 CLEANER ASM; AIR	8-97090-029-2	01	1	9312-		●	●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9312-	●			●
1	03.402 CLEANER ASM; AIR AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94140-289-3	01	1	9312-	●			●
1	03.402 CLEANER ASM; AIR AIR INTAKE SYSTEM FRONT<6PC>	8-97090-028-1	01	1	9312-				●
1	03.402 CLEANER ASM; AIR	8-97090-028-1	01	1	9312-					●	●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	1-14219-225-0	02	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9312-	●			●
3	03.403 WASHER; SEAL,WING NUT	9-14219-279-0	01	1	9312-		●	●		●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9312-	●			●
4	03.403 GASKET; COVER TO BODY AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 03.410	8-94156-051-0	01	1	9312-	●			●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9511-9603				●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9511-9603					●	●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9604-	●			●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9604-		●	●		●	●
6	03.410 FILTER; ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94156-052-0	01	1	9312-	●			●
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-94104-273-0	01	1	9312-9510	●			●
6	03.410 FILTER; ACL	8-94104-273-0	01	1	9312-9510		●	●		●	●
6	03.410 FILTER; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9511-	●			●
6	03.410 FILTER; ACL	8-97173-210-0	01	1	9511-		●	●		●	●
11	03.403 BOLT; ACL AIR INTAKE SYSTEM FRONT<6PC> 09.008 M10X20 FLANGE	0-28081-020-0	02	1	9312-9704	●			●
11	03.403 BOLT; ACL 09.008 M10X20 FLANGE	0-28081-020-0	02	1	9312-9704		●	●		●	●
11	03.403 BOLT; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9705-	●			●
11	03.403 BOLT; ACL 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9705-		●	●		●	●
28	03.403 BOLT; WING,ACL AIR INTAKE SYSTEM FRONT<6PC>	9-14217-090-0	01	1	9312-	●			●
28	03.403 BOLT; WING,ACL	9-14217-090-0	01	1	9312-		●	●		●	●
31	03.406 SCREW; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97097-000-0	02	1	9312-9603	●			●
31	03.406 SCREW; ACL 03.402	8-97097-000-0	02	1	9312-9603		●			●	●
31	03.406 SCREW; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97100-001-0	04	1	9604-	●			●
31	03.406 SCREW; ACL 03.402	8-97100-001-0	04	1	9604-		●	●		●	●
39	03.403 RUBBER; MTG,BOLT AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97100-002-0	04	1	9312-	●			●
39	03.403 RUBBER; MTG,BOLT (A)	8-97100-002-0	04	1	9312-		●	●		●	●
39	03.403 RUBBER; MTG,BOLT AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97100-007-0	02	1	9312-	●			●
39	03.403 RUBBER; MTG,BOLT (B)	8-97100-007-0	02	1	9312-		●	●		●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97084-884-0	01	1	9312-	●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	9312-		●	●
54	03.405 BRACKET; ACL AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94140-144-3	01	1	9312-	●			●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9312-	●			●
54	03.405 BRACKET; ACL (A)	8-97038-519-1	01	1	9312-		●	●		●	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> (B)	8-97090-030-0	01	1	9312-				●	●	●
76	03.405 NUT; BRKT TO ACL AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-	●			●
76	03.405 NUT; BRKT TO ACL 04.785 M10 FLANGE	0-91150-110-0	02	1	9312-		●	●		●	●
90	03.406 CUP; ACL AIR INTAKE REAR VERTICAL<KJ3> AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 03.410	8-94155-235-0	01	1	9312-	●			●
90	03.406 CUP; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	9712-	●			●
90	03.406 CUP; ACL	8-97215-621-0	01	1	9712-		●	●		●	●
92	03.405 CLIP; WIRE,ACL AIR INTAKE SYSTEM FRONT<6PC>	8-94118-230-0	03	1	9312-	●			●
92	03.405 CLIP; WIRE,ACL	8-94118-230-0	03	1	9312-		●	●		●	●
94	03.415 VALVE; VACUATOR AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z>	8-94160-187-0	01	1	9312-	●			●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9312-	●			●
94	03.415 VALVE; VACUATOR (A)	8-94439-205-0	01	1	9312-		●	●		●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97030-327-0	01	1	9312-9603	●			●
94	03.415 VALVE; VACUATOR (B)	8-97030-327-0	01	1	9312-9603		●			●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9604-	●			●
94	03.415 VALVE; VACUATOR (B)	8-97148-258-0	01	1	9604-		●	●		●	●
109	03.405 STAY; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97096-175-1	01	1	9407-	●
109	03.405 STAY; ACL	8-97096-175-1	01	1	9407-		●	●
109	03.405 STAY; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97215-622-0	01	1	9511-				●
109	03.405 STAY; ACL	8-97215-622-0	01	1	9511-					●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 01.652 M10X25 W/LK WASHER	0-50041-025-0	04	1	9312-9404	●			●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> M10X25 FLANGE	0-28681-025-0	04	1	9405-	●			●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 09.003 (B) M10X35	0-28281-035-0	02	1	9312-9704	●			●
145	03.405 BOLT; BRKT TO FRAME 09.003 (B) M10X35	0-28281-035-0	02	1	9312-9704		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9705-	●	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 03.162 (B) M10X35 FLANGE	0-28681-035-0	02	1	9705-				●	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 00.002 (A) M10X28	0-28481-028-0	02	1	9312-9605	●			●
145	03.405 BOLT; BRKT TO FRAME 00.002 (A) M10X28	0-28481-028-0	02	1	9312-9605		●	●		●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> (A) M10X25 FLANGE	0-28681-025-0	02	1	9606-	●			●
145	03.405 BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	02	1	9606-		●	●		●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510	●	●	●	●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510	●			●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9312-9510						●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-9711	●			●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-9711	●			●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9511-9711		●	●			●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. AIR CLEANER OIL BATH VERTICAL TY PE<S5Z> 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-	●			●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-	●			●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-		●	●		●	●
216	03.402 BOLT; ACL TO SILENCER AIR INTAKE SYSTEM FRONT<6PC>	8-97030-333-0	04	1	9312-9603	●			●
216	03.402 BOLT; ACL TO SILENCER	8-97030-333-0	04	1	9312-9603		●	●		●	●
216	03.402 BOLT; ACL TO SILENCER AIR INTAKE SYSTEM FRONT<6PC>	8-97126-074-0	04	1	9604-	●			●
216	03.402 BOLT; ACL TO SILENCER	8-97126-074-0	04	1	9604-		●	●		●	●
218	03.417 RESONATOR; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97093-071-1	01	1	9312-	●
218	03.417 RESONATOR; ACL	8-97093-071-1	01	1	9312-		●	●
218	03.417 RESONATOR; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97106-120-1	01	1	9312-				●
218	03.417 RESONATOR; ACL	8-97106-120-1	01	1	9312-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
