Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#47016) — 310 parça

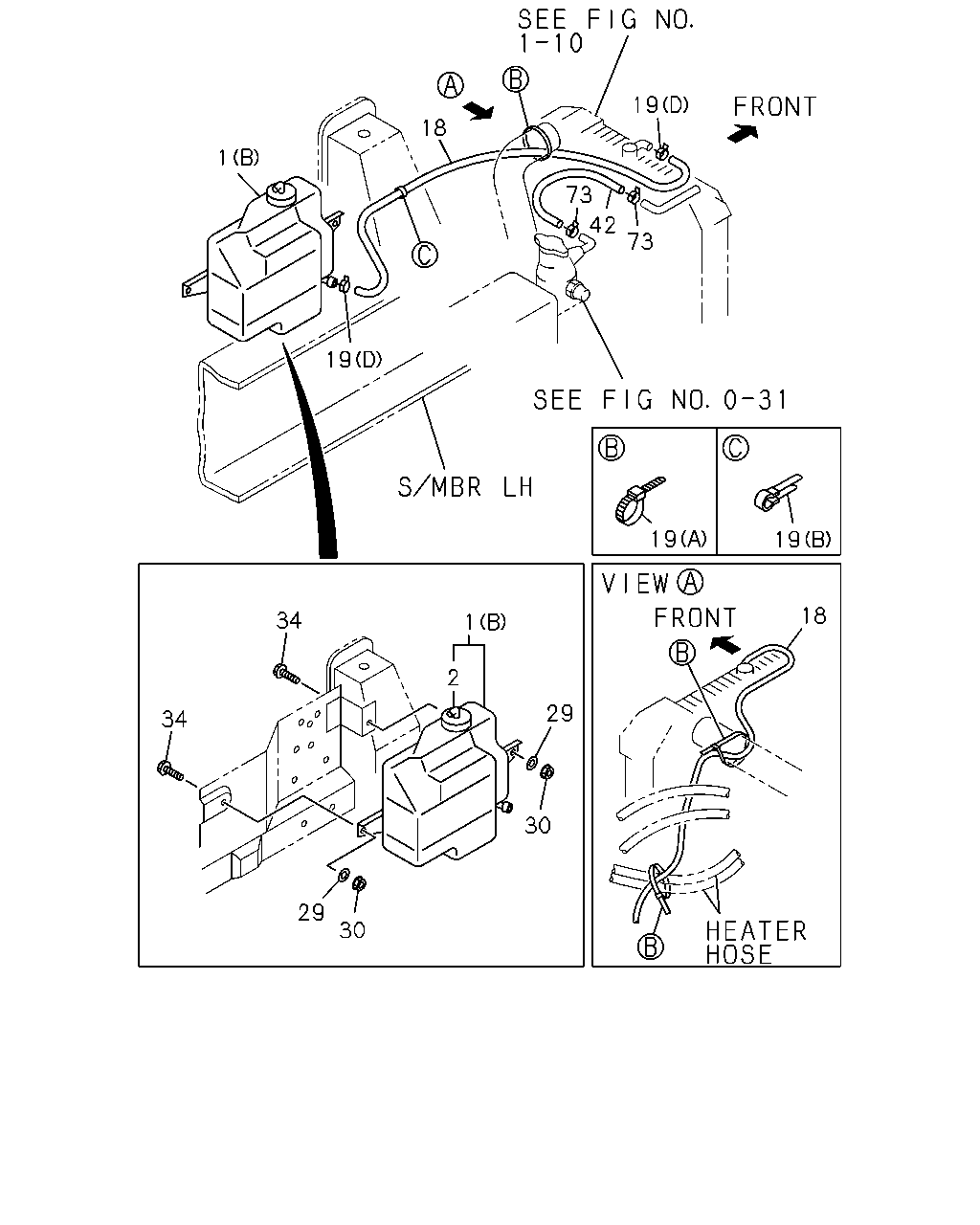

19 18 1 73 42 73 19 19 19 18 34 1 2 29 34 30 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9510	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407	●	●
1	01.219 TANK; SURGE,RAD (D)	8-97035-511-1	01	1	9312-9407			●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97120-913-1	01	1	9408-9505			●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9506-9711			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (E)	8-97131-202-0	01	1	9712-	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9712-			●	●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9312-					●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9312-9407	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9408-					●	●
2	01.203 CAP; SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9408-9711			●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9712-	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9712-			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97134-944-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9608-	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97102-906-0	01	1	9312-9504			●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-549-0	01	1	9505-9607			●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> L=1450	8-97162-122-1	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9608-9711			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9712-			●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97093-834-3	01	1	9312-9504					●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-548-0	01	1	9505-9607					●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9608-					●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9312-9603	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9312-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9312-9509			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9510-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9510-9711			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9712-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9712-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>, POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9510-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9510-9711			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9712-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9712-			●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9312-	●	●	●	●
30	01.203 NUT 00.413 M6	9-09110-506-0	03	1	9312-9403	●	●	●	●
30	01.203 NUT 16.176 M6	9-09110-406-0	03	1	9404-9407	●	●	●	●
30	01.203 NUT 04.594 M6 FLANGE	0-91150-106-0	03	1	9408-	●	●	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9702	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9703-9703	●	●
34	01.203 BOLT; RESERVE TANK 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-9711	●	●	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9712-	●	●
34	01.203 BOLT; RESERVE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9702	●	●
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9702			●	●
34	01.203 BOLT; RESERVE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9703-9703	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9703-9703			●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-			●	●
42	01.159 HOSE; RUBBER	8-97130-855-1	01	1	9505-9603	●	●	●	●	●	●
73	01.173 CLIP; RUBBER HOSE 01.219 ID=13	8-94238-571-0	02	1	9505-9603	●	●	●	●	●	●

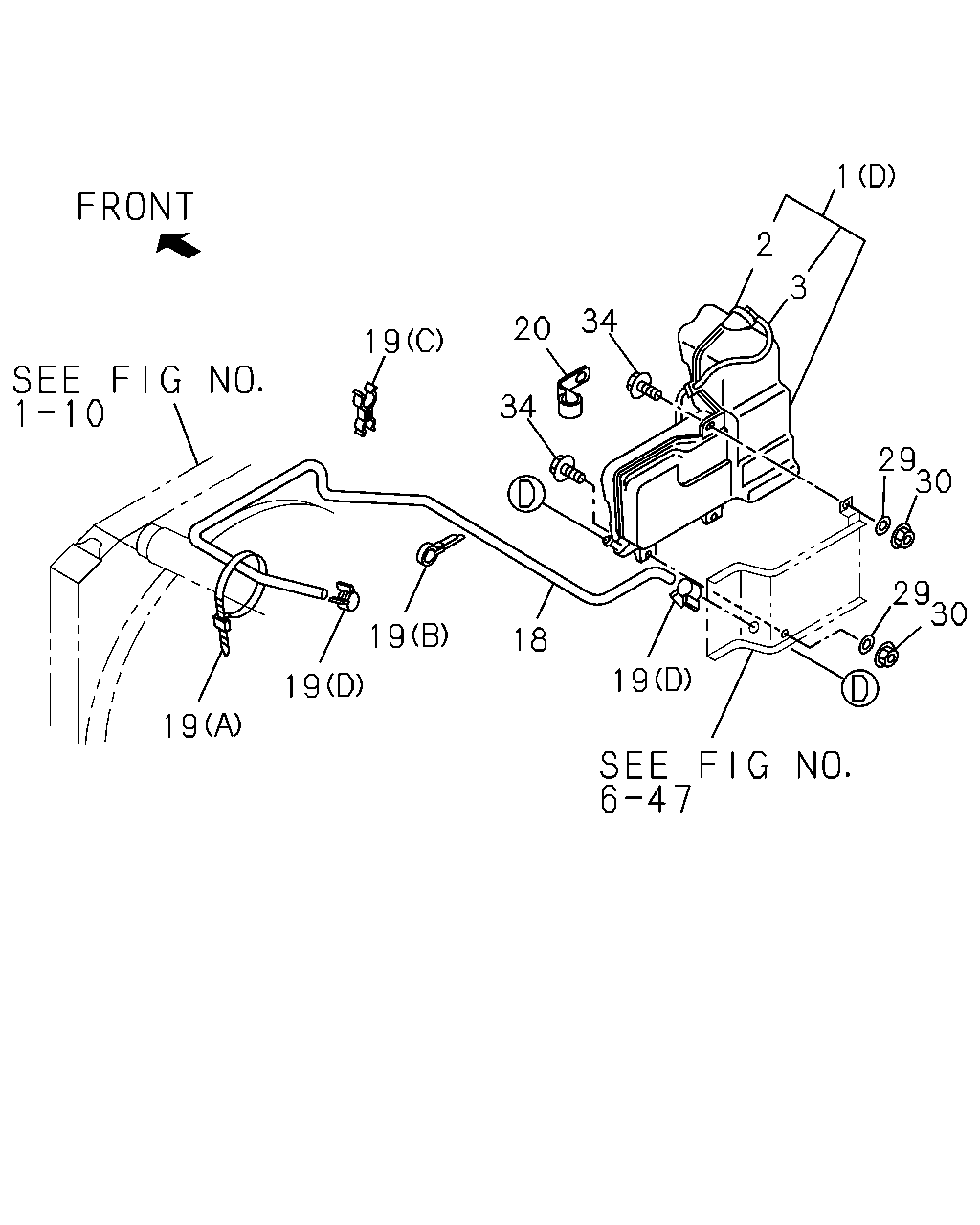

1 2 3 34 20 34 29 30 29 30 18 19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9510	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407	●	●
1	01.219 TANK; SURGE,RAD (D)	8-97035-511-1	01	1	9312-9407			●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97120-913-1	01	1	9408-9505			●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9506-9711			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (E)	8-97131-202-0	01	1	9712-	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9712-			●	●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9312-					●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9312-9407	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9408-					●	●
2	01.203 CAP; SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9408-9711			●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9712-	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9712-			●	●
3	01.159 HOSE; SURGE TANK 4JB1 ENG(RLF) EXC. AIR INTAKE REAR VERTICAL<KJ3> 01.166 L=550	8-97096-394-0	01	1	9312-9407	●	●	●	●	●	●
3	01.159 HOSE; SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 01.240 L=430 SERVICED BY L=3000	0-03157-300-0	01	1	9408-9410	●	●
3	01.159 HOSE; SURGE TANK 01.240 L=430 SERVICED BY L=3000	0-03157-300-0	01	1	9408-9410			●	●
3	01.159 HOSE; SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 01.240 L=370 SERVICED BY L=3000	0-03157-300-0	01	1	9411-9505	●	●
3	01.159 HOSE; SURGE TANK 01.240 L=370 SERVICED BY L=3000	0-03157-300-0	01	1	9411-9505			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97134-944-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9608-	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97102-906-0	01	1	9312-9504			●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-549-0	01	1	9505-9607			●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> L=1450	8-97162-122-1	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9608-9711			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9712-			●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97093-834-3	01	1	9312-9504					●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-548-0	01	1	9505-9607					●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9608-					●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9312-9603	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9312-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9312-9509			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9510-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9510-9711			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9712-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9712-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>, POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9510-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9510-9711			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9712-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9712-			●	●	●	●
20	01.166 CLIP; HOSE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.483 ID=13 H=18 L=20	1-09700-813-0	01	1	9408-9505	●	●
20	01.166 CLIP; HOSE,RAD 03.483 ID=13 H=18 L=20	1-09700-813-0	01	1	9408-9505			●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9312-	●	●	●	●
30	01.203 NUT 00.413 M6	9-09110-506-0	03	1	9312-9403	●	●	●	●
30	01.203 NUT 16.176 M6	9-09110-406-0	03	1	9404-9407	●	●	●	●
30	01.203 NUT 04.594 M6 FLANGE	0-91150-106-0	03	1	9408-	●	●	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9702	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9703-9703	●	●
34	01.203 BOLT; RESERVE TANK 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-9711	●	●	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9712-	●	●
34	01.203 BOLT; RESERVE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9702	●	●
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9702			●	●
34	01.203 BOLT; RESERVE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9703-9703	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9703-9703			●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-			●	●

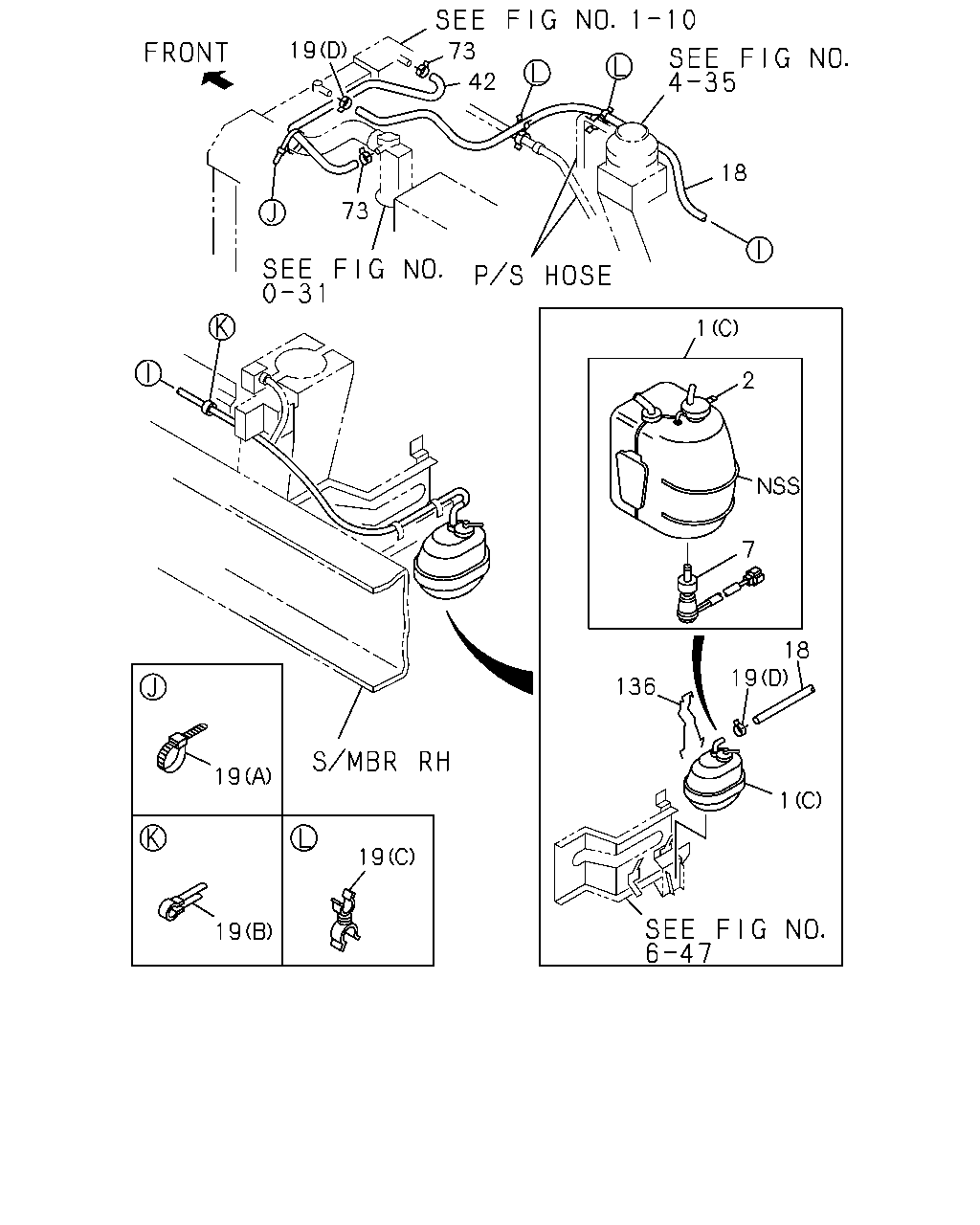

19 73 42 18 73 1 2 7 18 19 136 19 1 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9510	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407	●	●
1	01.219 TANK; SURGE,RAD (D)	8-97035-511-1	01	1	9312-9407			●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97120-913-1	01	1	9408-9505			●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9506-9711			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (E)	8-97131-202-0	01	1	9712-	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9712-			●	●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9312-					●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9312-9407	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9408-					●	●
2	01.203 CAP; SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9408-9711			●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9712-	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9712-			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97134-944-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9608-	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97102-906-0	01	1	9312-9504			●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-549-0	01	1	9505-9607			●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> L=1450	8-97162-122-1	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9608-9711			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9712-			●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97093-834-3	01	1	9312-9504					●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-548-0	01	1	9505-9607					●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9608-					●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9312-9603	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9312-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9312-9509			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9510-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9510-9711			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9712-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9712-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>, POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9510-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9510-9711			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9712-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9712-			●	●	●	●
42	01.159 HOSE; RUBBER	8-97130-855-1	01	1	9505-9603	●	●	●	●	●	●
73	01.173 CLIP; RUBBER HOSE 01.219 ID=13	8-94238-571-0	02	1	9505-9603	●	●	●	●	●	●
136	01.219 STOPPER; SURGE TANK	8-97087-220-0	01	1	9312-					●	●

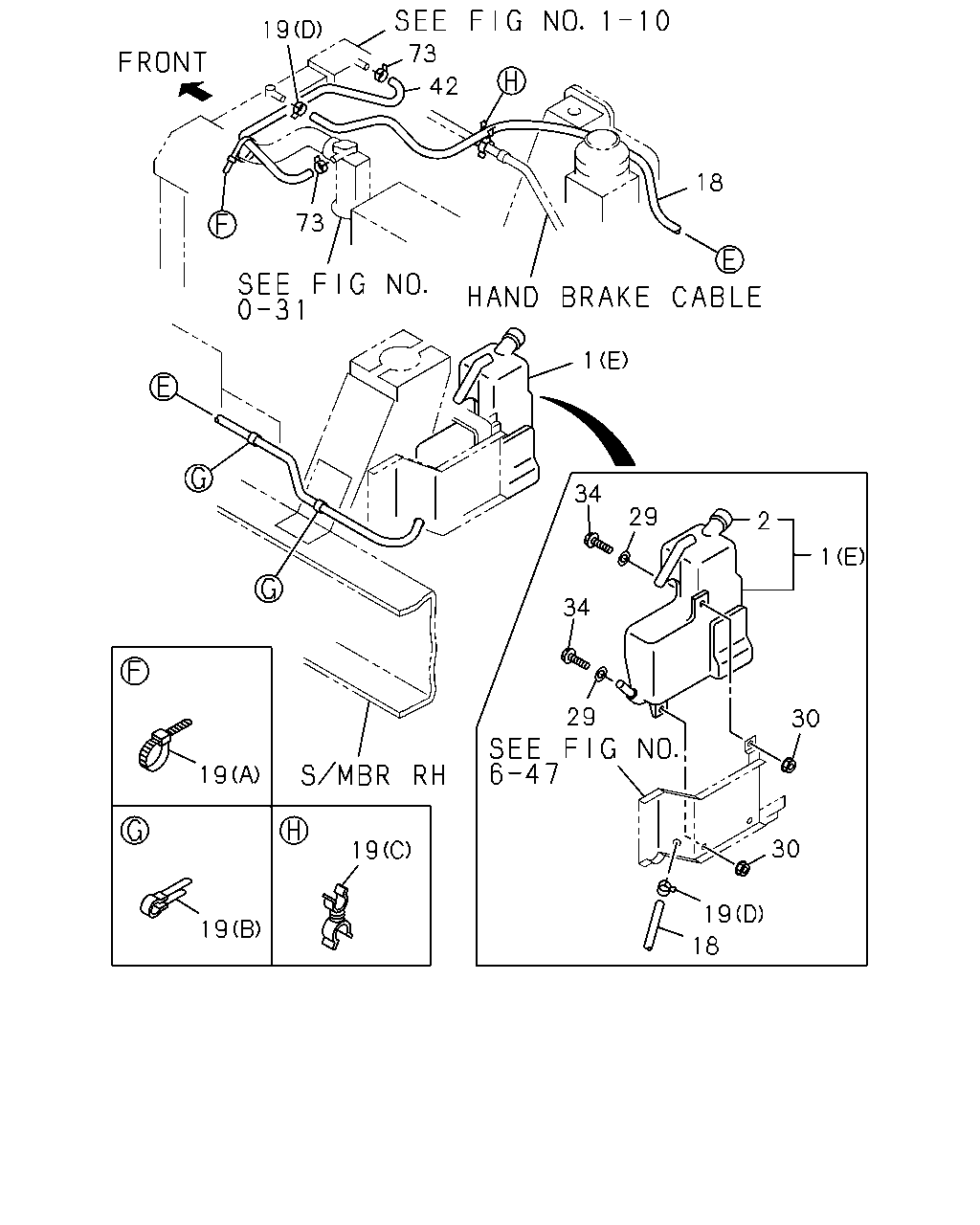

73 42 18 73 34 29 2 34 30 19 30 18 1 29 19 19 19 1 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9510	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407	●	●
1	01.219 TANK; SURGE,RAD (D)	8-97035-511-1	01	1	9312-9407			●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97120-913-1	01	1	9408-9505			●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9506-9711			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (E)	8-97131-202-0	01	1	9712-	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9712-			●	●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9312-					●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9312-9407	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9408-					●	●
2	01.203 CAP; SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9408-9711			●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9712-	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9712-			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97134-944-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9608-	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97102-906-0	01	1	9312-9504			●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-549-0	01	1	9505-9607			●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> L=1450	8-97162-122-1	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9608-9711			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9712-			●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97093-834-3	01	1	9312-9504					●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-548-0	01	1	9505-9607					●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9608-					●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9312-9603	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9312-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9312-9509			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9510-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9510-9711			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9712-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9712-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>, POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9510-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9510-9711			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9712-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9712-			●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9312-	●	●	●	●
30	01.203 NUT 00.413 M6	9-09110-506-0	03	1	9312-9403	●	●	●	●
30	01.203 NUT 16.176 M6	9-09110-406-0	03	1	9404-9407	●	●	●	●
30	01.203 NUT 04.594 M6 FLANGE	0-91150-106-0	03	1	9408-	●	●	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9702	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9703-9703	●	●
34	01.203 BOLT; RESERVE TANK 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-9711	●	●	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9712-	●	●
34	01.203 BOLT; RESERVE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9702	●	●
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9702			●	●
34	01.203 BOLT; RESERVE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9703-9703	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9703-9703			●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-			●	●
42	01.159 HOSE; RUBBER	8-97130-855-1	01	1	9505-9603	●	●	●	●	●	●
73	01.173 CLIP; RUBBER HOSE 01.219 ID=13	8-94238-571-0	02	1	9505-9603	●	●	●	●	●	●

56 56 128 56 55 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
55	01.173 HOSE; WATER,RAD OUTLET	8-97089-916-1	01	1	9312-	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (B) ID=42	5-09704-047-1	01	1	9312-	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	5-09704-049-0	03	1	9312-	●	●	●	●	●	●
128	01.159 HOSE; WATER,RAD INL	8-97034-003-0	01	1	9312-9607	●	●	●	●	●	●
128	01.159 HOSE; WATER,RAD INL	8-97147-473-0	01	1	9608-	●	●	●	●	●	●

19 18 19 19 19 1 2 34 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94451-186-1	01	1	9312-9510	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-9511	●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9511-	●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (D)	8-97035-511-1	01	1	9312-9407	●	●
1	01.219 TANK; SURGE,RAD (D)	8-97035-511-1	01	1	9312-9407			●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97120-913-1	01	1	9408-9505	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97120-913-1	01	1	9408-9505			●	●
1	01.219 TANK; SURGE,RAD EXC. AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97131-202-0	01	1	9506-9711	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9506-9711			●	●
1	01.219 TANK; SURGE,RAD AIR INTAKE SYSTEM FRONT<6PC> (E)	8-97131-202-0	01	1	9712-	●	●
1	01.219 TANK; SURGE,RAD (E)	8-97131-202-0	01	1	9712-			●	●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9312-					●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9312-9407	●	●	●	●	●	●
2	01.203 CAP; SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9408-	●	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9408-					●	●
2	01.203 CAP; SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97126-876-0	01	1	9408-9711	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9408-9711			●	●
2	01.203 CAP; SURGE TANK AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9712-	●	●
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9712-			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97100-929-0	01	1	9312-9504	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97129-552-0	01	1	9505-9506	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3>	8-97134-944-0	01	1	9507-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9608-	●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97102-906-0	01	1	9312-9504	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97102-906-0	01	1	9312-9504			●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>	8-97129-549-0	01	1	9505-9607	●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-549-0	01	1	9505-9607			●	●
18	01.240 HOSE; RAD TO SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> L=1450	8-97162-122-1	01	1	9608-9711	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9608-9711			●	●
18	01.240 HOSE; RAD TO SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9712-	●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1450	8-97162-122-1	01	1	9712-			●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97093-834-3	01	1	9312-9504					●	●
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-548-0	01	1	9505-9607					●	●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9608-					●	●
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=14 L=47	5-09700-319-0	01	1	9312-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 03.164 (A) L=217	8-94235-793-0	01	1	9312-9603	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9312-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9312-9509	●	●
19	01.240 CLIP; HOSE,SURGE TANK 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9312-9509			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9510-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9510-9711			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9712-	●	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9712-			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3>, POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9510-9711	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9510-9711			●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9712-	●	●
19	01.240 CLIP; HOSE,SURGE TANK EXC. POWER STEERING<N40> 02.559 (C) ID=10 & 11	8-94438-996-0	02	1	9712-			●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9312-	●	●	●	●
30	01.203 NUT 00.413 M6	9-09110-506-0	03	1	9312-9403	●	●	●	●
30	01.203 NUT 16.176 M6	9-09110-406-0	03	1	9404-9407	●	●	●	●
30	01.203 NUT 04.594 M6 FLANGE	0-91150-106-0	03	1	9408-	●	●	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	9312-9702	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9703-9703	●	●
34	01.203 BOLT; RESERVE TANK 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9704-9711	●	●	●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9712-	●	●
34	01.203 BOLT; RESERVE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9702	●	●
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9312-9702			●	●
34	01.203 BOLT; RESERVE TANK EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9703-9703	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9703-9703			●	●
34	01.203 BOLT; RESERVE TANK AIR INTAKE SYSTEM FRONT<6PC> 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-	●	●
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9712-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
