Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#47015) — 264 parça

1 498 496 301 497 300 81 2 21 21 62 70 21 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97032-725-1	01	1	9312-9502	●	●	●	●	●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97128-832-0	01	1	9503-9504	●	●	●	●	●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97129-009-0	01	1	9505-9510	●	●	●	●	●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97129-009-0	01	1	9511-9603				●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97160-544-0	01	1	9604-9607				●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97162-129-1	01	1	9608-9711				●
1	01.219 RADIATOR ASM EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-727-1	01	1	9312-9501	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97032-727-1	01	1	9312-9501						●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-727-1	01	1	9502-9502			●	●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97128-834-0	01	1	9503-9504			●	●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97129-011-0	01	1	9505-9510			●	●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97129-011-0	01	1	9511-9603			●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97160-545-0	01	1	9604-9607			●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97162-135-1	01	1	9608-9807			●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97162-135-1	01	1	9808-			●			●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97117-688-0	01	1	9502-9502	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97117-688-0	01	1	9502-9502						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97128-870-0	01	1	9503-9504	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97128-870-0	01	1	9503-9504						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97129-032-0	01	1	9505-9510	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97129-032-0	01	1	9505-9510						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97129-032-0	01	1	9511-9603	●	●	●	●	●	●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97160-557-0	01	1	9604-9607	●	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97162-144-0	01	1	9608-9608	●	●			●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF)	8-97162-144-1	01	1	9609-	●	●			●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97162-131-1	01	1	9609-	●	●			●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97162-145-1	01	1	9608-9711			●	●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	9608-9711						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	9712-9807			●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	9712-9807				●		●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	9808-			●			●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	9808-				●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	9312-9504	●	●	●	●	●	●
2	01.277 GUIDE; FAN	8-97124-916-0	01	1	9505-9510	●	●	●	●	●	●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	9511-	●	●	●	●	●	●
21	01.276 SEAL; RAD (A)	8-97085-689-0	01	1	9312-9501	●	●	●	●	●	●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9502-9510	●	●	●	●	●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9502-9510			●	●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	9511-9608			●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9511-9608				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (A)	8-97085-689-0	01	1	9609-9711	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	9609-9711			●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9609-9711				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (A)	8-97085-689-0	01	1	9712-9807	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	9712-9807			●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (A)	8-97085-689-0	01	1	9808-	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	9808-			●			●
21	01.276 SEAL; RAD (B)	8-97085-690-0	02	1	9312-9501	●	●	●	●	●	●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9502-9510	●	●	●	●	●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9502-9510			●	●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	9511-9608			●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9511-9608				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (B)	8-97085-690-0	02	1	9609-9711	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	9609-9711			●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9609-9711				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (B)	8-97085-690-0	02	1	9712-9807	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	9712-9807			●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (B)	8-97085-690-0	02	1	9808-	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	9808-			●			●
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	9312-9502	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9503-	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	9312-9502	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	9503-	●	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9312-	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9312-	●	●	●	●	●	●
70	01.271 STAY; RAD	8-97047-899-0	01	1	9312-	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	9312-	●	●	●	●	●	●
300	01.240 HOSE; WATER,OVERFLOW,RAD	8-97147-997-0	01	1	9604-9607	●	●	●	●	●	●
301	01.240 CLIP; HOSE,RAD,OVERFLOW 04.128 ID=15	8-94140-431-0	01	1	9604-9607	●	●	●	●	●	●
496	01.271 VALVE; PRESSURE	8-97129-063-0	01	1	9505-9607	●	●	●	●	●	●
497	01.271 GASKET; VLV,PRESSURE	8-97129-600-0	01	1	9505-9607	●	●	●	●	●	●
498	01.271 BOLT; VLV,PRESSURE 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9505-9510	●	●	●	●	●	●
498	01.271 BOLT; VLV,PRESSURE 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9511-9607	●	●	●	●	●	●

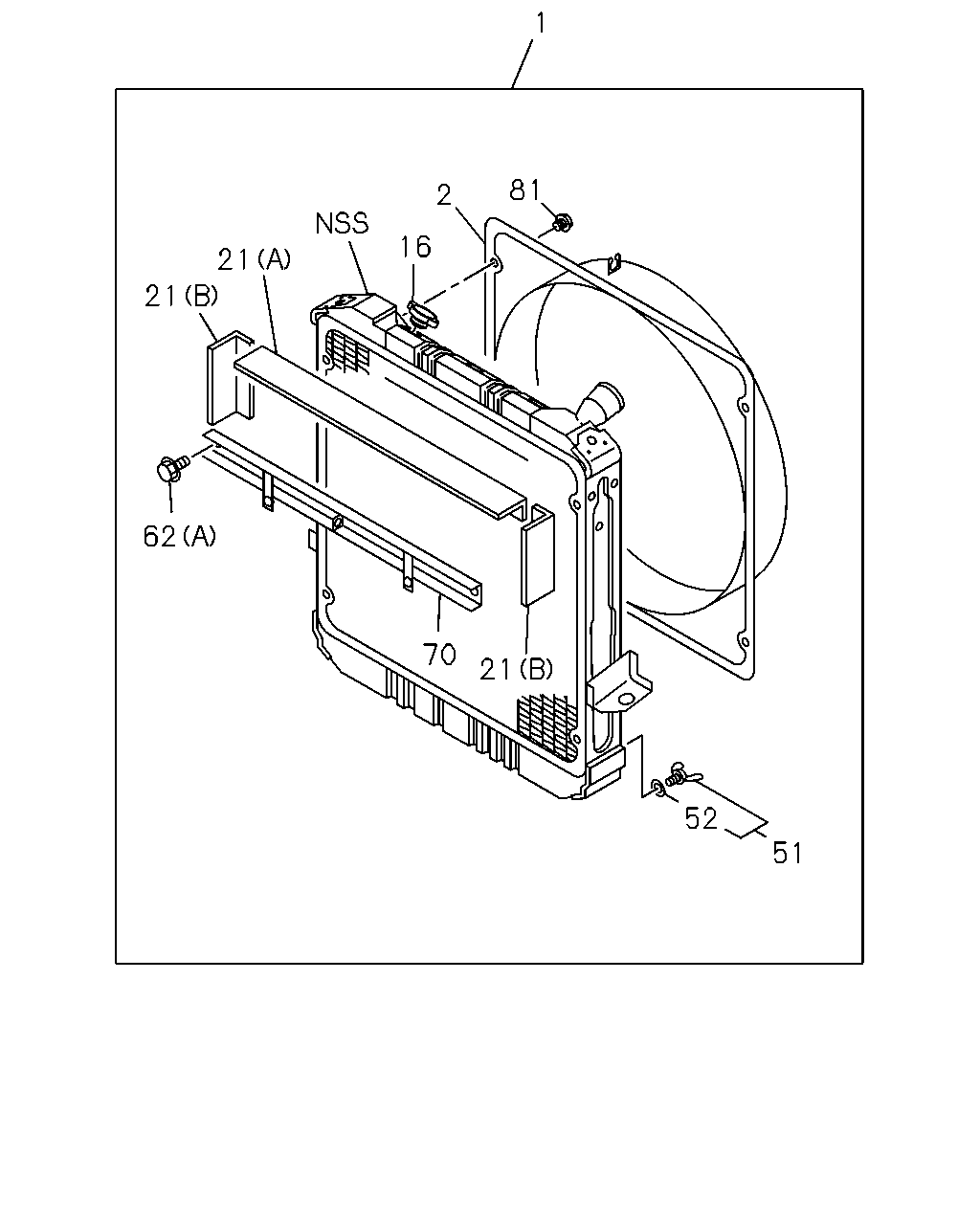

1 81 2 16 21 21 62 70 21 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97032-725-1	01	1	9312-9502	●	●	●	●	●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97128-832-0	01	1	9503-9504	●	●	●	●	●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97129-009-0	01	1	9505-9510	●	●	●	●	●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97129-009-0	01	1	9511-9603				●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97160-544-0	01	1	9604-9607				●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97162-129-1	01	1	9608-9711				●
1	01.219 RADIATOR ASM EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-727-1	01	1	9312-9501	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97032-727-1	01	1	9312-9501						●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-727-1	01	1	9502-9502			●	●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97128-834-0	01	1	9503-9504			●	●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97129-011-0	01	1	9505-9510			●	●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97129-011-0	01	1	9511-9603			●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97160-545-0	01	1	9604-9607			●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97162-135-1	01	1	9608-9807			●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97162-135-1	01	1	9808-			●			●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97117-688-0	01	1	9502-9502	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97117-688-0	01	1	9502-9502						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97128-870-0	01	1	9503-9504	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97128-870-0	01	1	9503-9504						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97129-032-0	01	1	9505-9510	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97129-032-0	01	1	9505-9510						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97129-032-0	01	1	9511-9603	●	●	●	●	●	●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97160-557-0	01	1	9604-9607	●	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97162-144-0	01	1	9608-9608	●	●			●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF)	8-97162-144-1	01	1	9609-	●	●			●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97162-131-1	01	1	9609-	●	●			●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97162-145-1	01	1	9608-9711			●	●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	9608-9711						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	9712-9807			●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	9712-9807				●		●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	9808-			●			●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	9808-				●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	9312-9504	●	●	●	●	●	●
2	01.277 GUIDE; FAN	8-97124-916-0	01	1	9505-9510	●	●	●	●	●	●
2	01.277 GUIDE; FAN	8-97066-011-0	01	1	9511-	●	●	●	●	●	●
16	01.203 CAP; RAD	8-94116-916-1	01	1	9312-9410	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97120-073-0	01	1	9411-9502	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97129-572-0	01	1	9503-9512	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97146-516-0	01	1	9601-9603	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97148-007-0	01	1	9608-9609	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97167-854-0	01	1	9610-9711	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97167-854-0	01	1	9712-9807	●	●		●	●	●
16	01.203 CAP; RAD EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97167-854-0	01	1	9712-9807			●
16	01.203 CAP; RAD	8-97167-854-0	01	1	9808-	●	●		●	●
16	01.203 CAP; RAD EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97167-854-0	01	1	9808-			●			●
16	01.203 CAP; RAD SAUDI ARABIA EQUIPMENT(EU2)	8-97177-872-0	01	1	9712-9807			●
16	01.203 CAP; RAD SAUDI ARABIA EQUIPMENT(EU2)	8-97177-872-0	01	1	9808-			●			●
21	01.276 SEAL; RAD (A)	8-97085-689-0	01	1	9312-9501	●	●	●	●	●	●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9502-9510	●	●	●	●	●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9502-9510			●	●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	9511-9608			●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9511-9608				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (A)	8-97085-689-0	01	1	9609-9711	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	9609-9711			●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97085-689-0	01	1	9609-9711				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (A)	8-97085-689-0	01	1	9712-9807	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	9712-9807			●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (A)	8-97085-689-0	01	1	9808-	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97085-689-0	01	1	9808-			●			●
21	01.276 SEAL; RAD (B)	8-97085-690-0	02	1	9312-9501	●	●	●	●	●	●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9502-9510	●	●	●	●	●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9502-9510			●	●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	9511-9608			●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9511-9608				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (B)	8-97085-690-0	02	1	9609-9711	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	9609-9711			●
21	01.276 SEAL; RAD FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97085-690-0	02	1	9609-9711				●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (B)	8-97085-690-0	02	1	9712-9807	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	9712-9807			●
21	01.276 SEAL; RAD 4JG2 ENG(RJC) (B)	8-97085-690-0	02	1	9808-	●	●			●
21	01.276 SEAL; RAD SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97085-690-0	02	1	9808-			●			●
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	9312-9502	●	●	●	●	●	●
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9503-	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	9312-9502	●	●	●	●	●	●
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	9503-	●	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9312-	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9312-	●	●	●	●	●	●
70	01.271 STAY; RAD	8-97047-899-0	01	1	9312-	●	●	●	●	●	●
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	9312-	●	●	●	●	●	●

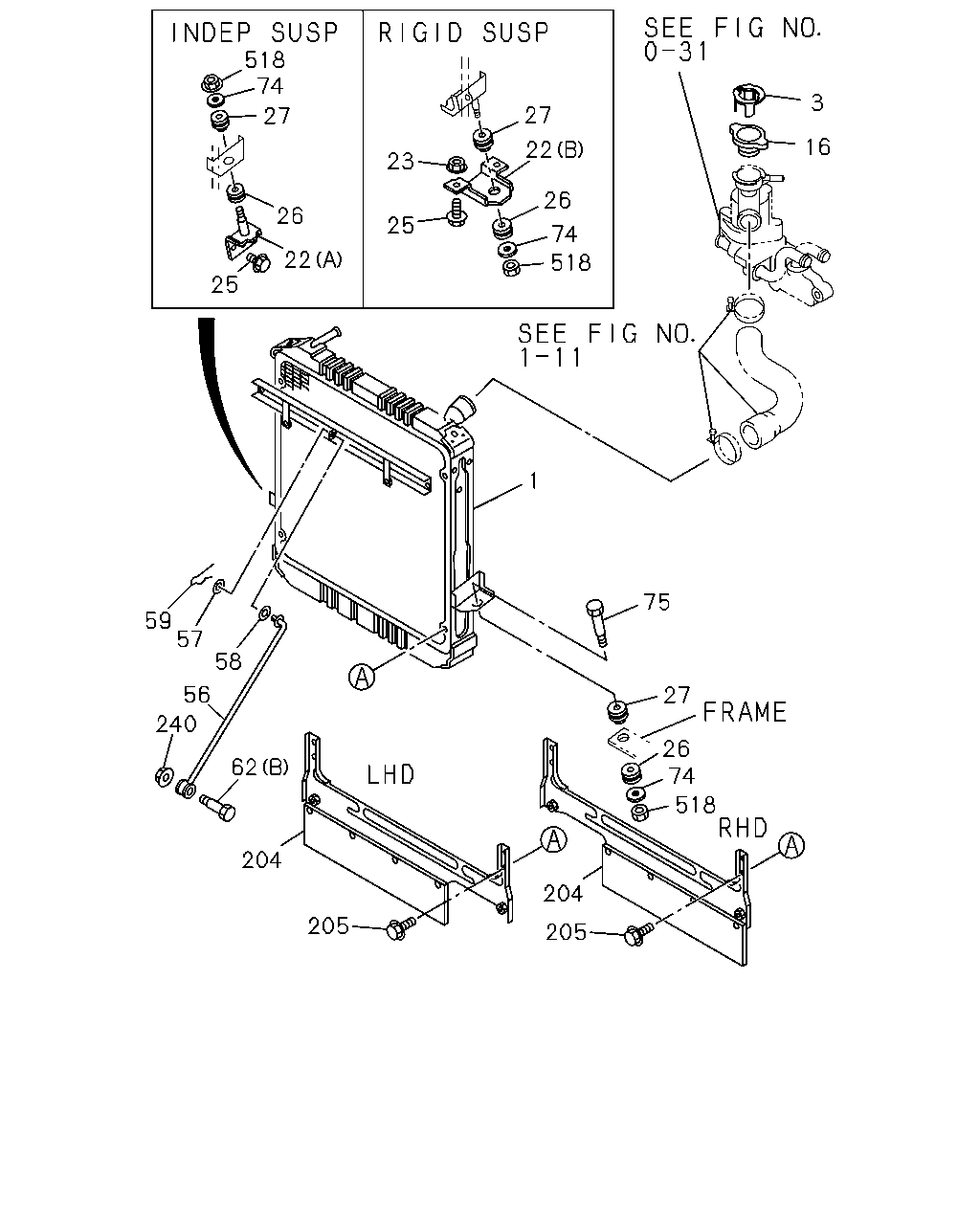

518 74 27 3 27 16 22 23 26 74 518 26 25 22 25 1 75 59 57 58 56 240 27 26 74 518 62 204 204 205 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97032-725-1	01	1	9312-9502	●	●	●	●	●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97128-832-0	01	1	9503-9504	●	●	●	●	●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97129-009-0	01	1	9505-9510	●	●	●	●	●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97129-009-0	01	1	9511-9603				●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97160-544-0	01	1	9604-9607				●
1	01.219 RADIATOR ASM FRT INDEPENDENT SUSPENSION(6PP)	8-97162-129-1	01	1	9608-9711				●
1	01.219 RADIATOR ASM EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-727-1	01	1	9312-9501	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97032-727-1	01	1	9312-9501						●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-727-1	01	1	9502-9502			●	●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97128-834-0	01	1	9503-9504			●	●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97129-011-0	01	1	9505-9510			●	●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97129-011-0	01	1	9511-9603			●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97160-545-0	01	1	9604-9607			●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97162-135-1	01	1	9608-9807			●
1	01.219 RADIATOR ASM SAUDI ARABIA EQUIPMENT(EU2)	8-97162-135-1	01	1	9808-			●			●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97117-688-0	01	1	9502-9502	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97117-688-0	01	1	9502-9502						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97128-870-0	01	1	9503-9504	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97128-870-0	01	1	9503-9504						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97129-032-0	01	1	9505-9510	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97129-032-0	01	1	9505-9510						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97129-032-0	01	1	9511-9603	●	●	●	●	●	●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97160-557-0	01	1	9604-9607	●	●	●	●	●	●
1	01.219 RADIATOR ASM	8-97162-144-0	01	1	9608-9608	●	●			●
1	01.219 RADIATOR ASM 4JB1 ENG(RLF)	8-97162-144-1	01	1	9609-	●	●			●
1	01.219 RADIATOR ASM 4JG2 ENG(RJC)	8-97162-131-1	01	1	9609-	●	●			●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2),FRT INDEPENDENT SUSPENSION(6PP)	8-97162-145-1	01	1	9608-9711			●	●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	9608-9711						●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	9712-9807			●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	9712-9807				●		●
1	01.219 RADIATOR ASM EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97162-145-1	01	1	9808-			●			●
1	01.219 RADIATOR ASM	8-97162-145-1	01	1	9808-				●
3	01.203 COVER; RAD 01.251	8-97131-155-1	01	1	9510-9602	●	●	●	●	●	●
16	01.203 CAP; RAD	8-94116-916-1	01	1	9312-9410	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97120-073-0	01	1	9411-9502	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97129-572-0	01	1	9503-9512	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97146-516-0	01	1	9601-9603	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97148-007-0	01	1	9608-9609	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97167-854-0	01	1	9610-9711	●	●	●	●	●	●
16	01.203 CAP; RAD	8-97167-854-0	01	1	9712-9807	●	●		●	●	●
16	01.203 CAP; RAD EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97167-854-0	01	1	9712-9807			●
16	01.203 CAP; RAD	8-97167-854-0	01	1	9808-	●	●		●	●
16	01.203 CAP; RAD EXC. SAUDI ARABIA EQUIPMENT(EU2)	8-97167-854-0	01	1	9808-			●			●
16	01.203 CAP; RAD SAUDI ARABIA EQUIPMENT(EU2)	8-97177-872-0	01	1	9712-9807			●
16	01.203 CAP; RAD SAUDI ARABIA EQUIPMENT(EU2)	8-97177-872-0	01	1	9808-			●			●
22	01.270 BRACKET; RAD MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97072-647-1	01	1	9312-9510	●	●	●	●	●
22	01.270 BRACKET; RAD MTG FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97072-647-1	01	1	9511-9711				●
22	01.270 BRACKET; RAD MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94257-949-1	01	1	9312-9510	●	●	●	●	●
22	01.270 BRACKET; RAD MTG (B)	8-94257-949-1	01	1	9312-9510						●
22	01.270 BRACKET; RAD MTG (B)	8-94257-949-1	01	1	9511-9711	●	●	●		●	●
22	01.270 BRACKET; RAD MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94257-949-1	01	1	9511-9711				●
22	01.270 BRACKET; RAD MTG (B)	8-94257-949-1	01	1	9712-	●	●	●	●	●	●
23	01.271 NUT; RAD MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.874 M10 FLANGE	5-09440-006-0	02	1	9312-9510	●	●	●	●	●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	02	1	9312-9510						●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	02	1	9511-9711	●	●	●		●	●
23	01.271 NUT; RAD MTG EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.874 M10 FLANGE	5-09440-006-0	02	1	9511-9711				●
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	02	1	9712-	●	●	●	●	●	●
25	01.271 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 00.002 M10X28	0-28481-028-0	02	1	9312-9510	●	●	●	●	●
25	01.271 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 00.002 M10X28	0-28481-028-0	02	1	9511-9702				●
25	01.271 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9312-9510	●	●	●	●	●
25	01.271 BOLT; BRKT 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9312-9510						●
25	01.271 BOLT; BRKT 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9511-9702	●	●	●		●	●
25	01.271 BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9511-9702				●
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9703-	●	●	●	●	●	●
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9312-	●	●	●	●	●	●
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9312-	●	●	●	●	●	●
56	01.270 STAY; RAD FRT INDEPENDENT SUSPENSION(6PP)	8-97032-797-0	01	1	9312-9510	●	●	●	●	●
56	01.270 STAY; RAD FRT INDEPENDENT SUSPENSION(6PP)	8-97032-797-0	01	1	9511-9711				●
56	01.270 STAY; RAD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-798-0	01	1	9312-9510	●	●	●	●	●
56	01.270 STAY; RAD	8-97032-798-0	01	1	9312-9510						●
56	01.270 STAY; RAD	8-97032-798-0	01	1	9511-9711	●	●	●		●	●
56	01.270 STAY; RAD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-798-0	01	1	9511-9711				●
56	01.270 STAY; RAD	8-97032-798-2	01	1	9712-	●	●	●	●	●	●
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9312-	●	●	●	●	●	●
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9312-	●	●	●	●	●	●
59	01.271 PIN; SNAP,STAY 03.452 L=27.7	8-94202-777-0	01	1	9312-	●	●	●	●	●	●
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9312-	●	●	●	●	●	●
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9312-	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) ID=10.5 OD=36	8-97031-437-0	01	1	9312-9510	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) ID=10.5 OD=36	8-97031-437-0	01	1	9511-9711				●
74	01.270 WASHER; PL,CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) 03.405 ID=8.5 OD=36	8-94221-082-0	01	1	9312-9510	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER FRT INDEPENDENT SUSPENSION(6PP) 03.405 ID=8.5 OD=36	8-94221-082-0	01	1	9511-9711				●
74	01.270 WASHER; PL,CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	9312-9510	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	9312-9510						●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	9511-9711	●	●	●		●	●
74	01.270 WASHER; PL,CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	9511-9711				●
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 ID=8.5 OD=36	8-94221-082-0	02	1	9712-	●	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.792 ID=10.5 OD=26	9-09160-710-0	01	1	9312-9510	●	●	●	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 ID=10.5 OD=26	9-09160-710-0	01	1	9312-9510						●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 ID=10.5 OD=26	9-09160-710-0	01	1	9511-9711	●	●	●		●	●
74	01.270 WASHER; PL,CUSHION RUBBER EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.792 ID=10.5 OD=26	9-09160-710-0	01	1	9511-9711				●
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 ID=10.5 OD=26	9-09160-710-0	01	1	9712-	●	●	●	●	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9312-	●	●	●	●	●	●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97035-512-3	01	1	9312-	●	●			●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97089-919-1	01	1	9312-9407			●	●		●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D>	8-97089-919-2	01	1	9408-9711			●	●		●
204	01.267 GUIDE ASM; AIR AIR CON PREPARATORY PACK<S6D>	8-97089-919-2	01	1	9408-9711				●
204	01.267 GUIDE ASM; AIR AIR CONDITIONER MANUAL CONT(C60)	8-97089-919-3	01	1	9712-			●	●		●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	04	1	9312-9407	●	●	●	●	●	●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 02.500 M6X10 FLANGE	0-28080-610-0	04	1	9408-9709	●	●	●	●	●	●
205	01.267 BOLT; AIR GUIDE AIR CON PREPARATORY PACK<S6D> 02.500 M6X10 FLANGE	0-28080-610-0	04	1	9408-9709				●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) EXC. AIR CON PREPARATORY PACK<S6D> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9710-9711	●	●	●	●	●	●
205	01.267 BOLT; AIR GUIDE AIR CON PREPARATORY PACK<S6D> 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9710-9711				●
205	01.267 BOLT; AIR GUIDE AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	9712-	●	●	●	●	●	●
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9312-	●	●	●	●	●	●
518	01.270 NUT FRT INDEPENDENT SUSPENSION(6PP) 00.854 M8 FLANGE	5-09440-005-0	01	1	9312-9510	●	●	●	●	●
518	01.270 NUT EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-9510	●	●	●	●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9312-9510						●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9712-	●	●	●	●	●	●
518	01.270 NUT EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.854 M8 FLANGE	5-09440-005-0	02	1	9511-9711	●	●	●		●	●
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9511-9711				●
518	01.270 NUT FRT INDEPENDENT SUSPENSION(6PP) 00.854 M8 FLANGE	5-09440-005-0	01	1	9511-9711				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
