Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#47014) — 200 parça

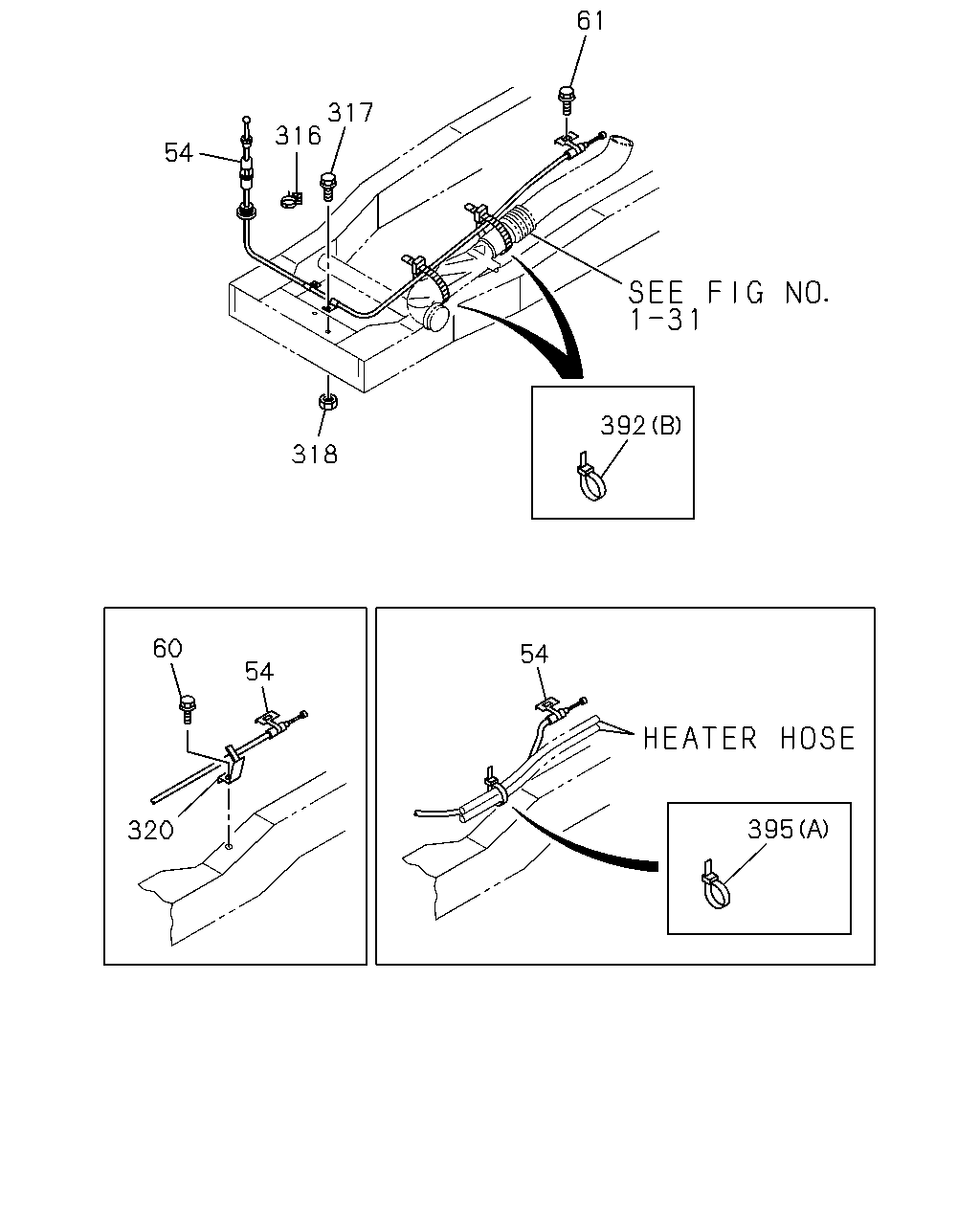

61 317 316 54 392 318 60 54 54 395 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-3	01	1	9312-	●	●	●
54	03.430 CABLE; ENG CONT L=1701	8-97089-885-2	01	1	9312-9408				●	●	●
54	03.430 CABLE; ENG CONT L=1701	8-97118-537-1	01	1	9409-				●	●	●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9312-9504	●			●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9505-	●			●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9312-	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 02.559 ID=12	1-09987-201-0	01	1	9312-9503	●	●	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	9504-	●	●	●
317	03.425 BOLT; LAMP BRKT 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9312-9504	●	●	●
317	03.425 BOLT; LAMP BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9505-	●	●	●
318	03.275 NUT; LAMP BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.417 M8 FLANGE	8-94279-517-0	02	1	9312-9510	●	●	●
318	03.275 NUT; LAMP BRKT 03.417 M8 FLANGE	8-94279-517-0	02	1	9511-9802	●	●	●
318	03.275 NUT; LAMP BRKT 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	9803-	●	●	●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	9312-	●			●
392	03.483 CLIP; ACCEL CONT CABLE EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 (B) L=330	5-09709-118-0	02	1	9312-9711	●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	02	1	9312-9711		●	●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 03.008 (B) L=330	5-09709-118-0	02	1	9712-	●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	02	1	9712-		●	●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> 06.672 (C) ID=10X2 H=22	8-94252-455-2	01	1	9312-9507				●
392	03.483 CLIP; ACCEL CONT CABLE EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312				●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312					●	●
392	03.483 CLIP; ACCEL CONT CABLE EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9312-9711				●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9312-9711					●	●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9712-				●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9712-					●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-0	01	1	9312-9312	●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-0	01	1	9312-9312				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	9401-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-0	01	1	9401-9507				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	9401-				●

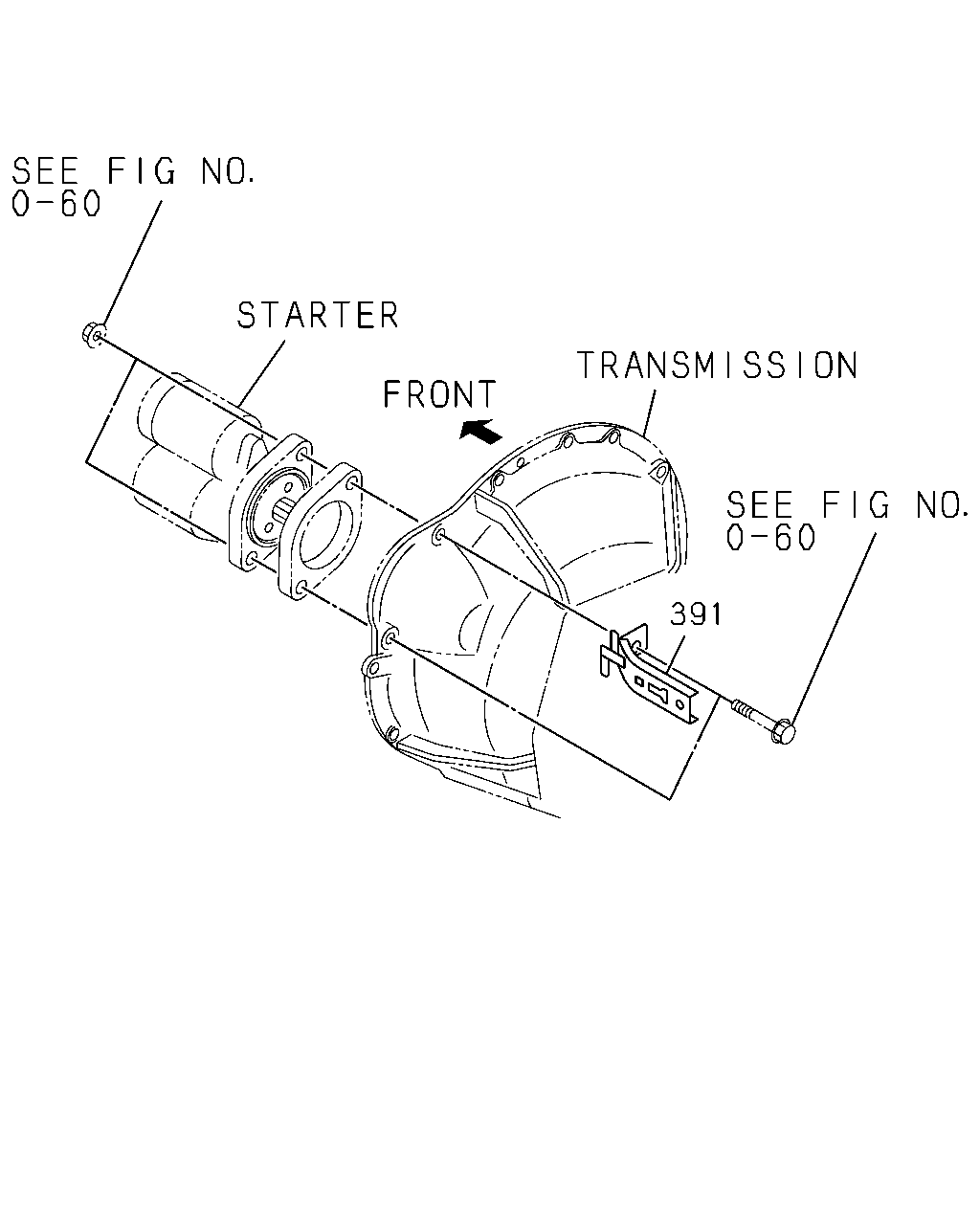

391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) 02.483	8-97068-801-1	01	1	9312-9510	●	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 02.483	8-97068-801-1	01	1	9511-9711	●	●	●	●		●
391	03.452 BRACKET; ENG CONT EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.483	8-97068-801-1	01	1	9511-9711					●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) 02.483	8-97068-801-1	01	1	9712-	●	●	●
391	03.452 BRACKET; ENG CONT 02.483	8-97068-801-1	01	1	9712-				●	●	●

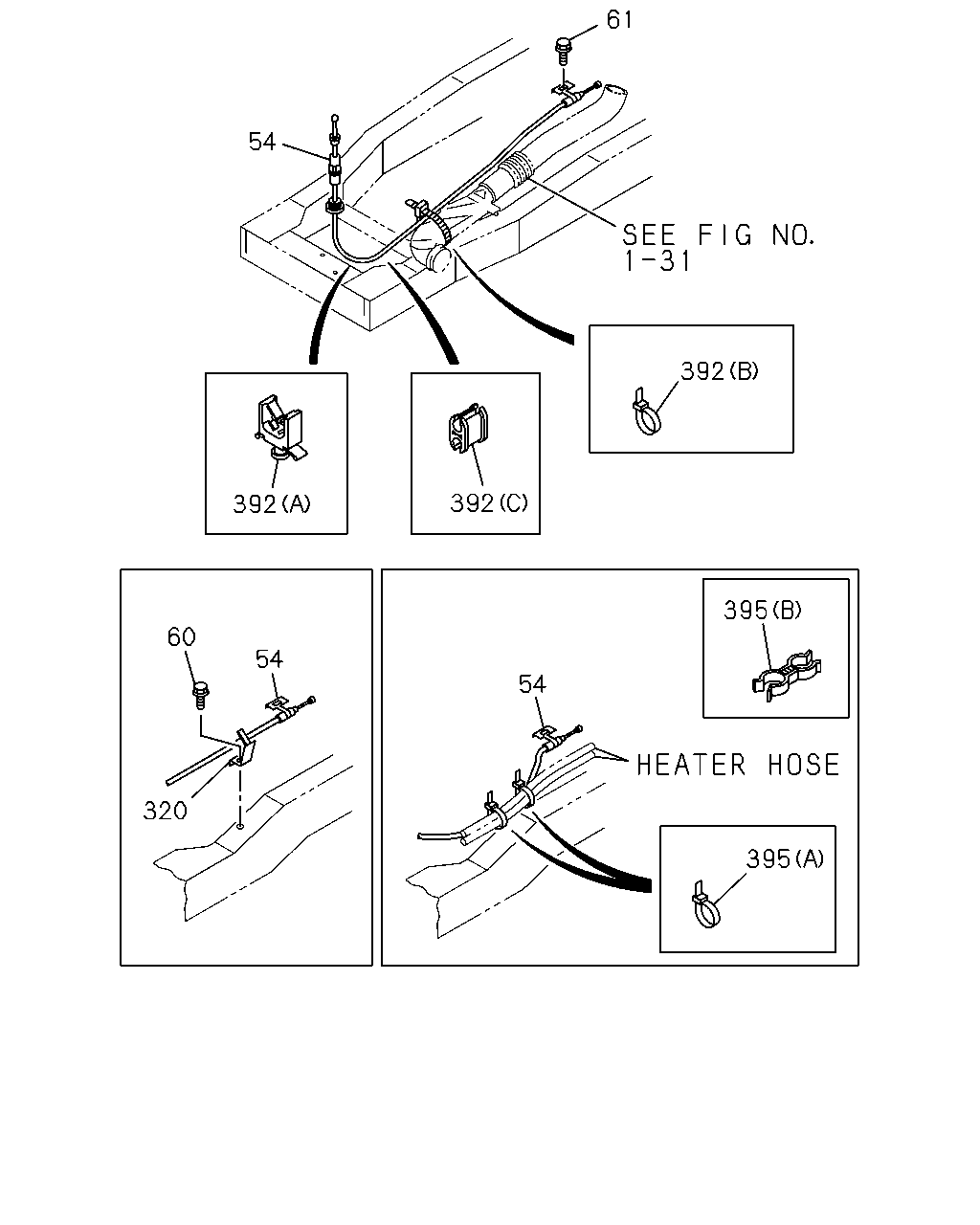

61 54 392 392 392 395 60 54 54 320 395

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT L=2300	8-97046-362-3	01	1	9312-	●	●	●
54	03.430 CABLE; ENG CONT L=1701	8-97089-885-2	01	1	9312-9408				●	●	●
54	03.430 CABLE; ENG CONT L=1701	8-97118-537-1	01	1	9409-				●	●	●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9312-9504	●			●
60	08.155 BOLT; CABLE AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9505-	●			●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9312-	●	●	●	●	●	●
320	03.483 CLIP; FRAME AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41)	8-94167-969-2	01	1	9312-	●			●
392	03.483 CLIP; ACCEL CONT CABLE EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 (B) L=330	5-09709-118-0	02	1	9312-9711	●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	02	1	9312-9711		●	●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 03.008 (B) L=330	5-09709-118-0	02	1	9712-	●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	02	1	9712-		●	●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE REAR VERTICAL<KJ3> POWER STEERING<N40> 06.672 (C) ID=10X2 H=22	8-94252-455-2	01	1	9312-9507				●
392	03.483 CLIP; ACCEL CONT CABLE EXC. AIR INTAKE REAR VERTICAL<KJ3> 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312				●
392	03.483 CLIP; ACCEL CONT CABLE 03.008 (B) L=330	5-09709-118-0	01	1	9312-9312					●	●
392	03.483 CLIP; ACCEL CONT CABLE EXC. AIR INTAKE REAR VERTICAL<KJ3> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9312-9711				●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9312-9711					●	●
392	03.483 CLIP; ACCEL CONT CABLE AIR INTAKE SYSTEM FRONT<6PC> 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9712-				●
392	03.483 CLIP; ACCEL CONT CABLE 04.930 (A) ID=10 H=40	8-94462-219-0	01	1	9712-					●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-0	01	1	9312-9312	●			●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-0	01	1	9312-9312				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 (A) L=140	5-09707-031-1	01	1	9401-	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE AIR INTAKE REAR VERTICAL<KJ3> 02.559 (A) L=250	5-09707-030-0	01	1	9401-9507				●
395	03.483 CLIP; BAND,ACCEL CONT CABLE HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 04.930 (B) ID=10 & 16.5	8-94360-745-0	01	1	9401-				●

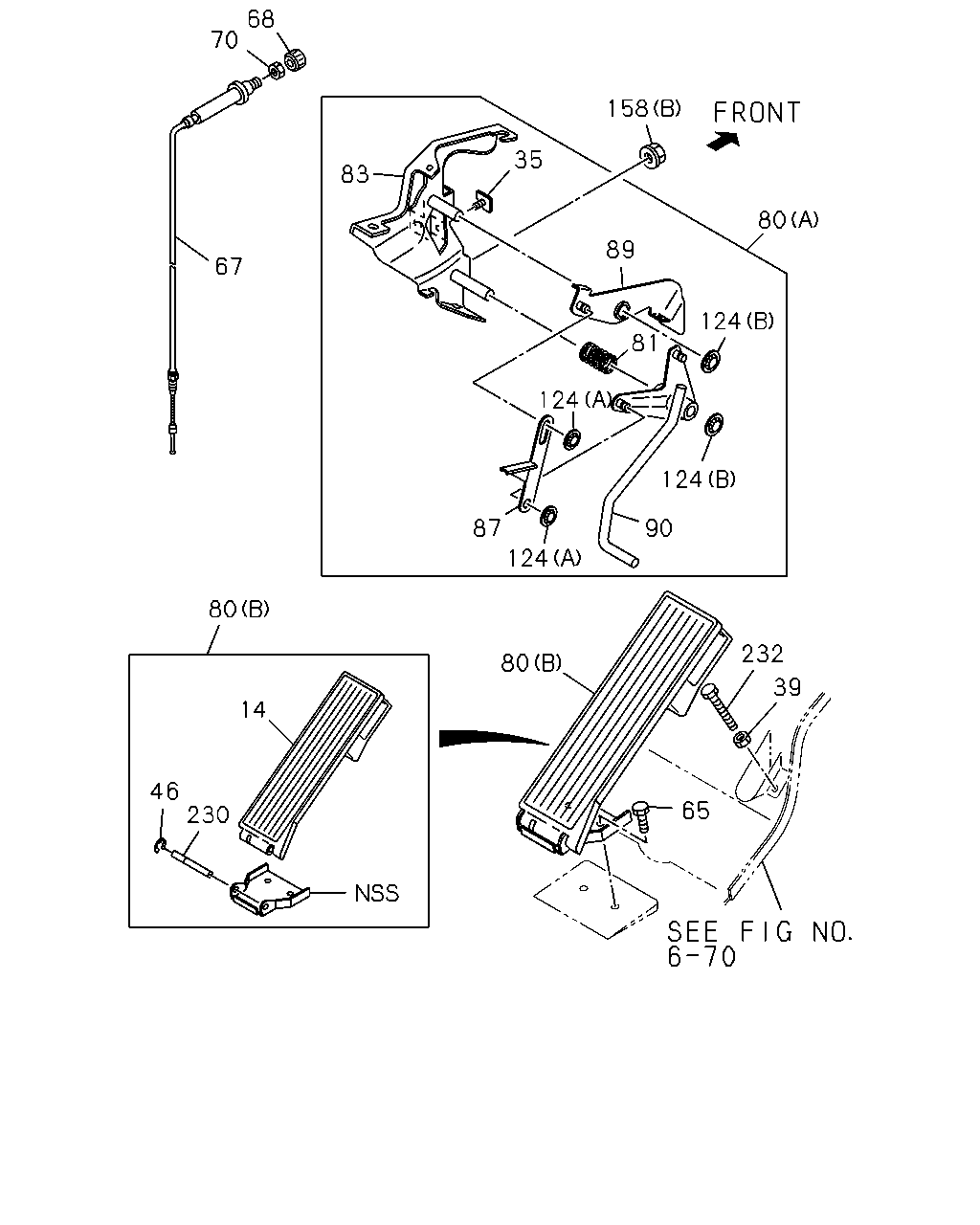

68 158 35 83 80 89 67 81 124 124 124 87 124 90 80 232 39 80 46 230 65 70 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9312-9409	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9410-	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9410-				●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9312-9609	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	9610-	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9610-				●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9312-	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9312-	●	●	●	●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9312-9406	●	●	●	●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9407-9603				●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9604-				●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9407-9603	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9604-	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9312-	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	9312-				●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9312-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9312-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-8	01	1	9312-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9312-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97857-481-1	01	1	9312-9409				●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9410-				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97857-608-2	01	1	9312-9408				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-2	01	1	9409-				●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9312-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9312-	●	●	●
83	03.452 BRACKET; CONT LINK	8-97857-609-2	01	1	9312-9408				●	●	●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	9409-				●	●	●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	9312-	●	●	●
89	03.454 LEVER; RELAY	8-97853-203-4	01	1	9312-9609	●	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9610-	●	●	●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	9312-				●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97853-202-6	01	1	9312-9609	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9610-	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	9312-				●	●	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	9312-	●	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9610-	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9312-				●	●	●
158	03.452 NUT; BRKT 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	9312-9408	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 (B) M8 FLANGE	8-94279-060-0	02	1	9312-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9312-	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 03.708 M8X45	0-20800-845-0	01	1	9312-9406	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9407-	●	●	●

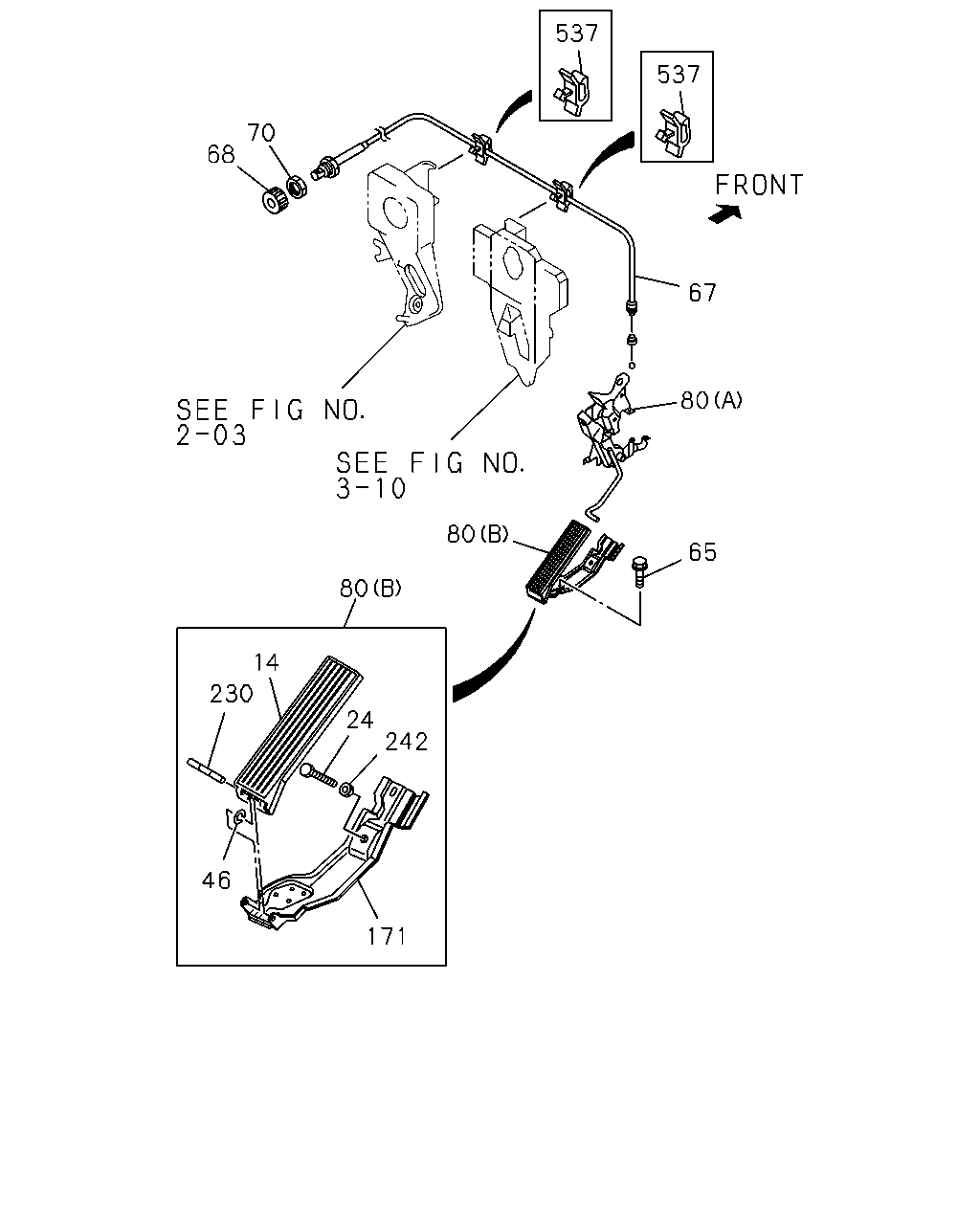

537 537 68 67 80 80 65 80 230 24 242 46 70 14 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9312-9409	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9410-	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9410-				●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	9312-				●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9312-	●	●	●	●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9312-9406	●	●	●	●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9407-9603				●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9604-				●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9407-9603	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9604-	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9312-	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	9312-				●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9312-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9312-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-8	01	1	9312-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9312-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97857-481-1	01	1	9312-9409				●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9410-				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97857-608-2	01	1	9312-9408				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-2	01	1	9409-				●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	9312-				●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9312-	●	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 M8	9-09110-408-0	01	1	9312-				●	●	●
537	03.483 CLIP; IDLING CONT CABLE 09.649 ID=7	8-97085-207-0	02	1	9312-9412				●	●	●
537	03.483 CLIP; IDLING CONT CABLE 04.342 ID=7	5-09707-053-0	02	1	9501-				●	●	●

158 646 83 80 403 35 89 35 90 158 81 82 82 82 82 124 158 83 80 35 89 35 90 545 81 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9312-9609	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	9610-	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9610-				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-8	01	1	9312-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9312-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97857-481-1	01	1	9312-9409				●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9410-				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97857-608-2	01	1	9312-9408				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-2	01	1	9409-				●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9312-	●	●	●	●	●	●
82	03.463 BUSHING; ENG CONT LVR 4JB1 ENG(RLF) ID=10 OD=17.5	5-23319-012-0	04	1	9312-9408	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9312-	●	●	●
83	03.452 BRACKET; CONT LINK	8-97857-609-2	01	1	9312-9408				●	●	●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	9409-				●	●	●
89	03.454 LEVER; RELAY	8-97853-203-4	01	1	9312-9609	●	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9610-	●	●	●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	9312-				●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97853-202-6	01	1	9312-9609	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9610-	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	9312-				●	●	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	9312-	●	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9610-	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9312-				●	●	●
158	03.452 NUT; BRKT 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	9312-9408	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 (B) M8 FLANGE	8-94279-060-0	02	1	9312-	●	●	●	●	●	●
403	03.431 BOLT; BRKT,ACCEL PEDAL	8-94279-976-0	02	1	9312-9408	●	●	●	●	●	●
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	9409-				●	●	●
646	03.452 NUT; BRKT,LEVER 02.559 M8	9-09110-408-0	01	1	9312-9405	●	●	●	●	●	●

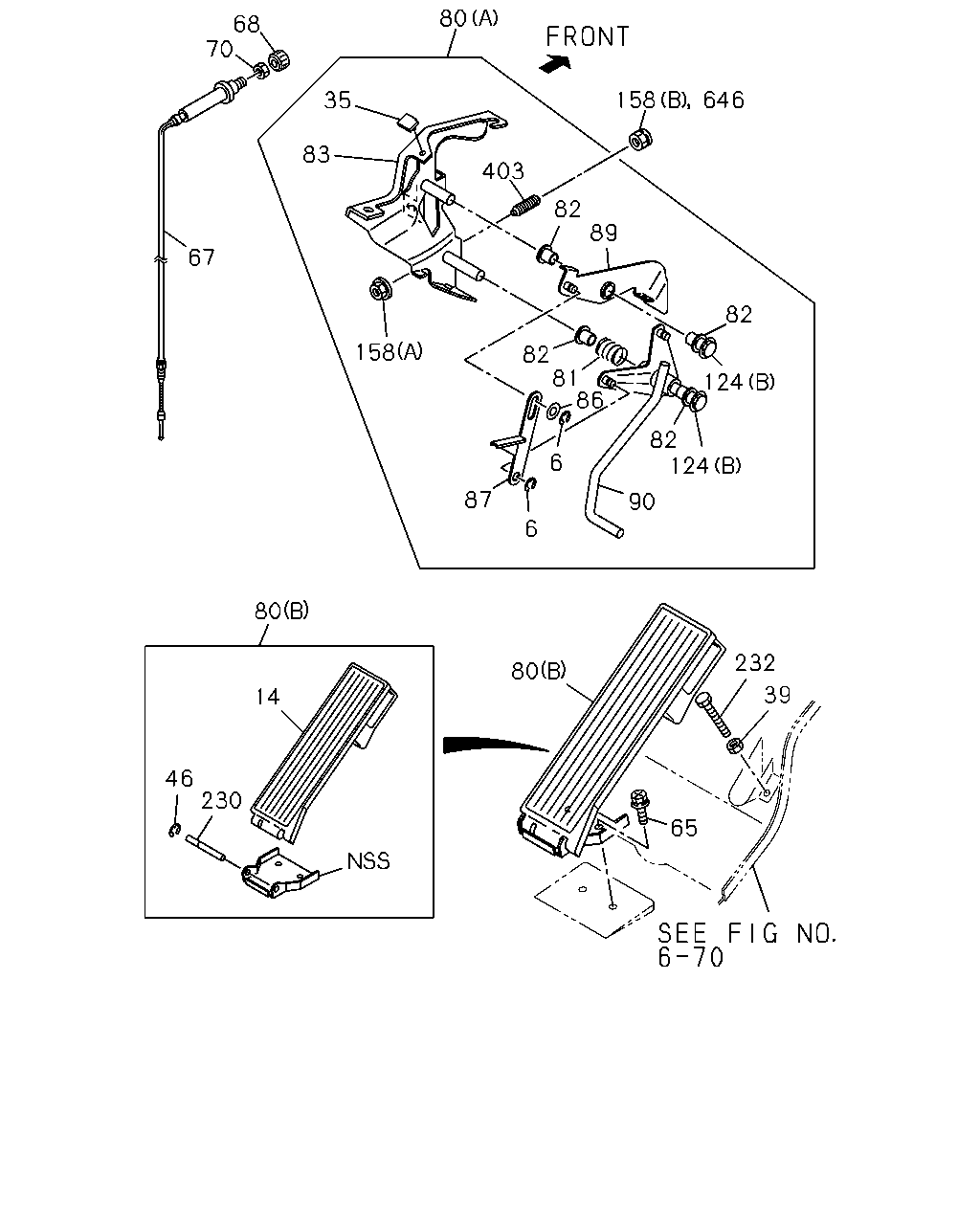

80 68 158 646 35 83 403 82 89 67 82 82 81 86 158 124 82 124 6 6 80 232 39 80 46 230 65 70 87 90 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	03.880 RING; SNAP,LINK TO LINK 04.040 ID=4	9-09185-404-0	02	1	9312-9609	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9312-9409	●	●	●	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9410-	●	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	9410-				●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9312-9609	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	9610-	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9610-				●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9312-	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9312-	●	●	●	●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9312-9406	●	●	●	●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9407-9603				●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	9604-				●	●	●
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9407-9603	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9604-	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9312-	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=945	8-97856-223-4	01	1	9312-				●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9312-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9312-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-8	01	1	9312-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9312-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97857-481-1	01	1	9312-9409				●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97859-100-0	01	1	9410-				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97857-608-2	01	1	9312-9408				●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-518-2	01	1	9409-				●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9312-	●	●	●	●	●	●
82	03.463 BUSHING; ENG CONT LVR 4JB1 ENG(RLF) ID=10 OD=17.5	5-23319-012-0	04	1	9312-9408	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9312-	●	●	●
83	03.452 BRACKET; CONT LINK	8-97857-609-2	01	1	9312-9408				●	●	●
83	03.452 BRACKET; CONT LINK	8-97859-519-0	01	1	9409-				●	●	●
86	03.463 WASHER; PL,ENG CONT LEVER 16.125 ID=5.3 OD=12	9-09160-605-0	01	1	9312-9609	●	●	●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	9312-	●	●	●
89	03.454 LEVER; RELAY	8-97853-203-4	01	1	9312-9609	●	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9610-	●	●	●
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	9312-				●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97853-202-6	01	1	9312-9609	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9610-	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97857-613-6	01	1	9312-				●	●	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	9312-	●	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9610-	●	●	●
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	9312-				●	●	●
158	03.452 NUT; BRKT 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	9312-9408	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 (B) M8 FLANGE	8-94279-060-0	02	1	9312-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9312-	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 03.708 M8X45	0-20800-845-0	01	1	9312-9406	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9407-	●	●	●
403	03.431 BOLT; BRKT,ACCEL PEDAL	8-94279-976-0	02	1	9312-9408	●	●	●	●	●	●
646	03.452 NUT; BRKT,LEVER 02.559 M8	9-09110-408-0	01	1	9312-9405	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
