0-85 — AUTO TIMER; INJECTION PUMP (#47012) — 99 parça

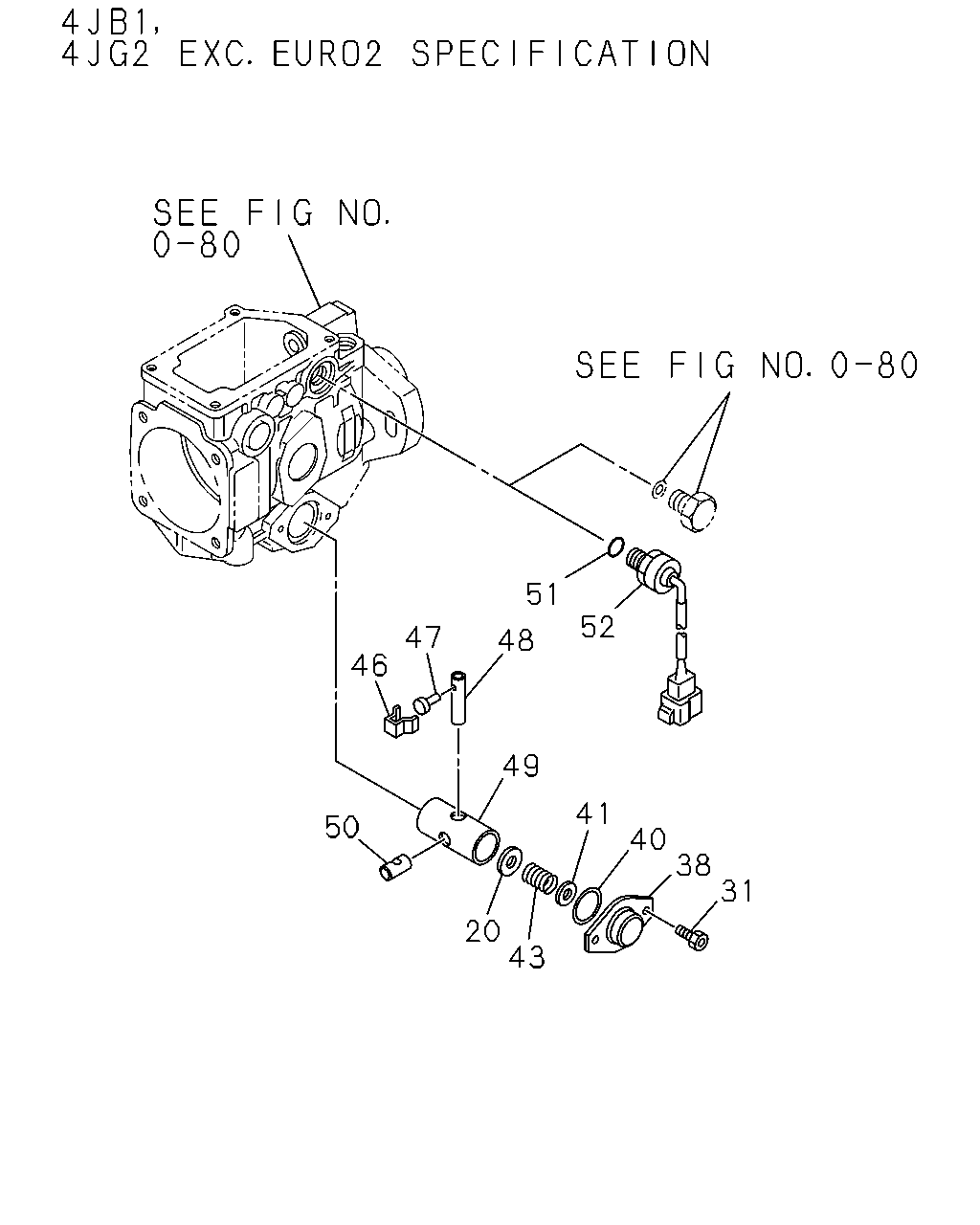

51 52 47 48 46 49 41 50 40 38 31 20 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: H = 8-97091-744-0, 97091744	8-94121-620-0	01	1	-
20	03.330 SHIM; INNER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-495-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94313-276-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (A), M6X16 ASM PART: M = 8-97138-842-2, 97138842	8-97140-853-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (B), M6X45 ASM PART: M = 8-97138-842-2, 97138842	8-97141-258-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (C), M6X10 ASM PART: M = 8-97138-842-2, 97138842	8-97141-456-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97161-886-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744	8-94227-491-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94433-763-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: M = 8-97138-842-2, 97138842	8-97140-980-0	02	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (B), ID=8.8 ASM PART: M = 8-97138-842-2, 97138842	8-97161-897-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-499-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.5 ASM PART: M = 8-97138-842-2, 97138842	8-97161-954-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=35.7 EFFECT TURN=5.1 ASM PART: H = 8-97091-744-0, 97091744	8-94313-200-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=35.6 EFFECT TURN=5.4 ASM PART: H = 8-97091-744-0, 97091744	8-94313-241-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.8 K=1.75 KG/MM ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742	8-94313-669-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.4 K=2.05 KG/MM ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742	8-94313-680-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.5 EFFECT TURN=5.9 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742	8-94343-340-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=35.8 EFFECT TURN=5.7 ASM PART: H = 8-97091-744-0, 97091744	8-94386-591-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.0 ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-97045-508-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.2 ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-97047-719-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.6 ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-97125-524-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.6 ASM PART: M = 8-97138-842-2, 97138842	8-97161-899-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=32.7 ASM PART: M = 8-97138-842-2, 97138842	8-97161-900-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.1 ASM PART: M = 8-97138-842-2, 97138842	8-97161-901-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (B) ASM PART: M = 8-97138-842-2, 97138842	8-97161-961-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-488-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97140-961-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-487-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97140-952-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-486-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: M = 8-97138-842-2, 97138842	8-97140-951-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94174-739-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: H = 8-97091-744-0, 97091744	8-94424-182-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742	8-94426-069-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97161-881-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744	8-94227-493-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-97119-163-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97140-944-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP 03.306 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, H = 8-97091-744-0, 97091744, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181	8-94227-671-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97161-962-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, H = 8-97091-744-0, 97091744, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181	8-94343-307-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: M = 8-97138-842-2, 97138842	8-97161-903-0	01	1	-

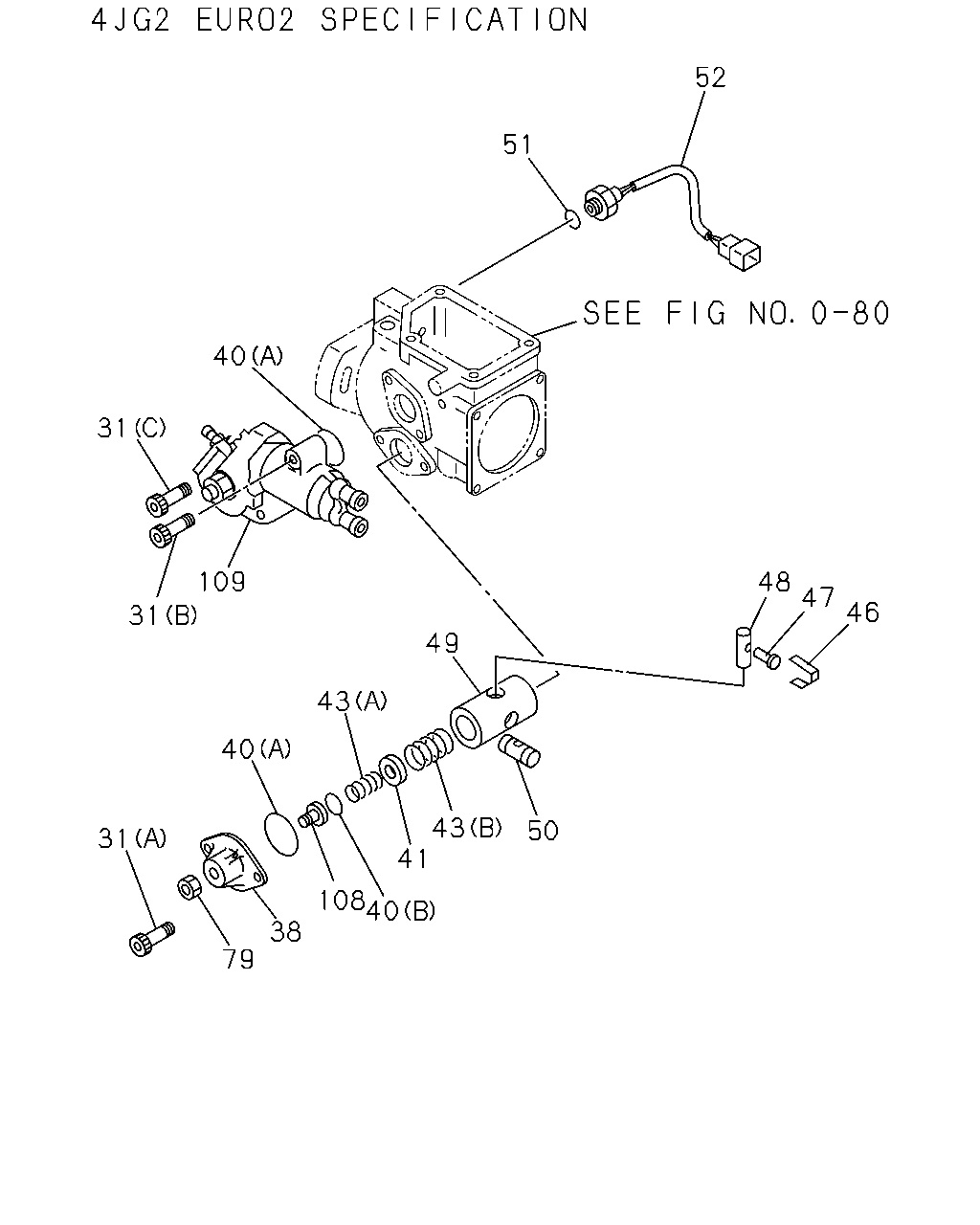

52 51 40 31 109 48 47 46 31 49 43 40 43 41 50 31 108 40 38 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	03.330 SCREW; TIMER COVER,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94313-276-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (A), M6X16 ASM PART: M = 8-97138-842-2, 97138842	8-97140-853-0	02	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (B), M6X45 ASM PART: M = 8-97138-842-2, 97138842	8-97141-258-0	01	1	-
31	03.330 SCREW; TIMER COVER,INJ PUMP (C), M6X10 ASM PART: M = 8-97138-842-2, 97138842	8-97141-456-0	02	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94473-120-0	01	1	-
38	03.318 COVER; TIMER,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97161-886-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP 03.306 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744	8-94227-491-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94433-763-0	01	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (A), ID=27.5 ASM PART: M = 8-97138-842-2, 97138842	8-97140-980-0	02	1	-
40	03.330 GASKET; TIMER COVER,INJ PUMP (B), ID=8.8 ASM PART: M = 8-97138-842-2, 97138842	8-97161-897-0	01	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM 03.320, T=2.40 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94121-620-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.60 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-495-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.70 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-496-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.90 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-497-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.00 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-498-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=1.20 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-499-0	AR	1	-
41	03.330 SHIM; OUTER SPRING,TIMER,INJ PUM T=0.5 ASM PART: M = 8-97138-842-2, 97138842	8-97161-954-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=35.7 EFFECT TURN=5.1 ASM PART: H = 8-97091-744-0, 97091744	8-94313-200-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=35.6 EFFECT TURN=5.4 ASM PART: H = 8-97091-744-0, 97091744	8-94313-241-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.8 K=1.75 KG/MM ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742	8-94313-669-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.4 K=2.05 KG/MM ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742	8-94313-680-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=38.5 EFFECT TURN=5.9 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742	8-94343-340-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=35.8 EFFECT TURN=5.7 ASM PART: H = 8-97091-744-0, 97091744	8-94386-591-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.0 ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-97045-508-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.2 ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-97047-719-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP L=40.6 ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-97125-524-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.6 ASM PART: M = 8-97138-842-2, 97138842	8-97161-899-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=32.7 ASM PART: M = 8-97138-842-2, 97138842	8-97161-900-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (A), L=33.1 ASM PART: M = 8-97138-842-2, 97138842	8-97161-901-0	01	1	-
43	03.340 SPRING; PISTON,TIMER,INJ PUMP (B) ASM PART: M = 8-97138-842-2, 97138842	8-97161-961-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-488-0	01	1	-
46	03.330 CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97140-961-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-487-0	01	1	-
47	03.340 PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97140-952-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744, I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94227-486-0	01	1	-
48	03.340 PIN; ROLLER HOLDER,TIMER,INJ PUM ASM PART: M = 8-97138-842-2, 97138842	8-97140-951-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-94174-739-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: H = 8-97091-744-0, 97091744	8-94424-182-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742	8-94426-069-0	01	1	-
49	03.330 PISTON; TIMER,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97161-881-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, C = 8-97090-281-0, 97090281, D = 8-97090-283-0, 97090283, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, G = 8-97091-742-0, 97091742, H = 8-97091-744-0, 97091744	8-94227-493-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: I = 8-97120-179-1, 97120179, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181, L = 8-97122-090-1, 97122090	8-97119-163-0	01	1	-
50	03.340 SLIDER; TIMER PISTON,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97140-944-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP 03.306 ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, H = 8-97091-744-0, 97091744, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181	8-94227-671-0	01	1	-
51	03.340 GASKET; TIMING SENSOR,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97161-962-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: A = 8-97088-284-0, 97088284, B = 8-97090-279-0, 97090279, E = 8-97090-285-0, 97090285, F = 8-97090-287-0, 97090287, H = 8-97091-744-0, 97091744, J = 8-97120-180-1, 97120180, K = 8-97120-181-1, 97120181	8-94343-307-0	01	1	-
52	03.340 SENSOR; TIMING,TACHOMETER,INJ PU ASM PART: M = 8-97138-842-2, 97138842	8-97161-903-0	01	1	-
79	03.340 NUT; CAP,TIMER COVER,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97161-898-0	01	1	-
108	03.330 STOPPER; TIMER,INJ PUMP ASM PART: M = 8-97138-842-2, 97138842	8-97161-896-0	01	1	-
109	03.330 COVER SUB ASM; TIMER ASM PART: M = 8-97138-842-2, 97138842	8-97161-963-0	01	1	-
