◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10726 - EXZ FUEL TANK 200L+200L/300L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40B - FUEL INJECTION SYSTEM ▶
0-40B — FUEL INJECTION SYSTEM (#4701) — 343 parça

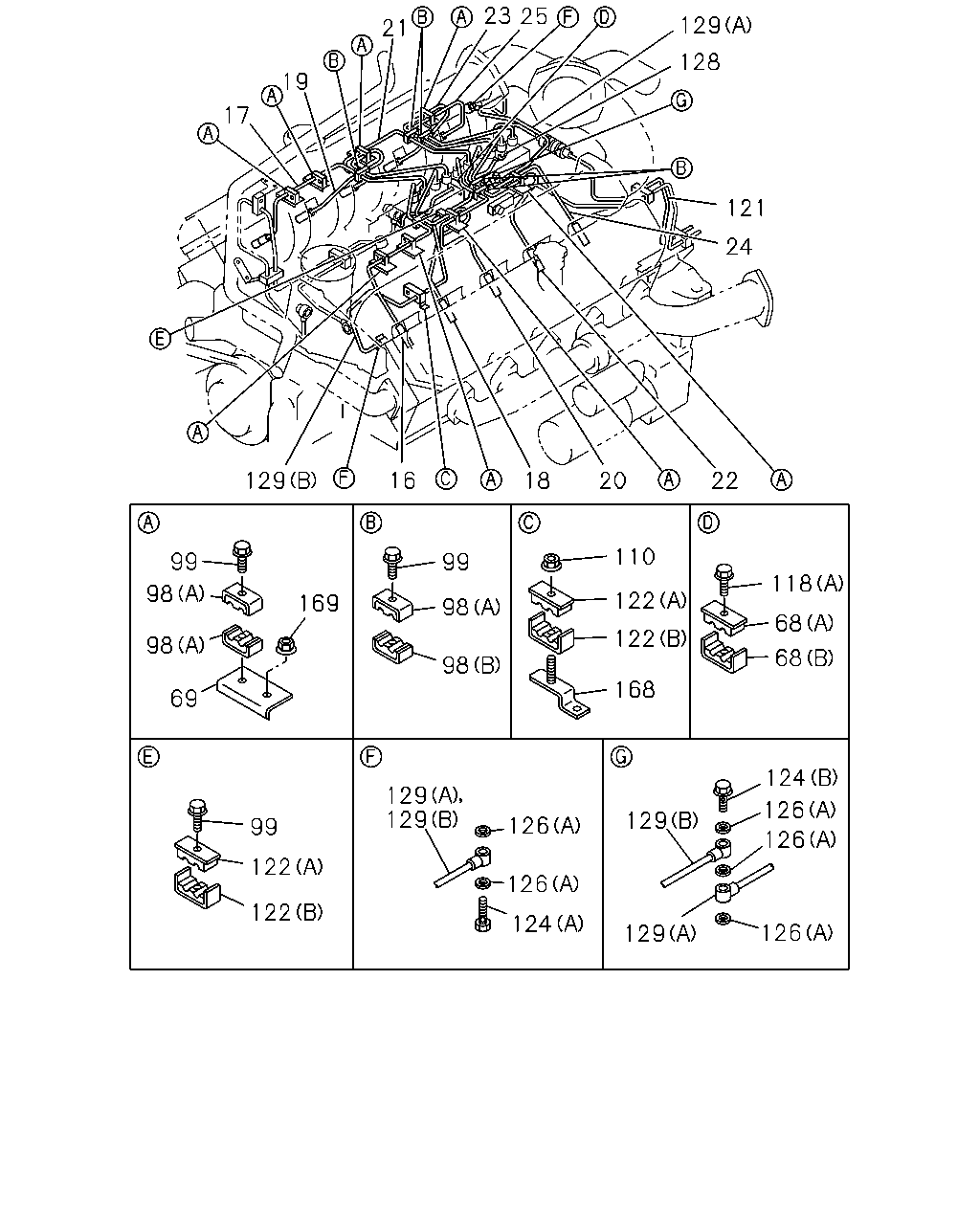

çizim 8224
129 21 128 19 17 121 24 16 129 18 20 22 110 99 99 118 98 122 169 98 68 122 98 68 98 168 69 124 129 129 126 129 126 99 126 122 126 122 124 126 129 23 25
BalonParca AdiParca NoAdetTipApplied Date A B C
16 PIPE; INJ NO.1 1-15415-919-1 01 1 9603-9603 ●
16 PIPE; INJ NO.1
RFD GOVERNOR(SD5) 		1-15415-919-1 01 1 9604-9903 ●
16 PIPE; INJ NO.1
RFD GOVERNOR(SD5) 		1-15415-919-1 01 1 9904-9904 ●
16 PIPE; INJ NO.1
RLD GOVERNOR(SD7) 		1-15415-559-1 01 1 9604-9904 ●
16 PIPE; INJ NO.1
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15415-559-1 01 1 9905-0003 ●
16 PIPE; INJ NO.1
RLD GOVERNOR(SD7) 		1-15415-559-1 01 1 0004- ●
16 PIPE; INJ NO.1
RFD GOVERNOR(SD5) 		1-15415-919-1 01 1 9905- ● ●
17 PIPE; INJ NO.2 1-15415-920-1 01 1 9603-9603 ●
17 PIPE; INJ NO.2
RFD GOVERNOR(SD5) 		1-15415-920-1 01 1 9604-9903 ●
17 PIPE; INJ NO.2
RFD GOVERNOR(SD5) 		1-15415-920-1 01 1 9904-9904 ●
17 PIPE; INJ NO.2
RLD GOVERNOR(SD7) 		1-15415-560-1 01 1 9604-9904 ●
17 PIPE; INJ NO.2
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15415-560-1 01 1 9905-0003 ●
17 PIPE; INJ NO.2
RLD GOVERNOR(SD7) 		1-15415-560-1 01 1 0004- ●
17 PIPE; INJ NO.2
RFD GOVERNOR(SD5) 		1-15415-920-1 01 1 9905- ● ●
18 PIPE; INJ NO.3 1-15415-921-1 01 1 9603-9603 ●
18 PIPE; INJ NO.3
RFD GOVERNOR(SD5) 		1-15415-921-1 01 1 9604-9903 ●
18 PIPE; INJ NO.3
RFD GOVERNOR(SD5) 		1-15415-921-1 01 1 9904-9904 ●
18 PIPE; INJ NO.3
RLD GOVERNOR(SD7) 		1-15415-589-2 01 1 9604-9904 ●
18 PIPE; INJ NO.3
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15415-589-2 01 1 9905-0003 ●
18 PIPE; INJ NO.3
RLD GOVERNOR(SD7) 		1-15415-589-2 01 1 0004- ●
18 PIPE; INJ NO.3
RFD GOVERNOR(SD5) 		1-15415-921-1 01 1 9905- ● ●
19 PIPE; INJ NO.4 1-15415-922-1 01 1 9603-9603 ●
19 PIPE; INJ NO.4
RFD GOVERNOR(SD5) 		1-15415-922-1 01 1 9604-9903 ●
19 PIPE; INJ NO.4
RFD GOVERNOR(SD5) 		1-15415-922-1 01 1 9904-9904 ●
19 PIPE; INJ NO.4
RLD GOVERNOR(SD7) 		1-15415-562-1 01 1 9604-9904 ●
19 PIPE; INJ NO.4
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15415-562-1 01 1 9905-0003 ●
19 PIPE; INJ NO.4
RLD GOVERNOR(SD7) 		1-15415-562-1 01 1 0004- ●
19 PIPE; INJ NO.4
RFD GOVERNOR(SD5) 		1-15415-922-1 01 1 9905- ● ●
20 PIPE; INJ NO.5 1-15415-923-1 01 1 9603-9603 ●
20 PIPE; INJ NO.5
RFD GOVERNOR(SD5) 		1-15415-923-1 01 1 9604-9903 ●
20 PIPE; INJ NO.5
RFD GOVERNOR(SD5) 		1-15415-923-1 01 1 9904-9904 ●
20 PIPE; INJ NO.5
RLD GOVERNOR(SD7) 		1-15415-563-1 01 1 9604-9904 ●
20 PIPE; INJ NO.5
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15415-563-1 01 1 9905-0003 ●
20 PIPE; INJ NO.5
RLD GOVERNOR(SD7) 		1-15415-563-1 01 1 0004- ●
20 PIPE; INJ NO.5
RFD GOVERNOR(SD5) 		1-15415-923-1 01 1 9905- ● ●
21 PIPE; INJ NO.6 1-15415-924-1 01 1 9603-9603 ●
21 PIPE; INJ NO.6
RFD GOVERNOR(SD5) 		1-15415-924-1 01 1 9604-9903 ●
21 PIPE; INJ NO.6
RFD GOVERNOR(SD5) 		1-15415-924-1 01 1 9904-9904 ●
21 PIPE; INJ NO.6
RLD GOVERNOR(SD7) 		1-15415-564-1 01 1 9604-9904 ●
21 PIPE; INJ NO.6
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15415-564-1 01 1 9905-0003 ●
21 PIPE; INJ NO.6
RLD GOVERNOR(SD7) 		1-15415-564-1 01 1 0004- ●
21 PIPE; INJ NO.6
RFD GOVERNOR(SD5) 		1-15415-924-1 01 1 9905- ● ●
22 PIPE; INJ NO.7 1-15415-925-1 01 1 9603-9603 ●
22 PIPE; INJ NO.7
RFD GOVERNOR(SD5) 		1-15415-925-1 01 1 9604-9904 ●
22 PIPE; INJ NO.7
RFD GOVERNOR(SD5) 		1-15415-925-1 01 1 9905- ● ●
22 PIPE; INJ NO.7
RLD GOVERNOR(SD7) 		1-15415-590-2 01 1 9604-9904 ●
22 PIPE; INJ NO.7
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15415-590-2 01 1 9905-0003 ●
22 PIPE; INJ NO.7
RLD GOVERNOR(SD7) 		1-15415-590-2 01 1 0004- ●
23 PIPE; INJ NO.8 1-15415-926-1 01 1 9603-9603 ●
23 PIPE; INJ NO.8
RFD GOVERNOR(SD5) 		1-15415-926-1 01 1 9604-9904 ●
23 PIPE; INJ NO.8
RFD GOVERNOR(SD5) 		1-15415-926-1 01 1 9905- ● ●
23 PIPE; INJ NO.8
RLD GOVERNOR(SD7) 		1-15415-566-1 01 1 9604-9904 ●
23 PIPE; INJ NO.8
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15415-566-1 01 1 9905-0003 ●
23 PIPE; INJ NO.8
RLD GOVERNOR(SD7) 		1-15415-566-1 01 1 0004- ●
24 PIPE; INJ NO.9 1-15415-927-1 01 1 9603-9603 ●
24 PIPE; INJ NO.9
RFD GOVERNOR(SD5) 		1-15415-927-1 01 1 9604-9904 ●
24 PIPE; INJ NO.9
RFD GOVERNOR(SD5) 		1-15415-927-1 01 1 9905- ● ●
24 PIPE; INJ NO.9
RLD GOVERNOR(SD7) 		1-15415-567-1 01 1 9604-9904 ●
24 PIPE; INJ NO.9
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15415-567-1 01 1 9905-0003 ●
24 PIPE; INJ NO.9
RLD GOVERNOR(SD7) 		1-15415-567-1 01 1 0004- ●
25 PIPE; INJ NO.10 1-15415-928-1 01 1 9603-9603 ●
25 PIPE; INJ NO.10
RFD GOVERNOR(SD5) 		1-15415-928-1 01 1 9604-9904 ●
25 PIPE; INJ NO.10
RFD GOVERNOR(SD5) 		1-15415-928-1 01 1 9905- ● ●
25 PIPE; INJ NO.10
RLD GOVERNOR(SD7) 		1-15415-568-1 01 1 9604-9904 ●
25 PIPE; INJ NO.10
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15415-568-1 01 1 9905-0003 ●
25 PIPE; INJ NO.10
RLD GOVERNOR(SD7) 		1-15415-568-1 01 1 0004- ●
68 CLIP; INJ PIPE
(A) 		1-09701-180-0 01 1 9603-9904 ●
68 CLIP; INJ PIPE
(A) 		1-09701-180-0 01 1 9905- ● ● ●
68 CLIP; INJ PIPE
(B) ID=10 & 10 L=25 		8-94393-280-1 01 1 9603-9904 ●
68 CLIP; INJ PIPE
(B) ID=10 & 10 L=25 		8-94393-280-2 01 1 9905- ● ● ●
69 BRACKET; INJ PIPE CLIP 1-15419-391-1 08 1 9603-9904 ●
69 BRACKET; INJ PIPE CLIP 1-15419-391-1 08 1 9905- ● ● ●
98 CLIP; "A",INJ PIPE
(A) 		1-09701-132-0 22 1 9603-9904 ●
98 CLIP; "A",INJ PIPE
(A) 		1-09701-132-1 22 1 9905- ● ● ●
98 CLIP; "A",INJ PIPE
(B) 		1-09701-213-0 06 1 9603-9904 ●
98 CLIP; "A",INJ PIPE
(B) 		1-09701-213-0 06 1 9905- ● ● ●
99 BOLT; CLIP,INJ,PIPE
M6X30 FLANGE 		0-28080-630-0 14 1 9603-9904 ●
99 BOLT; CLIP,INJ,PIPE
M6X30 FLANGE 		0-28080-630-0 14 1 9905- ● ● ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9603-9706 ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9707-9804 ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9805-9904 ●
110 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9905- ● ● ●
118 BOLT; CLIP,INJ PIPE
(A) M6X30 FLANGE 		0-28080-630-0 01 1 9603-9904 ●
118 BOLT; CLIP,INJ PIPE
(A) M6X30 FLANGE 		0-28080-630-0 01 1 9905- ● ● ●
118 BOLT; CLIP,INJ PIPE
(B) M6X35 FLANGE 		0-28080-635-0 02 1 9703-9904 ●
118 BOLT; CLIP,INJ PIPE
(B) M6X35 FLANGE 		0-28080-635-0 02 1 9905- ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-657-0 01 1 9603-9904 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-657-0 01 1 9905- ● ● ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-1 02 1 9603-9801 ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-0 02 1 9603-9611 ●
122 CLIP; LEAK OFF PIPE
(C) L=19 		1-09709-104-0 04 1 9603-9611 ●
122 CLIP; LEAK OFF PIPE
(D) L=22 		1-09709-156-0 02 1 9603-9611 ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-0 02 1 9612-9707 ●
122 CLIP; LEAK OFF PIPE
(C) L=19 		1-09709-104-0 04 1 9612-9707 ●
122 CLIP; LEAK OFF PIPE
(D) L=22 		1-09709-156-0 02 1 9612-9707 ●
122 CLIP; LEAK OFF PIPE
(D) L=22 		1-09709-156-0 02 1 9708-9904 ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-0 02 1 9708-9801 ●
122 CLIP; LEAK OFF PIPE
(C) L=19 		1-09709-104-0 04 1 9708-9904 ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-1 02 1 9802-9904 ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-0 02 1 9802-9904 ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-2 02 1 9905- ● ● ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-1 02 1 9905- ● ● ●
122 CLIP; LEAK OFF PIPE
(C) L=19 		1-09709-104-0 04 1 9905- ● ● ●
122 CLIP; LEAK OFF PIPE
(D) L=22 		1-09709-156-0 02 1 9905- ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 02 1 9603-9904 ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X30 FLANGE 		1-09675-039-1 01 1 9603-9904 ●
124 BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 02 1 9905- ● ● ●
124 BOLT; EYE LEAK OFF PIPE
(B) M8X30 FLANGE 		1-09675-039-1 01 1 9905- ● ● ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 07 1 9603-9707 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 07 1 9708-9904 ●
126 GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 07 1 9905- ● ● ●
128 PIPE ASM; INJ 1-15415-740-0 01 1 9603-9904 ●
128 PIPE ASM; INJ 1-15415-740-1 01 1 9905- ● ● ●
129 PIPE ASM; LEAK OFF OUTER
(B) 		1-15415-390-0 01 1 9603-9904 ●
129 PIPE ASM; LEAK OFF OUTER
(B) 		1-15415-390-0 01 1 9905- ● ● ●
129 PIPE ASM; LEAK OFF OUTER
(A) 		1-15415-620-0 01 1 9603-9904 ●
129 PIPE ASM; LEAK OFF OUTER
(A) 		1-15415-620-0 01 1 9905- ● ● ●
168 BRACKET; FUEL PIPE 1-15419-363-1 01 1 9603-9904 ●
168 BRACKET; FUEL PIPE 1-15419-363-1 01 1 9905-9910 ● ● ●
168 BRACKET; FUEL PIPE 1-15419-622-0 01 1 9911- ● ● ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 9603-9904 ●
169 NUT; BRKT
M8 FLANGE 		0-91150-108-0 08 1 9905- ● ● ●

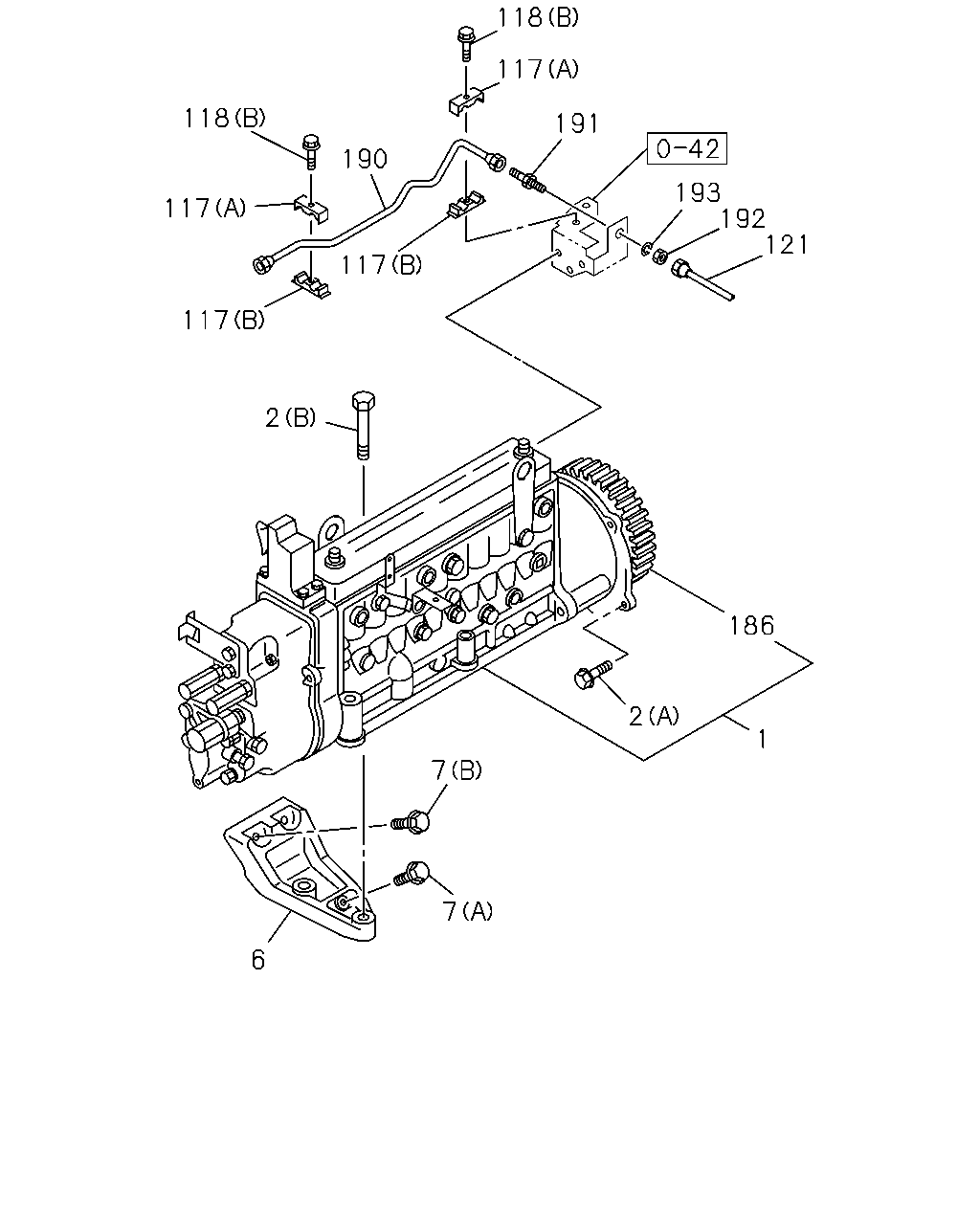

çizim 41816
118 117 118 191 190 193 192 121 117 117 117 2 186 2 1 7 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-059-2 01 1 9603-9702 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-201-0 01 1 9703-9904 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-201-2 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15603-061-2 01 1 9603-9702 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-15603-203-0 01 1 9703-9904 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RFD GOVERNOR(SD5) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-060-2 01 1 9603-9702 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RFD GOVERNOR(SD5) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-202-0 01 1 9703-9904 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RFD GOVERNOR(SD5) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-202-2 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR(SD7) 		1-15603-123-2 01 1 9604-9702 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR(SD7) 		1-15603-209-0 01 1 9703-9904 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-209-1 01 1 9905- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		1-15603-370-1 01 1 0004- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15603-203-2 01 1 9905- ●
2 BOLT; INJ PUMP
(A) M10X80 FLANGE 		0-28181-080-0 04 1 9603-9801 ●
2 BOLT; INJ PUMP
(B) M10X95 FLANGE 		8-94397-027-1 02 1 9603-9802 ●
2 BOLT; INJ PUMP
(A) M10X80 FLANGE 		0-28181-080-0 04 1 9802-9809 ●
2 BOLT; INJ PUMP
(B) M10X95 FLANGE 		8-94397-027-1 02 1 9803-9903 ●
2 BOLT; INJ PUMP
(A) M10X80 FLANGE 		0-28181-080-0 04 1 9810-9904 ●
2 BOLT; INJ PUMP
(B) M10X95 FLANGE 		8-94397-027-1 02 1 9904-9904 ●
2 BOLT; INJ PUMP
(A) M10X80 FLANGE 		0-28181-080-0 04 1 9905- ● ● ●
2 BOLT; INJ PUMP
(B) M10X95 FLANGE 		8-94397-027-1 02 1 9905- ● ● ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-051-0 01 1 9603-9904 ●
6 BRACKET; INJ PUMP TO C/BL 1-19751-051-0 01 1 9905- ● ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X22 FLANGE 		0-28181-022-0 01 1 9603-9603 ●
7 BOLT; INJ PUMP BRKT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9603-9606 ●
7 BOLT; INJ PUMP BRKT
(A) M10X22 FLANGE 		0-28181-022-0 01 1 9604-9611 ●
7 BOLT; INJ PUMP BRKT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9607-9702 ●
7 BOLT; INJ PUMP BRKT
(A) M10X22 FLANGE 		0-28181-022-0 01 1 9612-9705 ●
7 BOLT; INJ PUMP BRKT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9703-9707 ●
7 BOLT; INJ PUMP BRKT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9708-9904 ●
7 BOLT; INJ PUMP BRKT
(A) M10X22 FLANGE 		0-28181-022-0 01 1 9706-9904 ●
7 BOLT; INJ PUMP BRKT
(A) M10X22 FLANGE 		0-28181-022-0 01 1 9905- ● ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 9905- ● ● ●
117 CLIP; INJ PIPE
(A) 		1-09701-195-1 02 1 9703-9904 ●
117 CLIP; INJ PIPE
(A) 		1-09701-195-2 02 1 9905- ● ● ●
117 CLIP; INJ PIPE
(B) 		1-09701-196-0 02 1 9703-9904 ●
117 CLIP; INJ PIPE
(B) 		1-09701-196-1 02 1 9905- ● ● ●
118 BOLT; CLIP,INJ PIPE
(A) M6X30 FLANGE 		0-28080-630-0 01 1 9603-9904 ●
118 BOLT; CLIP,INJ PIPE
(A) M6X30 FLANGE 		0-28080-630-0 01 1 9905- ● ● ●
118 BOLT; CLIP,INJ PIPE
(B) M6X35 FLANGE 		0-28080-635-0 02 1 9703-9904 ●
118 BOLT; CLIP,INJ PIPE
(B) M6X35 FLANGE 		0-28080-635-0 02 1 9905- ● ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-657-0 01 1 9603-9904 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 1-15415-657-0 01 1 9905- ● ● ●
186 GEAR; INJ PUMP 1-12524-085-2 01 1 9603-9904 ●
186 GEAR; INJ PUMP 1-12524-085-3 01 1 9905- ● ● ●
190 PIPE; FUEL INLET 1-15415-915-0 01 1 9703-9904 ●
190 PIPE; FUEL INLET 1-15415-915-0 01 1 9905- ● ● ●
191 UNION; FLARE
M20 L=77.5 		9-09223-212-1 01 1 9703-9904 ●
191 UNION; FLARE
M20 L=77.5 		9-09233-212-1 01 1 9905- ● ● ●
192 NUT; UNION
M20 		9-99110-420-0 01 1 9703-9904 ●
192 NUT; UNION
M20 		9-99110-420-0 01 1 9905- ● ● ●
193 WASHER; UNION
ID=20.2 		9-09150-520-0 01 1 9703-9904 ●
193 WASHER; UNION
ID=20.2 		9-09150-520-0 01 1 9905- ● ● ●

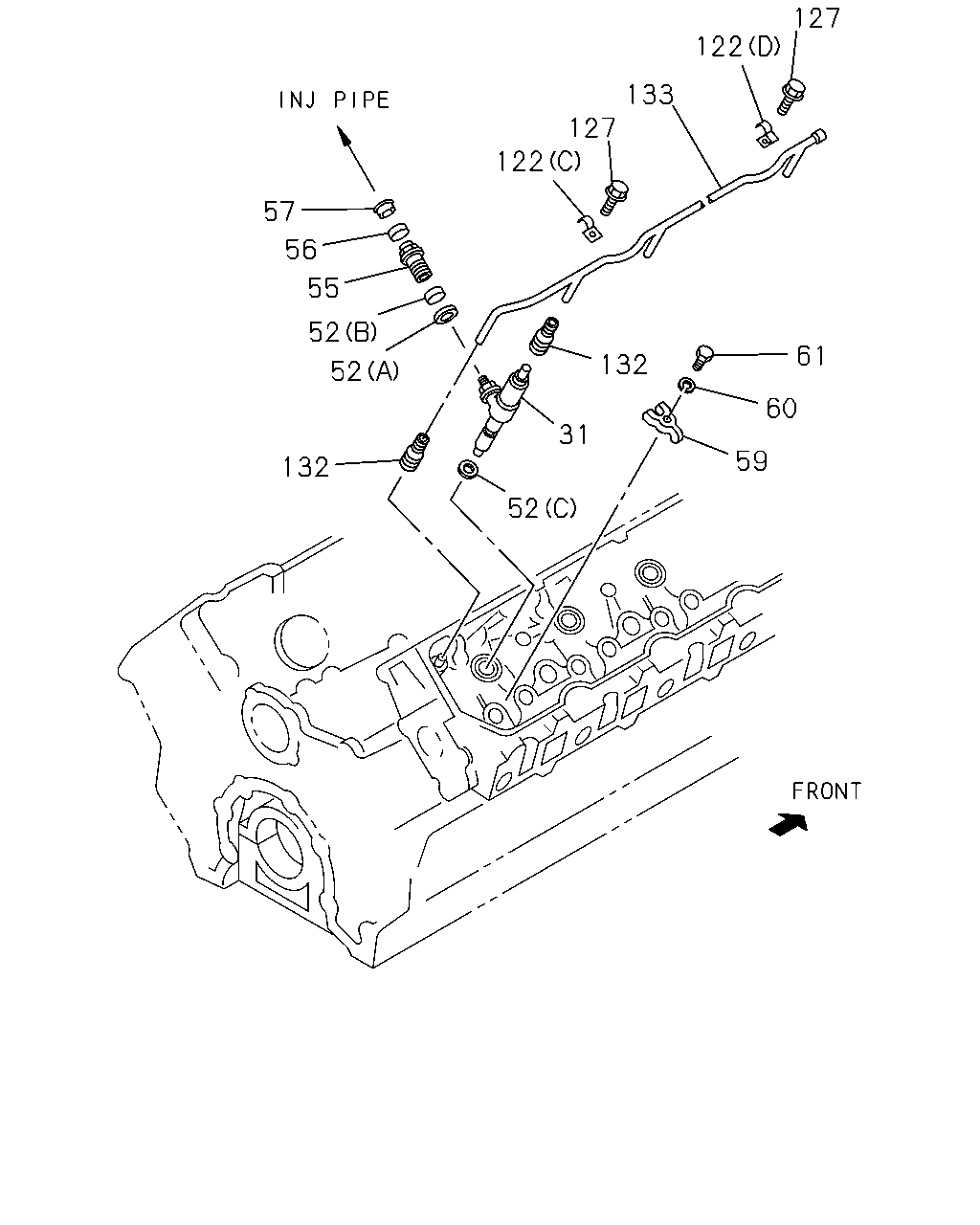

çizim 41850
127 122 133 127 122 57 56 55 52 61 132 52 60 31 59 132 52
BalonParca AdiParca NoAdetTipApplied Date A B C
31 NOZZLE ASM; INJ 1-15300-204-1 10 1 9603-9603 ●
31 NOZZLE ASM; INJ
RFD GOVERNOR(SD5) 		1-15300-204-1 10 1 9604-9903 ●
31 NOZZLE ASM; INJ
RFD GOVERNOR(SD5) 		1-15300-204-1 10 1 9904-9904 ●
31 NOZZLE ASM; INJ
RLD GOVERNOR(SD7) 		1-15300-328-0 10 1 9604-9709 ●
31 NOZZLE ASM; INJ
RLD GOVERNOR(SD7) 		1-15300-368-0 10 1 9710-9904 ●
31 NOZZLE ASM; INJ
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15300-368-0 10 1 9905-0003 ●
31 NOZZLE ASM; INJ
RLD GOVERNOR(SD7) 		1-15300-368-0 10 1 0004- ●
31 NOZZLE ASM; INJ
RFD GOVERNOR(SD5) 		1-15300-204-1 10 1 9905- ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0 		1-09630-111-0 10 1 9603-9904 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0 		1-09630-111-0 10 1 9905- ● ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5 		1-09639-030-0 10 1 9603-9904 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5 		1-09639-030-0 10 1 9905- ● ● ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15 		1-15315-011-0 10 1 9603-9904 ●
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15 		1-15315-011-0 10 1 9905- ● ● ●
55 SLEEVE; INJ PUMP 1-15339-094-0 10 1 9603-9904 ●
55 SLEEVE; INJ PUMP 1-15339-094-0 10 1 9905- ● ● ●
56 COVER 1-15419-028-0 10 1 9603-9904 ●
56 COVER 1-15419-028-0 10 1 9905- ● ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15419-027-1 10 1 9603-9904 ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-15419-027-1 10 1 9905- ● ● ●
59 CLAMP; NOZZLE HOLDER 1-15337-012-0 10 1 9603-9904 ●
59 CLAMP; NOZZLE HOLDER 1-15337-012-0 10 1 9905- ● ● ●
60 WASHER; NOZZLE HOLDER 1-09509-046-0 10 1 9603-9904 ●
60 WASHER; NOZZLE HOLDER 1-09509-046-0 10 1 9905- ● ● ●
61 BOLT; CLAMP NOZZLE HOLDER
M12X50 		9-01666-250-0 10 1 9603-9904 ●
61 BOLT; CLAMP NOZZLE HOLDER
M12X50 		9-01666-250-0 10 1 9905- ● ● ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-1 02 1 9603-9801 ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-0 02 1 9603-9611 ●
122 CLIP; LEAK OFF PIPE
(C) L=19 		1-09709-104-0 04 1 9603-9611 ●
122 CLIP; LEAK OFF PIPE
(D) L=22 		1-09709-156-0 02 1 9603-9611 ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-0 02 1 9612-9707 ●
122 CLIP; LEAK OFF PIPE
(C) L=19 		1-09709-104-0 04 1 9612-9707 ●
122 CLIP; LEAK OFF PIPE
(D) L=22 		1-09709-156-0 02 1 9612-9707 ●
122 CLIP; LEAK OFF PIPE
(D) L=22 		1-09709-156-0 02 1 9708-9904 ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-0 02 1 9708-9801 ●
122 CLIP; LEAK OFF PIPE
(C) L=19 		1-09709-104-0 04 1 9708-9904 ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-1 02 1 9802-9904 ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-0 02 1 9802-9904 ●
122 CLIP; LEAK OFF PIPE
(A) 		1-09701-172-2 02 1 9905- ● ● ●
122 CLIP; LEAK OFF PIPE
(B) 		1-09701-173-1 02 1 9905- ● ● ●
122 CLIP; LEAK OFF PIPE
(C) L=19 		1-09709-104-0 04 1 9905- ● ● ●
122 CLIP; LEAK OFF PIPE
(D) L=22 		1-09709-156-0 02 1 9905- ● ● ●
127 BOLT; CLIP LEAK OFF PIPE
M8X18 FLANGE 		0-28080-818-0 06 1 9603-9904 ●
127 BOLT; CLIP LEAK OFF PIPE
M8X18 FLANGE 		0-28080-818-0 06 1 9905- ● ● ●
132 CONNECTOR ASM; LEAK OFF 1-15449-009-0 12 1 9603-9904 ●
132 CONNECTOR ASM; LEAK OFF 1-15449-009-0 12 1 9905- ● ● ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15414-534-0 02 1 9603-9904 ●
133 PIPE; INJ NOZZLE LEAK OFF 1-15414-534-0 02 1 9905- ● ● ●
çizim 42007
37 38 40 31 39 143 32 44 141 140 47 140 138 45 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B C
31 NOZZLE ASM; INJ 1-15300-204-1 10 1 9603-9603 ●
31 NOZZLE ASM; INJ
RFD GOVERNOR(SD5) 		1-15300-204-1 10 1 9604-9903 ●
31 NOZZLE ASM; INJ
RFD GOVERNOR(SD5) 		1-15300-204-1 10 1 9904-9904 ●
31 NOZZLE ASM; INJ
RLD GOVERNOR(SD7) 		1-15300-328-0 10 1 9604-9709 ●
31 NOZZLE ASM; INJ
RLD GOVERNOR(SD7) 		1-15300-368-0 10 1 9710-9904 ●
31 NOZZLE ASM; INJ
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15300-368-0 10 1 9905-0003 ●
31 NOZZLE ASM; INJ
RLD GOVERNOR(SD7) 		1-15300-368-0 10 1 0004- ●
31 NOZZLE ASM; INJ
RFD GOVERNOR(SD5) 		1-15300-204-1 10 1 9905- ● ●
32 HOLDER ASM; NOZZLE 1-15330-089-1 10 1 9603-9603 ●
32 HOLDER ASM; NOZZLE
RFD GOVERNOR(SD5) 		1-15330-089-1 10 1 9604-9904 ●
32 HOLDER ASM; NOZZLE
RLD GOVERNOR(SD7) 		1-15330-109-0 10 1 9604-9904 ●
32 HOLDER ASM; NOZZLE
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15330-109-0 10 1 9905-0003 ●
32 HOLDER ASM; NOZZLE
RLD GOVERNOR(SD7) 		1-15330-109-0 10 1 0004- ●
32 HOLDER ASM; NOZZLE
RFD GOVERNOR(SD5) 		1-15330-089-1 10 1 9905- ● ●
33 NOZZLE; INJ 1-15311-180-0 10 1 9603-9603 ●
33 NOZZLE; INJ
RFD GOVERNOR(SD5) 		1-15311-180-0 10 1 9604-9809 ●
33 NOZZLE; INJ
RFD GOVERNOR(SD5) 		1-15311-180-0 10 1 9810-9904 ●
33 NOZZLE; INJ
RLD GOVERNOR(SD7) 		1-15311-261-0 10 1 9604-9709 ●
33 NOZZLE; INJ
RLD GOVERNOR(SD7) 		1-15311-286-0 10 1 9710-9904 ●
33 NOZZLE; INJ
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15311-286-0 10 1 9905-0003 ●
33 NOZZLE; INJ
RLD GOVERNOR(SD7) 		1-15311-286-0 10 1 0004- ●
33 NOZZLE; INJ
RFD GOVERNOR(SD5) 		1-15311-180-0 10 1 9905- ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 10 1 9603-9904 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15332-017-0 10 1 9905- ● ● ●
37 NUT; CAP,NOZZLE HOLDER 1-15334-015-0 10 1 9603-9603 ●
37 NUT; CAP,NOZZLE HOLDER
RFD GOVERNOR(SD5) 		1-15334-015-0 10 1 9604-9904 ●
37 NUT; CAP,NOZZLE HOLDER
RFD GOVERNOR(SD5) 		1-15334-015-0 10 1 9905- ● ●
37 NUT; CAP,NOZZLE HOLDER
RLD GOVERNOR(SD7) 		1-15334-004-0 10 1 9604-9904 ●
37 NUT; CAP,NOZZLE HOLDER
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15334-004-0 10 1 9905-0003 ●
37 NUT; CAP,NOZZLE HOLDER
RLD GOVERNOR(SD7) 		1-15334-004-0 10 1 0004- ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-15339-056-0 10 1 9603-9603 ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). RFD GOVERNOR(SD5) 		9-15339-056-0 10 1 9604-9904 ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). RFD GOVERNOR(SD5) 		9-15339-056-0 10 1 9905- ● ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 1-15345-004-0 10 1 9603-9904 ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 1-15345-004-0 10 1 9905- ● ● ●
40 NUT; ADJ SCREW,NOZZLE HOLDER 1-15332-011-0 10 1 9603-9904 ●
40 NUT; ADJ SCREW,NOZZLE HOLDER 1-15332-011-0 10 1 9905- ● ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 10 1 9603-9904 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94246-531-0 10 1 9905- ● ● ●
45 ROD; PUSH,NOZZLE HOLDER 1-15341-004-0 10 1 9603-9603 ●
45 ROD; PUSH,NOZZLE HOLDER
RFD GOVERNOR(SD5) 		1-15341-004-0 10 1 9604-9904 ●
45 ROD; PUSH,NOZZLE HOLDER
RLD GOVERNOR(SD7) 		1-15341-005-0 10 1 9604-9904 ●
45 ROD; PUSH,NOZZLE HOLDER
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15341-005-0 10 1 9905-0003 ●
45 ROD; PUSH,NOZZLE HOLDER
RLD GOVERNOR(SD7) 		1-15341-005-0 10 1 0004- ●
45 ROD; PUSH,NOZZLE HOLDER
RFD GOVERNOR(SD5) 		1-15341-004-0 10 1 9905- ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(B) 		9-15347-003-0 20 1 9603-9903 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(B) 		9-15347-003-0 20 1 9906- ● ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(B) 		9-15347-003-0 20 1 9904-9904 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER
(B) 		9-15347-003-0 20 1 9905-9905 ● ● ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 1-15339-015-0 10 1 9603-9904 ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 1-15339-015-0 10 1 9905- ● ● ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-001-0 10 1 9603-9904 ●
138 SPRING; NOZZLE LWR,NOZZLE HOLDER 1-15343-001-0 10 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 9603-9603 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 9603-9707 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 9603-9705 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 9603-9606 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 9603-9709 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 9603-9709 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 9603-9707 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 9603-9603 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 9604-9707 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 9603-9611 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 9603-9801 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 9603-9603 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 9603-9705 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 9603-9801 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 9603-9702 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 9604-9611 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 9604-9707 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 9607-9702 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 9612-9705 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 9612-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 9703-9705 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 9706-9802 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 9703-9804 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 9706-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 9706-9801 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 9706-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 9708-9804 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 9708-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 9708-9809 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 9708-9801 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 9710-9809 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 9710-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 9802-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 9802-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 9802-9809 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 9810-9903 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 9802-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 9803-9804 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 9805-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 9805-9903 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 9805-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 9810-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 9810-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 9904-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 9904-9904 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		5-15339-007-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.60 		5-15339-008-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.70 		5-15339-009-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.80 		5-15339-010-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.90 		5-15339-011-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.00 		5-15339-012-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		5-15339-018-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		5-15339-019-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		5-15339-020-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		5-15339-021-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-94128-982-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-94128-983-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-94128-984-0 AR 1 9905- ● ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-94128-985-0 AR 1 9905- ● ● ●
141 ROD; PUSH,UPR,NOZZLE HOLDER 1-15341-005-0 10 1 9603-9603 ●
141 ROD; PUSH,UPR,NOZZLE HOLDER
RFD GOVERNOR(SD5) 		1-15341-005-0 10 1 9604-9904 ●
141 ROD; PUSH,UPR,NOZZLE HOLDER
RFD GOVERNOR(SD5) 		1-15341-005-0 10 1 9905- ● ●
141 ROD; PUSH,UPR,NOZZLE HOLDER
RLD GOVERNOR(SD7) 		1-15341-004-0 10 1 9604-9904 ●
141 ROD; PUSH,UPR,NOZZLE HOLDER
RLD GOVERNOR(SD7) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		1-15341-004-0 10 1 9905-0003 ●
141 ROD; PUSH,UPR,NOZZLE HOLDER
RLD GOVERNOR(SD7) 		1-15341-004-0 10 1 0004- ●
143 SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER 1-15345-003-0 10 1 9603-9904 ●
143 SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER 1-15345-003-0 10 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
