0-66 — GENERATOR (#47006) — 145 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-94310-379-0, 94310379	1-81229-419-0	04	1	-
	24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-603-0	01	1	-

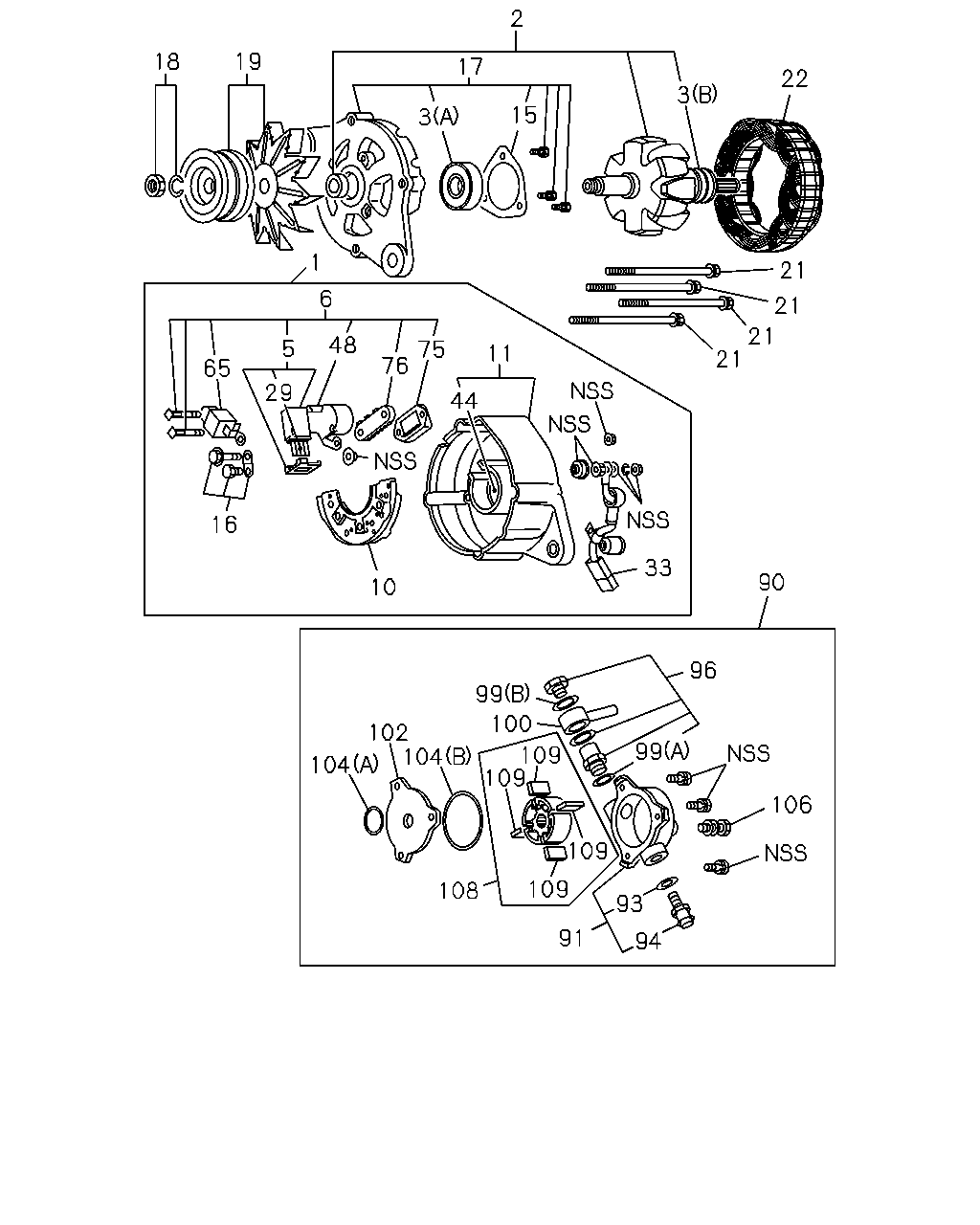

2 18 19 17 22 3 15 3 1 21 6 21 21 21 48 5 75 76 11 65 29 44 16 33 90 10 96 99 100 109 109 102 104 99 104 106 109 109 108 93 91 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97073-924-1, 97073924	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-657-0, 97187657	8-97188-852-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-595-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-97083-006-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: C = 8-97187-657-0, 97187657	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97073-924-1, 97073924	8-97062-744-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97073-924-1, 97073924	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-603-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97187-657-0, 97187657	8-97026-053-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-97073-924-1, 97073924	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-614-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97187-657-0, 97187657	8-97026-052-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97073-924-1, 97073924	8-94408-376-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97187-657-0, 97187657	8-97188-870-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0, 94310379	8-94456-590-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: A = 8-94310-379-0, 94310379	8-94456-593-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN 02.313 ASM PART: B = 8-97073-924-1, 97073924	8-94156-597-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: C = 8-97187-657-0, 97187657	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-97071-214-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-97073-924-1, 97073924	8-97016-301-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: C = 8-97187-657-0, 97187657	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-97029-004-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94310-379-0, 94310379	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-602-0	04	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97073-924-1, 97073924	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-607-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-657-0, 97187657	8-97203-864-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94310-379-0, 94310379	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-593-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-97071-213-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94237-727-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-606-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94250-964-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-591-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-609-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97073-924-1, 97073924	8-97083-009-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-0, 97187657	8-97171-006-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94424-381-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	5-19679-004-2	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	9-88130-081-0	04	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	5-19619-034-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-613-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-991-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97073-924-1, 97073924	5-19619-040-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-597-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97073-924-1, 97073924	8-94424-380-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: C = 8-97187-657-0, 97187657	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-994-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97073-924-1, 97073924	8-94380-632-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: C = 8-97187-657-0, 97187657	8-97137-333-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-985-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-610-0	04	1	-

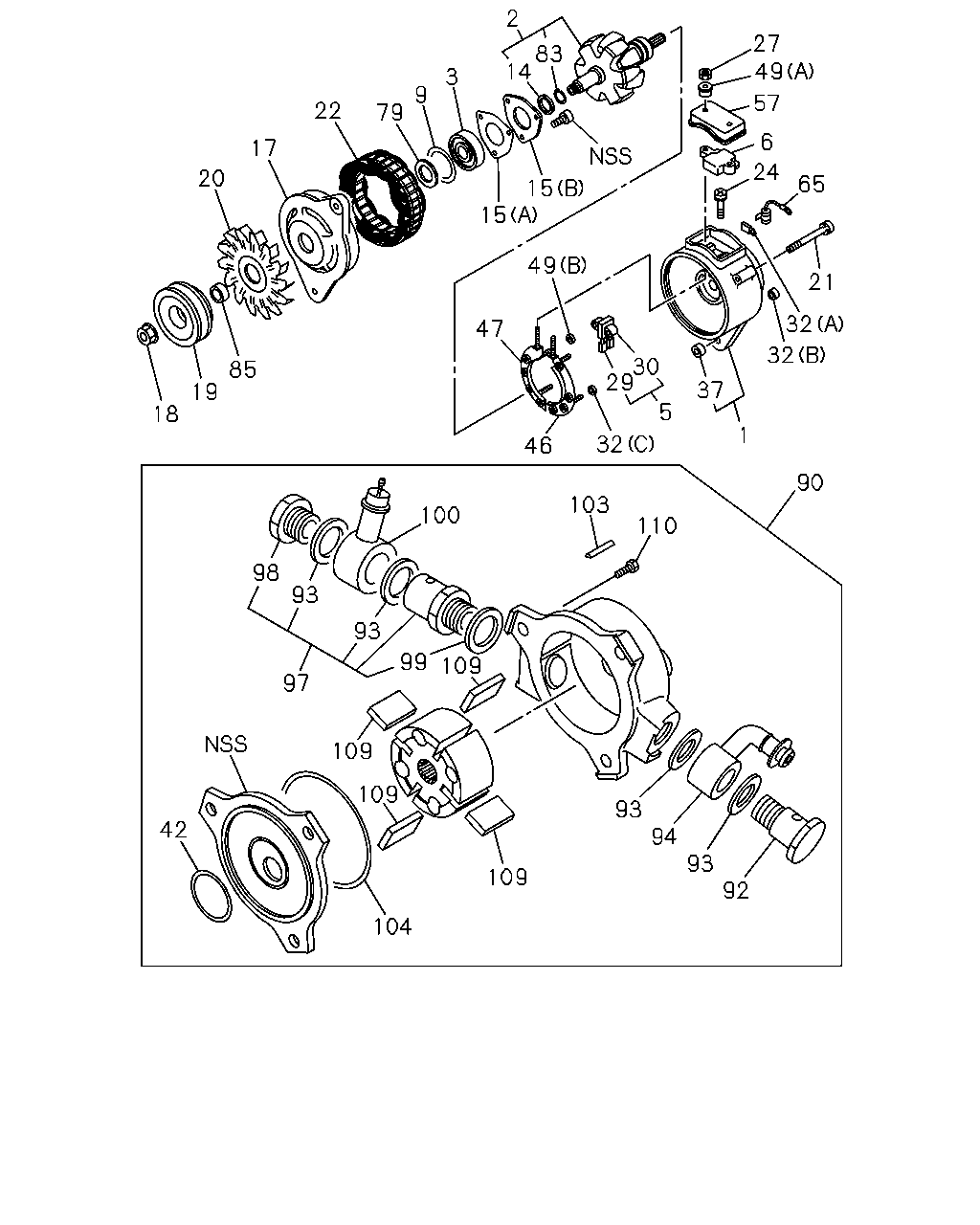

2 27 49 57 83 14 3 9 79 22 6 24 17 15 15 20 65 49 21 32 32 47 30 29 85 19 18 37 5 32 1 46 90 103 100 110 98 93 93 99 109 97 109 109 93 94 93 92 42 109 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97073-924-1, 97073924	8-97083-007-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97187-657-0, 97187657	8-97188-852-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-595-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-97083-006-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: C = 8-97187-657-0, 97187657	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97073-924-1, 97073924	8-97062-744-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97073-924-1, 97073924	8-94156-592-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-603-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97187-657-0, 97187657	8-97026-053-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN 02.291 ASM PART: B = 8-97073-924-1, 97073924	8-94167-410-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-614-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97187-657-0, 97187657	8-97026-052-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-591-0	01	1	-
14	02.307 COLLAR; STEEL ASM PART: A = 8-94310-379-0, 94310379	8-94456-596-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0, 94310379	8-94456-590-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: A = 8-94310-379-0, 94310379	8-94456-593-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-97071-214-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN 02.280 ASM PART: B = 8-97073-924-1, 97073924	8-97016-301-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: C = 8-97187-657-0, 97187657	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-97029-004-0	01	1	-
20	02.274 FAN; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-587-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94310-379-0, 94310379	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-602-0	04	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97073-924-1, 97073924	8-94167-406-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-607-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97187-657-0, 97187657	8-97203-864-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-94310-379-0, 94310379	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-603-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313 ASM PART: A = 8-94310-379-0, 94310379	8-94206-188-0	06	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94310-379-0, 94310379	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-593-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94310-379-0, 94310379	5-81216-002-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-94310-379-0, 94310379	1-81229-410-0	01	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (C) ASM PART: A = 8-94310-379-0, 94310379	1-81229-411-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN (A) ASM PART: A = 8-94310-379-0, 94310379	8-94456-602-0	01	1	-
37	02.291 BUSHING; RR COVER,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-599-0	01	1	-
42	02.307 GASKET; RR COVER,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-608-0	01	1	-
46	02.291 RECTIFIER; (+),GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-600-0	01	1	-
47	02.291 RECTIFIER; (-),GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-601-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (A) ASM PART: A = 8-94310-379-0, 94310379	1-81229-413-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (B) ASM PART: A = 8-94310-379-0, 94310379	5-81229-105-0	02	1	-
57	02.277 COVER; BRUSH,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-604-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-606-0	01	1	-
79	02.307 WASHER; FELT,ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-589-0	02	1	-
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	5-81229-109-0	01	1	-
85	02.277 SPACER; PULLEY,GEN 02.307 ASM PART: A = 8-94310-379-0, 94310379	8-94456-586-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-609-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97073-924-1, 97073924	8-97083-009-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97187-657-0, 97187657	8-97171-006-0	01	1	-
92	03.280 BOLT; DELIVERY,VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	5-19679-001-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	5-19679-004-2	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	9-88130-081-0	04	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	5-19619-034-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-613-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-612-0	01	1	-
98	03.280 BOLT; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	5-09000-134-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97073-924-1, 97073924	5-19619-040-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-597-0	01	1	-
103	03.286 PIN; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	9-88130-099-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-994-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97073-924-1, 97073924, C = 8-97187-657-0, 97187657	8-94223-985-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-610-0	04	1	-
110	03.280 BOLT; THROUGH ASM PART: A = 8-94310-379-0, 94310379	8-94456-611-0	03	1	-
