◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50693 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#47005) — 54 parça

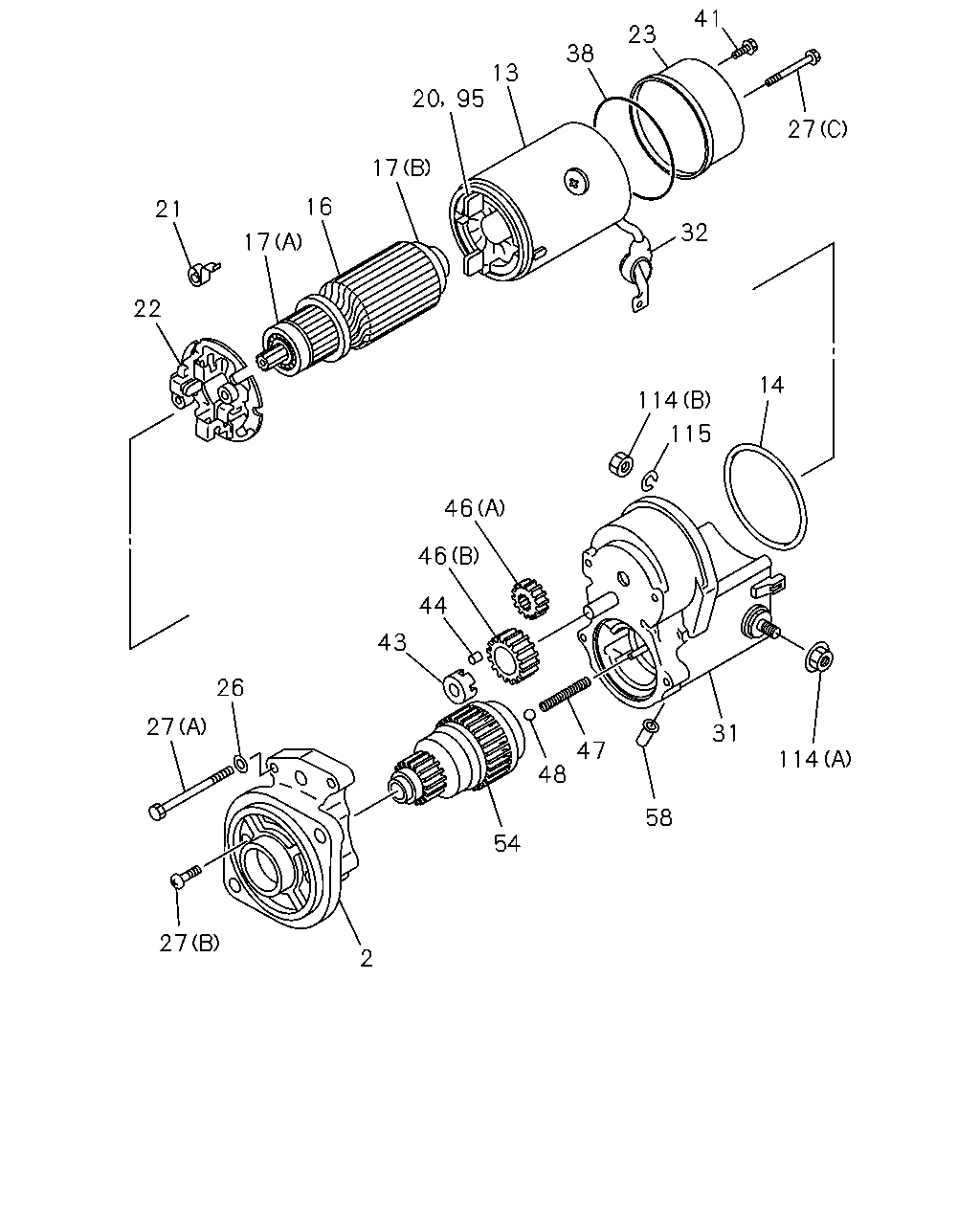

çizim 70907
41 23 38 13 95 20 27 17 16 17 21 32 22 14 114 115 46 46 44 43 26 27 31 47 48 114 58 54 27 2
BalonParca AdiParca NoAdetTipApplied Date
2 02.085 CASE; PINION,STARTER
ASM PART: A = 8-94448-959-2, 94448959 		5-81113-036-0 01 1 -
2 02.085 CASE; PINION,STARTER
ASM PART: B = 8-97042-997-0, 97042997 		8-94167-435-0 01 1 -
2 02.085 CASE; PINION,STARTER
ASM PART: C = 8-97120-356-2, 97120356 		8-97142-908-0 01 1 -
13 02.049 YOKE; STARTER
ASM PART: A = 8-94448-959-2, 94448959 		5-81111-010-0 01 1 -
13 02.049 YOKE; STARTER
ASM PART: B = 8-97042-997-0, 97042997 		8-94167-425-0 01 1 -
13 02.049 YOKE; STARTER
ASM PART: C = 8-97120-356-2, 97120356 		8-97135-497-0 01 1 -
14 02.087 GASKET; YOKE,STARTER
02.086 ASM PART: A = 8-94448-959-2, 94448959 		5-81129-210-0 01 1 -
14 02.087 GASKET; YOKE,STARTER
ASM PART: B = 8-97042-997-0, 97042997 		8-94167-428-0 01 1 -
16 02.043 ARMATURE; STARTER
ASM PART: A = 8-94448-959-2, 94448959 		5-81121-029-0 01 1 -
16 02.043 ARMATURE; STARTER
ASM PART: B = 8-97042-997-0, 97042997 		8-97083-193-0 01 1 -
16 02.043 ARMATURE; STARTER
ASM PART: C = 8-97120-356-2, 97120356 		8-97112-869-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(A) ASM PART: A = 8-94448-959-2, 94448959 		5-09800-081-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(A) ASM PART: C = 8-97120-356-2, 97120356 		8-94377-240-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(A) ASM PART: B = 8-97042-997-0, 97042997 		8-97083-195-0 01 1 -
17 02.083 BEARING; ARMATURE,STARTER
(B) ASM PART: C = 8-97120-356-2, 97120356 		8-97112-954-0 01 1 -
20 02.051 BRUSH; (+),STARTER
ASM PART: A = 8-94448-959-2, 94448959 		5-81116-040-0 02 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-94448-959-2, 94448959, B = 8-97042-997-0, 97042997 		5-81117-015-0 04 1 -
21 02.053 SPRING; BRUSH HOLDER STARTER
ASM PART: C = 8-97120-356-2, 97120356 		8-97112-880-0 04 1 -
22 02.051 HOLDER; BRUSH STARTER
02.052 ASM PART: A = 8-94448-959-2, 94448959 		5-81118-021-0 01 1 -
22 02.051 HOLDER; BRUSH STARTER
ASM PART: B = 8-97042-997-0, 97042997 		8-94167-430-0 01 1 -
22 02.051 HOLDER; BRUSH STARTER
ASM PART: C = 8-97120-356-2, 97120356 		8-97112-873-0 01 1 -
23 02.067 COVER; RR COVER STARTER
ASM PART: C = 8-97120-356-2, 97120356 		8-97112-875-0 01 1 -
26 02.077 SEAL; THROUGH BOLT STARTER
02.085 ASM PART: A = 8-94448-959-2, 94448959, B = 8-97042-997-0, 97042997 		5-81129-211-0 02 1 -
27 02.077 BOLT; THROUGH,STARTER
(A) ASM PART: A = 8-94448-959-2, 94448959, B = 8-97042-997-0, 97042997 		8-94167-433-0 02 1 -
27 02.077 BOLT; THROUGH,STARTER
(B) ASM PART: A = 8-94448-959-2, 94448959, B = 8-97042-997-0, 97042997 		8-94167-434-0 02 1 -
27 02.077 BOLT; THROUGH,STARTER
(B) ASM PART: C = 8-97120-356-2, 97120356 		8-97112-881-0 02 1 -
27 02.077 BOLT; THROUGH,STARTER
(C) ASM PART: C = 8-97120-356-2, 97120356 		8-97112-957-0 02 1 -
31 02.100 SWITCH; ENGAGE STARTER
ASM PART: A = 8-94448-959-2, 94448959 		8-94450-045-1 01 1 -
31 02.100 SWITCH; ENGAGE STARTER
ASM PART: B = 8-97042-997-0, 97042997 		8-97083-196-0 01 1 -
31 02.100 SWITCH; ENGAGE STARTER
ASM PART: C = 8-97120-356-2, 97120356 		8-97142-907-0 01 1 -
32 02.115 COVER; RUBBER,STARTER
ASM PART: C = 8-97120-356-2, 97120356 		5-81119-029-0 01 1 -
38 02.070 GASKET; RR COVER,STARTER
02.049 ASM PART: C = 8-97120-356-2, 97120356 		8-94170-214-0 02 1 -
41 02.067 SCREW; RR COVER,STARTER
ASM PART: C = 8-97120-356-2, 97120356 		8-97142-903-0 02 1 -
43 02.086 RETAINER; PINION STARTER
ASM PART: A = 8-94448-959-2, 94448959, B = 8-97042-997-0, 97042997 		5-81129-100-0 01 1 -
43 02.086 RETAINER; PINION STARTER
ASM PART: C = 8-97120-356-2, 97120356 		8-94377-246-0 01 1 -
44 02.086 ROLLER; PINION STARTER
ASM PART: A = 8-94448-959-2, 94448959, B = 8-97042-997-0, 97042997, C = 8-97120-356-2, 97120356 		5-81129-099-0 05 1 -
46 02.086 GEAR; CLU STARTER
(A) ASM PART: A = 8-94448-959-2, 94448959, B = 8-97042-997-0, 97042997 		5-81123-010-0 01 1 -
46 02.086 GEAR; CLU STARTER
(B) ASM PART: A = 8-94448-959-2, 94448959 		5-81123-011-0 01 1 -
46 02.086 GEAR; CLU STARTER
(B) ASM PART: B = 8-97042-997-0, 97042997 		8-94167-427-0 01 1 -
46 02.086 GEAR; CLU STARTER
(B) ASM PART: C = 8-97120-356-2, 97120356 		8-97078-649-0 01 1 -
46 02.086 GEAR; CLU STARTER
(A) ASM PART: C = 8-97120-356-2, 97120356 		8-97142-904-0 01 1 -
47 02.086 SPRING; PINION STARTER
02.108 ASM PART: A = 8-94448-959-2, 94448959, B = 8-97042-997-0, 97042997 		5-81129-096-0 01 1 -
47 02.086 SPRING; PINION STARTER
ASM PART: C = 8-97120-356-2, 97120356 		8-94377-245-0 01 1 -
48 02.108 BALL; PINION,STARTER
ASM PART: A = 8-94448-959-2, 94448959, B = 8-97042-997-0, 97042997, C = 8-97120-356-2, 97120356 		5-81129-092-0 01 1 -
54 02.086 CLUTCH; PINION,STARTER
ASM PART: A = 8-94448-959-2, 94448959, B = 8-97042-997-0, 97042997 		5-81124-003-0 01 1 -
54 02.086 CLUTCH; PINION,STARTER
ASM PART: C = 8-97120-356-2, 97120356 		8-97148-687-0 01 1 -
58 03.330 PIPE; DRAIN RR COVER STARTER
ASM PART: B = 8-97042-997-0, 97042997 		1-81129-677-0 02 1 -
58 03.330 PIPE; DRAIN RR COVER STARTER
02.067 ASM PART: C = 8-97120-356-2, 97120356 		8-97041-421-0 01 1 -
95 02.051 BRUSH ASM; STARTER
ASM PART: B = 8-97042-997-0, 97042997 		8-97083-194-0 01 1 -
114 02.055 NUT; TERMINAL
02.042, (A) ASM PART: A = 8-94448-959-2, 94448959, B = 8-97042-997-0, 97042997 		5-09400-042-0 01 1 -
114 02.055 NUT; TERMINAL
02.102, (A) ASM PART: C = 8-97120-356-2, 97120356 		8-94109-763-0 01 1 -
114 02.055 NUT; TERMINAL
(B) ASM PART: C = 8-97120-356-2, 97120356 		8-94377-238-0 01 1 -
114 02.055 NUT; TERMINAL
00.002, (B) ASM PART: B = 8-97042-997-0, 97042997 		9-09110-508-0 01 1 -
115 02.063 WASHER; TERMINAL
00.002, ID=8.2 ASM PART: B = 8-97042-997-0, 97042997 		9-09150-508-0 01 1 -
